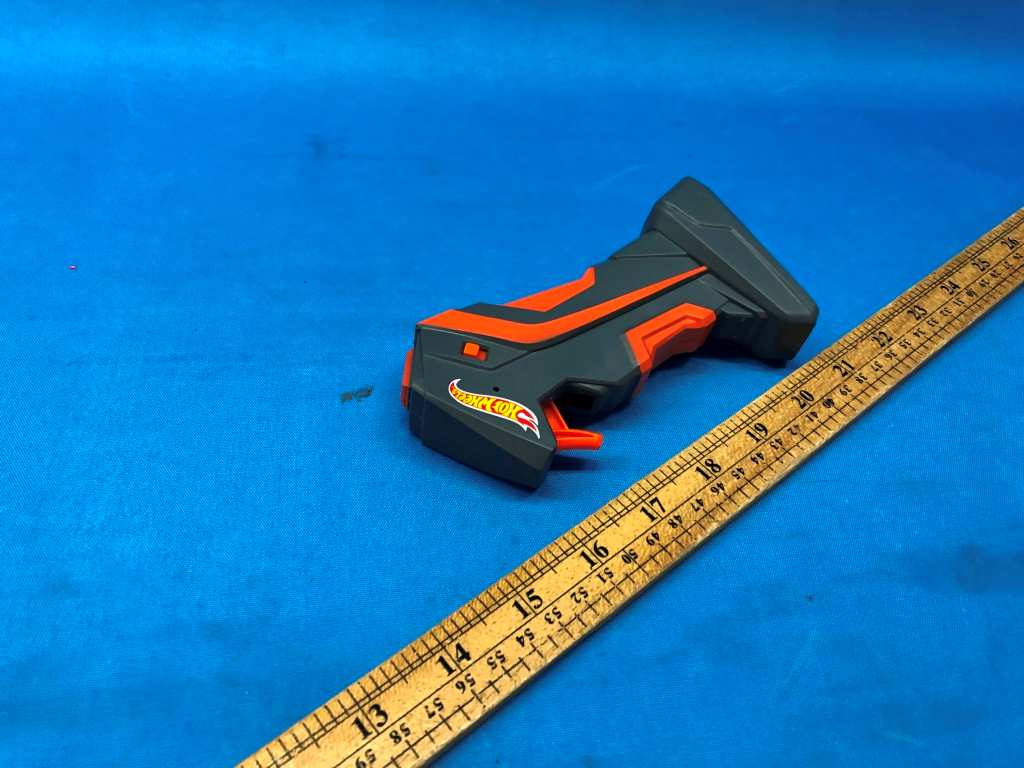

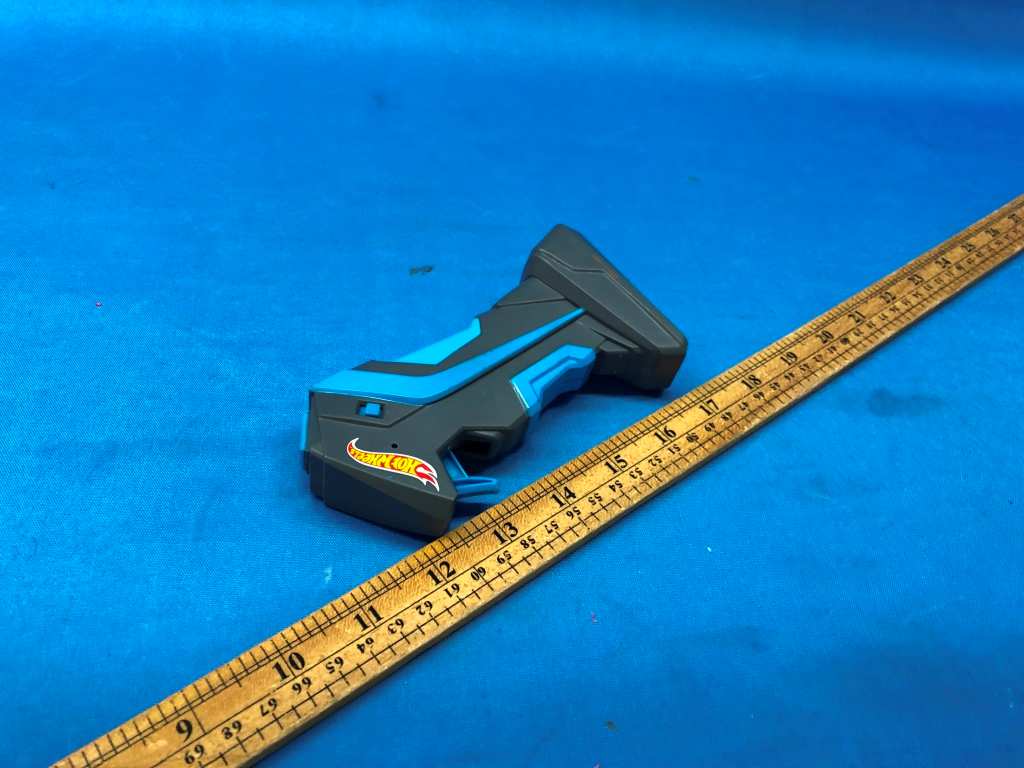

INTERTEK TESTING SERVICE FCC ID: OTM-8316120-24GTX IC: 20978-831612024G Equipment Photographs (Orange Controller - External) INTERTEK TESTING SERVICE FCC ID: OTM-8316120-24GTX IC: 20978-831612024G Equipment Photographs (Orange Controller - External) INTERTEK TESTING SERVICE FCC ID: OTM-8316120-24GTX IC: 20978-831612024G Equipment Photographs (Blue Controller- External) INTERTEK TESTING SERVICE FCC ID: OTM-8316120-24GTX IC: 20978-831612024G Equipment Photographs (Blue Controller- External)

INTERTEK TESTING SERVICE FCC ID: OTM-8316120-24GTX IC: 20978-831612024G Equipment Photographs (Orange Controller - Internal) INTERTEK TESTING SERVICE FCC ID: OTM-8316120-24GTX IC: 20978-831612024G Equipment Photographs (Orange Controller - Internal) INTERTEK TESTING SERVICE FCC ID: OTM-8316120-24GTX IC: 20978-831612024G Equipment Photographs (Orange Controller - Internal) INTERTEK TESTING SERVICE FCC ID: OTM-8316120-24GTX IC: 20978-831612024G Equipment Photographs (Orange Controller - Internal) INTERTEK TESTING SERVICE FCC ID: OTM-8316120-24GTX IC: 20978-831612024G Equipment Photographs (Orange Controller - Internal) INTERTEK TESTING SERVICE FCC ID: OTM-8316120-24GTX IC: 20978-831612024G Equipment Photographs (Blue Controller - Internal) INTERTEK TESTING SERVICE FCC ID: OTM-8316120-24GTX IC: 20978-831612024G Equipment Photographs (Blue Controller - Internal) INTERTEK TESTING SERVICE FCC ID: OTM-8316120-24GTX IC: 20978-831612024G Equipment Photographs (Blue Controller - Internal) INTERTEK TESTING SERVICE FCC ID: OTM-8316120-24GTX IC: 20978-831612024G Equipment Photographs (Blue Controller - Internal) INTERTEK TESTING SERVICE FCC ID: OTM-8316120-24GTX IC: 20978-831612024G Equipment Photographs (Blue Controller - Internal)

Technical Description The Equipment Under Test (EUT), is a portable 2.4GHz Transmitter (Orange Controller Unit) for a RC car. The sample supplied operated on 1 channel, normally at 2450MHz. The Equipment Under Test (EUT), is a portable 2.4GHz Transmitter (Blue Controller Unit) for a RC car. The sample supplied operated on 1 channel, normally at 2460MHz. Both Controller units are powered by 2 x 1.5V AAA batteries. After switching on the EUT, the car will be moved forward or backward based on the switches pressed in the controller. For Orange Controller Antenna Type: Internal, Integral antenna Antenna Gain: 0dBi Nominal rated field strength is 97.2dBμV/m at 3m (Peak), 66.6dBμV/m at 3m (Average) Maximum allowed production tolerance: +/- 3dB The brief circuit description is listed as follows: 1. U1 acts as MCU 2. Y1 acts as 12MHz Oscillator 3. C1, C5, C6 and L1 act as antenna matching circuit For Blue Controller Antenna Type: Internal, Integral antenna Antenna Gain: 0dBi Nominal rated field strength is 95.5dBμV/m at 3m (Peak), 64.3dBμV/m at 3m (Average) Maximum allowed production tolerance: +/- 3dB The brief circuit description is listed as follows: 1. U1 acts as MCU 2. Y1 acts as 12MHz Oscillator 3. C1, C5, C6 and L1 act as antenna matching circuit

Analysis Report The Equipment Under Test (EUT), is a portable 2.4GHz Transmitter (Orange Controller Unit) for a RC car. The sample supplied operated on 1 channel, normally at 2450MHz. The Equipment Under Test (EUT), is a portable 2.4GHz Transmitter (Blue Controller Unit) for a RC car. The sample supplied operated on 1 channel, normally at 2460MHz. Both Controller units are powered by 2 x 1.5V AAA batteries. After switching on the EUT, the car will be moved forward or backward based on the switches pressed in the controller. For Orange Controller Antenna Type: Internal, Integral antenna Antenna Gain: 0dBi Nominal rated field strength is 97.2dBμV/m at 3m (Peak), 66.6dBμV/m at 3m (Average) Maximum allowed production tolerance: +/- 3dB According to the KDB 447498: Based on the maximum average field strength of production tolerance was 69.6dBμV/m at 3m in frequency 2.450GHz. Thus, it below calculated field strength according to minimum SAR exclusion threshold level as follows: The worst case of SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.483.5) mW = 9.52 mW According to the KDB 412172 D01: EIRP = [(FS*D) ^2*1000 / 30] Calculated Field Strength for 9.52mW is 105dBuV/m @3m Since maximum average field strength plus production tolerance < = 105dBuV/m @3m and antenna gain is > = 0.0dBi, it is concluded that maximum Conducted Power and Field Strength are well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing. For Blue Controller Antenna Type: Internal, Integral antenna Antenna Gain: 0dBi Nominal rated field strength is 95.5dBμV/m at 3m (Peak), 64.3dBμV/m at 3m (Average) Maximum allowed production tolerance: +/- 3dB According to the KDB 447498: Based on the maximum average field strength of production tolerance was 67.3dBμV/m at 3m in frequency 2.460GHz. Thus, it below calculated field strength according to minimum SAR exclusion threshold level as follows: The worst case of SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.483.5) mW = 9.52 mW According to the KDB 412172 D01: EIRP = [(FS*D) ^2*1000 / 30] Calculated Field Strength for 9.52mW is 105dBuV/m @3m Since maximum average field strength plus production tolerance < = 105dBuV/m @3m and antenna gain is > = 0.0dBi, it is concluded that maximum Conducted Power and Field Strength are well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

1 1 2 2 3 3 4 4 DD CC BB AA Title NumberRevisionSize A4 Date:2019/3/22Sheet of File:E:\E \..\.SchDoc Drawn By: 3V R1 1K LED . VDD LED 1 2 3 4 5 6 7 89 10 11 12 13 14 15 16 U1 * ANT L1 0R Y1 12M C4 * C50.5P C1 0.5P C32.2UF C2 104 GND VDD GND C8 36P C7 36P GND LED GND AD AD GND VDD R2 10R GND R3 10R C9 104 GND GND K1 1 2 3 W1 5K J1 0R J2 * GNDGND C6 1P GND " * " value represents spare socket.

2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong SAR, China. Telephone: (852) 2173 8888 Facsimile: (852) 2785 5487 www.intertek.com Intertek’s standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. © 2017 Intertek Page 1 of 18 TEST REPORT Report No.: 20060520HKG‐001R1 Kidztech Toys Manufacturing Ltd. Application For Certification (Original Grant) FCC ID: OTM‐8316120‐24GTX IC: 20978‐831612024G Transmitter This report supersedes previous report with report number 20060520HKG‐001 dated June 22, 2020. Please refer TY‐S20‐0114 Letter issued on July 28, 2020 for amendment/ supersede notification. Prepared and Checked by: Approved by: Signed On File Lee For Yiu, Florey Assistant Engineer Wong Kwok Yeung, Kenneth Senior Lead Engineer Date: July 28, 2020 TEST REPORT Kidztech Toys Manufacturing Ltd. Intertek Report No: 20060520HKG‐001R1 Page 2 of 18 GENERAL INFORMATION Grantee: Kidztech Toys Manufacturing Ltd. Grantee Address: Room 1201, 12/F., Inter‐Continental Plaza, 94 Granville Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Eric Ho Tel: (852) 2721 8868 Fax: (852) 2721 8838 e‐mail: N/A Manufacturer: Kidztech Intelligent Technology Co., Ltd. Manufacturer Address: No. 9, Zhen Dao Gou Dong Industrial Avenue, Yong Xin Industrial Estate, Lian Shang Town, Chenghai District, Shantou City, 515833, Guangdong, China Brand Name: Kidztech Toys FCC Model: 83161 FCC Additional Model: 83151, 83152, 83153, 83154, 83155, 83156, 83157, 83159, 83159, 83160, 83162, 83163, 83164, 83165, 83166, 83167, 83168, 83169, 83170, 83137 HVIN: 831612024G PMN: 831612024G Type of EUT: Transmitter Description of EUT: 1/43 Hot Wheels Track Set ‐ 2.4G Zero‐Gravity Slot Track Set Serial Number: N/A FCC ID / IC: OTM‐8316120‐24GTX / 20978‐831612024G Date of Sample Submitted: June 09, 2020 Date of Test: June 09, 2020 to June 19, 2020 Report No.: 20060520HKG‐001R1 Report Date: July 28, 2020 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Conclusion: Test was conducted by client submitted sample. The submitted sample as received complied with the 47 CFR Part 15 / RSS‐210 Issue 10 Certification. TEST REPORT Kidztech Toys Manufacturing Ltd. Intertek Report No: 20060520HKG‐001R1 Page 3 of 18 SUMMARY OF TEST RESULT Test Specification Reference Results Radiated Emission Radiated Emission on the Bandedge 15.249, 15.209 / RSS‐210 B.10, RSS‐210 4.4 Pass Radiated Emission in Restricted Bands 15.205 / RSS‐210 4.1 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2018 Edition RSS‐210 Issue 10, December 2019 RSS‐Gen Issue 5 Amendment 1, March 2019 Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. TEST REPORT Kidztech Toys Manufacturing Ltd. Intertek Report No: 20060520HKG‐001R1 Page 4 of 18 TABLE OF CONTENTS 1.0 GENERAL DESCRIPTION ................................................................................................5 1.1 Product Description .................................................................................................5 1.2 Related Submittal(s) Grants......................................................................................5 1.3 Test Methodology....................................................................................................6 1.4 Test Facility ..............................................................................................................6 2.0 SYSTEM TEST CONFIGURATION.....................................................................................7 2.1 Justification..............................................................................................................7 2.2 EUT Exercising Software...........................................................................................7 2.3 Special Accessories...................................................................................................7 2.4 Measurement Uncertainty.......................................................................................7 2.5 Support Equipment List and Description ..................................................................7 3.0 EMISSION RESULTS.......................................................................................................8 3.1 Field Strength Calculation.........................................................................................8 3.2 Radiated Emission Configuration Photograph..........…

Text truncated - open the document above for the full version.

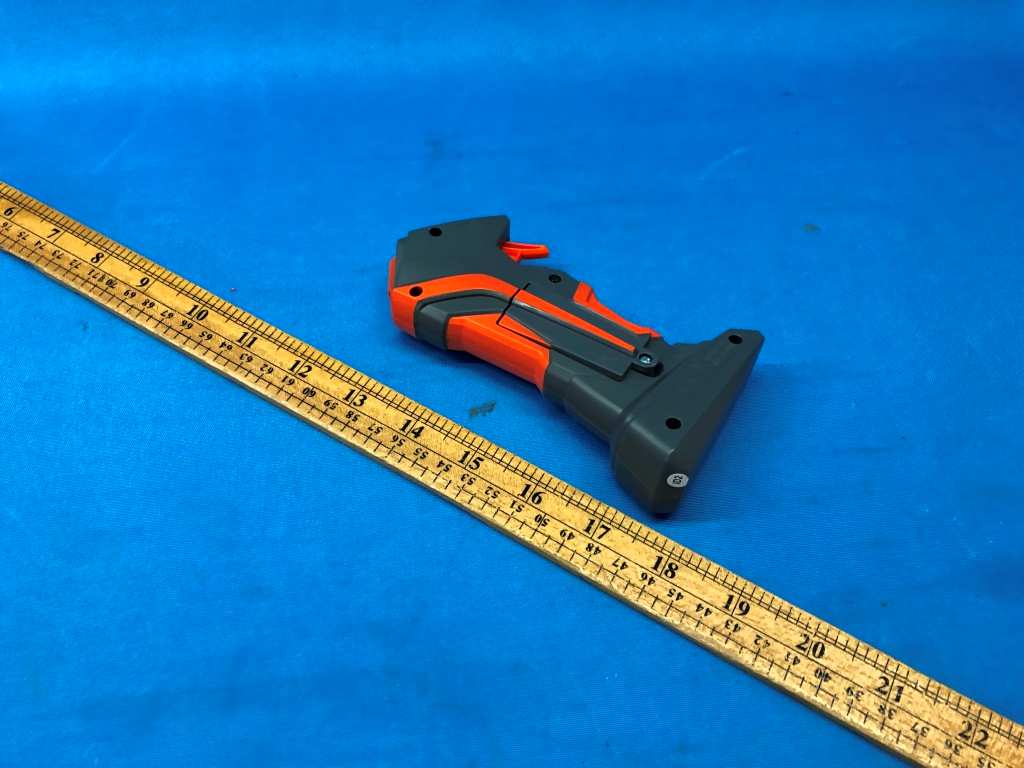

INTERTEK TESTING SERVICE FCC ID: OTM-8316120-24GTX IC: 20978-831612024G Configuration Photographs Worst-Case Radiated Emissions (Orange Controller - Front View) INTERTEK TESTING SERVICE FCC ID: OTM-8316120-24GTX IC: 20978-831612024G Configuration Photographs Worst-Case Radiated Emissions (Orange Controller - Back View) INTERTEK TESTING SERVICE FCC ID: OTM-8316120-24GTX IC: 20978-831612024G Configuration Photographs Worst-Case Radiated Emissions (Blue Controller - Front View) INTERTEK TESTING SERVICE FCC ID: OTM-8316120-24GTX IC: 20978-831612024G Configuration Photographs Worst-Case Radiated Emissions (Blue Controller - Back View)
