OTM-84011-49MTX1/6 R/C Kawasaki Brute Force 750 ATV Quad

0979 connected This device complies with Industry Canada Licence-exempt RSS-310. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

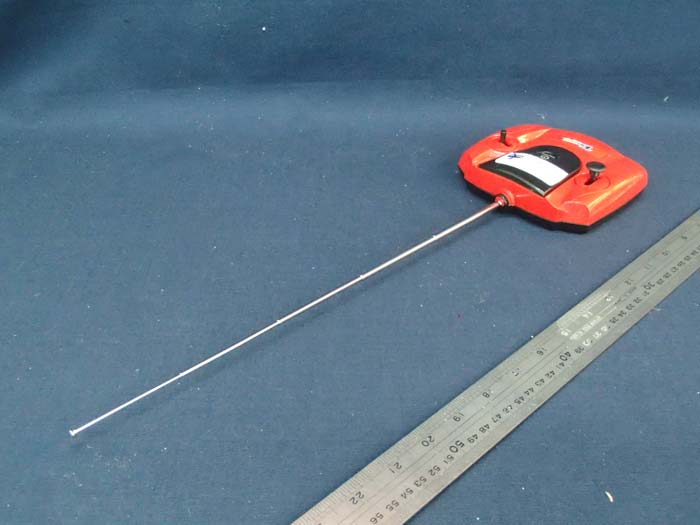

INTERTEK TESTING SERVICE Report No.: 14070461HKG-001 Equipment Photographs Model : 84011 (External) FCC ID: OTM-84011-49MTX

INTERTEK TESTING SERVICE Report No.: 14070461HKG-001 Equipment Photographs Model: 84011 (Internal) FCC ID: OTM-84011-49MTX INTERTEK TESTING SERVICE Report No.: 14070461HKG-001 Equipment Photographs Model: 84011 (Internal) FCC ID: OTM-84011-49MTX INTERTEK TESTING SERVICE Report No.: 14070461HKG-001 Equipment Photographs Model: 84011 (Internal) FCC ID: OTM-84011-49MTX

FCC ID: OTM-84011-49MTX Model: 84011 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 49.86 MHz, and controls the corresponding receiver to move forward, backward, left and right. The circuit of the transmitter comprises of, 1. An Encoding circuit Consisting: SW1, SW2, SW3, SW4, IC1 (977) 2. A RF Oscillator (49.86MHz) Consisting: TX1, Q1 3. A Filter Network Consisting: T1, C6, C7, C8, L3 4. A RF Modulator and Amplifier Consisting: Q2 5. A Power Supply Consisting: 9VDC (1 X “9V” battery) 6. Regulator Consisting: ZD1, C9 Antenna Gain: 0dBi Nominal rated field strength: 65.5dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB The transmitter uses an external and telescope antenna with unique antenna connector .

Analysis Report Report No.: 14070461HKG-001 The Equipment Under Test (EUT) is a portable transmitter of a RC Car operating at 49.86 MHz as dictated by a crystal. The EUT is powered by a 9.0 V DC source (1 x 9.0V battery). The EUT has a on/off switch, a left / right control lever and a forward / backward control lever. After switching ON the EUT and the receiver of the RC Car, activating the control levers on the EUT can control the receiver moving forward, backward left and right directions. Antenna Type: External, telescope antenna with unique antenna connector Antenna Gain: 0dBi Nominal rated field strength: 65.5dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 68.5dBμV/m at 3m in frequency 49.860MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.00212mW Thus; Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.00212mW. The SAR Exclusion Threshold Level for 49.860MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 308.6mW Since the above conducted output power is well below the SAR Exclusion Threshold level, so the EUT is considered to comply with SAR requirement without testing.

1 1 2 2 3 3 4 4 DD CC BB AA A NTENN A C1 47P C2 47P C3 101 C6 47P Q1 C94 5P Q2 C94 5P L3 3.3uH L2 1.5uH L1 1.5uH R4 22K R1 100 R3 150K TX1 49.860MHz LED 9V R 1 NC 2 GND 3 B 4 F 5 T 6 SC 7 SO 8 V DD 9 PC 10 OS CO 11 OS CI 12 NC 13 L 14 IC1 977 R6 220K R5 330 C4 103 C9 104P C7 47P ZD1 3.3V K1 SW SP ST R7 3.9K T1 15.5T C8 33P R2 100 C5 103 C10 104

Valued Quality. Delivercd. lssuing Laboratory: lntertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 - TESÐ under HOKLAS for spec¡fic laboratory ac{¡vities as listed in the HOKLAS direc{ory of accredited laboratories. TEST REPORT HII= Ê6il **# F Prepared and Checked by: Tse Ying, Cathy Senior Lead Engineer Report No.: 14070461HKG-001 Kidztech Toys Manufacturing Ltd. Application For Certification (Original Grant) (FCC lD: OTM-8401 I 49MTX) Transmitter Approved by: Date: July 25, 2014 This report shall not be reproduc€d, exæpt in full. Th¡s report is for thê oxclus¡ve use of lntertêks Client and is prcv¡ded pursuant to the agreement between lntertek and its Client. lnterteks rêsponsibility and liâbility are lim¡ted to the terms and conditims of the agreemênt. lntertêk assumss no l¡ab¡l¡ty to any party, other than to the Cl¡ent ¡n amrdanæ w¡th lhe agreement, for any loss, expense or damage oæsioned by thê use of th¡s rêport. Only ths Cl¡enl is authorized to permit copy¡ng or d¡stribution of this report and then only in ¡ts entirety. Any use of thê Interlêk name or one of ¡ts marks for the sale or âdvertisement of the tested material, product or s€rvice must f¡rst be approvsd ¡n w¡ting by lntertek. The obserual¡ons and test results ¡n this report are relevant only to the sample tested. This report by itself does not imply thât the mater¡al, produc{, or seryiæ is or has evêr been under an lntertêk cert¡f¡cation program. lntertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax:, (852)2785 5487 Website: www.hk.intertek-etlsemko.com Ng Mei Nar, Ct Lead Engineer Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 14070461HKG-001 i FCC ID: OTM-84011-49MTX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Kidztech Toys Manufacturing Ltd. Grantee Address: Room 1201, 12/F., Inter-Continental Plaza, 94 Granville Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Eric Ho Tel: 852-2721 8868 Fax: 852-2721 8838 e-mail: N/A Manufacturer: Shantou Chenghai JinJun Toys Co. Ltd. Manufacturer Address: Yongxin Industry Zone, Lianshang, Chenghai, Shantou, China Brand Name: N/A Model: 84011 Additional Model: 84331 Type of EUT: Transmitter Description of EUT: 1/6 R/C Kawasaki Brute Force 750 ATV Quad Serial Number: N/A FCC ID: OTM-84011-49MTX Date of Sample Submitted: July 10, 2014 Date of Test: July 10, 2014 to July 24, 2014 Report No.: 14070461HKG-001 Report Date: July 25, 2014 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 14070461HKG-001 ii FCC ID: OTM-84011-49MTX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength and Bandwidth Requirement 15.235 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2012 Edition Note: 1. The EUT uses detachable antenna with unique antenna connector which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 14070461HKG-001 iii FCC ID: OTM-84011-49MTX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants ............................................................................... 1 1.3 Test Methodology .............................................................................................. 1 1.4 Test Facility ....................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification........................................................................................................ 2 2.2 EUT Exercising Software ................................................................................... 2 2.3 Special Accessories........................................................................................... 2 2.4 Measurement Uncertainty .................................................................................. 2 2.5 Support Equipment List and Description............................................................. 2 3.0 Emission Results ..…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 14070461HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 84011 FCC ID: OTM-84011-49MTX INTERTEK TESTING SERVICE Report No: 14070461HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 84011 FCC ID: OTM-84011-49MTX
