OTM-84052-27MTXR/C Yamaha 2014 Raptor 700R

NO. 84052 BATTERY REQUIREMENTS: Vehicle: 5 X “1.5V AA” Batteries (not included) Transmitter: 1 X “9V” Battery (not included) 1 X 9V Battery For Transmitter (Not Included) 9V 5 x AA Batteries For Vehicle (Not Included) CONTENTS BATTERY PRECAUTION 1. Alkaline batteries are recommended to be used 2. Only batteries of the same or equivalent type as recommended are to be used 3. Do not mix alkaline, standard or rechargeable batteries 4. Do not mix old and new batteries or different type of batteries 5. Non-rechargeable batteries are not to be charged 6. If rechargeable batteries are to be used, they are only to be charged under adult supervision 7. Rechargeable batteries are to be removed from the product before they are charged 8. Be sure to insert batteries with correct polarities and always follow the battery manufacturer’s instructions 9. Remove all batteries from the Vehicle and Transmitter when not in use 10. Exhausted batteries are to be removed from the product 11. The supply terminals are not to be short-circuited 12. Dispose of batteries properly. Do not dispose the batteries in fire - it may cause them to explode or leak causing injury or damage 13. Battery installation and removal must only be done by adult For Vehicle (Fig. 1 and Fig. 2) 1. Switch OFF the power. 2. Unscrew the screw on the battery cover. 3. Open the battery cover. 4. Install 5 new 1.5V “AA” batteries with correct polarities (+/-) as shown inside the battery compartment. 5. Close the battery cover. 6. Tighten the screw on the battery cover. For Transmitter (Fig. 3 and Fig. 4) 1. Switch OFF the power. 2. Unscrew the screw on the battery cover. 3. Open the battery cover. 4. Install 1 new 9V battery with correct polarity (+/-) as shown inside the battery compartment. 5. Close the battery cover. 6. Tighten the screw on the battery cover. 7. Insert the antenna into the top of Transmitter, tighten it by rotating clockwise. (viewing from top of Transmitter) Fig. 1Fig. 2Fig. 3Fig. 4 Antenna for RC Transmitter x 1 Antenna Tube for RC Vehicle x 1 Instruction Manual x 1 Battery and Antenna Installation Vehicle Transmitter 1.5V / AA 1.5V / AA 1.5V / AA 1.5V / AA 1.5V / AA Insert Batteries Here RC Vehicle (With Rider) x 1RC Transmitter x 1 FULL FUNCTION RADIO CONTROL FULL FUNCTION RADIO CONTROL Manufactured & Distributed by KIDZTECH TOYS MANUFACTURING LTD. All Rights Reserved Made in China age 6 Environmental notes: The whole product also does not belong to household waste at the end of the product life. You can return it at collection points for the recycling of electronic and electronical instruments The symbol on the item, instruction manual, hangtag or packing is showing this clearly. Materials should be recycled according to their respective markings. Recycling of old devices or other re-use of materials contained therein represents an important contribution to environmental protection. Please ask at your local community for the correct collection point. Disposal of batteries Batteries should not be disposed of in the household waste. As the consumer you are legally obliged to return batteries containing harmful substances and all other used batteries. You can hand in your old batteries at public collection points in your area or wherever batteries are sold. You will find these chemical abbreviations along with a crossed-out refuse bin on batteries containing harmful substances: Pb=Battery contains lead Cd=Battery contains cadmium Hg=Battery contains mercury Performance Tips 1. Do not drive on grass, dirt, sand, dusts, carpet or go through water. 2. Do not drive in windy or rainy weather. 3. Avoid direct impact the Vehicle with obstacles. 4. Switch OFF the power when not in use to prevent damage of Vehicle and Transmitter due to leakage of electrolyte from batteries. 5. Remove all batteries from the Vehicle and Transmitter when not in use for long period. 6. Keep fingers, hair and loose clothing away from wheels. 7. The operating range can be affected by a variety of factors. a) Low Voltage of batteries in Transmitter or Vehicle. b) Interference from other items that emit radio frequency signals. 8. Outdoor usage is recommended in order to get optimum control range. 9. Recommend to play the vehicle on a clean and smooth surface. 10. Clean the battery compartment to make sure it is free from dust to prevent poor contact of batteries. Cautions 1. Do not attempt to disassemble the Vehicle or Transmitter. 2. Do not operate the Vehicle with same frequency with other player(s) in same location that will interfere and make the Vehicle out of control. 3. Make sure the batteries are installed with correct polarities (+/-) as shown inside the battery compartment. 4. Remove the package and take out all accessories before giving the Vehicle and Transmitter to child to play. The packaging and instruction manual contain important information. Please keep them for future reference. Warning! Choking Hazard. Not suitable for children under the age of 3 years due to small parts. We reserve the right to improve/amend specifications and colors without notice. Warning! The Antenna of vehicle is not to be inserted into socket outlets. FCC label compliance statement: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur …

Text truncated - open the document above for the full version.

1 1 2 2 3 3 4 4 DD CC BB AA Title Nu mb erRevisionSize A 4 Date:2013-4-29Sheet of File:D:\\..\1-12 27M.S chDrawn By: A NTENNA Regulator circuit Encoding circuit IC1 Oscillation circuit RF power amplitier and modulator YAMAHA V CC+9 V 27 TX1/Y1 27.145MHz .145M HZ Filt er Antenna matching

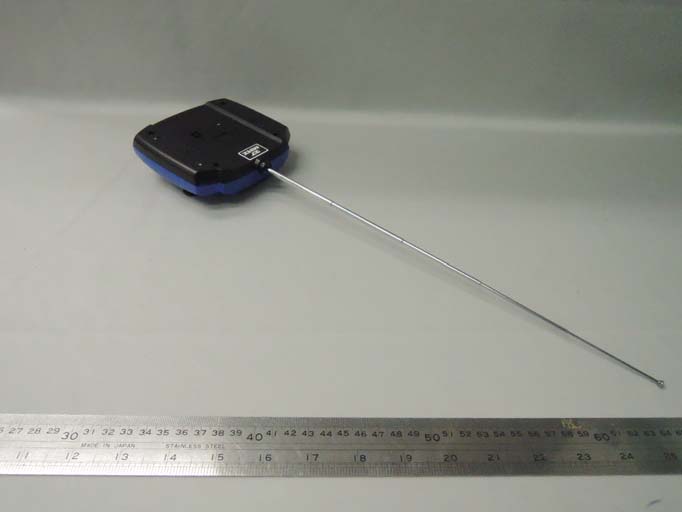

INTERTEK TESTING SERVICE Report No.: 14050701HKG-001 Equipment Photographs Model : 84052 (External) FCC ID: OTM-84052-27MTX

INTERTEK TESTING SERVICE Report No.: 14050701HKG-001 Equipment Photographs Model : 84052 (Internal) FCC ID: OTM-84052-27MTX INTERTEK TESTING SERVICE Report No.: 14050701HKG-001 Equipment Photographs Model : 84052 (Internal) FCC ID: OTM-84052-27MTX INTERTEK TESTING SERVICE Report No.: 14050701HKG-001 Equipment Photographs Model : 84052 (Internal) FCC ID: OTM-84052-27MTX

FCC ID: OTM-84052-27MTX Model: 84052 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 27.145 MHz, and controls the corresponding receiver to move forward, backward, left and right. The circuit of the transmitter comprises of, 1. An Encoding circuit Consisting: SW1, SW2, SW3, SW4, IC1 (977) 2. A RF Oscillator (27.145MHz) Consisting: TX1, Q1 3. A Filter Network Consisting: T1, C6, C7, C8, L3 4. A RF Modulator and Amplifier Consisting: Q2 5. A Power Supply Consisting: 9VDC (1 X “9V” battery) 6. Regulator Consisting: ZD1, C9 Antenna Gain: 0dBi Nominal rated field strength: 66.5dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB The transmitter uses an external and telescope antenna with unique antenna connector .

Analysis Report Report No.: 14050701HKG-001 The Equipment Under Test (EUT) is a portable transmitter of a RC Car operating at 27.145 MHz as dictated by a crystal. The EUT is powered by a 9.0 V DC source (1 x 9.0V battery). The EUT has a on/off switch, a left / right control lever and a forward / backward control lever. After switching ON the EUT and the receiver of the RC Car, activating the control levers on the EUT can control the receiver moving forward, backward left and right directions. Antenna Type: External, telescope antenna with unique antenna connector Antenna Gain: 0dBi Nominal rated field strength: 66.5dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 69.5dBμV/m at 3m in frequency 27.145MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.00267mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.00267mW. The SAR Exclusion Threshold Level for 27.145MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 371.2mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

1 1 2 2 3 3 4 4 DD CC BB AA A NTENNA C1 68P C2 47P C3 201 C6 47P Q1 C94 5P Q2 C94 5P L3 6.8uH L2 2.2uH L1 2.2uH R4 22K R1 100 R3 150K TX1 27.145MHz LED 9V R 1 NC 2 GND 3 B 4 F 5 T 6 SC 7 SO 8 V DD 9 PC 10 OS CO 11 OS CI 12 NC 13 L 14 IC1977 R6 220K R5 330 C4 103 C9 104P C7 68P ZD1 3.3V K1 SW SPST R7 3.9K T1 15.5T C8 68P R2 100 C5 103 C10 104

Valued Quality. Delivercd. lssuing Laboratory: lntertek Testing Services Hong Kong Limited Hong Kong Accreditation Serv¡ce (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditat¡on Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accred¡ted laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. TEST REPORT HII- n€i rec TEST Report No.: 14050701 HKG-001 Kidztech Toys Manufacturing Ltd. Application For Certification (Original Grant) (FCC I D : OTM -84052-27MTX) Transmitter Approved by: The lsst rêport only âllows to be revised w¡thin the retention psriod unless further standard or the requirement was noticod. This Gport is for the exclusive use of lntertek's Client and is provided pursuant to the agræment between lntertsk and its Client. lnterteks responsibility and l¡ability are limited to tho terms and conditions of thê agreement. lntêrtek assumes no liab¡l¡ty to any party, other than to the Client in accordance with the agræment, for any loss, êxpense or damdoe ocias¡onod by the use of this rêport. Only ths Cliênt is authorized to perm¡t copy¡ng or distribution of this report and thsn only in its entiEty. Any usê of the lntertek name or ono of ils marks for the sale tr advert¡sement of the tested material, product or seru¡æ must first be approved in witjng by lntertek. The obssrvat¡ons and test results in this report are relevanl only to the sample tested. Thís report by ¡tself dæs not ¡mply thal the material, prcduc{, or s€rvice is or has ever b€en under an Intsrtek cêrtificalion prcgram. lntertek Testing Seruices Hong Kong Ltd. 2/F., Garment Centre, 576 Casile peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax:, (852) 2785 5487 Website: www.hk.¡ntertek-eflsemko.com Prepared and Checked by: Tse Ying, Cathy Senior Lead Engineer Date: May 27,2014 Ng Mei Nar, Chris Lead Engineer Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 14050701HKG-001 i FCC ID: OTM-84052-27MTX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Kidztech Toys Manufacturing Ltd. Grantee Address: Room 1201, 12/F., Inter-Continental Plaza, 94 Granville Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Eric Ho Tel: (852) 2721 8868 Fax: (852) 2721 8838 e-mail: N/A Manufacturer: Shantou Chenghai JinJun Toys Co. Ltd. Manufacturer Address: Yongxin Industry Zone, Lianshang, Chenghai, Shantou, China. Brand Name: N/A Model: 84052 Type of EUT: Transmitter Description of EUT: R/C Yamaha 2014 Raptor 700R Serial Number: N/A FCC ID: OTM-84052-27MTX Date of Sample Submitted: May 13, 2014 Date of Test: May 13, 2014 to May 26, 2014 Report No.: 14050701HKG-001 Report Date: May 27, 2014 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 14050701HKG-001 ii FCC ID: OTM-84052-27MTX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength 15.227 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2012 Edition Note: 1. The EUT uses detachable antenna with unique antenna connector which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 14050701HKG-001 iii FCC ID: OTM-84052-27MTX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants ............................................................................... 1 1.3 Test Methodology .............................................................................................. 1 1.4 Test Facility ........................................................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 14050701HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 84052 FCC ID: OTM-84052-27MTX INTERTEK TESTING SERVICE Report No: 14050701HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 84052 FCC ID: OTM-84052-27MTX
