OTM-84052-49MRXR/C Yamaha 2014 Raptor 700R

NO. 84052 BATTERY REQUIREMENTS: Vehicle: 5 X “1.5V AA” Batteries (not included) Transmitter: 1 X “9V” Battery (not included) 1 X 9V Battery For Transmitter (Not Included) 9V 5 x AA Batteries For Vehicle (Not Included) CONTENTS BATTERY PRECAUTION 1. Alkaline batteries are recommended to be used 2. Only batteries of the same or equivalent type as recommended are to be used 3. Do not mix alkaline, standard or rechargeable batteries 4. Do not mix old and new batteries or different type of batteries 5. Non-rechargeable batteries are not to be charged 6. If rechargeable batteries are to be used, they are only to be charged under adult supervision 7. Rechargeable batteries are to be removed from the product before they are charged 8. Be sure to insert batteries with correct polarities and always follow the battery manufacturer’s instructions 9. Remove all batteries from the Vehicle and Transmitter when not in use 10. Exhausted batteries are to be removed from the product 11. The supply terminals are not to be short-circuited 12. Dispose of batteries properly. Do not dispose the batteries in fire - it may cause them to explode or leak causing injury or damage 13. Battery installation and removal must only be done by adult For Vehicle (Fig. 1 and Fig. 2) 1. Switch OFF the power. 2. Unscrew the screw on the battery cover. 3. Open the battery cover. 4. Install 5 new 1.5V “AA” batteries with correct polarities (+/-) as shown inside the battery compartment. 5. Close the battery cover. 6. Tighten the screw on the battery cover. For Transmitter (Fig. 3 and Fig. 4) 1. Switch OFF the power. 2. Unscrew the screw on the battery cover. 3. Open the battery cover. 4. Install 1 new 9V battery with correct polarity (+/-) as shown inside the battery compartment. 5. Close the battery cover. 6. Tighten the screw on the battery cover. 7. Insert the antenna into the top of Transmitter, tighten it by rotating clockwise. (viewing from top of Transmitter) Fig. 1Fig. 2Fig. 3Fig. 4 Antenna for RC Transmitter x 1 Antenna Tube for RC Vehicle x 1 Instruction Manual x 1 Battery and Antenna Installation Vehicle Transmitter 1.5V / AA 1.5V / AA 1.5V / AA 1.5V / AA 1.5V / AA Insert Batteries Here RC Vehicle (With Rider) x 1RC Transmitter x 1 FULL FUNCTION RADIO CONTROL FULL FUNCTION RADIO CONTROL Manufactured & Distributed by KIDZTECH TOYS MANUFACTURING LTD. All Rights Reserved Made in China age 6 Environmental notes: The whole product also does not belong to household waste at the end of the product life. You can return it at collection points for the recycling of electronic and electronical instruments The symbol on the item, instruction manual, hangtag or packing is showing this clearly. Materials should be recycled according to their respective markings. Recycling of old devices or other re-use of materials contained therein represents an important contribution to environmental protection. Please ask at your local community for the correct collection point. Disposal of batteries Batteries should not be disposed of in the household waste. As the consumer you are legally obliged to return batteries containing harmful substances and all other used batteries. You can hand in your old batteries at public collection points in your area or wherever batteries are sold. You will find these chemical abbreviations along with a crossed-out refuse bin on batteries containing harmful substances: Pb=Battery contains lead Cd=Battery contains cadmium Hg=Battery contains mercury Performance Tips 1. Do not drive on grass, dirt, sand, dusts, carpet or go through water. 2. Do not drive in windy or rainy weather. 3. Avoid direct impact the Vehicle with obstacles. 4. Switch OFF the power when not in use to prevent damage of Vehicle and Transmitter due to leakage of electrolyte from batteries. 5. Remove all batteries from the Vehicle and Transmitter when not in use for long period. 6. Keep fingers, hair and loose clothing away from wheels. 7. The operating range can be affected by a variety of factors. a) Low Voltage of batteries in Transmitter or Vehicle. b) Interference from other items that emit radio frequency signals. 8. Outdoor usage is recommended in order to get optimum control range. 9. Recommend to play the vehicle on a clean and smooth surface. 10. Clean the battery compartment to make sure it is free from dust to prevent poor contact of batteries. Cautions 1. Do not attempt to disassemble the Vehicle or Transmitter. 2. Do not operate the Vehicle with same frequency with other player(s) in same location that will interfere and make the Vehicle out of control. 3. Make sure the batteries are installed with correct polarities (+/-) as shown inside the battery compartment. 4. Remove the package and take out all accessories before giving the Vehicle and Transmitter to child to play. The packaging and instruction manual contain important information. Please keep them for future reference. Warning! Choking Hazard. Not suitable for children under the age of 3 years due to small parts. We reserve the right to improve/amend specifications and colors without notice. Warning! The Antenna of vehicle is not to be inserted into socket outlets. FCC label compliance statement: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur …

Text truncated - open the document above for the full version.

1 1 2 2 3 3 4 4 DD CC BB AA Title Nu mb erRev isio nSize A 4 Date :2012-7-27Sheet of File:D:\\\.SchDrawn By: Super-regenerative detector circuit A NTENNA IF amplifer Decoding circuit Regulator circuit A -+ MOT OR SERV O A -+ MOT OR SERV O V CC+7.5V The motor drive circuit

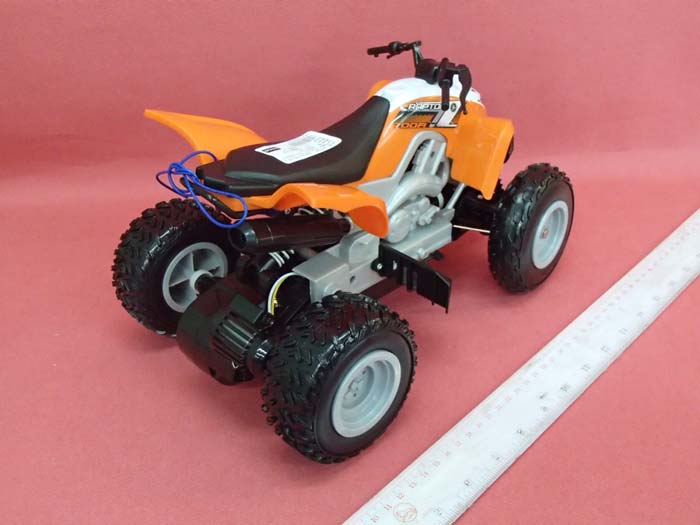

INTERTEK TESTING SERVICE Report No.: 14050702HKG-002 Equipment Photographs Model : 84052 (External) FCC ID: OTM-84052-49MRX

INTERTEK TESTING SERVICE Report No.: 14050702HKG-002 Equipment Photographs Model : 84052 (Internal) FCC ID: OTM-84052-49MRX INTERTEK TESTING SERVICE Report No.: 14050702HKG-002 Equipment Photographs Model : 84052 (Internal) FCC ID: OTM-84052-49MRX INTERTEK TESTING SERVICE Report No.: 14050702HKG-002 Equipment Photographs Model :84052 (Internal) FCC ID: OTM-84052-49MRX INTERTEK TESTING SERVICE Report No.: 14050702HKG-002 Equipment Photographs Model :84052 (Internal) FCC ID: OTM-84052-49MRX INTERTEK TESTING SERVICE Report No.: 14050702HKG-002 Equipment Photographs Model :84052 (Internal) FCC ID: OTM-84052-49MRX

FCC ID: OTM-84052-49MTX Model: 84052 (Receiver portion) Technical Description of Receiver The receiver operates at 49.860 MHz, and controls by the corresponding transmitter to move forward, backward, left and right. The circuit of the receiver comprises of, 1. Super-regenerative circuit Consisting: Q1 2. Decoder: Consisting: IC1 (PT978), 3. Motor driver Consisting: MX214, Q2, Q3, Q4, Q5, Q12, Q13 4. A Power Supply Consisting: 7.5 V DC source (5 X 1.5V AA size batteries)

1 1 2 2 3 3 4 4 DD CC BB AA A NT C1 5P C4 22P C2 10P C7 222 C5 103 C6 104P C3 104P C8 471P C9 104P C10 202P Q1 2712 T1 KY5-7.5T L2 5.6 uH R5 680R R2 220K R3 4.7 K R1 2.2 K R7 2.2 M R6 2.2 K R10 2.2 M R11 2.2 K R12 220K R4 330R R9 1K R8 1K R16 100R R17 100R R14 1K R13 1K V O 2 1 G N D 2 SI 3 O SC I 4 O SC O 5 R IG H T 6 LEFT 7 R D B 8 LD B 9 B A C K 10 FO R 11 TU R B O B 12 V D D 13 V I1 14 V O 1 15 V I2 16 IC1 PT9 78 C14 10V 470uF C15 50V4 .7uF Q1 2 C94 5P Q2 D8 82 Q1 3 C94 5P Q5 D8 82 Q3 B77 2 Q4 B77 2 M MG VCC+7.5V 3.0 V 1 2 3 45 6 7 8 MX214 MG C12 16V1 00UF L1 1.0 UH C16 104 C17 104 F1 RF 30-110

Valued QualiU. Delivercd. lssuing Laboratory: lntertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited th¡s laboratory under the Hong Kong Laboratory Accred¡tat¡on Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS d¡rectory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance w¡th ¡ts terms of accreditation. TEST REPORT Report No.:'14050702HKG-002 Kidztech Toys Manufacturing Ltd. Application For Certification (Original Grant) (FCC ID: OTM A405249MRX) Superregenerat¡ve Receiver Approved by: The test report only allws to be rev¡sed with¡n tho r€tention period unless furthsr standard or thè rêquirement was notiæd. Th¡s report is for lhe exclusive use of lnterteKs Client and is provided pursuant to the agreement bêtween lntertek and its Cl¡ent. lntertek's responsibility and liability are limited to the terms and conditions of the agreement. lntertek assumes no liab¡lity to any pany, other than to tho Clisnt in accordance with the agreement, for any loss, expense or darnágè occàsioned by the use of this report. Only ths Ctiênt ¡s authorized to pemit copying or distribution of th¡s rêport and then only in ¡ts entiroty. Any use of the lntertsk name or one of ils marks for the sle or advertisement of the tested material, producl or sryice must first be aPproved in writing by lntsrtsk. The observalions and test æsulls in this report are relevant only lo the sampls testsd. This report by itself does not imply that ths mater¡â|, produc{, or sery¡æ ¡s or has ever been under an lntêrtek ærtifi€tion program. lntertek Testing Services Hong Kong Ltd. 2/F., GarmentCentre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax (852) 2785 5487 Website: www.hk.intertek-ettsemko.com Prepared and Checked by: Tse Ying, Cathy Senior Lead Engineer Lead Engineer r Date: May 28,20\4 Ng Mei Nar, Chris Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 14050702HKG-002 i FCC ID: OTM-84052-49MRX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Kidztech Toys Manufacturing Ltd. Grantee Address: Room 1201, 12/F., Inter-Continental Plaza, 94 Granville Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Eric Ho Tel: (852) 2721 8868 Fax: (852) 2721 8838 e-mail: N/A Manufacturer: Shantou Chenghai JinJun Toys Co., Ltd. Manufacturer Address: Yongxin Industry Zone, Lianshang, Chenghai, Shantou, China Brand Name: N/A Model: 84052 Type of EUT: Superregenerative Receiver Description of EUT: R/C Yamaha 2014 Raptor 700R Serial Number: N/A FCC ID: OTM-84052-49MRX Date of Sample Submitted: May 13, 2014 Date of Test: May 13, 2014 to May 26, 2014 Report No.: 14050702HKG-002 Report Date: May 28, 2014 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 14050702HKG-002 ii FCC ID: OTM-84052-49MRX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Receiver Radiated Emissions 15.109 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2012 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 14050702HKG-002 iii FCC ID: OTM-84052-49MRX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description ...................................................................................... 1 1.2 Related Submittal(s) Grants .......................................................................... 1 1.3 Test Methodology ......................................................................................... 1 1.4 Test Facility .................................................................................................. 1 2.0 System Test Confi…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 14050702HKG-002 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model :84052 14050702HKG-002 FCC ID: OTM-84052-49MRX INTERTEK TESTING SERVICE Report No: 14050702HKG-002 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 84052 14050702HKG-002 FCC ID: OTM-84052-49MRX
