1 1 2 2 3 3 4 4 DD CC BB AA Title Nu mb erRevisionSize A 4 Date:2013-4-29Sheet of File:D:\\..\1-12 27M.S chDrawn By: A NTENNA Regulator circuit Encoding circuit IC1 Oscillation circuit RF power amplitier and modulator YAMAHA V CC+9 V 49.860MHz TX1/Y1 27.145MHz Filt er Antenna matching

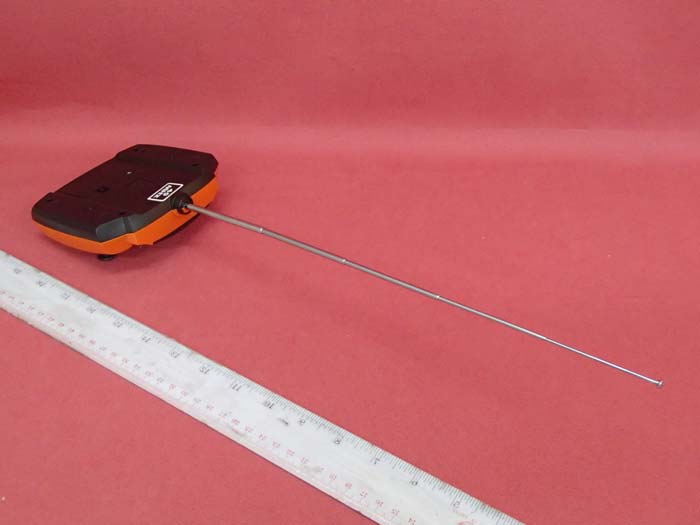

INTERTEK TESTING SERVICE Report No.: 14050702HKG-001 Equipment Photographs Model : 84052 (External) FCC ID: OTM-84052-49MTX

INTERTEK TESTING SERVICE Report No.: 14050702HKG-001 Equipment Photographs Model : 84052 (Internal) FCC ID: OTM-84052-49MTX INTERTEK TESTING SERVICE Report No.: 14050702HKG-001 Equipment Photographs Model : 84052 (Internal) FCC ID: OTM-84052-49MTX INTERTEK TESTING SERVICE Report No.: 14050702HKG-001 Equipment Photographs Model :84052 (Internal) FCC ID: OTM-84052-49MTX INTERTEK TESTING SERVICE Report No.: 14050702HKG-001 Equipment Photographs Model :84052 (Internal) FCC ID: OTM-84052-49MTX

FCC ID: OTM-84052-49MTX Model: 84052 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 49.86 MHz, and controls the corresponding receiver to move forward, backward, left and right. The circuit of the transmitter comprises of, 1. An Encoding circuit Consisting: SW1, SW2, SW3, SW4, IC1 (977) 2. A RF Oscillator (49.86MHz) Consisting: TX1, Q1 3. A Filter Network Consisting: T1, C6, C7, C8, L3 4. A RF Modulator and Amplifier Consisting: Q2 5. A Power Supply Consisting: 9VDC (1 X “9V” battery) 6. Regulator Consisting: ZD1, C9 Antenna Gain: 0dBi Nominal rated field strength: 70.4dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB The transmitter uses an external and telescope antenna with unique antenna connector .

Analysis Report Report No.: 14050702HKG-001 The Equipment Under Test (EUT) is a portable transmitter of a RC Car operating at 49.86 MHz as dictated by a crystal. The EUT is powered by a 9.0 V DC source (1 x 9.0V battery). The EUT has a on/off switch, a left / right control lever and a forward / backward control lever. After switching ON the EUT and the receiver of the RC Car, activating the control levers on the EUT can control the receiver moving forward, backward left and right directions. Antenna Type: External, telescope antenna with unique antenna connector Antenna Gain: 0dBi Nominal rated field strength: 70.4dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 73.4dBμV/m at 3m in frequency 49.860MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.00656mW Thus; Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.00656mW. The SAR Exclusion Threshold Level for 49.860MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 308.6mW Since the above conducted output power is well below the SAR Exclusion Threshold level, so the EUT is considered to comply with SAR requirement without testing.

1 1 2 2 3 3 4 4 DD CC BB AA A NTENNA C1 22P C2 47P C3 101 C6 47P Q1 C94 5P Q2 C94 5P L3 2.2uH L2 1.0uH L1 1.0uH R4 22K R1 100 R3 150K TX1 49.860MHz LED 9V R 1 NC 2 GND 3 B 4 F 5 T 6 SC 7 SO 8 V DD 9 PC 10 OS CO 11 OS CI 12 NC 13 L 14 IC1977 R6 220K R5 330 C4 103 C9 104P C7 47P ZD1 3.3V K1 SW SPST R7 3.9K T1 15.5T C8 33P R2 100 C5 103 C10 104

Valud Qualþ. fÞlivercd. lssuing Laboratory: lntertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HIGS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS direc{ory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. TEST REPORT HII= R6il -- #j Report No. : I 4050702HKG-001 Kidztech Toys Manufacturing Ltd. Application For Certification (Original Grant) (FCC ID: OTM 4,405249MTX) Transmitter Approved by: The test report only allws to be rêvised with¡n the retention per¡od unless further standard or the requiEment was noticed. This rêport is for lhe êxclusive use of lntêrteks Client and is prcvided pursuant to the agreement between lntertek and its Client. lntertèks respons¡bility and liability are lim¡ted to thê terms and ænd¡tims of lhe agreemsnt. lntertek assumes no liability lo any party, other than to the Cliênt in accordanæ with the agreement, for any loss, sxpense or danr€ge occ€sioned by lhe usê of this report. Only thê Cl¡ent is aulhorized to pemit copying or distribulion of this report and then only ¡n its ent¡rety. Any use of th€ lntertek name or one of its marks for lhe sale or advertiæment of the tested matsrial, product or servicê must f¡rst bo approved in writing by lntertek. Th€ obsêrvations and test results in this Eport are relevant only to the sample tested. This report by itsef does not imply that the mater¡al, product, or s€rvice is or has ever bæn under ân lrìtertek cerlif¡cation program. lntertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.¡ntertek-etlsemko.com Prepared and Checked by: Tse Ying, Cathy Senior Lead Engineer Lead Engineer , Date: May 28,2014 Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 14050702HKG-001 i FCC ID: OTM-84052-49MTX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Kidztech Toys Manufacturing Ltd. Grantee Address: Room 1201, 12/F., Inter-Continental Plaza, 94 Granville Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Eric Ho Tel: (852) 2721 8868 Fax: (852) 2721 8838 e-mail: N/A Manufacturer: Shantou Chenghai JinJun Toys Co., Ltd. Manufacturer Address: Yongxin Industry Zone, Lianshang, Chenghai, Shantou, China Brand Name: N/A Model: 84052 Type of EUT: Transmitter Description of EUT: R/C Yamaha 2014 Raptor 700R Serial Number: N/A FCC ID: OTM-84052-49MTX Date of Sample Submitted: May 13, 2014 Date of Test: May 13, 2014 to May 26, 2014 Report No.: 14050702HKG-001 Report Date: May 28, 2014 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 14050702HKG-001 ii FCC ID: OTM-84052-49MTX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength 15.235 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2012 Edition Note: 1. The EUT uses detachable antenna with unique antenna connector which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 14050702HKG-001 iii FCC ID: OTM-84052-49MTX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description ...................................................................................... 1 1.2 Related Submittal(s) Grants .......................................................................... 1 1.3 Test Methodology ......................................................................................... 1 1.4 Test Facility .................................................................................................. 1 2.0 System Test Configuration ...…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 14050702HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model :84052 FCC ID: OTM-84052-49MTX INTERTEK TESTING SERVICE Report No: 14050702HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 84052 FCC ID: OTM-84052-49MTX
