NO. 84058 2 x AA Batteries For Transmitter (Not Included) Transmitter: 2 X “1.5V AA” Batteries (not included) Battery Installation Instruction Manual x 1 1. Unscrew the screw on the battery cover. 2. Open the battery cover. 3. Install 2 new AA batteries with correct polarity (+/-) as shown inside the battery compartment. 4. Close the battery cover. 5. Tighten the screw on the battery cover. ON / OFF Frequency band : 2405 - 2475 MHz Maximum radio frequency power transmitted : <0 dBm 1. Switch ON the Vehicle. 2. Use the Forward / Backward button (Fig.5) to drive the Vehicle forward and backward. 3. Use the Left / Right button (Fig.5) to control the Vehicle turning left or right. 4. If the vehicle does not run in straight line, adjust the wheel alignment lever on the vehicle chassis (Fig.6). 5. Play on smooth surface to have the optimum performance. 6. Remember to switch OFF the power of the Vehicle after playing. 7. The optimum control range is up to 25m(82ft)outdoor. How To Bind 1. Turn on the Vehicle. 2. Install batteries in the Transmitter then the Transmitter signal light will flash for a few seconds. 3. After the wheels of the Vehicle turn left and right and the LED light of the Transmitter stops flashing, the binding process completed for playing. 4. If it cannot complete within 8 seconds, please turn off the Vehicle and re-start the binding process. 5. When the binding process is done, whenever switching the Vehicle on and off, it searches for the code that it memorized, and will only lock on to the Transmitter signal containing that code. 6. Please turn off the Vehicle and re-start all binding process if changing to another 2.4GHz Transmitter for playing. FCC label compliance statement: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna - Increase the separation between the equipment and receiver - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected - Consult the dealer or an experienced radio/TV technician for help Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. RSS-210 Compliance Statement: This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. Declaration of Conformity The product is in conformity with the requirement of EU Directive 2014/53/EU. Environmental notes: The whole product also does not belong to household waste at the end of the product life. You can return it at collection points for the recycling of electronic and electronical instruments The symbol on the item, instruction manual, hangtag or packing is showing this clearly. Materials should be recycled according to their respective markings. Recycling of old devices or other re-use of materials contained therein represents an important contribution to environmental protection. Please ask at your local community for the correct collection point. Disposal of batteries Batteries should not be disposed of in the household waste. As the consumer you are legally obliged to return batteries containing harmful substances and all other used batteries. You can hand in your old batteries at public collection points in your area or wherever batteries are sold. You will find these chemical abbreviations along with a crossed-out refuse bin on batteries containing harmful substances: Pb=Battery contains lead Cd=Battery contains cadmium Hg=Battery contains mercury www.kidztechtoys.com KIDZTECH TOYS MANUFACTURING LTD. Room 802, 8/F, Inter-Continental Plaza, 94 Granville Road, TST East, Hong Kong. Tel: (852) 27218868 [email protected] Made in China http://www.kidztechtoys.com US OFFICE: 1540 Forest Avenue, River Forest, IL 60305, USA Tel: 708-689-0085 Fax: 708-689-8172 2408

2.4GT POWER SUPPLY 12MHz

Letter of Agency "I, an officer of Kidztech Toys Manufacturing Ltd. do hereby authorize Intertek Testing Services (Mr. Terry Chan / Koo Wai Ip / Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated this day of 20 By Signature Printed Name Title Remark: The person who signs this authorization letter must be the grantee contact of record in the Grantee Code data base. Dec 2013 Eric Ho Senior Manager 20May 20

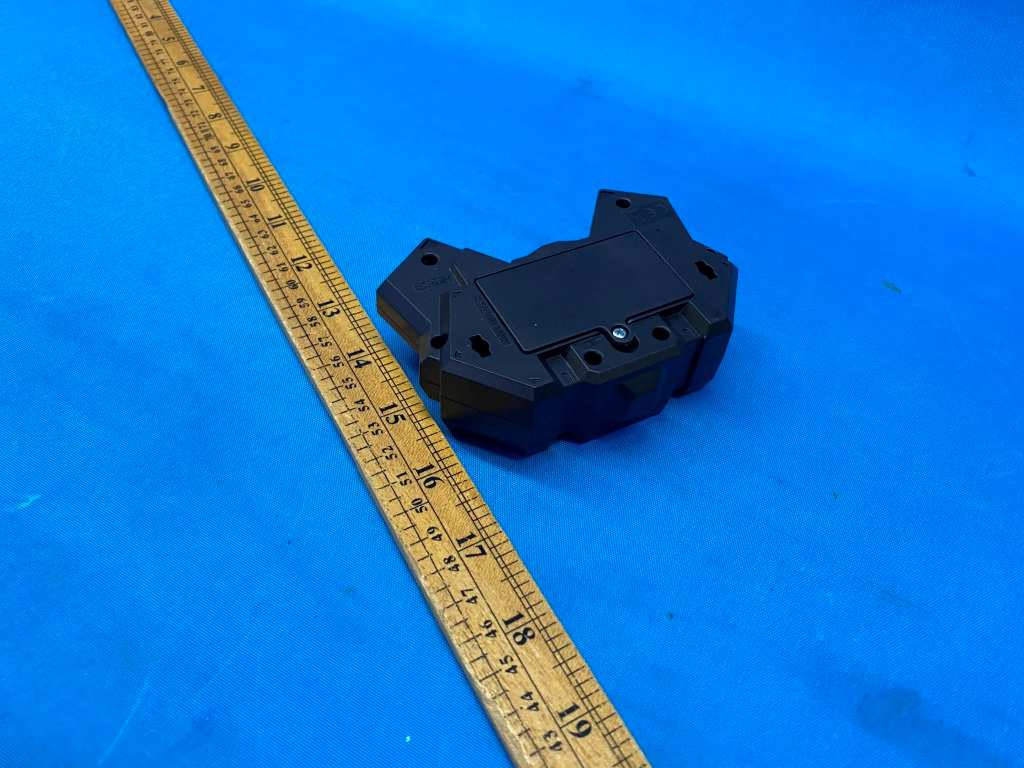

INTERTEK TESTING SERVICE FCC ID: OTM-8405820-24GTX Equipment Photographs (External) INTERTEK TESTING SERVICE FCC ID: OTM-8405820-24GTX Equipment Photographs (External)

INTERTEK TESTING SERVICE FCC ID: OTM-8405820-24GTX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: OTM-8405820-24GTX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: OTM-8405820-24GTX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: OTM-8405820-24GTX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: OTM-8405820-24GTX Equipment Photographs (Internal)

Technical Description The Equipment Under Test (EUT), is a portable 2.4GHz Transmitter (Controller Unit) for a RC car. The sample supplied operated on 68 channels, normally at 2408 - 2475MHz. The channels are separated with 1MHz spacing. The EUT is powered by 2 x 1.5V AA batteries. After switching on the EUT, the car will be moved forward or backward and turned left and right based on the switches pressed in the controller. Antenna Type: Internal, Integral antenna Antenna Gain: 0dBi Nominal rated field strength is 96.4dBμV/m at 3m (Peak) Maximum allowed production tolerance: +/- 3dB The brief circuit description is listed as follows: 1. U1 (TL9018) acts as RF MCU 2. Y1 acts as 12MHz Oscillator 3. C3, C4, C5 & L1 act as antenna matching circuit

Analysis Report The Equipment Under Test (EUT), is a portable 2.4GHz Transmitter (Controller Unit) for a RC car. The sample supplied operated on 68 channels, normally at 2408 - 2475MHz. The channels are separated with 1MHz spacing. The EUT is powered by 2 x 1.5V AA batteries. After switching on the EUT, the car will be moved forward or backward and turned left and right based on the switches pressed in the controller. Antenna Type: Internal, Integral antenna Antenna Gain: 0dBi Nominal rated field strength is 96.4dBμV/m at 3m (Peak) Maximum allowed production tolerance: +/- 3dB According to the KDB 447498: Based on the maximum field strength of production tolerance was 99.4dBμV/m at 3m in frequency 2.408GHz. Thus, it below calculated field strength according to minimum SAR exclusion threshold level as follows: The worst case of SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt (freq. in GHz) = 3.0 * 5 / sqrt (2.4835) mW = 9.52mW According to the KDB 412172 D01: EIRP = [(FS*D) ^2*1000 / 30] Calculated Field Strength for 9.52mW is 105dBuV/m @3m Since maximum average field strength plus production tolerance < = 105dBuV/m @3m and antenna gain is > = 0.0dBi, it is concluded that maximum Conducted Power and Field Strength are well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

1 1 2 2 3 3 4 4 DD CC BB AA Title NumberRevisionSize A4 Date:2020/3/17Sheet of File:E:\E \..\9018-TX.SchDoc Drawn By: 3V R1 1K LED . VDD B F R L LED L R F B R2 10R ANT C6 103 Y1 12M C4 0.5P C5 * C1 * C2 * R3 10R C8 * C7 * LED 2408-2475M 6-7 F+L +F/B2408 2440 2475 LED: VDD L1 3.9NH ANT 1 VSS 2 PC1 3 PC0 4 PA4 5 PA3 6 PA2 7 PA0 8 PA1 9 PA7 10 PA6 11 VDD 12 PC5 13 RFVDD 14 XTALO 15 XTALI 16 U1 TL9018 C3 0.5P GND FBLRID GND ID ID C9 1UF GND B+R+2440M ID7-8 VDD C10 103 GND C1, C2, C5, C7 & C8 are spare sockets.
