OTM-8418115-27MTXPC Psycho Cyclone(Rechargeable)

1 1 2 2 3 3 4 4 DD CC BB AA A NTENN A V CC+ 9V 27.145MH Z Regulator cir cuit Encoding cir cuit IC1 Oscillation cir cuit Antenna matching Filter RF power amplifier and modulator Forward / Backward / Rotate

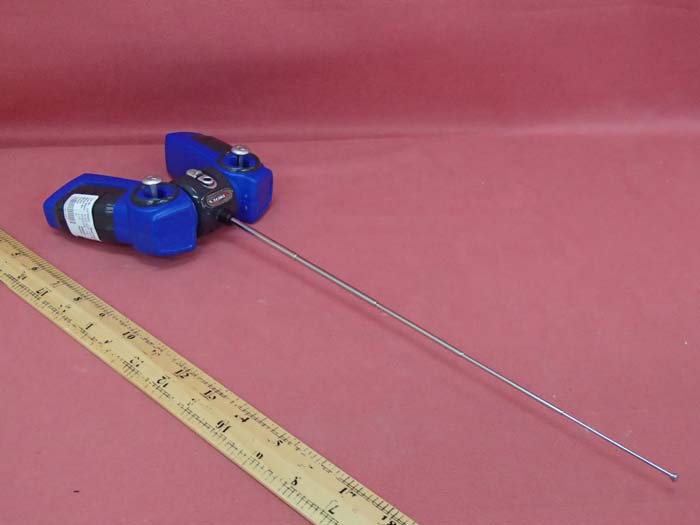

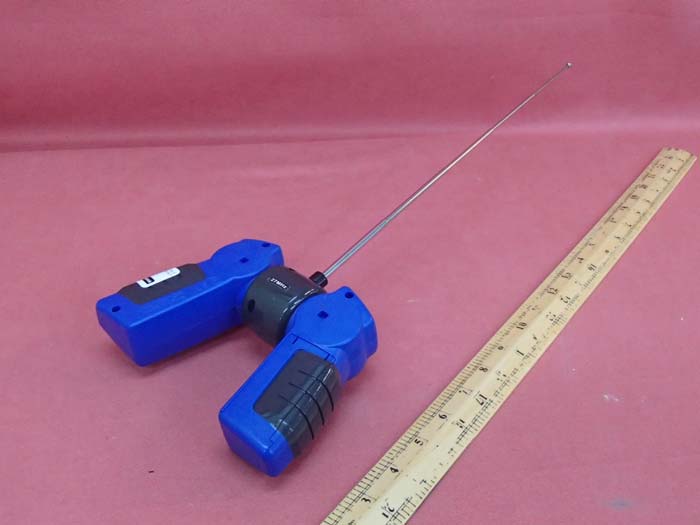

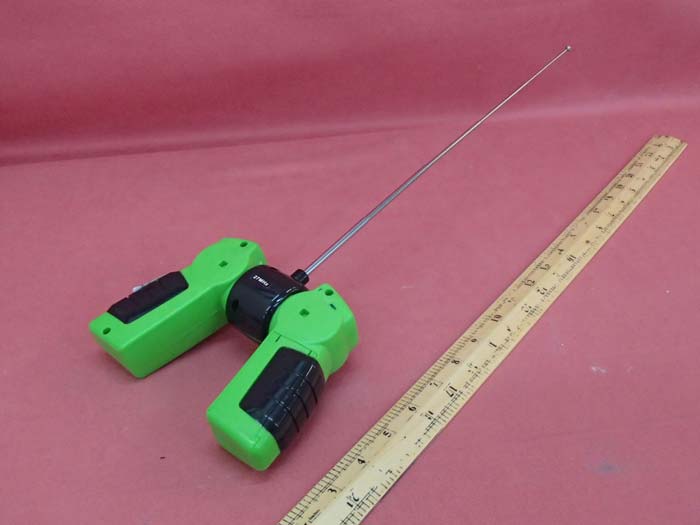

INTERTEK TESTING SERVICE Report No.: 15070062HKG-001 Equipment Photographs Model : 5F631D9 (External) FCC ID: OTM-8418115-27MTX INTERTEK TESTING SERVICE Report No.: 15070062HKG-001 Equipment Photographs Model : 5F631D9 (External) FCC ID: OTM-8418115-27MTX

INTERTEK TESTING SERVICE Report No.: 15070062HKG-001 Equipment Photographs Model : 5F631D9 (Internal) FCC ID: OTM-8418115-27MTX INTERTEK TESTING SERVICE Report No.: 15070062HKG-001 Equipment Photographs Model : 5F631D9 (Internal) FCC ID: OTM-8418115-27MTX INTERTEK TESTING SERVICE Report No.: 15070062HKG-001 Equipment Photographs Model : 5F631D9 (Internal) FCC ID: OTM-8418115-27MTX INTERTEK TESTING SERVICE Report No.: 15070062HKG-001 Equipment Photographs Model : 5F631D9 (Internal) FCC ID: OTM-8418115-27MTX

FCC ID: OTM-8418115-27MTX Model: 5F631D9 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 27.145 MHz, and controls the corresponding receiver to move forward, backward, left and right. The circuit of the transmitter comprises of, 1. Control buttons Consisting: S1, S2, S3, S4, S5 and S6 2. An Encoding circuit Consisting: U1 (AT8P53-8) 3. A RF Oscillator (27.145MHz) Consisting: Y1, Q1 4. A Filter Network Consisting: L1,T1,C1,C2 and C3 5. A RF Modulator and Amplifier Consisting: Q2 6. A Power Supply Consisting: 9.0VDC (1 x 9.0V block size battery) Antenna Gain: 0dBi Nominal rated field strength: 67.9dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB The transmitter uses an external, telescope type antenna with unique antenna connector.

Analysis Report Report No.: 15070062HKG-001R1 The Equipment Under Test (EUT) is a transmitter of a remote control car operating at 27.145 MHz as dictated by a crystal. The EUT is powered by a 9VDC source (1 x 9.0V block size battery). The EUT has two sticks for controlling the car to move forward, backward, left and right. A twist control of the transmitter to control twisting of the car. After switching ON the EUT and the receiver of the remote car, the car will be activated by press either one of the button. Antenna Type: External, telescope type antenna with unique antenna connector Antenna Gain: 0dBi Nominal rated field strength: 67.9dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 70.9dBμV/m at 3m in frequency 27.145MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.003691mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.003691mW. The SAR Exclusion Threshold Level for 27.145MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 371.2mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

1 1 2 2 3 3 4 4 DD CC BB AA ANTENNA 27.145MHz C7 47P C6 47P C5 100P C3 47P L1 6.8uH L2 2.2uH L3 2.2uH R2 22K R3 100 R4 150K Y1 27.145MHz C8 103 C2 68P T1 15T C1 68P C4 103 Q1 2712 Q2 2712 R1 10R DATA PC VCC ZD1 3.3V LED 1234 5678 U1 AT8P53-8 R5 470R C11 104 VDD R6 3.9K S6 S5 S2 S1 R7 10K R8 10KR11 10K VDD DATA PC CH C10 104 C9 104. S4 S3 R9 10K R10 NC K1 VDD 1 2 3 CN1 J1 0R

l¡rtertek ì/dued Quåltty, Del¡v€md, lssuing Laboratory: lntertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 - TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laborator¡es. Prepared and Checked by: TEST dEPONT Report No.: I 5070062HKG-001 Kidztech Toys Manufacturing Ltd. Application For Certification (Original Grant) (FGC lD: OTM-841811 5-27MTX) Transmitter Approved by: 4- Tse Ying, Cathy Senior Lead Engineer Ng Mei Nar,ns Lead Engineer Date: July 27,2015 lntertek's standard Têrms and Condit¡ons can be obtâinêd at our website http://www.¡nlerlêk.com/torms/, This report shall not bê r€producêd, oxcept in full. Th¡s report ¡s for the sxclus¡ve use of lntertek's Client and ¡s prcvided pußuant to the agreement between lntertek and ¡ts Cl¡ent lntertek's responsibility and liability aro limitêd to the terms and cond¡tions of the agresment, lntertok assumes no liab¡l¡ty to any party, other than to the Cl¡ent ¡n emrdence with tho agreêment, for any loss, expense or damage occasioned by the use of this rêport Only the Clisnt ¡s authorized to p6rm¡t copying or distribut¡on of this r€port ând then only in its entirety Any use of ths lntertek name or one of its mârks for thê salê or advêrt¡sêment of the testêd material, product or seryice must f¡rst be approvod ¡n writing by lntertek Thê obseruations and test results in this report are r€levant only to the sample tested Th¡s report by itself does not imply that the mat€rial, product, or sêryico is or has over been under an lntertek cert¡f¡cat¡on program, Intertek Testing Services Hong Kong Ltd. 2/F , Garment Centre, 576 Castle Peak Roed, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15070062HKG-001 i FCC ID: OTM-8418115-27MTX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Kidztech Toys Manufacturing Ltd. Grantee Address: Room 1201, 12/F., Inter-Continental Plaza, 94 Granville Road, Tsim Sha Tsui East, Kowloon, Hong Kong Contact Person: Eric Ho Tel: (852) 2721 8868 Fax: (852) 2721 8838 e-mail: N/A Manufacturer: Shantou Chenghai JinJun Toys Co. Ltd. Manufacturer Address: Yongxin Industry Zone, Lianshang, Chenghai, Shantou, China Brand Name: N/A Model: 5F631D9 Additional Model: 84181, 565655, 012327, 162887 Type of EUT: Transmitter Description of EUT: RC Psycho Cyclone(Rechargeable) (5F631D9) RC Vortex (Rechargeable) (84181, 565655, 012327, 162887) Serial Number: N/A FCC ID: OTM-8418115-27MTX Date of Sample Submitted: July 02, 2015 Date of Test: July 02, 2015 to July 24. 2015 Report No.: 15070062HKG-001 Report Date: July 27, 2015 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15070062HKG-001 ii FCC ID: OTM-8418115-27MTX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength 15.227 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2013 Edition Note: 1. The EUT uses detachable antenna with unique antenna connector which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15070062HKG-001 iii FCC ID: OTM-8418115-27MTX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants ............................................................................... 1 1.3 Test Methodology .............................................................................................. 1 1.4 Test Facility ....................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification........................................................................................................ 2 2.2 EUT Exercising Software ................................................................................... 2 2.3 Special Accessories........................................................................................... 2 2.4 Measurement Uncertainty .........................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 15070062HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 5F631D9 FCC ID: OTM-8418115-27MTX INTERTEK TESTING SERVICE Report No: 15070062HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 5F631D9 FCC ID: OTM-8418115-27MTX
