OTM-8419120-24GTX1/14 R/C Burnoutz

Contents -RC Vehicle (Vehicle) x 1 -RC Transmitter (Transmitter ) x 1 -Water pump x1 -Drifting wheels x4 -Screwdriver x1 -Instruction Manual x 1 -6.4V Rechargeable Battery Pack x 1 -USB charging cable x 1 -9V Battery x 1 1. The 6.4V rechargeable battery pack must be charged before use by utilizing the USB charging cable which included 2. Do not overcharge the battery pack. Do not charge for more than 6 hours 3. Do not charge the battery pack if it shows leakage, corrosion, or has loose or exposed wires or other damage 4. Do not cover the battery pack with any sort of materials while charging 5. Do not touch the battery pack when it is hot. Wait until the battery pack cools before installing it in the Vehicle and before recharging 6. Do not dispose of the battery in fire 7. Do not dismantle the battery or charger, and do not cut the battery or USB charging cable 8. The battery pack will be warm after charging, and hot after use in a vehicle 9. The supply terminals are not to be short-circuited 10. Rechargeable batteries are to be removed from the toy before being charged 11. Rechargeable batteries for adult charging only 12. Battery replacement must be only made by adults 13. The USB charging cable is not a toy 14. Charge only type (1300mAh Max.) rechargeable battery packs. Other types of batteries may burst causing injury to persons and damage. This power unit is intended to be correctly orientated in a vertical or floor mount position. This USB charging cable is intended to be used for charging 6.4V rechargeable battery pack with capacity 1300mAh Max. It cannot be used for charging non-rechargeable batteries. Regular examination of USB charging cable for any damage to their cord, plug, enclosure and other parts, and that, in the event of such damage, it must not be used with the USB charging cable or battery pack charge until such damage has been repaired. Note that the 9V battery is non-rechargeable and is not to be recharged. Only batteries of the same or equivalent type as recommended are to be used. It will need replacement when transmission is poor. 15. Exhausted batteries are to be removed from the product. Battery Installation For Transmitter (Fig. 3 and Fig. 4) 1. Unscrew the screw on the battery cover 2. Open the battery cover 3. Install 1 new 9V battery with correct polarities (+/-) as shown inside the battery compartment 4. Close the battery cover 5. Tighten the screw on the battery cover For Vehicle (Fig. 1 and Fig. 2) 1. Switch OFF the power 2. Unscrew the screw on the battery cover 3. Open the battery cover 4. Install 6.4V battery pack with correct polarities (+/-) as shown inside the battery compartment 5. Close the battery cover 6. Tighten the screw on the battery cover Vehicle - Battery Installation Vehicle Transmitter Transmitter - Battery Installation ages 8 PRO. SYSTEM 1:14 SCALE LIGHTING EFFECT 1 X 9V Battery For Transmitter (Included) 9V 6.4V 1300mAh For Vehicle (Included) 6.4V RC Vehicle x 1 Water pump x1 Screwdriver x1 Drifting wheels x4 RC Transmitter x 1 25M / 82FT RANGE 25M / 82FT Screwdriver x1 Fig. 1 Fig. 4 I + 9 V Battery Fig. 3 LED Battery Indicator Steering Wheel ON/OFF (At Rear) Accelerator Trigger KIDZTECH TOYS MADE IN CHINA ON OFF L R Mustang GT4 Direction Adjustment Battery Compartment ON/OFF Fig. 2 KIDZTECH TOYS MADE IN CHINA ON OFF L R 6.4V Mustang GT4 1. Turn on the Vehicle. 2. Keep pulling the trigger of the Transmitter forward then turn the Transmitter on. Do not release the trigger until the binding process completed. 3. The LED light of the Transmitter will keep flashing for the binding process, which is within 8 seconds. Do not turn off any buttons while in progress, otherwise, the process will be terminated. 4. After the wheels of the Vehicle turn left and right and the LED light of the Transmitter stops flashing, the binding process completed for playing. 5. If it cannot complete within 8 seconds, please turn off both Vehicle and Transmitter and re-start the binding process. 6. When the binding process is done, whenever switching the Vehicle and Transmitter on and off, it searches for the code that it memorized, and will only lock on to the Transmitter signal containing that code. 7. Please turn off both Vehicle and Transmitter and re-start all binding process if changing to another 2.4GHz Transmitter for playing. How To Bind How To Play How To Fill In Water For Smoking Effect 4. Close the cap firmly. (Fig.8) 3. Fill in clear water to vehicle by using the provided water pump. (Fig.7) 2. Open the cap of water tank on the vehicle. (Fig.5 and Fig.6) 1. Fill in clear water into the water pump. Water tank cap Fig. 5 Fig. 7Fig. 8 Fig. 6 3. Use the Accelerator Trigger to drive the Vehicle Forward, Stop and Backward 4. If the vehicle does not run in straight line, adjust the Direction Adjustment on the Vehicle chassis 5. Play on smooth surface to have the optimum performance 6. Remember to switch OFF the power of the Vehicle and Transmitter after playing 7. The optimum control range is up to 25m(82ft) outdoor 1. Switch ON the Vehicle and Transmitter. Turn LeftTurn Right 2. Use the Steering Wheel to control the Vehicle turning left or right KIDZTECH TOYSMADE IN CHINA ON OFF L R Mustang GT4 Vehicle Forward Stop Backward Transmitter Charging the Rechargeable Battery Pack for the Vehicle: 1. Connect the 6.4V rechargeable battery pack to USB charging cable 2. Plug the USB charging cable into the standard AC socket (the equipment of class II or class III) 3. The charging time for a full charge is about 3 hours 4. When charging is completed, unplug the USB charging cable 5. Disconnect the rechargeable battery pack from the USB charging cable How To Change To The Drifting Wheels 1. Unscrew the screws of the rubber wheels on the vehicle. 2. Remove the screws and the wheels from the vehicle. 3. Install the drifting wheels into the vehicle. 4. Tighten the screws on the wheels. Note: Changing wheels needs to be processed or supervised by the adult. The packagin…

Text truncated - open the document above for the full version.

2.4GT POWER SUPPLY 12MHz

Letter of Agency "I, an officer of Kidztech Toys Manufacturing Ltd. do hereby authorize Intertek Testing Services (Mr. Terry Chan / Koo Wai Ip / Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated this day of 20 By Signature Printed Name Title Remark: The person who signs this authorization letter must be the grantee contact of record in the Grantee Code data base. Dec 2013 Eric Ho Senior Manager 20May 20

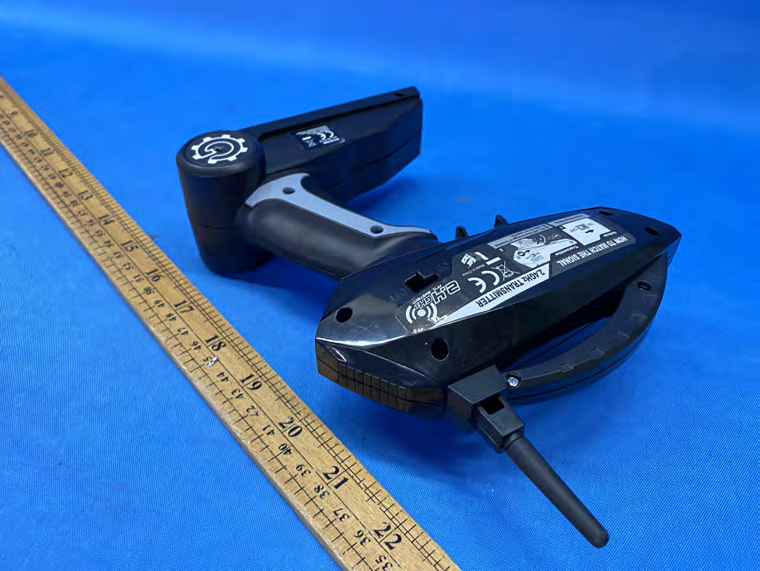

INTERTEK TESTING SERVICE FCC ID: OTM-8419120-24GTX Equipment Photographs (External) INTERTEK TESTING SERVICE FCC ID: OTM-8419120-24GTX Equipment Photographs (External)

INTERTEK TESTING SERVICE FCC ID: OTM-8419120-24GTX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: OTM-8419120-24GTX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: OTM-8419120-24GTX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: OTM-8419120-24GTX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: OTM-8419120-24GTX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: OTM-8419120-24GTX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: OTM-8419120-24GTX Equipment Photographs (Internal)

Technical Description The Equipment Under Test (EUT), is a portable 2.4GHz Transmitter (Controller Unit) for a RC car. The sample supplied operated on 69 channels, normally at 2407 - 2475MHz. The channels are separated with 1MHz spacing. The EUT is powered by 1 x 9.0V Alkaline battery. After switching on the EUT, the car will be moved forward or backward and turned left and right based on the switches pressed in the controller. Antenna Type: External, Whip Antenna Antenna Gain: 0dBi Nominal rated field strength is 99.3dBμV/m at 3m (Peak), 74.0dBμV/m at 3m (Average) Maximum allowed production tolerance: +/- 3dB The brief circuit description is listed as follows: 1. U1 (2.4G-TX) acts as RF Module 2. J1 (2.4G9) acts as MCU 3. Y1 acts as 12MHz Oscillator 4. C1, C2 and L1 act as antenna matching circuit

Analysis Report The Equipment Under Test (EUT), is a portable 2.4GHz Transmitter (Controller Unit) for a RC car. The sample supplied operated on 69 channels, normally at 2407 - 2475MHz. The channels are separated with 1MHz spacing. The EUT is powered by 1 x 9.0V Alkaline battery. After switching on the EUT, the car will be moved forward or backward and turned left and right based on the switches pressed in the controller. Antenna Type: External, Whip Antenna Antenna Gain: 0dBi Nominal rated field strength is 99.3dBμV/m at 3m (Peak), 74.0dBμV/m at 3m (Average) Maximum allowed production tolerance: +/- 3dB According to the KDB 447498: Based on the maximum average field strength of production tolerance was 77.0dBμV/m at 3m in frequency 2.440GHz. Thus, it below calculated field strength according to minimum SAR exclusion threshold level as follows: The worst case of SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.483.5) mW = 9.52 mW According to the KDB 412172 D01: EIRP = [(FS*D) ^2*1000 / 30] Calculated Field Strength for 9.52mW is 105dBuV/m @3m Since maximum average field strength plus production tolerance < = 105dBuV/m @3m and antenna gain is > = 0.0dBi, it is concluded that maximum Conducted Power and Field Strength are well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

11 22 33 44 D D C C B B A A 9V F1 B F2 K1SW SPDT F4 LR I O G U17130 C1106 F3 R210K R11K C2104 LED. VDD 1 2 3 4 5 6 7 8 9 J12.4G-9 VDD LED F1 F2 F3 F4 B L/R LED F1 F2 F3 F4 B L/R VDD R322R C3* J20R 12345678 9 10111213141516 U12.4G-TX Comment: ANTENNA C31UF L12.7NH Y112M C1*C20.5P C61UF L/R F1 B LED LED F1 VDD F4 F2 GND R110R GND C4100NF 1 2 3 4 5 6 7 8 9 U22.4G-9 VDD L/R F4 B F3 F2 F3 " * " values represent spare sockets.

2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong SAR, China. Telephone: (852) 2173 8888 Facsimile: (852) 2785 5487 www.intertek.com Intertek’s standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. © 2017 Intertek Page 1 of 16 TEST REPORT Report No.: 20061082HKG‐001 Kidztech Toys Manufacturing Ltd. Application For Certification (Original Grant) FCC ID: OTM‐8419120‐24GTX Transmitter Prepared and Checked by: Approved by: Signed On File Lee For Yiu, Florey Assistant Engineer Wong Kwok Yeung, Kenneth Senior Lead Engineer Date: July 23, 2020 TEST REPORT Kidztech Toys Manufacturing Ltd. Intertek Report No: 20061082HKG‐001 Page 2 of 16 GENERAL INFORMATION Grantee: Kidztech Toys Manufacturing Ltd. Grantee Address: Room 802, Inter‐Continental Plaza, 94 Granville Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Eric Ho Tel: (852) 2721 8868 Fax: (852) 2721 8838 e‐mail: N/A Manufacturer: Kidztech Intelligent Technology Co., Ltd. Manufacturer Address: Chengyang Guang Road, Ancheng Road, Liangxia Town, Chenghai District, Shantou City, 515800, Guangdong, China. Brand Name: Kidztech Toys Model: 84191 Additional Model: 84192, 84193 Type of EUT: Transmitter Description of EUT: 1/14 R/C Burnoutz Serial Number: N/A FCC ID: OTM‐8419120‐24GTX Date of Sample Submitted: June 18, 2020 Date of Test: June 18, 2020 to July 03, 2020 Report No.: 20061082HKG‐001 Report Date: July 23, 2020 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Conclusion: Test was conducted by client submitted sample. The submitted sample as received complied with the 47 CFR Part 15 Certification. TEST REPORT Kidztech Toys Manufacturing Ltd. Intertek Report No: 20061082HKG‐001 Page 3 of 16 SUMMARY OF TEST RESULT Test Specification Reference Results Radiated Emission Radiated Emission on the Bandedge 15.249, 15.209 Pass Radiated Emission in Restricted Bands 15.205 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2019 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. TEST REPORT Kidztech Toys Manufacturing Ltd. Intertek Report No: 20061082HKG‐001 Page 4 of 16 TABLE OF CONTENTS 1.0 GENERAL DESCRIPTION .................................................................................................5 1.1 Product Description ...................................................................................................5 1.2 Related Submittal(s) Grants .......................................................................................5 1.3 Test Methodology......................................................................................................5 1.4 Test Facility................................................................................................................5 2.0 SYSTEM TEST CONFIGURATION......................................................................................6 2.1 Justification................................................................................................................6 2.2 EUT Exercising Software.............................................................................................6 2.3 Special Accessories ....................................................................................................6 2.4 Measurement Uncertainty.........................................................................................6 2.5 Support Equipment List and Description ....................................................................6 3.0 EMISSION RESULTS .......................................................................................................7 3.1 Field Strength Calculation ..........................................................................................7 3.2 Radiated Emission Configuration Photograph ............................................................8 3.3 Radiated Emission Data..............................................................................................8 4.0 EQUIPMENT PHOTOGRAPHS .......................................................................................12 5.0 PRODUCT LABELLING ..................................................................................................12 6.0 TECHNICAL SPECIFICATIONS ........................................................................................12 7.0 INSTRUCTION MANUAL.......................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE FCC ID: OTM-8419120-24GTX Configuration Photographs Worst-Case Radiated Emissions (Front View) INTERTEK TESTING SERVICE FCC ID: OTM-8419120-24GTX Configuration Photographs Worst-Case Radiated Emissions (Back View)
