OTM-8437120-24GTX1/6 R/C Yamaha Snowmobile Viper

KT-18/06/19-EN KIDZTECH TOYS MANUFACTURING LTD. Room 802, 8/F, Inter-Continental Plaza, 94 Granville Road, TST East, HK. Tel: (852) 27218868 [email protected] Made in China http://www.kidztech.net FCC label compliance statement: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna - Increase the separation between the equipment and receiver - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected - Consult the dealer or an experienced radio/TV technician for help Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. RSS-210 Compliance Statement: This device complies with Industry Canada Licence-exempt RSS-210. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada,. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Declaration of Conformity The product is in conformity with the requirement of EU Directive 2014/53/EU. Environmental notes: The whole product also does not belong to household waste at the end of the product life. You can return it at collection points for the recycling of electronic and electronical instruments The symbol on the item, instruction manual, hangtag or packing is showing this clearly. Materials should be recycled according to their respective markings. Recycling of old devices or other re-use of materials contained therein represents an important contribution to environmental protection. Please ask at your local community for the correct collection point. Disposal of batteries Batteries should not be disposed of in the household waste. As the consumer you are legally obliged to return batteries containing harmful substances and all other used batteries. You can hand in your old batteries at public collection points in your area or wherever batteries are sold. You will find these chemical abbreviations along with a crossed-out refuse bin on batteries containing harmful substances: Pb=Battery contains lead Cd=Battery contains cadmium Hg=Battery contains mercury Frequency band : 2405 - 2475 MHz Maximum radio frequency power transmitted : <0 dBm Performance Tips 1. Do not drive on dirt, sand, dusts or go through water 2. Do not drive in windy or rainy weather 3. Avoid direct impact the Vehicle with obstacles 4. Switch OFF the power when not in use to prevent damage of Vehicle and Transmitter due to leakage of electrolyte from batteries 5. Remove all batteries from the Vehicle and Transmitter when not in use for long period 6. Keep fingers, hair and loose clothing away from wheels, belt, skis 7. The operating range can be affected by a variety of factors a) Low Voltage of batteries in Transmitter or Vehicle b) Interference from other items that emit radio frequency signals 8. Outdoor usage is recommended in order to get optimum control range 9. Recommend to play the vehicle on a clean and smooth surface 10. Clean the battery compartment to make sure it is free from dust to prevent poor contact of batteries The packaging and instruction manual contain important information. Please keep them for future reference. Warning! Choking Hazard. Not suitable for children under the age of 3 years due to small parts. We reserve the right to improve/amend specifications and colors without notice. Cautions 1. Do not attempt to disassemble the Vehicle or Transmitter 2. Make sure the batteries are installed with correct polarities (+/-) as shown inside the battery compartment 3. Remove the package and take out all accessories before giving the Vehicle and Transmitter to child to play 1 X 9V Battery For Transmitter (Included) 9V Conforms to the safety requirements of ASTM F963 Contents Battery Installation NO.: 84371 2.4GHz RC Transmitter x 1 For Transmitter (Fig.6 and Fig.7) 1. Switch OFF the power 2. Unscrew the screw on the battery cover 3. Open the battery cover 4. Install 1 new 9V battery with correct polarity (+/-) as shown inside the battery compartment 5. Close the battery cover 6. Tighten the screw on the battery cover Charging the Rechargeable Battery Pack for the Vehicle: 1. Connect the 6.4V rechargeable battery pack to USB charging cable 2. Plug the USB charging cable into the equipment of class II or class III 3. The charging time for a full charge is about 3 hours 4. When charging is completed, unplug the USB charging cable 5. Disconnect the rechargeable batt…

Text truncated - open the document above for the full version.

2.4GT POWER SUPPLY 12MHz

Letter of Agency "I, an officer of Kidztech Toys Manufacturing Ltd. do hereby authorize Intertek Testing Services (Mr. Terry Chan / Koo Wai Ip / Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated this day of 20 By Signature Printed Name Title Remark: The person who signs this authorization letter must be the grantee contact of record in the Grantee Code data base. Dec 2013 Eric Ho Senior Manager 20May 20

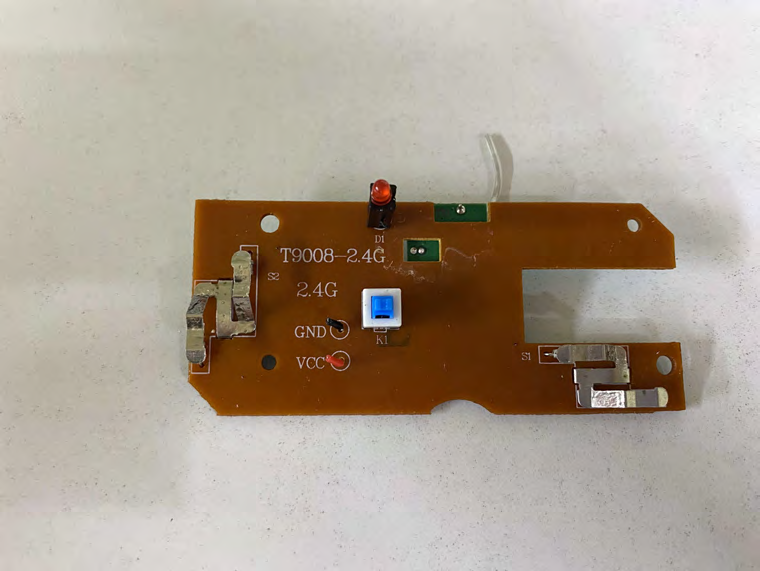

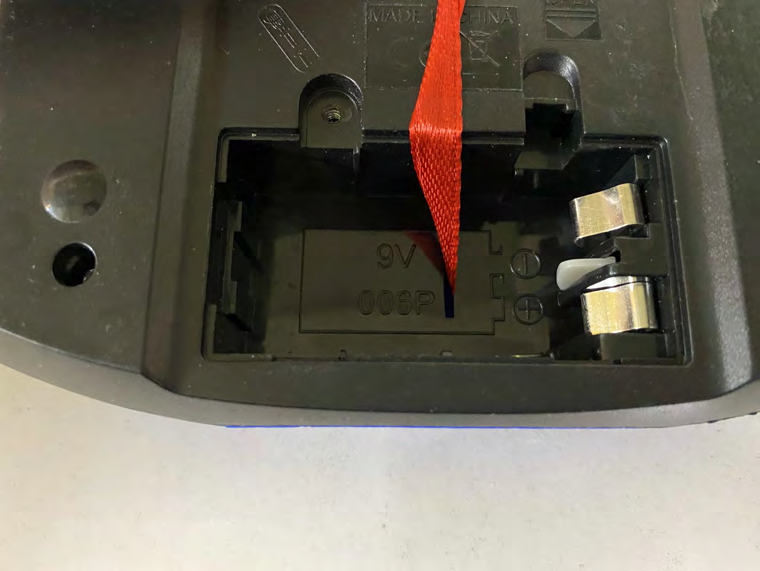

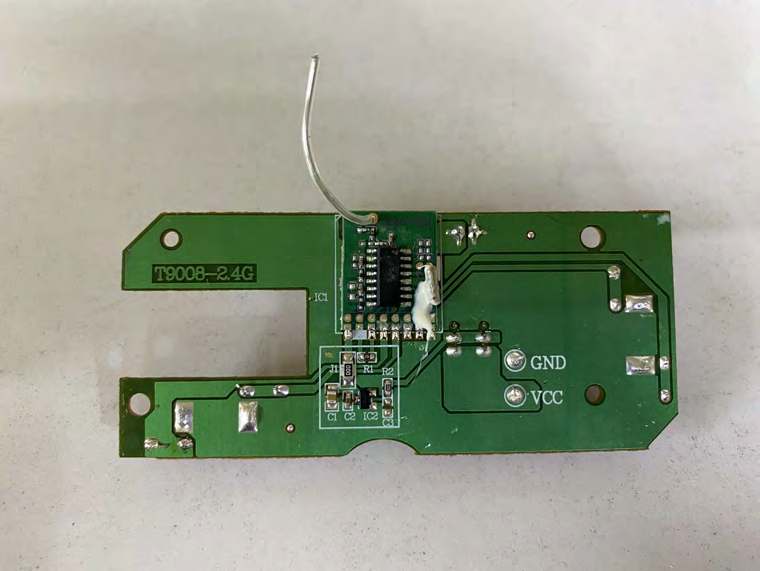

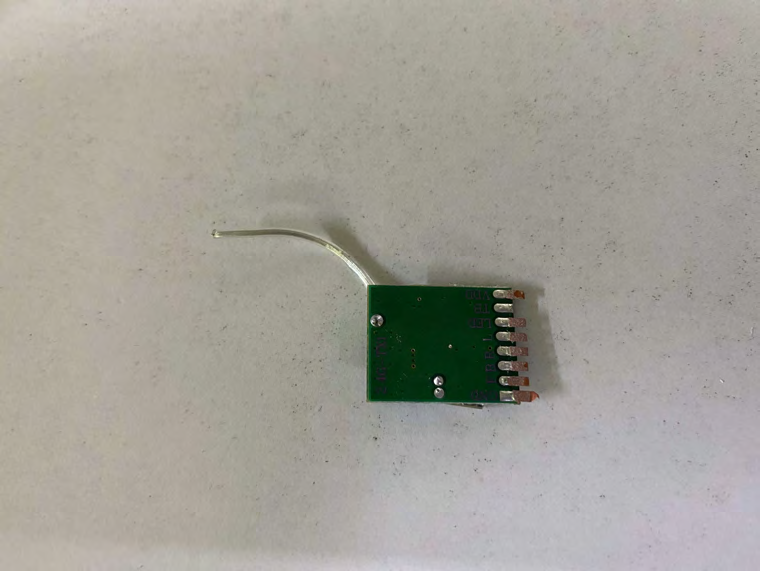

INTERTEK TESTING SERVICE FCC ID: OTM-8437120-24GTX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: OTM-8437120-24GTX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: OTM-8437120-24GTX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: OTM-8437120-24GTX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: OTM-8437120-24GTX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: OTM-8437120-24GTX Equipment Photographs (Internal)

Technical Description The Equipment Under Test (EUT), is a portable 2.4GHz Transmitter (Controller Unit) for a RC car. The sample supplied operated on 71 channels, normally at 2405 - 2475MHz. The channels are separated with 1MHz spacing. The EUT is powered by 1 x 9.0V Alkaline battery. After switching on the EUT, the car will be moved forward or backward and turned left and right based on the switches pressed in the controller. Antenna Type: External, Whip Antenna Antenna Gain: 0dBi Nominal rated field strength is 96.9dBμV/m at 3m Maximum allowed production tolerance: +/- 3dB The brief circuit description is listed as follows: 1. U1 (RS14132-TX) acts as MCU 2. Y1 acts as 12MHz Oscillator 3. C1, C2 and L1 act as antenna matching circuit

Analysis Report The Equipment Under Test (EUT), is a portable 2.4GHz Transmitter (Controller Unit) for a RC car. The sample supplied operated on 71 channels, normally at 2405 - 2475MHz. The channels are separated with 1MHz spacing. The EUT is powered by 1 x 9.0V Alkaline battery. After switching on the EUT, the car will be moved forward or backward and turned left and right based on the switches pressed in the controller. Antenna Type: External, Whip Antenna Antenna Gain: 0dBi Nominal rated field strength is 96.9dBμV/m at 3m Maximum allowed production tolerance: +/- 3dB According to the KDB 447498: Based on the maximum average field strength of production tolerance was 99.9dBμV/m at 3m in frequency 2.475GHz. Thus, it below calculated field strength according to minimum SAR exclusion threshold level as follows: The worst case of SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt (freq. in GHz) = 3.0 * 5 / sqrt (2.483.5) mW = 9.52 mW According to the KDB 412172 D01: EIRP = [(FS*D) ^2*1000 / 30] Calculated Field Strength for 9.52mW is 105dBuV/m @3m Since maximum average field strength plus production tolerance < = 105dBuV/m @3m and antenna gain is > = 0.0dBi, it is concluded that maximum Conducted Power and Field Strength are well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

1 1 2 2 3 3 4 4 DD CC BB AA D1 LED-R R1 1K VDD S1 L/R S2 F/B K1 VCC C2 104 C1 10U 12345678 IC1 VDD LED LED J1 0R IO G IC2 7130 1 2 3 4 5 6 7 89 10 11 12 13 14 15 16 U1 RS14132-TX Comment: ANTENNA C3 104 R1 NC L1 1.5NH Y1 12M C1 1P C2 1P R4 10RC4 NC C6 NC C5 104 L LED DM R2 10K R B F R3 NC C8 NC C9 NC C7 1UF 12345678 VDD3.0V LEDLRBF 2.4G-TX1 R2 22R C3 *

2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong SAR, China. Telephone: (852) 2173 8888 Facsimile: (852) 2785 5487 www.intertek.com Intertek’s standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. © 2017 Intertek Page 1 of 16 TEST REPORT Report No.: 20060879HKG-001 Kidztech Toys Manufacturing Ltd. Application For Certification (Original Grant) FCC ID: OTM-8437120-24GTX Transmitter Prepared and Checked by: Approved by: Signed On File Lee For Yiu, Florey Assistant Engineer Wong Kwok Yeung, Kenneth Senior Lead Engineer Date: July 02, 2020 TEST REPORT Kidztech Toys Manufacturing Ltd. Intertek Report No: 20060879HKG-001 Page 2 of 16 GENERAL INFORMATION Grantee: Kidztech Toys Manufacturing Ltd. Grantee Address: Room 1201, 12/F., Inter-Continental Plaza, 94 Granville Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Eric Ho Tel: (852) 2721 8868 Fax: (852) 2721 8838 e-mail: N/A Manufacturer: Kidztech Intelligent Technology Co., Ltd. Manufacturer Address: No. 9, Zhen Dao Gou Dong Industrial Avenue, Yong Xin Industrial Estate, Lian Shang Town, Chenghai District, Shantou City, 515833, Guangdong, China Brand Name: Kidztech Toys Model: 84371 Type of EUT: Transmitter Description of EUT: 1/6 R/C Yamaha Snowmobile Viper Serial Number: N/A FCC ID: OTM-8437120-24GTX Date of Sample Submitted: June 16, 2020 Date of Test: June 16, 2020 to June 30, 2020 Report No.: 20060879HKG-001 Report Date: July 02, 2020 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Conclusion: Test was conducted by client submitted sample. The submitted sample as received complied with the 47 CFR Part 15 Certification. TEST REPORT Kidztech Toys Manufacturing Ltd. Intertek Report No: 20060879HKG-001 Page 3 of 16 SUMMARY OF TEST RESULT Test Specification Reference Results Radiated Emission Radiated Emission on the Bandedge 15.249, 15.209 Pass Radiated Emission in Restricted Bands 15.205 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2019 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. TEST REPORT Kidztech Toys Manufacturing Ltd. Intertek Report No: 20060879HKG-001 Page 4 of 16 TABLE OF CONTENTS 1.0 GENERAL DESCRIPTION ................................................................................................ 5 1.1 Product Description ................................................................................................... 5 1.2 Related Submittal(s) Grants ....................................................................................... 5 1.3 Test Methodology ...................................................................................................... 5 1.4 Test Facility ................................................................................................................ 5 2.0 SYSTEM TEST CONFIGURATION ..................................................................................... 6 2.1 Justification ................................................................................................................ 6 2.2 EUT Exercising Software ............................................................................................. 6 2.3 Special Accessories .................................................................................................... 6 2.4 Measurement Uncertainty ......................................................................................... 6 2.5 Support Equipment List and Description .................................................................... 6 3.0 EMISSION RESULTS ....................................................................................................... 7 3.1 Field Strength Calculation .......................................................................................... 7 3.2 Radiated Emission Configuration Photograph ............................................................ 8 3.3 Radiated Emission Data ............................................................................................. 8 4.0 EQUIPMENT PHOTOGRAPHS ...................................................................................... 12 5.0 PRODUCT LABELLING .................................................................................................. 12 6.0 TECHNICAL SPECIFICATIONS ....................................................................................... 12 7.0 INSTRUCTION MANUAL ......…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE FCC ID: OTM-8437120-24GTX Configuration Photographs Worst-Case Radiated Emissions (Front View) INTERTEK TESTING SERVICE FCC ID: OTM-8437120-24GTX Configuration Photographs Worst-Case Radiated Emissions (Back View)
