OTM-8448020-24GTXR/C Mercedez-Benz Actros with Container

Battery Installation For Transmitter (Fig. 3 and Fig. 4) 1. Switch OFF the power 2. Unscrew the screw on the battery cover 3. Open the battery cover 4. Install 2 new 1.5V “AAA” batteries with correct polarities (+/-) as shown inside the battery compartment 5. Close the battery cover 6. Tighten the screw on the battery cover For Vehicle (Fig. 1 and Fig. 2) 1. Switch OFF the power 2. Unscrew the screw on the battery cover 3. Open the battery cover 4. Install 5 new 1.5V AA batteries with correct polarities (+/-) as shown inside the battery compartment 5. Close the battery cover 6. Tighten the screw on the battery cover Battery Precaution 1. Alkaline batteries are recommended to be used 2. Only batteries of the same or equivalent type as recommended are to be used 3. Do not mix alkaline, standard or rechargeable batteries 4. Do not mix old and new batteries or different type of batteries 5. Non-rechargeable batteries are not to be charged 6. Rechargeable batteries for adult charging only 7. Rechargeable batteries are to be removed from the product before they are charged 8. Be sure to insert batteries with correct polarities and always follow the battery manufacturer’s instructions 9. Remove all batteries from the Vehicle and Transmitter when not in use 10. Exhausted batteries are to be removed from the product 11. The supply terminals are not to be short-circuited 12. Dispose of batteries properly. Do not dispose the batteries in fire – it may cause them to explode or leak causing injury or damage 13. Battery installation and removal must only be done by adult -RC Vehicle (Vehicle) x 1 -RC Transmitter (Transmitter) x 1 -Instruction Manual x 1 Contents RC Vehicle (Vehicle) x 1RC Transmitter (Transmitter) x 1 25 PRO. SYSTEM 2 x AAA For Transmitter (Not Included) 5 x AA For Vehicle (Not Included) age 6 HEAD LIGHTS FULL FUNCTION SOUND EFFECT MULTI- PLAYERS Vehicle - Battery Installation Fig. 1 Vehicle Fig. 2 Direction Adjustment Battery Compartment ON/OFF/ ON+Sound 1:26 SCALE NO.: 84480 + - + - + - - - + + Mercedes-Benz Actros Full Function Radi o Control Transmitter Transmitter - Battery Installation Fig. 4 AAA AAA Antenna Sound Button Power On LED Detachable Trailer / Speed Button Forward / Backward Fig. 3 On / O Switch Left / Right The packaging and instruction manual contain important information. Please keep them for future reference. Warning! Choking Hazard. Not suitable for children under the age of 3 years due to small parts. We reserve the right to improve/amend specifications and colors without notice. Warning! The Antenna of vehicle and/or transmitter is/are not to be inserted into socket outlets. 84480 8. If the Vehicle does not run in straight line, adjust the direction adjustment on the Vehicle chassis (Fig. 1). 9. Play on smooth surface for optimum performance. 10. Remember to switch OFF the power of the Vehicle and Transmitter after playing. 11. The optimum control range is up to 25m (82ft) outdoor. 1. Switch ON the Vehicle FCC label compliance statement: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interfer- ence to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna - Increase the separation between the equipment and receiver - Connect the equipment into an outlet on a circuit different from that to which the receiver is needed - Consult the dealer or an experienced radio/TV technician for help Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. RSS-210 Compliance Statement: This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. Declaration of Conformity The product is in conformity with the requirement of EU Directive 2014/53/EU Environmental notes: The whole product also does not belong to household waste at the end of the product life. You can return it at collection points for the recycling of electronic and electronical instruments The symbol on the item, instruction manual, hangtag or packing is showing this clearly. Materials should be recycled according to their respective markings. Recycling of old devices or other re-use of materials contained therein represents an important contribution to environmental protection. Please ask at your local community for the correct collection point. Disposal of batteries Batteries should not be disposed of in the household waste. As the consumer you are legally obliged to return batteries containing harmful substances and all other used batteries. You can hand in your old batteries at public collection points in your area or wherever batteries are sold. You will find these chemical abbreviations along with a crossed-out refus…

Text truncated - open the document above for the full version.

2.4GT POWER SUPPLY 12MHz

Letter of Agency "I, an officer of Kidztech Toys Manufacturing Ltd. do hereby authorize Intertek Testing Services (Mr. Terry Chan / Koo Wai Ip / Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated this day of 20 By Signature Printed Name Title Remark: The person who signs this authorization letter must be the grantee contact of record in the Grantee Code data base. Dec 2013 Eric Ho Senior Manager 20May 20

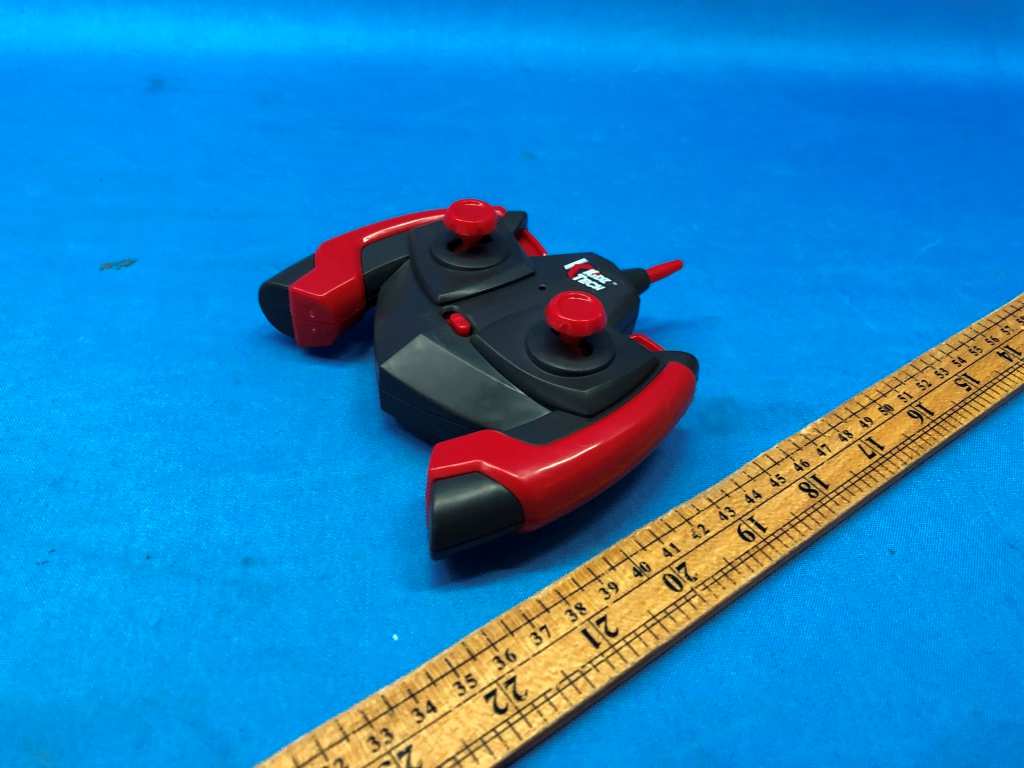

INTERTEK TESTING SERVICE FCC ID: OTM-8448020-24GTX Equipment Photographs (External) INTERTEK TESTING SERVICE FCC ID: OTM-8448020-24GTX Equipment Photographs (External)

INTERTEK TESTING SERVICE FCC ID: OTM-8448020-24GTX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: OTM-8448020-24GTX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: OTM-8448020-24GTX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: OTM-8448020-24GTX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: OTM-8448020-24GTX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: OTM-8448020-24GTX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: OTM-8448020-24GTX Equipment Photographs (Internal)

Technical Description The Equipment Under Test (EUT), is a portable 2.4GHz Transmitter (Controller Unit) for a RC car. The sample supplied operated on 71 channels, normally at 2405 - 2475MHz. The channels are separated with 1MHz spacing. The EUT is powered by 2 x 1.5V AAA batteries. After switching on the EUT, the car will be moved forward or backward and turned left and right based on the switches pressed in the controller. Antenna Type: Internal, Integral Antenna Antenna Gain: 0dBi Nominal rated field strength is 95.0dBμV/m at 3m Maximum allowed production tolerance: +/- 3dB The brief circuit description is listed as follows: 1. U1 (BO-T105B) acts as RF Module 2. Y1 acts as 12MHz Oscillator 3. C1, C2 and L1 act as antenna matching circuit

Analysis Report The Equipment Under Test (EUT), is a portable 2.4GHz Transmitter (Controller Unit) for a RC car. The sample supplied operated on 71 channels, normally at 2405 - 2475MHz. The channels are separated with 1MHz spacing. The EUT is powered by 2 x 1.5V AAA batteries. After switching on the EUT, the car will be moved forward or backward and turned left and right based on the switches pressed in the controller. Antenna Type: Internal, integral Antenna Antenna Gain: 0dBi Nominal rated field strength is 95.0dBμV/m at 3m Maximum allowed production tolerance: +/- 3dB According to the KDB 447498: Based on the maximum field strength of production tolerance was 98.0dBμV/m at 3m in frequency 2.405GHz. Thus, it below calculated field strength according to minimum SAR exclusion threshold level as follows: The worst case of SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.483.5) mW = 9.52 mW According to the KDB 412172 D01: EIRP = [(FS*D) ^2*1000 / 30] Calculated Field Strength for 9.52mW is 105dBuV/m @3m Since maximum average field strength plus production tolerance < = 105dBuV/m @3m and antenna gain is > = 0.0dBi, it is concluded that maximum Conducted Power and Field Strength are well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

11 22 33 44 D D C C B B A A Title Number Revision Size A4 Date: 2017/2/17 Sheet of File: E:\ E \..\2.4G-8.SchDoc Drawn By: 12345678 9 10111213141516 U1BO-T105B ANT C31UF L12.7NH Y112M C1*C20.5P C4 104 C6 4.7UF C5 104 LED B R C7* VDD LED F ID F L GND B 1 2 3 4 5 6 7 8 IC1 2.4G-8 R110R VDD ID L R GND GND C9 * C8 * GNDGND D1LED-R C2104 R21K VCC3V C110U R L B F R110R VCC 1 2 3 4 5 6 7 8 IC1 VCC3V LED LED ID " * " values represent spare socket.

2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong SAR, China. Telephone: (852) 2173 8888 Facsimile: (852) 2785 5487 www.intertek.com Intertek’s standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. © 2017 Intertek Page 1 of 16 TEST REPORT Report No.: 20060510HKG-001 Kidztech Toys Manufacturing Ltd. Application For Certification (Original Grant) FCC ID: OTM-8448020-24GTX Transmitter Prepared and Checked by: Approved by: Signed On File Lee For Yiu, Florey Assistant Engineer Wong Kwok Yeung, Kenneth Senior Lead Engineer Date: June 19, 2020 TEST REPORT Kidztech Toys Manufacturing Ltd. Intertek Report No: 20060510HKG-001 Page 2 of 16 GENERAL INFORMATION Grantee: Kidztech Toys Manufacturing Ltd. Grantee Address: Room 1201, 12/F., Inter-Continental Plaza, 94 Granville Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Eric Ho Tel: (852) 2721 8868 Fax: (852) 2721 8838 e-mail: N/A Manufacturer: Kidztech Intelligent Technology Co., Ltd. Manufacturer Address: No. 9, Zhen Dao Gou Dong Industrial Avenue, Yong Xin Industrial Estate, Lian Shang Town, Chenghai District, Shantou City, 515833, Guangdong, China Brand Name: Kidztech Toys Model: 84480 Additional Model: 84483 Type of EUT: Transmitter Description of EUT: R/C Mercedez-Benz Actros with Container Serial Number: N/A FCC ID: OTM-8448020-24GTX Date of Sample Submitted: June 09, 2020 Date of Test: June 09, 2020 to June 19, 2020 Report No.: 20060510HKG-001 Report Date: June 19, 2020 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Conclusion: Test was conducted by client submitted sample. The submitted sample as received complied with the 47 CFR Part 15 Certification. TEST REPORT Kidztech Toys Manufacturing Ltd. Intertek Report No: 20060510HKG-001 Page 3 of 16 SUMMARY OF TEST RESULT Test Specification Reference Results Radiated Emission Radiated Emission on the Bandedge 15.249, 15.209 Pass Radiated Emission in Restricted Bands 15.205 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2018 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. TEST REPORT Kidztech Toys Manufacturing Ltd. Intertek Report No: 20060510HKG-001 Page 4 of 16 TABLE OF CONTENTS 1.0 GENERAL DESCRIPTION ................................................................................................ 5 1.1 Product Description ................................................................................................... 5 1.2 Related Submittal(s) Grants ....................................................................................... 5 1.3 Test Methodology ...................................................................................................... 5 1.4 Test Facility ................................................................................................................ 5 2.0 SYSTEM TEST CONFIGURATION ..................................................................................... 6 2.1 Justification ................................................................................................................ 6 2.2 EUT Exercising Software ............................................................................................. 6 2.3 Special Accessories .................................................................................................... 6 2.4 Measurement Uncertainty ......................................................................................... 6 2.5 Support Equipment List and Description .................................................................... 6 3.0 EMISSION RESULTS ....................................................................................................... 7 3.1 Field Strength Calculation .......................................................................................... 7 3.2 Radiated Emission Configuration Photograph ............................................................ 8 3.3 Radiated Emission Data ............................................................................................. 8 4.0 EQUIPMENT PHOTOGRAPHS ...................................................................................... 12 5.0 PRODUCT LABELLING .................................................................................................. 12 6.0 TECHNICAL SPECIFICATIONS ....................................................................................... …

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE FCC ID: OTM-8448020-24GTX Configuration Photographs Worst-Case Radiated Emissions (Front View) INTERTEK TESTING SERVICE FCC ID: OTM-8448020-24GTX Configuration Photographs Worst-Case Radiated Emissions (Back View)
