OTM-8501220-27MTX1/16 R/C Big Foot Off-Road Truck

Transmitter Forward / Backward Transmitter Antenna LED Battery Indicator Left / Right OFF / ON Transmitter - Battery Installation Direction Adjustment Battery Compartment ON / OFF Switch 5 x AA For Vehicle ( Not Included ) 1 x 9V For Transmitter ( Not Included ) 85012/85013 Contents RC Vehicle (Vehicle) x 1 RC Transmitter (Transmitter) x 1 Antenna for RC Transmitter x 1 Instruction Manual x 1 Battery Requirement 1. Vehicle: 5 x 1.5V “AA” batteries 2. Transmitter: 1 x 9V battery Battery Precaution 1. Alkaline batteries are recommended to be used 2. Only batteries of the same or equivalent type as recommended are to be used 3. Do not mix alkaline, standard or rechargeable batteries 4. Do not mix old and new batteries or different type of batteries 5. Non-rechargeable batteries are not to be charged 6. If rechargeable batteries are to be used, they are only to be charged under adult supervision 7. Rechargeable batteries are to be removed from the product before they are charged 8. Be sure to insert batteries with correct polarities and always follow the battery manufacturer’s instructions 9. Remove all batteries from the Vehicle and Transmitter when not in use 10. Exhausted batteries are to be removed from the product 11. The supply terminals are not to be short-circuited 12. Dispose of batteries properly. Do not dispose the batteries in fire - it may cause them to explode or leak causing injury or damage 13. Battery installation and removal must only be done by adult Battery and Antenna Installation For Vehicle (Fig. 1 and Fig. 2) 1. Switch OFF the power 2. Unscrew the screw and lock on the battery cover 3. Push the battery cover downward 4. Open the battery cover 5. Install 5 new 1.5V “AA” batteries with correct polarities (+/-) as shown inside the battery compartment 6. Close the battery cover 7. Push the battery cover upward to lock it 8. Tighten the screwn and lock on the battery cover Vehicle Vehicle - Battery Installation Vehicle - Battery Cover Vehicle - Battery Cover For Transmitter (Fig. 3 and Fig. 4) 1. Switch OFF the power 2. Unscrew the screw on the battery cover 3. Open the battery cover 4. Install 1 new 9V battery with correct polarities (+/-) as shown inside the battery compartment 5. Close the battery cover 6. Tighten the screw on the battery cover 7. Insert the antenna into the top of Transmitter, tighten it by rotating clockwise (viewing from top of Transmitter) age 6 Conforms to the safety requirements of ASTM F963 85012/85013 KT-12/06/19-EN How to Play 1. Switch ON the Vehicle. 2. Use the Forward / Backward joystick (Fig.3) to drive the Vehicle forward and backward. 3. Use the Left / Right joystick (Fig.3) to control the Vehicle turning left or right. 4. If the vehicle does not run in straight line, adjust the direction adjustment on the vehicle chassis (Fig. 1). 5. Play on smooth surface to have the optimum performance. 6. Remember to switch OFF the power of the Vehicle and Transmitter after playing. 7. The optimum control range is up to 15m(49ft) outdoor. Performance Tips 1. Do not drive on grass, dirt, sand, dusts, carpet or go through water. 2. Do not drive in windy or rainy weather. 3. Avoid direct impact the Vehicle with obstacles. 4. Switch OFF the power when not in use to prevent damage of Vehicle and Transmitter due to leakage of electrolyte from batteries. 5. Remove all batteries from the Vehicle and Transmitter when not in use for long period. 6. Keep fingers, hair and loose clothing away from wheels. 7. The operating range can be affected by a variety of factors. a) Low Voltage of batteries in Transmitter or Vehicle. b) Interference from other items that emit radio frequency signals. 8. Outdoor usage is recommended in order to get optimum control range. 9. Recommend to play the vehicle on a clean and smooth surface. 10. Clean the battery compartment to make sure it is free from dust to prevent poor contact of batteries. Cautions 1. Do not attempt to disassemble the Vehicle or Transmitter. 2. Do not operate the Vehicle with same frequency with other player(s) in same location that will interfere and make the Vehicle out of control. 3. Make sure the batteries are installed with correct polarities (+/-) as shown inside the battery compartment. 4. Remove the package and take out all accessories before giving the Vehicle and Transmitter to child to play. FCC label compliance statement: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna - Increase the separation between the equipment and receiver - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected - Consult the dealer or an experienced radio/TV technician for help Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. RSS-310 Compliance Statement: This device contains licence-exempt transmitter(s)/receiver(s)…

Text truncated - open the document above for the full version.

1 1 2 2 3 3 4 4 DD CC BB AA Coding circuit Antenna Oscilla�on circuit AM modula�on circuit Regulator circuit VCC +9V 27.145 MHz Frequency selec�on circuit Antenna matching Forward / Backward Le� / Right

Letter of Agency "I, an officer of Kidztech Toys Manufacturing Ltd. do hereby authorize Intertek Testing Services (Mr. Terry Chan / Koo Wai Ip / Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated this day of 20 By Signature Printed Name Title Remark: The person who signs this authorization letter must be the grantee contact of record in the Grantee Code data base. Dec 2013 Eric Ho Senior Manager 20May 20

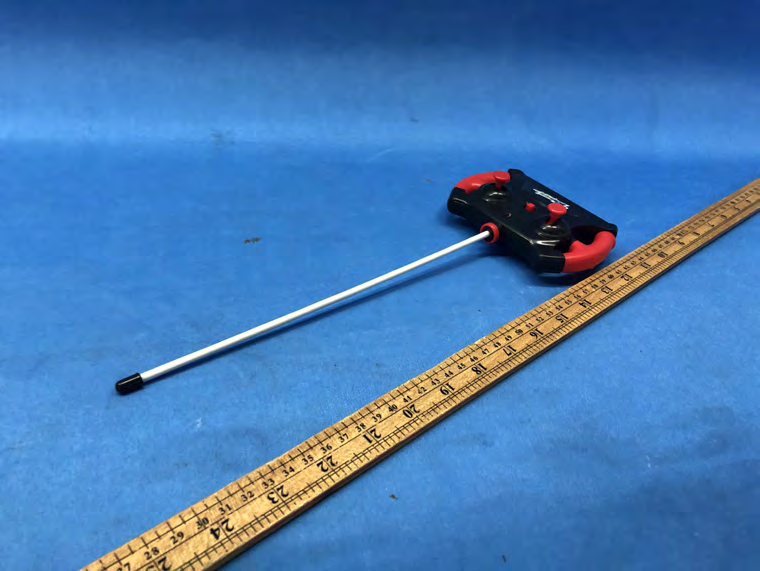

INTERTEK TESTING SERVICE FCC ID: OTM-8501220-27MTX Equipment Photographs (External) INTERTEK TESTING SERVICE FCC ID: OTM-8501220-27MTX Equipment Photographs (External)

INTERTEK TESTING SERVICE FCC ID: OTM-8501220-27MTX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: OTM-8501220-27MTX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: OTM-8501220-27MTX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: OTM-8501220-27MTX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: OTM-8501220-27MTX Equipment Photographs (Internal)

Technical Description The Equipment Under Test (EUT) is a portable transmitter of a RC Car operating at 27.145 MHz as dictated by a crystal. The EUT is powered by a 9.0 V DC source (1 x 9.0V battery). The EUT has a left / right control lever and a forward / backward control lever. After switching ON the EUT and the receiver of the RC Car, activating the control levers on the EUT can control the receiver moving forward, backward left and right directions. Antenna Type: External, Dedicated Whip Antenna Antenna Gain: 0dBi Nominal rated field strength: 58.9dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB The brief circuit description is listed as below: 1) U1 (TX-2) acts as MCU 2) L1, T1, C1, C2 and C3 act as Antenna Circuit. 2) Y1 & Q1 act as a 27.145MHz Oscillator. 3) Q2 acts as Modulator and Amplifier.

Analysis Report The Equipment Under Test (EUT) is a portable transmitter of a RC Car operating at 27.145 MHz as dictated by a crystal. The EUT is powered by a 9.0 V DC source (1 x 9.0V battery). The EUT has a left / right control lever and a forward / backward control lever. After switching ON the EUT and the receiver of the RC Car, activating the control levers on the EUT can control the receiver moving forward, backward left and right directions. Antenna Type: External, Dedicated Whip Antenna Antenna Gain: 0dBi Nominal rated field strength: 58.9dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 61.1dBμV/m at 3m in frequency 27.145MHz, thus; The worst case of SAR Exclusion Threshold Level for 27.145MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 371.2mW According to the KDB 412172 D01: EIRP = [(FS*D) ^2*1000 / 30] Calculated Field Strength for 371.2mW is 120.9dBuV/m @3m Since maximum field strength plus production tolerance < = 120.9dBuV/m @3m and antenna gain is > = 0.0dBi, it is concluded that maximum Conducted Power and Field Strength are well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

11 22 33 44 D D C C B B A A ANTENNA C747P C647P C5300P C315P L17.5uH L22.2uH L32.2uH R222K R3100 R4150K Y1 27.145MHz C8103 C268P T115T C168P C4103 Q1 2712 Q22712 R110R DATA VCC ZD13.3V LED R5470R C11104 VDD R63.9K R7 200K VDD DATA R8* C12* 1 2 3 4 5 6 78 9 10 11 12 13 14 U1TX-2 S1 S2. S3 S4 VDD K1 " * " values represent spare sockets
