OTM-85021-27MTX1/16 R/C Cars

connected This device complies with Industry Canada Licence-exempt RSS-310.

How to Play 1. Switch ON the Vehicle 2. Use the Forward / Backward joystick (Fig.3) to drive the Vehicle forward and backward 3. Use the Left / Right joystick (Fig.3) to control the Vehicle turning left or right 4. If the vehicle does not run in straight line, adjust the Direction Adjustment on the vehicle chassis (Fig. 1) 5. Play on smooth surface to have the optimum performance 6. Remember to switch OFF the power of the Vehicle and Transmitter after playing 7. The optimum control range is up to 10m outdoor connected This device complies with Industry Canada Licence-exempt RSS-310.

1 1 2 2 3 3 4 4 DD CC BB AA Title Nu mb erRev isio nSize A 4 Date :2013-4-29Sheet of File:D:\\..\1-12 27M.S chDrawn By: A NTENNA Regulator circuit Encoding circuit Oscillation circuit AM V CC+9V 27.145MHZ Frequency selection Antenna matching

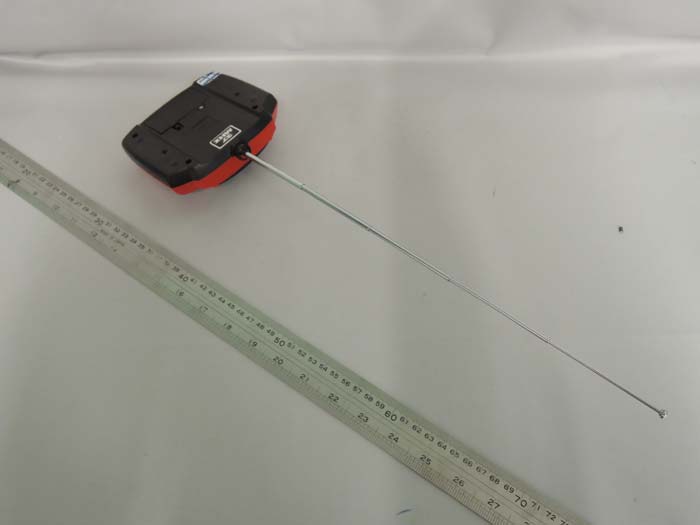

INTERTEK TESTING SERVICE Report No.: 14050282HKG-001R1 Equipment Photographs Model : 85081 (External) FCC ID: OTM-85021-27MTX

INTERTEK TESTING SERVICE Report No.: 14050282HKG-001R1 Equipment Photographs Model : 85081 (Internal) FCC ID: OTM-85021-27MTX INTERTEK TESTING SERVICE Report No.: 14050282HKG-001R1 Equipment Photographs Model : 85081 (Internal) FCC ID: OTM-85021-27MTX INTERTEK TESTING SERVICE Report No.: 14050282HKG-001R1 Equipment Photographs Model : 85081 (Internal) FCC ID: OTM-85021-27MTX

FCC ID: OTM-85021-27MTX Model: 85081 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 27.145 MHz, and controls the corresponding receiver to move forward, backward, left and right. The circuit of the transmitter comprises of, 1. An Encoding circuit Consisting: SW1, SW2, SW3, SW4, IC1 2. A RF Oscillator (27.145MHz) Consisting: TX1, Q1 3. A Filter Network Consisting: T1, C6, C7, C8, L3 4. A RF Modulator and Amplifier Consisting: Q2 5. A Power Supply Consisting: 9VDC (1 X “9V” battery) 6. Regulator Consisting: ZD1, C9 Antenna Gain: 0dBi Nominal rated field strength: 68.9dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB The transmitter uses an external and telescope antenna with unique antenna connector .

Analysis Report Report No.: 14050282HKG-001R1 The Equipment Under Test (EUT) is a portable transmitter of a RC Car operating at 27.145 MHz as dictated by a crystal. The EUT is powered by a 9.0 V DC source (1 x 9.0V battery). The EUT has a left / right control lever and a forward / backward control lever. After switching ON the EUT and the receiver of the RC Car, activating the control levers on the EUT can control the receiver moving forward, backward, left and right directions. Antenna Type: External, telescope antenna with unique antenna connector Antenna Gain: 0dBi Nominal rated field strength: 68.9dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 71.9dBμV/m at 3m in frequency 27.145MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.00465mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.00465mW. The SAR Exclusion Threshold Level for 27.145MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 371.2mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

1 1 2 2 3 3 4 4 DD CC BB AA A NTENNA 27.145MHz C1 68P C2 47P C3 201 C6 47P Q1 C94 5P Q2 C94 5P L3 6.8uH L2 2.2uH L1 2.2uH R4 22K R1 100 R3 150K TX1 27.145MHz LED 9V R 1 NC 2 GND 3 B 4 F 5 T 6 SC 7 SO 8 V DD 9 PC 10 OS CO 11 OS CI 12 NC 13 L 14 IC1977 (IC part no.= PT977) R6 220K R5 330 C4 103 C9 104P C7 68P ZD1 3.3V K1 SW SPST R7 3.9K T1 15.5T C8 68P R2 100 C5 103 C10 104 Title 1/16 RC Cars

Valued Quality. Delivercd. lssuing Laboratory: lntertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditat¡on Scheme (HOKI-AS) for spec¡fic laboratory ac{ivit¡es as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance w¡th its tems of accreditation. TEST REPORT HII- n€t *t-*r#/ Report No. : 1 40 50282HKG-001 R1 Kidztech Toys Manufacturing Ltd. Application For Certification (Original Grant) (FCC lD: OTM-85021 -27MTX) ïransmitter This report supersedes previous report with report number(s) 14050282HKG-001 dated May 19,2014, no application is required and no certificate will issue. Prepared and Checked by: Approved by: Tse Ying, Cathy Senior Lead Engineer (,' .Ç Ng Mei Nar, Chris t Lead Engineer \ . Date: June 06, 2014 The test report only allws to be revised within the retention per¡od unless furths standard or the requiremênt was nol¡æd. This rsport is for the exclusive use of lntêrtoks Cl¡ent and is provided pußuant to the agreement between lntertok and ¡ts Cl¡ent. lnterteks responsib¡lity and liability are limitêd to the terms and cond¡tions of the agre€ment. lnterlek assumes no liab¡l¡ty to any party, other than to the Client ¡n accordanæ with the agreêment, for any loss, expense or damâge ocêasioned by the uss of this report. Only the Client is author¡zed to pemit æpying or distribution of this report and lhen only ¡n its ent¡rety. Any use of the lntertek name or one of its marks for the salê or advortisement of the tested material, product or seru¡ce must f¡rst be approved ¡n witing by lntertek. Ths obseruations and test rêsults in th¡s report are relevant only to the sample tssted. This report by itself does not imply that the material, product, or servicê is or has êver been under an lntertek certifi€tion program. lntertek Testing Services Hong Kong Ltd. 2/F., GarmentCentre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 14050282HKG-001R1 i FCC ID: OTM-85021-27MTX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Kidztech Toys Manufacturing Ltd. Grantee Address: Room 1201, 12/F., Inter-Continental Plaza, 94 Granville Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Eric Ho Tel: (852) 2721 8868 Fax: (852) 2721 8838 e-mail: N/A Manufacturer: Shantou Chenghai JinJun Toys Co. Ltd. Manufacturer Address: Yongxin Industry Zone, Lianshang, Chenghai, Shantou, China Brand Name: N/A Model: 85081 Additional Model: 85021 / 85031 / 85051 / 85061 / 85071 / 85091 / 85101 / 85111 / 85121 / 85131 / 85141 / 85151 / 85161 / 85171 / 85181 / 85022 / 85032 / 85052 / 85062 / 85072 / 85082 / 85092 / 85102 / 85112 / 85122 / 85132 / 85142 / 85152 / 85162 / 85172 / 85182 Type of EUT: Transmitter Description of EUT: 1/16 R/C Cars Serial Number: N/A FCC ID / IC: OTM-85021-27MTX Date of Sample Submitted: May 07, 2014 Date of Test: May 07, 2014 to May 13, 2014 Report No.: 14050282HKG-001R1 Report Date: June 06, 2014 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 14050282HKG-001R1 ii FCC ID: OTM-85021-27MTX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength 15.227 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2012 Edition Note: 1. The EUT uses detachable antenna with unique antenna connector which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 14050282HKG-001R1 iii FCC ID: OTM-85021-27MTX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ....…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 14050282HKG-001R1 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 85081 R1 FCC ID: OTM-85021-27MTX INTERTEK TESTING SERVICE Report No: 14050282HKG-001R1 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 85081 R1 FCC ID: OTM-85021-27MTX
