1 1 2 2 3 3 4 4 DD CC BB AA A NTENNA V CC+9 V select function Regulator circuit Coding circuit Oscillation circuit AM Frequency selection Antenna matching 27.145 MHz

Letter of Agency "I, an officer of Kidztech Toys Manufacturing Ltd. do hereby authorize Intertek Testing Services (Mr. Terry Chan / Koo Wai Ip / Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated this day of 20 By Signature Printed Name Title Remark: The person who signs this authorization letter must be the grantee contact of record in the Grantee Code data base. Dec 2013 Eric Ho Senior Manager 20May 20

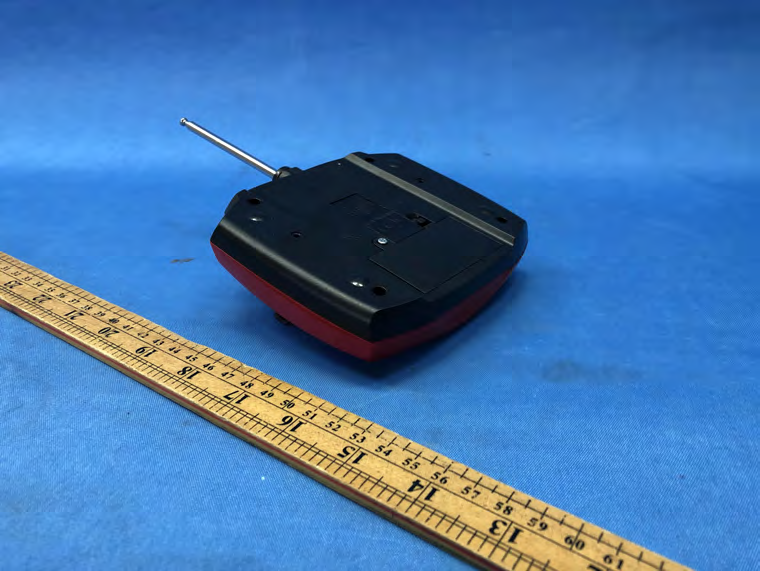

INTERTEK TESTING SERVICE FCC ID: OTM-8502120-27MTX Equipment Photographs (External) INTERTEK TESTING SERVICE FCC ID: OTM-8502120-27MTX Equipment Photographs (External)

INTERTEK TESTING SERVICE FCC ID: OTM-8502120-27MTX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: OTM-8502120-27MTX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: OTM-8502120-27MTX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: OTM-8502120-27MTX Equipment Photographs (Internal)

Technical Description The Equipment Under Test (EUT) is portable controller for Remote controlled car set which operates at 27.145MHz. The EUT is power by 1 x 9.0V Alkaline battery. After switching on the EUT, the car will be moved forward or backward, turned left or right based on the joystick control in the controller. Antenna Type: External, Dedicated Telescope Antenna Antenna Gain: 0dBi Nominal rated field strength is 44.1dBμV/m at 3m Maximum allowed production tolerance: +/- 3dB Antenna Type: Internal, Integral antenna For electronic filing, the brief circuit description is saved with filename: descri.pdf. The brief circuit description is listed as below: 1) Y1 acts as a 27.145 MHz oscillator. 2) U1 (PT977) acts as MCU 3) Q1 & Q2 act as Modulator & Amplifier

Analysis Report The Equipment Under Test (EUT) is portable controller for Remote controlled car set which operates at 27.145MHz. The EUT is power by 1 x 9.0V Alkaline battery. After switching on the EUT, the car will be moved forward or backward, turned left or right based on the joystick control in the controller. Antenna Type: External, Dedicated Telescope Antenna Antenna Gain: 0dBi Nominal rated field strength is 44.1dBμV/m at 3m Maximum allowed production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 47.1dBμV/m at 3m in frequency 27.145MHz, thus; The worst case of SAR Exclusion Threshold Level for 27.145MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 371.2mW According to the KDB 412172 D01: EIRP = [(FS*D) ^2*1000 / 30] Calculated Field Strength for 371.2mW is 120.9dBuV/m @3m Since maximum field strength plus production tolerance < = 120.9dBuV/m @3m and antenna gain is > = 0.0dBi, it is concluded that maximum Conducted Power and Field Strength are well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

1 1 2 2 3 3 4 4 DD CC BB AA ANTENNA C7 47P C6 47P C5 300P C3 47P L1 7.5uH L2 2.2uH L3 2.2uH R2 22K R3 100 R4 150K Y1 27.145MHz C8 103 C2 68P T1 15T C1 68P C4 103 Q1 2712 Q2 2712 R1 100R DATA VCC ZD1 3.3V LED R5 470R C11 104 VDD R6 3.9K R7 220K VDD DATA C10 104 C9 104 R8 NC C12 0R 1234567 89 1011121314 U1 PT977 K1 S1 S2 VDD
