OTM-85051-27MTX1/16 R/C Cars

Rechargeable batteries are only to be charged by adult connected This device complies with Industry Canada Licence-exempt RSS-310. Operation is subject to the following two conditions: (1) this

1 1 2 2 3 3 4 4 DD CC BB AA A NTENNA V CC+9 V select function Regulator circuit Coding circuit Oscillation circuit AM Frequency selection Antenna matching 27.145 MHz

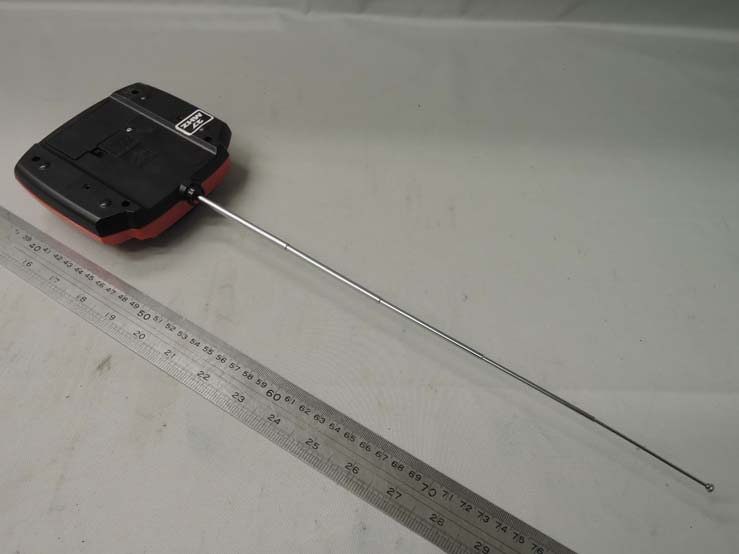

INTERTEK TESTING SERVICE Report No.: 15041363HKG-001 Equipment Photographs Model : 85066 (External) FCC ID: OTM-85051-27MTX

INTERTEK TESTING SERVICE Report No.: 15041363HKG-001 Equipment Photographs Model : 85066 (Internal) FCC ID: OTM-85051-27MTX INTERTEK TESTING SERVICE Report No.: 15041363HKG-001 Equipment Photographs Model : 85066 (Internal) FCC ID: OTM-85051-27MTX INTERTEK TESTING SERVICE Report No.: 15041363HKG-001 Equipment Photographs Model : 85066 (Internal) FCC ID: OTM-85051-27MTX

FCC ID: OTM-85051-27MTX Model: 85066 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 27.145 MHz, and controls the corresponding receiver to move forward, backward, left and right. The circuit of the transmitter comprises of, 1. Control buttons: Consisting: S1 and S2 2. An Encoding circuit Consisting: U1 (PT977) 3. A RF Oscillator (27.145MHz) Consisting: Y1, Q1 4. A Filter Network Consisting: L1, T1, C1, C2, C3 5. A RF Modulator and Amplifier Consisting: Q2 6. A Power Supply Consisting: 9VDC (1 X “9V” battery) 7. Regulator Consisting: ZD1, C11 Antenna Gain: 0dBi Nominal rated field strength: 54.5dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB The transmitter uses an external and telescope antenna with unique antenna connector .

Analysis Report Report No.: 15041363HKG-001 The Equipment Under Test (EUT) is a portable transmitter of a RC Car operating at 27.145 MHz as dictated by a crystal. The EUT is powered by a 9.0 V DC source (1 x 9.0V battery). The EUT has a left / right control lever and a forward / backward control lever. After switching ON the EUT and the receiver of the RC Car, activating the control levers on the EUT can control the receiver moving forward, backward left and right directions. Antenna Type: External, telescope type antenna with unique antenna connector Antenna Gain: 0dBi Nominal rated field strength: 54.5dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 57.5dBμV/m at 3m in frequency 27.145MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.000169mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.000169mW. The SAR Exclusion Threshold Level for 27.145MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 371.2mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

1 1 2 2 3 3 4 4 DD CC BB AA ANTENNA C7 47P C6 47P C5 300P C3 47P L1 7.5uH L2 2.2uH L3 2.2uH R2 22K R3 100 R4 150K Y1 27.145MHz C8 103 C2 68P T1 15T C1 68P C4 103 Q1 2712 Q2 2712 R1 100R DATA VCC ZD1 3.3V LED R5 470R C11 104 VDD R6 3.9K R7 220K VDD DATA C10 104 C9 104 R8 NC C12 0R 1234567 89 1011121314 U1 PT977 K1 S1 S2 VDD

lntertek Valued Quality. Delivercd. lssuing Laboratory: lntertek Testing Services Hong Kong Limited HI(AS has accredited this laboratory (HOKLAS 005 - TEST) under HOKLAS for specif¡c laboratory activities as listed in the HOKLAS d¡rectory of accredited laboratories TEST REPORT Report No.: I 5041363HKG-001 Kidztech Toys Manufacturing Ltd. Application For Certification (Original Grant) (FCC ID: OTM-85051 -27MTX) Transmitter Prepared and Checked by: Approved by: Ng Mei Nar, Ch Lead Engineer Date: May 04, 2015 lntertek's standârd Têrms and Cond¡tions can be obtained at our website httpJ/M ¡ntertek com/terms/ This rêport shell not be reproduced, except in full This report is for the exclus¡ve use of lntertek's Client and ¡s provided pursuant to the agr€ement belween lnt€rtek and ¡ts Client lntertek's responsibil¡ty end liabil¡ty âre limitêd to the terms and condit¡ons of the agreement lnterlek assumes no liab¡lity to any party, other than to the Cl¡ent ¡n accordance with the agreement, for any loss, expense or damage oc€s¡oned by the use of this report Only the Client is author¡zed to perm¡t copy¡ng or distr¡bution of this report and then only in ¡ts sntirety, Any use of the lntertek name or one of its marks for the sale or adverlisement of the tested mater¡al, product or seruice must f¡rst be approved ¡n writ¡ng by lntertek The obseryations and test results in th¡s report are relevant only to the sample tested This report by itself do€s not imply that the mâtorial, product, or seruice is or has ever been under an lntertek certifìcation program lntertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8885 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Tse Ying, Cathy Senior Lead Engineer Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15041363HKG-001 i FCC ID: OTM-85051-27MTX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Kidztech Toys Manufacturing Ltd. Grantee Address: Room 1201, 12/F, Inter-Continental Plaza, 94 Granville Road, Tsim Sha Tsui East, Kowloon, Hong Kong Contact Person: Eric Ho Tel: (852) 2721 8868 Fax: (852) 2721 8838 e-mail: N/A Manufacturer: Shantou Chenghai JinJun Toys Co. Ltd. Manufacturer Address: Yongxin Industry Zone, Lianshang, Chenghai, Shantou, China Brand Name: Not Applicable Model: 85066 Additional Model: 85021, 85031, 85051, 85061, 85071, 85081, 85091, 85101, 85111, 85121, 85131, 85141, 85151, 85161, 85171, 85181, 85221, 85231, 85241, 85022, 85032, 85052, 85062, 85072, 85082, 85092, 85102, 85112, 85122, 85132, 85142, 85152, 85162, 85172, 85182, 85222, 85232, 85242, 85076, 85096, 85116, 85136, 85226, 85067, 85077, 85097, 85117, 85137, 85227, 5F62DB7, 5F62D85, 5F62D86 Type of EUT: Transmitter Description of EUT: 1/16 R/C Cars Serial Number: N/A FCC ID: OTM-85051-27MTX Date of Sample Submitted: April 22, 2015 Date of Test: April 22, 2015 to April 30, 2015 Report No.: 15041363HKG-001 Report Date: May 04, 2015 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15041363HKG-001 ii FCC ID: OTM-85051-27MTX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength 15.227 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2013 Edition Note: 1. The EUT uses a Telescope-type antenna (with unique antenna connector) which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15041363HKG-001 iii FCC ID: OTM-85051-27MTX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants ............................................................................... 1 1.3 Test Methodology .............................................................................................. 1 1.4 Test Facility ....................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification........................................................................................................ 2 2.2 EUT Exercising Software ................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 15041363HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 85066 FCC ID: OTM-85051-27MTX INTERTEK TESTING SERVICE Report No: 15041363HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 85066 FCC ID: OTM-85051-27MTX
