OTM-85051-49MTX1/16 R/C Cars

Rechargeable batteries are only to be charged by adult connected This device complies with Industry Canada Licence-exempt RSS-310. Operation is subject to the following two conditions: (1) this

1 1 2 2 3 3 4 4 DD CC BB AA A NTENNA V CC+9 V select function Regulator circuit Coding circuit Oscillation circuit AM Frequency selection Antenna matching 49.860 MHz

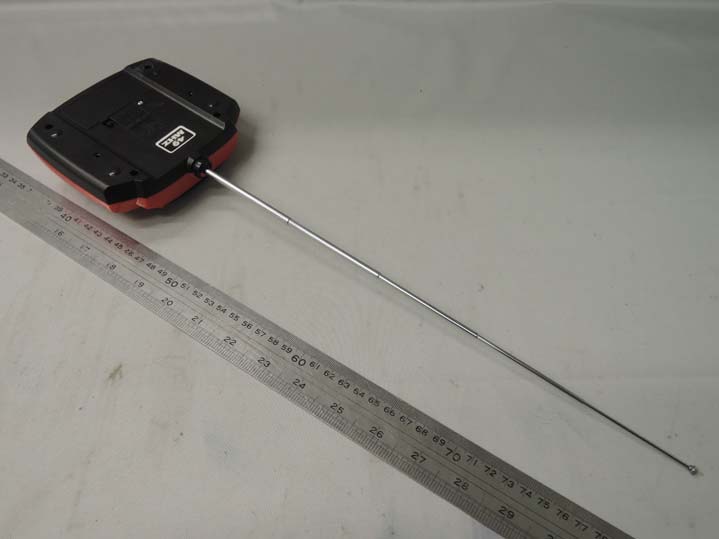

INTERTEK TESTING SERVICE Report No.: 15041365HKG-002 Equipment Photographs Model : 85066 (External) FCC ID: OTM-85051-49MTX

INTERTEK TESTING SERVICE Report No.: 15041365HKG-002 Equipment Photographs Model : 85066 (Internal) FCC ID: OTM-85051-49MTX INTERTEK TESTING SERVICE Report No.: 15041365HKG-002 Equipment Photographs Model : 85066 (Internal) FCC ID: OTM-85051-49MTX INTERTEK TESTING SERVICE Report No.: 15041365HKG-002 Equipment Photographs Model : 85066 (Internal) FCC ID: OTM-85051-49MTX

FCC ID: OTM-85051-49MTX Model: 85066 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 49.86 MHz, and controls the corresponding receiver to move forward, backward, left and right. The circuit of the transmitter comprises of, 1. Control buttons: Consisting: S1 and S2 2. An Encoding circuit Consisting: U1 (PT977) 3. A RF Oscillator (49.86MHz) Consisting: Y1, Q1 4. A Filter Network Consisting: L1, T1, C1, C2, C3 5. A RF Modulator and Amplifier Consisting: Q2 6. A Power Supply Consisting: 9VDC (1 X “9V” battery) 7. Regulator Consisting: ZD1, C11 Antenna Gain: 0dBi Nominal rated field strength: 53.9dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB The transmitter uses an external and telescope antenna with unique antenna connector .

1 1 2 2 3 3 4 4 DD CC BB AA ANTENNA C7 22P C6 47P C5 100P C3 47P L1 2.2uH L2 1.0uH L3 1.0uH R2 22K R3 100 R4 150K Y1 49.860MHz C8 103 C2 39P T1 15T C1 22P C4 103 Q1 2712 Q2 2712 R1 100R DATA VCC ZD1 3.3V LED R5 470R C11 104 VDD R6 3.9K R7 220K VDD DATA C10 104 C9 104 R8 NC C12 0R 1234567 89 1011121314 U1 PT977 K1 S1 S2 VDD

l¡r tertek \fdued Qualttf Deüvend. lssuing Laboratory: lntertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 - TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accred¡ted laboratories. Prepared and Checked by TEST REPORT Report No.: 1 5041365HKG -002 Kidztech Toys Manufacturing Ltd. Application For Certification (Original Grant) (FCG lD: OTM-85051 49MTx) Transmitter Approved by €r^ Tse Ying, Cathy Senior Lead Engineer Ng Mei Nar, ns Lead Engineer Date: May 04,2015 lntertek's standard Tems and Conditions €n be obtained at our website http://ww.intêrtek.com/têrms/ This report shall not be reproduced, except ¡n full This rêport ¡s for thê oxclusive usê of lntêrtêk's Cliont ând is provided pursuant to the agreement between lntertek and its Client lntertêk's responsibility and liability are limited to the tems and cond¡tions of the agreement lnterlek assumes no l¡âb¡l¡ty to eny pârty, other than to the Cl¡ent in acærdance with the âgreêmênt, for any loss, expênso or dâmage occâs¡oned by the uss of this report Only the Client is authorized to perm¡t æpy¡ng or distribution of this rêport and then only in its entirêty Any use of the lntertok name or onê of its marks for tho salê or âdvertisement of the tested mater¡al, product or seru¡ce must first be approved in writing by lntsrtek Thê obseruat¡ons and têst results ¡n this reporl are relevant only to the sample tested This report by itsêlf doss not imply that the material, product, or seru¡ce ¡s or has ever been under an lntertek certifiætion program lntertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Webs¡te: www.hk.intertek-etlsemko.com Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15041365HKG-002 i FCC ID: OTM-85051-49MTX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Kidztech Toys Manufacturing Ltd. Grantee Address: Room 1201, 12/F, Inter-Continental Plaza, 94 Granville Road, Tsim Sha Tsui East, Kowloon, Hong Kong Contact Person: Eric Ho Tel: (852) 2721 8868 Fax: (852) 2721 8838 e-mail: N/A Manufacturer: Shantou Chenghai JinJun Toys Co. Ltd. Manufacturer Address: Yongxin Industry Zone, Lianshang, Chenghai, Shantou, China Brand Name: Not Applicable Model: 85066 Additional Model: 85021, 85031, 85051, 85061, 85071, 85081, 85091, 85101, 85111, 85121, 85131, 85141, 85151, 85161, 85171, 85181, 85221, 85231, 85241, 85022, 85032, 85052, 85062, 85072, 85082, 85092, 85102, 85112, 85122, 85132, 85142, 85152, 85162, 85172, 85182, 85222, 85232, 85242, 85076, 85096, 85116, 85136, 85226, 85067, 85077, 85097, 85117, 85137, 85227, 5F62DB7, 5F62D85, 5F62D86 Type of EUT: Transmitter Description of EUT: 1/16 R/C Cars Serial Number: N/A FCC ID: OTM-85051-49MTX Date of Sample Submitted: April 22, 2015 Date of Test: April 22, 2015 to April 30, 2015 Report No.: 15041365HKG-002 Report Date: May 04, 2015 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15041365HKG-002 ii FCC ID: OTM-85051-49MTX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength and Bandwidth Requirement 15.235 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2013 Edition Note: 1. The EUT uses a Telescope-type antenna (with unique antenna connector) which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15041365HKG-002 iii FCC ID: OTM-85051-49MTX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants ............................................................................... 1 1.3 Test Methodology .............................................................................................. 1 1.4 Test Facility ....................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification........................................................................................................ 2 2.2 EUT Exercising Sof…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 15041365HKG-002 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 85066 85066 FCC ID: OTM-85051-49MTX INTERTEK TESTING SERVICE Report No: 15041365HKG-002 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 85066 85066 FCC ID: OTM-85051-49MTX
