OTM-85066-27MTX1/16 R/C Cars

Rechargeable batteries are only to be charged by adult connected This device complies with Industry Canada Licence-exempt RSS-310. Operation is subject to the following two conditions: (1) this

1 1 2 2 3 3 4 4 DD CC BB AA A NTENNA V CC+9 V select function Regulator circuit Coding circuit Oscillation circuit AM Frequency selection Antenna matching 27.145 MHz

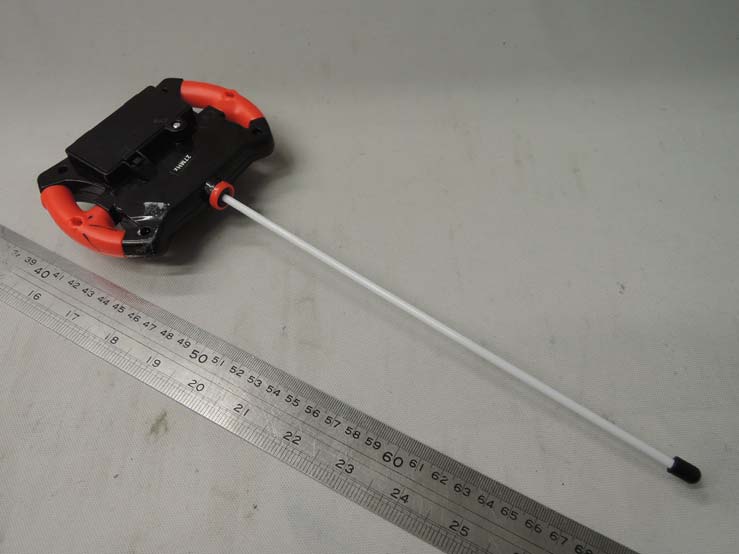

INTERTEK TESTING SERVICE Report No.: 15041363HKG-002 Equipment Photographs Model : 85066 (External) FCC ID: OTM-85066-27MTX

INTERTEK TESTING SERVICE Report No.: 15041363HKG-002 Equipment Photographs Model : 85066 (Internal) FCC ID: OTM-85066-27MTX INTERTEK TESTING SERVICE Report No.: 15041363HKG-002 Equipment Photographs Model : 85066 (Internal) FCC ID: OTM-85066-27MTX INTERTEK TESTING SERVICE Report No.: 15041363HKG-002 Equipment Photographs Model : 85066 (Internal) FCC ID: OTM-85066-27MTX

FCC ID: OTM-85066-27MTX Model: 85066 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 27.145 MHz, and controls the corresponding receiver to move forward, backward, left and right. The circuit of the transmitter comprises of, 1. Control buttons: Consisting: S1 and S2 2. An Encoding circuit Consisting: U1 (TX-2) 3. A RF Oscillator (27.145MHz) Consisting: Y1, Q1 4. A Filter Network Consisting: L1, T1, C1, C2, C3 5. A RF Modulator and Amplifier Consisting: Q2 6. A Power Supply Consisting: 9VDC (1 X “9V” battery) 7. Regulator Consisting: ZD1, C11 Antenna Gain: 0dBi Nominal rated field strength: 54.2dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB The transmitter uses an external and detachable dedicated antenna .

Analysis Report Report No.: 15041363HKG-002 The Equipment Under Test (EUT) is a portable transmitter of a RC Car operating at 27.145 MHz as dictated by a crystal. The EUT is powered by a 9.0 V DC source (1 x 9.0V battery). The EUT has a left / right control lever and a forward / backward control lever. After switching ON the EUT and the receiver of the RC Car, activating the control levers on the EUT can control the receiver moving forward, backward left and right directions. Antenna Type: External, detachable dedicated antenna Antenna Gain: 0dBi Nominal rated field strength: 54.2dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 57.2dBμV/m at 3m in frequency 27.145MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.000157mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.000157mW. The SAR Exclusion Threshold Level for 27.145MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 371.2mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

1 1 2 2 3 3 4 4 DD CC BB AA A NTENNA C7 47P C6 47P C5 300P C3 47P L1 7.5uH L2 2.2uH L3 2.2uH R2 22K R3 100 R4 150K Y1 27.145M Hz C8 103 C2 68P T1 15T C1 68P C4 103 Q1 2712 Q2 2712 R1 100R D A TA V CC ZD1 3.3V LED R5 470R C1 1 104 V DD R6 3.9K R7 220K V DD D A TA C1 0 104 C9 104 R8 NC C1 2 0R 1 23456 7 8 9 10 11 1213 14 U1 TX-2 K1 S1 S2 V DD

lntertek Valued Quality. Delivercd. lssuing Laboratory: lntertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 - TEST) under HOKLAS for specific laboratory activities as listed in the HOKLqS directory of accredited laboratories. TEST REPORT Report No.: I 5041363HKG -002 Kidztech Toys Manufacturing Ltd. Application For Certification (Original Grant) (FCC ID: OTM-85066-27MTX) Transmitter Prepared and Checkèd by: Approved by: ê^ n9 Tse Ying, Cathy Senior Lëad Engineer Ng Mei Nar, Chris Lead Engineer Date: May 04, 2015 lntertêk's standard Terms and Cond¡tions can be obtained ât our wêbsite http://www.intertek com/terms/ This report shall not be reproduc€d, oxcept in full This report is for the exclusivs usê of lntertek's Client and is provided pursuant to the agreement between lntêrtek and ¡ts Cl¡ênt. lntertok's respons¡b¡lity and l¡ability are lim¡ted to the terms and condit¡ons of the agreement lntertek assumes no liab¡l¡ty to any party, other than to the Client in accordânce w¡th thê agreement, for any loss, êxponsê or damage o@sioned by the use of this report Only the Client is author¡zgd to perm¡t copying or distribution of this report and then only in its ent¡rety Any use of thê lntertek namê or one of its marks for the sale or adverlisement of the tested material, product or sôryic€ must f¡rst bê approved ¡n writ¡ng by lntertek The observat¡ons and test results in this report are relevânt only to thê sâmplê têsted. Th¡s report by itself does not imply that lhe mater¡al, product, or sery¡cê ¡s or has ever been under an lnterlek cerlifìcat¡on program lntertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.¡ntertek-etlsemko.com Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15041363HKG-002 i FCC ID: OTM-85066-27MTX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Kidztech Toys Manufacturing Ltd. Grantee Address: Room 1201, 12/F, Inter-Continental Plaza, 94 Granville Road, Tsim Sha Tsui East, Kowloon, Hong Kong Contact Person: Eric Ho Tel: (852) 2721 8868 Fax: (852) 2721 8838 e-mail: N/A Manufacturer: Shantou Chenghai JinJun Toys Co. Ltd. Manufacturer Address: Yongxin Industry Zone, Lianshang, Chenghai, Shantou, China Brand Name: Not Applicable Model: 85066 Additional Model: 85021, 85031, 85051, 85061, 85071, 85081, 85091, 85101, 85111, 85121, 85131, 85141, 85151, 85161, 85171, 85181, 85221, 85231, 85241, 85022, 85032, 85052, 85062, 85072, 85082, 85092, 85102, 85112, 85122, 85132, 85142, 85152, 85162, 85172, 85182, 85222, 85232, 85242, 85076, 85096, 85116, 85136, 85226, 85067, 85077, 85097, 85117, 85137, 85227, 5F62DB7, 5F62D85, 5F62D86 Type of EUT: Transmitter Description of EUT: 1/16 R/C Cars Serial Number: N/A FCC ID: OTM-85066-27MTX Date of Sample Submitted: April 22, 2015 Date of Test: April 22, 2015 to April 30, 2015 Report No.: 15041363HKG-002 Report Date: May 04, 2015 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15041363HKG-002 ii FCC ID: OTM-85066-27MTX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength 15.227 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2013 Edition Note: 1. The EUT uses a detachable antenna with unique antenna connector which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15041363HKG-002 iii FCC ID: OTM-85066-27MTX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants ............................................................................... 1 1.3 Test Methodology .............................................................................................. 1 1.4 Test Facility ....................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification........................................................................................................ 2 2.2 EUT Exercising Software ..........…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 15041363HKG-002 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 85066 FCC ID: OTM-85066-27MTX INTERTEK TESTING SERVICE Report No: 15041363HKG-002 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 85066 FCC ID: OTM-85066-27MTX
