OTM-85066-49MRX1/16 R/C Cars

Rechargeable batteries are only to be charged by adult connected This device complies with Industry Canada Licence-exempt RSS-310. Operation is subject to the following two conditions: (1) this

1 1 2 2 3 3 4 4 DD CC BB AA A NTENNA A -+ M OTO R S ERV O A -+ M OTO R S ERV O V CC+7 .5V 49.860 MHz Regulator circuit Super- regenerative detector circuit IF amplfier Decoding circuit U1 PT978 The motor drive circuit

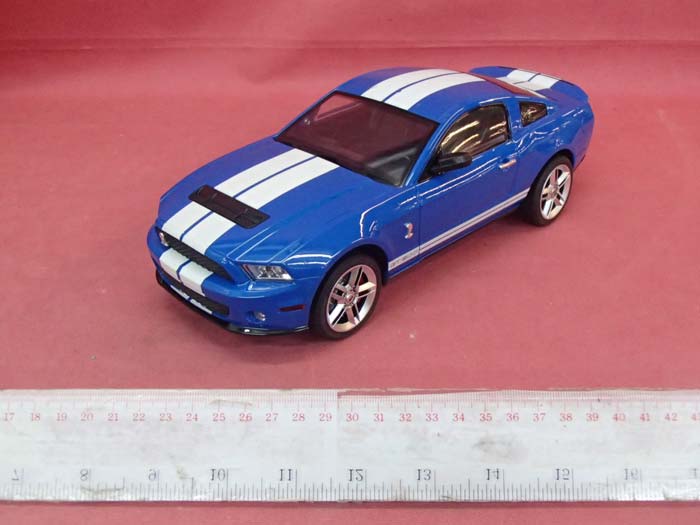

INTERTEK TESTING SERVICE Report No.: 15041365HKG-003 Equipment Photographs Model : 85066 (External) FCC ID: OTM-85066-49MRX INTERTEK TESTING SERVICE Report No.: 15041365HKG-003 Equipment Photographs Model : 85021 / 85022 (External) 85021 85022 FCC ID: OTM-85066-49MRX INTERTEK TESTING SERVICE Report No.: 15041365HKG-003 Equipment Photographs Model : 85031 / 85032 (External) 85031 85032 FCC ID: OTM-85066-49MRX INTERTEK TESTING SERVICE Report No.: 15041365HKG-003 Equipment Photographs Model : 85051 / 85052 (External) 85051 85051 85052 FCC ID: OTM-85066-49MRX INTERTEK TESTING SERVICE Report No.: 15041365HKG-003 Equipment Photographs Model : 85061 (External) 85061 85061 FCC ID: OTM-85066-49MRX INTERTEK TESTING SERVICE Report No.: 15041365HKG-003 Equipment Photographs Model : 85061 / 85062 (External) 85061 85062 FCC ID: OTM-85066-49MRX INTERTEK TESTING SERVICE Report No.: 15041365HKG-003 Equipment Photographs Model : 85071 (External) 85071 85071 FCC ID: OTM-85066-49MRX INTERTEK TESTING SERVICE Report No.: 15041365HKG-003 Equipment Photographs Model : 85071 / 85072 (External) 85071 85072 FCC ID: OTM-85066-49MRX INTERTEK TESTING SERVICE Report No.: 15041365HKG-003 Equipment Photographs Model : 85081 (External) 85081 85081 FCC ID: OTM-85066-49MRX INTERTEK TESTING SERVICE Report No.: 15041365HKG-003 Equipment Photographs Model : 85082 / 85091 (External) 85082 85091 FCC ID: OTM-85066-49MRX INTERTEK TESTING SERVICE Report No.: 15041365HKG-003 Equipment Photographs Model : 85091 / 85092 (External) 85091 85092 FCC ID: OTM-85066-49MRX INTERTEK TESTING SERVICE Report No.: 15041365HKG-003 Equipment Photographs Model : 85101 / 85102 (External) 85101 85102 FCC ID: OTM-85066-49MRX INTERTEK TESTING SERVICE Report No.: 15041365HKG-003 Equipment Photographs Model : 85111 / 85112 (External) 85111 85112 FCC ID: OTM-85066-49MRX INTERTEK TESTING SERVICE Report No.: 15041365HKG-003 Equipment Photographs Model : 85121 / 85122 (External) 85121 85122 FCC ID: OTM-85066-49MRX INTERTEK TESTING SERVICE Report No.: 15041365HKG-003 Equipment Photographs Model : 85131 (External) 85131 85131 FCC ID: OTM-85066-49MRX INTERTEK TESTING SERVICE Report No.: 15041365HKG-003 Equipment Photographs Model : 85132 / 85141 (External) 85132 85141 FCC ID: OTM-85066-49MRX INTERTEK TESTING SERVICE Report No.: 15041365HKG-003 Equipment Photographs Model : 85142 / 85151 (External) 85142 85151 FCC ID: OTM-85066-49MRX INTERTEK TESTING SERVICE Report No.: 15041365HKG-003 Equipment Photographs Model : 85152 / 85161 (External) 85152 85161 FCC ID: OTM-85066-49MRX INTERTEK TESTING SERVICE Report No.: 15041365HKG-003 Equipment Photographs Model : 85162 / 85171 (External) 85162 85171 FCC ID: OTM-85066-49MRX INTERTEK TESTING SERVICE Report No.: 15041365HKG-003 Equipment Photographs Model : 85172 / 85181 (External) 85172 85181 FCC ID: OTM-85066-49MRX INTERTEK TESTING SERVICE Report No.: 15041365HKG-003 Equipment Photographs Model : 85182 / 85222 (External) 85182 85222 FCC ID: OTM-85066-49MRX

INTERTEK TESTING SERVICE Report No.: 15041365HKG-003 Equipment Photographs Model : 85066 (Internal) FCC ID: OTM-85066-49MRX INTERTEK TESTING SERVICE Report No.: 15041365HKG-003 Equipment Photographs Model : 85066 (Internal) FCC ID: OTM-85066-49MRX INTERTEK TESTING SERVICE Report No.: 15041365HKG-003 Equipment Photographs Model : 85066 (Internal) FCC ID: OTM-85066-49MRX INTERTEK TESTING SERVICE Report No.: 15041365HKG-003 Equipment Photographs Model : 85066 (Internal) FCC ID: OTM-85066-49MRX

FCC ID: OTM-85066-49MRX Model: 85066 (Receiver portion) Technical Description of Receiver The receiver operates at 49.860 MHz, and controls by the corresponding transmitter to move forward, backward, left and right. The circuit of the receiver comprises of, 1. Super-regenerative circuit Consisting: Q1 2. Decoder: Consisting: IC1 (PT978), 3. Motor driver Consisting: Q2, Q3, Q4, Q5, Q6, Q7, Q8, Q9, Q10, Q11, Q12, Q13, 4. A Power Supply Consisting: 7.5V DC source (5 X 1.5V AA size batteries)

1 1 2 2 3 3 4 4 5 5 6 6 DD CC BB AA C1 5P C3 22P C222P C4 332 C7 104P C9471P C8 104P C10 202P L2 5.6uH R2 680R R1 220K R3 4.7K R4 2.2K R6 2.2M R5 2.2K R9 220K R21 220 R15 1K R14 1K R16 100R R17 100R R10 1K R11 1K R12 100R R13 100R VO2 1 GND 2 SI 3 OSCI 4 OSCO 5 RIGHT 6 LEFT 7 RDB 8 LDB 9 BACK 10 FOR 11 TURBOB 12 VDD 13 VI1 14 VO1 15 VI2 16 IC1 PT978 GND1 GND1 C15 220uF C17 4.7uF R18 330 R19 150 R20 1K C6 104 12 CN1 12 CN2 C13 104 C14 104 L1 1.0UH C5 103 VDD Q1 2712 Q2 9014 Q3 9014 Q4 9014 Q5 9014 Q8 Comment: 8050 Q9 8050 Q12 882 Q13 882 ZD1 3.0V Q10 772 Q11 772 Q6 8550 Q7 8550 T1 KY5-7.5T VCC+7.5V R7 2.2M R8 2.2K L3 10UH C18 104 ANTENNA FB LR A - + 22UH 22UH 104 104 104 F B L R 12 CN1 12 CN2 R22 0R GND1 A - + 2.2UH 2.2UH 104 104 104

l¡rtertek ìldu¡d Qr¡dtty Delhrcred. lssuing Laboratory: lntertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 - TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Prepared and Checked by: TEST REPORT Report No.: 1 5041 365HKG-003 Kidztech Toys Manufacturing Ltd. Application For Certification (Original Grant) (FCC lD: OTM-8506649MRX) Superregenerative Receiver Approved by €^ Tse Ying, Cathy Senior Lead Engineer Ng Mei Nar, Chris Lead Engineer Date: May 04,2015 lntertek's standard Terms and Conditions en be obtained at our webs¡te http://ww,intertêk,com/torms/ This report shall not be reproduced, except in full This report is for the exclusive use of lntertek's Client and is providêd pursuânt to the agreement between lntertek and its Client, lntêrleKs responsibility and liability are lim¡ted to tho terms and conditions of the agreement lnterlek assumes no liability to any paíy, other thân to the Client ¡n acærdance with the agreement, for any loss, expense or damage occasioned by the use of th¡s report Only thê Client is âuthorized to pem¡t copying or distribution of th¡s report ând thên only ¡n ¡ts ênt¡rety. Any usê of the lntertek name or one of its marks for the sale or advertisemênt of tho tssted material, product or seruice must first be approved in writ¡ng by lnterlek The obseruations and tesl results ¡n this report are rêlevânt only to the sample tested This report by ¡tself does not imply that th6 mater¡al, product, or seryice is or has ever been under an lntêrtêk cêrtificât¡on progrâm lntertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong Tel: (852)21738888 Fax: (852)27855487 Website: www.hk,intertek-etlsemkocom Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15041365HKG-003 i FCC ID: OTM-85066-49MRX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Kidztech Toys Manufacturing Ltd. Grantee Address: Room 1201, 12/F, Inter-Continental Plaza, 94 Granville Road, Tsim Sha Tsui East, Kowloon, Hong Kong Contact Person: Eric Ho Tel: (852) 2721 8868 Fax: (852) 2721 8838 e-mail: N/A Manufacturer: Shantou Chenghai JinJun Toys Co. Ltd. Manufacturer Address: Yongxin Industry Zone, Lianshang, Chenghai, Shantou, China Brand Name: Not Applicable Model: 85066 Additional Model: 85021, 85031, 85051, 85061, 85071, 85081, 85091, 85101, 85111, 85121, 85131, 85141, 85151, 85161, 85171, 85181, 85221, 85231, 85241, 85022, 85032, 85052, 85062, 85072, 85082, 85092, 85102, 85112, 85122, 85132, 85142, 85152, 85162, 85172, 85182, 85222, 85232, 85242, 85076, 85096, 85116, 85136, 85226, 85067, 85077, 85097, 85117, 85137, 85227, 5F62DB7, 5F62D85, 5F62D86 Type of EUT: Superregenerative Receiver Description of EUT: 1/16 R/C Cars Serial Number: N/A FCC ID: OTM-85066-49MRX Date of Sample Submitted: April 22, 2015 Date of Test: April 22, 2015 to April 30, 2015 Report No.: 15041365HKG-003 Report Date: May 04, 2015 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15041365HKG-003 ii FCC ID: OTM-85066-49MRX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Receiver / Digital Device Radiated Emissions 15.109 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2013 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15041365HKG-003 iii FCC ID: OTM-85066-49MRX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants ............................................................................... 1 1.3 Test Methodology .............................................................................................. 2 1.4 Test Facility ....................................................................................................... 2 2.0 System Test Configuration ................................................................................. 3 2.1 Justification........................................................................................................ 3 2.2 EUT Exercising Softwar…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 15041365HKG-003 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 85066 85066 FCC ID: OTM-85066-49MRX INTERTEK TESTING SERVICE Report No: 15041365HKG-003 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 85066 85066 FCC ID: OTM-85066-49MRX
