OTM-8720115-27MTXRED RC CAR

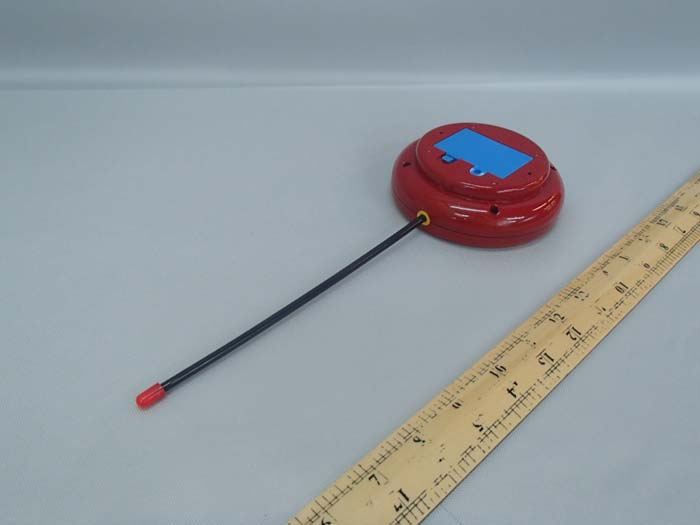

INTERTEK TESTING SERVICE Report No.: 15060055HKG-001 Equipment Photographs Model : 5F62F17 (External) FCC ID: OTM-8720115-27MTX

INTERTEK TESTING SERVICE Report No.: 15060055HKG-001 Equipment Photographs Model : 5F62F17 (Internal) FCC ID: OTM-8720115-27MTX INTERTEK TESTING SERVICE Report No.: 15060055HKG-001 Equipment Photographs Model : 5F62F17 (Internal) FCC ID: OTM-8720115-27MTX INTERTEK TESTING SERVICE Report No.: 15060055HKG-001 Equipment Photographs Model : 5F62F17 (Internal) FCC ID: OTM-8720115-27MTX

FCC ID: OTM-8720115-27MTX Model: 5F62F17 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 27.145 MHz, and controls the corresponding receiver to move forward, backward, left and right. The circuit of the transmitter comprises of, 1. Control buttons: Consisting: SW1, SW2, SW3, SW4 and SW5 2. An Encoding circuit Consisting: IC1 (NY4P018AS14) 3. A RF Oscillator (27.145MHz) Consisting: X1, Q2 4. A Filter Network Consisting: L1, C1, C4 5. A RF Modulator and Amplifier Consisting: Q1 6. A Power Supply Consisting: 4.5VDC (3 X 1.5V AAA batteries) Antenna Gain: 0dBi Nominal rated field strength: 52.4dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB The transmitter uses an external and integral antenna .

Analysis Report Report No.: 15060055HKG-001 The Equipment Under Test (EUT) is a portable transmitter of a RC Car operating at 27.145 MHz as dictated by a crystal. The EUT is powered by a 4.5 V DC source (3 x 1.5V AAA batteries). The EUT has a forward control button, backward / turn in reverse control button and brake sound button, horn sound button for different sound. After switching ON the EUT and the receiver of the RC Car, activating the control buttons on the EUT can control the receiver moving forward, backward left and right directions. Antenna Type: External, Integral antenna Antenna Gain: 0dBi Nominal rated field strength: 52.4dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 55.4dBμV/m at 3m in frequency 27.145MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.000104mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.000104mW. The SAR Exclusion Threshold Level for 27.145MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 371.2mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

lntertek ValuedQualig Delþercd. lssuing Laboratory: lntertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 - TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. TEST REPORT Report No.: 1 5060055HKG-001 Kidztech Toys Manufacturing Ltd. Application For Certification (Original Grant) (FGC lD: OTM-872011 5-27MTX) Transmitter Approved by: Prepared and Checked by ú. Zt*(o Tse Ying, Cathy Senior Lead Engineer Ng Mei Nar, Chris Lead Engineer Date: June 24,2015 lntêrtêk's standard Tems and Conditions æn be obtã¡nêd et our website http://ww intertek com/terms/ This report shall not be reproduced, except ¡n full This report ¡s for the exclusive use of lnterteks Cl¡ent and is prov¡ded pursuant to the agreement between lntertek and its Cl¡ent Intertek's responsibility and l¡ability are limited to thê têrms and conditions of the agreement lntertek assumes no liab¡l¡ty to âny paly, other than to the Cl¡ent in accordanæ with the egreement, for any loss, expense or damage occasioned by the use of this report Only the Client is author¡zed to permjt copying or d¡str¡but¡on of th¡s report and thon only in ¡ts ent¡rety Any use of the lnt€rtek nemê or onê of ¡ts marks for the sale or advert¡sement of the tested material, product or seruice must f¡rst bê approved in writing by lntertek The obseryations ând test results in this reporl are relevant only to the sample tested ThÌs report by itself does not imply that thê materiâ|, product, or sêruice is or has ever been under an lntertok certif€tion program lntertek Testing Services Hong Kong Ltd. 2/F , Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 54e7 Website: www.hk.intertek-etlsemko.com Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15060055HKG-001 i FCC ID: OTM-8720115-27MTX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Kidztech Toys Manufacturing Ltd. Grantee Address: Room 1201, 12/F., Inter-Continental Plaza, 94 Granville Road, Tsim Sha Tsui East, Kowloon, Hong Kong Contact Person: Eric Ho Tel: (852) 2721 8868 Fax: (852) 2721 8838 e-mail: N/A Manufacturer: Shantou Chenghai JinJun Toys Co. Ltd. Manufacturer Address: Yongxin Industry Zone, Lianshang, Chenghai, Shantou, China Brand Name: N/A Model: 5F62F17 Additional Model: 5F62E15, 012290, 281843, 082988, 192247, 155575, 012321, 083100, 157821, 87201, 87202 Type of EUT: Transmitter Description of EUT: RED RC CAR (5F62F17) BLUE RC TRUCK, RC RED RACER (5F62E15, 012290, 281843, 082988, 192247, 155575, 012321, 083100, 157821, 87201, 87202) Serial Number: N/A FCC ID : OTM-8720115-27MTX Date of Sample Submitted: June 01, 2015 Date of Test: June 01, 2015 to June 24, 2015 Report No.: 15060055HKG-001 Report Date: June 24, 2015 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15060055HKG-001 ii FCC ID: OTM-8720115-27MTX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength 15.227 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2013 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15060055HKG-001 iii FCC ID: OTM-8720115-27MTX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants ............................................................................... 1 1.3 Test Methodology .............................................................................................. 1 1.4 Test Facility ....................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification........................................................................................................ 2 2.2 EUT Exercising Software ................................................................................... 2 2.3 Special Accessories..........................................................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 15060055HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 5F62F17 FCC ID: OTM-8720115-27MTX INTERTEK TESTING SERVICE Report No: 15060055HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 5F62F17 FCC ID: OTM-8720115-27MTX
