OTM-8720215-49MRXRC Blue Truck

11 22 33 44 D D C C B B A A Title Number Revision Size A4 Date: 2015-8-5 Sheet of File: F:\ 原理图 \934rc2 接收流程图 .SCHDOC Drawn By: RECEIVE AMPLIFIER DECODE IC MOTOR DRIVER POWER SUPPLY MOTOR (49MHz)BLOCK DIAGRAM OF RECEIVER 1V6 RF49MHZ 6 . 0 V

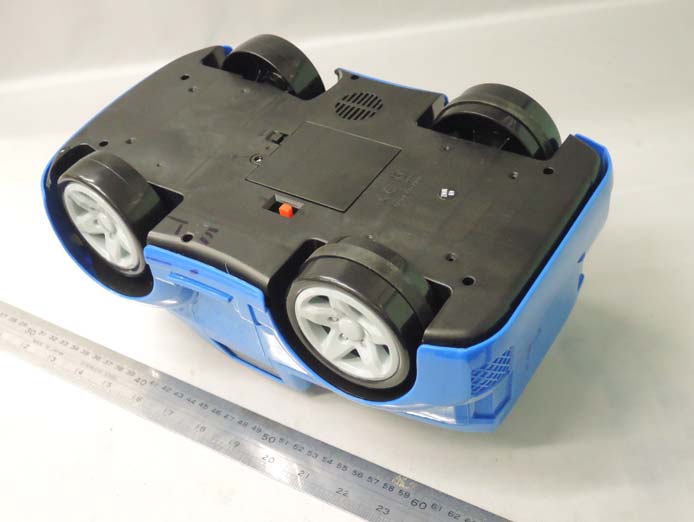

INTERTEK TESTING SERVICE Report No.: 15081256HKG-002 FCC ID: OTM-8720215-49MRX Equipment Photographs Model : 5F62E15 (External)

INTERTEK TESTING SERVICE Report No.: 15081256HKG-002 FCC ID: OTM-8720215-49MRX Equipment Photographs Model : 5F62E15 (Internal) INTERTEK TESTING SERVICE Report No.: 15081256HKG-002 FCC ID: OTM-8720215-49MRX Equipment Photographs Model : 5F62E15 (Internal)

Technical Description (receiver portion) The equipment under test (EUT) is a superregenerative receiver of a RC car operating at 49.860 MHz. The EUT is powered by 4 x “AA” size batteries. The EUT has an ON/OFF switch. After switching ON the EUT and the transmitter of the RC car, the EUT can be controlled to move forward, reverse, left and right by the transmitter. The circuit of the receiver mentioned below. 1. Decoding circuit and Motor Driver Consists of IC1( RX-3 AG4FE31) and IC2 (118 CG3U2F1) 2. Receiving Amplifier Consists of Q1, L0, L1 3. Power Supply Consists of 6.0VDC (4 x 1.5V size AAA battery) 4.Motor

11 22 33 44 D D C C B B A A Title Number Revision Size A4 Date: 2015-10-26 Sheet of File: F:\ 原理图 \XL934RC2.SCHDOC Drawn By: Q1 LY 18PC6 104 C4 104C10 471 C8 104C11 6U8L1 L0 681 R5 204 R1 275 R4 221 R7 470R8 332 R2 222 R3 104 R6 4U7 C5 12P C3 470U C9 3PC1 XL934RC2 49.860MHz 332C7 VCC D+D- 333 C2 1 2 3 4 5 6 7 8 1234 5678 IC1 RX-3 AG4FE31 IC2 118 (40M Hz 22P) 40MHz 22P) M 104C12 49.860MHz

Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (Reg. No. HOKLAS 005) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15081256HKG-002 i FCC ID: OTM-8720215-49MRX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Kidztech Toys Manufacturing Ltd. Grantee Address: Room 1201, 12/F., Inter-Continental Plaza, 94 Granville Road, Tsim Sha Tsui East, Kowloon, Hong Kong Contact Person: Eric Ho Tel: (852) 2721 8868 Fax: (852) 2721 8838 e-mail: N/A Manufacturer: Shantou Chenghai JinJun Toys Co. Ltd. Manufacturer Address: Yongxin Industry Zone, Lianshang, Chenghai, Shantou, China Brand Name: N/A Model: 5F62E15 Additional Model: 5F62E15, 281835, 192249, 157821, 5F62F17, 87201, 87202 Type of EUT: Superregenerative Receiver Description of EUT: RC Blue Truck (5F62E15) Blue RC Truck / RC Red Racer (5F62E15, 281835, 192249, 157821, 5F62F17, 87201, 87202) Serial Number: N/A FCC ID: OTM-8720215-49MRX Date of Sample Submitted: August 28, 2015 Date of Test: August 28, 2015 to September 08, 2015 Report No.: 15081256HKG-002 Report Date: September 08, 2015 Environmental Conditions: Temperature: +10°C to 40°C Humidity: 10% to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (Reg. No. HOKLAS 005) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15081256HKG-002 ii FCC ID: OTM-8720215-49MRX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Receiver / Digital Device Radiated Emissions 15.109 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2013 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (Reg. No. HOKLAS 005) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15081256HKG-002 iii FCC ID: OTM-8720215-49MRX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants ............................................................................... 1 1.3 Test Methodology .............................................................................................. 1 1.4 Test Facility ....................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification........................................................................................................ 2 2.2 EUT Exercising Software ................................................................................... 2 2.3 Special Accessories........................................................................................... 2 2.4 Measurement Uncertainty .................................................................................. 2 2.5 Support Equipment List and Description............................................................. 2 3.0 Emission Results ................................................................................................ 3 3.1 Field Strength Calculation .................................................................................. 3 3.2 Radiated Emission Configuration Photograph .................................................... 4 3.3 Radiated Emission Data .................................................................................... 4 4.0 Equipment Photographs ..................................................................................... 6 5.0 Product Labelling................................................................................................ 6 6.0 Technical Specifications..................................................................................... 6 7.0 Instruction Manual .............................................................................................. 6 8.0 Miscellaneous Information ................................................................................. 7 8.1 Stabilization Waveform...................................................................................... 7 8.2 Discussion of Pulse Desensitization ................................................................... 8 8.3 Calculation of Average Factor ............................................................................ 8 8.4 Emissions Test Procedures ............................................................................... 8 9.0 Equipment List ...................................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 15081256HKG-002 FCC ID: OTM-8720215-49MRX Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 5F62E15 INTERTEK TESTING SERVICE Report No: 15081256 HKG-002 FCC ID: OTM-8720215-49MRX Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 5F62E15
