OTM-88061-27MTX1/12 R/C Cars

connected This device complies with Industry Canada Licence-exempt RSS-310.

I + Contents RC Vehicle (Vehicle) x 1 RC Transmitter (Transmitter) x 1 Antenna for RC Transmitter x 1 Instruction Manual x 1 7.2V rechargeable Battery Pack x 1 Charger x 1 9V Battery x 1 Performance Tips 1. Do not drive on grass, dirt, sand, dusts, carpet or go through water 2. Do not drive in windy or rainy weather 3. Avoid direct impact the Vehicle with obstacles 4. Switch OFF the power when not in use to prevent damage of Vehicle and Transmitter due to leakage of electrolyte from batteries 5. Remove all batteries from the Vehicle and Transmitter when not in use for long period 6. Keep fingers, hair and loose clothing away from wheels 7. The operating range can be affected by a variety of factors a) Low Voltage of batteries in Transmitter or Vehicle b) Interference from other items that emit radio frequency signals 8. Outdoor usage is recommended in order to get optimum control range 9. Recommend to play the vehicle on a clean and smooth surface 10. Clean the battery compartment to make sure it is free from dust to prevent poor contact of batteries Cautions 1. Do not attempt to disassemble the Vehicle or Transmitter 2. Do not operate the Vehicle with same frequency with other player(s) in same location that will interfere and make the Vehicle out of control. 3. Make sure the batteries are installed with correct polarities (+/-) as shown inside the battery compartment 4. Remove the package and take out all accessories before giving the Vehicle and Transmitter to child to play FCC label compliance statement: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna - Increase the separation between the equipment and receiver - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected - Consult the dealer or an experienced radio/TV technician for help Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. RSS-310 Compliance Statement: This device complies with Industry Canada Licence-exempt RSS-310. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Declaration of Conformity The product is in conformity with the requirement of EU Directive 1999/5/EC Environmental notes: The whole product also does not belong to household waste at the end of the product life. You can return it at collection points for the recycling of electronic and electronical instruments The symbol on the item, instruction manual, hangtag or packing is showing this clearly. Materials should be recycled according to their respective markings. Recycling of old devices or other re-use of materials contained therein represents an important contribution to environmental protection. Please ask at your local community for the correct collection point. Disposal of batteries Batteries should not be disposed of in the household waste. As the consumer you are legally obliged to return batteries containing harmful substances and all other used batteries. You can hand in your old batteries at public collection points in your area or wherever batteries are sold. You will find these chemical abbreviations along with a crossed-out refuse bin on batteries containing harmful substances: Pb=Battery contains lead Cd=Battery contains cadmium Hg=Battery contains mercury Battery Requirement 1. Vehicle: 1 x 7.2V rechargeable battery pack 2. Transmitter: 1 x 9V battery The packaging and instruction manual contain important information. Please keep them for future reference. Warning! Choking Hazard. Not suitable for children under the age of 3 years due to small parts. We reserve the right to improve/amend specifications and colors without notice. Warning! The Antenna of vehicle is not to be inserted into socket outlets. For Transmitter (Fig. 3 and Fig. 4) 1. Switch OFF the power 2. Unscrew the screw on the battery cover 3. Open the battery cover 4. Install 1 new 9V battery with correct polarity (+/-) as shown inside the battery compartment 5. Close the battery cover 6. Tighten the screw on the battery cover 7. Insert the antenna into the top of Transmitter, tighten it by rotating clockwise (viewing from top of Transmitter) Battery and Antenna Installation For Vehicle (Fig. 1 and Fig. 2) 1. Switch OFF the power 2. Unscrew the screw on the battery cover 3. Open the battery cover 4. Install a new 7.2V battery pack with correct polarities (+/-) as shown inside the battery compartment 5. Close the battery cover 6. Tighten the screw on the battery cover Charging the Rechargeable Battery Pack for the Vehicle: 1. Connect the 7.2V rechargeable battery pack to the battery charger 2. Plug the charger into the standard AC socket 3. The charging time for a full charge is about 5 hours 4. When chargin…

Text truncated - open the document above for the full version.

1 1 2 2 3 3 4 4 DD CC BB AA Title Nu mb erRevisionSize A 4 Date:2013-4-29Sheet of File:D:\\..\1-12 27M.S chDrawn By: A NTENN A Regulator circuit Encoding circuit Oscillation circuit V CC+9 V 27.145M HZ Frequency selection Antenna matching

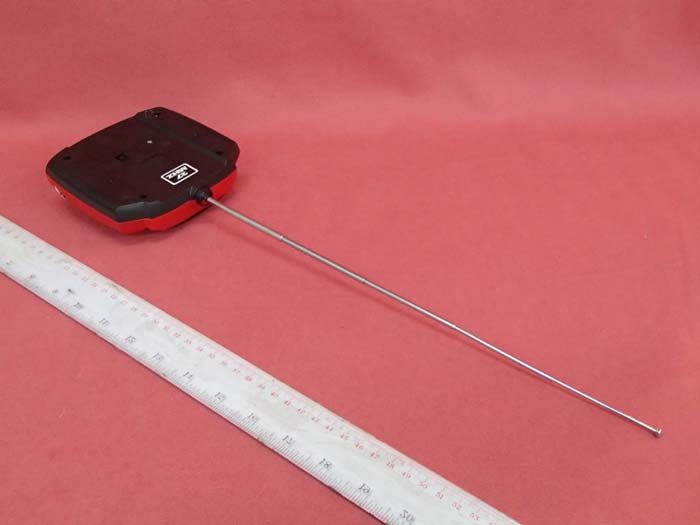

INTERTEK TESTING SERVICE Report No.: 14050507HKG-001 Equipment Photographs Model : 88131 (External) FCC ID: OTM-88061-27MTX

INTERTEK TESTING SERVICE Report No.: 14050507HKG-001 Equipment Photographs Model : 88131 (Internal) FCC ID: OTM-88061-27MTX INTERTEK TESTING SERVICE Report No.: 14050507HKG-001 Equipment Photographs Model : 88131 (Internal) FCC ID: OTM-88061-27MTX INTERTEK TESTING SERVICE Report No.: 14050507HKG-001 Equipment Photographs Model : 88131 (Internal) FCC ID: OTM-88061-27MTX

FCC ID: OTM-88061-27MTX Model: 88131 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 27.145 MHz, and controls the corresponding receiver to move forward, backward, left and right. The circuit of the transmitter comprises of, 1. An Encoding circuit Consisting: SW1, SW2, SW3, SW4, IC1 (977) 2. A RF Oscillator (49.86MHz) Consisting: TX1, Q1 3. A Filter Network Consisting: T1, C6, C7, C8, L3 4. A RF Modulator and Amplifier Consisting: Q2 5. A Power Supply Consisting: 9VDC (1 X “9V” battery) 6. Regulator Consisting: ZD1, C9 Antenna Gain: 0dBi Nominal rated field strength: 69.5dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB The transmitter uses an external and telescope antenna with unique antenna connector .

Analysis Report Report No.: 14050507HKG-001 The Equipment Under Test (EUT) is a portable transmitter of a RC Car operating at 27.145 MHz as dictated by a crystal. The EUT is powered by a 9.0 V DC source (1 x 9.0V battery). The EUT has a on/off switch, a left / right control lever and a forward / backward control lever. After switching ON the EUT and the receiver of the RC Car, activating the control levers on the EUT can control the receiver moving forward, backward left and right directions Antenna Type: External, telescope antenna with unique antenna connector Antenna Gain: 0dBi Nominal rated field strength: 69.5dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 72.5dBμV/m at 3m in frequency 27.145MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.00533mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.00533mW. The SAR Exclusion Threshold Level for 27.145MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 371.2mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

1 1 2 2 3 3 4 4 DD CC BB AA ANTENNA C1 68P C2 47P C3 201 C6 47P Q1 C945P Q2 C945P L3 6.8uH L2 2.2uH L1 2.2uH R4 22K R1 100 R3 150K TX1 27.145MHz LED 9V R 1 NC 2 GND 3 B 4 F 5 T 6 SC 7 SO 8 VDD 9 PC 10 OSCO 11 OSCI 12 NC 13 L 14 IC1977 R6 220K R5 330 C4 103 C9 104P C7 68P ZD1 3.3V K1 SW SPST R7 3.9K T1 15.5T C8 68P R2 100 C5 103 C10 104

Valued QualiU. tÞlivercd. lssuing Laboratory: lntertek Testing Services Hong Kong Limited Hong Kong Accreditat¡on Serv¡ce (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory ac'tiv¡ties as listed in the HOKLAS direc{ory of accredited laborator¡es. The results shown in this repor't were determ¡ned by this laboratory in accordance with its terms of accreditation. TEST REPORT Hf+- R6il *.*'#j Report No.: I 4050507HKG-001 Kidztech Toys Manufacturing Ltd. Application For Certification (Original Grant) (FCC lD: OTM-88061 -27MTX) Transmitter Prepared and Checked by: Approved by: The test report only allws to be rev¡sed with¡n the retention per¡od unless further standard or the requirement wâs noticed. This rêport ¡s for the exclus¡ve use of lnterteks Client and is prcvided pußuant to the agreemènt betwêen lntertek and ¡ts Client. lnterteks responsibility and liability are limitsd to the terms and ænditions of the agre€mont. lnterlsk assumes no liab¡lity to any party, other than to the Client ¡n accordânce with the agreement, for any loss, expense or dam4€ ocqasioned by lhe usê of th¡s rêport. Only the Cl¡ent ¡s authorized to permit copying or distribution of this report and then only in its entirety. Any use of the lntertek.name or one of its marks for the sale or advertisement of the tested material, product or sêrv¡ce musl firsl be approved ¡n wr¡ting by lntertèk. The obseruations ând test rèsults ¡n this report are rolevant only to the sample tested. Th¡s report by ¡tseF does not imply that the mater¡al, product, or ssrvicê is or has ever bêen undsr an lntgrtsk certif¡câtion prcgram. lntertek Testing Seryices Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Tse Ying, Cathy Senior Lead Engineer Ng Mei Nar, Chris Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 14050507HKG-001 i FCC ID: OTM-88061-27MTX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Kidztech Toys Manufacturing Ltd. Grantee Address: Room 1201, 12/F., Inter-Continental Plaza, 94 Granville Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Eric Ho Tel: (852) 2721 8868 Fax: (852) 2721 8838 e-mail: N/A Manufacturer: Shantou Chenghai JinJun Toys Co., Ltd. Manufacturer Address: Yongxin Industry Zone, Lianshang, Chenghai, Shantou, China Brand Name: N/A Model: 88131 Additional Model: 88132 / 88061 / 88071 / 88081 / 88091 / 88101 / 88111 / 88121 / 88141 / 88151 / 88161 / 88171 / 88181 / 88221 / 88231 / 88062 / 88072 / 88082 / 88092 / 88102 / 88112 / 88122 / 88142 / 88152 / 88162 / 88172 / 88182 / 88222 / 88232 / 5F62035 / 5F622E1 / 5F622E2 Type of EUT: Transmitter Description of EUT: 1/12 R/C Cars Serial Number: N/A FCC ID: OTM-88061-27MTX Date of Sample Submitted: May 12, 2014 Date of Test: May 12, 2014 to May 26, 2014 Report No.: 14050507HKG-001 Report Date: May 28, 2014 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 14050507HKG-001 ii FCC ID: OTM-88061-27MTX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength 15.227 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2012 Edition Note: 1. The EUT uses detachable antenna with unique antenna connector which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 14050507HKG-001 iii FCC ID: OTM-88061-27MTX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description ...................................................................................... 1 1.2 Related Submittal(s) Grants .......................................................................... 1 1.3 Test …

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 14050507HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 88131 FCC ID: OTM-88061-27MTX INTERTEK TESTING SERVICE Report No: 14050507HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 88131 FCC ID: OTM-88061-27MTX
