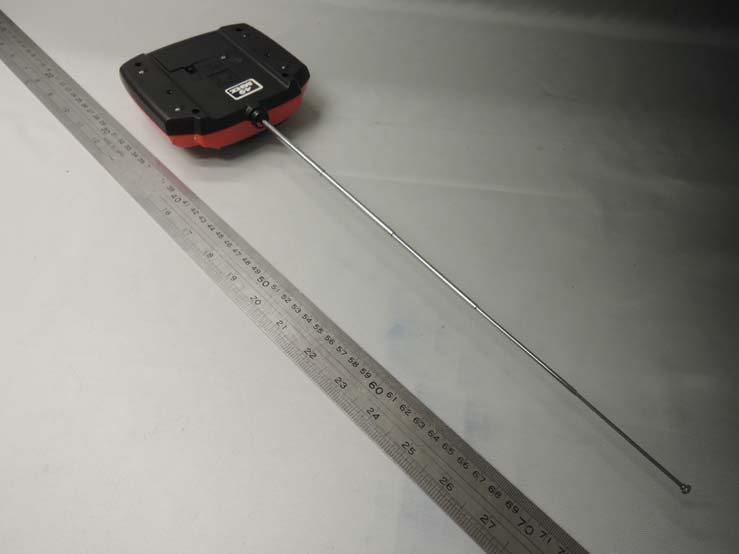

INTERTEK TESTING SERVICE Report No.: 15050510HKG-001 Equipment Photographs Model : 88242 (External) FCC ID: OTM-8806115-49MTX

INTERTEK TESTING SERVICE Report No.: 15050510HKG-001 Equipment Photographs Model : 88242 (Internal) FCC ID: OTM-8806115-49MTX INTERTEK TESTING SERVICE Report No.: 15050510HKG-001 Equipment Photographs Model : 88242 (Internal) FCC ID: OTM-8806115-49MTX INTERTEK TESTING SERVICE Report No.: 15050510HKG-001 Equipment Photographs Model : 88242 (Internal) FCC ID: OTM-8806115-49MTX

FCC ID: OTM-8806115-49MTX Model: 88242 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 49.860 MHz, and controls the corresponding receiver to move forward, backward, left and right. The circuit of the transmitter comprises of, 1. Control buttons: Consisting: S1 and S2 2. An Encoding circuit Consisting: U1 (PT977) 3. A RF Oscillator (49.860MHz) Consisting: Y1, Q1 4. A Filter Network Consisting: L1, T1, C1, C2, C3 5. A RF Modulator and Amplifier Consisting: Q2 6. A Power Supply Consisting: 9VDC (1 X “9V” battery) 7. Regulator Consisting: ZD1, C11 Antenna Gain: 0dBi Nominal rated field strength: 68.5dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB The transmitter uses an external, telescope type antenna with unique antenna connector .

Analysis Report Report No.: 15050510HKG-001 The Equipment Under Test (EUT) is a portable transmitter of a RC Car operating at 49.86 MHz as dictated by a crystal. The EUT is powered by a 9.0 V DC source (1 x 9.0V battery). The EUT has a left / right joystick and a forward / backward joystick. After switching ON the EUT and the receiver of the RC Car, activating the joysticks on the EUT can control the receiver moving forward, backward left and right directions. Antenna Type: External, telescope antenna with unique antenna connector Antenna Gain: 0dBi Nominal rated field strength: 68.5dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 71.5dBμV/m at 3m in frequency 49.860MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.00424mW Thus; Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.00424mW. The SAR Exclusion Threshold Level for 49.860MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 308.6mW Since the above conducted output power is well below the SAR Exclusion Threshold level, so the EUT is considered to comply with SAR requirement without testing.

1 1 2 2 3 3 4 4 DD CC BB AA ANTENNA C7 22P C6 47P C5 100P C3 47P L1 2.2uH L2 1.0uH L3 1.0uH R2 22K R3 100 R4 150K Y1 49.860MHz C8 103 C2 39P T1 15T C1 22P C4 103 Q1 2712 Q2 2712 R1 100R DATA VCC ZD1 3.3V LED R5 470R C11 104 VDD R6 3.9K R7 220K VDD DATA C10 104 C9 104 R8 NC C12 0R 1234567 89 1011121314 U1 PT977 K1 S1 S2 VDD

lntertek Valued Qualþ. Delivercd. lssuing Laboratory: lntertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKI-AS 005 - TEST) under HOKLAS for specif¡c laboratory activities as l¡sted in the HOKLAS directory of accredited laboratories TEST REPORT Report No.: I 505051 0HKG-001 Kidztech Toys Manufacturing Ltd. Application For Certification (Original Grant) (FCC lD: OTM-88061 15-49MTX) Transmitter ¡ Prepared and Checked by: Approved by: Ng Mei Nar, Chris Lead Engineer 4* Tse Ying, Cathy Senior Lead Engineer Date: June 04, 2015 lntertek's standard Terms and Cond¡tions cân be obtained at our website http://w ¡ntertek com/terms/ This report shall not be reproducêd, oxcept in full This report is for the exclusivê usê of lntertek's Cl¡ent and ¡s provided pursuant to the agreêmênt bêtween lntertok and ¡ts Client lntertek's responsib¡lity and liability are l¡m¡ted to the terms and condit¡ons of ths agrsement lntertek assumes no liab¡l¡ty to any party, other than to the Cl¡ent in âccordânæ with thê agreement, for any loss, expensê or dâmage occasioned by the use of this report Only the Client ¡s author¡zed to perm¡t copy¡ng or d¡stribution of this report and thên only in its ent¡rety Any use of the lntert€k nâmê or one of ¡ts marks for the sale or advertisement of the tested material, product or seryice must f¡rst be epproved ¡n wr¡t¡ng by lntertek The obssryations and test results in th¡s report are relevant only to the sample t€sted This report by ¡tself does not imply that thê mater¡al, product, or sery¡cê ¡s or has ever been under an lntertek c€rt¡fication program, lntertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15050510HKG-001 i FCC ID: OTM-8806115-49MTX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Kidztech Toys Manufacturing Ltd. Grantee Address: Room 1201, 12/F., Inter-Continental Plaza, 94 Granville Road, Tsim Sha Tsui East, Kowloon, Hong Kong Contact Person: Eric Ho Tel: (852) 2721-8868 Fax: (852) 2721-8838 e-mail: N/A Manufacturer: Shantou Chenghai JinJun Toys Co. Ltd. Manufacturer Address: Yongxin Industry Zone, Lianshang, Chenghai, Shantou, China Brand Name: N/A Model: 88242 88561, 88571, 88581, 88591, 88601, 88611, 88621, 88631, 88641, 88651, 88681, 88741, 88562, 88572, 88582, 88592, 88602, 88612, 88622, 88632, 88642, 88652, 88682, 88742, 88061, 88071, 88081, 88091, 88101, 88111, 88121, 88131, 88141, 88151, 88181, 88241, 88062, 88072, 88082, 88092, 88102, 88112, 88122, 88132, 88142, 88152, 88182, 88063, 88073, 88083, 88093, 88103, 88113, 88123, 88133, 88143, 88153, 88183, 88243, 88064, 88074, 88084, 88094, 88104, 88114, 88124, 88134, 88144, 88154, 88184, 88244 Type of EUT: Transmitter Description of EUT: 1/12 R/C Cars Serial Number: N/A FCC ID: OTM-8806115-49MTX Date of Sample Submitted: May 08, 2015 Date of Test: May 08, 2015 to May 22, 2015 Report No.: 15050510HKG-001 Report Date: June 04, 2015 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15050510HKG-001 ii FCC ID: OTM-8806115-49MTX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength and Bandwidth Requirement 15.235 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2013 Edition Note: 1. The EUT uses detachable antenna with unique antenna connector which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15050510HKG-001 iii FCC ID: OTM-8806115-49MTX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants ............................................................................... 1 1.3 Test Methodology .............................................................................................. 1 1.4 Test Facility ....................................................................................................... 2 2.0 System Test Configuration ................................................................................. 3 2.1 Justification....................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 15050510HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 88242 FCC ID: OTM-8806115-49MTX INTERTEK TESTING SERVICE Report No: 15050510HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 88242 FCC ID: OTM-8806115-49MTX
