OTM-89051-27MTX1/26 R/C Cars

Contents RC Vehicle (Vehicle) x 1 RC Transmitter (Transmitter) x 1 Antenna for RC Transmitter x 1 Instruction Manual x 1 Battery Precaution 1. Alkaline batteries are recommended to be used 2. Only batteries of the same or equivalent type as recommended are to be used 3. Do not mix alkaline, standard or rechargeable batteries 4. Do not mix old and new batteries or different type of batteries 5. Non-rechargeable batteries are not to be charged 6. If rechargeable batteries are to be used, they are only to be charged by adult 7. Rechargeable batteries are to be removed from the product before they are charged 8. Be sure to insert batteries with correct polarities and always follow the battery manufacturer’s instructions 9. Remove all batteries from the Vehicle and Transmitter when not in use 10. Exhausted batteries are to be removed from the product 11. The supply terminals are not to be short-circuited 12. Dispose of batteries properly. Do not dispose the batteries in fire – it may cause them to explode or leak causing injury or damage 13. Battery installation and removal must only be done by adult How to Play 1. Switch ON the Vehicle 2. Use the Forward / Backward joystick (Fig.3) to drive the Vehicle forward and backward 3. Use the Left / Right joystick (Fig.3) to control the Vehicle turning left or right 4. If the vehicle does not run in straight line, adjust the wheel alignment lever on the vehicle chassis (Fig. 1) 5. Play on smooth surface to have the optimum performance 6. Remember to switch OFF the power of the Vehicle and Transmitter after playing 7. The optimum control range is up to 10m outdoor Perfor mance Tips 1. Do not drive on grass, dirt, sand, dusts, carpet or go through water 2. Do not drive in windy or rainy weather 3. Avoid direct impact the Vehicle with obstacles 4. Switch OFF the power when not in use to prevent damage of Vehicle and Transmitter due to leakage of electrolyte from batteries 5. Remove all batteries from the Vehicle and Transmitter when not in use for long period 6. Keep fingers, hair and loose clothing away from wheels 7. The operating range can be affected by a variety of factors a) Low Voltage of batteries in Transmitter or Vehicle b) Interference from other items that emit radio frequency signals 8. Outdoor usage is recommended in order to get optimum control range 9. Recommend to play the vehicle on a clean and smooth surface 10. Clean the battery compartment to make sure it is free from dust to prevent poor contact of batteries Cautions 1. Do not attempt to disassemble the Vehicle or Transmitter 2. Do not operate the Vehicle with same frequency with other player(s) in same location that will interfere and make the Vehicle out of control. 3. Make sure the batteries are installed with correct polarities (+/-) as shown inside the battery compartment 4. Remove the package and take out all accessories before giving the Vehicle and Transmitter to child to play FCC label compliance statement: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna - Increase the separation between the equipment and receiver - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected - Consult the dealer or an experienced radio/TV technician for help Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. RSS-310 Compliance Statement: This device complies with Industry Canada Licence-exempt RSS-310. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Declaration of Confor mity The product is in conformity with the requirement of EU Directive 1999/5/EC Environmental notes: The whole product also does not belong to household waste at the end of the product life. You can return it at collection points for the recycling of electronic and electronical instruments The symbol on the item, instruction manual, hangtag or packing is showing this clearly. Materials should be recycled according to their respective markings. Recycling of old devices or other re-use of materials contained therein represents an important contribution to environmental protection. Please ask at your local community for the correct collection point. Please retain this sheet and address for future use, as they contain important information. Disposal of batteries Batteries should not be disposed of in the household waste. As the consumer you are legally obliged to return batteries containing harmful substances and all other used batteries. You can hand in your old batteries at public collection points in your area or wherever batteries are sold. You will find these chemical abbreviations along with a crossed-out refuse bin on batteries containing harmful …

Text truncated - open the document above for the full version.

3 1 D 2 1 2 3 4 ABCD 4 CBA ±êÌâ ͼºÅ ÐÞ¶© ³ß ́ç A4 ÈÕÆÚ: 16-Mar-2012 μÚ ÕÅ ¹² ÕÅ Îļþ: D:\μç·°åÀ¬»ø\·¢Éä·½¿òͼ.DDB ÖÆͼÈË: Coding circuit· ANTENNA Oscillation circui t AM Regulator circuit VCC+9V 27.145MHZ Frequency selection Antenna matching 27.145MHz Amplifier & modulation IC1: 977 Model: 89061

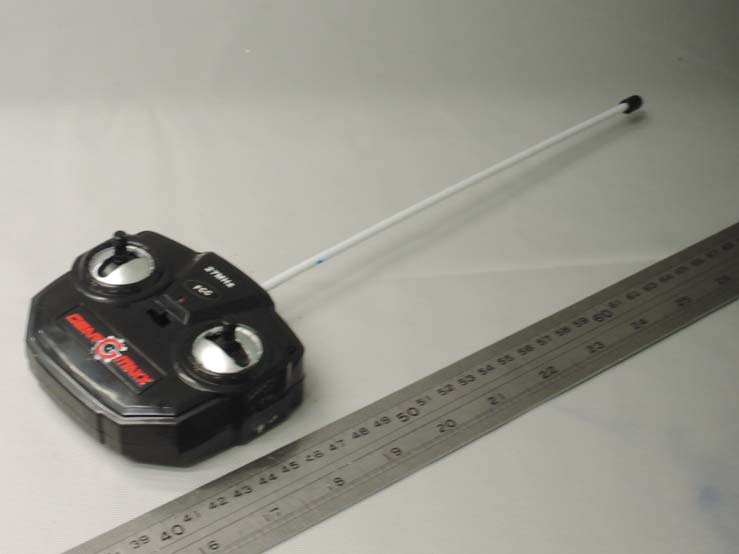

INTERTEK TESTING SERVICE Report No.: 15050433HKG-001 Equipment Photographs Model : 89061 (External) FCC ID: OTM-89051-27MTX

INTERTEK TESTING SERVICE Report No.: 15050433HKG-001 Equipment Photographs Model : 89061 (Internal) FCC ID: OTM-89051-27MTX INTERTEK TESTING SERVICE Report No.: 15050433HKG-001 Equipment Photographs Model : 89061 (Internal) FCC ID: OTM-89051-27MTX INTERTEK TESTING SERVICE Report No.: 15050433HKG-001 Equipment Photographs Model : 89061 (Internal) FCC ID: OTM-89051-27MTX

FCC ID: OTM-89051-27MTX Model: 89061 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 27.145 MHz, and controls the corresponding receiver to move forward, backward, left and right. The circuit of the transmitter comprises of, 1. Control buttons: Consisting: SW1, SW2, SW3 and SW4 2. An Encoding circuit Consisting: IC1 (977) 3. A RF Oscillator (27.145MHz) Consisting: Y1, Q1 4. A Filter Network Consisting: L3, T1, C8-1, C4, C5 5. A RF Modulator and Amplifier Consisting: Q2 6. A Power Supply Consisting: 9VDC (1 X “9V” battery) 7. Regulator Consisting: D1, C6 Antenna Gain: 0dBi Nominal rated field strength: 69.5dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB The transmitter uses an external and detachable dedicated antenna .

Analysis Report Report No.: 15050433HKG-001 The Equipment Under Test (EUT) is a portable transmitter of a RC Car operating at 27.145 MHz as dictated by a crystal. The EUT is powered by a 9.0 V DC source (1 x 9.0V battery). The EUT has a left / right control lever and a forward / backward control lever. After switching ON the EUT and the receiver of the RC Car, activating the control levers on the EUT can control the receiver moving forward, backward left and right directions. Antenna Type: External, detachable dedicated antenna Antenna Gain: 0dBi Nominal rated field strength: 69.5dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 72.5dBμV/m at 3m in frequency 27.145MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.00534mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.00534mW. The SAR Exclusion Threshold Level for 27.145MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 371.2mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

1 1 2 2 3 3 4 4 DD CC BB AA ANTENNA C1 47P C2 47P C3 300P C4 47P Q1 C945P Q2 C945P L3 6.8uH L2 2.2uH L1 2.2uH R6 22K R1 100 R2 150K Y1 27.145MHz LED 9V R 1 NC 2 GND 3 B 4 F 5 T 6 SC 7 SO 8 VDD 9 PC 10 OSCO 11 OSCI 12 NC 13 L 14 IC1977 R5 220K R4 330 C8 103 C6 104P C5 68P D1 3.3V S? SW SPST R3 3.9K T1 15T C8-1 68P R7 100 C9 103 C7 104

lntertek \l¡lud Quellty, Delþeæd, lssuing Laboratory: lntertek Testing Services Hong Kong Limited HKAS has accred¡ted this laboratory (HOKLAS 005 - TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories Prepared and Checked by: TEST REPORT Report No.: 15050433HKG-001 r Kidztech Toys Manufacturing Ltd. Application For Certification (Original Grant) (FCC lD: OTM-89051 -27MTX\ Transmitter Approved by Tse Ying, Cathy Senior Lead Engineer Ng Mei Nar, Chris Lead Engineer Date: May 20,2015 lntertêk's stândard Têrms and Condit¡ons æn b6 obtained ât our wêbs¡ts http:/ ,vww intertek com/tems/ This report shall not be rêproducêd, êxcept in full. This report is for the exclusive use of lntêrtek's Client and ¡s prov¡ded pußuant to the agreement between lntertek and ¡ts Cl¡ênt. lntertek's respons¡bility and liability are l¡m¡ted to the terms and cond¡tions of the agreement lnterlek assumes no l¡ab¡lity to any paly, other than to the Client in accordance with the agreêment, for any loss, expense or damage oc€sioned by the use of this report Only thê Cliênt ¡s authorized to pemit copying or distr¡bution of this report ånd thon only in its ent¡roty. Any use of the lnterlek name or onê of its marks for the sale or advert¡sement of the tested material, product or sêrv¡ce must f¡rst be approved in writing by lntertek The obseruations and test results in this report are relevant only to the sample tested This report by ¡tself does not imply that the matoriel, product, or seru¡ce is or has ever been under an lntêrtek certif¡€tion progråm lntertek Testing Services Hong Kong Ltd. 2/F , Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong Tel: (852) 21 73 8888 Faxr (852) 2785 5457 Website: www.hk.intertek-etlsemko.com Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15050433HKG-001 i FCC ID: OTM-89051-27MTX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Kidztech Toys Manufacturing Ltd. Grantee Address: Room 1201, 12/F, Inter-Continental Plaza, 94 Granville Road, Tsim Sha Tsui East, Kowloon, Hong Kong Contact Person: Eric Ho Tel: 852-2721 8868 Fax: 852-2721 8838 e-mail: N/A Manufacturer: Shantou Chenghai JinJun Toys Co. Ld. Manufacturer Address: Yongxin Industry Zone, Lianshang, Chenghai, Shantou, China Brand Name: N/A Model: 89061 89021, 89031, 89051, 89071, 89081, 89091, 89101, 89111, 89121, 89131, 89141, 89151, 89161, 89171, 89181, 89221, 89231, 89241, 89022, 89032, 89052, 89062, 89072, 89082, 89092, 89102, 89112, 89122, 89132, 89142, 89152, 89162, 89172, 89182, 89222, 89232, 89242, 89251, 89261, 89252, 89262, 5F6003E, Type of EUT: Transmitter Description of EUT: 1/26 R/C Cars Serial Number: N/A FCC ID: OTM-89051-27MTX Date of Sample Submitted: May 07, 2015 Date of Test: May 07, 2015 to May 19, 2015 Report No.: 15050433HKG-001 Report Date: May 20, 2015 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15050433HKG-001 ii FCC ID: OTM-89051-27MTX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength 15.227 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2013 Edition Note: 1. The EUT uses a detachable antenna with unique antenna connector which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15050433HKG-001 iii FCC ID: OTM-89051-27MTX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants ............................................................................... 1 1.3 Test Methodology .............................................................................................. 1 1.4 Test Facility ....................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification........................................................................................................ 2 2.2 EUT Exercising Software ................................................................................... 2 2.3 Special Accessories...........................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 15050433HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 89061 FCC ID: OTM-89051-27MTX INTERTEK TESTING SERVICE Report No: 15050433HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 89061 FCC ID: OTM-89051-27MTX
