OTM-89051-49MRX1/26 R/C Cars

Contents RC Vehicle (Vehicle) x 1 RC Transmitter (Transmitter) x 1 Antenna for RC Transmitter x 1 Instruction Manual x 1 Battery Precaution 1. Alkaline batteries are recommended to be used 2. Only batteries of the same or equivalent type as recommended are to be used 3. Do not mix alkaline, standard or rechargeable batteries 4. Do not mix old and new batteries or different type of batteries 5. Non-rechargeable batteries are not to be charged 6. If rechargeable batteries are to be used, they are only to be charged by adult 7. Rechargeable batteries are to be removed from the product before they are charged 8. Be sure to insert batteries with correct polarities and always follow the battery manufacturer’s instructions 9. Remove all batteries from the Vehicle and Transmitter when not in use 10. Exhausted batteries are to be removed from the product 11. The supply terminals are not to be short-circuited 12. Dispose of batteries properly. Do not dispose the batteries in fire – it may cause them to explode or leak causing injury or damage 13. Battery installation and removal must only be done by adult How to Play 1. Switch ON the Vehicle 2. Use the Forward / Backward joystick (Fig.3) to drive the Vehicle forward and backward 3. Use the Left / Right joystick (Fig.3) to control the Vehicle turning left or right 4. If the vehicle does not run in straight line, adjust the wheel alignment lever on the vehicle chassis (Fig. 1) 5. Play on smooth surface to have the optimum performance 6. Remember to switch OFF the power of the Vehicle and Transmitter after playing 7. The optimum control range is up to 10m outdoor Perfor mance Tips 1. Do not drive on grass, dirt, sand, dusts, carpet or go through water 2. Do not drive in windy or rainy weather 3. Avoid direct impact the Vehicle with obstacles 4. Switch OFF the power when not in use to prevent damage of Vehicle and Transmitter due to leakage of electrolyte from batteries 5. Remove all batteries from the Vehicle and Transmitter when not in use for long period 6. Keep fingers, hair and loose clothing away from wheels 7. The operating range can be affected by a variety of factors a) Low Voltage of batteries in Transmitter or Vehicle b) Interference from other items that emit radio frequency signals 8. Outdoor usage is recommended in order to get optimum control range 9. Recommend to play the vehicle on a clean and smooth surface 10. Clean the battery compartment to make sure it is free from dust to prevent poor contact of batteries Cautions 1. Do not attempt to disassemble the Vehicle or Transmitter 2. Do not operate the Vehicle with same frequency with other player(s) in same location that will interfere and make the Vehicle out of control. 3. Make sure the batteries are installed with correct polarities (+/-) as shown inside the battery compartment 4. Remove the package and take out all accessories before giving the Vehicle and Transmitter to child to play FCC label compliance statement: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna - Increase the separation between the equipment and receiver - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected - Consult the dealer or an experienced radio/TV technician for help Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. RSS-310 Compliance Statement: This device complies with Industry Canada Licence-exempt RSS-310. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Declaration of Confor mity The product is in conformity with the requirement of EU Directive 1999/5/EC Environmental notes: The whole product also does not belong to household waste at the end of the product life. You can return it at collection points for the recycling of electronic and electronical instruments The symbol on the item, instruction manual, hangtag or packing is showing this clearly. Materials should be recycled according to their respective markings. Recycling of old devices or other re-use of materials contained therein represents an important contribution to environmental protection. Please ask at your local community for the correct collection point. Please retain this sheet and address for future use, as they contain important information. Disposal of batteries Batteries should not be disposed of in the household waste. As the consumer you are legally obliged to return batteries containing harmful substances and all other used batteries. You can hand in your old batteries at public collection points in your area or wherever batteries are sold. You will find these chemical abbreviations along with a crossed-out refuse bin on batteries containing harmful …

Text truncated - open the document above for the full version.

3 1 D 2 1 2 3 4 ABCD 4 CBA ±êÌâ ͼºÅ ÐÞ¶© ³ß ́ç A4 ÈÕÆÚ: 16-Mar-2012 μÚ ÕÅ ¹² ÕÅ Îļþ: D:\μç·°åÀ¬»ø\½ÓÊÕ·½¿òͼ1.DDB ÖÆͼÈË: Detector E?ANTENNA IF amplifier· Decoding circuit· ·Drive circuit Regulator circui t A - + MOTOR SERVO VCC+3 。 6V VCC: 4.5V 49.86MHz U1: 8D423 Superregenerative A - + MOTOR SERVO

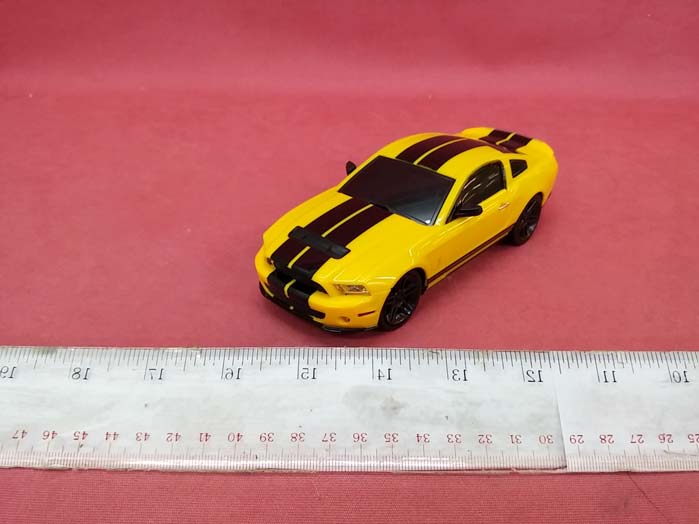

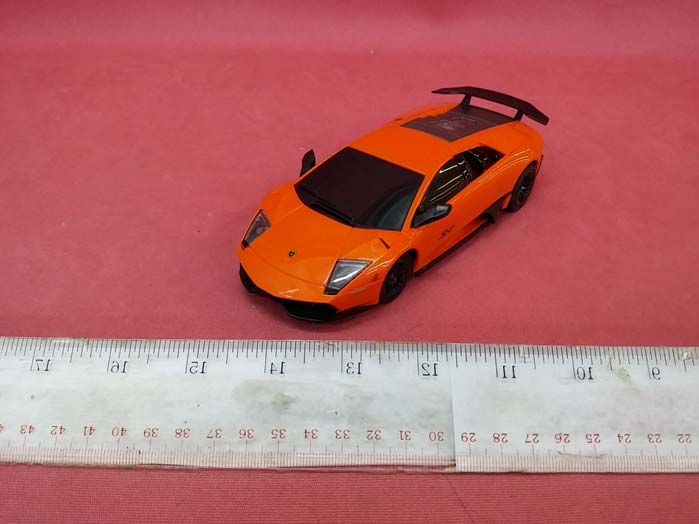

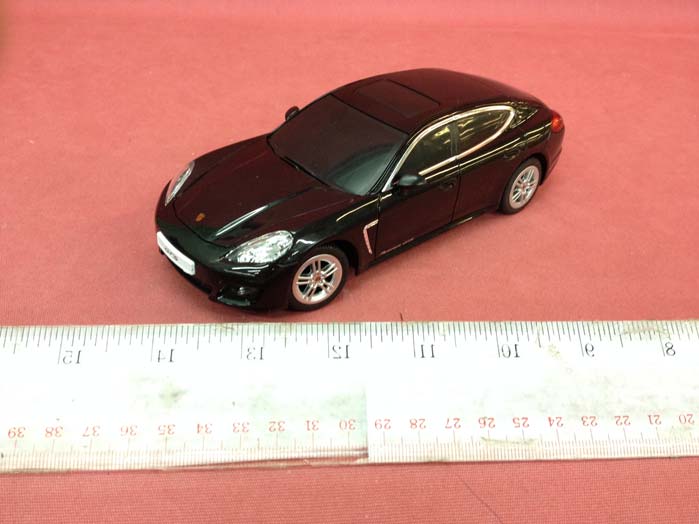

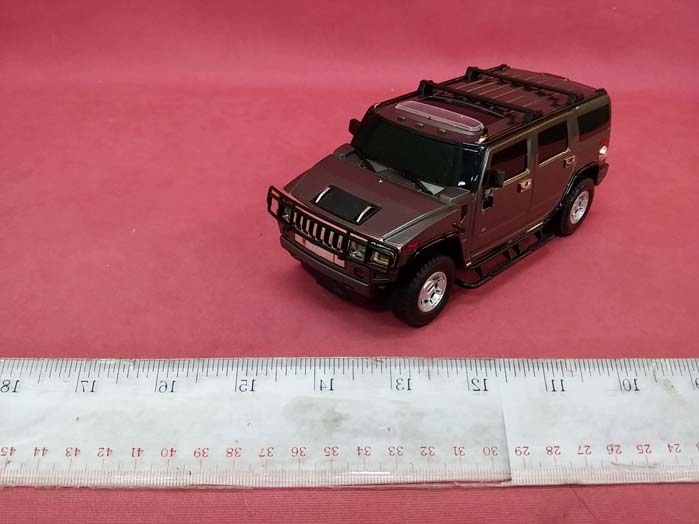

INTERTEK TESTING SERVICE Report No.: 15050434HKG-002 Equipment Photographs Model : 89061 (External) FCC ID: OTM-89051-49MRX INTERTEK TESTING SERVICE Report No.: 15050434HKG-002 Equipment Photographs Model : 89021 / 89022 (External) 89021 / 89022 89021 / 89022 FCC ID: OTM-89051-49MRX INTERTEK TESTING SERVICE Report No.: 15050434HKG-002 Equipment Photographs Model : 89031 / 89032 (External) 89031 / 89032 89031 / 89032 FCC ID: OTM-89051-49MRX INTERTEK TESTING SERVICE Report No.: 15050434HKG-002 Equipment Photographs Model : 89051 / 89052 (External) 89051 / 89052 89051 / 89052 FCC ID: OTM-89051-49MRX INTERTEK TESTING SERVICE Report No.: 15050434HKG-002 Equipment Photographs Model : 89061 / 89062 (External) 89061 / 89062 89061 / 89062 FCC ID: OTM-89051-49MRX INTERTEK TESTING SERVICE Report No.: 15050434HKG-002 Equipment Photographs Model : 89061 / 89062 / 89071 / 89072 (External) 89061 / 89062 89071 / 89072 FCC ID: OTM-89051-49MRX INTERTEK TESTING SERVICE Report No.: 15050434HKG-002 Equipment Photographs Model : 89071 / 89072 / 89081 / 89082 (External) 89071 / 89072 89081 / 89082 FCC ID: OTM-89051-49MRX INTERTEK TESTING SERVICE Report No.: 15050434HKG-002 Equipment Photographs Model : 89081 / 89082 / 89091 / 89092 (External) 89081 / 89082 89091 / 89092 FCC ID: OTM-89051-49MRX INTERTEK TESTING SERVICE Report No.: 15050434HKG-002 Equipment Photographs Model : 89091 / 89092 / 89101 / 89102 (External) 89091 / 89092 89101 / 89102 FCC ID: OTM-89051-49MRX INTERTEK TESTING SERVICE Report No.: 15050434HKG-002 Equipment Photographs Model : 89101 /89102 / 89111 / 89112 (External) 89101 / 89102 89111 / 89112 FCC ID: OTM-89051-49MRX INTERTEK TESTING SERVICE Report No.: 15050434HKG-002 Equipment Photographs Model : 89111 / 89112 / 89121 / 89122 (External) 89111 / 89112 89121 / 89122 FCC ID: OTM-89051-49MRX INTERTEK TESTING SERVICE Report No.: 15050434HKG-002 Equipment Photographs Model : 89121 / 89122 / 89131 / 89132 (External) 89121 / 89122 89131 / 89132 FCC ID: OTM-89051-49MRX INTERTEK TESTING SERVICE Report No.: 15050434HKG-002 Equipment Photographs Model : 89131 / 89132 (External) 89131 / 89132 89131 / 89132 FCC ID: OTM-89051-49MRX INTERTEK TESTING SERVICE Report No.: 15050434HKG-002 Equipment Photographs Model : 89141 / 89142 (External) 89141 / 89142 89141 / 89142 FCC ID: OTM-89051-49MRX INTERTEK TESTING SERVICE Report No.: 15050434HKG-002 Equipment Photographs Model : 89151 / 89152 (External) 89151 / 89152 89151 / 89152 FCC ID: OTM-89051-49MRX INTERTEK TESTING SERVICE Report No.: 15050434HKG-002 Equipment Photographs Model : 89161 / 89162 (External) 89161 / 89162 89161 / 89162 FCC ID: OTM-89051-49MRX INTERTEK TESTING SERVICE Report No.: 15050434HKG-002 Equipment Photographs Model : 89171 / 89172 (External) 89171 / 89172 89171 / 89172 FCC ID: OTM-89051-49MRX INTERTEK TESTING SERVICE Report No.: 15050434HKG-002 Equipment Photographs Model : 89181 / 89182 (External) 89181 / 89182 89181 / 89182 FCC ID: OTM-89051-49MRX INTERTEK TESTING SERVICE Report No.: 15050434HKG-002 Equipment Photographs Model : 89221 / 89222 (External) 89221 / 89222 89221 / 89222 FCC ID: OTM-89051-49MRX INTERTEK TESTING SERVICE Report No.: 15050434HKG-002 Equipment Photographs Model : 89231 / 89232 / 89241 / 89242 (External) 89231 / 89232 89241 / 89242 FCC ID: OTM-89051-49MRX INTERTEK TESTING SERVICE Report No.: 15050434HKG-002 Equipment Photographs Model : 89241 / 89242 (External) 89241 /89242 89241 / 89242 FCC ID: OTM-89051-49MRX INTERTEK TESTING SERVICE Report No.: 15050434HKG-002 Equipment Photographs Model : 89251 / 89252 / 89261 / 89262 (External) 89251 / 89252 89261 / 89262 FCC ID: OTM-89051-49MRX INTERTEK TESTING SERVICE Report No.: 15050434HKG-002 Equipment Photographs Model : 5F6003E (External) 5F6003E FCC ID: OTM-89051-49MRX

INTERTEK TESTING SERVICE Report No.: 15050434HKG-002 Equipment Photographs Model : 89061 (Internal) FCC ID: OTM-89051-49MRX INTERTEK TESTING SERVICE Report No.: 15050434HKG-002 Equipment Photographs Model : 89061 (Internal) FCC ID: OTM-89051-49MRX INTERTEK TESTING SERVICE Report No.: 15050434HKG-002 Equipment Photographs Model : 89061 (Internal) FCC ID: OTM-89051-49MRX INTERTEK TESTING SERVICE Report No.: 15050434HKG-002 Equipment Photographs Model : 89061 (Internal) FCC ID: OTM-89051-49MRX

FCC ID: OTM-89051-49MRX Model: 89061 (Receiver portion) Technical Description of Receiver The receiver operates at 49.860 MHz, and controls by the corresponding transmitter to move forward, backward, left and right. The circuit of the receiver comprises of, 1. Super-regenerative circuit Consisting: Q1 2. Decoder: Consisting: U1 (8D423), 3. Motor Consisting: M2, M3 4. A Power Supply Consisting: 4.5V DC source (3 X 1.5V AA size batteries)

1 1 2 2 3 3 4 4 DD CC BB AA ANTENNA C1 5P C3 18P C2 22P L2 5.6UH C15 475 C5 332 R4 680 R1 180K C4 333 R2 3.9K C17 220UF R3 2.2K C6 104 Q1 2712 T1 VDD L1 1.0UH C10 104 R5 2.2M C7471 C8 104 R6 2.2K R7 2.2M C9 202 R8 2.2K C11 104 A - + M3 A - + M2 VCC 12345678 9 10111213141516 U1 8D423 R9 220K VDD C14 104 C12 106 C13 106 R10 104 R11 22R R12 1K R13 150R CN2 LED CN1 LED C16 * C18 *

lntertek Val ud Quallty Dellvercd, lssuing Laboratory: lntertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 - TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laborator¡es. Prepared and Checked by: TEST REPORT Report No.: 15050434HKG-002 r Kidztech Toys Manufacturing Ltd. Application For Certification (Original Grant) (FGC lD: OTM-89051 -49MRx) Superregenerative Receiver Approved by: Ng Mei Nar, Chris Lead Engineer 4o Tse Ying, Cathy Senior Lead Engineer Date: May 21,2015 lntertêk's standard Terms and Conditions €n be obtained at our website http://ww intertek com/tems/ This rêport shall nol bê reproduced, except in full Th¡s report ¡s for the exclusivê use of lntsrtêk's Cliênt ând ¡s prov¡ded pursuant to thê agrêement betwêsn lntertêk and its Cl¡ent lntsrteks rêsponsibility and liabil¡ty are lim¡ted to the tems and ænditions of the agreement lntertek assumes no l¡ability to any party, other than to the Cl¡ent in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report Only the Client is author¡zed to pemit copying or distribution of this report and thên only in its ent¡rety Any use of the lntertek name or one of its marks for the sale or adverlisement of the tested material, product or seru¡ce must first be approved ¡n writing by lntertêk The obsêrvâtions and test €sults in this report are relêvant only to the sample tested This rêport by itsêlf does not imply that the material, product, or seruice ¡s or has ever been under an lntêrtek certif¡€t¡on program Intertek Testing Services Hong Kong Ltd. 2/F , Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong Tel: (852) 2173 8888 Fax: (852) 2785 5487 Webs¡te: www.hk.intertek-etlsemko.com Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15050434HKG-002 i FCC ID: OTM-89051-49MRX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Kidztech Toys Manufacturing Ltd. Grantee Address: Room 1201, 12/F, Inter-Continental Plaza, 94 Granville Road, Tsim Sha Tsui East, Kowloon, Hong Kong Contact Person: Eric Ho Tel: 852-2721 8868 Fax: 852-2721 8838 e-mail: N/A Manufacturer: Shantou Chenghai JinJun Toys Co. Ltd. Manufacturer Address: Yongxin Industry Zone, Lianshang, Chenghai, Shantou, China Brand Name: N/A Model: 89061 Additional Model: 89021, 89031, 89051, 89071, 89081, 89091, 89101, 89111, 89121, 89131, 89141, 89151, 89161, 89171, 89181, 89221, 89231, 89241, 89022, 89032, 89052, 89062, 89072, 89082, 89092, 89102, 89112, 89122, 89132, 89142, 89152, 89162, 89172, 89182, 89222, 89232, 89242, 89251, 89261, 89252, 89262, 5F6003E Type of EUT: Superregenerative Receiver Description of EUT: 1/26 R/C Cars Serial Number: N/A FCC ID: OTM-89051-49MRX Date of Sample Submitted: May 07, 2015 Date of Test: May 07, 2015 to May 21, 2015 Report No.: 15050434HKG-002 Report Date: May 21, 2015 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15050434HKG-002 ii FCC ID: OTM-89051-49MRX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Receiver / Digital Device Radiated Emissions 15.109 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2013 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15050434HKG-002 iii FCC ID: OTM-89051-49MRX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants ............................................................................... 1 1.3 Test Methodology .............................................................................................. 2 1.4 Test Facility ....................................................................................................... 2 2.0 System Test Configuration ................................................................................. 3 2.1 Justification........................................................................................................ 3 2.2 EUT Exercising Software ................................................................................... 3 2.3 S…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 15050434HKG-002 FCC ID: OTM-89051-49MRX Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 89061 89061 INTERTEK TESTING SERVICE Report No: 15050434HKG-002 FCC ID: OTM-89051-49MRX Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 89061 89061
