FCC ID: OTM15643TX‐49 This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. LABEL SIZE: 22mm x 10mm

Operational Description

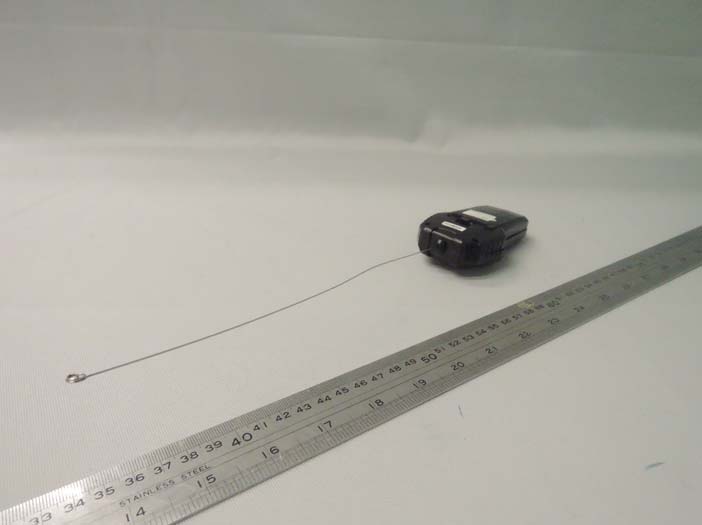

FCC ID: OTM15643TX-49 Model: 1026021 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 49.86 MHz, and controls the corresponding receiver to move forward, backward and turn right. The circuit of the transmitter comprises of, 1. An Encoding circuit Consisting: S1, S2, R1, R2, R4, R5, R6, R7, C5, C6, C7, Q3, Q4 2. A RF Oscillator (49.86MHz) Consisting: X1, Q2 3. A Filter Network Consisting: L1, C2, 4. A RF Modulator and Amplifier Consisting: Q1 5. A Power Supply Consisting: 3VDC (2 X 1.5V "AA" size batteries) Antenna Gain: 0dBi Nominal rated field strength: 69.5dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB The transmitter uses an external, integral antenna

RF Exposure Info

Analysis Report Report No.: 14041831HKG-001 The Equipment Under Test (EUT) is a transmitter of a RC Car operating at 49.860 MHz as dictated by a crystal. The EUT is powered by a 3.0 V DC source (2 x 1.5V AA size battery). The EUT has a Forward button and a reverse button. After switching ON the EUT and the receiver of the RC Car, activating the control buttons on the EUT can control the receiver moving forward, backward and turning right. Antenna Type: External integral antenna Antenna Gain: 0dBi Nominal rated field strength: 69.5dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 72.5dBμV/m at 3m in frequency 49.860MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.0053mW Thus; Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.0053mW. The SAR Exclusion Threshold Level for 49.860MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 308.6mW Since the above conducted output power is well below the SAR Exclusion Threshold level, so the EUT is considered to comply with SAR requirement without testing.

Schematics

11 22 33 44 D D C C B B A A Title Number Revision Size A4 Date: 2014-5-29 Sheet of File: E:\PCB\YC\ 伟兄 \YC-201TX-49M.SCHDOC Drawn By: E1ANT L1 2.2uH L22.2uH L32.2uH C433P C333P Q19014 Q29014 R81K R356K R2 47K X1 49.860MHZ S2 6*6*6.5 S16*6*6.5 C247P VCC Q49014 Q39014 R4 4.7K R7 4.7K R5 15K R6 15K C5333PC7333PC6333P R13.3K C1104P

Test Report

Valued Quality. Delhnrcd. lssuing Laboratory: lntertek Testing Services Hong Kong Limited Hong Kong Accreditat¡on Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditat¡on Scheme (HOKLAS) for specific laboratory ac{ivities as l¡sted in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by th¡s laboratory in accordance with its terms of accreditation. TEST REPORT HII= Eqt m0Á50# Prepared and Checked by: Lead Engineer Date: June 04, 2Ö14 Report No. : I 40 41831H KG-001 Kidztech Toys Manufacturing Ltd. Application For Certification (Original Grant) (FCC lD: OTM15643TX49) Transmitter Approved by: The test rèport only allows to be revised within the retention period unless further standard or the requir€ment was noticed. Th¡s eport is for the exclusive use of lnterteKs Cl¡ent and is provided pußuant to the âgreement bêtween lntertek and its Clisnt. lnlertek's responsibility and liability are l¡mited to the terms and cond¡tions of the agreement. lntorlek assumes no liability to any party, othsr than to the Client in acc,ordance with the agreemênt, for any loss, expensê or demåge occas¡onsd by the uss of this rsport. Only thê Client is authorized to pemit copying or distribut¡on of this rsport and thon only ¡n ¡ts entirêty. Any use of the lntsrlek name or one of its marks for the sale or advêrtisemênt of the tested material, produc-t or seru¡ce must first be approved in writing by lntortsk. The observalions and tèst rosults in this report are relevant only to the sample tested. This report by itsslf does not imply thât the mâterial, product, or seruiæ is or has ever b€en under an lntertek cerliñcâtion progrâm. Intertek Testing Seruices Hong Kong Ltd. ZF., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.¡ntertek-etlsemko.com Tse Ying, Cathy Senior Lead Engineer Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 14041831HKG-001 i FCC ID: OTM15643TX-49 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Kidztech Toys Manufacturing Ltd. Grantee Address: Room 1201, 12/F., Inter-Continental Plaza, 94 Granville Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Eric Ho Tel: (852) 2721 8868 Fax: (852) 2721 8838 e-mail: N/A Manufacturer: Shantou Chenghai JinJun Toys Co., Ltd. Manufacturer Address: Yongxin Industry Zone, Lianshang, Chenghai, Shantou, China Brand Name: N/A Model: 1026021 Additional Model: 15654 / 15655 / 15656 Type of EUT: Transmitter Description of EUT: 1/26 RC Single Function Cars & Trucks Serial Number: N/A FCC ID: OTM15643TX-49 Date of Sample Submitted: April 30, 2014 Date of Test: April 30, 2014 to May 29, 2014 Report No.: 14041831HKG-001 Report Date: June 04, 2014 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 14041831HKG-001 ii FCC ID: OTM15643TX-49 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength 15.235 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2012 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 14041831HKG-001 iii FCC ID: OTM15643TX-49 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description ...................................................................................... 1 1.2 Related Submittal(s) Grants .......................................................................... 1 1.3 Test Methodology ......................................................................................... 1 1.4 Test Facility .................................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

INTERTEK TESTING SERVICE Report No: 14041831HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 1026021 FCC ID: OTM15643TX-49 INTERTEK TESTING SERVICE Report No: 14041831HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 1026021 FCC ID: OTM15643TX-49
