OU5340TModel 340 Medical Telemetry Transmitter

Corometrics  Model 340 OPERATOR’S MANUALMANUAL P/N 2003720-001 REV. B











  Corometrics  Model 340 OPERATOR’S MANUALMANUAL P/N 2003720-001 REV. B











  Corometrics and Marquette are registered trademarks of GE Medical Systems Information Technologies. GE is a registered trademark of General Electric Company. All other product and brand names are trademarks or registered trademarks of their respective companies. ©2000 GE Medical Systems Information Technologies. All rights reserved. No part of this manual may be reproduced without the permission of GE Medical Systems Information Technologies. GUARANTEE All equipment sold by GE Medical Systems Information Technologies is fully guaranteed as to materials and workmanship for a period of 1 year. Information Technologies reserves the right to perform guarantee service operations in its own factory, at an authorized repair station, or in the customer’s installation. Our obligation under this guarantee is limited to repairing, or, at our option, replacing any defective parts of our equipment, except fuses or batteries, without charge, if such defects occur in normal service. Claims for damage in shipment should be filed promptly with the transportation company. All correspondence covering the instrument should specify the model and serial numbers. GE MEDICAL SYSTEMS Information Technologies A GE Medical Systems Company Revision A: 5/00 Revision B: 11/00 GE Medical Systems Information Technologies will make available on request such circuit diagrams, component diagrams, component parts lists, descriptions, calibration instructions, or other information which will assist the users or appropriately qualified technical personnel to repair those parts of the equipment which are classified by Information Technologies as repairable. Refer to the service manual for further information. CAUTION: In the United States of America, Federal Law restricts this device to sale by or on the order of a physician.
World Headquarters 8200 West Tower Avenue Milwaukee, WI 53223 USA Tel: +414.355.5000 800.558.5120 (US only) Fax: +414.355.3790 Internet: www.gemedicalsystems.com Europe / Middle East / Africa Postfach 60 02 65 D-79032 Freiburg Germany Tel: +49.761.45.43.0 Fax: +49.761.45.43.233 Asia 11th Floor, The Lee Gardens 33 Hysan Avenue Causeway Bay Hong Kong Tel: +852.2100.6300 Fax: +852.2100.6292 Revision BModel 340 Telemetry Systemi 2003720-001 Contents Figures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii 1Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2 General Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2 Responsibility of the Manufacturer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2 Definitions of Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 Equipment Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4 Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4 Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7 Equipment Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8 FCC Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9 FCC Rules Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9 FCC RF Exposure Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9 FCC Service Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9 2Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 Product Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2 Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3 iiModel 340 Telemetry SystemRevision B 2003720-001 3Controls, Indicators, and Connectors . . . . . . . . . . . . . . . 3-1 Model 340R Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2 Model 340R Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2 Model 340R Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4 Model 340T Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6 Model 340T Bottom Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6 Model 340T Top Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8 Model 340T Rear Panel Battery Compartment . . . . . . . . . . . . . . . . . . . . . . . . . 3-10 4Setup Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1 Connecting the Receiver and Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2 Models 115, 116, 118, 145, 150, 151, and 155 . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2 120 and 170 Series . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

ST500 TRANSMITTER TECHNICAL MANUAL (1891 1210) © Copyright Wood & Douglas Ltd 1998 version: 1.0 issue: November 1998 LATTICE HOUSE BAUGHURST ROAD TADLEY HAMPSHIRE UK RG26 5LP Tel: +44 (0)118 981 1444Fax:+44 (0)118 981 1567 1.0/November 19981891 1210 Contents Section 1 An overview.................................................5 1.1 GENERAL DESCRIPTION...................................6 Section 2 Operation...................................................7 2.1 USER CONNECTIONS......................................7 Section 3 Technical description.........................................9 3.1 POWER SUPPLY..........................................9 3.2 INPUT INTERFACE.........................................9 3.3 MODULATION STAGE......................................9 3.4 RADIO FREQUENCY STAGE................................10 3.5 FREQUENCY PROGRAMMING..............................14 Section 4 Technical specifications......................................19 DRAWINGS WS1494/XX7GENERAL ARRANGEMENT FOR ST500 WD1632/001CIRCUIT DIAGRAM FOR ST500 WD1632/XX2COMPONENT OVERLAY FOR ST500 (Sheet 1 of 3) WD1632/XX2COMPONENT OVERLAY FOR ST500 (Sheet 2 of 3) WD1632/XX2COMPONENT OVERLAY FOR ST500 (Sheet 3 of 3) C WD632 00ITEM LIST FOR LEADED COMPONENTS FOR ST500 A SM1632 00ITEM LIST FOR SURFACE MOUNT COMPONENTS FOR ST500 1891 12101.0/November 1998 5 1.0/November 19981891 1210 Section 1 An overview Wood & Douglas are an independent UK company dedicated to the design and manufacture of high quality RF designs for the telemetry, security, broadcast and video markets world-wide. The information given in this manual is Copyright Wood & Douglas and is provided to the original purchaser for the purposes of operation and routine maintenance. The contents of this manual must not be disclosed to any third party, nor may the purchaser make additional copies of the manual or store the information given on any electronic retrieval or mass storage system. The company reserves the right to amend or change specifications of its products without prior notice in accordance with the company policy of continued product improvement. NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. The unit is labelled with a serial number label as shown below: ST500 31980912345 FCC ID ABCST500 CECE where:990912345 is the serial number of the unit containing the date code for September 1998 ABC is the Wood & Douglas Ltd FCC code 6 1891 12101.0/November 1998 1.1 GENERAL DESCRIPTION The ST500 can be configured for analogue or digital operation and is available in the frequency range of 405 - 470MHz with a 12.5kHz channel spacing. The transmitter requires a nominal 12 volt DC supply connected via PL7. However the unit will function correctly within the limits of +6.0V to +14.0V. The output power of the transmitter is normally preset to 100mW nominal. The ST500 is intended to fit into OEM equipment housing by means of the three connectors which protrude through the base of the unit. 7 1.0/November 19981891 1210 Section 2 Operation 2.1 USER CONNECTIONS Connection to the ST500 transmitter is made via three headers, PL1, PL2 and PL3, which plug directly into the user's own equipment. The location of these connectors is shown in the General Arrangement drawing given at the back of this manual. The details of these three connectors are detailed below: PINNAMEFUNCTIONREMARKS 10V0 voltscommon ground 2bTbXbEtransmit enableo/c = transmitter disabled LOW <+0.8V = transmitter enabled 1KÙ nom. internal pull-up to +Vin 3DIGITAL I/Pdata input0/+3V to 0/+12V, DC-coupled 4ANALOGUE I/Pdata input300mV to 5V p-p, AC-coupled 5+5V O/P+5V supply output50mA max. current drain 6RS232 I/Pserial programming input If not used leave un-connected or ground. (refer to section 3.5 for details) 70V0 voltscommon ground 8RB1 parallel frequency select internal pull-up to +5V, active low (refer to section 3.5.4 for details) 9RB2 10RB3 Connector PL1 pin detail 8 1891 12101.0/November 1998 PINNAMEFUNCTIONREMARKS 10V0 voltscommon ground 2RF O/PRF output50 ohms output 30V0 voltscommon ground Connector PL2 pin detail PINNAMEFUNCTIONREMARKS 1+VINpositive supply+6.0V to +14.0V 20V0 voltscommon ground Connector PL3 pin detail 9 1.0/November 19981891 1210 Section 3 Technical description Refer to the circuit diagram WD1632 at the rear of this manual. 3.1 POWER SUPPLY DC power is connected to the transmitter module via PL3. The positive side of the supply is fed to TR2 which acts as a series switch; when PL1 pin 2 is connected to 0V to enable the transmitter then base current flows to TR2 via D6 and R54 and turns TR2 on. The output from the collector of TR2 (‘+Vraw’) is fed to dual operational amplifier IC4, to TR3 collector (via chokes L5 and L6) and also to voltage regulator IC2. This regulator provides a stable output of nominally +5V which is used to power all the remaining sections of the transmitter (apart from IC7) either directly or via R-C decoupling networks. 3.2 INPUT INTERFACE When the transmitter is to be used with an analogue modulation input then this input is fed from PL1 pin 4 via R2 and C2 to RV1 in the feedback network around IC1a. RV1 acts as an analogue gain control. When the transmitter is to be used with a digital modulation input then this input is fed from PL1 pin 3 via R1 to RV1 in the feedback network around IC1a. RV1 is set mid-way in this application such that it has no effect; IC1a then functions as a comparator and produces an output which swings between approximately +0.7V and +4.3V depending on whether the digital input is low or high. These output levels are well-defined and result in the modulation level being independent of the logic levels at the input to the transmitter. 3.3 MODULATION STAGE The output from IC1a is fed to a low-pass filter built around IC1b. This restricts the modulation bandwidth such that adjacent channel power levels are kept within s…

Text truncated - open the document above for the full version.

440017 MAKE FROM NOTES: ARTWORK IS:2005059-001,REV: 1 OF 1 1/1 9/2/00 R. BARNES 2004532-001TELEMETRY A MR26113 RB 10/00 FCC PERMIT LABEL 2005059 TELEMETRY-TRANSMITTER DRAWING FILENAME: 2005059-B.DWG MFG RELEASE 2. PRINT TO BE RESITANT TO ISOPROPYL ALCOHOL, 70 AND COMMON HOUSEHOLD CLEANING AGENTS. THIS DOCUMENT AND THE INFORMATION HEREIN ARE THE PROPERTY OF GE MARQUETTE MEDICAL SYSTEMS AND NEITHER MAY BE USED FOR ANY PURPOSE, NOR DISCLOSED TO ANY PARTY, WITHOUT THE WRITTEN CONSENT OF GE MARQUETTE MEDICAL SYSTEMS. PROPRIETARY & CONFIDENTIAL 1. PRINT: 1-COLOR BLACK PER COPY SHOWN. 2005006-001 JOE IZZO JOE IZZO B. SHOTWELL 10/5/00 10/5/00 10/5/00 B REVISED 'FCC' ID NUMBER RB 10/00 BSJI B B DRAWING NUMBER TITLE SIZE SCALE REV SHEET MATERIAL FINISH APPLICATION USED ON NEXT ASSY DO NOT SCALE - WORK TO DIMENSIONS SHOWN. REMOVE BURRS, BREAK SHARP EDGES & CORNERS. UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES. FRACTIONS 2 PLACE DECIMALS 3 PLACE DECIMALS ANGLES REV ECO DRFT DATE CHKD APPVD DRAWN CHECKED ENGINEER APPROVED DATE DATE DATE DATE A DESCRIPTION A B A B 1234 4321 FCC: ID OU5340T DRAWING NUMBER TITLE SIZE SCALE REV SHEET D MATERIAL FINISH APPLICATION USED ON NEXT ASSY DO NOT SCALE - WORK TO DIMENSIONS SHOWN. REMOVE BURRS, BREAK SHARP EDGES & CORNERS. UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES. FRACTIONS 2 PLACE DECIMALS 3 PLACE DECIMALS ANGLES REV ECNDESCRIPTION DRFT DATE CHKD APPVD DRAWN CHECKED ENGINEER APPROVED DATE DATE DATE DATE A B C D 1 2 345 6 A B C D 1 2 345 6 R. BARNES7/14/00 ASSY, GENERIC TRANSMITTER TELEMETRY-MODEL 340 A2004532 1 OF 11/1 2004706-001340 DRAWING FILENAME: 2004532-A.DWG ENG RELEASE J7 J5 J8 1 1 1 1 1 USE EXISTING HARDWARE SUPPLIED WITH CASE. HAND TIGHTEN TO 16 IN-OZ. (1.0 LB-IN) 4x BOTTOM COVER MARKED FRONT PANEL PAINTED REAR PANEL MARKED TOP COVER MARKED 5 6 8 9 10 7 INSTALL RIVET FROM INSIDE. ATTACH SPLIT RING FROM OUTSIDE. 2x 18 17 19 12 13 14 20 2x A A A A 21 4x 2526 , MARKED 'A' HAND TIGHTEN TO 40 OZ-IN (2.5 LB-IN) 22 4x 1523 4x J101 J102 J103 16 4x J3 27 11 000 ER23791 RB 8/00 WP1 WP2 (BLACK WIRE) (RED WIRE) 28 29 ADHERE TO INSIDE OF CASE AND INSIDE OF COVER IN APPROXIMATE AREAS SHOWN 30 30 INSTALL NYLON WASHER BETWEEN PANEL AND METAL WASHER 232 4x THIS DOCUMENT AND THE INFORMATION HEREIN ARE THE PROPERTY OF GE MARQUETTE MEDICAL SYSTEMS AND NEITHER MAY BE USED FOR ANY PURPOSE, NOR DISCLOSED TO ANY PARTY, WITHOUT THE WRITTEN CONSENT OF GE MARQUETTE MEDICAL SYSTEMS. PROPRIETARY & CONFIDENTIAL CHANNEL XXXA 4 24 ON TOP COVER 2004709-XXXA CHANNEL LABELS REFERENCE ITEM 3 4x A MR26113 MFG RELEASE RB 10/00

12004556-001CASE TRANSMITTER PURCHASED- TELEMQTY 1 2281573NUT,ELASTIC STOP,4-40,ZPSQTY 4 32004885-001STANDOFF 1/4 HEX, 1 1/16LG 6-32 M-F ALUMQTY 4 42005059-001LABEL FCC PERMIT TELEMETRY-TRANSMITTERQTY 1 513871AABATTERY DOOR PAINTED-340QTY 1 6280273RING,SPLIT,1/2 OD QTY 2 7280272RIVET,5/16L,ALUMINUM QTY 2 813866A340 MARK JACK TELMTRY ASY QTY 1 99649A332 POWER SWITCH ASSY QTY 1 10 2004551-001ASSY BNC CABLE TRANSMITTER-TELEMETRY QTY 1 11 13867A340 EARPHONE JACK XMTR QTY 1 12 2003712-001PCB TRANSMITTER CARRIER BD QTY 1 13 310059TAPE,FOAM,2 IN W,1/8 THK QTY 2 14 400076HOLDER, BATTERYQTY 1 15 284074SCR,4-40,PH,1/4L,PHL,LL STRIPQTY 4 16 280359STANDOFF,3/16HEX,4-40,M-F,1/2L QTY 4 17 13870AABATTERY SUPPORT 340 QTY 1 18 2003708-002PCB TRANSMITTER MAIN BD QTY 1 19 280080FASTENER,BALL STUD QTY 1 20 280083RIVET-.093 DIA QTY 2 21 286512SCR,6-32,PH,1/4L,PHL,LL STRIP QTY 4 22 285015WSHR,FLAT,#6,NPS,.032 THK QTY 4 23 285094WASHER, FLAT,#4 7/32 OD. 025THK QTY 8 24 4281AALABEL-SERIAL NO, UL QTY 1 25 284056SCR,4-40,PH,1/4L,PHL-ZINC,PLTD QTY 4 26 285065LKWSHR,INT TOOTH,#4,SS QTY 4 27 280256BALL STUD,.421 LG,.025-.051 PNL THKQTY 1 28 211159CONN,BNC,ADAPTER,RA,JACK PLUG QTY 1 29 14063AASTRAP,BATRY DR RETNR-340QTY 1 30 285049WSHR,FLAT,NYL,.256 ID,.41,OD,.010 THKQTY 2

FCC RF Exposure Compliance Information to the user regarding operation of the device to assure compliance with FCC RF exposure requirements is found on page 1-9 of the User’s Manual.

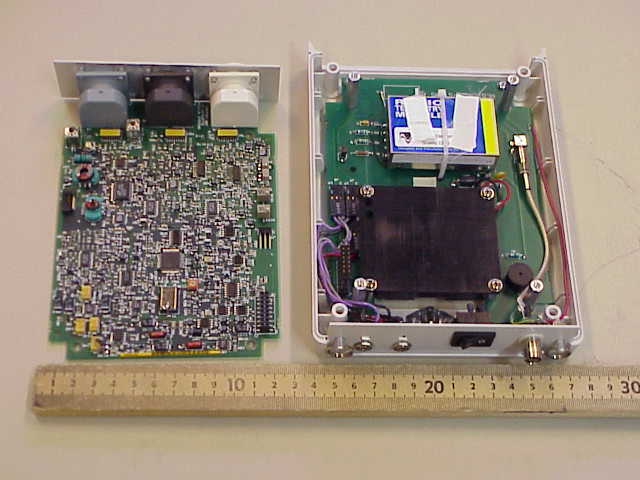

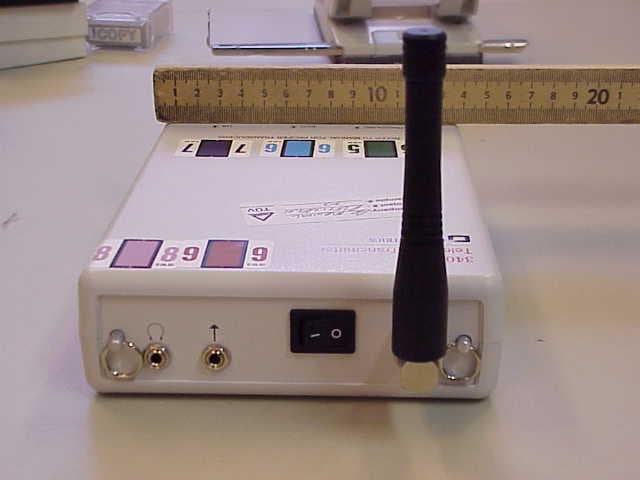

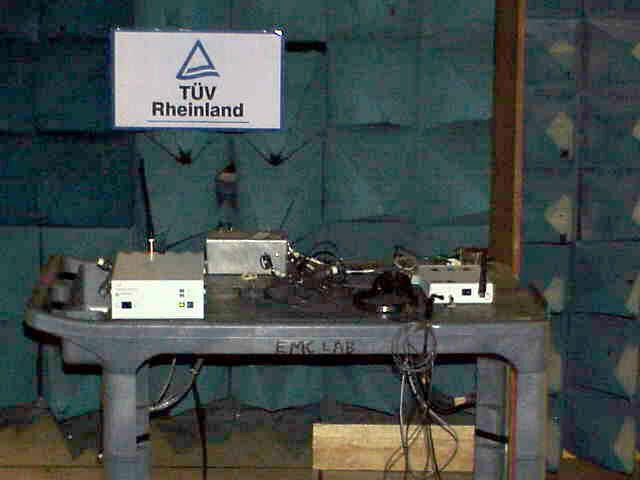

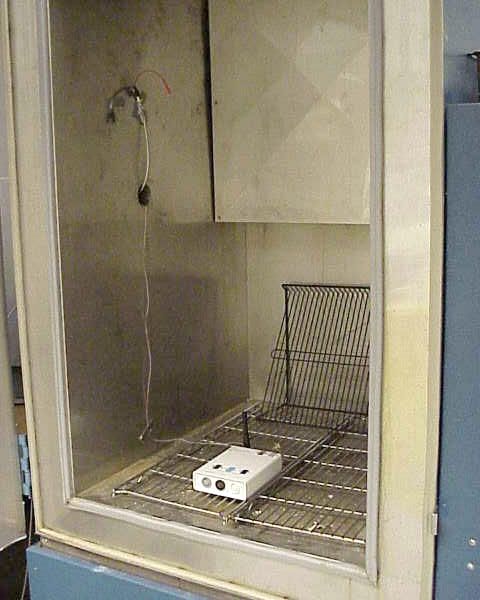

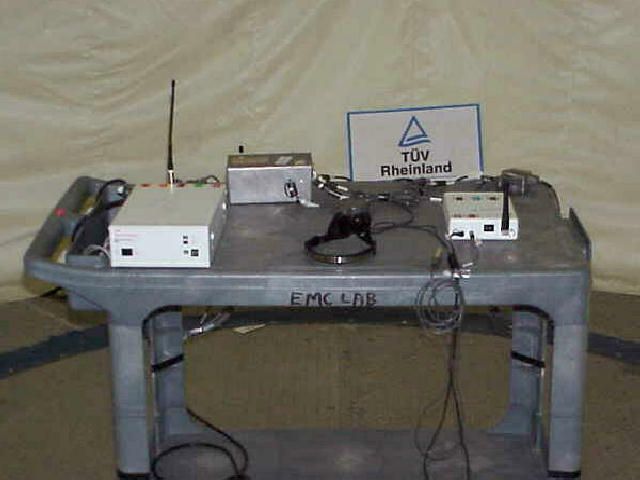

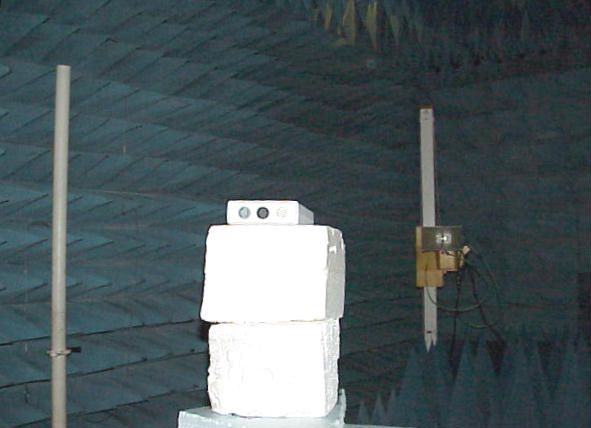

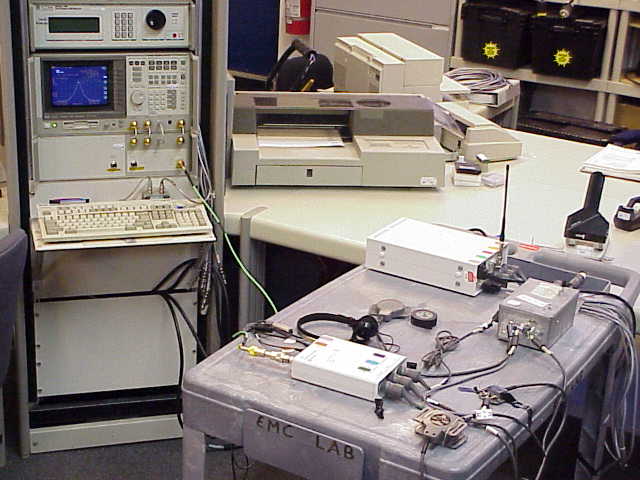

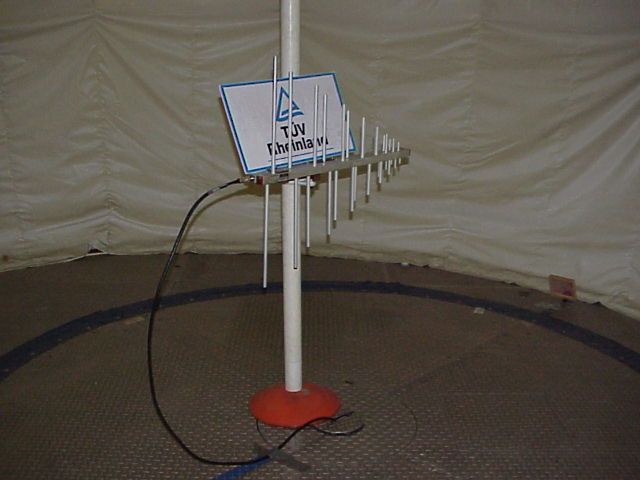

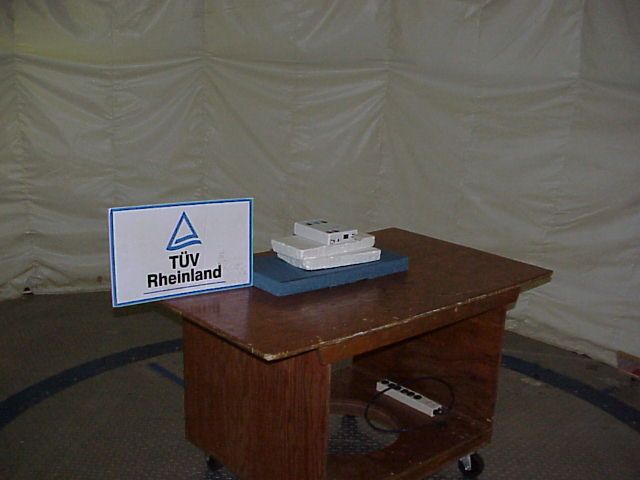

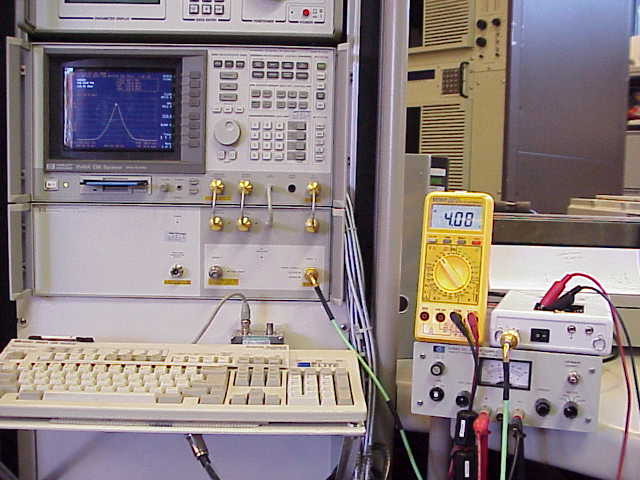

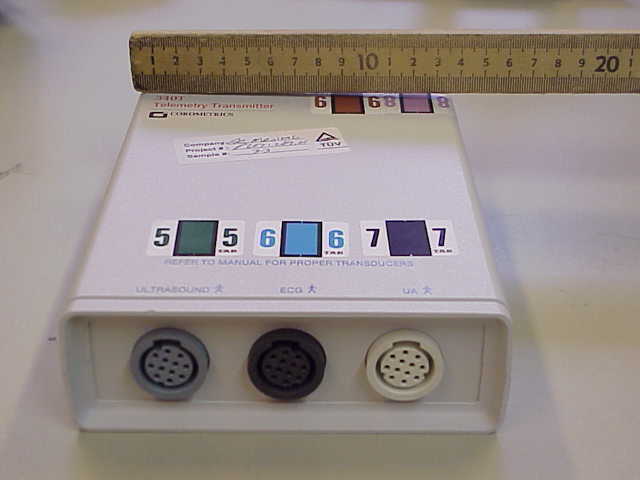

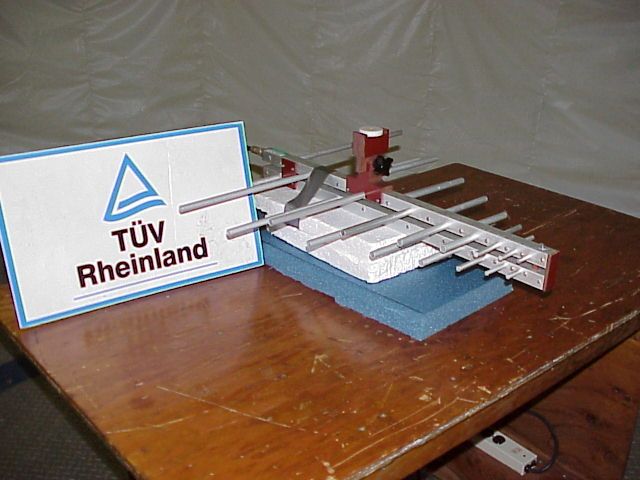

FCC ID: OU5340T TÜV File: P2071269.01 Page 1 of 17 The test results contained in this report refer exclusively to the product(s) presented for testing. No liability may be assumed for models or products not referred to herein. This test report may not be published or duplicated in part without permission of the testing body. This test report by itself does not constitute authorization for the use of any TÜV Rheinland test mark. This report must not be used by the applicant to claim product endorsement by TÜV Rheinland, NVLAP or any agency of the U.S. Government. TÜV Rheinland of North America, Inc., North American Headquarters, 12 Commerce Road, Newtown, CT 06470 Tel (203)426-0888 - Fax (203)426-4009 Report of Measurements for Medical Telemetry System, Model 340 Manufactured by GE Marquette Medical Systems 61 Barnes Park Road, North Wallingford, CT 06492 By TÜV Rheinland of North America, Inc. New tow n, CT 06470 _________________________ Mark Ryan EMC Senior Specialist EMC/Telecommunications Product Safety Division FCC ID: OU5340T TÜV File: P2071269.01 Page 2 of 17 The test results contained in this report refer exclusively to the product(s) presented for testing. No liability may be assumed for models or products not referred to herein. This test report may not be published or duplicated in part without permission of the testing body. This test report by itself does not constitute authorization for the use of any TÜV Rheinland test mark. This report must not be used by the applicant to claim product endorsement by TÜV Rheinland, NVLAP or any agency of the U.S. Government. TÜV Rheinland of North America, Inc., North American Headquarters, 12 Commerce Road, Newtown, CT 06470 Tel (203)426-0888 - Fax (203)426-4009 Table of Contents 1. GENERAL3 1.1Equipment Tested -------------------------------------------------------------------------------------------------------- 3 1.2Manufacturer ------------------------------------------------------------------------------------------------------------- 3 1.3Description of Device Tested ------------------------------------------------------------------------------------------- 3 2. TEST SUMMARY AND PURPOSE4 2.1Test summary ------------------------------------------------------------------------------------------------------------- 4 2.2Purpose -------------------------------------------------------------------------------------------------------------------- 4 3. MEASUREMENT EQUIPMENT USED5 4. REPORT OF MEASUREMENTS6 4.1RF Power Output (§2.1046(a))--------------------------------------------------------------------------------------- 6 4.2Modulation Characteristics (§2.1047)--------------------------------------------------------------------------------- 7 4.3Occupied Bandwidth (§2.1049)---------------------------------------------------------------------------------------- 8 4.4Spurious Emissions at Antenna Terminals (§2.1051)---------------------------------------------------------------- 9 4.5Field Strength of Spurious Emissions (§2.1053)--------------------------------------------------------------------- 11 4.6Fre que ncy Stability (§2.1055)----------------------------------------------------------------------------------------- 13 4.6.1Frequency Stability - Temperature (§2.1055(a)(1))------------------------------------------------------------13 4.6.2Frequency Stability - Battery End Point (§2.1057(d)(2))------------------------------------------------------15 4.7Frequency spectrum to be investigated (§2.1057(a)(1))----------------------------------------------------------- 16 4.8Conducte d Emissions (§15.107)--------------------------------------------------------------------------------------- 16 4.9Exemption from Technical Requirements (§90.217)---------------------------------------------------------------- 17 FCC ID: OU5340T TÜV File: P2071269.01 Page 3 of 17 The test results contained in this report refer exclusively to the product(s) presented for testing. No liability may be assumed for models or products not referred to herein. This test report may not be published or duplicated in part without permission of the testing body. This test report by itself does not constitute authorization for the use of any TÜV Rheinland test mark. This report must not be used by the applicant to claim product endorsement by TÜV Rheinland, NVLAP or any agency of the U.S. Government. TÜV Rheinland of North America, Inc., North American Headquarters, 12 Commerce Road, Newtown, CT 06470 Tel (203)426-0888 - Fax (203)426-4009 1. General 1.1 Equipment Tested Medical Telemetry System, Model 340 1.2 Manufacturer GE Marquette Medical Systems 61 Barnes Park Road, North Wallingford, CT 06492 Tel: (203) 265-5631 Fax: (203) 949-2536 1.3 Description of Device Tested The MODEL 340 Medical Telemetry System is a separate transmitter and receiver combination that provides a wireless link of medical sensors (such as ECG, UA, and Ultrasound) to a monitoring station. The receiver used with this system is subject to the FCC Declaration of Conformity procedure. The transmitter is in a metal enclosure that measures 19cm X 13.5cm x 4.4cm and weighs 0.7kg with batteries installed. The front of the transmitter has the DC power switch, inputs for headphones, a “Remote Event Mark” switch, and a BNC antenna connector. The back of the transmitter has inputs for ECG, UA, and Ultrasound medical sensors. The bottom of the transmitter has the battery compartment. The Model 340 is intended for operation in the 450 - 470 MHz range, in accordance with the provisions of FCC paragraphs § 90.217 and § 90.238(e). Certification is being sought in accordance with paragraphs § 2.1031 through § 2.1057. FCC ID: OU5340T TÜV File: P2071269.01 Page 4 of 17 The test results contained in this report refer exclusively to the product(s) presented for testing. No liability may be assumed for models or products not referred to herein. This test report may not be published or duplicated in part without permissio…

Text truncated - open the document above for the full version.

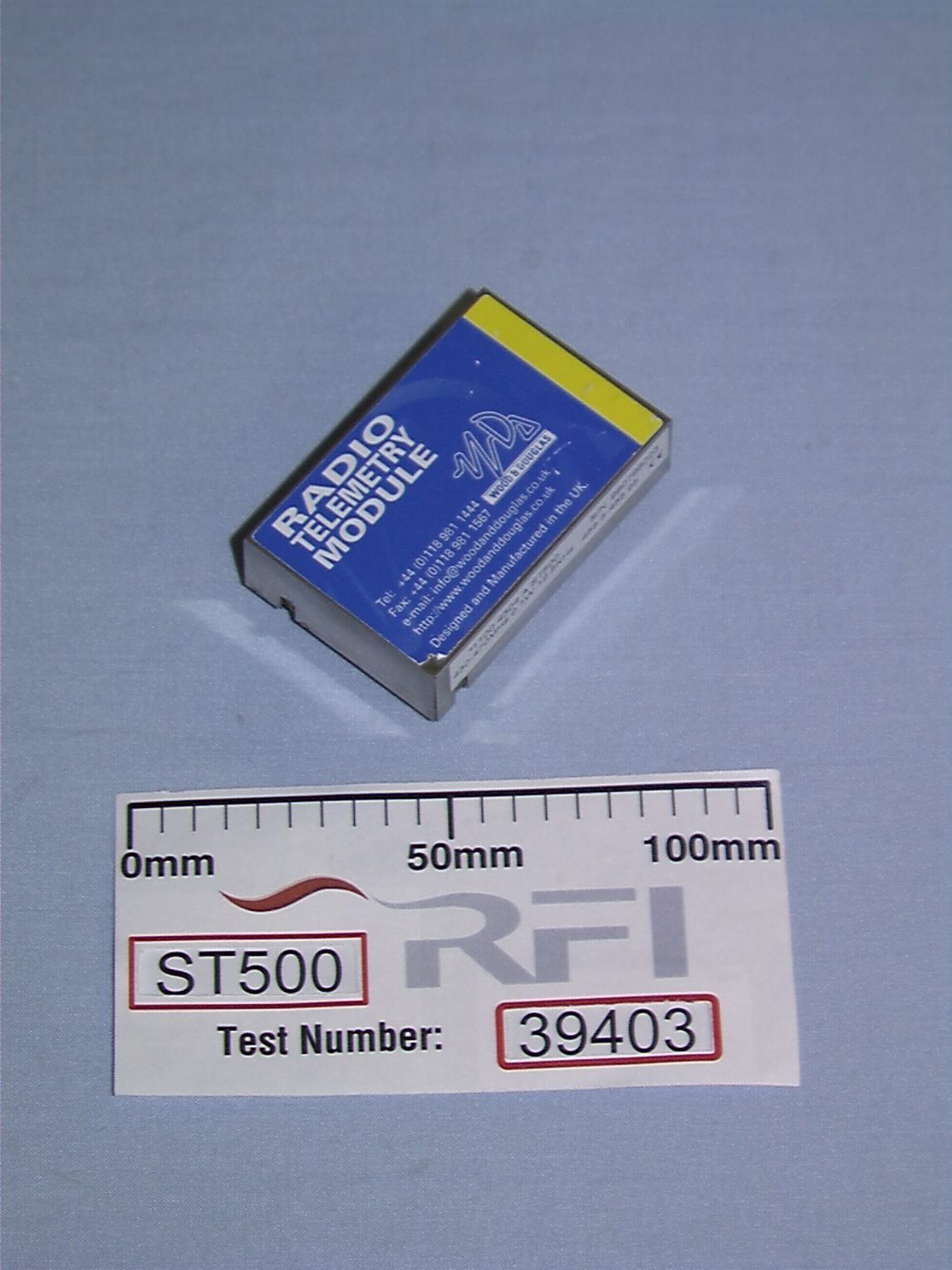

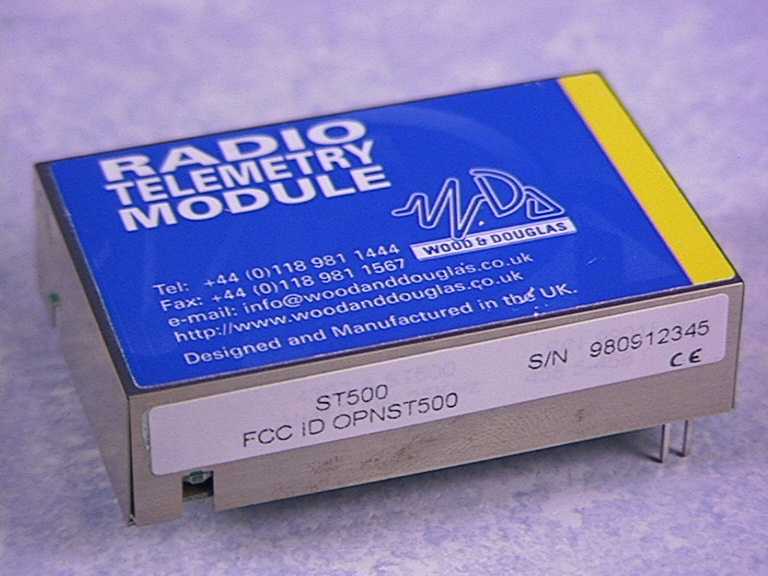

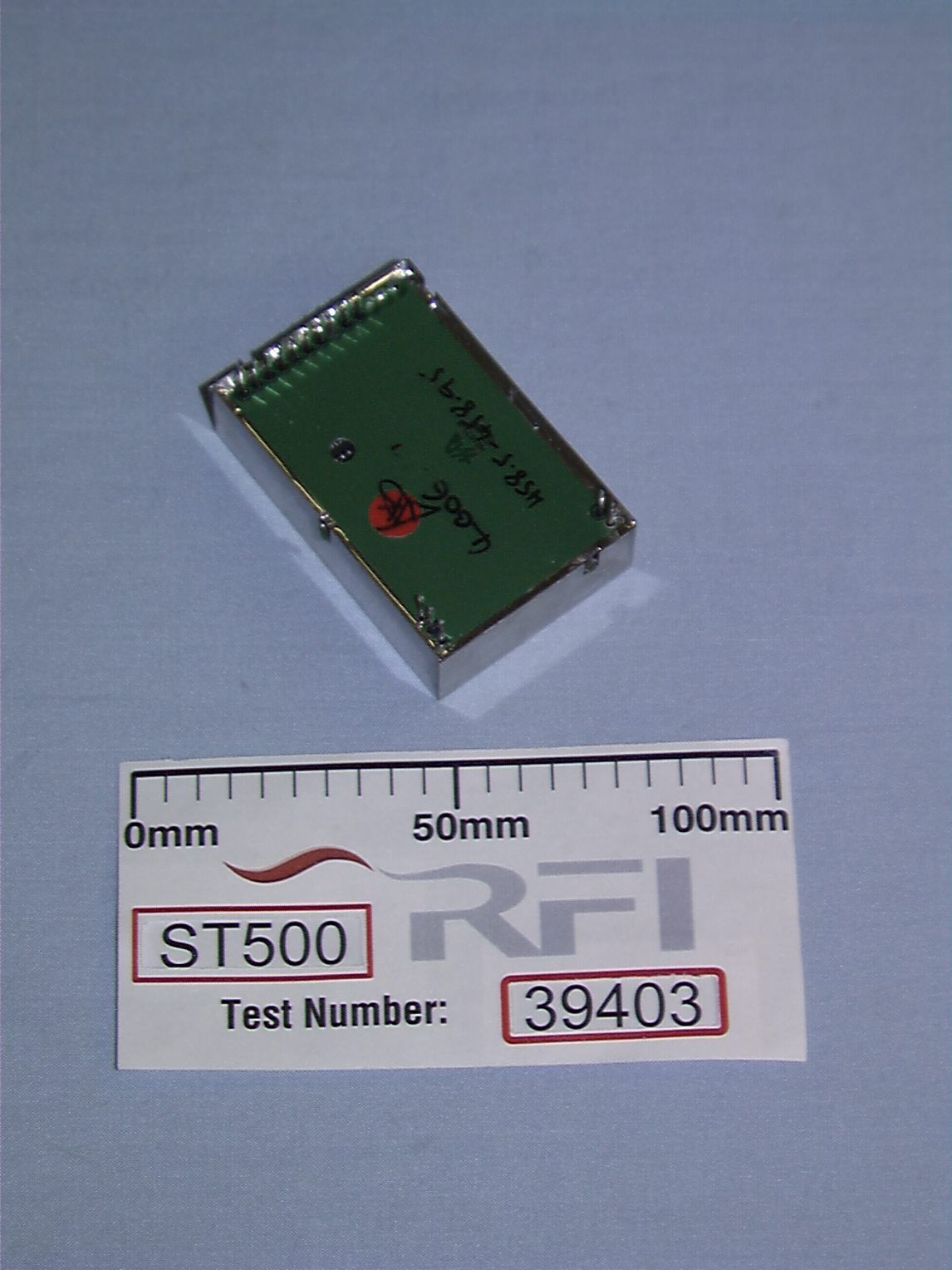

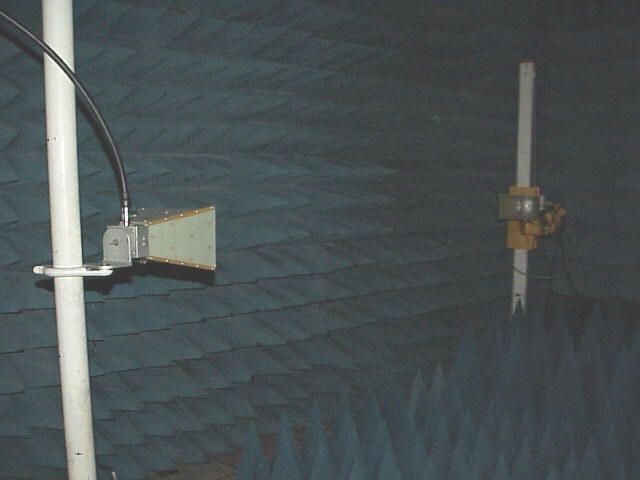

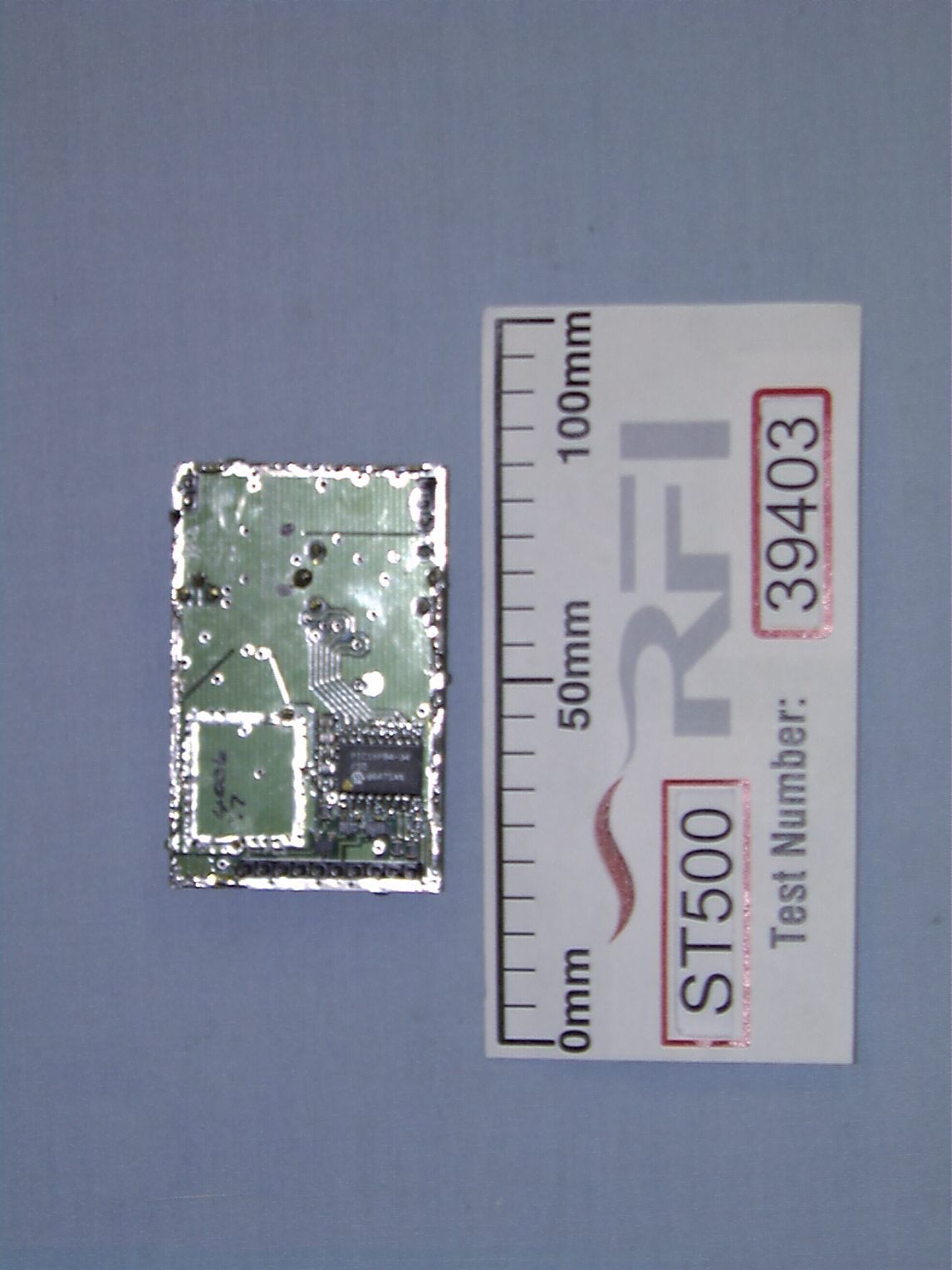

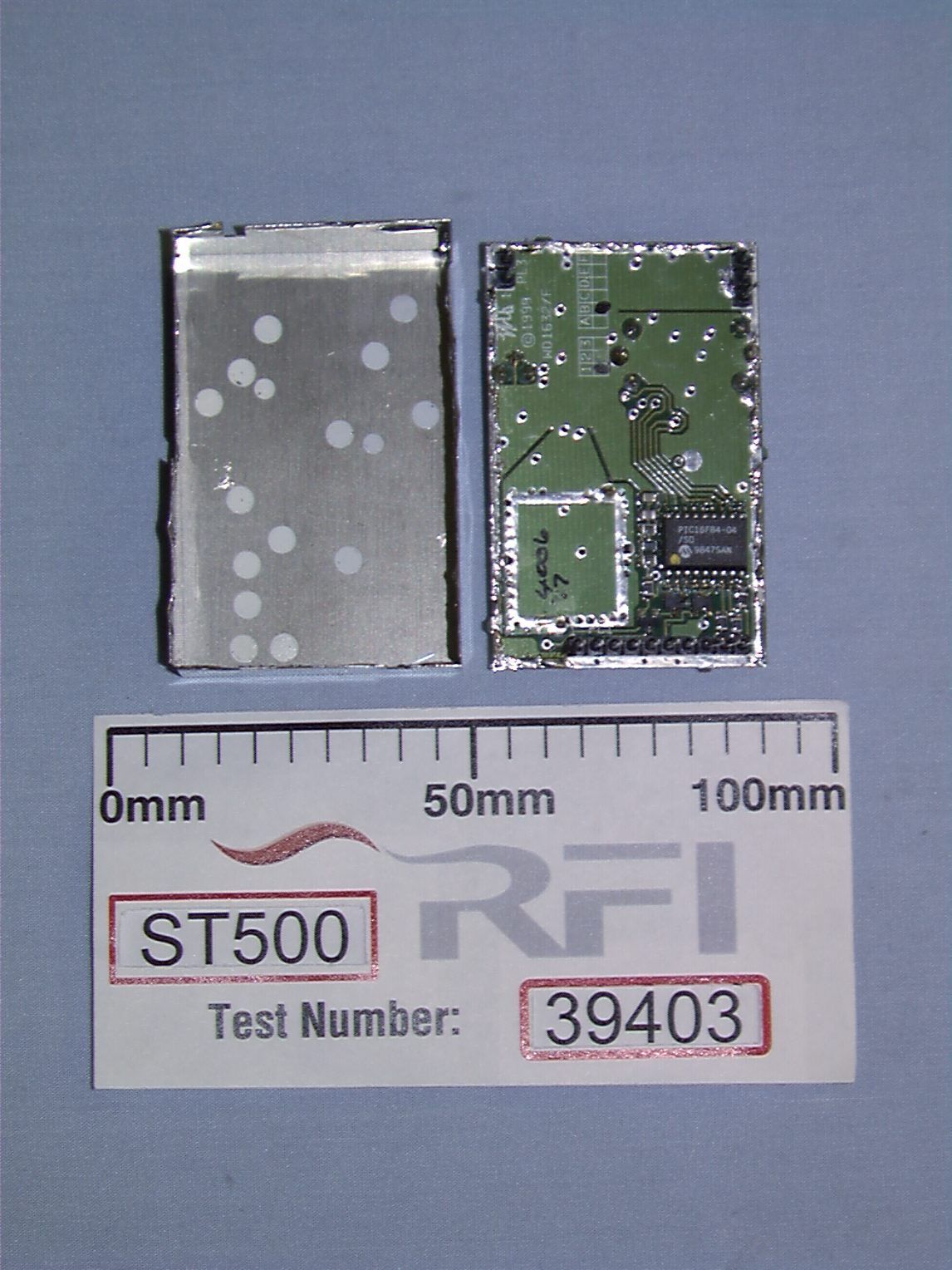

Radio Frequency Investigation Ltd, Ewhurst Park, Ramsdell, Basingstoke, Hampshire, RG26 5RQ, ENGLAND. Tel: +44 (0) 1256 851193 Fax: +44 (0) 1256 851192 Registered in England, No. 211 7901. Registered Office: Ewhurst Park, Ramsdell, Basingstoke, Hampshire RG26 5RQ TESTING 0644 TEST REPORT FROM RADIO FREQUENCY INVESTIGATION LTD. Test Of: Wood & Douglas Ltd ST500 Transmitter To: FCC Part 90:1998 Test Report Serial No: RFI/EMCB2/RP39403B This Test Report supersedes RFI Test Report No.: RFI/EMCB1/RP39403B This Test Report Is Issued Under The Authority Of Brian Watson Technical Director: Checked By: Tested By:Release Version No: PDF01 Issue Date: 2 September 1999Test Date: 27 July 1999 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. Furthermore, the date of creation must match the issue date stated above. This report may be copied in full. RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No: RFI/EMCB2/RP39403B EMC DepartmentPage 2 of 46 Issue Date: 2 September 1999 Test Of:Wood & Douglas Ltd ST500 Transmitter To:FCC Part 90:1998 This page has been left intentionally blank. RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No: RFI/EMCB2/RP39403B EMC DepartmentPage 3 of 46 Issue Date: 2 September 1999 Test Of:Wood & Douglas Ltd ST500 Transmitter To:FCC Part 90:1998 Table of Contents 1. Client Information......................................................................................................4 2. Equipment Under Test (EUT).....................................................................................5 3. Test Specification, Methods And Procedures..........................................................7 4. Deviations From The Test Specification...................................................................8 5. Operation Of The EUT During Testing......................................................................9 6. Summary Of Test Results........................................................................................10 7. Measurements, Examinations And Derived Results..............................................11 8. Measurement Uncertainty........................................................................................33 Appendix 1. Test Equipment Used...............................................................................34 Appendix 2. Measurement Methods............................................................................35 Appendix 3. Test Configuration Drawings..................................................................39 Appendix 4. Graphical Test Results............................................................................42 Appendix 5. Photographs of EUT.................................................................................45 This Test Report supersedes RFI Test Report No.: RFI/EMCB1/RP39403B. RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No: RFI/EMCB2/RP39403B EMC DepartmentPage 4 of 46 Issue Date: 2 September 1999 Test Of:Wood & Douglas Ltd ST500 Transmitter To:FCC Part 90:1998 1. Client Information Company Name: Wood & Douglas Ltd Address: Lattice House Baughurst Basingstoke Hants RG26 5LP Contact Name: Mr A Stickland RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No: RFI/EMCB2/RP39403B EMC DepartmentPage 5 of 46 Issue Date: 2 September 1999 Test Of:Wood & Douglas Ltd ST500 Transmitter To:FCC Part 90:1998 2. Equipment Under Test (EUT) The following information (with the exception of the Date of Receipt) has been supplied by the client: 2.1. Identification Of Equipment Under Test (EUT) Brand Name: Wood & Douglas Ltd Model Name or Number: ST500 Unique Type Identification: ST500 31 Serial Number: 990798023 Country of Manufacture: UK FCC ID Number: Awaiting Certification from the FCC Date of Receipt: 27 July 1999 2.2. Description Of EUT The equipment under test is a synthesised 100 mW transmitter with 12.5 kHz channel spacing for telemetry use. 2.3. Modifications Incorporated In EUT None stated by client. 2.4. Additional Information Related To Testing Power Supply Requirement: DC supply of 9 V (customer supplied) Intended Operating Environment: Commercial Weight: 0.03 kg Dimensions: 60 mm x 40 mm x 20 mm (including pins) Interface Ports: 10 pin connector for I/O 2 pin connector for power 3 pin connector for RF RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No: RFI/EMCB2/RP39403B EMC DepartmentPage 6 of 46 Issue Date: 2 September 1999 Test Of:Wood & Douglas Ltd ST500 Transmitter To:FCC Part 90:1998 2.5. Support Equipment The following support equipment was used to exercise the EUT during testing: Description: ST500 Test Jig Brand Name: Wood and Douglas Model Name or Number: None stated by client Serial Number: WD011 FCC ID Number: None stated by client Cable Length And Type: Not applicable (Direct Connection to the EUT) Connected to Port: Not applicable Description: Plug Top power supply Brand Name: Seung Jin Electronics Co Model Name or Number: SJ-1205D Serial Number: WD009 FCC ID Number: None stated by client Cable Length And Type: 1.5m Twin Connected to Port: DC Input Port to Test Jig RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No: RFI/EMCB2/RP39403B EMC DepartmentPage 7 of 46 Issue Date: 2 September 1999 Test Of:Wood & Douglas Ltd ST500 Transmitter To:FCC Part 90:1998 3. Test Specification, Methods And Procedures 3.1. Test Specification Reference: FCC Part 90: 1998 Title: Code of Federal Regulations, Part 90 (47CFR90) Private Land Mobile Radio Services Comments: A description of the test facility used for this test is on file with, and has been accepted by, the Federal Communications Commission as required by Section 2.948 of Federal Rules. Purpose of Test: To determine whether the equipment complied with the requirements of the specification for the purposes of certif…

Text truncated - open the document above for the full version.

Modulation Characteristics of the 340 Telemetry Transmitter Modulation for the ST500 transmitter module in the 340 telemetry transmitter is a composite or sum of four separate signal sources. These sources are: 1) low frequency tones at 10, 20, 40, and 80 HZ , 2) demodulated ultrasound at 200 to 500 HZ, 3) a FM subcarrier at 1.75 KHZ, and 4) a FM subcarrier at 2.7 KHZ. The output stage, as well as serving as the summing amplifier for these signals, also incorporates a 1 st order lowpass function at 3.4 KHZ. A bode plot of the output stage is shown in FIG 1. FIG 1. Bode plot of modulation output stage. Prior to combining the four signals in the modulation output stage, each source is passed through separate lowpass or bandpass filters. FIG 2 shows the lowpass function for the low frequency tones, FIG 3 is the bandpass plot for the ultrasound signal, FIG 4 is the 1.75 KHZ subcarrier filter, and FIG 5 is the 2.7 KHZ subcarrier filter. All plots are shown at the output of the composite modulation stage. FIG 2. Bode plot of tone lowpass filter. FIG 3. Bode plot of ultrasound bandpass filter. FIG 4. Bode plot of 1.75 KHZ subcarrier bandpass filter. FIG 5. Bode plot of 2.7 KHZ subcarrier bandpass filter Modulation limiting is achieved in this design through the use of pre-limited or saturated drive signals. The input sources for the four filters detailed above are derived either from CMOS logic devices, or from amplifiers which operate normally in saturation. In both these cases, the output levels from these devices are constant and equal to their supply rails. No fault condition generated by improper use of the input accessories associated with this device can effect this. The filtered pre-limited signals are combined at a fixed ratio in the modulation output stage to produce the composite modulation source for the ST500 module. FIG 6 shows a .5 second “snapshot” of the composite modulation. FIG 6. Composite modulation FIG 7 shows a spectra…
