OVFE1000-255Dual band CDMA Cellular Phone with Bluetooth

Phone User Guide1 E1000 Generic User Guide 82-G1877-1EN, Rev. X5E1000OVFE1000-255 2 E1000 Generic User Guide This manual is based on the production version of the Kyocera E1000 phone. Software changes may have occurred after this printing. Kyocera reserves the right to make changes in technical and product specifications without prior notice. The products and equipment described in this documentation are manufactured under license from QUALCOMM Incorporated under one or more of the following U.S. patents: 4,901,307 5,109,390 5,267,262 5,416,797 5,506,865 5,544,196 5,657,420 5,101,501 5,267,261 5,414,796 5,504,773 5,535,239 5,600,754 5,778,338 5,228,054 5,337,338 5,710,784 5,056,109 5,568,483 5,659,569 5,490,165 5,511,073 The Kyocera Wireless Corp. (“KWC”) products described in this manual may include copyrighted KWC and third party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for KWC and third party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the KWC products may not be modified, reverse engineered, distributed or reproduced in any manner not permitted by law. Furthermore, the purchase of the KWC products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of KWC or any third party software provider, except for the normal, non-exclusive royalty-free license to use that arises by operation of law in the sale of a product. Kyocera is a registered trademark of Kyocera Corporation. Brick Attack and Race 21 are trademarks of Kyocera Wireless Corp. QUALCOMM is a registered trademark of QUALCOMM Incorporated. Openwave is a trademark of Openwave Systems Incorporated. eZiText is a registered trademark of Zi Corporation. TransFlash is a trademark of SanDisk Corporation. Bluetooth trademarks are owned by Bluetooth SIG, Inc. and used by Kyocera Wireless Corp. under license. All other trademarks are the property of their respective owners. Copyright © 2007 Kyocera Wireless Corp. All rights reserved. Ringer Tones Copyright © 2000-2002 Kyocera Wireless Corp. Bluetooth® Certification For information about E1000 Bluetooth Certification visit the Bluetooth Qualification Program Web site at qualweb.bluetooth.org. 82-G1877-1EN, Rev. X5 FCC/IC Notice This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. To maintain compliance with FCC RF exposure guidelines, if you wear a handset on your body, use the Kyocera Wireless Corp. (KWC) supplied and approved case CV90-L8060- 01, CV90-L8061-01, holster CV90-R2090-01, and universal pouch CV90-61344-03. Other accessories used with this device for body- worn operations must not contain any metallic components and must provide at least 15 mm separation distance including the antenna and the user’s body. THIS MODEL PHONE MEETS THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES . Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio Phone User Guide3 frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg.* Tests for SAR are conducted using standard operating positions specified by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government-adopted requirement for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) as required by the FCC for each model. Body-worn measurements differ among phone models, depending upon availability of accessories and FCC requirements. While there may be differences between the SAR levels of various phones and at various positions, they all meet the government requirement for safe exposure. The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF emission guidelines. SAR information on this model phone is on file with the FCC and can be found under the Display Grant section www.fcc.gov/oet/ fccid after searching on the FCC ID: OVFE1000- 255. Additional information on SAR can be found on the Cellular Telecommunications and Internet Association (CTIA) web-site at www.wow- com.com . * In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additi…

Text truncated - open the document above for the full version.

FCC ID: OVFE1000-255 May 11, 2007 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Request of Confidentiality for FCC ID: OVFE1000-255 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), Kyocera Wireless Corp (KWC) hereby requests confidential and treatment of information accompanying this Application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also requesting Short-Term Confidentiality as outlined in Public Notice DA 04-1705. This provision will give KWC Temporary Confidentiality of commercially sensitive information prior to product launch. The requested Confidential and Temporary Confidential exhibits are listed in table 1 below: Table 1. Confidential and Short-Term Confidential Exhibit Description 1 Block Diagram 2 Technical Description Confidential 3 Schematics 5 Instruction Manual 7 External Photos 8 Internal Photos Short-Term Confidential 9B Bluetooth Part15C Photos The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Sincerely, N.T Ngoc-Thi Nguyen Regulatory Engineer Kyocera Wireless Corp. Kyocera Wireless Corp. Page 1 of 1

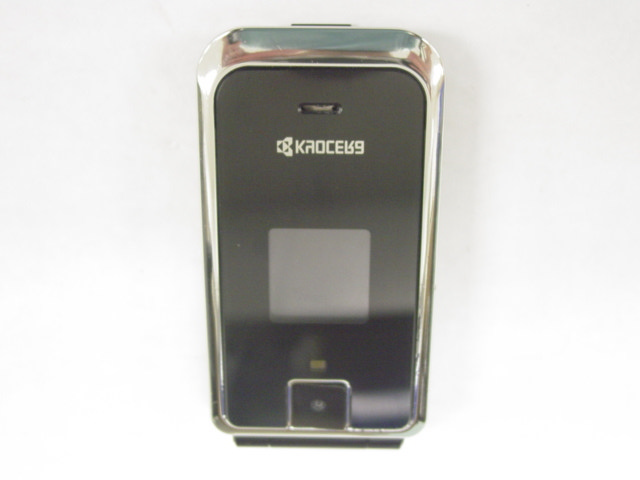

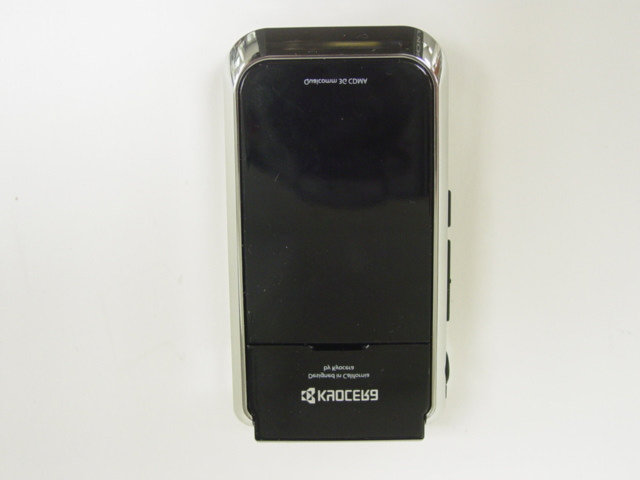

FCC ID: OVFE1000-255 External Photos Page 1 of 2 Model: E1000 Exhibit 7: OVFKE1000-255 External Photos FCC ID: OVFE1000-255 External Photos Page 2 of 2 Model: E1000

FCC ID: OVFE1000-255 Label Information Page 1 of 2 Model: E1000 Exhibit 6: OVFE1000-255 ID Label Format Location FCC Label FCC ID: OVFE1000-255 Label Information Page 2 of 2 Model: E1000 FCC declaration statement Kyocera Wireless Corp. complies with FCC rules Part 2.925(d) that the label shall be permanently affixed to the equipment and shall be readily visible to the purchaser at the time of purchase: 1) This cellular phone has limited label space on the exterior of the unit. The FCC ID label is placed in the battery compartment. 2) The batteries for these devices are designed for easy removal and that the labels will be visible whenever the batteries are removed for charging or replacement. The phone will be market without the battery installed.

FCC ID: OVFE1000-255 Exhibit 8: OVFE1000-255 Internal Photos Bluetooth Antenna Internal Photos Page 1 of 4 Model: E1000 FCC ID: OVFE1000-255 Internal Photos Page 2 of 4 Model: E1000 FCC ID: OVFE1000-255 Internal Photos Page 3 of 4 Model: E1000 FCC ID: OVFE1000-255 Internal Photos Page 4 of 4 Model: E1000

FCC ID: OVFE1000-255 Test Report on Dual-Band CDMA Cellular Phone with Bluetooth Certification FCC Part 15.247 IC RSS-210 FCC ID: OVFE1000-255 Models: E1000 STATEMENT OF CERTIFICATION The data, data evaluation and equipment configuration represented herein are a true and accurate representation of the measurements of the sample’s radio frequency interference emissions characteristics as of the dates and at the times of the test under the conditions herein specified. STATEMENT OF COMPLIANCE This product has been shown to be capable of compliance with the applicable technical standards as indicted in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63.4-2001. Date of Test: April 30, 2007 – May4, 2007 Test performed by: Kyocera Wireless Corp. 10300 Campus Point Drive San Diego, CA – 92121 Report Prepared by: Ngoc-Thi Nguyen, Regulatory Engineer Report Reviewed by: C. K. Li, Principal Hardware Engineer Compliance Certification Service performed the tests that required an OATS site. Kyocera Wireless Corp. Page 1 of 20 Model: E1000 FCC ID: OVFE1000-255 TABLE OF CONTENTS 1 General Information.............................................................................................................................3 2 Description of Bluetooth Transmitter...................................................................................................4 3 Carrier Frequency Separation.............................................................................................................5 4 Number of Hopping Frequencies.........................................................................................................6 5 Time of Occupancy (Dwell Time).........................................................................................................7 6 20 dB Bandwidth..................................................................................................................................9 7 Peak Output Power............................................................................................................................11 8 Band-edge Compliance of Conducted Emissions.............................................................................13 9 Spurious RF Conducted Emissions................................................................................................... 16 10 AC Power Line Conducted Emissions...............................................................................................20 11 Spurious Radiated Emissions............................................................................................................20 12 Test Equipment..................................................................................................................................20 Kyocera Wireless Corp. Page 2 of 20 Model: E1000 FCC ID: OVFE1000-255 1 General Information Applicant: Kyocera Wireless Corp 10300 Campus Point Drive San Diego CA 92121 FCC ID: OVFE1000-255 Product: Dual-Band CDMA Cellular Phone with Bluetooth Model Numbers: E1000 EUT Serial Number: FFE10000001529 Type: [ ] Prototype, [X] Pre-Production, [ ] Production Equipment Category: Short Range Device TX Frequency (MHz): 2402 to 2480 Channel Number: 79 Channel Spacing (MHz): 1 Modulation: Frequency Hopping Spread Spectrum (FHSS) Max. Output Power (dBm) 1.74 dBm Antenna: Internal FCC Rule Parts: §15.247 Kyocera Wireless Corp. Page 3 of 20 Model: E1000 FCC ID: OVFE1000-255 2 Description of Bluetooth Transmitter The OVFE1000-255 phones offer Bluetooth as a feature. The Bluetooth transmitter uses Frequency Hopping Spread Spectrum (FHSS) technique and operates in the 2400 – 2483 MHz band. The transmitter is a Class 2 Bluetooth device and designed to communicate with other Bluetooth devices as per the industrial standard. Kyocera Wireless Corp. Page 4 of 20 Model: E1000 FCC ID: OVFE1000-255 3 Carrier Frequency Separation FCC: § 15.247 a1 IC: RSS-210 §A8.1(2) Measurement Procedure: The Bluetooth RF output port of the EUT was directly connected to the input of the spectrum analyzer with sufficient attenuation. Subsequently, the Bluetooth transmitter was set in hopping mode to investigate the carrier frequency separation between mid- channel and its adjacent channels. A fully charged battery was used as supply voltage. Frequencies of Interest: Spectrum was investigated from 2400 MHz – 2483.5 MHz. Figure 3. Carrier Frequency Separation between channels 38, 39 (mid-channel) & 40. Results and Limits: Limits Channel Results Comments ≥ 25 kHz or 20 dB BW Hopping 990KHz Carrier frequency separation between channels 38 and 39. Kyocera Wireless Corp. Page 5 of 20 Model: E1000 FCC ID: OVFE1000-255 4 Number of Hopping Frequencies FCC: § 15.247 a1 iii IC: RSS-210 §A8.1 (4) Measurement Procedure: The Bluetooth RF output port of the EUT was directly connected to the input of the spectrum analyzer with sufficient attenuation. Subsequently, the Bluetooth transmitter was set in hopping mode to investigate the number of hopping frequencies. A fully charged battery was used as supply voltage. Frequencies of Interest: Spectrum was investigated from 2400 MHz – 2483.5 MHz. List of Figures: Figure Channel Plot Description 4a Number of Hopping Frequencies (Channels 0-39) 4b Hopping Number of Hopping Frequencies (Channels 39-78) Figure 4a. Number of Hopping Frequencies (Channels 0-39) Kyocera Wireless Corp. Page 6 of 20 Model: E1000 FCC ID: OVFE1000-255 Figure 4b. Number of Hopping Frequencies (Channels 39-78) Results and Limits: Limits Channel Results Comments At least 15 non- overlapping channels Hopping 79 (Channels 0-78) Complies 5 Time of Occupancy (Dwell Time) Kyocera Wireless Corp. Page 7 of 20 Model: E1000 FCC ID: OVFE1000-255 FCC: § 15.247 a1 ii, § 15.247 f IC: RSS-210 §A8.1 (4) Measurement Procedure: The Bluetooth RF output port of the EUT was directly connected to the input of the spectrum analyzer with sufficient attenuation. Subsequently, the Bluetoot…

Text truncated - open the document above for the full version.

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR DUAL BAND 1xRTT CDMA PHONE WITH BLUETOOTH MODEL NUMBER: E1000 FCC ID: OVF E1000-255 REPORT NUMBER: 07U11009-1 ISSUE DATE: MAY 08, 2007 Prepared for KYOCERA WIRELESS CORP. 10300 CAMPUS POINT DRIVE SAN DIEGO, CA 92121 U.S.A. Prepared by COMPLIANCE CERTIFICATION SERVICES 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 07U11009-1 DATE: MAY 08, 2007 EUT: DUAL BAND 1xRTT CDMA PHONE WITH BLUETOOTH FCC ID: OVF E1000-255 Page 2 of 42 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By -- 05/08/07 Initial Issue T. Chan REPORT NO: 07U11009-1 DATE: MAY 08, 2007 EUT: DUAL BAND 1xRTT CDMA PHONE WITH BLUETOOTH FCC ID: OVF E1000-255 Page 3 of 42 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS............................................................................................. 4 2. TEST METHODOLOGY .................................................................................................................. 5 3. FACILITIES AND ACCREDITATION .......................................................................................... 5 4. CALIBRATION AND UNCERTAINTY.......................................................................................... 5 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 5 4.2. MEASUREMENT UNCERTAINTY ............................................................................................... 5 5. EQUIPMENT UNDER TEST............................................................................................................6 5.1. DESCRIPTION OF EUT ..............................................................................................................6 5.2. DESCRIPTION OF AVAILABLE ANTENNAS ............................................................................. 6 5.3. SOFTWARE AND FIRMWARE .................................................................................................... 6 5.4. WORST-CASE CONFIGURATION AND MODE......................................................................... 6 5.5. DESCRIPTION OF TEST SETUP ................................................................................................ 7 6. TEST AND MEASUREMENT EQUIPMENT ................................................................................ 9 7. LIMITS AND RESULTS ................................................................................................................. 10 7.1. RADIATED EMISSIONS.............................................................................................................10 7.1.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS ................................................. 10 7.1.2. TRANSMITTER RADIATED EMISSIONS ABOVE 1 GHZ .......................................... 12 7.1.3. WORST-CASE RADIATED EMISSIONS BELOW 1 GHz ............................................. 21 7.2. POWERLINE CONDUCTED EMISSIONS ................................................................................ 29 8. SETUP PHOTOS .............................................................................................................................. 33 REPORT NO: 07U11009-1 DATE: MAY 08, 2007 EUT: DUAL BAND 1xRTT CDMA PHONE WITH BLUETOOTH FCC ID: OVF E1000-255 Page 4 of 42 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: KYOCERA WIRELESS CORP. 10300 CAMPUS POINT DRIVE SAN DIEGO, CA 92121 U.S.A. EUT DESCRIPTION: DUAL BAND 1xRTT CDMA PHONE WITH BLUETOOTH MODEL: E1000 SERIAL NUMBER: FFE10000001274 DATE TESTED: APRIL 24 – MAY 4, 2007 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. No part of this report may be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any government agency. Approved & Released For CCS By: Tested By: THU CHAN FRANK IBRAHIM EMC SUPERVISOR EMC ENGINEER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 07U11009-1 DATE: MAY 08, 2007 EUT: DUAL BAND 1xRTT CDMA PHONE WITH BLUETOOTH FCC ID: OVF E1000-255 Page 5 of 42 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4-2003, FCC CFR 47 Part 2 and FCC CFR 47 Part 15. 3. FACILITIES AND ACCREDITATION The test sites and measurement facilities use…

Text truncated - open the document above for the full version.

REPORT NO: 07U11009-1 DATE: MAY 08, 2007 EUT: DUAL BAND 1xRTT CDMA PHONE WITH BLUETOOTH FCC ID: OVF E1000-255 Page 33 of 42 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8. SETUP PHOTOS RADIATED RF MEASUREMENT SETUP FOR PORTABLE CONFIGURATION X-AXIS FRONT PHOTO REPORT NO: 07U11009-1 DATE: MAY 08, 2007 EUT: DUAL BAND 1xRTT CDMA PHONE WITH BLUETOOTH FCC ID: OVF E1000-255 Page 34 of 42 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. X-AXIS BACK PHOTO REPORT NO: 07U11009-1 DATE: MAY 08, 2007 EUT: DUAL BAND 1xRTT CDMA PHONE WITH BLUETOOTH FCC ID: OVF E1000-255 Page 35 of 42 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Y-AXIS FRONT PHOTO REPORT NO: 07U11009-1 DATE: MAY 08, 2007 EUT: DUAL BAND 1xRTT CDMA PHONE WITH BLUETOOTH FCC ID: OVF E1000-255 Page 36 of 42 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Y-AXIS BACK PHOTO REPORT NO: 07U11009-1 DATE: MAY 08, 2007 EUT: DUAL BAND 1xRTT CDMA PHONE WITH BLUETOOTH FCC ID: OVF E1000-255 Page 37 of 42 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Z-AXIS FRONT PHOTO REPORT NO: 07U11009-1 DATE: MAY 08, 2007 EUT: DUAL BAND 1xRTT CDMA PHONE WITH BLUETOOTH FCC ID: OVF E1000-255 Page 38 of 42 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Z-AXIS BACK PHOTO REPORT NO: 07U11009-1 DATE: MAY 08, 2007 EUT: DUAL BAND 1xRTT CDMA PHONE WITH BLUETOOTH FCC ID: OVF E1000-255 Page 39 of 42 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Z-AXIS FRONT PHOTO (WITH CHARGER AND HEADPHONES) REPORT NO: 07U11009-1 DATE: MAY 08, 2007 EUT: DUAL BAND 1xRTT CDMA PHONE WITH BLUETOOTH FCC ID: OVF E1000-255 Page 40 of 42 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Z-AXIS BACK PHOTO (WITH CHARGER AND HEADPHONES) REPORT NO: 07U11009-1 DATE: MAY 08, 2007 EUT: DUAL BAND 1xRTT CDMA PHONE WITH BLUETOOTH FCC ID: OVF E1000-255 Page 41 of 42 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP LINE CONDUCTED FRONT PHOTO REPORT NO: 07U11009-1 DATE: MAY 08, 2007 EUT: DUAL BAND 1xRTT CDMA PHONE WITH BLUETOOTH FCC ID: OVF E1000-255 Page 42 of 42 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. END OF REPORT LINE CONDUCTED BACK PHOTO
