OVFKWC-2235Trimode Mobile Phone

D R A F T D R A F T User’s Guide for the Kyocera 2235 phone This manual is based on the production version of the Kyocera 2235 phone. Software changes may have occurred after this printing. Kyocera reserves the right to make changes in technical and product specifications without prior notice. The products and equipment described in this documentation are manufactured under license from QUALCOMM Incorporated under one or more of the following U.S. patents:4,901,307 5,056,109 5,099,204 5,101,501 5,103,4595,107,225 5,109,390 5,193,094 5,228,054 5,257,2835,265,119 5,267,261 5,267,262 5,280,472 5,283,5365,289,527 5,307,405 5,309,474 5,337,338 5,339,0465,341,456 5,383,219 5,392,287 5,396,516 D356,5605,408,697 5,414,728 5,414,796 5,416,797 5,426,3925,437,055 D361,065 5,442,322 5,442,627 5,452,4735,461,639 5,469,115 5,469,471 5,471,497 5,475,8705,479,475 5,483,696 5,485,486 5,487,175 5,490,1655,497,395 5,499,280 5,504,773 5,506,865 5,509,0155,509,035 5,511,067 5,511,073 5,513,176 5,515,1775,517,323 5,519,761 5,528,593 5,530,928 5,533,0115,535,239 5,539,531 5,544,196 5,544,223 5,546,4595,548,812 5,559,881 5,559,865 5,561,618 5,564,0835,566,000 5,566,206 5,566,357 5,568,483 5,574,7735,574,987 D375,740 5,576,662 5,577,022 5,577,265D375,937 5,588,043 D376,804 5,589,756 5,590,0695,590,406 5,590,408 5,592,548 5,594,718 5,596,5705,600,754 5,602,834 5,602,833 5,603,096 5,604,4595,604,730 5,608,722 5,614,806 5,617,060 5,621,7525,621,784 5,621,853 5,625,876 5,627,857 5,629,9555,629,975 5,638,412 5,640,414 5,642,398 5,644,5915,644,596 5,646,991 5,652,814 5,654,979 5,655,2205,657,420 5,659,569 5,663,807 5,666,122 5,673,2595,675,581 5,675,644 5,680,395 5,687,229 D386,1865,689,557 5,691,974 5,692,006 5,696,468 5,697,0555,703,902 5,704,001 5,708,448 5,710,521 5,710,7585,710,768 5,710,784 5,715,236 5,715,526 5,722,0445,722,053 5,722,061 5,722,063 5,724,385 5,727,1235,729,540 5,732,134 5,732,341 5,734,716 5,737,6875,737,708 5,742,734 D393,856 5,748,104 5,751,7255,751,761 5,751,901 5,754,533 5,754,542 5,754,733 5,757,767 5,757,858 5,758,266 5,761,204 5,764,6875,774,496 5,777,990 5,778,024 5,778,338 5,781,5435,781,856 5,781,867 5,784,406 5,784,532 5,790,5895,790,632 5,793,338 D397,110 5,799,005 5,799,2545,802,105 5,805,648 5,805,843 5,812,036 5,812,0945,812,097 5,812,538 5,812,607 5,812,651 5,812,9385,818,871 5,822,318 5,825,253 5,828,348 5,828,6615,835,065 5,835,847 5,839,052 5,841,806 5,842,1245,844,784 5,844,885 5,844,899 5,844,985 5,848,0635,848,099 5,850,612 5,852,421 5,854,565 5,854,7865,857,147 5,859,612 5,859,838 5,859,840 5,861,8445,862,471 5,862,474 5,864,760 5,864,763 5,867,5275,867,763 5,870,427 5,870,431 5,870,674 5,872,4815,872,774 5,872,775 5,872,823 5,877,942 5,878,0365,870,631 5,881,053 5,881,368 5,884,157 5,884,1935,884,196 5,892,178 5,892,758 5,892,774 5,892,8165,892,916 5,893,035 D407,701 5,898,920 5,903,5545,903,862 D409,561 5,907,167 5,909,434 5,910,7525,911,128 5,912,882 D410,893 5,914,950 5,915,2355,917,708 5,917,811 5,917,812 5,917,837 5,920,284D411,823 5,923,650 5,923,705 5,926,143 5,926,4705,926,500 5,926,786 5,930,230 5,930,692 Other patents pending.T9 Text Input is covered by U.S. Pat. 5,818,437, U.S. Pat. 5,953,541, U.S. Pat. 6,011,554, Canadian Pat. 1,331,057 and patents pending worldwide.Kyocera is a registered trademark of Kyocera Corporation. QCP is a trademark of Kyocera Wireless Corp. Brick Attack is a trademark of Kyocera Wireless Corp. Openwave is a registered trademark of Openwave Systems Incorporated. Verizon Wireless is a trademark of Verizon Communications . T9 is a registered trademark of Tegic Communications, Inc. Other product and brand names may be trademarks or registered trademarks of their respective owners.Copyright © 2001 Kyocera Wireless Corp. All rights reserved. Printed in the United States of America. 80-B6974-1EN, Rev. X4 D R A F T FCC/IC NoticeThis device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. To comply with FCC radiation exposure requirements, use of this device for body-worn operational configurations is limited to accessories tested and approved by Kyocera Wireless Corp. Other accessories used with this device for body-worn operations must not contain any metallic components and must provide at least 22.5 mm separation distance including the antenna and the user’s body.THIS MODEL PHONE MEETS THE GOVERNMENT ’ S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES.Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radiofrequency (RF) energy set by the Federal Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health.The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg.* Tests for SAR are conducted using standard operating positions specified by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. Before a phone model is available …

Text truncated - open the document above for the full version.

Applicant: KWC Corp.FCC ID: OVFKWC-2255 Request of Confidentiality Federal Communications Commission Authorization and Evaluation Division Re:Request of Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: All schematics/block diagrams All parts lists The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Kyocera Wireless Corporation Lin Lu EMC Engineer, staff

Applicant: KWC Corp.FCC ID: OVFKWC-2235 Cover Letter Federal Communications Commission Authorization and Evaluation Division Re:Application for Cellular and PCS Transceiver Type Acceptance Kyocera Wireless Corporation (KWC) herein submits the Application for Equipment Authorization (FCC Form 731) and Exhibits for Type Acceptance of a Cellular & PCS Transceiver, FCC ID: OVFKWC-2235. Applicant:Kyocera Wireless Corporation 10290 Campus Point Drive San Diego, CA 92121-1522 Manufacture:Kyocera Wireless Corporation 10300 Campus Point Drive San Diego, California 92121 The equipment, KWC model # 2235, is for mobile station cellular and PCS system use. The KWC- 2235 is in full compliance with all parts of EIA/TIA/IS-98-B&D Mobile Station-Land Station Compatibility Specification, issue July 2000 and March 2001, and also in full compliance with all parts of ANSI J-STD-018, Recommended Minimum Performance Requirements for 1.8 to 2 GHz Code Division Multiple Access (CDMA) Personal Stations, issue July 1996. Information concerning how the ESN protection requirements are met is provided in Exhibit 3. Kyocera Wireless Corporation Lin Lu EMC Engineer, staff

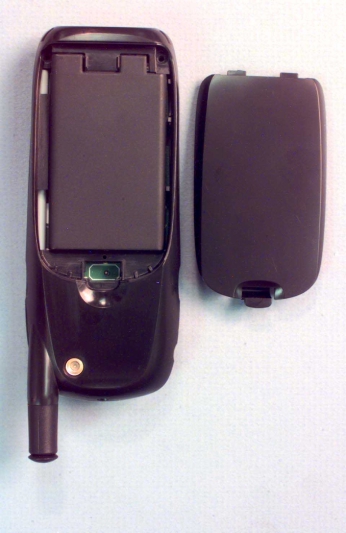

Applicant: KWC Corp.FCC ID: OVFKWC-2235 Exhibit 20 External Photographs Front Applicant: KWC Corp.FCC ID: OVFKWC-2235 Back (a) Applicant: KWC Corp.FCC ID: OVFKWC-2235 (b) Applicant: KWC Corp.FCC ID: OVFKWC-2235 (c) Applicant: KWC Corp.FCC ID: OVFKWC-2235 Side (a) Applicant: KWC Corp.FCC ID: OVFKWC-2235 (b)

Applicant: KWC Corp.FCC ID: OVFKWC-2235 Exhibit 19 FCC Identification Label Information FCC ID: KWCQCP-2235 Photo of the ID: Applicant: KWC Corp.FCC ID: OVFKWC-2235 The label will be placed in the battery compartment.

Applicant: KWC Corp.FCC ID: OVFKWC-2235 Exhibit 20 Internal Photographs Front Housing inside Applicant: KWC Corp.FCC ID: OVFKWC-2235 Key Board Front Applicant: KWC Corp.FCC ID: OVFKWC-2235 Key Board Back Applicant: KWC Corp.FCC ID: OVFKWC-2235 Front Housing Assembly Applicant: KWC Corp.FCC ID: OVFKWC-2235 Main Board Front Applicant: KWC Corp.FCC ID: OVFKWC-2235 Main Board Back Applicant: KWC Corp.FCC ID: OVFKWC-2235 Frame Front Applicant: KWC Corp.FCC ID: OVFKWC-2235 Frame Back Applicant: KWC Corp.FCC ID: OVFKWC-2235 Rear Housing Front Applicant: KWC Corp.FCC ID: OVFKWC-2235 Rear Housing Back Applicant: KWC Corp.FCC ID: OVFKWC-2235 Rear Housing Assembly (a) Applicant: KWC Corp.FCC ID: OVFKWC-2235 (b) Applicant: KWC Corp.FCC ID: OVFKWC-2235 (c) Applicant: KWC Corp.FCC ID: OVFKWC-2235 Phone Assembly (a) Applicant: KWC Corp.FCC ID: OVFKWC-2235 (b)

Kyocera Wireless Corp. KWC 2235 SPECIFIC ABSORPTION RATE (SAR) REPORT Company Kyocera Wireless Corp. Document No. KWC-2235 SAR REPORT Issue No:Date September 2001 Equipment KWC-2235 Page Number 2 File Ref: CONTENTS 1INTRODUCTION ......................................................................................................................................................... 3 2SAR TEST FACILITY.................................................................................................................................................. 4 3APPLICABLE REGULATIONS ................................................................................................................................. 4 4SAR TEST RESULTS SUMMARY............................................................................................................................. 4 5TECHNICAL DESCRIPTION .................................................................................................................................... 5 5.1DESCRIPTION OF KWC SAR TEST FACILITY.................................................................................................... 5 6TEST SAMPLE OPERATION .................................................................................................................................. 11 7SAR TEST SYSTEM VALIDATION ........................................................................................................................ 14 8SAR MEASUREMENT PROCEDURE .................................................................................................................... 18 9SAR MEASUREMENT UNCERTAINTY................................................................................................................ 18 10TEST DATA SUMMARY .......................................................................................................................................... 20 11SAR PLOTS ................................................................................................................................................................. 24 12PHOTOS ...................................................................................................................................................................... 25 Company Kyocera Wireless Corp. Document No. KWC-2235 SAR REPORT Issue No:Date September 2001 Equipment KWC-2235 Page Number 3 File Ref: 1INTRODUCTION This test report describes an environmental evaluation measurement of specific absorption rate (SAR) distribution in simulated human head tissues exposed to radio frequency (RF) radiation from a wireless portable device manufactured by Kyocera Wireless Corp. (KWC). These measurements were performed for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). The testing was performed in September 2001 in the KWC SAR Test Facility. The wireless device is described as follows; EUT Type: Trimode, CDMA(PCS), CDMA and Analog (Cellular) Phone Trade Name: Kyocera Wireless Corp. Model: KWC-2235 Tx Frequency : 824.04 – 848.97 and 1851.25 – 1908.75 MHz Max. Output Power: 28.2 dBm ERP Analog (in cellular band) 26.7 dBm ERP Digital (in cellular band) 26.4 dBm EIRP Digital (in PCS band) Modulation: CDMA and Analog Antenna: Retracting whip w/ helix FCC Classification: Non-Broadcast Transmitter Held to Ear Application Type: Certification Serial Number : BWXV012215617 Place of Test: KWC, San Diego, CA, USA Date of Test: September 10-14, 2001 FCC Rule Part: 47 CFR 2.1093; OET Bulletin 65, Sup. C; 47 CFR 22; 47 CFR 24 Company Kyocera Wireless Corp. Document No. KWC-2235 SAR REPORT Issue No:Date September 2001 Equipment KWC-2235 Page Number 4 File Ref: 2SAR TEST FACILITY SAR tests were performed in the KWC SAR Test Facility located at the following address: QCP Inc. Building AA. 10290 Campus Point Drive San Diego CA 92121-1522 3APPLICABLE REGULATIONS The KWC-2235 is designed to comply with the specific absorption rate SAR limits for distances within 20 cm of the transmitting elements of the mobile phone, and with general public uncontrolled environment Maximum Permissible Exposure (MPE) limits at distances greater than 20 cm from the transmitting elements of the device, as required by Sections 1.1307 through 1.1310, 2.1091 and 2.1093 of the 47 C.F.R. (1997). These FCC RF safety limits, which are based on a hybrid combination of the SAR and MPE requirements from ANSI/IEEE C95.1- 1992 and the National Council on Radiation Protection and Measurements (NCRP) report no. 86, are also consistent with the RF safety limits defined in the IRPA Guidelines on Protection Against Non-Ionizing Radiation which are reportedly in the process of being adopted in Europe, as codified in European Pre-Standard ENV 59166-2 approved by CENELEC (1994). This test report pertains specifically to the following limit from the Code of Federal Regulations 47, Part 2 “Limits for General Population/Uncontrolled exposure: 0.08 W/kg as averaged over the whole-body and spatial peak SAR not exceeding 1.6 W/kg as averaged over any 1 gram of tissue (defined as a tissue volume in the shape of a cube). Exceptions are the hands, wrists, feet and ankles where the spatial peak SAR shall not exceed 4 W/kg, as averaged over any 10 grams of tissue (defined as a tissue volume in the shape of a cube).” 4 SAR TEST RESULTS SUMMARY This device has been tested for localised specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1 ~ 1992 and has been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3 ~ 1992 . Normal antenna operating positions were incorporated, with the device transmitting at frequencies consistent with normal usage of the device. The device has been Company Kyocera Wireless Corp. Document No. KWC-2235 SAR REPORT Issue No:Date September 2001 Equipment KWC-2235 Page Number 5 File Ref: shown to be capable of compliance …

Text truncated - open the document above for the full version.

Validation Plots 09-10-01, 900MHz Validation, Target=0.0944mW/g SAR (1g): 0.0902 [mW/g] ± 0.07 dB, SAR (10g): 0.0589 [mW/g] ± 0.07 dB Cubes (2) (Worst-case extrapolation) Generic Twin Phantom; Flat Section Probe: ET3DV5 - SN1353; ConvF(5.70,5.70,5.70) Brain 900 MHz: σ = 0.85 [mho/m] ε r = 42.8 ρ = 1.00 [g/cm 3 ] File Name: Validation in Cellular band 09-10-01.DA3 Operator: DWS Powerdrift: -0.12 dB SAR Tot [mW/g] 9.10E-3 2.73E-2 4.55E-2 6.37E-2 8.19E-2 09-13-2001, 1800MHz Validation, Target=0.399mW/g SAR (1g): 0.386 [mW/g] ± 0.05 dB, SAR (10g): 0.197 [mW/g] ± 0.05 dB Cubes (2) (Worst-case extrapolation) Generic Twin Phantom; Flat Section Probe: ET3DV5 - SN1353; ConvF(5.00,5.00,5.00) Brain 1800 MHz: σ = 1.68 [mho/m] ε r = 41.2 ρ = 1.00 [g/cm 3 ] File Name: FCC ValidationFlat 1800MHz 09-13-2001.DA3 Operator: DWS Powerdrift: -0.18 dB SAR Tot [mW/g] 3.85E-2 1.16E-1 1.93E-1 2.70E-1 3.47E-1 Brain SAR Result Plots K1 P4A #1617, FM ch991, hdet=413, conducted power=26.39dBm SAR (1g): 1.25 [mW/g] ± 0.09 dB, SAR (10g): 0.899 [mW/g] ± 0.11 dB Cubes (2) (Worst-case extrapolation) Generic Twin Phantom; Left Hand Section Probe: ET3DV5 - SN1353; ConvF(5.36,5.36,5.36) Brain 835 MHz: σ = 0.85 [mho/m] ε r = 43.5 ρ = 1.00 [g/cm 3 ] File Name: K1 P4A #1617, FCC Test, FM ch991, 09-10-01.DA3 Operator: DWS Powerdrift: 0.10 dB SAR Tot [mW/g] 1.14E-1 3.43E-1 5.72E-1 8.00E-1 1.03E+0 K1 P4A #1617, FM ch991, hdet=413, conducted power=26.39dBm SAR (1g): 0.964 [mW/g] ± 0.09 dB, SAR (10g): 0.683 [mW/g] ± 0.13 dB Cubes (2) (Worst-case extrapolation) Generic Twin Phantom; Left Hand Section Probe: ET3DV5 - SN1353; ConvF(5.36,5.36,5.36) Brain 835 MHz: σ = 0.85 [mho/m] ε r = 43.5 ρ = 1.00 [g/cm 3 ] File Name: K1 P4A #1617, FCC Test, FM ch991, 09-10-01.DA3 Operator: DWS Powerdrift: 0.02 dB SAR Tot [mW/g] 8.97E-2 2.69E-1 4.49E-1 6.28E-1 8.07E-1 K1 P4A #1617, FM ch383, hdet=409, conducted power=26.35dBm SAR (1g): 1.25 [mW/g] ± 0.00 dB, SAR (10g): 0.847 [mW/g] ± 0.03 dB Cubes (2) (Worst-case extrapolation) Generic Twin Phantom; Left Hand Section Probe: ET3DV5 - SN1353; ConvF(5.36,5.36,5.36) Brain 835 MHz: σ = 0.85 [mho/m] ε r = 43.5 ρ = 1.00 [g/cm 3 ] File Name: K1 P4A #1617, FCC Test, FM ch383, 09-10-01.DA3 Operator: DWS Powerdrift: 0.08 dB SAR Tot [mW/g] 1.11E-1 3.32E-1 5.53E-1 7.74E-1 9.95E-1 K1 P4A #1617, FM ch383, hdet=409, conducted power=26.35dBm SAR (1g): 1.14 [mW/g] ± 0.06 dB, SAR (10g): 0.777 [mW/g] ± 0.08 dB Cubes (2) (Worst-case extrapolation) Generic Twin Phantom; Left Hand Section Probe: ET3DV5 - SN1353; ConvF(5.36,5.36,5.36) Brain 835 MHz: σ = 0.85 [mho/m] ε r = 43.5 ρ = 1.00 [g/cm 3 ] File Name: K1 P4A #1617, FCC Test, FM ch383, 09-10-01.DA3 Operator: DWS Powerdrift: 0.07 dB SAR Tot [mW/g] 1.06E-1 3.19E-1 5.31E-1 7.43E-1 9.56E-1 K1 P4A #1617, FM ch799, hdet=419, conducted power=26.35dBm SAR (1g): 1.34 [mW/g] ± 0.02 dB, SAR (10g): 0.912 [mW/g] ± 0.04 dB Cubes (2) (Worst-case extrapolation) Generic Twin Phantom; Left Hand Section Probe: ET3DV5 - SN1353; ConvF(5.36,5.36,5.36) Brain 835 MHz: σ = 0.85 [mho/m] ε r = 43.5 ρ = 1.00 [g/cm 3 ] File Name: K1 P4A #1617, FCC Test, FM ch799, 09-10-01.DA3 Operator: DWS Powerdrift: 0.04 dB SAR Tot [mW/g] 1.21E-1 3.62E-1 6.04E-1 8.46E-1 1.09E+0 K1 P4A #1617, FM ch799, hdet=419, conducted power=26.35dBm SAR (1g): 1.27 [mW/g] ± 0.03 dB, SAR (10g): 0.872 [mW/g] ± 0.11 dB Cubes (2) (Worst-case extrapolation) Generic Twin Phantom; Left Hand Section Probe: ET3DV5 - SN1353; ConvF(5.36,5.36,5.36) Brain 835 MHz: σ = 0.85 [mho/m] ε r = 43.5 ρ = 1.00 [g/cm 3 ] File Name: K1 P4A #1617, FCC Test, FM ch799, 09-10-01.DA3 Operator: DWS Powerdrift: -0.20 dB SAR Tot [mW/g] 1.20E-1 3.60E-1 6.00E-1 8.40E-1 1.08E+0 K1 P4A #1617, CDMA ch777, hdet=404, conducted power=24.91dBm SAR (1g): 1.02 [mW/g] ± 0.09 dB, SAR (10g): 0.687 [mW/g] ± 0.08 dB Cubes (2) (Worst-case extrapolation) Generic Twin Phantom; Left Hand Section Probe: ET3DV5 - SN1353; ConvF(5.36,5.36,5.36) Brain 835 MHz: σ = 0.85 [mho/m] ε r = 43.5 ρ = 1.00 [g/cm 3 ] File Name: K1 P4A #1617, FCC Test, CDMA ch777, 09-10-01.DA3 Operator: DWS Powerdrift: 0.03 dB SAR Tot [mW/g] 9.06E-2 2.72E-1 4.53E-1 6.34E-1 8.15E-1 K1 P4A #1617, CDMA ch777, hdet=404, conducted power=24.91dBm SAR (1g): 0.984 [mW/g] ± 0.06 dB, SAR (10g): 0.676 [mW/g] ± 0.10 dB Cubes (2) (Worst-case extrapolation) Generic Twin Phantom; Left Hand Section Probe: ET3DV5 - SN1353; ConvF(5.36,5.36,5.36) Brain 835 MHz: σ = 0.85 [mho/m] ε r = 43.5 ρ = 1.00 [g/cm 3 ] File Name: K1 P4A #1617, FCC Test, CDMA ch777, 09-10-01.DA3 Operator: DWS Powerdrift: 0.12 dB SAR Tot [mW/g] 9.24E-2 2.77E-1 4.62E-1 6.47E-1 8.32E-1 K1 P4A #1617, FM ch25, hdet=40, conducted power=23.16dBm SAR (1g): 1.26 [mW/g] ± 0.06 dB, SAR (10g): 0.640 [mW/g] ± 0.06 dB Cubes (2) (Worst-case extrapolation) Generic Twin Phantom; Left Hand Section Probe: ET3DV5 - SN1353; ConvF(5.00,5.00,5.00) Brain 1800 MHz: σ = 1.68 [mho/m] ε r = 41.2 ρ = 1.00 [g/cm 3 ] File Name: K1 P4A #1617, FCC Test, PCS ch25, 09-13-01.DA3 Operator: DWS Powerdrift: 0.00 dB SAR Tot [mW/g] 1.11E-1 3.34E-1 5.56E-1 7.78E-1 1.00E+0 K1 P4A #1617, FM ch25, hdet=40, conducted power=23.16dBm SAR (1g): 1.40 [mW/g] ± 0.17 dB, SAR (10g): 0.719 [mW/g] ± 0.17 dB Cubes (2) (Worst-case extrapolation) Generic Twin Phantom; Left Hand Section Probe: ET3DV5 - SN1353; ConvF(5.00,5.00,5.00) Brain 1800 MHz: σ = 1.68 [mho/m] ε r = 41.2 ρ = 1.00 [g/cm 3 ] File Name: K1 P4A #1617, FCC Test, PCS ch25, 09-13-01.DA3 Operator: DWS Powerdrift: 0.22 dB SAR Tot [mW/g] 1.20E-1 3.61E-1 6.02E-1 8.42E-1 1.08E+0 K1 P4A #1617, FM ch600, hdet=39, conducted power=23.19dBm SAR (1g): 1.13 [mW/g] ± 0.10 dB, SAR (10g): 0.577 [mW/g] ± 0.09 dB Cubes (2) (Worst-case extrapolation) Generic Twin Phantom; Left Hand Section Probe: ET3DV5 - SN1353; ConvF(5.00,5.00,5.00) Brain 1800 MHz: σ = 1.68 [mho/m] ε r = 41.2 ρ = 1.00 [g/cm 3 ] File Name: K1 P4A #1617, FCC Test, PCS ch600, 09-13-01.DA3 Operator: DWS Powerdrift: 0.01 dB SAR Tot [mW/g] 9.81E-2 2.94E-1 4.90E-1 6.87E-1 8.83E-1 K1 P4A #1617, FM ch600, hdet=39,…

Text truncated - open the document above for the full version.

Applicant: KWC Corp.FCC ID: OVFKWC-2235 Cover Letter Federal Communications Commission Authorization and Evaluation Division Re:Application for Cellular and PCS Transceiver Type Acceptance Kyocera Wireless Corporation (KWC) herein submits the Application for Equipment Authorization (FCC Form 731) and Exhibits for Type Acceptance of a Cellular & PCS Transceiver, FCC ID: OVFKWC-2235. Applicant:Kyocera Wireless Corporation 10290 Campus Point Drive San Diego, CA 92121-1522 Manufacture:Kyocera Wireless Corporation 10300 Campus Point Drive San Diego, California 92121 The equipment, KWC model # 2235, is for mobile station cellular and PCS system use. The KWC- 2235 is in full compliance with all parts of EIA/TIA/IS-98-B&D Mobile Station-Land Station Compatibility Specification, issue July 2000 and March 2001, and also in full compliance with all parts of ANSI J-STD-018, Recommended Minimum Performance Requirements for 1.8 to 2 GHz Code Division Multiple Access (CDMA) Personal Stations, issue July 1996. Information concerning how the ESN protection requirements are met is provided in Exhibit 3. Kyocera Wireless Corporation Lin Lu EMC Engineer, staff Applicant: KWC Corp.FCC ID: OVFKWC-2235 Request of Confidentiality Federal Communications Commission Authorization and Evaluation Division Re:Request of Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: All schematics/block diagrams All parts lists The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Kyocera Wireless Corporation Lin Lu EMC Engineer, staff Applicant: KWC Corp.FCC ID: OVFKWC-2235 List of Exhibits ExhibitDescriptionFCC Reference 1Certification of Test Data2.911 2General Information2.1033(c), 2.1061, 3ESN Protection22.919 4RF Output Power Measured Data - Cellular2.1046 5RF Output Power Measured Data - PCS2.1046, 24.232 6Modulation Audio Response Measured Data2.1047(a) 7Modulation Limiting Measured Data2.1047(b), 22.917 8Occupied Bandwidth and Spurious Emission Measured Data - Cellular 2.1049, 22.917 9Occupied Bandwidth and Spurious Emission Measured Data - PCS2.1049, 24.238 10Conducted Harmonics Emissions Measured Data - Cellular2.1051, 22.917, 22.901(d) 11Conducted Harmonics Emissions Measured Data - PCS2.1051, 24.238 12Radiated Spurious and Harmonics Emissions Measured Data2.1053 13Frequency Stability vs. Temperature and Voltage Measured Data - Cellular 2.1055 14Frequency Stability vs. Temperature and Voltage Measured Data - PCS 2.1055, 24.235 15Measurement Procedures and Techniques 16FCC Letter of Site Recognition 17List of Semiconductor Devices2.1033(c) 18Circuit Diagram2.1033(c) 19Identification (Labels) Information2.1033(c) 20Photographs2.1033(c) 21User’s Manual2.1033(c) 22SAR data2.1093 23FCC Compliance Emergency 91122.921 24Occupied Bandwidth and Spurious Emission Measured Data - CDMA mode when operating in a P-REV 6 or above 2.1049, 22.917, 24.238, IS98D Applicant: KWC Corp.FCC ID: OVFKWC-2235 Exhibit 1 Certification of Test Data The data, data evaluation and equipment configuration represented herein are a true and accurate representation of the measurements of the sample’s radio frequency interference emissions characteristics as of the dates and at the times of the test under the conditions herein specified. This applies to all tests that where performed that did not require an Open Area Test Site (OATS). Tests that required an OATS site were performed by TUV Product Services. Equipment Tested: 2235 Dates of Test:September 10 – September 18 2001 Test Performed by: EMC Engineer, Staff: Lin Lu Applicant: KWC Corp.FCC ID: OVFKWC-2235 Exhibit 2 General Information 1.Production Plans Quantity Production Planned 2.Technical Description - Section 2.1033 (c) (1) The full name and mailing address of the manufacturer of the device and the applicant Applicant:Kyocera Wireless Corporation 10290 Campus Point Drive San Diego, CA 92121 Manufacture:Kyocera Wireless Corporation 10300 Campus Point Drive San Diego, CA92121 (2) FCC Identifier FCC ID: OVFKWC-2235 (3) User’s Manual See exhibit 21 (4) Types of Emission 40K0F8W 40K0F1D 1M25F9W F3E voice F3D supervisory audio tones, signaling tones F1D wideband data signal (5)Frequency range The frequency range of the equipment in Domestic Public Cellular Radio Telecommunications Service bands, 824 - 849 MHz and 869 - 894 MHz for FM and cellular CDMA. The channel spacing is 30 kHz for FM. The frequency range of the equipment in the Personal Communications Services (PCS) bands, 1850 – 1910 MHz and 1930 – 1990 MHz. The channel spacing is 1.25 MHz for CDMA. (6)Operating power levels The transmitter output power is independent of whether the equipment operates in the cellular system FM or CDMA mode, or PCS system CDMA mode. The equipment Applicant: KWC Corp.FCC ID: OVFKWC-2235 supports Class 3 Cellular Mobile Station Power Class, and Class 2 PCS Mobile Station Power Class. Its power output capability is reported to the Land Station via Station Class Mark. The equipment will respond to commands from the Land Station to change power levels as defined in the EIA/TIA/IS-98 and ANSI J-STD-018 Specification. (7)Maximum output power The equipment supports the maximum output power for Class 3 Cellular Mobile Station which is -2 dBW ERP for a FM mode and in the range of -7 dBW to 0 dBW ERP for a CDMA mode, and meets the 7 W ERP (+8.45 dBW) maximum power limitation of Section 22.913. The equipment supports the maximum output power for Class 2 PCS Mobile Station which is in the range of -7dBW to 0 dBW EIRP,…

Text truncated - open the document above for the full version.

Applicant: KWC Corp.FCC ID: OVFKWC-2235 Exhibit 24 Occupied Bandwidth and Spurious Emission Measured Data -- for CDMA mode when operating in P_REV 6 or above KWC-2235 supports additional reverse channels, as per IS-98D, additional measurements have taken to show compliance. Below is the applicable section from IS-98D 4.5 Limitations on Emissions 4.5.1 Conducted Spurious Emissions 4.5.1.1 Definition Conducted spurious emissions are emissions at frequencies that are outside the assigned CDMA Channel, measured at the mobile station antenna connector. This test measures the spurious emissions during continuous transmission. 4.5.1.2 Method of Measurement 1. Connect the base station to the mobile station antenna connector as shown in Figure 6.5.1-4. The AWGN generator and the interference generator are not applicable in this test. Connect a spectrum analyzer (or other suitable test equipment) to the mobile station antenna connector. 2. For each band class and radio configuration that the mobile station supports, configure the base station and mobile station to operate in that band class and perform steps 3 through 17. • Thus Band Class 0 and Band Class 1 for the KWC-2235 3. Set the following parameters of the Access Parameters Message as specified below: ParameterValue (Decimal) NOM_PWR 7 (7 dB) INIT_PWR 15 (15 dB) PWR_STEP 7 (7 dB/step) NUM_STEP 15 (16 probes/sequence) MAX_RSP_SEQ 15 (15 sequences) If the Enhanced Access Channel is used, set the following parameters of the Enhanced Access Parameters Message as specified below (N/A so Table not included below) 4. If the mobile station supports Reverse Traffic Channel Radio Configuration 1 and Forward Traffic Channel Radio Configuration 1, set up a call using Fundamental Channel Test Mode 1 (see 1.3) with 9600 bps data rate only and perform steps 15 through 17. • Test Mode 1 implies an S02 call(Rate Set 1) on RC1/RC2....this is equivalent to what was performed already h-1 through h-4 of Exhibit 8 and a, b, c, and d of Exhibit 9 5. If the mobile station supports the Radio Configuration 3 Reverse Fundamental Channel and demodulation of Radio Configuration 3, 4, or 5, set up a call using Fundamental Channel Test Mode 3 (see 1.3) with 9600 bps data rate only and perform steps 15 through 17. • This is a new addition and will require the usage of QXDM and placing the handset into FTM • Test Mode 3 implies using a Rate Set 1 loopback service option.(S055 is not supported by the KWC-2235 handset) 6. If the mobile station supports the Radio Configuration 3 Reverse Dedicated Control Channel and demodulation…

Text truncated - open the document above for the full version.
