Applicant: KWC Corp. FCC ID: OVFKWC-3225 Request of Confidentiality Federal Communications Commission Authorization and Evaluation Division Re:Request of Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: All schematics/block diagrams All parts lists The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Kyocera Wireless Corporation Lin Lu EMC Engineer, senior staff

Applicant: KWC Corp. FCC ID: OVFKWC-3225 1 Cover Letter Federal Communications Commission Authorization and Evaluation Division Re:Application for Cellular and PCS Transceiver Type Acceptance Kyocera Wireless Corporation (KWC) herein submits the Application for Equipment Authorization (FCC Form 731) and Exh ibits for Type Acceptance of a Cellular & PCS Transceiver, FCC ID: OVFKWC-3225. Applicant:Kyocera Wireless Corporation 10300 Campus Point Drive San Diego, CA 92121-1522 Manufacture:Kyocera Wireless Corporation 10300 Campus Point Drive San Diego, California 92121 The equipment, KWC model # KWC-3225, is for mobile station cell ular and PCS system use. The KWC-3225 is in full compliance with all parts of EIA/TIA/IS-98-B&D Mobile Station-Land Station Compatibility Specification, issue July 2000 and March 2001, and also in full compliance with all parts of ANSI J-STD-018, Recommended Minimum Performance Requirements for 1.8 to 2 GHz Code Division Multiple Access (CDMA) Personal Stations, iss ue July 1996. The KWC-3225 has E911 Phase II GPS capability. Information concerning how the ESN protection requirements are met is provided in Exhibit 3. Kyocera Wireless Corporation Lin Lu EMC Engineer, senior staff

This document was generated in response to a request for additional technical information by Steve Dayhoff in regards to the type approval of the KWC-3225. The information included in the specific topic discussed in the following email received by Lin Lu on November 25, 2002: From: [email protected] Date: Mon, 25 Nov 2002 14:01:14 -0500 (EST) To: [email protected] X-BigFish: cs0(zz655Izzzzz3i)v To: Lin Lu, Kyocera Wireless Corp From: Steve Dayhoff [email protected] FCC Application Processing Branch Re: FCC ID OVFKWC-3225 Applicant: Kyocera Wireless Corp Correspondence Reference Number: 24421 731 Confirmation Number: EA129613 1) User manual pdf pg 3 PCS SAR does not agree with SAR report pdf pg 7. Please revise pages as needed. 1) Revised User’s Guide and SAR report There was a typo in the User’s Guide. The PCS SAR data in the User’s Guide, page 3 has been revised from “PCS mode-head: 1.10 mW/g; Body-worn: 0.279 mW/g with KWC universal belt clip CE90- B1700-01.” To “PCS mode-head: 1.12 mW/g; Body-worn: 0.279 mW/g with KWC universal belt clip CE90- B1700-01.” The related page of new User’s Guide is attached in the following page. There was a typo in the SAR report, page 4. The following table in the page 4 has been revised from Mode/Ch/f(MHz)Conducted Power Device Position Limit (mW/g) Measured (mW/g) Result FM/383/836.4926.00 dBmLeft Tilt1.61.30 PASSED PCS/600/188023.06 dBmLeft Cheek1.61.12 PASSED To Mode/Ch/f(MHz)Conducted Power Device Position Limit (mW/g) Measured (mW/g) Result FM/383/836.4926.00 dBmLeft Tilt1.61.30 PASSED PCS/600/188023.06 dBmRight Cheek1.61.12 PASSED This revised page is attached in the proceeding page. The complete SAR report (revised) is re- submitted with this response via OET site. c``Lf`=kçíáÅÉ qÜáë=ÇÉîáÅÉ=ÅçãéäáÉë=ïáíÜ=é~êí=NR=çÑ=íÜÉ=c``=êìäÉëK=léÉê~íáçå=áë=ëìÄàÉÅí=íç=íÜÉ=ÑçääçïáåÖ=íïç=ÅçåÇáíáçåëW=ENF=qÜáë=ÇÉîáÅÉ=ã~ó=åçí=Å~ìëÉ=Ü~êãÑìä=áåíÉêÑÉêÉåÅÉI=~åÇ=EOF=íÜáë=ÇÉîáÅÉ=ãìëí=~ÅÅÉéí=~åó=áåíÉêÑÉêÉåÅÉ=êÉÅÉáîÉÇI=áåÅäìÇáåÖ=áåíÉêÑÉêÉåÅÉ=íÜ~í=ã~ó=Å~ìëÉ=ìåÇÉëáêÉÇ=çéÉê~íáçåK=qç=ã~áåí~áå=Åçãéäá~åÅÉ=ïáíÜ=c``=oc=ÉñéçëìêÉ=ÖìáÇÉäáåÉëI=áÑ=óçì=ïÉ~ê=~=Ü~åÇëÉí=çå=óçìê=ÄçÇóI=ìëÉ=íÜÉ=hóçÅÉê~=táêÉäÉëë=`çêéK=Eht`F=ëìééäáÉÇ=~åÇ=~ééêçîÉÇ=äÉ~íÜÉê=Å~ëÉ=`^VMJSNMSUJMN=~åÇ=ìåáîÉêë~ä=ÄÉäí=Åäáé=`bVMJ_NTMMJMNFK=líÜÉê=~ÅÅÉëëçêáÉë=ìëÉÇ=ïáíÜ=íÜáë=ÇÉîáÅÉ=Ñçê=ÄçÇóJïçêå=çéÉê~íáçåë=ãìëí=åçí=Åçåí~áå=~åó=ãÉí~ääáÅ=ÅçãéçåÉåíë=~åÇ=ãìëí=éêçîáÇÉ=~í=äÉ~ëí=OOKR=ãã = ëÉé~ê~íáçå=Çáëí~åÅÉ= áåÅäìÇáåÖ=íÜÉ=~åíÉåå~=~åÇ=íÜÉ=ìëÉêÛë=ÄçÇóKqefp=jlabi=melkb=jbbqp=qeb=dlsbokjbkqÛp=obnrfobjbkqp=clo=bumlprob=ql=o^afl=t^sbpKvçìê=ïáêÉäÉëë=éÜçåÉ=áë=~=ê~Çáç=íê~åëãáííÉê=~åÇ=êÉÅÉáîÉêK=fí=áë=ÇÉëáÖåÉÇ=~åÇ=ã~åìÑ~ÅíìêÉÇ=åçí=íç=ÉñÅÉÉÇ=íÜÉ=Éãáëëáçå=äáãáíë=Ñçê=ÉñéçëìêÉ=íç=ê~Çáç=ÑêÉèìÉåÅó=EocF=ÉåÉêÖó=ëÉí=Äó=íÜÉ=cÉÇÉê~ä=`çããìåáÅ~íáçåë=`çããáëëáçå=çÑ=íÜÉ=rKpK=dçîÉêåãÉåíK=qÜÉëÉ=äáãáíë=~êÉ=é~êí=çÑ=ÅçãéêÉÜÉåëáîÉ=ÖìáÇÉäáåÉë=~åÇ=Éëí~ÄäáëÜ=éÉêãáííÉÇ=äÉîÉäë=çÑ=oc=ÉåÉêÖó=Ñçê=íÜÉ=ÖÉåÉê~ä=éçéìä~íáçåK=qÜÉ=ÖìáÇÉäáåÉë=~êÉ=Ä~ëÉÇ=çå=ëí~åÇ~êÇë=íÜ~í=ïÉêÉ=ÇÉîÉäçéÉÇ=Äó=áåÇÉéÉåÇÉåí=ëÅáÉåíáÑáÅ=çêÖ~åáò~íáçåë=íÜêçìÖÜ=éÉêáçÇáÅ=~åÇ=íÜçêçìÖÜ=Éî~äì~íáçå=çÑ=ëÅáÉåíáÑáÅ=ëíìÇáÉëK=qÜÉ=ëí~åÇ~êÇë=áåÅäìÇÉ=~=ëìÄëí~åíá~ä=ë~ÑÉíó=ã~êÖáå=ÇÉëáÖåÉÇ=íç=~ëëìêÉ=íÜÉ=ë~ÑÉíó=çÑ=~ää=éÉêëçåëI=êÉÖ~êÇäÉëë=çÑ=~ÖÉ=~åÇ=ÜÉ~äíÜKqÜÉ=ÉñéçëìêÉ=ëí~åÇ~êÇ=Ñçê=ïáêÉäÉëë=ãçÄáäÉ=éÜçåÉë=Éãéäçóë=~=ìåáí=çÑ=ãÉ~ëìêÉãÉåí=âåçïå=~ë=íÜÉ=péÉÅáÑáÅ=^Äëçêéíáçå=o~íÉI=çê=p^oK=qÜÉ=p^o=äáãáí=ëÉí=Äó=íÜÉ=c``=áë=NKS=tLâÖKG=qÉëíë=Ñçê=p^o=~êÉ=ÅçåÇìÅíÉÇ=ìëáåÖ=ëí~åÇ~êÇ=çéÉê~íáåÖ=éçëáíáçåë=ëéÉÅáÑáÉÇ=Äó=íÜÉ=c``=ïáíÜ=íÜÉ=éÜçåÉ=íê~åëãáííáåÖ=~í=áíë=ÜáÖÜÉëí=ÅÉêíáÑáÉÇ=éçïÉê=äÉîÉä=áå=~ää=íÉëíÉÇ=ÑêÉèìÉåÅó=Ä~åÇëK= ^äíÜçìÖÜ=íÜÉ=p^o=áë=ÇÉíÉêãáåÉÇ=~í=íÜÉ=ÜáÖÜÉëí=ÅÉêíáÑáÉÇ=éçïÉê=äÉîÉäI=íÜÉ=~Åíì~ä=p^o=äÉîÉä=çÑ=íÜÉ=éÜçåÉ=ïÜáäÉ=çéÉê~íáåÖ=Å~å=ÄÉ=ïÉää=ÄÉäçï=íÜÉ=ã~ñáãìã=î~äìÉK=qÜáë=áë=ÄÉÅ~ìëÉ=íÜÉ=éÜçåÉ=áë=ÇÉëáÖåÉÇ=íç=çéÉê~íÉ=~í=ãìäíáéäÉ=éçïÉê=äÉîÉäë=ëç=~ë=íç=ìëÉ=çåäó=íÜÉ=éçïÉê=êÉèìáêÉÇ=íç=êÉ~ÅÜ=íÜÉ=åÉíïçêâK=få=ÖÉåÉê~äI=íÜÉ=ÅäçëÉê=óçì=~êÉ=íç=~=ïáêÉäÉëë=Ä~ëÉ=ëí~íáçå=~åíÉåå~I=íÜÉ=äçïÉê=íÜÉ=éçïÉê=çìíéìíK=_ÉÑçêÉ=~=éÜçåÉ=ãçÇÉä=áë=~î~áä~ÄäÉ=Ñçê=ë~äÉ=íç=íÜÉ=éìÄäáÅI=áí=ãìëí=ÄÉ=íÉëíÉÇ=~åÇ=ÅÉêíáÑáÉÇ=íç=íÜÉ=c``=íÜ~í=áí=ÇçÉë=åçí=ÉñÅÉÉÇ=íÜÉ=äáãáí=Éëí~ÄäáëÜÉÇ=Äó=íÜÉ=ÖçîÉêåãÉåíJ~ÇçéíÉÇ=êÉèìáêÉãÉåí=Ñçê=ë~ÑÉ=ÉñéçëìêÉK=qÜÉ=íÉëíë=~êÉ=éÉêÑçêãÉÇ=áå=éçëáíáçåë=~åÇ=äçÅ~íáçåë=EÉKÖKI=~í=íÜÉ=É~ê=~åÇ=ïçêå=çå=íÜÉ=ÄçÇóF=~ë=êÉèìáêÉÇ=Äó=íÜÉ=c``=Ñçê=É~ÅÜ=ãçÇÉäK=qÜÉ=ÜáÖÜÉëí=p^o=î~äìÉë=Ñçê=íÜáë=ãçÇÉä=éÜçåÉ=~êÉW^jmp=ãçÇÉJÜÉ~ÇW=NKPM=ãtLÖX=_çÇóJïçêåW=MKSQV=ãtLÖ=ïáíÜ=ht`=äÉ~íÜÉê=Å~ëÉ=`^VMJSNMSUJMNKm`p=ãçÇÉJÜÉ~ÇW=NKNO=ãtLÖX=_çÇóJïçêåW=MKOTV=ãtLÖ=ïáíÜ=ht`=ìåáîÉêë~ä=ÄÉäí=Åäáé=`bVMJ_NTMMJMNKE_çÇóJïçêå=ãÉ~ëìêÉãÉåíë=ÇáÑÑÉê=~ãçåÖ=éÜçåÉ=ãçÇÉäëI=ÇÉéÉåÇáåÖ=ìéçå=~î~áä~Äáäáíó=çÑ=~ÅÅÉëëçêáÉë=~åÇ=c``=êÉèìáêÉãÉåíëK=qÜÉ=ÄçÇóJïçêå=p^o=î~äìÉë=éêçîáÇÉÇ=~ÄçîÉ=ïÉêÉ=çÄí~áåÉÇ=Äó=ìëáåÖ=hóçÅÉê~=táêÉäÉëë=`çêéK=Eht`F=ëìééäáÉÇ=~åÇ=~ééêçîÉÇ=äÉ~íÜÉê=Å~ëÉ=`^VMJSNMSUJMN=~åÇ=ìåáîÉêë~ä=ÄÉäí=Åäáé=`bVMJ_NTMMJMNFKtÜáäÉ=íÜÉêÉ=ã~ó=ÄÉ=ÇáÑÑÉêÉåÅÉë=ÄÉíïÉÉå=íÜÉ=p^o=äÉîÉäë=çÑ=î~êáçìë=éÜçåÉë=~åÇ=~í=î~êáçìë=éçëáíáçåëI=íÜÉó=~ää=ãÉÉí=íÜÉ=ÖçîÉêåãÉåí=êÉèìáêÉãÉåí=Ñçê=ë~ÑÉ=ÉñéçëìêÉKqÜÉ=c``=Ü~ë=Öê~åíÉÇ=~å=bèìáéãÉåí=^ìíÜçêáò~íáçå=Ñçê=íÜáë=ãçÇÉä=éÜçåÉ=ïáíÜ=~ää=êÉéçêíÉÇ=p^o=äÉîÉäë=Éî~äì~íÉÇ=~ë=áå=Åçãéäá~åÅÉ=ïáíÜ=íÜÉ=c``=oc=Éãáëëáçå=ÖìáÇÉäáåÉëK=p^o=áåÑçêã~íáçå=çå=íÜáë=ãçÇÉä=éÜçåÉ=áë=çå=ÑáäÉ=ïáíÜ=íÜÉ=c``=~åÇ=Å~å=ÄÉ=ÑçìåÇ=ìåÇÉê=íÜÉ=aáëéä~ó=dê~åí=ëÉÅíáçåÜííéWLLïïïKÑÅÅKÖçîLçÉíLÑÅÅáÇ=~ÑíÉê=ëÉ~êÅÜáåÖ=çå=c``=fa=lscht`JPOORK=^ÇÇáíáçå~ä=áåÑçêã~íáçå=çå=p^o=Å~å=ÄÉ=ÑçìåÇ=çå=íÜÉ=`Éääìä~ê=qÉäÉÅçããìåáÅ~íáçåë=~åÇ=fåíÉêåÉí=^ëëçÅá~íáçå=E`qf^F=ïÉÄJëáíÉ=~í =ÜííéWLLïïïKïçïJÅçãKÅçã K= Company Kyocera Wireless Corp. Document No. KWC-3225 SAR REPORT Issue No:Date Oct. 2002 FCC ID OVFKWC-3225 Page Number 4 File Ref: 2SAR TEST RESULT SUMMARY This device has been tested for localised specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1 ~ 1992 and has been tested in accordance with the measurement procedures specified in IEEE P1528-200X Draft 6.5. Normal antenna operating positions were incorporated, with the device transmitting at frequencies consistent with normal usage of the device.…

Text truncated - open the document above for the full version.

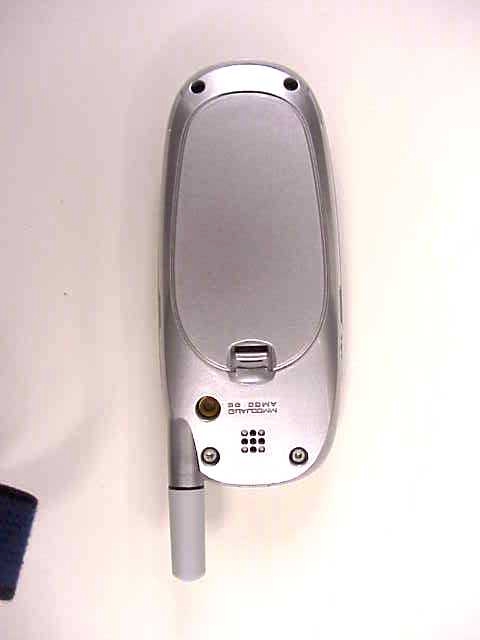

Applicant: KWC Corp.FCC ID: OVFKWC-3225 Exhibit 19 External Photographs Front Applicant: KWC Corp.FCC ID: OVFKWC-3225 Back Applicant: KWC Corp.FCC ID: OVFKWC-3225 Side

Applicant: KWC Corp.FCC ID: OVFKWC-3225 Exhibit 18 FCC Identification Label Information FCC ID: KWCQCP-3225 Photo of the ID: Applicant: KWC Corp.FCC ID: OVFKWC-3225 The label will be placed in the battery compartment. Applicant: KWC Corp.FCC ID: OVFKWC-3225

Applicant: KWC Corp.FCC ID: OVFKWC-3225 Exhibit 19 Internal Photographs Front Housing Assembling Applicant: KWC Corp.FCC ID: OVFKWC-3225 Applicant: KWC Corp.FCC ID: OVFKWC-3225 Applicant: KWC Corp.FCC ID: OVFKWC-3225 Applicant: KWC Corp.FCC ID: OVFKWC-3225 Applicant: KWC Corp.FCC ID: OVFKWC-3225 Applicant: KWC Corp.FCC ID: OVFKWC-3225 Applicant: KWC Corp.FCC ID: OVFKWC-3225 Applicant: KWC Corp.FCC ID: OVFKWC-3225 Key Board Front Applicant: KWC Corp.FCC ID: OVFKWC-3225 Key Board Back Applicant: KWC Corp.FCC ID: OVFKWC-3225 Main Board Front Applicant: KWC Corp.FCC ID: OVFKWC-3225 Main Board Back Applicant: KWC Corp.FCC ID: OVFKWC-3225 Frame Front Applicant: KWC Corp.FCC ID: OVFKWC-3225 Frame Back Applicant: KWC Corp.FCC ID: OVFKWC-3225 Back housing Applicant: KWC Corp.FCC ID: OVFKWC-3225 Applicant: KWC Corp.FCC ID: OVFKWC-3225 Phone Assembly Applicant: KWC Corp.FCC ID: OVFKWC-3225 Applicant: KWC Corp.FCC ID: OVFKWC-3225 Applicant: KWC Corp.FCC ID: OVFKWC-3225 Applicant: KWC Corp.FCC ID: OVFKWC-3225

Applicant: KWC Corp.FCC ID: OVFKWC-3225 1 Exhibit 2 General Information – Operation Description 1.Production Plans Quantity Production Planned 2.Technical Description - Section 2.1033 (c) (1) The full name and mailing address of the manufacturer of the device and the applicant Applicant:Kyocera Wireless Corporation 10300 Campus Point Drive San Diego, CA 92121 Manufacture:Kyocera Wireless Corporation 10300 Campus Point Drive San Diego, CA92121 (2) FCC Identifier FCC ID: OVFKWC-3225 (3) User’s Manual See exhibit 20 (4) Types of Emission 40K0F8W 40K0F1D 1M25F9W F3E voice F3D supervisory audio tones, signaling tones F1D wideband data signal (5)Frequency range The frequency range of the equipment in Domestic Public Cellular Radio Telecommunications Service bands, 824 - 849 MHz and 869 - 894 MHz for FM and cellular CDMA. The channel spacing is 30 kHz for FM. The frequency range of the equipment in the Personal Communications Services (PCS) bands, 1850 – 1910 MHz and 1930 – 1990 MHz. The channel spacing is 1.25 MHz for CDMA. (6)Operating power levels The transmitter output power is independent of whether the equipment operates in the cellular system FM or CDMA mode, or PCS system CDMA mode. The equipment supports Class 3 Cellular Mobile Station Power Class, and Class 2 PCS Mobile Station Power Class. Its power output capability is reported to the Land Station via Station Class Mark. The equipment will respond to commands from Applicant: KWC Corp.FCC ID: OVFKWC-3225 2 the Land Station to change power levels as defined in the EIA/TIA/IS-98 and ANSI J-STD-018 Specification. (7)Maximum output power The equipment supports the maximum output power for Class 3 Cellular Mobile Station which is -2 dBW ERP for a FM mode and in the range of -7 dBW to 0 dBW ERP for a CDMA mode, and meets the 7 W ERP (+8.45 dBW) maximum power limitation of Section 22.913. The equipment supports the maximum output power for Class 2 PCS Mobile Station which is in the range of -7dBW to 0 dBW EIRP, and is within the limited 2 watts E.I.R.P. peak power of CFR 47 Part 24.232 (b). The equipment is able to limit the output power to the minimum necessary for successful communications. (8)Final RF amplifying device power consumption The equipment is powered by lithium ion rechargeable batteries which have a voltage range of 3.2 to 4.2 Vdc. In the Cellular band, the power consumption of the high power amplifier is about 27.8dBm in a CDMA mode and about 28.8dBm in a FM mode. In the PCS band, the power consumption of the high power amplifier is about 26.4dBm. (9) Tune-up procedure over the power range All frequency and power adjustments are set at the factory and there are no field adjustments for this product. Under digital mode, the frequency is locked to the base station and controlled by VCTCXO adjustments to offset any possible errors. Note: Digital mode encompasses the mobiles CDMA and FM operation. In CDMA, the carrier frequency error combiner combines the frequency error estimates of all in-lock demodulating fingers, and filters the result. This result drives a PDM circuit, which in turn yields a voltage that corrects the frequency of the VCTCXO. In FM, also referred to as digital FM, the frequency tracking loop circuit calculates the rate of rotation. This rate of rotation corresponds to the frequency error. This frequency error signal is filtered. This result drives a PDM circuit, which in turn yields a voltage that corrects the frequency of the VCTCXO. (10) Circuit description (a) Circuit diagram and list of semiconductor device See exhibit 16 and 17. (b) Circuit description for frequency determining and stabilizing The circuit provided for determining and stabilizing frequency is in exhibit 17. A voltage controlled, temperature compensated, crystal oscillator (VCTCXO) is employed as a frequency reference for all of the transceiver local oscillators. This crystal oscillator is specified to remain within +/- 2.5 ppm over temperature and voltage variations. The lock status indicator of all synthesizers is monitored by the microprocessor and an out of lock condition will inhibit transmission. In all modes, the mobile receiver monitors the received signal and adjusts the frequency of the VCTCXO, this corrects any errors between the mobile frequency and the base station transmitter. The mobile is locked to the base station. (c) Circuit description for spurious radiation suppression Applicant: KWC Corp.FCC ID: OVFKWC-3225 3 The circuit provided for suppression of spurious radiation is in exhibit 17. The transmitter front end provides filtering of the RF signal in order to meet FCC specifications. For radiated spurious suppression, proper design techniques and the use of proper shielding techniques reduced the emission levels well below the permissible FCC limit. (d) Circuit description for limiting modulation The circuit provided for limiting modulation is in exhibit 17. AMPS Mode The F3E audio modulation is accomplished through the use of Digital Signal Processor (DSP). Audio samples are output from the DFM block at 120Ksps. These samples are converted to 2’s complement form, Interpotated to 480Ksps rate , FM modulated, and Interpolated to the VCTCXO rate. The filtering and modulator require the VCTCXO clock along with the different enables, 120KHz, 240KHz, and 480KHz, all of which are generated from the VCTCXO reference. CDMA Mode when operating in a P_REV 5 or less network The CDMA mode described in the following pages is from the TIA/EIA/IS-95B Standard. The justification for the CDMA bandwidth of 1.25 MHz is that the chip rate is 1.2288 MHz. The 1.25MHz is measured at the 3dB down bandwidth. Channel spacing is normally set at this 1.25 MHz. In addition the reference baseband filtering requirements are shown in Section 6.1.3.10, Baseband Filtering of IS95B. The filter coefficients for the recommended baseband filter are listed in Table 6.1.3.10-1. These values yield the “necessary bandwidth” of 1.25 MHz based on optimal detecti…

Text truncated - open the document above for the full version.

c``Lf`=kçíáÅÉ qÜáë=ÇÉîáÅÉ=ÅçãéäáÉë=ïáíÜ=é~êí=NR=çÑ=íÜÉ=c``=êìäÉëK=léÉê~íáçå=áë=ëìÄàÉÅí=íç=íÜÉ=ÑçääçïáåÖ=íïç=ÅçåÇáíáçåëW=ENF=qÜáë=ÇÉîáÅÉ=ã~ó=åçí=Å~ìëÉ=Ü~êãÑìä=áåíÉêÑÉêÉåÅÉI=~åÇ=EOF=íÜáë=ÇÉîáÅÉ=ãìëí=~ÅÅÉéí=~åó=áåíÉêÑÉêÉåÅÉ=êÉÅÉáîÉÇI=áåÅäìÇáåÖ=áåíÉêÑÉêÉåÅÉ=íÜ~í=ã~ó=Å~ìëÉ=ìåÇÉëáêÉÇ=çéÉê~íáçåK=qç=ã~áåí~áå=Åçãéäá~åÅÉ=ïáíÜ=c``=oc=ÉñéçëìêÉ=ÖìáÇÉäáåÉëI=áÑ=óçì=ïÉ~ê=~=Ü~åÇëÉí=çå=óçìê=ÄçÇóI=ìëÉ=íÜÉ=hóçÅÉê~=táêÉäÉëë=`çêéK=Eht`F=ëìééäáÉÇ=~åÇ=~ééêçîÉÇ=Å~êêóáåÖ=Å~ëÉ=`^VMJSNMSUJMN=~åÇ=ÜçäëíÉê=`bVMJ_NTMMJMNFK=líÜÉê=~ÅÅÉëëçêáÉë=ìëÉÇ=ïáíÜ=íÜáë=ÇÉîáÅÉ=Ñçê=ÄçÇóJïçêå=çéÉê~íáçåë=ãìëí=åçí=Åçåí~áå=~åó=ãÉí~ääáÅ=ÅçãéçåÉåíë=~åÇ=ãìëí=éêçîáÇÉ=~í=äÉ~ëí=Eq_aF=|||||=ãã = ëÉé~ê~íáçå= Çáëí~åÅÉ=áåÅäìÇáåÖ=íÜÉ=~åíÉåå~=~åÇ=íÜÉ=ìëÉêÛë=ÄçÇóKqefp=jlabi=melkb=jbbqp=qeb=dlsbokjbkqÛp=obnrfobjbkqp=clo=bumlprob=ql=o^afl=t^sbpKvçìê=ïáêÉäÉëë=éÜçåÉ=áë=~=ê~Çáç=íê~åëãáííÉê=~åÇ=êÉÅÉáîÉêK=fí=áë=ÇÉëáÖåÉÇ=~åÇ=ã~åìÑ~ÅíìêÉÇ=åçí=íç=ÉñÅÉÉÇ=íÜÉ=Éãáëëáçå=äáãáíë=Ñçê=ÉñéçëìêÉ=íç=ê~Çáç=ÑêÉèìÉåÅó=EocF=ÉåÉêÖó=ëÉí=Äó=íÜÉ=cÉÇÉê~ä=`çããìåáÅ~íáçåë=`çããáëëáçå=çÑ=íÜÉ=rKpK=dçîÉêåãÉåíK=qÜÉëÉ=äáãáíë=~êÉ=é~êí=çÑ=ÅçãéêÉÜÉåëáîÉ=ÖìáÇÉäáåÉë=~åÇ=Éëí~ÄäáëÜ=éÉêãáííÉÇ=äÉîÉäë=çÑ=oc=ÉåÉêÖó=Ñçê=íÜÉ=ÖÉåÉê~ä=éçéìä~íáçåK=qÜÉ=ÖìáÇÉäáåÉë=~êÉ=Ä~ëÉÇ=çå=ëí~åÇ~êÇë=íÜ~í=ïÉêÉ=ÇÉîÉäçéÉÇ=Äó=áåÇÉéÉåÇÉåí=ëÅáÉåíáÑáÅ=çêÖ~åáò~íáçåë=íÜêçìÖÜ=éÉêáçÇáÅ=~åÇ=íÜçêçìÖÜ=Éî~äì~íáçå=çÑ=ëÅáÉåíáÑáÅ=ëíìÇáÉëK=qÜÉ=ëí~åÇ~êÇë=áåÅäìÇÉ=~=ëìÄëí~åíá~ä=ë~ÑÉíó=ã~êÖáå=ÇÉëáÖåÉÇ=íç=~ëëìêÉ=íÜÉ=ë~ÑÉíó=çÑ=~ää=éÉêëçåëI=êÉÖ~êÇäÉëë=çÑ=~ÖÉ=~åÇ=ÜÉ~äíÜKqÜÉ=ÉñéçëìêÉ=ëí~åÇ~êÇ=Ñçê=ïáêÉäÉëë=ãçÄáäÉ=éÜçåÉë=Éãéäçóë=~=ìåáí=çÑ=ãÉ~ëìêÉãÉåí=âåçïå=~ë=íÜÉ=péÉÅáÑáÅ=^Äëçêéíáçå=o~íÉI=çê=p^oK=qÜÉ=p^o=äáãáí=ëÉí=Äó=íÜÉ=c``=áë=NKS=tLâÖKG=qÉëíë=Ñçê=p^o=~êÉ=ÅçåÇìÅíÉÇ=ìëáåÖ=ëí~åÇ~êÇ=çéÉê~íáåÖ=éçëáíáçåë=ëéÉÅáÑáÉÇ=Äó=íÜÉ=c``=ïáíÜ=íÜÉ=éÜçåÉ= íê~åëãáííáåÖ=~í=áíë=ÜáÖÜÉëí=ÅÉêíáÑáÉÇ=éçïÉê=äÉîÉä=áå=~ää=íÉëíÉÇ=ÑêÉèìÉåÅó=Ä~åÇëK=^äíÜçìÖÜ=íÜÉ=p^o=áë=ÇÉíÉêãáåÉÇ=~í=íÜÉ=ÜáÖÜÉëí=ÅÉêíáÑáÉÇ=éçïÉê=äÉîÉäI=íÜÉ=~Åíì~ä=p^o=äÉîÉä=çÑ=íÜÉ=éÜçåÉ=ïÜáäÉ=çéÉê~íáåÖ=Å~å=ÄÉ=ïÉää=ÄÉäçï=íÜÉ=ã~ñáãìã=î~äìÉK=qÜáë=áë=ÄÉÅ~ìëÉ=íÜÉ=éÜçåÉ=áë=ÇÉëáÖåÉÇ=íç=çéÉê~íÉ=~í=ãìäíáéäÉ=éçïÉê=äÉîÉäë=ëç=~ë=íç=ìëÉ=çåäó=íÜÉ=éçïÉê=êÉèìáêÉÇ=íç=êÉ~ÅÜ=íÜÉ=åÉíïçêâK=få=ÖÉåÉê~äI=íÜÉ=ÅäçëÉê=óçì=~êÉ=íç=~=ïáêÉäÉëë=Ä~ëÉ=ëí~íáçå=~åíÉåå~I=íÜÉ=äçïÉê=íÜÉ=éçïÉê=çìíéìíK=_ÉÑçêÉ=~=éÜçåÉ=ãçÇÉä=áë=~î~áä~ÄäÉ=Ñçê=ë~äÉ=íç=íÜÉ=éìÄäáÅI=áí=ãìëí=ÄÉ=íÉëíÉÇ=~åÇ=ÅÉêíáÑáÉÇ=íç=íÜÉ=c``=íÜ~í=áí=ÇçÉë=åçí=ÉñÅÉÉÇ=íÜÉ=äáãáí=Éëí~ÄäáëÜÉÇ=Äó=íÜÉ=ÖçîÉêåãÉåíJ~ÇçéíÉÇ=êÉèìáêÉãÉåí=Ñçê=ë~ÑÉ=ÉñéçëìêÉK=qÜÉ=íÉëíë=~êÉ=éÉêÑçêãÉÇ=áå=éçëáíáçåë=~åÇ=äçÅ~íáçåë=EÉKÖKI=~í=íÜÉ=É~ê=~åÇ=ïçêå=çå=íÜÉ=ÄçÇóF=~ë=êÉèìáêÉÇ=Äó=íÜÉ=c``=Ñçê=É~ÅÜ=ãçÇÉäK=qÜÉ=ÜáÖÜÉëí=p^o=î~äìÉë=Ñçê=íÜáë=ãçÇÉä=éÜçåÉ=~êÉW^jmp=ãçÇÉJÜÉ~ÇW=NKPM=ãtLÖX=_çÇóJïçêåW=MKSQV=ãtLÖ=ïáíÜ=ht`=äÉ~íÜÉê=Å~ëÉ=`^VMJSNMSUJMNKm`p=ãçÇÉJ ÜÉ~ÇW=NKN=ãtLÖX=_çÇó JïçêåW=MKOTV=ãtLÖ= ïáíÜ=ht`=ìåáîÉêë~ä=ÄÉäí=Åäáé=`bVMJ_NTMMJMNKE_çÇóJïçêå=ãÉ~ëìêÉãÉåíë=ÇáÑÑÉê=~ãçåÖ=éÜçåÉ=ãçÇÉäëI=ÇÉéÉåÇáåÖ=ìéçå=~î~áä~Äáäáíó=çÑ=~ÅÅÉëëçêáÉë=~åÇ=c``=êÉèìáêÉãÉåíëK=qÜÉ=ÄçÇóJïçêå=p^o=î~äìÉë=éêçîáÇÉÇ=~ÄçîÉ=ïÉêÉ=çÄí~áåÉÇ=Äó=ìëáåÖ=hóçÅÉê~=táêÉäÉëë=`çêéK=Eht`F=ëìééäáÉÇ=~åÇ=~ééêçîÉÇ=Å~êêóáåÖ=Å~ëÉ=`^VMJSNMSUJMN=~åÇ=ÜçäëíÉê=`bVMJ_NTMMJMNFKtÜáäÉ=íÜÉêÉ=ã~ó=ÄÉ=ÇáÑÑÉêÉåÅÉë=ÄÉíïÉÉå=íÜÉ=p^o=äÉîÉäë=çÑ=î~êáçìë=éÜçåÉë=~åÇ=~í=î~êáçìë=éçëáíáçåëI=íÜÉó=~ää=ãÉÉí=íÜÉ=ÖçîÉêåãÉåí=êÉèìáêÉãÉåí=Ñçê=ë~ÑÉ=ÉñéçëìêÉKqÜÉ=c``=Ü~ë=Öê~åíÉÇ=~å=bèìáéãÉåí=^ìíÜçêáò~íáçå=Ñçê=íÜáë=ãçÇÉä=éÜçåÉ=ïáíÜ=~ää=êÉéçêíÉÇ=p^o=äÉîÉäë=Éî~äì~íÉÇ=~ë=áå=Åçãéäá~åÅÉ=ïáíÜ=íÜÉ=c``=oc=Éãáëëáçå=ÖìáÇÉäáåÉëK=p^o=áåÑçêã~íáçå=çå=íÜáë=ãçÇÉä=éÜçåÉ=áë=çå=ÑáäÉ=ïáíÜ=íÜÉ=c``=~åÇ=Å~å=ÄÉ=ÑçìåÇ=ìåÇÉê=íÜÉ=aáëéä~ó=dê~åí=ëÉÅíáçåÜííéWLLïïïKÑÅÅKÖçîLçÉíLÑÅÅáÇ=~ÑíÉê=ëÉ~êÅÜáåÖ=çå=c``=fa=lscht`JPOORK=^ÇÇáíáçå~ä=áåÑçêã~íáçå=çå=p^o=Å~å=ÄÉ= ÑçìåÇ=çå=íÜÉ=`Éääìä~ê=qÉäÉÅçããìåáÅ~íáçåë=~åÇ=fåíÉêåÉí=^ëëçÅá~íáçå=E`qf^F=ïÉÄJëáíÉ=~í =ÜííéWLLïïïKïçïJÅçãKÅçã K= G=få=íÜÉ=råáíÉÇ=pí~íÉë=~åÇ=`~å~Ç~I=íÜÉ=p^o=äáãáí=Ñçê=ãçÄáäÉ=éÜçåÉë=ìëÉÇ=Äó=íÜÉ=éìÄäáÅ=áë=NKS=ï~ííëLâÖ=EtLâÖF=~îÉê~ÖÉÇ=çîÉê=çåÉ=Öê~ã=çÑ=íáëëìÉK=qÜÉ=ëí~åÇ~êÇ=áåÅçêéçê~íÉë=~=ëìÄëí~åíá~ä=ã~êÖáå=çÑ=ë~ÑÉíó=íç=ÖáîÉ=~ÇÇáíáçå~ä=éêçíÉÅíáçå=Ñçê=íÜÉ=éìÄäáÅ=~åÇ=íç=~ÅÅçìåí=Ñçê=~åó=î~êá~íáçåë=áå=ãÉ~ëìêÉãÉåíëK `~ìíáçå qÜÉ=ìëÉê=áë=Å~ìíáçåÉÇ=íÜ~í=ÅÜ~åÖÉë=çê=ãçÇáÑáÅ~íáçåë=åçí=ÉñéêÉëëäó=~ééêçîÉÇ=Äó=íÜÉ=é~êíó=êÉëéçåëáÄäÉ=Ñçê=Åçãéäá~åÅÉ=ÅçìäÇ=îçáÇ=íÜÉ=ï~êê~åíó=~åÇ=ìëÉêÛë=~ìíÜçêáíó=íç=çéÉê~íÉ=íÜÉ=ÉèìáéãÉåíK t~êåáåÖ rëÉ=çåäó=hóçÅÉê~=~ééêçîÉÇ=~ÅÅÉëëçêáÉë=ïáíÜ=hóçÅÉê~=éÜçåÉëK=rëÉ=çÑ=~åó=ìå~ìíÜçêáòÉÇ=~ÅÅÉëëçêáÉë=EáåÅäìÇÉë=Ñ~ÅÉéä~íÉëLÑêçåí=ÜçìëáåÖëF=ã~ó=ÄÉ=Ç~åÖÉêçìë=~åÇ=ïáää=áåî~äáÇ~íÉ=íÜÉ=éÜçåÉ=ï~êê~åíó=áÑ=ë~áÇ=~ÅÅÉëëçêáÉë=Å~ìëÉ=Ç~ã~ÖÉ=çê=~=ÇÉÑÉÅí=íç=íÜÉ=éÜçåÉK léíáãáòÉ=óçìê=éÜçåÉÛë=éÉêÑçêã~åÅÉ rëÉ=íÜÉ=ÖìáÇÉäáåÉë=çåé~ÖÉOíç=äÉ~êå=Üçï=íç=çéíáãáòÉ=íÜÉ=éÉêÑçêã~åÅÉ=~åÇ=äáÑÉ=çÑ=óçìê=éÜçåÉI=~åíÉåå~I=~åÇ=Ä~ííÉêóK ^áê=Ä~Öë fÑ=óçì=Ü~îÉ=~å=~áê=Ä~ÖI=al=klq=éä~ÅÉ=áåëí~ääÉÇ=çê=éçêí~ÄäÉ=éÜçåÉ=ÉèìáéãÉåí=çê=çíÜÉê=çÄàÉÅíë=çîÉê=íÜÉ=~áê=Ä~Ö=çê=áå=íÜÉ=~áê=Ä~Ö=ÇÉéäçóãÉåí=~êÉ~K=fÑ=ÉèìáéãÉåí=áë=åçí=éêçéÉêäó=áåëí~ääÉÇI=óçì=~åÇ=óçìê=é~ëëÉåÖÉêë=êáëâ=ëÉêáçìë=áåàìêóK mçíÉåíá~ääó=ìåë~ÑÉ=~êÉ~ë mçëíÉÇ=Ñ~ÅáäáíáÉëÓ qìêå=óçìê=éÜçåÉ=çÑÑ=áå=~åó=Ñ~Åáäáíó=ïÜÉå= éçëíÉÇ=åçíáÅÉë=êÉèìáêÉ=óçì=íç=Çç=ëçK ^áêÅê~ÑíÓ c``=êÉÖìä~íáçåë=éêçÜáÄáí=ìëáåÖ=óçìê=éÜçåÉ=çå=~= éä~åÉ=íÜ~í=áë=áå=íÜÉ=~áêK=qìêå=óçìê=éÜçåÉ=çÑÑ=ÄÉÑçêÉ=Äç~êÇáåÖ=~áêÅê~ÑíKsÉÜáÅäÉëÓ oc=ëáÖå~äë=ã~ó=~ÑÑÉÅí=áãéêçéÉêäó=áåëí~ääÉÇ=çê= áå~ÇÉèì~íÉäó=ëÜáÉäÇÉÇ=ÉäÉÅíêçåáÅ=ëóëíÉãë=áå=ãçíçê=îÉÜáÅäÉëK=`ÜÉÅâ=ïáíÜ=íÜÉ=ã~åìÑ~ÅíìêÉê=çÑ=íÜÉ=ÇÉîáÅÉ=íç=ÇÉíÉêãáåÉ=áÑ=áí=áë=~ÇÉèì~íÉäó=ëÜáÉäÇÉÇ=Ñêçã=ÉñíÉêå~ä=oc=ÉåÉêÖóK=vçìê=éÜóëáÅá~å=ã~ó=ÄÉ=~ÄäÉ=íç=ÜÉäé=óçì=çÄí~áå=íÜáë=áåÑçêã~íáçåK_ä~ëíáåÖ=~êÉ~ëÓ qìêå=çÑÑ=óçìê=éÜçåÉ=ïÜÉêÉ=Ää~ëíáåÖ=áë=áå= éêçÖêÉëëK=lÄëÉêîÉ=êÉëíêáÅíáçåëI=~åÇ=Ñçääçï=~åó=êÉÖìä~íáçåë=çê=êìäÉëKmçíÉåíá~ääó=ÉñéäçëáîÉ=~íãçëéÜÉêÉëÓ qìêå=çÑÑ=óçìê=éÜçåÉ=ïÜÉå= óçì=~êÉ=áå=~åó=~êÉ~=ïáíÜ=~=éçíÉåíá~ääó=ÉñéäçëáîÉ=~íãçëéÜÉêÉK=lÄÉó=~ää=ëáÖåë=~åÇ=áåëíêìÅíáçåëK=pé~êâë=áå=ëìÅÜ=~êÉ~ë=ÅçìäÇ=Å~ìëÉ=~å=Éñéäçëáçå=çê=ÑáêÉI=êÉëìäíáåÖ=áå=ÄçÇáäó=áåàìêó=çê=ÇÉ~íÜK^êÉ~ë=ïáíÜ=~=éçíÉåíá~ääó=ÉñéäçëáîÉ=~íãçëéÜÉêÉ=~êÉ=çÑíÉåI=Äìí=åçí=~äï~óëI=ÅäÉ~êäó=ã~êâÉÇK=qÜÉó=áåÅäìÇÉW√ ÑìÉäáåÖ=~êÉ~ë=ëìÅÜ=~ë=Ö~ë=ëí~íáçåë√ ÄÉäçï=ÇÉÅâ=çå=Äç~íë√ íê~åëÑÉê=çê=ëíçê~ÖÉ=Ñ~ÅáäáíáÉë=Ñçê=ÑìÉä=çê=ÅÜÉãáÅ~äë√ îÉÜáÅäÉë=ìëáåÖ=äáèìÉÑáÉÇ=éÉíêçäÉìã=Ö~ëI=ëìÅÜ=~ë= éêçé~åÉ=çê=Äìí~åÉ √ ~êÉ~ë=ïÜÉêÉ=íÜÉ…

Text truncated - open the document above for the full version.

Company Kyocera Wireless Corp. Document No. KWC-3225 SAR REPORT Issue No:Date Oct. 2002 FCC ID OVFKWC-3225 Page Number 23 File Ref: APPENDIX B: SAR DISTRIBUTION PRINTOUT KWC-3225, FM Ch991, Left Cheek, 10-16-02Liquid Temp = 22C +/- 1CK3SAM Phantom; Left Hand Section; Position: (80°,60°); Frequency: 835 MHzProbe: ET3DV6 - SN1663; ConvF(6.70,6.70,6.70); Crest factor: 1.0; Head 835 MHz: σ = 0.88 mho/m ε r = 41.9 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 1.10 mW/g, SAR (10g): 0.804 mW/g, (Worst-case extrapolation)Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0Powerdrift: 0.07 dB SAR Tot [mW/g] 1.13E-12.26E-13.40E-14.53E-15.66E-16.79E-17.92E-19.06E-11.02E+01.13E+0 10/16/02<ENTER HERE YOUR COMPANY NAME> KWC-3225, FM Ch991, Left Tilted, 10-16-02Liquid Temp = 22C +/- 1CK3SAM Phantom; Left Hand Section; Position: (95°,60°); Frequency: 835 MHzProbe: ET3DV6 - SN1663; ConvF(6.70,6.70,6.70); Crest factor: 1.0; Head 835 MHz: σ = 0.88 mho/m ε r = 41.9 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 1.21 mW/g, SAR (10g): 0.748 mW/g, (Worst-case extrapolation)Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0Powerdrift: -0.11 dB SAR Tot [mW/g] 1.35E-12.71E-14.06E-15.41E-16.76E-18.12E-19.47E-11.08E+01.22E+01.35E+0 10/16/02<ENTER HERE YOUR COMPANY NAME> KWC-3225, FM Ch383, Left Cheek, 10-16-02Liquid Temp = 22C +/- 1CK3SAM Phantom; Left Hand Section; Position: (80°,60°); Frequency: 835 MHzProbe: ET3DV6 - SN1663; ConvF(6.70,6.70,6.70); Crest factor: 1.0; Head 835 MHz: σ = 0.88 mho/m ε r = 41.9 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 1.18 mW/g, SAR (10g): 0.730 mW/g, (Worst-case extrapolation)Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0Powerdrift: -0.11 dB SAR Tot [mW/g] 1.33E-12.66E-14.00E-15.33E-16.66E-17.99E-19.32E-11.07E+01.20E+01.33E+0 10/16/02<ENTER HERE YOUR COMPANY NAME> KWC-3225, FM Ch383, Left Tilted, 10-16-02Liquid Temp = 22C +/- 1CK3SAM Phantom; Left Hand Section; Position: (80°,60°); Frequency: 835 MHzProbe: ET3DV6 - SN1663; ConvF(6.70,6.70,6.70); Crest factor: 1.0; Head 835 MHz: σ = 0.88 mho/m ε r = 41.9 ρ = 1.00 g/cm 3 Cube 7x7x7: SAR (1g): 1.30 mW/g, SAR (10g): 0.778 mW/g * Max outside, (Worst-case extrapolation)Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0Powerdrift: -0.01 dB SAR Tot [mW/g] 1.31E-12.62E-13.93E-15.24E-16.54E-17.85E-19.16E-11.05E+01.18E+01.31E+0 10/20/02<ENTER HERE YOUR COMPANY NAME> KWC-3225, FM Ch799, Left Cheek, 10-16-02Liquid Temp = 22C +/- 1CK3SAM Phantom; Left Hand Section; Position: (80°,60°); Frequency: 835 MHzProbe: ET3DV6 - SN1663; ConvF(6.70…
