OVFKWC-K27Dual-Band Dual-Mode CDMA Phone

82-G1710-1EN.book Page i Monday, August 21, 2006 11:55 AM ii User Guide for the Kyocera K132 Phone This manual is based on the production version of the Kyocera K132 phone. Software changes may have occurred after this printing. Kyocera reserves the right to make changes in technical and product specifications without prior notice. The products and equipment described in this documentation are manufactured under license from QUALCOMM Incorporated under one or more of the following U.S. patents: 4,901,307 5,056,109 5,101,501 5,109,390 5,228,054 5,267,261 5,267,262 5,337,338 5,414,796 5,416,797 5,490,165 5,504,773 5,506,865 5,511,073 5,535,239 5,544,196 5,568,483 5,600,754 5,657,420 5,659,569 5,710,784 5,778,338 Other patents pending. The Kyocera Wireless Corp. ("KWC") products described in this manual may include copyrighted KWC and third party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for KWC and third party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the KWC products may not be modified, reverse engineered, distributed or reproduced in any manner not permitted by law. Furthermore, the purchase of the KWC products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of KWC or any third party software provider, except for the normal, non-exclusive royalty-free license to use that arises by operation of law in the sale of a product. Kyocera is a registered trademark of Kyocera Corporation. Brick Attack, Doodler, and Race 21 are trademarks of Kyocera Wireless Corp. QUALCOMM is a registered trademark, and BREW and BREW shop are trademarks of QUALCOMM, Inc. Openwave is a trademark of Openwave Systems Incorporated. eZiText is a registered trademark of Zi Corporation. Java is a trademark of Sun Microsystems, Inc. All other trademarks are the property of their respective owners. Copyright © 2006 Kyocera Wireless Corp. All rights reserved. Ringer Tones Copyright © 2000-2002 Kyocera Wireless Corp. 82-G1710-1EN, Rev. 001 FCC Notice This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. To maintain compliance with FCC RF exposure guidelines, if you wear a handset on your body, use the Kyocera Wireless Corp. (KWC) supplied and approved universal pouch CV90-61344-02(03) or case CV90-M2834-01. Other accessories used with this device for body- worn operations must not contain any metallic components and must provide at least 15mm separation distance including the antenna and the user’s body. THIS MODEL PHONE MEETS THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a 82-G1710-1EN.book Page ii Monday, August 21, 2006 11:55 AM User Guide for the Kyocera K132 Phoneiii substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg.* Tests for SAR are conducted using standard operating positions specified by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government-adopted requirement for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) as required by the FCC for each model. The body- worn SAR values were obtained by using Kyocera Wireless Corp. [KWC] supplied and approved universal pouch CV90-61344-02(03) or case CV90-M2834-01. Body-worn measurements differ among phone models, depending upon availability of accessories and FCC requirements. While there may be differences between the SAR levels of various phones and at various positions, they all meet the government requirement for safe exposure. The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF emission guidelines. SAR information on this model phone is on file with the FCC and can be found under the Display Grant section http://www.fcc.gov/oet/fccid after searching on the FCC ID: OVFKWC-K27. Additional information on SAR can be found on the Cellular Telecommunications and Internet Association (CTIA) web-site at http://www.wow-com.com. * In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additiona…

Text truncated - open the document above for the full version.

FCC ID: OVFKWC-K27 Kyocera Wireless Corp. 1 August 25, 2006 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular Transceiver Certification To Whom It May Concern: Kyocera Wireless Corporation (KWC) herein submits the Application for Equipment Authorization (FCC Form 731) and Exhibits for Certification of a Cellular Transceiver, FCC ID: OVFKWC-K27. Applicant: Kyocera Wireless Corporation 10300 Campus Point Drive San Diego, CA 92121-1522 Manufacture: Kyocera Wireless Corporation 10300 Campus Point Drive San Diego, CA 92121 The equipment is for mobile station cellular system use. The OVFKWC-K27 is in full compliance with all parts of EIA/TIA/IS-98-B&D Mobile Station-Land Station Compatibility Specification, issue July 2000 and March 2001, and also in full compliance with all parts of ANSI J-STD-08, Recommended Minimum Performance Requirements for 1.8 to 2 GHz Code Division Multiple Access (CDMA) Personal Stations, issue July 1996. Information concerning how the ESN protection requirements are met is provided in Exhibit 10. Please contact me at Tel: (858) 882-3945 or Email: [email protected] if there are any questions or if any additional information is needed. C. K. Li C. K. Li Engineer, Senior Staff Manager Kyocera Wireless Corporation

FCC ID: OVFKWC-K27 Kyocera Wireless Corp. Page 1 of 1 August 25, 2006 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Request of Confidentiality for FCC ID: OVFKWC-K27 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), Kyocera Wireless Corp (KWC) hereby requests confidential and treatment of information accompanying this Application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also requesting Short-Term Confidentiality as outlined in Public Notice DA 04-1705. This provision will give KWC Temporary Confidentiality of commercially sensitive information prior to product launch. The requested Confidential and Temporary Confidential exhibits are listed in table 1 below: Table 1. Confidential and Short-Term Confidential Exhibit Description 1A,1B Operation Descriptions, Tune-up Procedure 2 Block diagrams 3 Schematics Confidential 4 Parts Lists 5 Instruction Manual 7 External Photos 8 Internal Photos 9E SAR Test Setup Photos 11B EMI Test Setup Photos Short-Term Confidential 12D HAC Test Setup Photos The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Sincerely, C. K. Li CK Li Engineer, Senior Staff Manager Kyocera Wireless Corp.

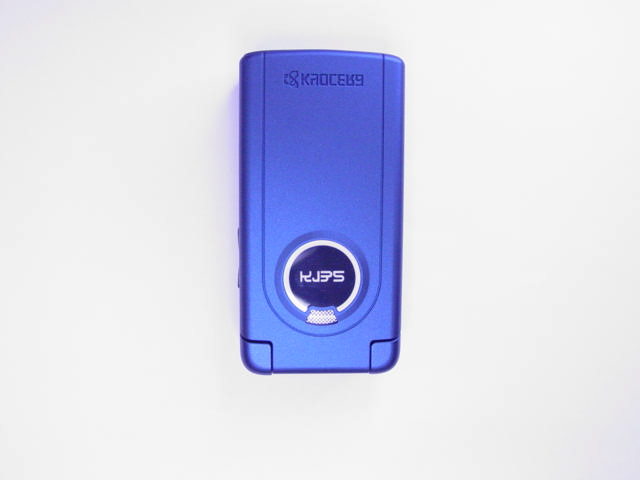

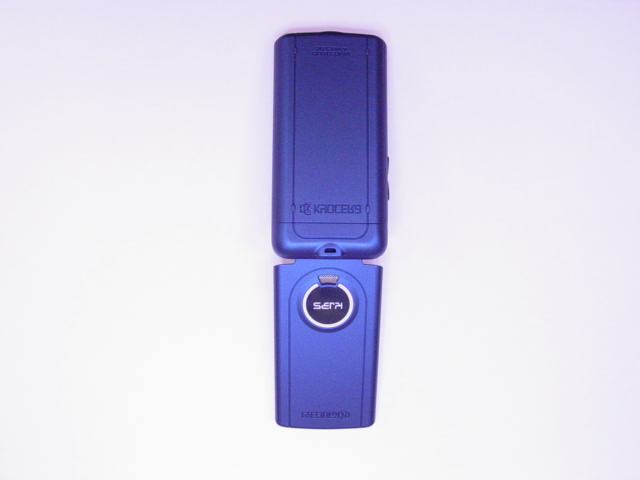

FCC ID: OVFKWC-KX27 External Photos Page 1 of 3 Model: K132 Exhibit 7: OVFKWC-KX27 External Photos TOPVIEW(CLOSED) FCC ID: OVFKWC-KX27 External Photos Page 2 of 3 Model: K132 TOP VIEW (OPEN) BOTTOM VIEW (OPEN) FCC ID: OVFKWC-KX27 External Photos Page 3 of 3 Model: K132 SIDEVIEW_1 (OPEN) SIDEVIEW_2 (OPEN)

FCC ID: OVFKWC-K27 Label Information Page 1 of 1 Model: K27 Exhibit 6: OVFKWC-K27 ID Label Label Format Label Location FCC ID: OVFKWC-K27

FCC ID: OVFKWC-KX27 Internal Photos Page 1 of 3 Model: K132 Exhibit 8: OVFKWC-KX27 Internal Photos FCC ID: OVFKWC-KX27 Internal Photos Page 2 of 3 Model: K132 FCC ID: OVFKWC-KX27 Internal Photos Page 3 of 3 Model: K132

FCC ID: OVFKWC-K27 SAR Report Page 1 of 19 Model: K132 SAR Test Report on Dual-Band Dual-mode CDMA Cellular Phone FCC Part 22 & 24 Certification FCC ID: OVFKWC-K27 MODEL: K132 DATE: August 16, 2006 STATEMENT OF COMPLIANCE Kyocera Wireless Corp declares under its sole responsibility that the product, FCC ID: OVFKWC- K24B to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines. It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted: NONE. Date of Test: August 14 – August 15, 2006 Test performed by: Kyocera Wireless Corp 10300 Campus Point Drive San Diego, CA 92121 Report Prepared by: Thuy To, Regulatory Engineer Report Reviewed by: C.K., Li Engineer, Sr. Staff/ Manager FCC ID: OVFKWC-K27 SAR Report Page 2 of 19 Model: K132 Table of Contents 1 INTRODUCTION.....................................................................................................................................................................................3 2 EQUIPMENT UNDER TEST (EUT).......................................................................................................................................................3 3 PRODUCT DESCRIPTION...................................................................................................................................................................4 4 ACCESSORIES:......................................................................................................................................................................................4 5 SAR TEST RESULT SUMMARY..........................................................................................................................................................5 5.1 MAXIMUM RESULTS FOUND DURING SAR EVALUATION........................................................................................................5 5.2 HEAD CONFIGURATION..................................................................................................................................................................5 5.3 BODY WORN CONFIGURATION (WITH KWC BODY WORN ACCESSORIES)............................................................................5 5.4 MEASUREMENT UNCERTAINTY...................................................................................................................................................5 6 TEST CONDITIONS...............................................................................................................................................................................6 6.1 AMBIENT CONDITIONS..................................................................................................................................................................6 6.2 RF CHARACTERISTICS OF THE TEST SITE...................................................................................................................................6 6.3 TEST SIGNAL, FREQUENCIES AND OUTPUT POWER.................................................................................................................6 6.3.1 CDMA2000 Test conditions.................................................................................................................................................6 CONDUCTED POWER................................................................................................................ERROR! BOOKMARK NOT DEFINED. 6.4 DEVICE TEST CONDITIONS............................................................................................................................................................7 7 DESCRIPTION OF THE TEST EQUIPMENT.....................................................................................................................................7 7.1 DOSIMETRIC SYSTEM.....................................................................................................................................................................7 7.2 ADDITIONAL EQUIPMENT NEEDED IN VALIDATION...............................................................................................................9 7.3 TISSUE STIMULANTS.......................................................................................................................................................................9 7.4 PHANTOMS DESCRIPTION..............................................................................................................................................................9 7.5 ISOTROPIC E-FIELD PROBE..........................................................................................................................................................10 8 SYSTEM VALIDATION.......................................................................................................................................................................11 9 DESCRIPTION OF THE TEST PROCEDURE.................................................................................................................................12 9.1 TEST POSITIONS.............................................................................................................................................................................12 9.1.1 Initial Ear Position..............................................................................................................................................................12 9.1.2 Cheek Position.....................................................................................................................................................................13 9.1.3 Tilt Position.......................................................................................................................................…

Text truncated - open the document above for the full version.

FCC ID: OVFKWC-K27 Appendix B1: SAR Distribution Plots (Head) SAR Distribution Plots Page 1 of 9 Model: K132 Date/Time: 8/15/2006 3:18:05 AM Test Laboratory: Kyocera-Wireless Corp. K27 #YMD8 CDMA-800 ch777 Left Cheek Communication System: CDMA-800, Frequency: 848.31 MHz, Duty Cycle: 1:1 Medium: HSL900,Medium parameters used (interpolated): f = 848.31 MHz; σ = 0.928 mho/m; ε r = 42; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Left Section DASY4 Configuration: Probe: ET3DV6 - SN1664, ConvF(6.58, 6.58, 6.58), Calibrated: 6/22/2006 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn527,Calibrated: 9/22/2005 Measurement SW: DASY4, V4.6 Build 23 Postprocessing SW: SEMCAD, V1.8 Build 160 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C CDMA-800 Ch777 LC/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.2 V/m; Power Drift = -0.198 dB Peak SAR (extrapolated) = 1.26 W/kg SAR(1 g) = 0.988 mW/g; SAR(10 g) = 0.674 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.06 mW/g 0 dB = 1.06mW/g Date/Time: 8/15/2006 3:47:14 AM Test Laboratory: Kyocera-Wireless Corp. K27 #YMD8 CDMA-800 ch383 Left Tilt Communication System: CDMA-800, Frequency: 836.49 MHz, Duty Cycle: 1:1 Medium: HSL900,Medium parameters used (interpolated): f = 836.49 MHz; σ = 0.928 mho/m; ε r = 42; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Left Section DASY4 Configuration: Probe: ET3DV6 - SN1664, ConvF(6.58, 6.58, 6.58), Calibrated: 6/22/2006 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn527,Calibrated: 9/22/2005 Measurement SW: DASY4, V4.6 Build 23 Postprocessing SW: SEMCAD, V1.8 Build 160 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C CDMA-800 Ch383 LT/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.01 V/m; Power Drift = -0.040 dB Peak SAR (extrapolated) = 0.209 W/kg SAR(1 g) = 0.180 mW/g; SAR(10 g) = 0.139 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.188 mW/g 0 dB = 0.188mW/g Date/Time: 8/15/2006 5:55:34 AM Test Laboratory: Kyocera-Wireless Corp. K27 #YMD8 CDMA-800 ch777 Right Cheek Communication System: CDMA-800, Frequency: 848.31 MHz, Duty Cycle: 1:1 Medium: HSL900,Medium parameters used (interpolated): f = 848.31 MHz; σ = 0.928 mho/m; ε r = 42; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Right Section DASY4 Configuration: Probe: ET3DV6 - SN1664, ConvF(6.58, 6.58, 6.58), Calibrated: 6/22/2006 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn527,Calibrated: 9/22/2005 Measurement SW: DASY4, V4.6 Build 23 Postprocessing SW: SEMCAD, V1.8 Build 160 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C PCS Ch777 RC/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.4 V/m; Power Drift = -0.083 dB Peak SAR (extrapolated) = 1.51 W/kg SAR(1 g) = 1.13 mW/g; SAR(10 g) = 0.763 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.22 mW/g 0 dB = 1.22mW/g Date/Time: 8/15/2006 6:49:07 AM Test Laboratory: Kyocera-Wireless Corp. K27 #YMD8 CDMA-800 ch383 Right Tilt Communication System: CDMA-800, Frequency: 836.49 MHz, Duty Cycle: 1:1 Medium: HSL900,Medium parameters used (interpolated): f = 836.49 MHz; σ = 0.928 mho/m; ε r = 42; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Right Section DASY4 Configuration: Probe: ET3DV6 - SN1664, ConvF(6.58, 6.58, 6.58), Calibrated: 6/22/2006 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn527,Calibrated: 9/22/2005 Measurement SW: DASY4, V4.6 Build 23 Postprocessing SW: SEMCAD, V1.8 Build 160 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C PCS Ch383 RT/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.2 V/m; Power Drift = 0.093 dB Peak SAR (extrapolated) = 0.288 W/kg SAR(1 g) = 0.231 mW/g; SAR(10 g) = 0.176 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.246 mW/g 0 dB = 0.246mW/g Date/Time: 8/14/2006 9:40:44 AM Test Laboratory: Kyocera-Wireless Corp. K27 #YMD8 PCS ch25 Left Cheek Communication System: CDMA-1900, Frequency: 1851.25 MHz, Duty Cycle: 1:1 Medium: HSL1800,Medium parameters used (extrapolated): f = 1851.25 MHz; σ = 1.39 mho/m; ε r = 39.4; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Left Section DASY4 Configuration: Probe: ET3DV6 - SN1664, ConvF(5.05, 5.05, 5.05), Calibrated: 6/22/2006 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn527,Calibrated: 9/22/2005 Measurement SW: DASY4, V4.6 Build 23 Postprocessing SW: SEMCAD, V1.8 Build 160 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C PCS Ch25 LC/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.4 V/m; Power Drift = -0.224 dB Peak SAR (extrapolated) = 1.69 W/kg SAR(1 g) = 1.13 mW/g; SAR(10 g) = 0.657 mW/g Info: Extrapolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.23 mW/g 0 dB = 1.23mW/g Date/Time: 8/14/2006 11:08:57 AM Test Laboratory: Kyocera-Wireless Corp. K27 #YMD8 PCS ch600 Left Tilt Communication System: CDMA-1900, Frequency: 1880 MHz, Duty Cycle: 1:1 Medium: HSL1800,Medium parameters used: f = 1880 MHz; σ = 1.39 mho/m; ε r = 39.4; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Left Section DASY4 Configuration: Probe: ET3DV6 - SN1664, ConvF(5.05, 5.05, 5.05), Calibrated: 6/22/2006 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn527,Calibrated: 9/22/2005 Measurement SW: DASY4, V4.6 Build 23 Postprocessing SW: SEMCAD, V1.8 Build 160 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C PCS Ch600 LT/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value =…

Text truncated - open the document above for the full version.

FCC ID: OVFKWC-K27 Appendix B2: SAR Distribution Plots (Body) SAR Distribution Plots Page 1 of 7 Model: K132 Date/Time: 8/15/2006 10:36:52 AM Test Laboratory: Kyocera-Wireless Corp. K27 #YMD8 CDMA-800 ch777 Flat with Phone Open and 15mm Air Space Communication System: CDMA-800, Frequency: 848.31 MHz, Duty Cycle: 1:1 Medium: M900,Medium parameters used (interpolated): f = 848.31 MHz; σ = 0.955 mho/m; ε r = 55.7; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1664, ConvF(6.43, 6.43, 6.43), Calibrated: 6/22/2006 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn527,Calibrated: 9/22/2005 Measurement SW: DASY4, V4.6 Build 23 Postprocessing SW: SEMCAD, V1.8 Build 160 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C CDMA-800 FLAT Ch777/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 34.5 V/m; Power Drift = -0.159 dB Peak SAR (extrapolated) = 1.54 W/kg SAR(1 g) = 1.2 mW/g; SAR(10 g) = 0.855 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.28 mW/g 0 dB = 1.28mW/g Date/Time: 8/15/2006 11:51:22 AM Test Laboratory: Kyocera-Wireless Corp. K27 #YMD8 CDMA-800 ch383 Flat with Phone Closed and Mini Universal Pouch Communication System: CDMA-800, Frequency: 836.49 MHz, Duty Cycle: 1:1 Medium: M900,Medium parameters used (interpolated): f = 836.49 MHz; σ = 0.955 mho/m; ε r = 55.7; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1664, ConvF(6.43, 6.43, 6.43), Calibrated: 6/22/2006 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn527,Calibrated: 9/22/2005 Measurement SW: DASY4, V4.6 Build 23 Postprocessing SW: SEMCAD, V1.8 Build 160 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C CDMA-800 FLAT Ch383/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 20.4 V/m; Power Drift = -0.043 dB Peak SAR (extrapolated) = 0.539 W/kg SAR(1 g) = 0.434 mW/g; SAR(10 g) = 0.318 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.461 mW/g 0 dB = 0.461mW/g Date/Time: 8/15/2006 12:39:25 PM Test Laboratory: Kyocera-Wireless Corp. K27 #YMD8 CDMA-800 ch383 Flat with Phone Closed and CV90-M2834-01 Communication System: CDMA-800, Frequency: 836.49 MHz, Duty Cycle: 1:1 Medium: M900,Medium parameters used (interpolated): f = 836.49 MHz; σ = 0.955 mho/m; ε r = 55.7; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1664, ConvF(6.43, 6.43, 6.43), Calibrated: 6/22/2006 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn527,Calibrated: 9/22/2005 Measurement SW: DASY4, V4.6 Build 23 Postprocessing SW: SEMCAD, V1.8 Build 160 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C CDMA-800 FLAT Ch383/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 19.4 V/m; Power Drift = -0.007 dB Peak SAR (extrapolated) = 0.469 W/kg SAR(1 g) = 0.382 mW/g; SAR(10 g) = 0.281 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.404 mW/g 0 dB = 0.404mW/g Date/Time: 8/14/2006 3:45:38 PM Test Laboratory: Kyocera-Wireless Corp. K27 #YMD8 PCS ch600 Flat with Phone Open and 15mm Air Space Communication System: CDMA-1900, Frequency: 1880 MHz, Duty Cycle: 1:1 Medium: M1800,Medium parameters used: f = 1880 MHz; σ = 1.46 mho/m; ε r = 53.4; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1664, ConvF(4.57, 4.57, 4.57), Calibrated: 6/22/2006 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn527,Calibrated: 9/22/2005 Measurement SW: DASY4, V4.6 Build 23 Postprocessing SW: SEMCAD, V1.8 Build 160 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C CDMA-1900 FLAT Ch600/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.9 V/m; Power Drift = 0.236 dB Peak SAR (extrapolated) = 0.509 W/kg SAR(1 g) = 0.340 mW/g; SAR(10 g) = 0.223 mW/g Maximum value of SAR (measured) = 0.362 mW/g CDMA-1900 FLAT Ch600/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.9 V/m; Power Drift = 0.236 dB Peak SAR (extrapolated) = 0.356 W/kg SAR(1 g) = 0.228 mW/g; SAR(10 g) = 0.147 mW/g Maximum value of SAR (measured) = 0.247 mW/g 0 dB = 0.247mW/g Date/Time: 8/14/2006 4:36:32 PM Test Laboratory: Kyocera-Wireless Corp. K27 #YMD8 PCS ch600 Flat with Phone Closed and Mini Universal Pouch Communication System: CDMA-1900, Frequency: 1880 MHz, Duty Cycle: 1:1 Medium: M1800,Medium parameters used: f = 1880 MHz; σ = 1.46 mho/m; ε r = 53.4; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1664, ConvF(4.57, 4.57, 4.57), Calibrated: 6/22/2006 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn527,Calibrated: 9/22/2005 Measurement SW: DASY4, V4.6 Build 23 Postprocessing SW: SEMCAD, V1.8 Build 160 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C CDMA-1900 FLAT Ch600/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.2 V/m; Power Drift = -0.151 dB Peak SAR (extrapolated) = 0.235 W/kg SAR(1 g) = 0.153 mW/g; SAR(10 g) = 0.098 mW/g Maximum value of SAR (measured) = 0.163 mW/g CDMA-1900 FLAT Ch600/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.2 V/m; Power Drift = -0.151 dB Peak SAR (extrapolated) = 0.181 W/kg SAR(1 g) = 0.123 mW/g; SAR(10 g) = 0.084 mW/g Maximum value of SAR (measured) = 0.130 mW/g 0 dB = 0.130mW/g Date/Time: 8/14/2006 7:59:41 PM Test Laboratory: Kyocera-Wireless Corp. K27 #YMD8 PCS ch600 Flat with Phone Closed and CV90-M2834-01 Communication System: CDMA-1900, Frequency: 1880 MHz, Duty Cycle: 1…

Text truncated - open the document above for the full version.

FCC ID: OVFKWC-K27 Probe Calibration Parameters Model: K132 Appendix C: Probe Calibration Parameters

FCC ID: OVFKWC-K27 Appendix A: Validation Test Plots Validation Test Plots Page 1 of 3 Model: K132 Date/Time: 8/15/2006 12:40:20 AM Test Laboratory: Kyocera-Wireless Corp. 835Mhz Validation @ 20dBm Probe 1664, DAE 527 and Dipole 453 Communication System: CW, Frequency: 835 MHz, Duty Cycle: 1:1 Medium: HSL900,Medium parameters used: f = 835 MHz; σ = 0.928 mho/m; ε r = 42; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1664, ConvF(6.77, 6.77, 6.77), Calibrated: 6/22/2006 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn527,Calibrated: 9/22/2005 Measurement SW: DASY4, V4.6 Build 23 Postprocessing SW: SEMCAD, V1.8 Build 160 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C 835Mhz Validation @ 20dBm/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 34.6 V/m; Power Drift = -0.065 dB Peak SAR (extrapolated) = 1.33 W/kg SAR(1 g) = 0.918 mW/g; SAR(10 g) = 0.602 mW/g Maximum value of SAR (measured) = 0.995 mW/g 0 dB = 0.995mW/g Date/Time: 8/14/2006 8:35:12 AM Test Laboratory: Kyocera-Wireless Corp. 1900Mhz Validation @ 20dBm Probe 1664, DAE 527 and Dipole 5d003 Communication System: CW, Frequency: 1900 MHz, Duty Cycle: 1:1 Medium: HSL1800,Medium parameters used (interpolated): f = 1900 MHz; σ = 1.39 mho/m; ε r = 39.4; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1664, ConvF(5.05, 5.05, 5.05), Calibrated: 6/22/2006 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn527,Calibrated: 9/22/2005 Measurement SW: DASY4, V4.6 Build 23 Postprocessing SW: SEMCAD, V1.8 Build 160 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C 1900MHz Validation @ 20dBm/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 58.6 V/m; Power Drift = -0.031 dB Peak SAR (extrapolated) = 6.58 W/kg SAR(1 g) = 3.82 mW/g; SAR(10 g) = 2.03 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 4.30 mW/g 0 dB = 4.30mW/g

FCC ID: OVFKWC-K27 Dipole Calibration Parameters Model: K132 Appendix D: Dipole Calibration Parameters

FCC ID: OVFKWC-K27 Part 22_24 Report Page 1 of 1 Model: K132 T…
