FCC ID: OVFKWC-K27-120 January 11, 2007 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for PCS Transceiver Certification To Whom It May Concern: Kyocera Wireless Corporation (KWC) herein submits the Application for Equipment Authorization (FCC Form 731) and Exhibits for Certification of a PCS Transceiver, FCC ID: OVFKWC-K27-120 Applicant: Kyocera Wireless Corp. 10300 Campus Point Drive San Diego, CA 92121-1522 Manufacture: Kyocera Wireless Corp. 10300 Campus Point Drive San Diego, CA 92121 The equipment is for mobile station PCS system use. The OVFKWC-K27-120 full compliance with all parts of ANSI J-STD-08, Recommended Minimum Performance Requirements for 1.8 to 2 GHz Code Division Multiple Access (CDMA) Personal Stations, issue July 1996. Information concerning how the ESN protection requirements are met is provided in Exhibit 10. Please contact me at Tel: (858) 882-3585 or Email: [email protected] if there are any questions or if any additional information is needed. Kyocera Wireless Corp. Thuy To Regulatory Engineer Kyocera Wireless Corp. 1

FCC ID: OVFKWC-K27-120 January 11, 2007 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Request of Confidentiality for FCC ID: OVFKWC-K27-120 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), Kyocera Wireless Corp. (KWC) hereby requests confidential and treatment of information accompanying this Application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also requesting Short-Term Confidentiality as outlined in Public Notice DA 04-1705. This provision will give KWC Temporary Confidentiality of commercially sensitive information prior to product launch. The requested Confidential and Temporary Confidential exhibits are listed in table 1 below: Table 1. Confidential and Short-Term Confidential Exhibit Description 1A, 1B Operation Descriptions, Tune-Up Procedures 2 Block diagrams 3 Schematics Confidential 4 Parts Lists 5 Instruction Manual 7 External Photos 8 Internal Photos 9E SAR Test Setup Photos 11B EMI Test Setup Photos Short-Term Confidential 12D HAC Test Setup Photos The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Sincerely, Thuy To Thuy To Regulatory Engineer Kyocera Wireless Corp. Kyocera Wireless Corp. 1

FCC ID: OVFKWC-K27-120 Exhibit 7: OVFKWC-K27-120 External Photos FLIP CLOSED TOP AND BOTTOM VIEWS External Photos Page 1 of 4 Model: K27-120 FCC ID: OVFKWC-K27-120 FLIP OPEN TOP AND BOTTOM VIEWS External Photos Page 2 of 4 Model: K27-120 FCC ID: OVFKWC-K27-120 FLIP CLOSED SIDE VIEWS External Photos Page 3 of 4 Model: K27-120 FCC ID: OVFKWC-K27-120 FLIP OPEN SIDE VIEWS External Photos Page 4 of 4 Model: K27-120

FCC ID: OVFKWC-K27-120 Exhibit 6: OVFKWC-K27-120 ID Label Label Format: FCC ID: OVFKWC-K27-120 Label Location: Label Information Page 1 of 2 Model: K27-120 FCC ID: OVFKWC-K27-120 FCC declaration statement: Kyocera Wireless Corp. complies with FCC rules Part 2.925(d) that the label shall be permanently affixed to the equipment and shall be readily visible to the purchaser at the time of purchase. 1) This cellular phone has limited label space on the exterior of the unit. The FCC ID label is placed in the battery compartment. 2) The phone will be market without the battery installed. 3) The batteries for these devices are designed for easy removal and that the labels will be visible whenever the batteries are installed, removed, or replaced. Label Information Page 2 of 2 Model: K27-120

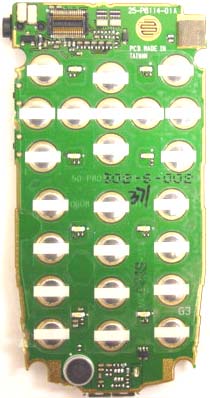

FCC ID: OVFKWC-K27-120 Exhibit 8: OVFKWC-K27-120 Internal Photos Internal Photos Page 1 of 3 Model: K27-120 FCC ID: OVFKWC-K27-120 Internal Photos Page 2 of 3 Model: K27-120 FCC ID: OVFKWC-K27-120 Internal Photos Page 3 of 3 Model: K27-120

FCC ID: OVFKWC-K27-120 SAR Test Report on Single-Band Single-Mode CDMA Cellular Phone FCC Part 24 Certification FCC ID: OVFKWC-K27-120 MODEL: K27-120 DATE: December 20, 2006 STATEMENT OF COMPLIANCE Kyocera Wireless Corp declares under its sole responsibility that the product, FCC ID: OVFKWC- K27-120 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines. It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted: NONE. Date of Test: December 18 -December 20, 2006 Test performed by: Kyocera Wireless Corp. 10300 Campus Point Drive San Diego, CA 92121 Report Prepared by: Thuy To, Regulatory Engineer Report Reviewed by: C.K. Li, Principal Hardware Engineer SAR Report Page 1 of 19 Model: K27-120 FCC ID: OVFKWC-K27-120 Table of Contents 1 INTRODUCTION..............................................................................................................................................................3 2 EQUIPMENT UNDER TEST (EUT)...............................................................................................................................3 3 PRODUCT DESCRIPTION.............................................................................................................................................4 4 ACCESSORIES:................................................................................................................................................................5 5 SAR TEST RESULT SUMMARY...................................................................................................................................6 5.1 MAXIMUM RESULTS FOUND DURING SAR EVALUATION..............................................................................................6 5.2 HEAD CONFIGURATION.................................................................................................................................................6 5.3 BODY WORN CONFIGURATION (WITH KWC BODY WORN ACCESSORIES) .....................................................................6 5.4 MEASUREMENT UNCERTAINTY.....................................................................................................................................6 6 TEST CONDITIONS.........................................................................................................................................................7 6.1 AMBIENT CONDITIONS..................................................................................................................................................7 6.2 RF CHARACTERISTICS OF THE TEST SITE.......................................................................................................................7 6.3 TEST SIGNAL, FREQUENCIES AND OUTPUT POWER.......................................................................................................7 6.3.1 CDMA2000 Test conditions.................................................................................................................................7 6.4 DEVICE TEST CONDITIONS............................................................................................................................................8 7 DESCRIPTION OF THE TEST EQUIPMENT.............................................................................................................9 7.1 DOSIMETRIC SYSTEM....................................................................................................................................................9 7.2 ADDITIONAL EQUIPMENT NEEDED IN VALIDATION......................................................................................................10 7.3 TISSUE STIMULANTS...................................................................................................................................................10 7.4 PHANTOMS DESCRIPTION............................................................................................................................................10 7.5 ISOTROPIC E-FIELD PROBE..........................................................................................................................................11 8 SYSTEM VALIDATION................................................................................................................................................12 9 DESCRIPTION OF THE TEST PROCEDURE...........................................................................................................13 9.1 TEST POSITIONS..........................................................................................................................................................13 9.1.1 Initial Ear Position.............................................................................................................................................13 9.1.2 Cheek Position....................................................................................................................................................14 9.1.3 Tilt Position........................................................................................................................................................14 9.1.4 Body Worn Configuration..................................................................................................................................15 9.2 SCAN PROCEDURES.....................................................................................................................................................15 9.3 SAR AVERAGING METHODS.......................................................................................................................................15 10 MEASUREMENT UNCERTAINTY.............................................................................…

Text truncated - open the document above for the full version.

FCC ID: OVFKWC-K27-120 Appendix A: Validation Test Plots Validation Test Plots Page 1 of 3 Model: K27-120 Date/Time: 12/18/2006 8:39:38 AM Test Laboratory: Kyocera-Wireless Corp. 1900Mhz Validation @ 20dBm Probe 1664, DAE 675 and Dipole 5d003 Communication System: CW, Frequency: 1900 MHz, Duty Cycle: 1:1 Medium: HSL1800,Medium parameters used (interpolated): f = 1900 MHz; σ = 1.41 mho/m; ε r = 39.9; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1664, ConvF(5.05, 5.05, 5.05), Calibrated: 6/22/2006 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn675,Calibrated: 2/21/2006 Measurement SW: DASY4, V4.7 Build 44 Postprocessing SW: SEMCAD, V1.8 Build 160 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C 1900MHz Validation @20dBm/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 58.8 V/m; Power Drift = -0.040 dB Peak SAR (extrapolated) = 6.76 W/kg SAR(1 g) = 3.91 mW/g; SAR(10 g) = 2.07 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 4.42 mW/g 0 dB = 4.42mW/g Date/Time: 12/20/2006 12:48:47 AM Test Laboratory: Kyocera-Wireless Corp. 1900Mhz Validation @ 20dBm Probe 1664, DAE 675 and Dipole 5d003 Communication System: CW, Frequency: 1900 MHz, Duty Cycle: 1:1 Medium: HSL1800,Medium parameters used (interpolated): f = 1900 MHz; σ = 1.39 mho/m; ε r = 40.1; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1664, ConvF(5.05, 5.05, 5.05), Calibrated: 6/22/2006 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn675,Calibrated: 2/21/2006 Measurement SW: DASY4, V4.7 Build 44 Postprocessing SW: SEMCAD, V1.8 Build 160 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C 1900MHz Validation @20dBm/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 60.2 V/m; Power Drift = -0.043 dB Peak SAR (extrapolated) = 6.81 W/kg SAR(1 g) = 3.91 mW/g; SAR(10 g) = 2.07 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 4.45 mW/g 0 dB = 4.45mW/g

FCC ID: OVFKWC-K27-120 Appendix B1: SAR Distribution Plots (Head) SAR Distribution Plots Page 1 of 6 Model: K27-120 Date/Time: 12/18/2006 10:45:19 AM Test Laboratory: Kyocera-Wireless Corp. K27-120 #0114 PCS ch600 Left Cheek Communication System: CDMA-1900, Frequency: 1880 MHz, Duty Cycle: 1:1 Medium: HSL1800,Medium parameters used: f = 1880 MHz; σ = 1.41 mho/m; ε r = 39.9; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Left Section DASY4 Configuration: Probe: ET3DV6 - SN1664, ConvF(5.05, 5.05, 5.05), Calibrated: 6/22/2006 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn675,Calibrated: 2/21/2006 Measurement SW: DASY4, V4.7 Build 44 Postprocessing SW: SEMCAD, V1.8 Build 160 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C PCS Ch600 LC/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.9 V/m; Power Drift = -0.021 dB Peak SAR (extrapolated) = 1.39 W/kg SAR(1 g) = 0.926 mW/g; SAR(10 g) = 0.550 mW/g Maximum value of SAR (measured) = 1.02 mW/g 0 dB = 1.02mW/g FCC ID: OVFKWC-K27-120 SAR Distribution PlotsPage 2 of 6Model: K27-120 Date/Time: 12/18/2006 2:56:33 PM Test Laboratory: Kyocera-Wireless Corp. K27-120 #0114 PCS ch600 Left Tilt Communication System: CDMA-1900, Frequency: 1880 MHz, Duty Cycle: 1:1 Medium: HSL1800,Medium parameters used: f = 1880 MHz; σ = 1.41 mho/m; ε r = 39.9; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Left Section DASY4 Configuration: Probe: ET3DV6 - SN1664, ConvF(5.05, 5.05, 5.05), Calibrated: 6/22/2006 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn675,Calibrated: 2/21/2006 Measurement SW: DASY4, V4.7 Build 44 Postprocessing SW: SEMCAD, V1.8 Build 160 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C PCS Ch600 LT/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.0 V/m; Power Drift = 0.037 dB Peak SAR (extrapolated) = 0.295 W/kg SAR(1 g) = 0.214 mW/g; SAR(10 g) = 0.138 mW/g Maximum value of SAR (measured) = 0.232 mW/g 0 dB = 0.232mW/g FCC ID: OVFKWC-K27-120 SAR Distribution PlotsPage 3 of 6Model: K27-120 Date/Time: 12/18/2006 12:29:24 PM Test Laboratory: Kyocera-Wireless Corp. K27-120 #0114 PCS ch600 Right Cheek Communication System: CDMA-1900, Frequency: 1880 MHz, Duty Cycle: 1:1 Medium: HSL1800,Medium parameters used: f = 1880 MHz; σ = 1.41 mho/m; ε r = 39.9; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Right Section DASY4 Configuration: Probe: ET3DV6 - SN1664, ConvF(5.05, 5.05, 5.05), Calibrated: 6/22/2006 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn675,Calibrated: 2/21/2006 Measurement SW: DASY4, V4.7 Build 44 Postprocessing SW: SEMCAD, V1.8 Build 160 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C PCS Ch600 RC/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.7 V/m; Power Drift = 0.093 dB Peak SAR (extrapolated) = 1.85 W/kg SAR(1 g) = 1.23 mW/g; SAR(10 g) = 0.694 mW/g Maximum value of SAR (measured) = 1.36 mW/g 0 dB = 1.36mW/g FCC ID: OVFKWC-K27-120 SAR Distribution PlotsPage 4 of 6Model: K27-120 FCC ID: OVFKWC-K27-120 SAR Distribution PlotsPage 5 of 6Model: K27-120 Date/Time: 12/18/2006 2:06:00 PM Test Laboratory: Kyocera-Wireless Corp. K27-120 #0114 PCS ch600 Right Tilt Communication System: CDMA-1900, Frequency: 1880 MHz, Duty Cycle: 1:1 Medium: HSL1800,Medium parameters used: f = 1880 MHz; σ = 1.41 mho/m; ε r = 39.9; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Right Section DASY4 Configuration: Probe: ET3DV6 - SN1664, ConvF(5.05, 5.05, 5.05), Calibrated: 6/22/2006 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn675,Calibrated: 2/21/2006 Measurement SW: DASY4, V4.7 Build 44 Postprocessing SW: SEMCAD, V1.8 Build 160 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C PCS Ch600 RT/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.2 V/m; Power Drift = -0.102 dB Peak SAR (extrapolated) = 0.351 W/kg SAR(1 g) = 0.244 mW/g; SAR(10 g) = 0.153 mW/g Maximum value of SAR (measured) = 0.267 mW/g 0 dB = 0.267mW/g FCC ID: OVFKWC-K27-120 SAR Distribution PlotsPage 6 of 6Model: K27-120

FCC ID: OVFKWC-K27-120 Appendix B2: SAR Distribution Plots (Body) SAR Distribution Plots Page 1 of 5 Model: K27-120 Date/Time: 12/20/2006 11:25:33 AM Test Laboratory: Kyocera-Wireless Corp. K27-120 #0114 PCS ch600 Flat with Phone Closed with 15mm Air Space Communication System: CDMA-1900, Frequency: 1880 MHz, Duty Cycle: 1:1 Medium: M1800,Medium parameters used: f = 1880 MHz; σ = 1.49 mho/m; ε r = 53.4; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1664, ConvF(4.57, 4.57, 4.57), Calibrated: 6/22/2006 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn675,Calibrated: 2/21/2006 Measurement SW: DASY4, V4.7 Build 44 Postprocessing SW: SEMCAD, V1.8 Build 160 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C CDMA-1900 FLAT Ch600/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 14.8 V/m; Power Drift = 0.006 dB Peak SAR (extrapolated) = 0.583 W/kg SAR(1 g) = 0.355 mW/g; SAR(10 g) = 0.210 mW/g Maximum value of SAR (measured) = 0.389 mW/g CDMA-1900 FLAT Ch600/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 14.8 V/m; Power Drift = 0.006 dB Peak SAR (extrapolated) = 0.368 W/kg SAR(1 g) = 0.251 mW/g; SAR(10 g) = 0.168 mW/g Maximum value of SAR (measured) = 0.270 mW/g 0 dB = 0.270mW/g FCC ID: OVFKWC-K27-120 SAR Distribution PlotsPage 2 of 5Model: K27-120 FCC ID: OVFKWC-K27-120 SAR Distribution PlotsPage 3 of 5Model: K27-120 Date/Time: 12/20/2006 10:31:25 AM Test Laboratory: Kyocera-Wireless Corp. K27-120 #0114 PCS ch600 Flat with Phone Closed and CV90-61345-01 Communication System: CDMA-1900, Frequency: 1880 MHz, Duty Cycle: 1:1 Medium: M1800,Medium parameters used: f = 1880 MHz; σ = 1.49 mho/m; ε r = 53.4; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1664, ConvF(4.57, 4.57, 4.57), Calibrated: 6/22/2006 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn675,Calibrated: 2/21/2006 Measurement SW: DASY4, V4.7 Build 44 Postprocessing SW: SEMCAD, V1.8 Build 160 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C CDMA-1900 FLAT Ch600/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.1 V/m; Power Drift = -0.124 dB Peak SAR (extrapolated) = 0.197 W/kg SAR(1 g) = 0.134 mW/g; SAR(10 g) = 0.090 mW/g CDMA-1900 FLAT Ch600/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.1 V/m; Power Drift = -0.124 dB Peak SAR (extrapolated) = 0.203 W/kg SAR(1 g) = 0.133 mW/g; SAR(10 g) = 0.093 mW/g Maximum value of SAR (measured) = 0.140 mW/g 0 dB = 0.140mW/g FCC ID: OVFKWC-K27-120 SAR Distribution PlotsPage 4 of 5Model: K27-120 Date/Time: 12/20/2006 9:42:08 AM Test Laboratory: Kyocera-Wireless Corp. K27-120 #0114 PCS ch600 Flat with Phone Closed and CV90-M2834-01 Communication System: CDMA-1900, Frequency: 1880 MHz, Duty Cycle: 1:1 Medium: M1800,Medium parameters used: f = 1880 MHz; σ = 1.49 mho/m; ε r = 53.4; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1664, ConvF(4.57, 4.57, 4.57), Calibrated: 6/22/2006 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn675,Calibrated: 2/21/2006 Measurement SW: DASY4, V4.7 Build 44 Postprocessing SW: SEMCAD, V1.8 Build 160 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C CDMA-1900 FLAT Ch600/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.58 V/m; Power Drift = -0.215 dB Peak SAR (extrapolated) = 0.204 W/kg SAR(1 g) = 0.133 mW/g; SAR(10 g) = 0.091 mW/g Maximum value of SAR (measured) = 0.141 mW/g CDMA-1900 FLAT Ch600/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.58 V/m; Power Drift = -0.215 dB Peak SAR (extrapolated) = 0.160 W/kg SAR(1 g) = 0.110 mW/g; SAR(10 g) = 0.074 mW/g Maximum value of SAR (measured) = 0.120 mW/g 0 dB = 0.120mW/g FCC ID: OVFKWC-K27-120 SAR Distribution PlotsPage 5 of 5Model: K27-120

FCC ID: OVFKWC-K27-120 Probe Calibration Parameters Model: K27-120 Appendix C: Probe Calibration Parameters

FCC ID: OVFKWC-K27-120 Dipole Calibration Parameters Model: K27-120 Appendix D: Dipole Calibration Parameters

Nemko USA, Inc 11696 Sorrento Valley Rd., Suite F San Diego, CA 92121-1024 EMC TEST REPORT Kyocera Wireless Corp. PCS Cell Phone Model: K27-120 RADIATED POWER PER: FCC, P ART 2.1053 FCC, P ART 24 SUBPART E TEST REPORT # 2007 102276 K27-120 FCC 2276-1-EMC N EMKO USA, INC. 11696 S ORRENTO VALLEY ROAD SUITE F S AN DIEGO, CA 92121 P HONE: 858-755-5525 Nemko USA, Inc. 11696 Sorrento Valley Road, Suite F, San Diego, CA 92121 Phone (858) 755-5525 Fax (858) 452-1810 DATE DOCUMENT NAME DOCUMENT # PAGE January 5, 2007 Kyocera Wireless Corp. K27-120 Test Report 2007 102276 K27-120 FCC 2 of 22 TABLE OF CONTENTS 1. DESCRIPTION OF TESTING METHODS ................................................................. 7 2 TEST RESULTS ............................................................................................................. 11 TEST SETUP DIAGRAMS FIGURE 1. RADIATED POWER MEASUREMENT TEST SETUP DIAGRAM .......................... 9 FIGURE 2. SUBSTITUTION METHOD TEST SETUP DIAGRAM ............................................ 10 APPENDICES A. R ADIATED EMISSIONS MEASUREMENT UNCERTAINTIES....................................................15 B. NEMKO USA, INC. TEST EQUIPMENT & FACILITIES CALIBRATION PROGRAM...................17 C. NVLAP ACCREDITATION..................................................................................................19 Nemko USA, Inc. 11696 Sorrento Valley Road, Suite F, San Diego, CA 92121 Phone (858) 755-5525 Fax (858) 452-1810 DATE DOCUMENT NAME DOCUMENT # PAGE January 5, 2007 Kyocera Wireless Corp. K27-120 Test Report 2007 102276 K27-120 FCC 3 of 22 EMC TEST REPORT For Kyocera Wireless Corp. Test Number : 2276-1-EMC Product Name : PCS Cell Phone Regulation : FCC, Part 24, Subpart E : Date : January 10, 2007 Report Reviewed Accepted by: _____________________________ Kyocera Wireless Corp. 10300 Campus Point Drive San Diego, CA 92121 Phone: 858-882-3585 Fax: 619 330-4977 Report Issued By: Mike Krumweide, EMC Supervisor Tested By: A. Laudani, EMC Test Engineer Nemko USA, Inc. 11696 Sorrento Valley Road, Suite F, San Diego, CA 92121 Phone (858) 755-5525 Fax (858) 452-1810 DATE DOCUMENT NAME DOCUMENT # PAGE January 5, 2007 Kyocera Wireless Corp. K27-120 Test Report 2007 102276 K27-120 FCC 4 of 22 Administrative Data Regulation : Part 24, Subpart E Test Method : ANSI C63.4 – 2003 : CSA C108. - M1983 : TIA/EIA 603B Test Type : Certification Manufacturer : Kyocera Wireless Corp. EUT Type : PCS Cell Phone Model # : K27-120 Date(s) of Test : Jan. 3, 2007 to Jan. 10, 2007 Customer Personnel : Thuy, To Nemko Personnel : A. Laudani, EMC Test Engineer : Test Location : OPEN Area Test Site Nemko USA, Inc. 11696 Sorrento Valley Road, Suite F San Diego, CA 92121 Nemko USA, Inc. 11696 Sorrento Valley Road, Suite F, San Diego, CA 92121 Phone (858) 755-5525 Fax (858) 452-1810 DATE DOCUMENT NAME DOCUMENT # PAGE January 5, 2007 Kyocera Wireless Corp. K27-120 Test Report 2007 102276 K27-120 FCC 5 of 22 EUT Description The K27-120 is a PCS Cell Phone. Its…
