OVFKWC-K33B04Tri-band CDMA Cellular phone with Bluetooth

Draft ii S4000 User Guide This manual is based on the production version of the Kyocera S4000 phone. Software changes may have occurred after this printing. Kyocera reserves the right to make changes in technical and product specifications without prior notice. The products and equipment described in this documentation are manufactured under license from QUALCOMM Incorporated under one or more of the following U.S. patents: 4,901,307 5,109,390 5,267,262 5,416,797 5,506,865 5,544,196 5,657,420 5,101,501 5,267,261 5,414,796 5,504,773 5,535,239 5,600,754 5,778,338 5,228,054 5,337,338 5,710,784 5,056,109 5,568,483 5,659,569 5,490,165 5,511,073 The Kyocera Wireless Corp. (“KWC”) products described in this manual may include copyrighted KWC and third party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for KWC and third party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the KWC products may not be modified, reverse engineered, distributed or reproduced in any manner not permitted by law. Furthermore, the purchase of the KWC products shall not be deemed to grant—either directly or by implication, estoppel, or otherwise—any license under the copyrights, patents, or patent applications of KWC or any third party software provider, except for the normal, non-exclusive royalty-free license to use that arises by operation of law in the sale of a product. Kyocera is a registered trademark of Kyocera Corporation. Brick Attack and Race 21 are trademarks of Kyocera Wireless Corp. QUALCOMM is a registered trademark of QUALCOMM Incorporated. Openwave is a trademark of Openwave Systems Incorporated. eZiText is a registered trademark of Zi Corporation. TransFlash is a trademark of SanDisk Corporation. Bluetooth trademarks are owned by Bluetooth SIG, Inc. and used by Kyocera Wireless Corp. under license. All other trademarks are the property of their respective owners. Copyright © 2008 Kyocera Wireless Corp. All rights reserved. Ringer Tones Copyright © 2000-2008 Kyocera Wireless Corp. 82-K6572-1EN, Rev. 001 FCC notice This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. To maintain compliance with FCC RF exposure guidelines, if you wear a handset on your body, use the Kyocera Wireless Corp. (KWC) supplied and approved standard case CV90-P0321-01 and premium case CV90-P0323- 01. Other accessories used with this device for body-worn operations must not contain any metallic components and must provide at least 15mm separation distance including the antenna and the user’s body. THIS MODEL PHONE MEETS THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES . Your wireless phone is a radio transmitter and receiver. It is designed and manufactured to not exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. These limits are part of Draft User Guideiii comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg.* Tests for SAR are conducted using standard operating positions specified by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. Before a phone model is available for sale to the public, it must be tested and certified by the FCC that it does not exceed the limit established by the government-adopted requirement for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) as required by the FCC for each model. Body-worn measurements differ among phone models, depending upon availability of accessories and FCC requirements. While there may be differences between the SAR levels of various phones and at various positions, they all meet the government requirement for safe exposure. The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF emission guidelines. SAR information on this model phone is on file with the FCC and can be found under the Display Grant section http://www.fcc.gov/oet/ea/ after searching on the FCC ID: OVFKWC-K33B04. Additional information on SAR can be found on the Cellular Telecommunications and Internet Association (CTIA) web-site at www.wow-com.com. * In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements. Bluetooth® Certification For information about S4000 Bluetooth Certification, visit the Bluetooth Qualification Program Web site at qualweb.bluetooth.org. Caution The user is cautioned tha…

Text truncated - open the document above for the full version.

FCC ID: OVFKWC-K33B04 February 5, 2008 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular Transceiver Certification To Whom It May Concern: Kyocera Wireless Corporation (KWC) herein submits the Application for Equipment Authorization (FCC Form 731) and Exhibits for Certification of a Cellular Transceiver, FCC ID: OVFKWC-K33B04. Applicant: Kyocera Wireless Corporation 10300 Campus Point Drive San Diego, CA 92121-1522 Manufacture: Kyocera Wireless Corporation 10300 Campus Point Drive San Diego, CA 92121 The equipment is for mobile station cellular system use. The OVFKWC-K33B04 is in full compliance with all parts of EIA/TIA/IS-98-B&D Mobile Station-Land Station Compatibility Specification, issue July 2000 and March 2001, and also in full compliance with all parts of ANSI J-STD-08, Recommended Minimum Performance Requirements for 1.8 to 2 GHz Code Division Multiple Access (CDMA) Personal Stations, issue July 1996. Please contact me at Tel: (858) 882-2197 or Email: [email protected] if there are any questions or if any additional information is needed. Ngoc-Thi Nguyen Regulatory Engineer Kyocera Wireless Corp. Kyocera Wireless Corp. 1

FCC ID: OVFKWC-K33B04 February 5, 2008 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Request of Confidentiality for FCC ID: OVFKWC-K33B04 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), Kyocera Wireless Corp (KWC) hereby requests confidential and treatment of information accompanying this Application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also requesting Short-Term Confidentiality as outlined in Public Notice DA 04-1705. This provision will give KWC Temporary Confidentiality of commercially sensitive information prior to product launch. The requested Confidential and Temporary Confidential exhibits are listed in table 1 below: Table 1. Confidential and Short-Term Confidential Exhibit Description 1A,1B Operation Descriptions, Tune-up Procedure 2 Block diagrams 3 Schematics Confidential 4 Parts Lists 5 Instruction Manual 7 External Photos 8 Internal Photos Short-Term Confidential 9E SAR Test Setup Photos 12D HAC Setup Photos 13A T-Coil Test Setup Photos The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Sincerely, Ngoc-Thi Nguyen Regulatory Engineer Kyocera Wireless Corp. Kyocera Wireless Corp. Page 1 of 1 Model: K33B-04

1 Chris Harvey From: Ngoc-Thi Nguyen [[email protected]] Sent: Friday, February 08, 2008 6:05 PM To: [email protected] Cc: Ngoc-Thi Nguyen Subject: Re: Kyocera Wireless Corp. , FCC ID: OVFKWC-K33B04, Assessment NO.: AN08T7591- PCE & AN08T7595-DSS, Notice#1 Attachments: STC_Exhibit 8_OVFKWC-K33B04_Internal Photos_Rev1.pdf; Exhibit 9 OVFKWC-K33B04 SAR Report_Rev1.pdf; C_Exhibit 3_Schematic Diagram_S4000_REV1.pdf; S4000_Bluetooth Antenna Spec.doc; ATT00004.txt STC_Exhibit OVFKWC-K33B04_In Exhibit 9 FKWC-K33B04 SAR R C_Exhibit Schematic Diagram_ S4000_Bluetooth Antenna Spec.d... ATT00004.txt (93 B) Dear Chris Harvey, I reviewed the following items and would like to provide you the answers below: Item 1: Noted Item 2: Replaced a new photo on PC Board. Please see attachment for a Revised Internal Photos. Item 3: Please see attachment for a Revised Schematic. Item 4: Both leather cases are identical in term of construction and metal contents. The only difference are the leather material. Please see attachment for a Revised Report Item 5: Noted Item 6: Please see attachment for Antenna Specification sheet. Do I need to upload these new Reports on TCB web-site? Thank you and Best Regards, Ngoc-Thi Nguyen. At 01:52 PM 2/7/2008 -0800, [email protected] wrote: >Dear Ngoc-Thi Nguyen, > >You are listed as the Technical Contact for the above referenced TCB >application. The following item(s) need(s) to be resolved before the >review can be continued: > >1. Please note that this application includes operation in the FCC >Pt. 27 AWS band, which is on the FCC's Permit-But-Ask (PBA) list. I >have submitted a KDB request to the FCC to request that TCB review of >this device is acceptable. >2. The Internal Photos showing the PC Board are out of focus. Please >replace these photos so the information on the board/circuits is legible. >3. Although the entire schematic diagram for all portions of this >device are required to be submitted, the schematics do not seem to >include all RF Circuitry (there seem to be sections of the QSC6055 chip 2 >that are not shown on the pages submitted). Please ensure that you >provide all RF Schematics in this application. >4. The SAR report shows 2 different holsters available with this >device, but only the model CV90-P0323-01 was tested for compliance. >Please either provide justification for this reduction in testing or >provide SAR compliance for the CV90-P0321-01 listed in the report and >manual. >5. Please note that the HAC rating only applies to the CDMA850 and >PCS1900 bands and not the CDMA1700 band. >6. Please provide the antenna specification sheet for the Bluetooth >Antenna in this device. > >The items indicated above must be submitted before processing can >continue on the above referenced application. Failure to provide the >requested information within 30 days of the original e-mail date may >result in application dismissal and forfeiture of the filing fee. Also, >please note that partial responses increase processing time and should >not be submitted. Any questions about the content of this >correspondence should be directed to the e-mail address listed below the name of the sender. > >Best regards, > >Chris Harvey >[email protected]

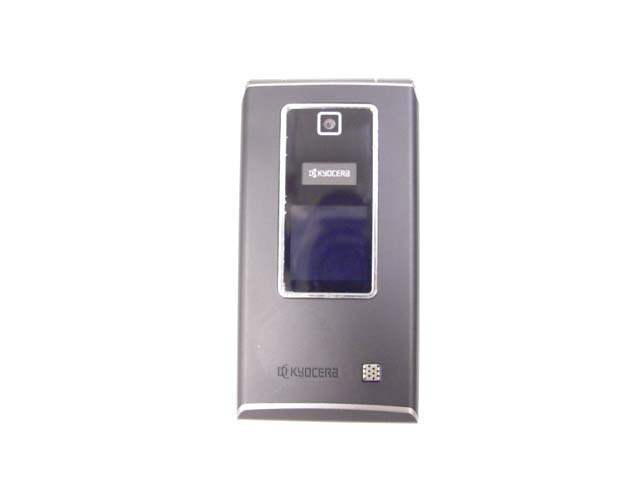

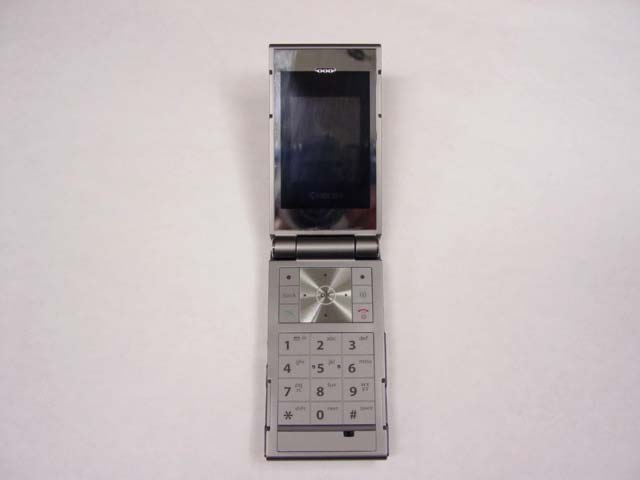

FCC ID: OVFKWC-K33B04 Exhibit 7: OVFKWC-K33B04 External Photos External Photos Page 1 of 3 Model: K33B-04 FCC ID: OVFKWC-K33B04 External Photos Page 2 of 3 Model: K33B-04 FCC ID: OVFKWC-K33B04 External Photos Page 3 of 3 Model: K33B-04

FCC ID: OVFKWC-K33B04 Label Information Page 1 of 2 Model: K33B-04 Exhibit 6: OVFKWC-K33B04 ID Label Format Location FCC Label FCC ID: OVFKWC-K33B04 Label Information Page 2 of 2 Model: K33B-04 FCC declaration statement Kyocera Wireless Corp. complies with FCC rules Part 2.925(d) that the label shall be permanently affixed to the equipment and shall be readily visible to the purchaser at the time of purchase: 1) This cellular phone has limited label space on the exterior of the unit. The FCC ID label is placed in the battery compartment. 2) The batteries for these devices are designed for easy removal and that the labels will be visible whenever the batteries are removed for charging or replacement. The phone will be market without the battery installed.

FCC ID: OVFKWC-K33B04 Exhibit 8: OVFKWC-K33B04 Internal Photos Internal Photos Page 1 of 4 Model: K33B-04 FCC ID: OVFKWC-K33B04 Internal Photos Page 2 of 4 Model: K33B-04 FCC ID: OVFKWC-K33B04 Internal Photos Page 3 of 4 Model: K33B-04 FCC ID: OVFKWC-K33B04 Internal Photos Page 4 of 4 Model: K33B-04

FCC ID: OVFKWC-K33B04 SAR Test Report on Tri-Band CDMA Cellular Phone With Bluetooth FCC Part 22, 24 & 27 Certification FCC ID: OVFKWC-K33B04 MODEL: K33B-04 DATE: February 5, 2008, Rev 1 STATEMENT OF COMPLIANCE Kyocera Wireless Corp declares under its sole responsibility that the product, FCC ID: OVFKWC- K33B04 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines. It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted: NONE. Date of Test: January 8 – January 11, 2008 and February 4 – February 5, 2008 Test performed by: Kyocera Wireless Corp. 10300 Campus Point Drive, San Diego, CA 92121 Report Prepared by: Ngoc-Thi Nguyen, Regulatory Engineer Report Reviewed by: C.K. Li, Principal Hardware Engineer SAR Report Page 1 of 22 Model: K33B-04 FCC ID: OVFKWC-K33B04 Table of Contents 1 INTRODUCTION..............................................................................................................................................................3 2 EQUIPMENT UNDER TEST (EUT)...............................................................................................................................3 3 PRODUCT DESCRIPTION.............................................................................................................................................4 4 ACCESSORIES:................................................................................................................................................................4 5 SAR TEST RESULT SUMMARY...................................................................................................................................5 5.1 MAXIMUM RESULTS FOUND DURING SAR EVALUATION..............................................................................................5 5.2 HEAD CONFIGURATION.................................................................................................................................................5 5.3 BODY WORN CONFIGURATION......................................................................................................................................5 5.4 MEASUREMENT UNCERTAINTY.....................................................................................................................................5 6 TEST CONDITIONS.........................................................................................................................................................6 6.1 AMBIENT CONDITIONS..................................................................................................................................................6 6.2 RF CHARACTERISTICS OF THE TEST SITE.......................................................................................................................6 6.3 TEST SIGNAL, FREQUENCIES AND OUTPUT POWER.......................................................................................................6 6.3.1 CDMA2000 Test conditions.................................................................................................................................6 6.4 DEVICE TEST CONDITIONS............................................................................................................................................7 7 DESCRIPTION OF THE TEST EQUIPMENT.............................................................................................................8 7.1 DOSIMETRIC SYSTEM....................................................................................................................................................8 7.2 ADDITIONAL EQUIPMENT NEEDED IN VALIDATION........................................................................................................9 7.3 TISSUE STIMULANTS.....................................................................................................................................................9 7.4 PHANTOMS DESCRIPTION..............................................................................................................................................9 7.5 ISOTROPIC E-FIELD PROBE..........................................................................................................................................10 8 SYSTEM VALIDATION................................................................................................................................................11 9 DESCRIPTION OF THE TEST PROCEDURE...........................................................................................................12 9.1 TEST POSITIONS..........................................................................................................................................................12 9.1.1 Initial Ear Position.............................................................................................................................................12 9.1.2 Cheek Position....................................................................................................................................................13 9.1.3 Tilt Position........................................................................................................................................................13 9.1.4 Body Worn Configuration..................................................................................................................................14 9.2 SCAN PROCEDURES.....................................................................................................................................................14 9.3 SAR AVERAGING METHODS.......................................................................................................................................14 10 MEASUREMENT UN…

Text truncated - open the document above for the full version.

FCC ID: OVFKWC-K33B04 Appendix A: Validation Test Plots Validation Test Plots Page 1 of 9 Model: K33B-04 Date: 1/9/2008 Test Laboratory: Kyocera-Wireless Corp. 835Mhz Validation @ 20dBm Probe 1664, DAE 527 and Dipole 454 Communication System: CW, Frequency: 835 MHz, Duty Cycle: 1:1 Medium: HSL900,Medium parameters used: f = 835 MHz; σ = 0.91 mho/m; ε r = 42.1; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1664, ConvF(6.73, 6.73, 6.73), Calibrated: 7/16/2007 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn527,Calibrated: 9/14/2007 Measurement SW: DASY4, V4.7 Build 55 Postprocessing SW: SEMCAD, V1.8 Build 176 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C 835MHz Validation @20dBm/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 35.3 V/m; Power Drift = -0.021 dB Peak SAR (extrapolated) = 1.41 W/kg SAR(1 g) = 0.990 mW/g; SAR(10 g) = 0.651 mW/g Maximum value of SAR (measured) = 1.07 mW/g 0 dB = 1.07mW/g FCC ID: OVFKWC-K33B04 Validation Test Plots Page 2 of 99 Model: K33B-04 Date: 1/9/2008 Test Laboratory: Kyocera-Wireless Corp. 835Mhz Validation (In Muscle) @ 20dBm Probe 1644, DAE 527, Dipole 454 Communication System: CW, Frequency: 835 MHz, Duty Cycle: 1:1 Medium: M900,Medium parameters used: f = 835 MHz; σ = 0.941 mho/m; ε r = 55.1; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1664, ConvF(6.49, 6.49, 6.49), Calibrated: 7/16/2007 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn527,Calibrated: 9/14/2007 Measurement SW: DASY4, V4.7 Build 55 Postprocessing SW: SEMCAD, V1.8 Build 176 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C 835MHz Validation (In Muscle) @20dBm/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 34.2 V/m; Power Drift = -0.009 dB Peak SAR (extrapolated) = 1.44 W/kg SAR(1 g) = 0.980 mW/g; SAR(10 g) = 0.642 mW/g Maximum value of SAR (measured) = 1.06 mW/g 0 dB = 1.06mW/g Validation Test Plots Page 3 of 9 Model: K33B-04 FCC ID: OVFKWC-K33B04 Date: 1/10/2008 Test Laboratory: Kyocera-Wireless Corp. 835Mhz Validation (In Muscle) @ 20dBm Probe 1644, DAE 527, Dipole 454 Communication System: CW, Frequency: 835 MHz, Duty Cycle: 1:1 Medium: M900,Medium parameters used: f = 835 MHz; σ = 0.94 mho/m; ε r = 55.3; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1664, ConvF(6.49, 6.49, 6.49), Calibrated: 7/16/2007 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn527,Calibrated: 9/14/2007 Measurement SW: DASY4, V4.7 Build 55 Postprocessing SW: SEMCAD, V1.8 Build 176 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C 835MHz Validation (In Muscle) @20dBm/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 34.2 V/m; Power Drift = -0.059 dB Peak SAR (extrapolated) = 1.45 W/kg SAR(1 g) = 0.962 mW/g; SAR(10 g) = 0.627 mW/g Maximum value of SAR (measured) = 1.05 mW/g 0 dB = 1.05mW/g FCC ID: OVFKWC-K33B04 Validation Test Plots Page 4 of 9 Model: K33B-04 Date: 1/8/2008 Test Laboratory: Kyocera-Wireless Corp. 1800Mhz Validation @ 20dBm Probe 1664, DAE 527 and Dipole 220 Communication System: CW, Frequency: 1800 MHz, Duty Cycle: 1:1 Medium: HSL1800,Medium parameters used (extrapolated): f = 1800 MHz; σ = 1.42 mho/m; ε r = 40.2; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1664, ConvF(5.3, 5.3, 5.3), Calibrated: 7/16/2007 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn527,Calibrated: 9/14/2007 Measurement SW: DASY4, V4.7 Build 55 Postprocessing SW: SEMCAD, V1.8 Build 176 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C 1800MHz Validation @20dBm/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 56.8 V/m; Power Drift = 0.026 dB Peak SAR (extrapolated) = 6.44 W/kg SAR(1 g) = 3.67 mW/g; SAR(10 g) = 1.92 mW/g Info: Extrapolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 4.13 mW/g 0 dB = 4.13mW/g Validation Test Plots Page 5 of 9 Model: K33B-04 FCC ID: OVFKWC-K33B04 Date: 2/4/2008 Test Laboratory: Kyocera-Wireless Corp. 1800Mhz Validation (In Muscle) @ 20dBm Probe 1664, DAE 527 and Dipole 220 Communication System: CW, Frequency: 1800 MHz, Duty Cycle: 1:1 Medium: M1700,Medium parameters used (extrapolated): f = 1800 MHz; σ = 1.53 mho/m; ε r = 55.5; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1664, ConvF(4.88, 4.88, 4.88), Calibrated: 7/16/2007 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn527,Calibrated: 9/14/2007 Measurement SW: DASY4, V4.7 Build 55 Postprocessing SW: SEMCAD, V1.8 Build 171 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C 1800MHz Validation @20dBm/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 55.1 V/m; Power Drift = -0.001 dB Peak SAR (extrapolated) = 6.56 W/kg SAR(1 g) = 3.82 mW/g; SAR(10 g) = 2.02 mW/g Info: Extrapolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 4.32 mW/g 0 dB = 4.32mW/g FCC ID: OVFKWC-K33B04 Validation Test Plots Page 6 of 99 Model: K33B-04 Date: 2/5/2008 Test Laboratory: Kyocera-Wireless Corp. 1800Mhz Validation (In Muscle) @ 20dBm Probe 1664, DAE 527 and Dipole 220 Communication System: CW, Frequency: 1800 MHz, Duty Cycle: 1:1 Medium: M1700,Medium parameters used (extrapolated): f = 1800 MHz; σ = 1.54 mho/m; ε r = 55.7; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1664, ConvF(4.88, 4.88, 4.88), Calibrated: 7/16/2007 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn527,Calibrated: 9/14/2007 Measur…

Text truncated - open the document above for the full version.

FCC ID: OVFKWC-K33B04 Appendix B1: SAR Distribution Plots (Head) SAR Distribution Plots Page 1 of 16 Model: K33B-04 Date: 1/9/2008 Test Laboratory: Kyocera-Wireless Corp. S4000 #1245 CDMA-800 Ch383 Left Cheek Communication System: CDMA-800, Frequency: 836.49 MHz, Duty Cycle: 1:1 Medium: HSL900,Medium parameters used (interpolated): f = 836.49 MHz; σ = 0.91 mho/m; ε r = 42.1; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Left Section DASY4 Configuration: Probe: ET3DV6 - SN1664, ConvF(6.73, 6.73, 6.73), Calibrated: 7/16/2007 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn527,Calibrated: 9/14/2007 Measurement SW: DASY4, V4.7 Build 55 Postprocessing SW: SEMCAD, V1.8 Build 176 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C CDMA-800 Ch383 LC/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.82 V/m; Power Drift = -0.133 dB Peak SAR (extrapolated) = 1.29 W/kg SAR(1 g) = 0.661 mW/g; SAR(10 g) = 0.424 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.707 mW/g CDMA-800 Ch383 LC/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.82 V/m; Power Drift = -0.133 dB Peak SAR (extrapolated) = 1.25 W/kg SAR(1 g) = 0.631 mW/g; SAR(10 g) = 0.430 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.709 mW/g 0 dB = 0.709mW/g FCC ID: OVFKWC-K33B04 SAR Distribution Plots Page 2 of 16 Model: K33B-04 Date: 1/9/2008 Test Laboratory: Kyocera-Wireless Corp. S4000 #1245 CDMA-800 Ch383 Left Tilt Communication System: CDMA-800, Frequency: 836.49 MHz, Duty Cycle: 1:1 Medium: HSL900,Medium parameters used (interpolated): f = 836.49 MHz; σ = 0.91 mho/m; ε r = 42.1; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Left Section DASY4 Configuration: Probe: ET3DV6 - SN1664, ConvF(6.73, 6.73, 6.73), Calibrated: 7/16/2007 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn527,Calibrated: 9/14/2007 Measurement SW: DASY4, V4.7 Build 55 Postprocessing SW: SEMCAD, V1.8 Build 176 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C CDMA-800 Ch383 LT/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 14.3 V/m; Power Drift = 0.027 dB Peak SAR (extrapolated) = 0.546 W/kg SAR(1 g) = 0.429 mW/g; SAR(10 g) = 0.320 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.456 mW/g 0 dB = 0.456mW/g FCC ID: OVFKWC-K33B04 SAR Distribution Plots Page 3 of 16 Model: K33B-04 Date: 1/9/2008 Test Laboratory: Kyocera-Wireless Corp. S4000 #1245 CDMA-800 Ch383 Right Cheek with Bluetooth on Communication System: CDMA-800, Frequency: 836.49 MHz, Duty Cycle: 1:1 Medium: HSL900,Medium parameters used (interpolated): f = 836.49 MHz; σ = 0.91 mho/m; ε r = 42.1; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Right Section DASY4 Configuration: Probe: ET3DV6 - SN1664, ConvF(6.73, 6.73, 6.73), Calibrated: 7/16/2007 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn527,Calibrated: 9/14/2007 Measurement SW: DASY4, V4.7 Build 55 Postprocessing SW: SEMCAD, V1.8 Build 176 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C CDMA-800 Ch383 RC/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.5 V/m; Power Drift = 0.042 dB Peak SAR (extrapolated) = 1.74 W/kg SAR(1 g) = 0.740 mW/g; SAR(10 g) = 0.474 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.773 mW/g 0 dB = 0.773mW/g FCC ID: OVFKWC-K33B04 SAR Distribution Plots Page 4 of 16 Model: K33B-04 SAR Distribution Plots Page 5 of 16 Model: K33B-04 FCC ID: OVFKWC-K33B04 Date: 1/9/2008 Test Laboratory: Kyocera-Wireless Corp. S4000 #1245 CDMA-800 Ch383 Right Tilt Communication System: CDMA-800, Frequency: 836.49 MHz, Duty Cycle: 1:1 Medium: HSL900,Medium parameters used (interpolated): f = 836.49 MHz; σ = 0.91 mho/m; ε r = 42.1; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Right Section DASY4 Configuration: Probe: ET3DV6 - SN1664, ConvF(6.73, 6.73, 6.73), Calibrated: 7/16/2007 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn527,Calibrated: 9/14/2007 Measurement SW: DASY4, V4.7 Build 55 Postprocessing SW: SEMCAD, V1.8 Build 176 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C CDMA-800 Ch383 RT/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 16.5 V/m; Power Drift =…

Text truncated - open the document above for the full version.
