FCC ID: OVFKWC-KE4X4 Kyocera Wireless Corp. 1 April 23, 2003 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re:Application for Cellular and PCS Transceiver Certification To Whom It May Concern: Kyocera Wireless Corporation (KWC) herein submits the Application for Equipment Authorization (FCC Form 731) and Exhibits for Certification of a Cellular & PCS Transceiver, FCC ID: OVFKWC-KE4X4. Applicant:Kyocera Wireless Corporation 10300 Campus Point Drive San Diego, CA 92121-1522 Manufacture:Kyocera Wireless Corporation 10300 Campus Point Drive San Diego, CA 92121 The equipment, KWC model # KE414 and KE424C, are for mobile station cellular and PCS system use. The OVFKWC-KE4X4 is in full compliance with all parts of EIA/TIA/IS-98-B&D Mobile Station-Land Station Compatibility Specification, issue July 2000 and March 2001, and also in full compliance with all parts of ANSI J-STD-018, Recommended Minimum Performance Requirements for 1.8 to 2 GHz Code Division Multiple Access (CDMA) Personal Stations, issue July 1996. The OVFKWC-KE4X4 has E911 Phase II GPS capability. Information concerning how the ESN protection requirements are met is provided in Exhibit 1. Please contact me at Tel: (858) 882-3945 or Email: [email protected] if there are any questions or additional information needed. Kyocera Wireless Corporation C. K. Li Engineer, staff

FCC ID: OVFKWC-KE4X4 Kyocera Wireless Corp. 1 April 23, 2003 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re:Request of Confidentiality for FCC ID OVFKWC-KE4X4 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), Kyocera Wireless Corp hereby requests confidential treatment of information accompanying this Application as outlined below: ExhibitDescription 1Operation Descriptions 2Block diagrams 3Schematics and Parts Lists The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Sincerely, C. K. Li Engineer, staff Kyocera Wireless Corporation FCC ID: OVFKWC-KE4X4 Kyocera Wireless Corp. 2

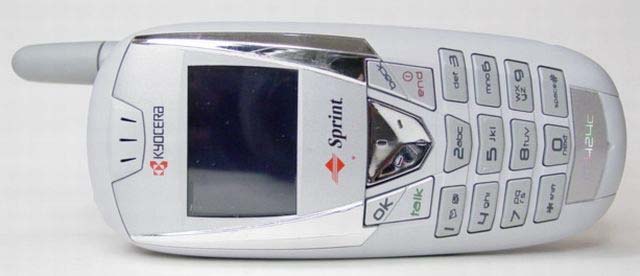

FCC ID: OVFKWC-KE4X4 Exhibit 6 External PhotosPage 1 of 2 Exhibit 6: External Photos KE 414 Front KE 414 Side Back FCC ID: OVFKWC-KE4X4 Exhibit 6 External PhotosPage 2 of 2 KE424C Front KE424C Sides Back (same for both KE414 and KE424C)

FCC ID: OVFKWC-KE4X4 Exhibit 5 Label InfomationPage 1 of 1 Exhibit 5: FCC Label Information 1 Label Format FCC ID will be located in area “F” as shown below: FCC ID: OVFKWC-KE4X4 2 Label Location

FCC ID: OVFKWC-KE4X4 Exhibit 7 Internal PhotosPage 1 of 6 Exhibit 7: Internal Photos Model: KE414 FCC ID: OVFKWC-KE4X4 Exhibit 7 Internal PhotosPage 2 of 6 KE414 Keypad FCC ID: OVFKWC-KE4X4 Exhibit 7 Internal PhotosPage 3 of 6 KE414 PCB side 1 FCC ID: OVFKWC-KE4X4 Exhibit 7 Internal PhotosPage 4 of 6 Model: KE424C FCC ID: OVFKWC-KE4X4 Exhibit 7 Internal PhotosPage 5 of 6 PCB Side 1 1 FCC ID: OVFKWC-KE4X4 Exhibit 7 Internal PhotosPage 6 of 6 PCB Side 2 (same for KE414 and KE424C) PCB side 2 with shields off

FCC ID:OVFKWC-KE4X4 EXHIBIT 8 SAR Test Report From Kyocera Wireless Corp FCC ID:OVFKWC-KE4X4 Model:KE414 and KE424c STATEMENT OF COMPLIANCE Kyocera Wireless Corp declares under its sole responsibility that the product KE414 and KE424c (FCC ID: OVFKWC-KE4X4) to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines. It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted: NONE. Date of Test:March 20-23, 2003 Test performed by:Kyocera Wireless Corp 10300 Campus Point Drive CA 92121 Report Prepared by:C. K. Li, Engineer, Staff FCC ID:OVFKWC-KE4X4 CONTENT 1INTRODUCTION..................................................................................................................................................3 2EQUIPMENT UNDER TEST (EUT) .....................................................................................................................3 3SAR TEST RESULT SUMMARY........................................................................................................................5 3.1 MAXIMUM RESULTS FOUND DURING SAR EVALUATION........................................................................................5 3.2 HEAD CONFIGURATION.......................................................................................................................................5 3.3 BODY WORN CONFIGURATION (WITH KWC BODY WORN ACCESSORIES)................................................................6 3.4 MEASUREMENT UNCERTAINTY............................................................................................................................6 4TEST CONDITIONS ............................................................................................................................................7 4.1 AMBIENT CONDITIONS........................................................................................................................................7 4.2 RF CHARACTERISTICS OF THE TEST SITE.............................................................................................................7 4.3 TEST SIGNAL, FREQUENCIES AND OUTPUT POWER..............................................................................................7 4.4 DEVICE TEST CONDITIONS..................................................................................................................................7 5DESCRIPTION OF THE TEST EQUIPMENT......................................................................................................8 5.1 DOSIMETRIC SYSTEM.........................................................................................................................................8 5.2 ADDITIONAL EQUIPMENT NEEDED IN VALIDATION...................................................................................................8 5.3 TISSUE STIMULANTS...........................................................................................................................................8 5.4 PHANTOMS DESCRIPTION...................................................................................................................................9 5.5 ISOTROPIC E-FIELD PROBE.................................................................................................................................9 6SYSTEM VALIDATION .....................................................................................................................................10 7DESCRIPTION OF THE TEST PROCEDURE ..................................................................................................11 7.1 TEST POSITIONS..............................................................................................................................................11 7.1.1Initial Ear Position .................................................................................................................................11 7.1.2Cheek Position ......................................................................................................................................12 7.1.3Tilt Position............................................................................................................................................12 7.1.3Body Worn Configuration ......................................................................................................................13 7.2 SCAN PROCEDURES.........................................................................................................................................13 7.3 SAR AVERAGING METHODS.............................................................................................................................13 8MEASUREMENT UNCERTAINTY ....................................................................................................................14 9TEST DATA .......................................................................................................................................................15 9.1 HEAD SAR TEST RESULTS...............................................................................................................................15 9.2 BODY WORN SAR TEST RESULT......................................................................................................................17 10TEST SETUP PHOTOS .....................................................................................................................................18 APPENDIX A: VALIDATION TEST PRINTOUT ........................................................................................................23 APPENDIX B: SAR DISTRIBUTION PRINTOUT......................................................................................................36 APPEND…

Text truncated - open the document above for the full version.

FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE414Page 1 of 36 APPENDIX B-2: SAR Distribution Plots For Model KE414 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE414Page 2 of 36 Section 1 SAR Distribution plots for Head Adjacent Use Configuration FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE414Page 3 of 36 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE414Page 4 of 36 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE414Page 5 of 36 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE414Page 6 of 36 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE414Page 7 of 36 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE414Page 8 of 36 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE414Page 9 of 36 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE414Page 10 of 36 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE414Page 11 of 36 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE414Page 12 of 36 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE414Page 13 of 36 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE414Page 14 of 36 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE414Page 15 of 36 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE414Page 16 of 36 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE414Page 17 of 36 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE414Page 18 of 36 Section 2 SAR Distribution plots for Body Worn Configuration FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE414Page 19 of 36 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE414Page 20 of 36 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE414Page 21 of 36 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE414Page 22 of 36 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE414Page 23 of 36 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE414Page 24 of 36 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE414Page 25 of 36 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE414Page 26 of 36 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE414Page 27 of 36 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE414Page 28 of 36 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE414Page 29 of 36 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE414Page 30 of 36 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE414Page 31 of 36 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE414Page 32 of 36 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE414Page 33 of 36 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE414Page 34 of 36 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE414Page 35 of 36 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE414Page 36 of 36

FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE424CPage 1 of 38 APPENDIX B-1: SAR Distribution Plots For Model KE424C FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE424CPage 2 of 38 Section 1 SAR Distribution plots for Head Adjacent Use Configuration FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE424CPage 3 of 38 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE424CPage 4 of 38 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE424CPage 5 of 38 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE424CPage 6 of 38 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE424CPage 7 of 38 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE424CPage 8 of 38 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE424CPage 9 of 38 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE424CPage 10 of 38 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE424CPage 11 of 38 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE424CPage 12 of 38 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE424CPage 13 of 38 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE424CPage 14 of 38 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE424CPage 15 of 38 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE424CPage 16 of 38 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE424CPage 17 of 38 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE424CPage 18 of 38 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE424CPage 19 of 38 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE424CPage 20 of 38 Section 2 SAR Distribution plots for Body Worn Configuration FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE424CPage 21 of 38 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE424CPage 22 of 38 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE424CPage 23 of 38 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE424CPage 24 of 38 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE424CPage 25 of 38 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE424CPage 26 of 38 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE424CPage 27 of 38 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE424CPage 28 of 38 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE424CPage 29 of 38 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE424CPage 30 of 38 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE424CPage 31 of 38 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE424CPage 32 of 38 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE424CPage 33 of 38 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE424CPage 34 of 38 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE424CPage 35 of 38 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE424CPage 36 of 38 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE424CPage 37 of 38 FCC ID: OVFKWC-KE4X4 Appendix B SAR plots_KE424CPage 38 of 38

FCC ID: OVFKWC-KE4X4 Kyocera Wireless Corp.Page 1 of 47Model: KE414, KE424c Test Report From Kyocera Wireless Corp FCC Part 22 & 24 Certification IC RSS-129 & 133 FCC ID: OVFKWC-KE4X4 Model: KE414, KE424c STATEMENT OF CERTIFICATION The data, data evaluation and equipment configuration represented herein are a true and accurate representation of the measurements of the sample’s radio frequency interference emissions characteristics as of the dates and at the times of the test under the conditions herein specified. Test performed by: Kyocera Wireless Corp 10300 Campus Point Drive CA 92121 Report Prepared by: C. K. Li Engineer, Staff Tests that required an OATS site were performed by TUV Product Services. FCC ID: OVFKWC-KE4X4 Kyocera Wireless Corp.Page 2 of 47Model: KE414, KE424c TABLE OF CONTENTS 1General Information ............................................................................................................................. 3 2Product Description ............................................................................................................................. 3 3Electronic Serial Numbers (ESN) Protection ....................................................................................... 3 4FCC Compliance Emergency 911 ....................................................................................................... 4 5TTY compliance ................................................................................................................................... 4 6Transmitter RF Power Output.............................................................................................................. 4 6.1 Conducted Power.............................................................................................................................. 4 6.2 Radiated Power ................................................................................................................................. 5 7Transmitter Modulation Requirement .................................................................................................. 8 7.1 Transmitter Audio Frequency Response .......................................................................................... 8 7.2 Transmitter Modulation Deviation Limiting ...................................................................................... 10 8Occupied Bandwidth.......................................................................................................................... 11 9Spurious Emissions At Antenna Terminals .......................................................................................27 10Transmitter Radiated Spurious Emissions Measured Data........................................................... 43 11Receiver Spurious Emissions ........................................................................................................ 43 12Transmitter RF Carrier Frequency Stability ...................................................................................44 12.1 AMPS Mode ............................................................................................................................... 44 12.2 CDMA 800 Mode ........................................................................................................................ 45 12.3 CDMA 1900 Mode ...................................................................................................................... 46 13Exposure of Humans to RF Fields (SAR) ...................................................................................... 47 14Test Equipment .............................................................................................................................. 47 FCC ID: OVFKWC-KE4X4 Kyocera Wireless Corp.Page 3 of 47Model: KE414, KE424c 1 General Information Applicant: Kyocera Wireless Corp 10300 Campus Point Drive San Diego CA 92121 FCC ID: OVFKWC-KE4X4 Product: Dual-Band Tri-mode Cellular Phone Model Number: KE414KE424c EUT Serial Number: MXXZPVGW Type: [ ] Prototype, [X] Pre-Production, [ ] Production Device Category: Portable RF Exposure Environment: General Population / Uncontrolled Antenna: Fixed Helix Detachable Antenna: Yes External Input: Audio/Digital Data Quantity: Quantity production is planned FCC Rule Parts: §22H§22H§22.901(d)§24E Modes: 800 AMPS800 CDMA800 CDMA1X1900 CDMA Multiple Access Scheme: FDMACDMACDMACDMA TX Frequency (MHz): 824 - 849824 – 849824 - 8491850 - 1910 Emission Designators: 40K0F8W, 40K0F1D, 1M25F9W Max. Output Power (W) 0.326 ERP0.338 ERP0.427 EIRP 2 Product Description The phone is a single board Tri-mode 1XRTT product that integrates Assisted GPS capability to meet the emergency location requirements of the FCC’s E911 Phase II mandate. The Tri-mode architecture is defined as 1900MHz (PCS CDMA), 800MHz (cellular CDMA and AMPS). The phone will support certain CDMA2000 radio-configurations (RC) as describes in Exhibit 2 (operation description). Model KE414 and KE424C belong to the same equipment family. Both models are identical in term of RF, PCB design and construction. The only differences between them are the front housing cosmetic design, front housing metal bracket and the LCD display. KE414 and KE424C consist of a gray-scale LCD display and Color LCD display respectively. 3 Electronic Serial Numbers (ESN) Protection The Trimode Phones,FCC ID: OVFKWC-KE4X4 uses ESN. The ESN is a unique identification number to each phone which is contained in the Numeric Assignment Module and is automatically transmitted to the base station whenever a call is placed. The ESN is stored in an EPROM and is isolated from fraudulent contact and tampering. Any attempt to change the ESN will render the portable phone inoperative. The phone complies with all requirements for ESN under Part 22.919. FCC ID: OVFKWC-KE4X4 Kyocera Wireless Corp.Page 4 of 47Model: KE414, KE424c 4 FCC Compliance Emergency 911 FCC § 22.921 When an emergency 911 call is originated by the …

Text truncated - open the document above for the full version.

Report No. SC301762-03 Page 1 of 13 Rev.No 1.0 TÜV AMERICA, INC. 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 RADIATED EMISSIONS DATA FOR KYOCERA WIRELESS 10300 Campus Point Drive San Diego, CA 92121 Prepared by TÜV AMERICA 10040 Mesa Rim Road San Diego, CA 92121-2912 Report No. SC301762-03 Page 2 of 13 Rev.No 1.0 TÜV AMERICA, INC. 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Measurement Requirements (CFR 47 Part 22, Paragraph 22.917(b)(2) and Part 24, Paragraph 24.238(a)) The following measurements were performed by TÜV America. To the best of my knowledge these tests were conducted in accordance with the procedures outlined in Part 2 of the Commission's Rules and Regulations. The data presented below demonstrates compliance with the appropriate technical standards. Floyd R. Fleury EMC Manager Report No. SC301762-03 Page 3 of 13 Rev.No 1.0 TÜV AMERICA, INC. 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Emissions Test Conditions: SPURIOUS RADIATED EMISSIONS Roof (small open area test site) The Spurious Radiated Emissions measurements were performed using the following equipment: Test Equipment Used: Model No. Prop. No. Description Manufacturer Serial No. Cal Date HP8566B 720 Spectrum Analyzer Hewlett Packard 2115A00842 07/02 Cable 1 731 30’ Cable United Microwave Prod -- NCR* Cable 2 756 10’ Cable United Microwave Prod -- NCR* Cable 3 6788 3’ Cable United Microwave Prod -- NCR* Cable 4 6790 40’ Cable United Microwave Prod -- NCR* HP8350B 6707 Sweep Signal Generator Hewlett Packard 2749A09420 NCR* AMF-5D-010180-35-10P 719 PreAmp TUV America 549460 NCR* 3115 453 Antenna, Horn Electro Mechanics Co 3564 01/03 3115 251 Antenna, Horn Electro Mechanics Co 2595 12/02 HP8481 726 Power Sensor Hewlett Packard 1926A27528 12/02 436A 775 Power Meter Hewlett Packard 1918A05312 09/02 FF6549-2 783 2000 MHz High Pass Filter Sage 008 NCR* FF6549-1 778 900 MHz High Pass Filter Sage 005 NCR* Remarks: One year calibration cycle for all test equipment and sites. (*) No Calibration Required. Report No. SC301762-03 Page 4 of 13 Rev.No 1.0 TÜV AMERICA, INC. 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Technical Documentation Test Data Sheets and Test Setups Report No. SC301762-03 Page 5 of 13 Rev.No 1.0 TÜV AMERICA, INC. 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC301762-03 Page 6 of 13 Rev.No 1.0 TÜV AMERICA, INC. 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Test setup for Substitution Method Spectrum Analyzer Preselector Preamp Sweep Signal Generator Report No. SC301762-03 Page 7 of 13 Rev.No 1.0 TÜV AMERICA, INC. 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC301762-03 Page 8 of 13 Rev.No 1.0 TÜV AMERICA, INC. 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC301762-03 Page 9 of 13 Rev.No 1.0 TÜV AMERICA, INC. 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC301762-03 Page 10 of 13 Rev.No 1.0 TÜV AMERICA, INC. 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Photograph of Test Setup Report No. SC301762-03 Page 11 of 13 Rev.No 1.0 TÜV AMERICA, INC. 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Photograph of Test Setup Report No. SC301762-03 Page 12 of 13 Rev.No 1.0 TÜV AMERICA, INC. 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Appendix Supplementa…
