FCC ID: OVFKWC-KX16 Kyocera Wireless Corp. 1 June 27, 2005 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re:Request of Confidentiality for FCC ID: OVFKWC-KX16 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), Kyocera Wireless Corp (KWC) hereby requests confidential and treatment of information accompanying this Application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also requesting Short-Term Confidentiality as outlined in Public Notice DA 04-1705. This provision will give KWC Temporary Confidentiality of commercially sensitive information prior to product launch. The requested Confidential and Temporary Confidential exhibits are listed in table 1 below: Table 1. Confidential and Short-Term Confidential ExhibitDescription 1Operation Descriptions 2Block diagrams 3Schematics Confidential 4Parts Lists 5Instruction Manual 7External Photos Short-Term Confidential 8Internal Photos The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Sincerely, Lin Lu Lin Lu Principal Engineer Kyocera Wireless Corp.

This document is generated in response to the queries asked in the e-mail from Compliance Certification Services titled “Kyocera Wireless Corp, FCC ID: OVFKWC-KX16, Assessment NO.: AN05T4910, Notice#1”. The queries asked in the e-mail received by Lin Lu on 8 th of July 2005 are listed below followed by the response the questions. X-BigFish: vpcs-19(z6cdjb7bjba6i519iz3117N128aO145fP3116J113eM200bkzzzzz2dh) From: Compliance Certification Services <[email protected]> To: "[email protected]" <[email protected]> Date: Fri, 08 Jul 2005 09:43:35 (GMT) X-mailer: AspMail 3.53 (QSMTC6B1AE) Subject: Kyocera Wireless Corp, FCC ID: OVFKWC-KX16, Assessment NO.: AN05T4910, Notice#1 X-MIME-Autoconverted: from quoted-printable to 8bit by mail2.intra.kyocera-wireless.com id CAA16775 Dear Lin Lu, I have reviewed the above referenced TCB application and find that the following item needs to be addressed before the review can be completed: The Internal and External Photos exhibit has an incorrect FCC ID. Please verify that the photos supplied are for this application and correct the FCC ID number. Please note that the FCC Pt. 15 Radiated Emissions provided in the NEMKO report document testing performed in accordance with the outdated standard ANSI C63.4:1992 (and some references to the 2001 version). The FCC has required current testing to the ANSI C63.4:2003 version of the standard. Please verify that the testing was performed in accordance with the current 2003 version of the ANSI C63.4 standard and update the test report (and templates). Please contact me if you have any questions. Best regards, Chris Harvey [email protected] Question #1: Please verify that the external and internal photos supplied are for this application. There were a couple of typos in the external and internal photo exhibits. The corrections have been made and the updated exhibits are attached with this response. Question #2: Please verify that the testing was performed in accordance with the current 2003 version of the ANSI C63.4 standard and update the test report. Nemko has informed that the test was performed according to the latest version of the ANSI C63.4. Nemko has updated the test report and their report template. The updated report is attached to this response.

FCC ID: OVFKWC-KX16 Kyocera Wireless Corp. 1 June 27, 2005 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular Transceiver Certification To Whom It May Concern: Kyocera Wireless Corporation (KWC) herein submits the Application for Equipment Authorization (FCC Form 731) and Exhibits for Certification of a Cellular Transceiver, FCC ID: OVFKWC-KX16. Applicant: Kyocera Wireless Corporation 10300 Campus Point Drive San Diego, CA 92121-1522 Manufacture: Kyocera Wireless Corporation 10300 Campus Point Drive San Diego, CA 92121 The equipment is for mobile station cellular system use. The OVFKWC-KX16 is in full compliance with all parts of EIA/TIA/IS-98-B&D Mobile Station-Land Station Compatibility Specification, issue July 2000 and March 2001, and also in full compliance with all parts of ANSI J-STD-08, Recommended Minimum Performance Requirements for 1.8 to 2 GHz Code Division Multiple Access (CDMA) Personal Stations, issue July 1996. Information concerning how the ESN protection requirements are met is provided in Exhibit 10. Please contact me at Tel: (858) 882-2406 or Email: [email protected] if there are any questions or if any additional information is needed. Kyocera Wireless Corporation Lin Lu Lin Lu Principal Engineer

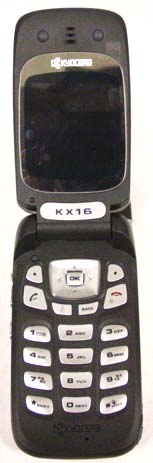

FCC ID: OVFKWC-KX16 External Photos Page 1 of 2 Model: KX16 Exhibit 7(revised): OVFKWC-KX16 External Photos FLIP CLOSED TOP AND BOTTOM VIEWS FLIP CLOSED SIDE VIEWS FLIP OPEN FCC ID: OVFKWC-KX16 External Photos Page 2 of 2 Model: KX16 TOP AND BOTTOM VIEWS FLIP OPEN SIDE VIEWS

FCC ID: OVFKWC-KX16 Label Information Page 1 of 1 Model: KX16 Exhibit 6: OVFKWC-KX16 ID Label Label Format Label Location

FCC ID: OVFKWC-KX16 Internal Photos Page 1 of 4 Model: KX16 Exhibit 8(revised): OVFKWC-KX16 Internal Photos FCC ID: OVFKWC-KX16 Internal Photos Page 2 of 4 Model: KX16 FCC ID: OVFKWC-KX16 Internal Photos Page 3 of 4 Model: KX16 FCC ID: OVFKWC-KX16 Internal Photos Page 4 of 4 Model: KX16

FCC ID: OVFKWC-KX16 SAR Report Page 1 of 25 Model: KX16 SAR Test Report on Dual-Band Tri-mode AMPS/CDMA Cellular Phone FCC Part 22 & 24 Certification FCC ID:OVFKWC-KX16 MODEL:KX16 DATE:June 30, 2005 STATEMENT OF COMPLIANCE Kyocera Wireless Corp declares under its sole responsibility that the product, FCC ID: OVFKWC- KX16 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines. It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted: NONE. Date of Test:June 21-25, 2005 Test performed by: Kyocera Wireless Corp 10300 Campus Point Drive San Diego, CA 92121 Report Prepared by:Fernando Calimbahin, Engineer Report Reviewed by:Lin Lu, Principal Engineer FCC ID: OVFKWC-KX16 SAR Report Page 2 of 25 Model: KX16 Table of Contents 1INTRODUCTION..........................................................................................................................................................................................3 2EQUIPMENT UNDER TEST (EUT)................................................................................................................................................................3 3PRODUCT DESCRIPTION..........................................................................................................................................................................4 4ACCESSORIES:...........................................................................................................................................................................................5 5SAR TEST RESULT SUMMARY...................................................................................................................................................................6 5.1MAXIMUM RESULTS FOUND DURING SAR EVALUATION..........................................................................................................................6 5.2HEAD CONFIGURATION...........................................................................................................................................................................6 5.3BODY WORN CONFIGURATION (WITH KWC BODY WORN ACCESSORIES).................................................................................................6 5.4MEASUREMENT UNCERTAINTY...............................................................................................................................................................6 6TEST CONDITIONS.....................................................................................................................................................................................7 6.1AMBIENT CONDITIONS............................................................................................................................................................................7 6.2RF CHARACTERISTICS OF THE TEST SITE....................................................................................................................................................7 6.3TEST SIGNAL, FREQUENCIES AND OUTPUT POWER.................................................................................................................................7 6.4DEVICE TEST CONDITIONS......................................................................................................................................................................7 7DESCRIPTION OF THE TEST EQUIPMENT...............................................................................................................................................8 7.1DOSIMETRIC SYSTEM...............................................................................................................................................................................8 7.2ADDITIONAL EQUIPMENT NEEDED IN VALIDATION..................................................................................................................................8 7.3TISSUE STIMULANTS...............................................................................................................................................................................8 7.4PHANTOMS DESCRIPTION........................................................................................................................................................................9 7.5ISOTROPIC E-FIELD PROBE.....................................................................................................................................................................9 8SYSTEM VALIDATION..............................................................................................................................................................................10 9DESCRIPTION OF THE TEST PROCEDURE............................................................................................................................................11 9.1TEST POSITIONS....................................................................................................................................................................................11 9.1.1Initial Ear Position......................................................................................................................................................................11 9.1.2Cheek Position.............................................................................................................................................................................12 9.1.3Tilt Position.................................................................................................................................................................................12 9.1.4Body Worn Configuration..............................................…

Text truncated - open the document above for the full version.

Appendix B1: SAR Distribution Plots (Head) FCC ID: OVFKWC-KX16 SAR Distribution PlotsPage 1 of 16Model: KX16 Date/Time: 06/24/05 11:28:13 Test Laboratory: Kyocera KX16 #5GPW AMPS Ch799 Left Cheek with Extended Battery Communication System: AMPS, Frequency: 848.97 MHz, Duty Cycle: 1:1 Medium: HSL900,Medium parameters used (interpolated): f = 848.97 MHz; σ = 0.901 mho/m; ε r = 41.5; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Left Section DASY4 Configuration: Probe: ET3DV6 - SN1713, ConvF(6.29, 6.29, 6.29), Calibrated: 5/19/2005 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn602,Calibrated: 8/27/2004 Measurement SW: DASY4, V4.4 Build 3 Postprocessing SW: SEMCAD, V1.8 Build 130 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C AMPS Ch799 LC/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13 V/m; Power Drift = -0.1 dB Peak SAR (extrapolated) = 1.7 W/kg SAR(1 g) = 1.25 mW/g; SAR(10 g) = 0.864 mW/g Info: Interpolated medium parameters used for SAR evaluation! 0 dB = 1.34mW/g FCC ID: OVFKWC-KX16 SAR Distribution PlotsPage 2 of 16Model: KX16 Date/Time: 06/24/05 11:28:13 Test Laboratory: Kyocera KX16 #5GPW AMPS ch383 Left Tilt with Extended Battery Communication System: AMPS, Frequency: 836.49 MHz, Duty Cycle: 1:1 Medium: HSL900,Medium parameters used (interpolated): f = 836.49 MHz; σ = 0.901 mho/m; ε r = 41.5; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Left Section DASY4 Configuration: Probe: ET3DV6 - SN1713, ConvF(6.29, 6.29, 6.29), Calibrated: 5/19/2005 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn602,Calibrated: 8/27/2004 Measurement SW: DASY4, V4.4 Build 3 Postprocessing SW: SEMCAD, V1.8 Build 130 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C AMPS Ch383 LT/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 14.2 V/m; Power Drift = -0.1 dB Peak SAR (extrapolated) = 0.558 W/kg SAR(1 g) = 0.432 mW/g; SAR(10 g) = 0.324 mW/g Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.459 mW/g 0 dB = 0.459mW/g FCC ID: OVFKWC-KX16 SAR Distribution PlotsPage 3 of 16Model: KX16 Date/Time: 06/21/05 13:57:17 Test Laboratory: Kyocera KX16 #5GPW AMPS Ch799 Right Cheek Communication System: AMPS, Frequency: 848.97 MHz, Duty Cycle: 1:1 Medium: HSL900,Medium parameters used (interpolated): f = 848.97 MHz; σ = 0.905 mho/m; ε r = 42.2; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Right Section DASY4 Configuration: Probe: ET3DV6 - SN1713, ConvF(6.29, 6.29, 6.29), Calibrated: 5/19/2005 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn602,Calibrated: 8/27/2004 Measurement SW: DASY4, V4.4 Build 3 Postprocessing SW: SEMCAD, V1.8 Build 130 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C AMPS Ch799 RC/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 14.2 V/m; Power Drift = 0.0 dB Peak SAR (extrapolated) = 1.98 W/kg SAR(1 g) = 1.43 mW/g; SAR(10 g) = 0.975 mW/g Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 1.53 mW/g 0 dB = 1.53mW/g FCC ID: OVFKWC-KX16 SAR Distribution PlotsPage 4 of 16Model: KX16 Date/Time: 06/24/05 15:05:47 Test Laboratory: Kyocera KX16 #5GPW AMPS Ch383 Right Tilt with Extended Battery Communication System: AMPS, Frequency: 836.49 MHz, Duty Cycle: 1:1 Medium: HSL900,Medium parameters used (interpolated): f = 836.49 MHz; σ = 0.901 mho/m; ε r = 41.5; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Right Section DASY4 Configuration: Probe: ET3DV6 - SN1713, ConvF(6.29, 6.29, 6.29), Calibrated: 5/19/2005 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn602,Calibrated: 8/27/2004 Measurement SW: DASY4, V4.4 Build 3 Postprocessing SW: SEMCAD, V1.8 Build 130 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C AMPS Ch383 RT/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 17.4 V/m; Power Drift = 0.1 dB Peak SAR (extrapolated) = 0.587 W/kg SAR(1 g) = 0.455 mW/g; SAR(10 g) = 0.348 mW/g Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.478 mW/g 0 dB = 0.478mW/g FCC ID: OVFKWC-KX16 SAR Distribution PlotsPage 5 of 16Model: KX16 FCC ID: OVFKWC-KX16 SAR Distribution PlotsPage 6 of 16Model: KX16 Date/Time: 06/24/05 02:43:32 Test Laboratory: Kyocera KX16 #5GPW CDMA-800 ch777, Left Cheek Communication System: CDMA-800, Frequency: 848.31 MHz, Duty Cycle: 1:1 Medium: HSL900,Medium parameters used (interpolated): f = 848.31 MHz; σ = 0.901 mho/m; ε r = 41.5; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Left Section DASY4 Configuration: Probe: ET3DV6 - SN1713, ConvF(6.29, 6.29, 6.29), Calibrated: 5/19/2005 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn602,Calibrated: 8/27/2004 Measurement SW: DASY4, V4.4 Build 3 Postprocessing SW: SEMCAD, V1.8 Build 130 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C CDMA-800 Ch777 LC/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.99 V/m; Power Drift = -0.1 dB Peak SAR (extrapolated) = 1.63 W/kg SAR(1 g) = 1.2 mW/g; SAR(10 g) = 0.829 mW/g Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 1.25 mW/g 0 dB = 1.25mW/g FCC ID: OVFKWC-KX16 SAR Distribution PlotsPage 7 of 16Model: KX16 Date/Time: 06/24/05 21:01:58 Test Laboratory: Kyocera KX16 #5GPW CDMA-800 ch383 Left Tilt, Extended Battery Communication System: CDMA-800, Frequency: 836.49 MHz, Duty Cycle: 1:1 Medium: HSL900,Medium parameters used (interpolated): f = 836.49 MHz; σ = 0.901 mho/m; ε r = 41.5; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Left Section DASY4 Configuration: Probe: ET3DV6 - SN1713, ConvF(6.29, 6.29, 6.29), Calibrated: 5/19/2005 Sensor-Surface: 4mm (Mechanical And Opt…

Text truncated - open the document above for the full version.

Appendix B2: SAR Distribution Plots (Body) FCC ID: OVFKWC-KX16 SAR Distribution Plots1 of 13Model: KX16 Date/Time: 06/22/05 10:21:27 Test Laboratory: Kyocera KX16 #5GPW AMPS Ch383 Flat Phone Open with 25mm Air Space Communication System: AMPS, Frequency: 836.49 MHz, Duty Cycle: 1:1 Medium: M900,Medium parameters used (interpolated): f = 836.49 MHz; σ = 0.929 mho/m; ε r = 55.7; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1713, ConvF(5.98, 5.98, 5.98), Calibrated: 5/19/2005 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn602,Calibrated: 8/27/2004 Measurement SW: DASY4, V4.4 Build 3 Postprocessing SW: SEMCAD, V1.8 Build 130 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C AMPS Ch383/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 25.9 V/m; Power Drift = 0.1 dB Peak SAR (extrapolated) = 0.963 W/kg SAR(1 g) = 0.752 mW/g; SAR(10 g) = 0.554 mW/g Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.794 mW/g 0 dB = 0.794mW/g FCC ID: OVFKWC-KX16 SAR Distribution Plots2 of 13Model: KX16 Date/Time: 06/25/05 12:34:40 Test Laboratory: Kyocera KX16 #5GPW AMPS ch799 FLAT phone open with Plastic Holster and Extended Battery Communication System: AMPS, Frequency: 848.97 MHz, Duty Cycle: 1:1 Medium: M900,Medium parameters used (interpolated): f = 848.97 MHz; σ = 0.924 mho/m; ε r = 55.6; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1713, ConvF(5.98, 5.98, 5.98), Calibrated: 5/19/2005 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn602,Calibrated: 8/27/2004 Measurement SW: DASY4, V4.4 Build 3 Postprocessing SW: SEMCAD, V1.8 Build 130 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C AMPS Ch799/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 34.9 V/m; Power Drift = -0.1 dB Peak SAR (extrapolated) = 1.38 W/kg SAR(1 g) = 1.06 mW/g; SAR(10 g) = 0.767 mW/g Info: Interpolated medium parameters used for SAR evaluation! 0 dB = 1.13mW/g FCC ID: OVFKWC-KX16 SAR Distribution Plots3 of 13Model: KX16 Date/Time: 06/22/05 11:44:14 Test Laboratory: Kyocera KX16 #5GPW AMPS Ch383 FLAT phone open with Leather Case Communication System: AMPS, Frequency: 836.49 MHz, Duty Cycle: 1:1 Medium: M900,Medium parameters used (interpolated): f = 836.49 MHz; σ = 0.929 mho/m; ε r = 55.7; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1713, ConvF(5.98, 5.98, 5.98), Calibrated: 5/19/2005 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn602,Calibrated: 8/27/2004 Measurement SW: DASY4, V4.4 Build 3 Postprocessing SW: SEMCAD, V1.8 Build 127 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C AMPS Ch383/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 25.3 V/m; Power Drift = 0.0 dB Peak SAR (extrapolated) = 0.820 W/kg SAR(1 g) = 0.623 mW/g; SAR(10 g) = 0.449 mW/g Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.666 mW/g 0 dB = 0.666mW/g FCC ID: OVFKWC-KX16 SAR Distribution Plots4 of 13Model: KX16 FCC ID: OVFKWC-KX16 SAR Distribution Plots5 of 13Model: KX16 Date/Time: 06/21/05 21:49:25 Test Laboratory: Kyocera KX16 #5GPW CDMA-800 Ch 777 Flat Phone Open with 25mm Air Space Communication System: CDMA-800, Frequency: 848.31 MHz, Duty Cycle: 1:1 Medium: M900,Medium parameters used (interpolated): f = 848.31 MHz; σ = 0.929 mho/m; ε r = 55.7; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1713, ConvF(5.98, 5.98, 5.98), Calibrated: 5/19/2005 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn602,Calibrated: 8/27/2004 Measurement SW: DASY4, V4.4 Build 3 Postprocessing SW: SEMCAD, V1.8 Build 130 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C CDMA-800 Ch777/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 29.2 V/m; Power Drift = 0.1 dB Peak SAR (extrapolated) = 1.15 W/kg SAR(1 g) = 0.893 mW/g; SAR(10 g) = 0.654 mW/g Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.945 mW/g 0 dB = 0.945mW/g FCC ID: OVFKWC-KX16 SAR Distribution Plots6 of 13Model: KX16 Date/Time: 06/22/05 02:56:41 Test Laboratory: Kyocera KX16 #5GPW CDMA-800 Ch777 Flat Phone Open with Belt Clip Communication System: CDMA-800, Frequency: 848.31 MHz, Duty Cycle: 1:1 Medium: M900,Medium parameters used (interpolated): f = 848.31 MHz; σ = 0.929 mho/m; ε r = 55.7; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1713, ConvF(5.98, 5.98, 5.98), Calibrated: 5/19/2005 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn602,Calibrated: 8/27/2004 Measurement SW: DASY4, V4.4 Build 3 Postprocessing SW: SEMCAD, V1.8 Build 130 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C CDMA-800 Ch777/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 33.1 V/m; Power Drift = -0.1 dB Peak SAR (extrapolated) = 1.45 W/kg SAR(1 g) = 1.14 mW/g; SAR(10 g) = 0.831 mW/g Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 1.2 mW/g 0 dB = 1.2mW/g FCC ID: OVFKWC-KX16 SAR Distribution Plots7 of 13Model: KX16 Date/Time: 06/22/05 03:35:37 Test Laboratory: Kyocera KX16 #5GPW CDMA-800 Ch383 Flat Phone Open with Leather Case Communication System: CDMA-800, Frequency: 836.49 MHz, Duty Cycle: 1:1 Medium: M900,Medium parameters used (interpolated): f = 836.49 MHz; σ = 0.929 mho/m; ε r = 55.7; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1713, ConvF(5.98, 5.98, 5.98), Calibrated: 5/19/2005 Sensor-…

Text truncated - open the document above for the full version.

FCC ID: OVFKWC-KX16 Appendix A: Validation Test Plots Validation Test PlotsPage 1 of 6Model: KX16 Date/Time: 06/21/05 08:59:09 Test Laboratory: Kyocera 835MHz [email protected], Probe#1713, DAE#602, Dipole#454, 06-21-05 Communi…
