D r a f t PAGE ii User Guide for the Kyocera Jet/Angel KX18 Phone This manual is based on the production version of the Kyocera KX18 phone. Software changes may have occurred after this printing. Kyocera reserves the right to make changes in technical and product specifications without prior notice. The products and equipment described in this documentation are manufactured under license from QUALCOMM Incorporated under one or more of the following U.S. patents: 4,901,307 5,109,390 5,267,262 5,416,797 5,506,865 5,544,196 5,657,420 5,101,501 5,267,261 5,414,796 5,504,773 5,535,239 5,600,754 5,778,338 5,228,054 5,337,338 5,710,784 5,056,109 5,568,483 5,659,569 5,490,165 5,511,073 The Kyocera Wireless Corp. (“KWC”) products described in this manual may include copyrighted KWC and third party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for KWC and third party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the KWC products may not be modified, reverse engineered, distributed or reproduced in any manner not permitted by law. Furthermore, the purchase of the KWC products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of KWC or any third party software provider, except for the normal, non- exclusive royalty-free license to use that arises by operation of law in the sale of a product. Kyocera is a registered trademark of Kyocera Corporation. Race 21 and Brick Attack are trademarks of Kyocera Wireless Corp. QUALCOMM is a registered trademark of QUALCOMM Incorporated. Openwave is a trademark of Openwave Systems Incorporated. eZiText is a registered trademark of Zi Corporation. TransFlash is a trademark of SanDisk Corporation. All other trademarks are the property of their respective owners. Copyright © 2005 Kyocera Wireless Corp. All rights reserved. Ringer Tones Copyright © 2000-2002 Kyocera Wireless Corp. 82-N8656-1EN, Rev. x1 FCC/IC Notice This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. To maintain compliance with FCC RF exposure guidelines, if you wear a handset on your body, use the Kyocera Wireless Corp. (KWC) supplied and approved case CV90-G2573-01 and holster CV90-G2958-01. Other accessories used with this device for body- worn operations must not contain any metallic components and must provide at least 25 mm separation distance including the antenna and the user’s body. THIS MODEL PHONE MEETS THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. PAGE iii The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg.* Tests for SAR are conducted using standard operating positions specified by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government-adopted requirement for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) as required by the FCC for each model. Body-worn measurements differ among phone models, depending upon availability of accessories and FCC requirements. While there may be differences between the SAR levels of various phones and at various positions, they all meet the government requirement for safe exposure. The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF emission guidelines. SAR information on this model phone is on file with the FCC and can be found under the Display Grant section http://www.fcc.gov/oet/fccid after searching on the FCC ID: OVFKWC-KX18. Additional information on SAR can be found on the Cellular Telecommunications and Internet Association (CTIA) web-site at http://www.wow-com.com . * In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/ kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements. Caution The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the warranty and user’s authority to operate the equipment. Optimize your phone’s performance Use the guidelines on page 2 to…
Text truncated - open the document above for the full version.
FCC ID: OVFKWC-KX18 Kyocera Wireless Corp. 1 September 9, 2005 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular Transceiver Certification To Whom It May Concern: Kyocera Wireless Corporation (KWC) herein submits the Application for Equipment Authorization (FCC Form 731) and Exhibits for Certification of a Cellular Transceiver, FCC ID: OVFKWC-KX18. Applicant: Kyocera Wireless Corporation 10300 Campus Point Drive San Diego, CA 92121-1522 Manufacture: Kyocera Wireless Corporation 10300 Campus Point Drive San Diego, CA 92121 The equipment is for mobile station cellular system use. The OVFKWC-KX18 is in full compliance with all parts of EIA/TIA/IS-98-B&D Mobile Station-Land Station Compatibility Specification, issue July 2000 and March 2001, and also in full compliance with all parts of ANSI J-STD-08, Recommended Minimum Performance Requirements for 1.8 to 2 GHz Code Division Multiple Access (CDMA) Personal Stations, issue July 1996. Information concerning how the ESN protection requirements are met is provided in Exhibit 10. Please contact me at Tel: (858) 882-2406 or Email: [email protected] if there are any questions or if any additional information is needed. Kyocera Wireless Corporation Lin Lu Lin Lu Principal Engineer
Chris Harvey From: Lin Lu [[email protected]] Sent: Friday, October 14, 2005 6:31 PM To: Chris Harvey; 'Mike Kuo' Cc: [email protected]; [email protected] Subject: Re: Fwd: CDMA2000 modes and IS-95 compatibility Page 1 of 2 10/17/2005 Chris, The Exhibit 1 submitted in both original applications, OVFKWC-KX160B (AN05T5152) and OVFKWC-KX18 (AN05T5169), has addressed to your questions in the email below. In summary, both KX160B and KX18 operate in the CDMA mode specified in IS-2000.2 standard, release 0. They support radio configuration 1 and 3. For RC 1, the creation of s(t) (signal) nets an identical waveform to the waveform created in the legacy IS-95B system / standard. Thus, backwards compatibility is insured. For RC 3, s(t) differs in a manner as described in the Exhibit 1, section 9.2. However, even though the composite waveform differs, the resultant is still based upon Spreading Rate 1 using the direct-sequence CDMA technique as defined in IS-2000.2, release 0. Thus the 3dB bandwidth is still 1.25MHz, and all of the channels share the same CDMA frequency assignment, as in the legacy 95B system. In other words, for RC3, SR1 in IS-2000, the frequency response is identical to the legacy IS-95 B system standard. Therefore, configuring the test device in either RC1 or RC3 is a valid test condition for all of FCC measurements. Hope this helps. Thanks, Lin Lu X-BigFish: vpcs-10(z519izfa7M4015Mzzzzc40lz2dh34M) From: "Chris Harvey" <[email protected]> To: "'C.K. Li'" <[email protected]> Cc: "'Mike Kuo'" <[email protected]> Subject: CDMA2000 modes and IS-95 compatibility Date: Tue, 11 Oct 2005 07:24:54 -0400 X-Mailer: Microsoft Outlook, Build 10.0.4510 Importance: High CK, the FCC has been clarifying their position on the CDMA2000 modes that are considered non-new- technology. The FCC has indicated that they consider CDMA2000 RC1 and RC2 as old technology since they are IS-95 compatible and all other modes are new technology. I see that your devices use the following: RC3 Reverse Fundamental Channel and demodulation of RC 4, 5 or 5 RC3 Reverse Fundamental Channel, RC3 Reverse Supplement Channel 0 and demodulation of RC 3, 4 or 5 (AN05T5152 & AN05T5169) I am trying to confirm from you if these modes are considered IS-95 compatible, and thus old technology, or if these are considered new technology. Please provide further assistance so we can get these resolved. Thanks, Chris Chris Harvey Chris Harvey EMC Consultants, Inc. [email protected] cell 443-622-3300 Page 2 of 2 10/17/2005
FCC ID: OVFKWC-KX18 Kyocera Wireless Corp. 1 September 9, 2005 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re:Request of Confidentiality for FCC ID: OVFKWC-KX18 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), Kyocera Wireless Corp (KWC) hereby requests confidential and treatment of information accompanying this Application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also requesting Short-Term Confidentiality as outlined in Public Notice DA 04-1705. This provision will give KWC Temporary Confidentiality of commercially sensitive information prior to product launch. The requested Confidential and Temporary Confidential exhibits are listed in table 1 below: Table 1. Confidential and Short-Term Confidential ExhibitDescription 1Operation Descriptions 2Block diagrams 3Schematics Confidential 4Parts Lists 5Instruction Manual 7External Photos Short-Term Confidential 8Internal Photos The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Sincerely, Lin Lu Lin Lu Engineer, Principal Kyocera Wireless Corp.

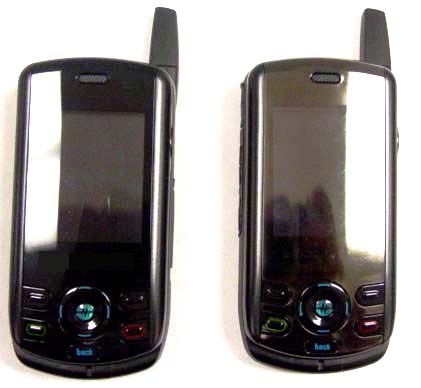

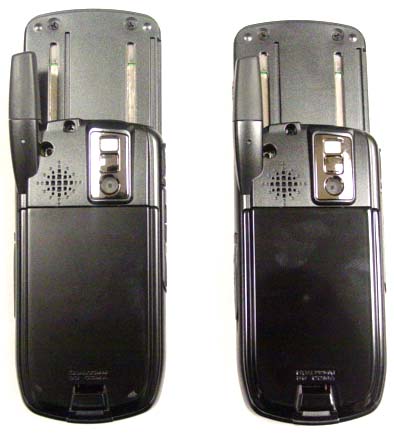

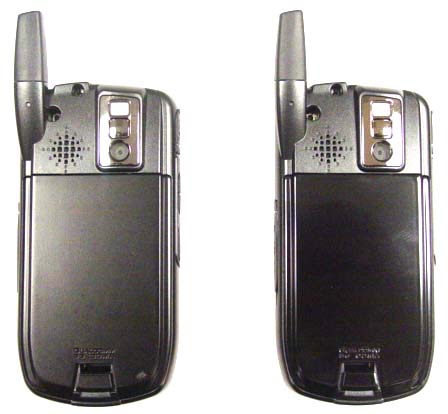

FCC ID: OVFKWC-KX18 External Photos Page 1 of 3 Model: KX18 Exhibit 7: OVFKWC-KX18 External Photos TOP CLOSED BOTTOM CLOSED FCC ID: OVFKWC-KX18 External Photos Page 2 of 3 Model: KX18 TOP OPEN BOTTOM OPEN FCC ID: OVFKWC-KX18 External Photos Page 3 of 3 Model: KX18 SIDES CLOSED AND OPEN
FCC ID: OVFKWC-KX18 Label Information Page 1 of 1 Model: KX18 Exhibit 6: OVFKWC-KX18 ID Label Label Format Label Location
FCC ID: OVFKWC-KX18 Internal Photos Page 1 of 5 Model: KX18 Exhibit 8: OVFKWC-KX18 Internal Photos FCC ID: OVFKWC-KX18 Internal Photos Page 2 of 5 Model: KX18 FCC ID: OVFKWC-KX18 Internal Photos Page 3 of 5 Model: KX18 FCC ID: OVFKWC-KX18 Internal Photos Page 4 of 5 Model: KX18 FCC ID: OVFKWC-KX18 Internal Photos Page 5 of 5 Model: KX18
FCC ID: OVFKWC-KX18 SAR Report Page 1 of 25 Model: KX18 SAR Test Report on Dual-Band Dual-mode CDMA 800/1900 Cellular Phone FCC Part 22 & 24 Certification FCC ID:OVFKWC-KX18 MODEL:KX18 DATE:September 8, 2005 STATEMENT OF COMPLIANCE Kyocera Wireless Corp declares under its sole responsibility that the product, FCC ID: OVFKWC- KX18 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines. It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted: NONE. Date of Test:August 30 – September 6, 2005 Test performed by: Kyocera Wireless Corp 10300 Campus Point Drive San Diego, CA 92121 Report Prepared by:Fernando Calimbahin, Engineer Report Reviewed by:Lin Lu, Principal Engineer FCC ID: OVFKWC-KX18 SAR Report Page 2 of 25 Model: KX18 Table of Contents 1INTRODUCTION..........................................................................................................................................................................................3 2EQUIPMENT UNDER TEST (EUT)................................................................................................................................................................3 3PRODUCT DESCRIPTION..........................................................................................................................................................................4 4ACCESSORIES:...........................................................................................................................................................................................5 5SAR TEST RESULT SUMMARY...................................................................................................................................................................6 5.1MAXIMUM RESULTS FOUND DURING SAR EVALUATION..........................................................................................................................6 5.2HEAD CONFIGURATION...........................................................................................................................................................................6 5.3BODY WORN CONFIGURATION (WITH KWC BODY WORN ACCESSORIES).................................................................................................7 5.4MEASUREMENT UNCERTAINTY...............................................................................................................................................................7 6TEST CONDITIONS.....................................................................................................................................................................................8 6.1AMBIENT CONDITIONS............................................................................................................................................................................8 6.2RF CHARACTERISTICS OF THE TEST SITE....................................................................................................................................................8 6.3TEST SIGNAL, FREQUENCIES AND OUTPUT POWER.................................................................................................................................8 6.4DEVICE TEST CONDITIONS......................................................................................................................................................................8 7DESCRIPTION OF THE TEST EQUIPMENT...............................................................................................................................................9 7.1DOSIMETRIC SYSTEM...............................................................................................................................................................................9 7.2ADDITIONAL EQUIPMENT NEEDED IN VALIDATION..................................................................................................................................9 7.3TISSUE STIMULANTS...............................................................................................................................................................................9 7.4PHANTOMS DESCRIPTION......................................................................................................................................................................10 7.5ISOTROPIC E-FIELD PROBE...................................................................................................................................................................10 8SYSTEM VALIDATION..............................................................................................................................................................................11 9DESCRIPTION OF THE TEST PROCEDURE............................................................................................................................................12 9.1TEST POSITIONS....................................................................................................................................................................................12 9.1.1Initial Ear Position......................................................................................................................................................................12 9.1.2Cheek Position.............................................................................................................................................................................13 9.1.3Tilt Position.................................................................................................................................................................................13 9.1.4Body Worn Configuration..........................…
Text truncated - open the document above for the full version.
Appendix A: Validation Test Plots FCC ID: OVFKWC-KX18 Validation Tests PlotsPage 1 of 8Model: KX18 Date/Time: 08/30/05 00:36:36 Test Laboratory: Kyocera 835MHz [email protected], Probe#1713, DAE#530, Dipole#454 Communication System: CW, Frequency: 835 MHz, Duty Cycle: 1:1 Medium: HSL900,Medium parameters used: f = 835 MHz; σ = 0.916 mho/m; ε r = 43; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1713, ConvF(6.29, 6.29, 6.29), Calibrated: 5/19/2005 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn530,Calibrated: 1/4/2005 Measurement SW: DASY4, V4.4 Build 3 Postprocessing SW: SEMCAD, V1.8 Build 130 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C Validation Flat/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 36 V/m; Power Drift = -0.0 dB Peak SAR (extrapolated) = 1.53 W/kg SAR(1 g) = 1.03 mW/g; SAR(10 g) = 0.667 mW/g 0 dB = 1.11mW/g FCC ID: OVFKWC-KX18 Validation Tests PlotsPage 2 of 8Model: KX18 Date/Time: 08/31/05 00:35:08 Test Laboratory: Kyocera 835MHz [email protected], Probe#1713, DAE#530, Dipole#454 Communication System: CW, Frequency: 835 MHz, Duty Cycle: 1:1 Medium: HSL900,Medium parameters used: f = 835 MHz; σ = 0.91 mho/m; ε r = 42.5; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1713, ConvF(6.29, 6.29, 6.29), Calibrated: 5/19/2005 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn530,Calibrated: 1/4/2005 Measurement SW: DASY4, V4.4 Build 3 Postprocessing SW: SEMCAD, V1.8 Build 130 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C Validation Flat/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 35.9 V/m; Power Drift = 0.005 dB Peak SAR (extrapolated) = 1.57 W/kg SAR(1 g) = 1.03 mW/g; SAR(10 g) = 0.666 mW/g Maximum value of SAR (measured) = 1.13 mW/g 0 dB = 1.13mW/g FCC ID: OVFKWC-KX18 Validation Tests PlotsPage 3 of 8Model: KX18 Date/Time: 09/01/05 00:32:24 Test Laboratory: Kyocera 835MHz [email protected], Probe#1713, DAE#530, Dipole#454 Communication System: CW, Frequency: 835 MHz, Duty Cycle: 1:1 Medium: HSL900,Medium parameters used: f = 835 MHz; σ = 0.909 mho/m; ε r = 42.5; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1713, ConvF(6.29, 6.29, 6.29), Calibrated: 5/19/2005 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn530,Calibrated: 1/4/2005 Measurement SW: DASY4, V4.4 Build 3 Postprocessing SW: SEMCAD, V1.8 Build 130 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C Validation Flat/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 36.2 V/m; Power Drift = -0.0 dB Peak SAR (extrapolated) = 1.54 W/kg SAR(1 g) = 1.03 mW/g; SAR(10 g) = 0.667 mW/g Maximum value of SAR (measured) = 1.11 mW/g 0 dB = 1.11mW/g FCC ID: OVFKWC-KX18 Validation Tests PlotsPage 4 of 8Model: KX18 Date/Time: 09/01/05 17:40:56 Test Laboratory: Kyocera 1900MHz Validation, Probe 1713, DAE 530, Dipole #5d005 Communication System: CW 1900, Frequency: 1900 MHz, Duty Cycle: 1:1 Medium: HSL1800,Medium parameters used (interpolated): f = 1900 MHz; σ = 1.43 mho/m; ε r = 40.9; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1713, ConvF(5.18, 5.18, 5.18), Calibrated: 5/19/2005 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn530,Calibrated: 1/4/2005 Measurement SW: DASY4, V4.4 Build 3 Postprocessing SW: SEMCAD, V1.8 Build 130 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C 1900Mhz/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 61.3 V/m; Power Drift = -0.001 dB Peak SAR (extrapolated) = 7.58 W/kg SAR(1 g) = 4.29 mW/g; SAR(10 g) = 2.26 mW/g Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 4.83 mW/g 0 dB = 4.83mW/g FCC ID: OVFKWC-KX18 Validation Tests PlotsPage 5 of 8Model: KX18 Date/Time: 09/02/05 00:28:02 Test Laboratory: Kyocera 1900MHz Validation, Probe 1713, DAE 530, Dipole #5d005 Communication System: CW 1900, Frequency: 1900 MHz, Duty Cycle: 1:1 Medium: HSL1800,Medium parameters used (interpolated): f = 1900 MHz; σ = 1.37 mho/m; ε r = 41.2; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1713, ConvF(5.18, 5.18, 5.18), Calibrated: 5/19/2005 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn530,Calibrated: 1/4/2005 Measurement SW: DASY4, V4.4 Build 3 Postprocessing SW: SEMCAD, V1.8 Build 130 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C 1900Mhz/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 62.5 V/m; Power Drift = -0.0 dB Peak SAR (extrapolated) = 7.25 W/kg SAR(1 g) = 4.24 mW/g; SAR(10 g) = 2.26 mW/g Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 4.8 mW/g 0 dB = 4.8mW/g FCC ID: OVFKWC-KX18 Validation Tests PlotsPage 6 of 8Model: KX18 Date/Time: 09/03/05 00:33:12 Test Laboratory: Kyocera 1900MHz Validation, Probe 1713, DAE 530, Dipole #5d005 Communication System: CW 1900, Frequency: 1900 MHz, Duty Cycle: 1:1 Medium: HSL1800,Medium parameters used (interpolated): f = 1900 MHz; σ = 1.39 mho/m; ε r = 40.9; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1713, ConvF(5.18, 5.18, 5.18), Calibrated: 5/19/2005 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn530,Calibrated: 1/4/2005 Measurement SW: DASY4, V4.4 Build 3 Postprocessing SW: SEMCAD, V1.8 Build 130 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C 1900Mhz/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 61.7 V/m…
Text truncated - open the document above for the full version.
Appendix B1: SAR Distribution Plots (Head) FCC ID: OVFKWC-KX18 SAR Distribution Plots HeadPage 1 of 19Model: KX18 Date/Time: 08/30/05 15:35:48 Test Laboratory: Kyocera KX18 #K3YN, CDMA-800 ch777 Left Cheek, Phone Open Communication System: CDMA-800, Frequency: 848.31 MHz, Duty Cycle: 1:1 Medium: HSL900,Medium parameters used (interpolated): f = 848.31 MHz; σ = 0.916 mho/m; ε r = 43; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Left Section DASY4 Configuration: Probe: ET3DV6 - SN1713, ConvF(6.29, 6.29, 6.29), Calibrated: 5/19/2005 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn530,Calibrated: 1/4/2005 Measurement SW: DASY4, V4.4 Build 3 Postprocessing SW: SEMCAD, V1.8 Build 130 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C CDMA-800 ch777 LC/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 17.1 V/m; Power Drift = -0.1 dB Peak SAR (extrapolated) = 1.54 W/kg SAR(1 g) = 1.13 mW/g; SAR(10 g) = 0.802 mW/g Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 1.21 mW/g 0 dB = 1.21mW/g FCC ID: OVFKWC-KX18 SAR Distribution Plots HeadPage 2 of 19Model: KX18 Date/Time: 08/30/05 15:35:48 Test Laboratory: Kyocera KX18 #K3YN, CDMA-800 ch383, Left Tilt, Phone Open Communication System: CDMA-800, Frequency: 836.49 MHz, Duty Cycle: 1:1 Medium: HSL900,Medium parameters used (interpolated): f = 836.49 MHz; σ = 0.916 mho/m; ε r = 43; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Left Section DASY4 Configuration: Probe: ET3DV6 - SN1713, ConvF(6.29, 6.29, 6.29), Calibrated: 5/19/2005 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn530,Calibrated: 1/4/2005 Measurement SW: DASY4, V4.4 Build 3 Postprocessing SW: SEMCAD, V1.8 Build 130 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C CDMA-800 ch383 LT/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 14.2 V/m; Power Drift = -0.007 dB Peak SAR (extrapolated) = 0.539 W/kg SAR(1 g) = 0.430 mW/g; SAR(10 g) = 0.318 mW/g Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.453 mW/g 0 dB = 0.453mW/g FCC ID: OVFKWC-KX18 SAR Distribution Plots HeadPage 3 of 19Model: KX18 Date/Time: 08/31/05 01:53:27 Test Laboratory: Kyocera KX18 #K3YN, CDMA-800 ch777 Right Cheek, Phone Open Communication System: CDMA-800, Frequency: 848.31 MHz, Duty Cycle: 1:1 Medium: HSL900,Medium parameters used (interpolated): f = 848.31 MHz; σ = 0.91 mho/m; ε r = 42.5; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Right Section DASY4 Configuration: Probe: ET3DV6 - SN1713, ConvF(6.29, 6.29, 6.29), Calibrated: 5/19/2005 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn530,Calibrated: 1/4/2005 Measurement SW: DASY4, V4.4 Build 3 Postprocessing SW: SEMCAD, V1.8 Build 130 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C CDMA-800 Ch777 RC/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 18.5 V/m; Power Drift = -0.2 dB Peak SAR (extrapolated) = 1.31 W/kg SAR(1 g) = 0.975 mW/g; SAR(10 g) = 0.699 mW/g Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 1.04 mW/g 0 dB = 1.04mW/g FCC ID: OVFKWC-KX18 SAR Distribution Plots HeadPage 4 of 19Model: KX18 Date/Time: 08/31/05 01:53:27 Test Laboratory: Kyocera KX18 #K3YN, CDMA-800 ch383 Right Tilt, Phone Open Communication System: CDMA-800, Frequency: 836.49 MHz, Duty Cycle: 1:1 Medium: HSL900,Medium parameters used (interpolated): f = 836.49 MHz; σ = 0.91 mho/m; ε r = 42.5; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Right Section DASY4 Configuration: Probe: ET3DV6 - SN1713, ConvF(6.29, 6.29, 6.29), Calibrated: 5/19/2005 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn530,Calibrated: 1/4/2005 Measurement SW: DASY4, V4.4 Build 3 Postprocessing SW: SEMCAD, V1.8 Build 130 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C CDMA-800 Ch383 RT/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 17.1 V/m; Power Drift = -0.0 dB Peak SAR (extrapolated) = 0.548 W/kg SAR(1 g) = 0.441 mW/g; SAR(10 g) = 0.332 mW/g Info: Interpolated medium parameters used for SAR evaluation! 0 dB = 0.460mW/g FCC ID: OVFKWC-KX18 SAR Distribution Plots HeadPage 5 of 19Model: KX18 Date/Time: 08/31/05 20:00:20 Test Laboratory: Kyocera KX18 #K3YN, CDMA-800 ch1013 Left Cheek, Phone Closed Communication System: CDMA-800, Frequency: 824.7 MHz, Duty Cycle: 1:1 Medium: HSL900,Medium parameters used (interpolated): f = 824.7 MHz; σ = 0.91 mho/m; ε r = 42.5; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Left Section DASY4 Configuration: Probe: ET3DV6 - SN1713, ConvF(6.29, 6.29, 6.29), Calibrated: 5/19/2005 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection), Electronics: DAE4 Sn530,Calibrated: 1/4/2005 Measurement SW: DASY4, V4.4 Build 3 Postprocessing SW: SEMCAD, V1.8 Build 130 Temperature: Room T = 21.8 +/− 1 deg C, Liquid T = 22.0 +/− 1 deg C CDMA-800 Ch1013 LC/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 29 V/m; Power Drift = -0.2 dB Peak SAR (extrapolated) = 1.25 W/kg SAR(1 g) = 0.952 mW/g; SAR(10 g) = 0.702 mW/g Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 1 mW/g 0 dB = 1mW/g FCC ID: OVFKWC-KX18 SAR Distribution Plots HeadPage 6 of 19Model: KX18 Date/Time: 08/31/05 20:00:20 Test Laboratory: Kyocera KX18 #K3YN, CDMA-800 ch383 Left Tilt, Phone Closed Communication System: CDMA-800, Frequency: 836.49 MHz, Duty Cycle: 1:1 Medium: HSL900,Medium parameters used (interpolated): f = 836.49 MHz; σ = 0.91 mho/m; ε r = 42.5; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Left Section DASY4 Configuration: P…
Text truncated - open the document above for the full version.
| # | Rule Parts | Frequency Range | Power Output | Emission | Tolerance |
|---|---|---|---|---|---|
| 2 | 22H | 824.7 MHz - 848.31 MHz | 177.00 mW | 1M25F9W | 2.5 ppm |
