OVFQCP-2035Tri-mode Mobile Phone

Exhibit 21 User’s Guide User’s Guide for QCP™ 2008 and QCP™ 2035 phones This manual is based on the production versions of the QCP 2008 and QCP 2035 phones. Software changes may have occurred after this printing. Kyocera reserves the right to make changes in technical and product specifications without prior notice. The products and equipment described in this documentation are manufactured under license from QUALCOMM Incorporated under one or more of the following U.S. patents:4,901,307 5,056,109 5,099,204 5,101,501 5,103,4595,107,225 5,109,390 5,193,094 5,228,054 5,257,2835,265,119 5,267,261 5,267,262 5,280,472 5,283,5365,289,527 5,307,405 5,309,474 5,337,338 5,339,0465,341,456 5,383,219 5,392,287 5,396,516 D356,5605,408,697 5,414,728 5,414,796 5,416,797 5,426,3925,437,055 D361,065 5,442,322 5,442,627 5,452,4735,461,639 5,469,115 5,469,471 5,471,497 5,475,8705,479,475 5,483,696 5,485,486 5,487,175 5,490,1655,497,395 5,499,280 5,504,773 5,506,865 5,509,0155,509,035 5,511,067 5,511,073 5,513,176 5,515,1775,517,323 5,519,761 5,528,593 5,530,928 5,533,0115,535,239 5,539,531 5,544,196 5,544,223 5,546,4595,548,812 5,559,881 5,559,865 5,561,618 5,564,0835,566,000 5,566,206 5,566,357 5,568,483 5,574,7735,574,987 D375,740 5,576,662 5,577,022 5,577,265D375,937 5,588,043 D376,804 5,589,756 5,590,0695,590,406 5,590,408 5,592,548 5,594,718 5,596,5705,600,754 5,602,834 5,602,833 5,603,096 5,604,4595,604,730 5,608,722 5,614,806 5,617,060 5,621,7525,621,784 5,621,853 5,625,876 5,627,857 5,629,9555,629,975 5,638,412 5,640,414 5,642,398 5,644,5915,644,596 5,646,991 5,652,814 5,654,979 5,655,2205,657,420 5,659,569 5,663,807 5,666,122 5,673,2595,675,581 5,675,644 5,680,395 5,687,229 D386,1865,689,557 5,691,974 5,692,006 5,696,468 5,697,0555,703,902 5,704,001 5,708,448 5,710,521 5,710,7585,710,768 5,710,784 5,715,236 5,715,526 5,722,0445,722,053 5,722,061 5,722,063 5,724,385 5,727,1235,729,540 5,732,134 5,732,341 5,734,716 5,737,6875,737,708 5,742,734 D393,856 5,748,104 5,751,7255,751,761 5,751,901 5,754,533 5,754,542 5,754,733 5,757,767 5,757,858 5,758,266 5,761,204 5,764,6875,774,496 5,777,990 5,778,024 5,778,338 5,781,5435,781,856 5,781,867 5,784,406 5,784,532 5,790,5895,790,632 5,793,338 D397,110 5,799,005 5,799,2545,802,105 5,805,648 5,805,843 5,812,036 5,812,0945,812,097 5,812,538 5,812,607 5,812,651 5,812,9385,818,871 5,822,318 5,825,253 5,828,348 5,828,6615,835,065 5,835,847 5,839,052 5,841,806 5,842,1245,844,784 5,844,885 5,844,899 5,844,985 5,848,0635,848,099 5,850,612 5,852,421 5,854,565 5,854,7865,857,147 5,859,612 5,859,838 5,859,840 5,861,8445,862,471 5,862,474 5,864,760 5,864,763 5,867,5275,867,763 5,870,427 5,870,431 5,870,674 5,872,4815,872,774 5,872,775 5,872,823 5,877,942 5,878,0365,870,631 5,881,053 5,881,368 5,884,157 5,884,1935,884,196 5,892,178 5,892,758 5,892,774 5,892,8165,892,916 5,893,035 D407,701 5,898,920 5,903,5545,903,862 D409,561 5,907,167 5,909,434 5,910,7525,911,128 5,912,882 D410,893 5,914,950 5,915,2355,917,708 5,917,811 5,917,812 5,917,837 5,920,284D411,823 5,923,650 5,923,705 5,926,143 5,926,4705,926,500 5,926,786 5,930,230 5,930,692Other patents pending.Kyocera is a US-registered trademark and QCP is a trademark of Kyocera Corporation. QUALCOMM is a registered trademark and registered service mark of QUALCOMM Incorporated. Other product and brand names may be trademarks or registered trademarks of their respective owners.Copyright © 2000 Kyocera Wireless Corp. All rights reserved. Printed in the United States of America. 80-B6426-1EN 8VHU ¶V*X LGH IRU WKH 4&3   DQ G4 &3  S KR QHV LLL Contents1 Features of the QCP 2008 and QCP 2035 Phone 1 Menus . . . . . . . . . . . . . . . . . . . . . . . 2 2 Getting Started. . . . . . . . . . . . . . . . 3 To turn on the phone . . . . . . . . . . 3To turn off the phone . . . . . . . . . . 3To find your phone number . . . . 3To make a call . . . . . . . . . . . . . . . . 3To end a call . . . . . . . . . . . . . . . . . . 3To answer a call . . . . . . . . . . . . . . . 3To silence the ringer/alert . . . . . . 4To lock the keypad . . . . . . . . . . . . 4To unlock the keypad . . . . . . . . . . 4To adjust the volume . . . . . . . . . . 4Screen icons . . . . . . . . . . . . . . . . . . 5 3 Battery . . . . . . . . . . . . . . . . . . . . . . . 7 4 Using the Contacts directory . . . . 9To save a phone number . . . . . . . 9Speed dial and 1-Touch Dial . . . 12Contact cards . . . . . . . . . . . . . . . . 14To delete a contact card . . . . . . . 15To search the Contacts directory 15To enter letters, numbers and punctuation marks . . . . . . . . . . . 17 5 Settings . . . . . . . . . . . . . . . . . . . . . 21Silence All . . . . . . . . . . . . . . . . . . . 23Keyguard . . . . . . . . . . . . . . . . . . . 23To turn keyguard off . . . . . . . . . 24Sounds . . . . . . . . . . . . . . . . . . . . . 24Display . . . . . . . . . . . . . . . . . . . . . 24Security . . . . . . . . . . . . . . . . . . . . . 25Call Information . . . . . . . . . . . . . 26Network . . . . . . . . . . . . . . . . . . . . 27Extras . . . . . . . . . . . . . . . . . . . . . . 29Messaging . . . . . . . . . . . . . . . . . . 30Accessories . . . . . . . . . . . . . . . . . . 32 6 Tools . . . . . . . . . . . . . . . . . . . . . . . 35 Web Browser . . . . . . . . . . . . . . . . 35Alarm Clock . . . . . . . . . . . . . . . . . 37Calculator . . . . . . . . . . . . . . . . . . . 37Tip Calculator . . . . . . . . . . . . . . . 38Bust Out game . . . . . . . . . . . . . . . 39Stopwatch . . . . . . . . . . . . . . . . . . . 39Countdown Timer . . . . . . . . . . . 39 7 Troubleshooting . . . . . . . . . . . . . 41 8 Phone care and safety. . . . . . . . . 45 Glossary . . . . . . . . . . . . . . . . . . . . . . . . 49 User’s Guide for the QCP 2008 and QCP 2035 phones 1 1 Features of the QCP 2008 and QCP 2035 Phone Erases the last character in or moves to the previous menu.Adjusts volume when on a call, scrolls up, down, left or right through lists and menus, and positions the…

Text truncated - open the document above for the full version.

Cover Letter Federal Communications Commission Authorization and Evaluation Division Re:Application for Cellular and PCS Transceiver Type Acceptance Kyocera Wireless Corporation (KWC) herein submits the Application for Equipment Authorization (FCC Form 731) and Exhibits for Type Acceptance of a Cellular & PCS Transceiver, FCC ID: OVFQCP-2035. Applicant:Kyocera Wireless Corporation 10290 Campus Point Drive San Diego, CA 92121-1522 Manufacture:Kyocera Wireless Corporation 10290 Campus Point Drive San Diego, California 92121 The equipment, KWC model # QCP 2035, is for mobile station cellular and PCS system use. The QCP 2035 is in full compliance with all parts of EIA/TIA/IS-98-B Mobile Station-Land Station Compatibility Specification, issue July 1998, and also in full compliance with all parts of ANSI J-STD-018, Recommended Minimum Performance Requirements for 1.8 to 2 GHz Code Division Multiple Access (CDMA) Personal Stations, issue July 1996. Information concerning how the ESN protection requirements are met is provided in Exhibit 3. Kyocera Wireless Corporation Lin Lu EMC Engineer, staff

Federal Communications Commission Authorization and Evaluation Division Re:TO CORRECT EQUIPMENT SPECIFICATIONS There are some errors occurred while we were filling form 731 under FCC ID: OVFQCP-2035. We would like to correct them as follows. Item 12. Equipment Specifications Line 1:Frequency range (MHz): 824.04 - 848.97 Rated power (W): 0.6 Frequency tolerance: 2.5ppm Emission designator: 40K0F8W Line 2:Frequency range (MHz): 824.04 - 848.97 Rated power (W): 0.6 Frequency tolerance: 2.5ppm Emission designator: 40K0F1D Line 3:Frequency range (MHz): 824.04 - 848.97 Rated power (W): 0.4 Frequency tolerance: 2.5ppm Emission designator: 1M25F9W Line 4:Frequency range (MHz): 1851.25 - 1908.75 Rated power (W): 0.3 Frequency tolerance: 2.5ppm Emission designator: 1M25F9W Thanks. Kyocera Wireless Corp. Lin Lu, Regulatory Engineer, Staff Tel: (858) 882-2406 email: [email protected]

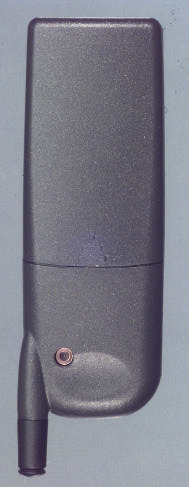

External Photos Front Rear Side A Side B Top Bottom Removable Cover off Battery Cover off

FCC ID: OVFQCP-2035 Photo of the FCC ID (Actual size): Photo of the FCC ID (Enlarged): The FCC ID will be located in the battery compartment.

Internal Photos All Boards Shroud Front Shroud Back Key Board Front Key Board Front with LCD off Metalized Frame Main Board Front with Frame Main Board Front Main Broad Back Main Board Back with shield off

Applicant: KWC Corp. FCC ID: OVFQCP-2035 Tune-up procedure over the power range All frequency and power adjustments are set at the factory and there are no field adjustments for his product. Under digital mode, frequency is locked to the base station and controlled by CTCXO adjustments to offset any possible errors.

Kyocera Wireless Corp. QCP 2035 SPECIFIC ABSORPTION RATE (SAR) REPORT Company Kyocera Wireless Corp. Document No. QCP-2035 SAR REPORT Issue No:Date April 2000 Equipment QCP-2035 Page Number 2 File Ref: CONTENTS 1 INTRODUCTION.................................................................................................................3 2 SAR TEST FACILITY..........................................................................................................4 3 APPLICABLE REGULATIONS........................................................................................4 4 SAR TEST RESULTS SUMMARY...................................................................................4 5 TECHNICAL DESCRIPTION.............................................................................................5 5.1 DESCRIPTION OF SAR TEST FACILITY .......................................................................................................6 5.2 SAR SYSTEM THEORY......................................................................................................................................9 6 TEST SAMPLE OPERATION..........................................................................................11 7 SAR TEST SYSTEM VALIDATION........................................................ 8 SAR MEASUREMENT PROCEDURE 9 SAR MEASUREMENT UNCERTAINTY 10 TEST DATA SUMMARY 11SAR PLOTS 12 PHOTOS Company Kyocera Wireless Corp. Document No. QCP-2035 SAR REPORT Issue No:Date April 2000 Equipment QCP-2035 Page Number 3 File Ref: 1INTRODUCTION This test report describes an environmental evaluation measurement of specific absorption rate (SAR) distribution in simulated human head tissues exposed to radio frequency (RF) radiation from a wireless portable device manufactured by Kyocera Wireless Corp. (KWC). These measurements were performed for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). The testing was performed in April 2000 in the QCP Inc. SAR Test Facility. The wireless device is described as follows; EUT Type:Trimode, CDMA(PCS), CDMA and Analog (Cellular) Phone Trade Name:Kyocera Wireless Corp. Model:QCP-2035 Tx Frequency :824.04 – 848.97 and 1851.25 – 1908.75 MHz Max. Output Power:28.9 dBm ERP Analog (in cellular band) 27.62 dBm ERP Digital (in cellular band) 26.74 dBm EIRP Digital (in PCS band) Modulation:CDMA and Analog Antenna:Retracting whip w/ helix FCC Classification:Non-Broadcast Transmitter Held to Ear Application Type:Certification Serial Number :17908726126 Place of Test:QCP Inc., San Diego, CA, USA Date of Test:April 10-17, 2000 FCC Rule Part:47 CFR 2.1093; OET Bulletin 65, Sup. C; 47 CFR 22; 47 CFR 24 Company Kyocera Wireless Corp. Document No. QCP-2035 SAR REPORT Issue No:Date April 2000 Equipment QCP-2035 Page Number 4 File Ref: 2SAR TEST FACILITY SAR tests were performed in the QCP Inc. SAR Test Facility located at the following address: QCP Inc. Building AA. 10290 Campus Point Drive San Diego CA 92121-1522 3APPLICABLE REGULATIONS The QCP-2035 is designed to comply with the specific absorption rate SAR limits for distances within 20 cm of the transmitting elements of the mobile phone, and with general public uncontrolled environment Maximum Permissible Exposure (MPE) limits at distances greater than 20 cm from the transmitting elements of the device, as required by Sections 1.1307 through 1.1310, 2.1091 and 2.1093 of the 47 C.F.R. (1997). These FCC RF safety limits, which are based on a hybrid combination of the SAR and MPE requirements from ANSI/IEEE C95.1-1992 and the National Council on Radiation Protection and Measurements (NCRP) report no. 86, are also consistent with the RF safety limits defined in the IRPA Guidelines on Protection Against Non- Ionizing Radiation which are reportedly in the process of being adopted in Europe, as codified in European Pre-Standard ENV 59166-2 approved by CENELEC (1994). This test report pertains specifically to the following limit from the Code of Federal Regulations 47, Part 2 “Limits for General Population/Uncontrolled exposure: 0.08 W/kg as averaged over the whole-body and spatial peak SAR not exceeding 1.6 W/kg as averaged over any 1 gram of tissue (defined as a tissue volume in the shape of a cube). Exceptions are the hands, wrists, feet and ankles where the spatial peak SAR shall not exceed 4 W/kg, as averaged over any 10 grams of tissue (defined as a tissue volume in the shape of a cube).” Company Kyocera Wireless Corp. Document No. QCP-2035 SAR REPORT Issue No:Date April 2000 Equipment QCP-2035 Page Number 5 File Ref: 4 SAR TEST RESULTS SUMMARY This device has been tested for localised specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1 ~ 1992 and has been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3 ~ 1992 . Normal antenna operating positions were incorporated, with the device transmitting at frequencies consistent with normal usage of the device. The device has been shown to be capable of compliance for localised specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE std. C95.1- 1992 5TECHNICAL DESCRIPTION The test sample consisted of a KWC QCP-2035. This model will operate in CDMA PCS, CDMA and analog cellular mode. The CDMA PCS mode is designed to transmit in the 1851.25 – 1908.75 MHz band at a maximum EIRP of 26.74 dBm. The cellular FM AMPS mode is designed to transmit in the 824.04 – 848.97 MHz band at a maximum ERP of 28.9 dBm. The cellular CDMA mode is designed to transmit in the 824.04 – 848.97 MHz band at a maximum output power of 27.62 dBm. The QCP-2035 is a tri-mode and dual band cellular/PCS phone. The antenna is a standard retracting whip antenna tuned for dual frequency, with a helix antenna that is at the base of the whip which gets activated when the whip is retracted. Since either position i…

Text truncated - open the document above for the full version.

This document was generated in response to a request for additional technical information by Andy Laimer in regards to the type approval of the QCP-2035. The information included in related to the six specific topics discussed in the following email received by Lin Lu on May 19, 2000: Date: Fri, 19 May 2000 13:12:38 -0400 From: [email protected] (OET) Message-Id: <[email protected]> To: [email protected] Subject: SAR Request for Technical Information Content-Type: text X-UIDL: e0e5b93798e9b7374ea2b34a06867718 To: Lin Lu, QCP Inc. From: Andy Leimer [email protected] FCC Application Processing Branch Re: FCC ID OVFQCP-2035 Applicant: Kyocera Wireless Corp Correspondence Reference Number: 13865 731 Confirmation Number: EA97351 Date of Original E-Mail: 05/08/2000 To complete the SAR review please provide the following: KYOCERA EA97351 SAR RT 1) The EMC Test Report only gives values for Conducted, ERP, and EIRP power levels. Provide a description of how these tests were performed and provide the data sheets or a table showing the data. 2) The body-worn configuration tested use conductivity and permativity parameters for brain tissue. Muscle tissue parameters should be used for body-worn configuration. Retest for body-worn configuration with muscle equivalent parameters and appropriate probe calibration for those parameters OR provide a paragraph showing SAR compliance by explaining the effects of muscle tissue parameters on the current data. 3) Provide the separation distance used while testing for body-worn data. Please provide a new set of test set-up photos that are larger than the original photos. Photos should be approximately a half page in size. The photos should clearly show the separation distance between the phone and the phantom. If any accessories are not included with the device, only belt clips and holsters containing no metallic parts in the assembly can be used with the device providing that they keep the device separation from the body as specified in the test. The manual should have a statement similar to the following example: "To comply with FCC radiation exposure requirements, use of this device for body-worn operational configurations is limited to accessories tested and approved by the manufacturer. Other belt-clips, holsters, or similar accessories used with this device for body-worn operations must not contain any metallic components and must provide at least xx cm (as specified in the SAR test report) separation distance including the antenna and the users body". 4) The specific operating requirements for body-worn SAR compliance must be included in the users manual for users to comply, indicating that it is for FCC RF exposure compliance and non-tested accessories may not comply and should be avoided. Upload the relevant pages of the manual. 5) Confirm the conducted power output used in SAR testing for AMPS mode. 6) For the body-worn configuration the antenna is oriented on the wrong side. Submit new body-worn plots with the correct antenna orientation. 1) Conducted, ERP and EIRP Power Measurement Method and Data table Phone QCP-2035 was set to nominal manufacture conducted power level by using phone_t, KWC phone control software. The analog RF output power (conducted) was measured using a HP 8920B RF communication test set. The CDMA RF output power (conducted) was measured using a HP 8594E Spectrum Analyzer that has the CDMA personality option. The ERP/EIRP was measured in the antenna range (anechonic chamber). See the pictures below for the setup. We first set QCP-2035 conducted power level using phone_t software, then mount it on PVC pipe inside the chamber, rotate the phone 360degree in azimuth and elevation. The horn antenna receives the handset signal from 2.5 meters away. The computer will record the maximum radiated power taking into consideration of all path losses. The entire measurement was controlled by 959 automated antenna measurement workstation software by Flam & Russel Inc. Photo of ERP/EIRP test setup Diagram Block of ERP/EIRP Test Setup Anechonic Chamber HPIB line QCP-2035 Horn Ant. 160 inches Giga-tronic 8541C Univeral Power meter PCPositioner controller The nominal manufacture power levels were used for EMC tests required in 47 CFR Part 22 and Part 24. For SAR test, the conducted power level was set 1dB higher than the nominal power level to surely include the manufacture tolerance (0.75dB). The SAR test data shows that the tri- mode phone QCP-2035 meet SAR requirement (1.6mW/g) in the worst case. Power test results are shown in the tables below. Nominal power measurement results (as shown in the original Part 22 and Part 24 EMC test report) – Table 1: Nominal conducted power measurement results - Cellular RF output power (W or dBm) - Cellular Measured carrier frequency (MHz) channelFMCDMA 824.049910.446 W26.49 dBm 824.710130.318 W25.02 dBm 836.493830.449 W26.52 dBm0.320 W25.05 dBm 848.317770.317 W25.01 dBm 848.977990.446 W26.49 dBm Table 2: Nominal conducted power measurement results - PCS RF output power (W or dBm) - PCS carrier frequency (MHz) channelCDMA measured 1851.25250.159 W22.01 dBm 18806000.160 W22.04 dBm 1908.7511750.158 W21.98 dBm Table 3: Radiated power (ERP) corresponding to Table 1 RF output power ERP (W or dBm) – Cellular Measured carrier frequency (MHz) channel FM CDMA 824.049910.619 W27.92 dBm 824.710130.43926.42 dBm 836.493830.582 W27.65 dBm0.40426.06 dBm 848.317770.44726.5 dBm 848.977990.631 W28 dBm Table 4: Radiated power (EIRP) corresponding to Table 2 RF output power EIRP (W or dBm) - PCS carrier frequency (MHz) channelCDMA measured 1851.25250.26924.3 dBm 18806000.30924.9 dBm 1908.7511750.29924.76 dBm Measured Power used for SAR test – Table 5: Conducted power used for SAR test - Cellular RF output power (W or dBm) - Cellular Measured carrier frequency (MHz) channelFMCDMA 824.0499127.55 dBm 824.7101326.24 dBm 836.4938327.61 dBm26.81 dBm 848.3177726.31 dBm 848.9779927.48 dBm Table 6: Conducted pow…

Text truncated - open the document above for the full version.

Applicant: KWC Corp.FCC ID: OVFQCP-2035 Cover Letter Federal Communications Commission Authorization and Evaluation Division Re:Application for Cellular and PCS Transceiver Type Acceptance Kyocera Wireless Corporation (KWC) herein submits the Application for Equipment Authorization (FCC Form 731) and Exhibits for Type Acceptance of a Cellular & PCS Transceiver, FCC ID: OVFQCP-2035. Applicant:Kyocera Wireless Corporation 10290 Campus Point Drive San Diego, CA 92121-1522 Manufacture:Kyocera Wireless Corporation 10290 Campus Point Drive San Diego, California 92121 The equipment, KWC model # QCP 2035, is for mobile station cellular and PCS system use. The QCP 2035 is in full compliance with all parts of EIA/TIA/IS-98-B Mobile Station- Land Station Compatibility Specification, issue July 1998, and also in full compliance with all parts of ANSI J-STD-018, Recommended Minimum Performance Requirements for 1.8 to 2 GHz Code Division Multiple Access (CDMA) Personal Stations, issue July 1996. Information concerning how the ESN protection requirements are met is provided in Exhibit 3. Kyocera Wireless Corporation Lin Lu EMC Engineer, staff Applicant: KWC Corp.FCC ID: OVFQCP-2035 Request of Confidentiality Federal Communications Commission Authorization and Evaluation Division Re:Request of Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Description All schematics/block diagrams All parts lists The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Kyocera Wireless Corporation Lin Lu EMC Engineer, staff Applicant: KWC Corp.FCC ID: OVFQCP-2035 List of Exhibits ExhibitDescriptionFCC Reference 1Certification of Test Data2.911 2General Information2.1033(c), 2.1061, 3ESN Protection22.919 4RF Output Power Measured Data - Cellular2.1046 5RF Output Power Measured Data - PCS2.1046, 24.232 6Modulation Audio Response Measured Data2.1047(a) 7Modulation Limiting Measured Data2.1047(b), 22.917 8Occupied Bandwidth and Spurious Emission Measured Data - Cellular 2.1049, 22.917 9Occupied Bandwidth and Spurious Emission Measured Data - PCS 2.1049, 24.238 10Conducted Harmonics Emissions Measured Data - Cellular2.1051, 22.917, 22.901(d) 11Conducted Harmonics Emissions Measured Data - PCS2.1051, 24.238 12Radiated Spurious and Harmonics Emissions Measured Data2.1053 13Frequency Stability vs. Temperature and Voltage Measured Data - Cellular 2.1055 14Frequency Stability vs. Temperature and Voltage Measured Data - PCS 2.1055, 24.235 15Measurement Procedures and Techniques 16FCC Letter of Site Recognition 17List of Semiconductor Devices2.1033(c) 18Circuit Diagram2.1033(c) 19Identification (Labels) Information2.1033(c) 20Photographs2.1033(c) 21User’s Manual2.1033(c) 22SAR data2.1093 Applicant: KWC Corp.FCC ID: OVFQCP-2035 Exhibit 1 Certification of Test Data The data, data evaluation and equipment configuration represented herein are a true and accurate representation of the measurements of the sample’s radio frequency interference emissions characteristics as of the dates and at the times of the test under the conditions herein specified. This applies to all tests that where performed that did not require an Open Area Test Site (OATS). Tests that required an OATS site were performed by TUV Product Services. Equipment Tested: QCP-2035 Dates of Test:March 1 – April 10 2000 Test Performed by: EMC Engineer, Staff: Lin Lu Applicant: KWC Corp.FCC ID: OVFQCP-2035 Exhibit 2 General Information 1.Production Plans Quantity Production Planned 2.Technical Description - Section 2.1033 (c) (1) The full name and mailing address of the manufacturer of the device and the applicant Applicant:Kyocera Wireless Corporation 10290 Campus Point Drive San Diego, CA 92121 Manufacture:Kyocera Wireless Corporation 10290 Campus Point Drive San Diego, CA92121 (2) FCC Identifier FCC ID: OVFQCP-2035 (3) User’s Manual See exhibit 21 (4) Types of Emission 40K0F8W 40K0F1D 1M25F9W F3E voice F3D supervisory audio tones, signaling tones F1D wideband data signal (5)Frequency range The frequency range of the equipment in Domestic Public Cellular Radio Telecommunications Service bands, 824 - 849 MHz and 869 - 894 MHz for FM and cellular CDMA. The channel spacing is 30 kHz for FM. The frequency range of the equipment in the Personal Communications Services (PCS) bands, 1850 – 1910 MHz and 1930 – 1990 MHz. The channel spacing is 1.25 MHz for CDMA. (6)Operating power levels The transmitter output power is independent of whether the equipment operates in the cellular system FM or CDMA mode, or PCS system CDMA mode. The equipment supports Class 3 Cellular Mobile Station Power Class, Applicant: KWC Corp.FCC ID: OVFQCP-2035 and Class 2 PCS Mobile Station Power Class. Its power output capability is reported to the Land Station via Station Class Mark. The equipment will respond to commands from the Land Station to change power levels as defined in the EIA/TIA/IS-98 and ANSI J-STD-018 Specification. (7)Maximum output power The equipment supports the maximum output power for Class 3 Cellular Mobile Station which is -2 dBW ERP for a FM mode and in the range of -7 dBW to 0 dBW ERP for a CDMA mode, and meets the 7 W ERP (+8.45 dBW) maximum power limitation of Section 22.913. The equipment supports the maximum output power for Class 2 PCS Mobile Station which is in the range of -7dBW to 0 dBW EIRP, and is within the limited 2 watts E.I.R.P. peak power of CFR 47 Part 24.232 (b). The equipment is able to limit the output power to the minimum necessary for successful communic…

Text truncated - open the document above for the full version.

TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. 0153-03 Page 1 of 14 Rev.No 1.0 RADIATED EMISSIONS DATA FOR QUALCOMM, INC. 10300 Campus Point Drive San Diego, CA 92121 Prepared by TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. 0153-03 Page 2 of 14 Rev.No 1.0 Measurement Requirements (CFR 47 Part 2, Paragraph 2.1053 & Part 22, Paragraph 22.917, Part 24, Paragraph 24.238 The measurements which follow were performed by TÜV Product Service. To the best of my knowledge these tests were conducted in accordance with the procedures outlined in Part 2 of the Commission's Rules and Regulations. The data presented below demonstrates compliance with the appropriate technical standards. _____________________________ Floyd R. Fleury EMC Manager TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. 0153-03 Page 3 of 14 Rev.No 1.0 Emissions Test Conditions: SPURIOUS RADIATED EMISSIONS Roof (small open area test site) The Spurious Radiated Emissions measurements were performed using the following equipment: Test Equipment Used : Model No.Prop. No.DescriptionManufacturerSerial No.Cal Date 8566B720/721Spectrum Analyzer & DisplayHewlett Packard2311A0220903/01 AA-190-10.00.0656High Frequency CableUnited Microwave Prod. --N/A* AA-190-30.00.0664High Frequency CableUnited Microwave Prod. --N/A* 3115251Double Ridge AntennaEMCO249510/00 FF6549-2782High Pass FilterSage Laboratories007N/A* FF6549-1778900 MHz HPFSage006N/A* AFD3-0208-40-ST367PreamplifierMiteq155382N/A* AFS4-08001800-70-10P-4368PreamplifierMiteq167N/A* Remarks:(*) Verified TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. 0153-03 Page 7 of 14 Rev.No 1.0 Testing Facilities Certificates of Approval TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. 0153-03 Page 12 of 14 Rev.No 1.0 Photograph of Test Setup TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. 0153-03 Page 13 of 14 Rev.No 1.0 Photograph of Test Setup TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. 0153-03 Page 14 of 14 Rev.No 1.0 Photograph of Test Setup
