OVFQCP-6035Portable Cellular Phone

Applicant: KWC Corp.FCC ID: OVFQCP-6035 Request of Confidentiality Federal Communications Commission Authorization and Evaluation Division Re:Request of Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Description All schematics/block diagrams All parts lists The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Kyocera Wireless Corporation Lin Lu EMC Engineer, staff

Applicant: KWC Corp.FCC ID: OVFQCP-6035 Cover Letter Federal Communications Commission Authorization and Evaluation Division Re:Application for Cellular and PCS Transceiver Type Acceptance Kyocera Wireless Corporation (KWC) herein submits the Application for Equipment Authorization (FCC Form 731) and Exhibits for Type Acceptance of a Cellular & PCS Transceiver, FCC ID: OVFQCP-6035. Applicant:Kyocera Wireless Corporation 10290 Campus Point Drive San Diego, CA 92121-1522 Manufacture:Kyocera Wireless Corporation 10300 Campus Point Drive San Diego, California 92121 The equipment, KWC model # QCP 6035, is for mobile station cellular and PCS system use. The QCP 6035 is in full compliance with all parts of EIA/TIA/IS-98-B Mobile Station-Land Station Compatibility Specification, issue July 1998, and also in full compliance with all parts of ANSI J- STD-018, Recommended Minimum Performance Requirements for 1.8 to 2 GHz Code Division Multiple Access (CDMA) Personal Stations, issue July 1996. Information concerning how the ESN protection requirements are met is provided in Exhibit 3. Kyocera Wireless Corporation Lin Lu EMC Engineer, staff

This document was generated in response to a request for additional technical information by Joe Dichoso in regards to the type approval of the QCP-6035. The information included in related to the three specific topics discussed in the following email received by Lin Lu on September 26, 2000: X-Mailer: Novell GroupWise 5.5.2 Date: Tue, 26 Sep 2000 16:49:45 -0400 From: "Joe Dichoso" <[email protected]> To: <[email protected]> Subject: Use reference number # 16296 when submitting in electronic file. Mime-Version: 1.0 Content-Disposition: inline Content-Type: text/plain; charset=US-ASCII X-UIDL: bc5fc6136dbb4baea0def025edb7b374 1) Indicate compliance with the new E911 requirements in Section 22.921. 2) Provide the operational desciption as indicated in the confidential letter. 3) The ERP in the CDMA mode in the Cellular band is actually 533 mW while you requested only 500 mW. The RF safety review is pending. Any questions will be forwarded as soon as possible. 1) Indicate compliance with the new E911 requirements in Section 22.921 QCP-6035 is compliant with E911 requirement specified in CFR 47, Section 22.921. The following capture is taken from QCP-6035 compatibility software application notes. FCC compliance Emergency 911 When an emergency 911 call is originated by the user, the mobile will attempt to acquire any available system and originate the emergency call on that system, disregarding restrictions set by the roaming list. The FCC NPRM WT99-13, CC94-102 automatic analog A/B roaming option has been implemented for 911 emergency calls. Note that the QCP-6035 does not have Global Positioning System (GPS) support. 2) Provide the operational description as indicated in the confidential letter The technique description has been mistakenly added to the confidentiality list. It is located in the Exhibit 2, Section 2 and should not have been held in confidence. This letter is to inform you that you may take the internal photos off the confidential listing and allow then to be released to the public. 3) The ERP in the CDMA mode in the Cellular band is actually 533 mW while you requested only 500 mW In CDMA mode in the cellular band, the 500 mW is the normal power set by manufactory. The 533 mW is the highest power over the band in the measurement. We would like to request to change the ERP level in the CDMA mode in the cellular band for QCP-6035 from 500 mW to 533 mW.

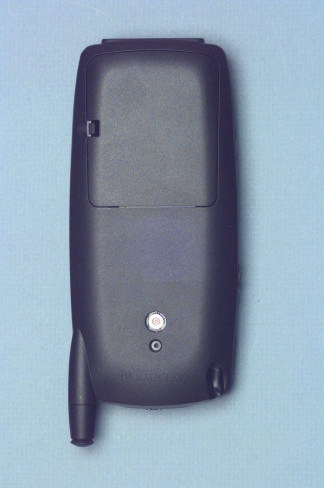

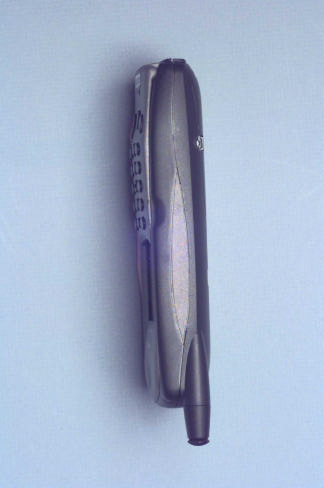

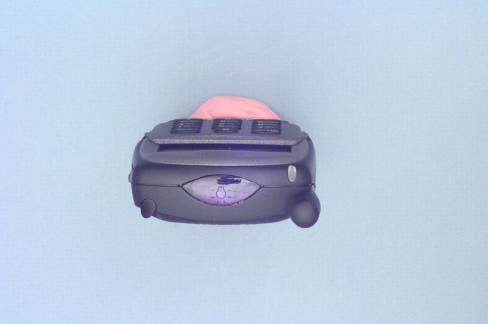

Exhibit 20 External Photo Front (w/ the flip closed) Front (w/ the flip open) Back Side View Top View Bottom View

Exhibit 19 FCC ID: OVFQCP-6035 Photo of the FCC ID: The label will be located in the battery compartment.

Exhibit 20 - Internal Photo LCD Front LCD Back PDA front PDA Back RF Module Front RF Module Back Shielding Between PDA Board and RF Module – Side A Shielding Between PDA Board and RF Module – Side B Front Housing Inside Back Housing Inside Assembly Photo

Kyocera Wireless Corp. QCP 6035 SPECIFIC ABSORPTION RATE (SAR) REPORT Company Kyocera Wireless Corp. Document No. QCP-6035 SAR REPORT Issue No:Date August 2000 Equipment QCP-6035 Page Number 2 File Ref: CONTENTS 1INTRODUCTION..................................................................................................................................................3 2SAR TEST FACILITY...........................................................................................................................................4 3APPLICABLE REGULATIONS...........................................................................................................................4 4SAR TEST RESULTS SUMMARY.......................................................................................................................4 5TECHNICAL DESCRIPTION..............................................................................................................................5 5.1DESCRIPTION OF KWC SAR TEST FACILITY...............................................................................................5 6TEST SAMPLE OPERATION............................................................................................................................11 7SAR TEST SYSTEM VALIDATION..................................................................................................................14 8SAR MEASUREMENT PROCEDURE...............................................................................................................18 9SAR MEASUREMENT UNCERTAINTY..........................................................................................................18 10TEST DATA SUMMARY....................................................................................................................................20 11SAR PLOTS..........................................................................................................................................................23 12PHOTOS...............................................................................................................................................................24 Company Kyocera Wireless Corp. Document No. QCP-6035 SAR REPORT Issue No:Date August 2000 Equipment QCP-6035 Page Number 3 File Ref: 1INTRODUCTION This test report describes an environmental evaluation measurement of specific absorption rate (SAR) distribution in simulated human head tissues exposed to radio frequency (RF) radiation from a wireless portable device manufactured by Kyocera Wireless Corp. (KWC). These measurements were performed for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). The testing was performed in August 2000 in the KWC SAR Test Facility. The wireless device is described as follows; EUT Type:Trimode, CDMA(PCS), CDMA and Analog (Cellular) Phone Trade Name:Kyocera Wireless Corp. Model:QCP-6035 Tx Frequency :824.04 – 848.97 and 1851.25 – 1908.75 MHz Max. Output Power:28.27 dBm ERP Analog (in cellular band) 28.12 dBm ERP Digital (in cellular band) 27.44 dBm EIRP Digital (in PCS band) Modulation:CDMA and Analog Antenna:Retracting whip w/ helix FCC Classification:Non-Broadcast Transmitter Held to Ear Application Type:Certification Serial Number :X00193D0292 Place of Test:KWC, San Diego, CA, USA Date of Test:August 1-4, 2000 FCC Rule Part:47 CFR 2.1093; OET Bulletin 65, Sup. C; 47 CFR 22; 47 CFR 24 Company Kyocera Wireless Corp. Document No. QCP-6035 SAR REPORT Issue No:Date August 2000 Equipment QCP-6035 Page Number 4 File Ref: 2SAR TEST FACILITY SAR tests were performed in the KWC SAR Test Facility located at the following address: QCP Inc. Building AA. 10290 Campus Point Drive San Diego CA 92121-1522 3APPLICABLE REGULATIONS The QCP-6035 is designed to comply with the specific absorption rate SAR limits for distances within 20 cm of the transmitting elements of the mobile phone, and with general public uncontrolled environment Maximum Permissible Exposure (MPE) limits at distances greater than 20 cm from the transmitting elements of the device, as required by Sections 1.1307 through 1.1310, 2.1091 and 2.1093 of the 47 C.F.R. (1997). These FCC RF safety limits, which are based on a hybrid combination of the SAR and MPE requirements from ANSI/IEEE C95.1-1992 and the National Council on Radiation Protection and Measurements (NCRP) report no. 86, are also consistent with the RF safety limits defined in the IRPA Guidelines on Protection Against Non-Ionizing Radiation which are reportedly in the process of being adopted in Europe, as codified in European Pre-Standard ENV 59166-2 approved by CENELEC (1994). This test report pertains specifically to the following limit from the Code of Federal Regulations 47, Part 2 “Limits for General Population/Uncontrolled exposure: 0.08 W/kg as averaged over the whole- body and spatial peak SAR not exceeding 1.6 W/kg as averaged over any 1 gram of tissue (defined as a tissue volume in the shape of a cube). Exceptions are the hands, wrists, feet and ankles where the spatial peak SAR shall not exceed 4 W/kg, as averaged over any 10 grams of tissue (defined as a tissue volume in the shape of a cube).” 4 SAR TEST RESULTS SUMMARY This device has been tested for localised specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1 ~ 1992 and has been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3 ~ 1992 . Normal antenna operating positions were incorporated, with the device transmitting at frequencies consistent with normal usage of the device. The device has been Company Kyocera Wireless Corp. Document No. QCP-6035 SAR REPORT Issue No:Date August 2000 Equipment QCP-6035 Page Number 5 File Ref: shown to be capable of compliance for localised specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE st…

Text truncated - open the document above for the full version.

This document was generated in response to a request for additional technical information by Joe Dichoso in regards to the type approval of the QCP-6035. The information included in related to the two specific topics discussed in the following email received by Jay Moulton on September 5, 2000: >Date: Tue, 5 Sep 2000 13:35:05 -0400 >From: [email protected] (OET) >To: [email protected] >Subject: RF safety only. > >To: Jay Moulton, Kyocera Wireless Corp >From: Joe Dichoso > [email protected] > FCC Application Processing Branch > >Re: FCC ID OVFQCP-6035 >Applicant: Kyocera Wireless Corp >Correspondence Reference Number: 15914 >731 Confirmation Number: EA98452 >Date of Original E-Mail: 09/05/2000 > > >Place your reply in the RF exposure info folder. A technical review is pending. > >Kyocera, EA 98452- > >1. Body-worn SAR was tested with a specific Kyocera belt-clip accessory. >The proposed body-worn RF exposure info (in the manual) suggests use of >other belt-clip or similar accessories with no metallic component is OK >provided they can maintain 22.75 mm separation. The use of other belt-clips >with the proposed conditions will require separate body-worn SAR testing >with the proposed separation distance (without any belt-clip). Existing >body-worn SAR results using a specific belt-clip, if containing any metallic >component in its assembly, would typically result in different SAR >distributions than others with different separation distance or component >assembly. Please revise the proposed statement to indicate other >belt-clips, holsters or similar accessories that have not been tested for >body-worn SAR may not comply with FCC RF exposure limit and should be avoided. > >2. Please submit a photo of the belt-clip tested with this device for SAR >compliance. 1) SAR with 22.75 mm separation when phone is worn on torso To verify that the QCP-6035 is indeed SAR compliant with 22.75 mm separation between the closet point of the handset and the phantom, waist SAR testing was re- performed without a belt clip for both FM and PCS modes. HP85070B dielectric measurement system was used to calibrate muscle tissue. The dielectric data sheets of muscle are attached at the end of this report. SAR plots are attached in the proceeding pages. The table below shows the parameters of muscle tissue specified in OET bulletin 65. Parameters of brain and muscle tissue FrequencyPermittivityConductivity (S/m) Notes Muscle900 MHz56.10.95specified by OET bulletin 65, supplemental C Muscle1800 MHz541.45specified by OET bulletin 65, supplemental C. The test results are summarized in the table below. Body-worn SAR measurement results with 22.75 mm air separetion Channel/ModeSAR (mW/g) (antenna retracted) SAR (mW/g) (antenna extended) CH 383 - FM0.3610.536 CH 799 - FM0.5270.567 CH 991 - FM0.6850.547 CH 25 - PCS0.1680.198 CH 600 - PCS0.1810.196 CH 1175 - PCS0.1770.205 The plots are in the proceeding pages. QCP-6035, Waist SAR, FM ch383 SAR (1g): 0.361 [mW/g] ± 0.19 dB, SAR (10g): 0.269 [mW/g] ± 0.18 dB Cubes (2) (Worst-case extrapolation) Generic Twin Phantom; Flat Section Probe: ET3DV5 - SN1348; ConvF(5.72,5.72,5.72) Muscle 900 MHz: σ = 0.94 [mho/m] ε r = 56.1 ρ = 1.00 [g/cm 3 ] File Name: T2 #0292, FM ch383, waist, 9-14-00.DA3 Powerdrift: -0.59 dB SAR Tot [mW/g] 3.02E-2 9.06E-2 1.51E-1 2.11E-1 2.72E-1 QCP-6035, Waist SAR, FM ch383 SAR (1g): 0.536 [mW/g] ± 0.08 dB, SAR (10g): 0.377 [mW/g] ± 0.34 dB Cubes (2) (Worst-case extrapolation) Generic Twin Phantom; Flat Section Probe: ET3DV5 - SN1348; ConvF(5.72,5.72,5.72) Muscle 900 MHz: σ = 0.94 [mho/m] ε r = 56.1 ρ = 1.00 [g/cm 3 ] File Name: T2 #0292, FM ch383, waist, 9-14-00.DA3 Powerdrift: 0.21 dB SAR Tot [mW/g] 5.27E-2 1.58E-1 2.64E-1 3.69E-1 4.74E-1 QCP-6035, Waist SAR, FM ch799 SAR (1g): 0.527 [mW/g] ± 0.20 dB, SAR (10g): 0.393 [mW/g] ± 0.19 dB Cubes (2) (Worst-case extrapolation) Generic Twin Phantom; Flat Section Probe: ET3DV5 - SN1348; ConvF(5.72,5.72,5.72) Muscle 900 MHz: σ = 0.94 [mho/m] ε r = 56.1 ρ = 1.00 [g/cm 3 ] File Name: T2 #0292, FM ch799, waist, 9-14-00.DA3 Powerdrift: -0.35 dB SAR Tot [mW/g] 5.27E-2 1.58E-1 2.64E-1 3.69E-1 4.74E-1 QCP-6035, Waist SAR, FM ch799 SAR (1g): 0.567 [mW/g] ± 0.18 dB, SAR (10g): 0.421 [mW/g] ± 0.17 dB Cubes (2) (Worst-case extrapolation) Generic Twin Phantom; Flat Section Probe: ET3DV5 - SN1348; ConvF(5.72,5.72,5.72) Muscle 900 MHz: σ = 0.94 [mho/m] ε r = 56.1 ρ = 1.00 [g/cm 3 ] File Name: T2 #0292, FM ch799, waist, 9-14-00.DA3 Powerdrift: -0.04 dB SAR Tot [mW/g] 5.46E-2 1.64E-1 2.73E-1 3.82E-1 4.91E-1 QCP-6035, Waist SAR, FM ch991 SAR (1g): 0.685 [mW/g] ± 0.21 dB, SAR (10g): 0.511 [mW/g] ± 0.19 dB Cubes (2) (Worst-case extrapolation) Generic Twin Phantom; Flat Section Probe: ET3DV5 - SN1348; ConvF(5.72,5.72,5.72) Muscle 900 MHz: σ = 0.94 [mho/m] ε r = 56.1 ρ = 1.00 [g/cm 3 ] File Name: T2 #0292, FM ch991, waist, 9-14-00.DA3 Powerdrift: -0.05 dB SAR Tot [mW/g] 6.59E-2 1.98E-1 3.30E-1 4.61E-1 5.93E-1 QCP-6035, Waist SAR, FM ch991 SAR (1g): 0.547 [mW/g] ± 0.16 dB, SAR (10g): 0.411 [mW/g] ± 0.18 dB Cubes (2) (Worst-case extrapolation) Generic Twin Phantom; Flat Section Probe: ET3DV5 - SN1348; ConvF(5.72,5.72,5.72) Muscle 900 MHz: σ = 0.94 [mho/m] ε r = 56.1 ρ = 1.00 [g/cm 3 ] File Name: T2 #0292, FM ch991, waist, 9-14-00.DA3 Powerdrift: 0.09 dB SAR Tot [mW/g] 5.23E-2 1.57E-1 2.62E-1 3.66E-1 4.71E-1 QCP-6035, Waist SAR, PCS ch25 SAR (1g): 0.168 [mW/g] ± 0.11 dB, SAR (10g): 0.107 [mW/g] ± 0.13 dB Cubes (2) (Worst-case extrapolation) Generic Twin Phantom; Flat Section Probe: ET3DV5 - SN1348; ConvF(4.50,4.50,4.50) Muscle 1800 MHz: σ = 1.56 [mho/m] ε r = 54.3 ρ = 1.00 [g/cm 3 ] File Name: T2 #0292, PCS ch25, waist, 9-15-00.DA3 Powerdrift: -0.30 dB SAR Tot [mW/g] 1.72E-2 5.16E-2 8.60E-2 1.20E-1 1.55E-1 QCP-6035, Waist SAR, PCS ch25 SAR (1g): 0.198 [mW/g] ± 0.02 dB, SAR (10g): 0.125 [mW/g] ± 0.01 dB Cubes (2) (Worst-case extrapolation) Generic Twin Phantom; Flat Section Probe: ET3DV5 - SN1348; ConvF(4.50,4.50,4.50) Muscle 1800 M…

Text truncated - open the document above for the full version.

Applicant: KWC Corp.FCC ID: OVFQCP-6035 Cover Letter Federal Communications Commission Authorization and Evaluation Division Re:Application for Cellular and PCS Transceiver Type Acceptance Kyocera Wireless Corporation (KWC) herein submits the Application for Equipment Authorization (FCC Form 731) and Exhibits for Type Acceptance of a Cellular & PCS Transceiver, FCC ID: OVFQCP-6035. Applicant:Kyocera Wireless Corporation 10290 Campus Point Drive San Diego, CA 92121-1522 Manufacture:Kyocera Wireless Corporation 10300 Campus Point Drive San Diego, California 92121 The equipment, KWC model # QCP 6035, is for mobile station cellular and PCS system use. The QCP 6035 is in full compliance with all parts of EIA/TIA/IS-98-B Mobile Station-Land Station Compatibility Specification, issue July 1998, and also in full compliance with all parts of ANSI J- STD-018, Recommended Minimum Performance Requirements for 1.8 to 2 GHz Code Division Multiple Access (CDMA) Personal Stations, issue July 1996. Information concerning how the ESN protection requirements are met is provided in Exhibit 3. Kyocera Wireless Corporation Li n Lu EMC Engineer, staff Applicant: KWC Corp.FCC ID: OVFQCP-6035 Request of Confidentiality Federal Communications Commission Authorization and Evaluation Division Re:Request of Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Description All schematics/block diagrams All parts lists The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Kyocera Wireless Corporation Li n Lu EMC Engineer, staff List of Exhibits Applicant: KWC Corp.FCC ID: OVFQCP-6035 ExhibitDescriptionFCC Reference 1Certification of Test Data2.911 2General Information2.1033(c), 2.1061, 3ESN Protection22.919 4RF Output Power Measured Data - Cellular2.1046 5RF Output Power Measured Data - PCS2.1046, 24.232 6Modulation Audio Response Measured Data2.1047(a) 7Modulation Limiting Measured Data2.1047(b), 22.917 8Occupied Bandwidth and Spurious Emission Measured Data - Cellular 2.1049, 22.917 9Occupied Bandwidth and Spurious Emission Measured Data - PCS2.1049, 24.238 10Conducted Harmonics Emissions Measured Data - Cellular2.1051, 22.917, 22.901(d) 11Conducted Harmonics Emissions Measured Data - PCS2.1051, 24.238 12Radiated Spurious and Harmonics Emissions Measured Data2.1053 13Frequency Stability vs. Temperature and Voltage Measured Data - Cellular 2.1055 14Frequency Stability vs. Temperature and Voltage Measured Data - PCS 2.1055, 24.235 15Measurement Procedures and Techniques 16FCC Letter of Site Recognition 17List of Semiconductor Devices2.1033(c) 18Circuit Diagram2.1033(c) 19Identification (Labels) Information2.1033(c) 20Photographs2.1033(c) 21User’s Manual2.1033(c) 22SAR data2.1093 Applicant: KWC Corp.FCC ID: OVFQCP-6035 Exhibit 1 Certification of Test Data The data, data evaluation and equipment configuration represented herein are a true and accurate representation of the measurements of the sample’s radio frequency interference emissions characteristics as of the dates and at the times of the test under the conditions herein specified. This applies to all tests that where performed that did not require an Open Area Test Site (OATS). Tests that required an OATS site were performed by TUV Product Services. Equipment Tested: QCP-6035 Dates of Test:July 25 – August 12 2000 Test Performed by: EMC Engineer, Staff: Lin Lu Applicant: KWC Corp.FCC ID: OVFQCP-6035 Exhibit 2 General Information 1.Production Plans Quantity Production Planned 2.Technical Description - Section 2.1033 (c) (1) The full name and mailing address of the manufacturer of the device and the applicant Applicant:Kyocera Wireless Corporation 10290 Campus Point Drive San Diego, CA 92121 Manufacture:Kyocera Wireless Corporation 10300 Campus Point Drive San Diego, CA92121 (2) FCC Identifier FCC ID: OVFQCP-6035 (3) User’s Manual See exhibit 21 (4) Types of Emission 40K0F8W 40K0F1D 1M25F9W F3E voice F3D supervisory audio tones, signaling tones F1D wideband data signal (5)Frequency range The frequency range of the equipment in Domestic Public Cellular Radio Telecommunications Service bands, 824 - 849 MHz and 869 - 894 MHz for FM and cellular CDMA. The channel spacing is 30 kHz for FM. The frequency range of the equipment in the Personal Communications Services (PCS) bands, 1850 – 1910 MHz and 1930 – 1990 MHz. The channel spacing is 1.25 MHz for CDMA. (6)Operating power levels The transmitter output power is independent of whether the equipment operates in the cellular system FM or CDMA mode, or PCS system CDMA mode. The equipment supports Class 3 Cellular Mobile Station Power Class, and Class 2 PCS Mobile Applicant: KWC Corp.FCC ID: OVFQCP-6035 Station Power Class. Its power output capability is reported to the Land Station via Station Class Mark. The equipment will respond to commands from the Land Station to change power levels as defined in the EIA/TIA/IS-98 and ANSI J-STD-018 Specification. (7)Maximum output power The equipment supports the maximum output power for Class 3 Cellular Mobile Station which is -2 dBW ERP for a FM mode and in the range of -7 dBW to 0 dBW ERP for a CDMA mode, and meets the 7 W ERP (+8.45 dBW) maximum power limitation of Section 22.913. The equipment supports the maximum output power for Class 2 PCS Mobile Station which is in the range of -7dBW to 0 dBW EIRP, and is within the limited 2 watts E.I.R.P. peak power of CFR 47 Part 24.232 (b). The equipment is able to limit the output power to the minimum necessary for successful commun…
