OWMCK-DIGICODESecurity Remote Control

Re: Certification for Digi-Code 5200, 5202 Transmitter Models: 5200, 5202 FCC ID: OWMCK-DIGICODE CANADA: to be provided by IC USER'S MANUAL INFORMATION (PRELIMINARY) The User's Manual is in preparation. The following material will be contained in the manual: FCC ID: OWMCK-DIGICODE CANADA: to be provided by IC This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment.

Digi-Code

Re: Certification for Digi-Code 5200, 5202 Transmitter Models: 5200, 5202 FCC ID: OWMCK-DIGICODE CANADA: to be provided by IC POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested. Re: Certification for Digi-Code 5200, 5202 Transmitter Models: 5200, 5202 FCC ID: OWMCK-DIGICODE CANADA: to be provided by IC REQUEST FOR CONFIDENTIALITY Pursuant to 47 CRF 0.459, Digi-Code requests that a part of the subject application be held confidential. This comprises Exhibits (5) Schematics (10) Parts List (Part of Exhibit only) Digi-Code has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will definitely result in a financial hardship. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist University of Michigan September 30, 2001 Re: Certification for Digi-Code 5200, 5202 Transmitter Models: 5200, 5202 FCC ID: OWMCK-DIGICODE CANADA: to be provided by IC STATEMENT OF MODIFICATIONS There were no modifications made to the DUT by this test laboratory. (Also see Section 3.1 of the attached Test Report). _____________________ Valdis V. Liepa Research Scientist Re: Certification for Digi-Code 5200, 5202 Transmitter Models: 5200, 5202 FCC ID: OWMCK-DIGICODE CANADA: to be provided by IC GENERAL PRODUCT INFORMATION The device, for which certification is pursued, has been designed by: Digi-Code, Inc 307 Robbins Drive Troy, Michigan 48083 Richard J. Caceres Tel: (248) 613-9094 Fax: (248) 588-6801 It will be marketed and serviced by: Digi-Code

October 8, 2001 Re: Certification for Digi-Code 5200, 5202 Transmitter Models: 5200, 5202 FCC ID: OWMCK-DIGICODE CANADA: to be provided by IC TABLE OF CONTENTS FOR EXHIBITS Total Pages (1) ID Label/Location Information 3 (2) Attestation Statements 7 (3) External Photos 2 (4) Block Diagrams 1 (5) Schematics 1 (6) Test Report 18 (7) Test Setup Photos 2 (8) User’s Manual 2 (9) Internal Photos 2 (10) Parts List/Parts Placement 1 (11) RF Exposure Information 0 (12) Operational Description 1 (13) Cover Letter(s) 4 September 30, 2001 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: Certification for Digi-Code 5200, 5202 Transmitter Models: 5200, 5202 FCC ID: OWMCK-DIGICODE CANADA: to be provided by IC Please find enclosed application materials for certification of Digi-Code 5200 & 5202 Transmitter. We tested it and found it to comply with Part 15. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist Enclosures: Industry Canada Cover Letter Table of Contents for Exhibits September 30, 2001 Certification and Engineering Bureau Industry Canada 3701 Carling Avenue, Bldg. 94 Ottawa, Ontario K2H 8S2 Re: Certification for Digi-Code 5200, 5202 Transmitter Models: 5200, 5202 FCC ID: OWMCK-DIGICODE CANADA: to be provided by IC Please find enclosed application materials for certification of Digi-Code 5200 & 5202 Transmitter. We tested the device and found it to comply with RSS-210. The product is identified by: Model: 5200 Model: 5202 If there are any questions, suggestions, etc., regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647- 2106; e-mail: [email protected]. Sincerely, Valdis V. Liepa Research Scientist Enclosures: Application Form with payment (This) Letter of Transmittal Summary of Test Results Table of Contents for Exhibits Application Forms and Exhibits (on CD ROM)

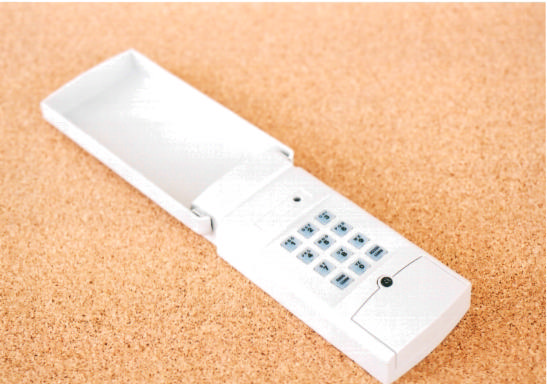

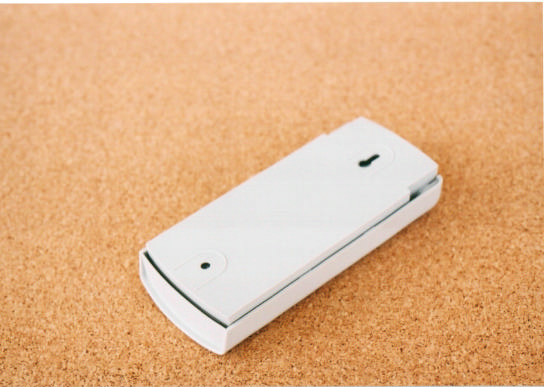

DigiCode 5200/5202 Transmitter (top) DigiCode 5200/5202 Transmitter (top cover open) DigiCode 5200/5202 Transmitter (bottom) DigiCode 5200/5202 Transmitter (bottom cover open)

DigiCode 5200/5202 Transmitter PCB (top) DigiCode 5200/5202 Transmitter PCB (bottom)

307 Robbins Dr. • Troy, Michigan 48083 • Tel: 248 589-3645 • Fax 248 588-6801 Description of Operation Model DC-5200 and Model DC-5202: These remote keypad transmitters are remote control devices designed and manufactured for the purpose of radio control of garage door openers and other like devices. These devices are designed to be mounted on the outside of a garage door, on the jamb or other convenient mounting location, in close proximity to the garage door opener. Model DC- 5200 operates on a fixed frequency of 300 MHz and Model DC-5202 operates on a fixed frequency of 310 MHz. Operation or actuation of these devices is controlled by a keypad switch. Entering the proper 4 digit key sequence causes the transmitter to emit a radio signal for approximately one-second. In compatible non-rolling code opener applications, the 10 position dip switch code, already set on the opener, is programmed into the remote keypad transmitter via keypad entry. In compatible rolling code opener applications, the opener is put into “learn mode”, and the remote keypad transmitter is activated by entering the proper 4 digit key sequence. This code is received and stored by the opener. All models are compliant with F.C.C. Part 15 Rules.

DigiCode 5200 Transmitter on OATS DigiCode 5200 Transmitter on OATS (close-up) DigiCode 5202 Transmitter on OATS DigiCode 5202 Transmitter on OATS (close-up)
