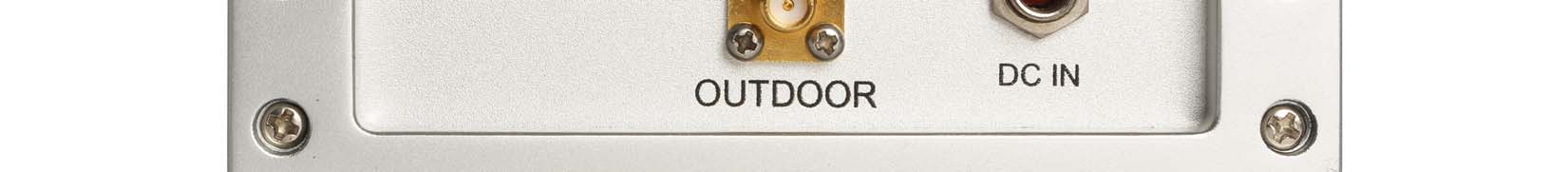

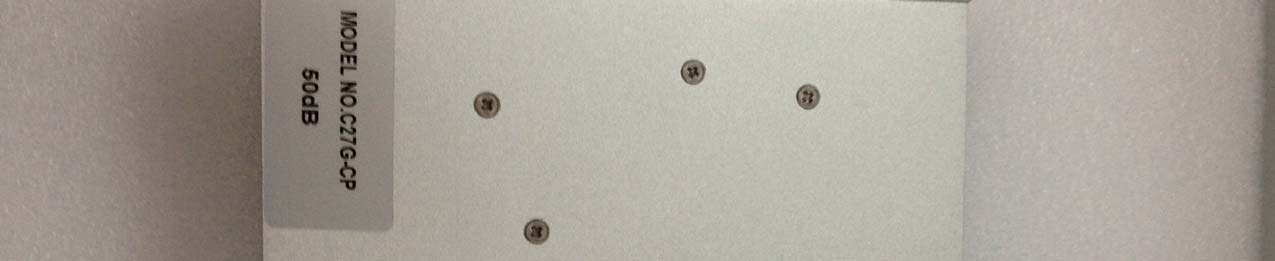

OWWC27G-CPDual Band, 50db

Consumer signal booster user manual Content What is included ............................................................................ 4 1 HOW IT WORKS ..................................................................................... 4 2 TOOL REQUIRED .................................................................................... 4 3 HOW TO INSTALL YOUR NEW CELLULAR BOOSTER (for vehicle installations) ................................................................................................ 5 3.1 Outside antenna: ......................................................................... 5 3.2 Wireless car booster: ................................................................... 5 3.3 Inside antenna: ............................................................................ 6 3.4 Feeder .......................................................................................... 6 3.5 Power supply ................................................................................ 6 3.6 Install note: .................................................................................. 6 4 HOW TO INSTALL YOUR NEW CELLULAR BOOSTER (for fixed installations) ................................................................................................ 7 4.1 Overview ...................................................................................... 7 4.2 Plan the layout of your system .................................................... 9 4.3 Check for Signal Strength ............................................................. 9 4.4 Run Coaxial Cable & SMA male to N female Adapter .............. 10 4.5 Install the Donor (Outdoor) antenna ........................................ 11 4.6 Install the Server (Indoor) antenna .......................................... 11 4.7 Install your cellular booster ...................................................... 12 4.8 Power up your cellular booster ................................................ 13 4.9 Check the Cellular Booster Status ............................................. 13 5 UNDERSTAND THE PORTS, MGC DIP SWITCH, LED STATUS ............... 14 5.1 Repeater ports .......................................................................... 14 5.2 LED status .................................................................................. 14 5.3 Device connect .......................................................................... 15 6 Authorized Kitting Options ................................................................ 16 6.1 Donor (Outdoor) default antenna for vehicle installations ...... 16 6.2 Donor (Outdoor) antenna for fixed installations ...................... 17 6.3 Server (Indoor) default antenna for vehicle installations ......... 17 6.4 Server (Indoor) antenna for fixed installations ......................... 18 6.5 Antenna Kitting Options for vehicle installations ..................... 18 Outdoor Default Antenna & Cable Kit Options ............................... 18 Indoor Default Antenna & Cable Kit Options .................................. 18 6.6 Antenna Kitting Options for fixed installations ......................... 18 Outdoor Antenna & Cable Kit Options ............................................ 18 Indoor Antenna & Cable Kit Options ............................................... 19 7 TROUBLESHOOTING ........................................................................... 20 8 FREQUENTLY ASKED QUESTIONS ....................................................... 23 9 FCC RF Exposure Statement ............................................................... 24 10 Warning ........................................................................................... 25 11 Specification .................................................................................... 25 WHAT IS INCLUDED 1. Booster C27G‐CP 2. Outdoor Magnet Mount 5dbi Whip Antenna 3. Indoor Sticker Mount Panel 3dbi Mobile Antenna 4. DC Power Adapter 1 HOW IT WORKS The cellular booster provides reliable two‐way cellular coverage by improving signal strength in homes, buildings, offices, and other areas where cellular reception is weak or unreliable. The system amplifies the signal from the nearest cellular tower and retransmits at a higher power level within a local area. This manual provides simple installation instructions that will have your cellular booster kit running in record time. 2 TOOL REQUIRED Phillips Screwdriver Drill Cellular Phone (to check signal strength) 3 HOW TO INSTALL YOUR NEW CELLULAR BOOSTER (for vehicle installations) 3.1 Outside antenna:  Adopt the car magnetic antenna or chuch antenna.  Function: receive the signal from the base station, through the feeder to booster. Meanwhile transmit back the signal to the base station after enlarge the signal. 3.2 Wireless car booster: Generally, hidden inside the corner nearby the power supply  Function: two-way, full-duplex amplifier the inside &outside signal of the car, and the maximum uplink is to 2W. 3.3 Inside antenna:  Adopt the car magnetic antenna or chuch antenna.  Function: Transmit the enlarger signals to the mobile phone, and receive the uplink car phone signal to booster. 3.4 Feeder  When install, hide it in the decoration materials or pads.  Function: Connect the feeder, antenna, and mobile phone seat. 3.5 Power supply  Adopt the9V -12V power supply, and it is extremely convenient for direct feed by the car power, also we support the car charger. 3.6 Install note: When install, try to separate the inside &outside antenna to the max straight distance, and make the inside and outside antenna could not mutual see (also don't mutual see each other through the roof skylight) 4 HOW TO INSTALL YOUR NEW CELLULAR BOOSTER (for fixed installations) 4.1 Overview This guide will help you properly install your cellular booster kit. It is important to read through all of the installation steps before installing your equipment. Thoroughly read through the instructions…

Text truncated - open the document above for the full version.

The antenna kitting options for model C27G-CP signal booster were done for 29 Outside Antenna kit options and 26 Inside Antenna kit options. The order of the attached calculations is as follows: Outside Antenna kit Options Inside Antenna kit Options 1 Kit 11‐5050 1 Kit 5‐0 2 Kit 11‐75400 2 Kit 100‐1550 3 Kit 11‐100400 3 Kit 100‐30400 4 Kit 11‐7550 4 Kit 100‐5050 5 Kit 11‐10050 5 Kit 100‐7550 6 Kit 10‐3050 6 Kit 102‐7550‐50 7 Kit 10‐50400 7 Kit 103‐7550‐75 8 Kit 10‐5050 8 Kit 114‐7550‐50 9 Kit 10‐75400 9 Kit 100‐10050 10 Kit 10‐100400 10 Kit 100‐30400 11 Kit 10‐7550 11 Kit 100‐50400 12 Kit 10‐10050 12 Kit 100‐75400 13 Kit 9‐30400 13 Kit 3‐0350 14 Kit 9‐3050 14 Kit 3‐1550 15 Kit 9‐50400 15 Kit 3‐30400 16 Kit 9‐5050 16 Kit 3‐5050 17 Kit 9‐75400 17 Kit 3‐7550 18 Kit 9‐100400 18 Kit 3‐10050 19 Kit 9‐7550 19 Kit 3‐30400 20 Kit 9‐10050 20 Kit 3‐50400 21 Kit 5‐30400 21 Kit 3‐75400 22 Kit 5‐3050 22 Kit 3‐100400 23 Kit 5‐50400 23 Kit 32‐50400‐50 24 Kit 5‐5050 24 Kit 33‐50400‐75 25 Kit 5‐75400 25 Kit 34‐50400‐50 26 Kit 5‐100400 26 Kit 3‐0 27 Kit 5‐7550 28 Kit 5‐10050 29 Kit 66‐295‐0 Outside Antenna kit Options Final Output Power Limited to 30 dBm EIRP in all Frequency Bands Uplink Frequency(MHz) 824‐849 1850‐1910 Uplink Output Power(dBm) 21.61 21.47 1. Yagi 11dbi Antenna with 50' 5D N male Kit numbers: 11‐5050 Antenna Gain (dBi) 11 11 Coax Cable Loss (dB) 2.8 3.8 Final Gain Less Loss (dB) 8.2 7.2 Final Output Power (dBm EIRP) 29.81 28.67 2. Yagi 11dbi Antenna with 75' 400 N male Kit numbers: 11‐75400 Antenna Gain (dBi) 11 11 Coax Cable Loss (dB) 3 5 Final Gain Less Loss (dB) 8 6 Final Output Power (dBm EIRP) 29.61 27.47 3. Yagi 11dbi Antenna with 100' 400 N male Kit numbers: 11‐100400 Antenna Gain (dBi) 11 11 Coax Cable Loss (dB) 3.9 6.2 Final Gain Less Loss (dB) 7.1 4.8 Final Output Power (dBm EIRP) 28.71 26.27 4. Yagi 11dbi Antenna with 75' 5D N male Kit numbers: 11‐7550 Antenna Gain (dBi) 11 11 Coax Cable Loss (dB) 4.2 5.7 Final Gain Less Loss (dB) 6.8 5.3 Final Output Power (dBm EIRP) 28.41 26.77 5. Yagi 11dbi Antenna with 100' 5D N male Kit numbers: 11‐10050 Antenna Gain (dBi) 11 11 Coax Cable Loss (dB) 5 8 Final Gain Less Loss (dB) 6 3 Final Output Power (dBm EIRP) 27.61 24.47 6. Panel 10dbi Antenna with 30' 5D N male Kit numbers:11‐3050 Antenna Gain (dBi) 10 10 Coax Cable Loss (dB) 1.8 2.7 Final Gain Less Loss (dB) 8.2 7.3 Final Output Power (dBm EIRP) 29.81 28.77 7. Panel 10dbi Antenna with 50' 400 N male Kit numbers:11‐50400 Antenna Gain (dBi) 10 10 Coax Cable Loss (dB) 2 3 Final Gain Less Loss (dB) 8 7 Final Output Power (dBm EIRP) 29.61 28.47 8. Panel 10dbi Antenna with 50' 5D N male Kit numbers:11‐5050 Antenna Gain (dBi) 10 10 Coax Cable Loss (dB) 2.8 3.8 Final Gain Less Loss (dB) 7.2 6.2 Final Output Power (dBm EIRP) 28.81 27.67 9. Panel 10dbi Antenna with 75' 400 N male Kit numbers:11‐75400 Antenna Gain (dBi) 10 10 Coax Cable Loss (dB) 3 5 Final Gain Less Loss (dB) 7 5 Final Output Power (dBm EIRP) 28.61 26.47 10. Panel 10dbi Antenna with 100' 400 N male Kit numbers:11‐100400 Antenna Gain (dBi) 10 10 Coax Cable Loss (dB) 3.9 6.2 Final Gain Less Loss (dB) 6.1 3.8 Final Output Power (dBm EIRP) 27.71 25.27 11. Panel 10dbi Antenna with 75' 5D N male Kit numbers:11‐7550 Antenna Gain (dBi) 10 10 Coax Cable Loss (dB) 4.2 5.7 Final Gain Less Loss (dB) 5.8 4.3 Final Output Power (dBm EIRP) 27.41 25.77 12. Panel 10dbi Antenna with 100' 5D N male Kit numbers:11‐10050 Antenna Gain (dBi) 10 10 Coax Cable Loss (dB) 5 8 Final Gain Less Loss (dB) 5 2 Final Output Power (dBm EIRP) 26.61 23.47 13. Yagi 9dbi Antenna with 30' 400 N male Kit numbers:9‐30400 Antenna Gain (dBi) 9 9 Coax Cable Loss (dB) 1.1 1.8 Final Gain Less Loss (dB) 7.9 7.2 Final Output Power (dBm EIRP) 29.51 28.67 14. Yagi 9dbi Antenna with 30' 5D N male Kit numbers:9‐3050 Antenna Gain (dBi) 9 9 Coax Cable Loss (dB) 1.8 2.7 Final Gain Less Loss (dB) 7.2 6.3 Final Output Power (dBm EIRP) 28.81 27.77 15. Yagi 9dbi Antenna with 50' 400 N male Kit numbers:9‐50400 Antenna Gain (dBi) 9 9 Coax Cable Loss (dB) 2 3 Final Gain Less Loss (dB) 7 6 Final Output Power (dBm EIRP) 28.61 27.47 16. Yagi 9dbi Antenna with 50' 5D N male Kit numbers:9‐5050 Antenna Gain (dBi) 9 9 Coax Cable Loss (dB) 2.8 3.8 Final Gain Less Loss (dB) 6.2 5.2 Final Output Power (dBm EIRP) 27.81 26.67 17. Yagi 9dbi Antenna with 75' 400 N male Kit numbers:9‐75400 Antenna Gain (dBi) 9 9 Coax Cable Loss (dB) 3 5 Final Gain Less Loss (dB) 6 4 Final Output Power (dBm EIRP) 27.61 25.47 18. Yagi 9dbi Antenna with 100' 400 N male Kit numbers:9‐100400 Antenna Gain (dBi) 9 9 Coax Cable Loss (dB) 3.9 6.2 Final Gain Less Loss (dB) 5.1 2.8 Final Output Power (dBm EIRP) 26.71 24.27 19. Yagi 9dbi Antenna with 75' 5D N male Kit numbers:9‐7550 Antenna Gain (dBi) 9 9 Coax Cable Loss (dB) 4.2 5.7 Final Gain Less Loss (dB) 4.8 3.3 Final Output Power (dBm EIRP) 26.41 24.77 20. Yagi 9dbi Antenna with 100' 5D N male Kit numbers:9‐10050 Antenna Gain (dBi) 9 9 Coax Cable Loss (dB) 5 8 Final Gain Less Loss (dB) 4 1 Final Output Power (dBm EIRP) 25.61 22.47 21. Omni 5dbi Antenna with 30' 400 N male Kit numbers:5‐30400 Antenna Gain (dBi) 5 5 Coax Cable Loss (dB) 1.1 1.8 Final Gain Less Loss (dB) 3.9 3.2 Final Output Power (dBm EIRP) 25.51 24.67 22. Omni 5dbi Antenna with 30' 5D N male Kit numbers:5‐3050 Antenna Gain (dBi) 5 5 Coax Cable Loss (dB) 1.8 2.7 Final Gain Less Loss (dB) 3.2 2.3 Final Output Power (dBm EIRP) 24.81 23.77 23. Omni 5dbi Antenna with 50' 400 N male Kit numbers:5‐50400 Antenna Gain (dBi) 5 5 Coax Cable Loss (dB) 2 3 Final Gain Less Loss (dB) 3 2 Final Output Power (dBm EIRP) 24.61 23.47 24. Omni 5dbi Antenna with 50' 5D N male Kit numbers:5‐5050 Antenna Gain (dBi) 5 5 Coax Cable Loss (dB) 2.8 3.8 Final Gain Less Loss (dB) 2.2 1.2 Final Output Power (dBm EIRP) 23.81 22.67 25. Omni 5dbi Antenna with 75' 400 N male Kit numbers:5‐75400 Antenna Gain (dBi) 5 5 Coax Cable Loss (dB) 3 5 Final Gain Less Loss (dB) 2 0 Final Output Power (dBm EIRP) 23.61 21.47 26. Omni 5dbi Antenna with 100' 40…

Text truncated - open the document above for the full version.

Form: CB-7.2.1 Issued by: QM Issue Date: 9/22/2011 Page 1 of 2 Revised by: QM-JS Revised Date: 6/23/2014 L:\Project\2014\p1470018-Huaptec\TCB Folder\RT's\CB-7.2.1 - Technical Review RT Form.docx CB-7.2.1 – Technical Review RT Form FCC ID: OWWC27G-CP IC ID: CT Project: P1470018 From: Shawn McMillen Date: 10/23/2014 1--The internal photos file contains several photos of various boards. Are there several models being granted under this ID? 10/27/14 Uniden: New photos provided. 2--Please follow the spectrum analyzer rules that require the number of points to be > 2* span/RBW when making measurements using an average detector. See the intermodulation plots. CTL (Mike G): New plots were taken and report has been updated to rev2 3--Please be aware that in some of the plots provided for the oscillation detection the carrier is exceeding the reference level of the spectrum analyzer. This may cause an internal overloading of the IF stage of the spectrum analyzer. CTL (Mike G): Duly noted and will be very cognizant of this for the future. 4--The gain in the test report exceeds the max gain identified in the user’s manual. 10/27/14 Uniden: Manual still in edit mode. 10/31/14 – Revised manual provided. 5--The user’s manual does not contain any RF exposure information for safe installation of the antenna. Also the user’s manual makes reference to indoor use however has no information on how the installation should be done. 10/27/14 Uniden: Manual still in edit mode. 10/31/14 – Revised manual provided. 6--Please provide an MSCL calculation as well as antenna kiting information doc. 10/27/14 Uniden: provided. 10/31/14 – Revised docs provided. Form: CB-7.2.1 Issued by: QM Issue Date: 9/22/2011 Page 2 of 2 Revised by: QM-JS Revised Date: 6/23/2014 L:\Project\2014\p1470018-Huaptec\TCB Folder\RT's\CB-7.2.1 - Technical Review RT Form.docx CT - Response by: Submitted by: Date:

1. The MSCL Calculations for Fixed Installations The following formulas were used to calculate MSCL with a 6’ foot path loss and a 45 degree polarity mismatch between the inside antenna and the mobile device: Path Loss =36.6+20Lg（F MHz）+20Lg（D miles ） dB Polarity Loss=10Lg(E 1 /E 2 ) 2 =10Lg((E 1 /E 1 sin(45 deg )) 2 =20Lg((1/sin(45 deg ))=3.0 dB Where: E 1 =Maximum Possible Magnitude of the Electric Field form the Mobile Device E 2 =Magnitude of the electric field from the Mobil Device with a 45deg polarity mismatch=E 1 Sin(τ) MSCL= Path Loss + Polarity Loss –Antenna Gain with Coax Loss dB The results of the calculations are shown in the following table： Uplink Frequency（MHz） 836.5 1880.0 Path Loss (dB) 36.2 43.2 Polarity Loss (dB) 3.0 3.0 Antenna Gain with Coax Loss(dB) 1.5 2.5 MSCL (dB) 37.7 43.7 2. The MSCL Calculations for Vehicle Installations The following formulas were used to calculate MSCL with a 1.5’ foot path loss and a 45 degree polarity mismatch between the inside antenna and the mobile device: Path Loss =36.6+20Lg（F MHz）+20Lg（D miles ） dB Polarity Loss=10Lg(E 1 /E 2 ) 2 =10Lg((E 1 /E 1 sin(45 deg )) 2 =20Lg((1/sin(45 deg ))=3.0 dB Where: E 1 =Maximum Possible Magnitude of the Electric Field form the Mobile Device E 2 =Magnitude of the electric field from the Mobil Device with a 45deg polarity mismatch=E 1 Sin(τ) E 2 E 1 τ=45deg E 2 E 1 τ=45deg MSCL= Path Loss + Polarity Loss –Antenna Gain with Coax Loss dB The results of the calculations are shown in the following table： Uplink Frequency（MHz） 836.5 1880.0 Path Loss (dB) 24.1 31.2 Polarity Loss (dB) 3.0 3.0 Antenna Gain with Coax Loss(dB) 5 5 MSCL (dB) 22.1 29.2

To Whom It May Concern: The MPE calculations for model C27G-CP signal booster were done for each frequency band: 800 MHz and 1900 MHz. For each band two calculations were done. These included the different possibilities of antennas that may be connected to this signal booster: fixed outside and inside antennas. The order of the attached calculations is as follows:  800 MHz band： 1. Fixed Outside Antenna: Yagi 11dbi 2. Inside Antenna: Panel 10dbi  1900 MHz band： 1. Fixed Outside Antenna: Yagi 11dbi 2. Inside Antenna: Panel 10dbi A booster’s uplink power must not exceed 1 watt equivalent isotropic radiated power (EIRP) for each band of operation. Composite downlink power must not exceed 0.05 watt EIRP for each band of operation (20.21(e)(8)(i)(D)). The following formula was used to calculate equivalent isotropic radiated power: EIRP=Power Out (Watts) *Antenna Gain (non-log)*Coax loss (non-log) The power density (mW/cm 2 ) is calculated using the following formula: Calculated Power Density = 1000*EIRP (Watts)/(4*π*(Distance from Antenna (cm) 2 )) Yagi 11dbi with 30' 5D N male Input Data Frequency MHz 824 Pout Watts 0.14 Antenna gain dBi 11 Coax Loss dB 1.7 Distance from Antenna In cm 20 Results Of Calculations Antenna gain less Coax Loss dBi 9.3 Distance from Antenna In Inches 8 EIRP (Watts) 1.23 FCC Power Density Limit (mw/cm 2 ) 0.55 Calculated Power Density (mw/cm 2 ) 0.25 Reference Data Pout dBm 21.61 Antenna Gain (non-log) 12.59 Coax Loss(non-log) 0.68 General FCC Limit (mw/cm 2 ) f/1500 Panel 10dbi with 3' 5D N Male Input Data Frequency MHz 869 Pout Watts 0.00068 Antenna gain dBi 10 Coax Loss dB 0.2 Distance from Antenna In cm 20 Results Of Calculations Antenna gain less Coax Loss dBi 9.8 Distance from Antenna In Inches 8 EIRP (Watts) 0.0065 FCC Power Density Limit (mw/cm 2 ) 0.58 Calculated Power Density (mw/cm 2 ) 0.00129 Reference Data Pout dBm -1.69 Antenna Gain (non-log) 10.00 Coax Loss(non-log) 0.95 General FCC Limit (mw/cm 2 ) f/1500 Yagi 11dbi with 30' 5D N male Input Data Frequency MHz 1850 Pout Watts 0.14 Antenna gain dBi 11 Coax Loss dB 2.7 Distance from Antenna In cm 20 Results Of Calculations Antenna gain less Coax Loss dBi 8.3 Distance from Antenna In Inches 8 EIRP (Watts) 0.95 FCC Power Density Limit (mw/cm 2 ) 1.00 Calculated Power Density (mw/cm 2 ) 0.19 Reference Data Pout dBm 21.47 Antenna Gain (non-log) 12.59 Coax Loss(non-log) 0.54 General FCC Limit (mw/cm 2 ) 1 Panel 10dbi with 3' 5D N Male Input Data Frequency MHz 1930 Pout Watts 0.00167 Antenna gain dBi 10 Coax Loss dB 0.3 Distance from Antenna In cm 20 Results Of Calculations Antenna gain less Coax Loss dBi 9.7 Distance from Antenna In Inches 8 EIRP (Watts) 0.0156 FCC Power Density Limit (mw/cm 2 ) 1.00 Calculated Power Density (mw/cm 2 ) 0.00311 Reference Data Pout dBm 2.24 Antenna Gain (non-log) 10.00 Coax Loss(non-log) 0.93 General FCC Limit (mw/cm 2 ) 1

p1470018_FCC_Part 20_Rev 4.0 Page 1 of 73 Test Report Prepared for: Shenzhen Huaptec Co., Ltd Model: C27G-CP Description: Dual Band Signal Booster FCC ID: OWWC27G-CP To FCC Part 20 Date of Issue: November 25, 2014 On the behalf of the applicant: Shenzhen Huaptec Co., Ltd. 5 th FL, E BLDG, Sogood Science Park Hangkong Road Xixiang, Bao'an Shenzhen 518102 China To the attention of: Yanwei Wang, General Manager Ph: 86-755-61196866 Email: [email protected] Prepared By Compliance Testing, LLC 1724 S. Nevada Way Mesa, AZ 85204 (480) 926-3100 phone / (480) 926-3598 fax www.compliancetesting.com Project No: p1470018 Mike Graffeo Project Test Engineer This report may not be reproduced, except in full, without written permission from Compliance Testing. All results contained herein relate only to the sample tested. p1470018_FCC_Part 20_Rev 4.0 Page 2 of 73 Test Report Revision History Revision Date Revised By Reason for Revision 1.0 October 8, 2014 Mike Graffeo Original Document 2.0 October 24, 2014 Mike Graffeo Fixed number of points for Intermodulation. Now points are > 2* span/RBW. 3.0 November 19, 2014 Mike Graffeo Added variable gain tables for both fixed install and vehicle/mobile which have different MCSLs per the new owner’s manual. 4.0 November 25, 2014 Mike Graffeo Removed fixed install MCSL variable gain data. p1470018_FCC_Part 20_Rev 4.0 Page 3 of 73 Table of Contents Description Page Standard Test Conditions and Engineering Practices 5 Test Result Summary 6 Authorized Frequency Band 7 Maximum Power and Gain 10 Intermodulation 12 Out-of-Band Emissions 15 Conducted Spurious Emissions 29 Noise Limits 38 Uplink Inactivity 44 Variable Gain 46 Occupied Bandwidth 49 Oscillation Detection 62 Radiated Spurious 70 Test Equipment Utilized 73 p1470018_FCC_Part 20_Rev 4.0 Page 4 of 73 ILAC / A2LA Compliance Testing, LLC, has been accredited in accordance with the recognized International Standard ISO/IEC 17025:2005. This accreditation demonstrates technical competence for a defined scope and the operation of a laboratory quality management system (refer to the joint ISO-ILAC-IAF Communiqué dated January 2009). The tests results contained within this test report all fall within our scope of accreditation, unless noted below. Please refer to http://www.compliancetesting.com/labscope.html for current scope of accreditation. Testing Certificate Number: 2152.01 FCC Site Reg. #349717 IC Site Reg. #2044A-2 Non-accredited tests contained in this report: N/A p1470018_FCC_Part 20_Rev 4.0 Page 5 of 73 Test and Measurement Data Sub-part 2.1033(c)(14): All tests and measurement data shown were performed in accordance with FCC Rules and Regulations, Part 2, Subpart J and the following individual Parts: 20.21 in conjunction with latest version of KDB 935210. Standard Test Conditions and Engineering Practices Except as noted herein, the following conditions and procedures were observed during the testing: In accordance with ANSI/C63.4-2009, and unless otherwise indicated in the specific measurement results, the ambient temperature of the actual EUT was maintained within the range of 10° to 40°C (50° to 104°F), unless the particular equipment requirements specified testing over a different temperature range. Also, unless otherwise indicated, the humidity levels were in the range of 10% to 90% relative humidity. Environmental Conditions Temp (ºC) Humidity (%) Pressure (mbar) 24.9 – 28.7 37.9 – 51.3 963.9 – 971.3 Measurement results, unless otherwise noted, are worst-case measurements. EUT Description Model: C27G-CP Description: Dual Band Signal Booster Additional Information: The EUT is a mobile, bi-directional amplifier for the boosting of cellular phone signals and data communication devices. The following frequency bands and emission types are utilized. Frequency Band (MHz) Uplink 824 - 849 1850 - 1910 Downlink 869 - 894 1930 - 1990 Modulation Type GSM, CDMA, EDGE, HSPA. EVDO, LTE Emission Designators CDMA HSPA LTE EVDO EDGE GSM F9W F9W G7D F9W G7W GXW The modulation types and emission designators listed in the tables represent the modulations that the cell phone providers use for each frequency band. GSM, CDMA, and WCDMA represent all the modulation types (phase and amplitude or a combination thereof) utilized within the industry. EDGE, HSPA, LTE etc. are all protocols or multiplexing techniques using the base modulations. EUT Operation during Tests The EUT was in a normal operating condition. p1470018_FCC_Part 20_Rev 4.0 Page 6 of 73 Test Result Summary Specification Test Name Pass, Fail, N/A Comments 20.21(e)(3) Authorized Frequency Band Pass 20.21(e)(8)(i)(B) 20.21(e)(8)(i)(C) 20.21(e)(8)(i)(D) Maximum Power and Gain Pass 20.21(e)(8)(i)(F) Intermodulation Pass 20.21(e)(8)(i)(E) Out-of-Band Emissions Pass 2.1051 22.917(a) 24.238(a) Conducted Spurious Emissions Pass 20.21(e)(8)(i)(A) Noise Limits Pass 20.21(e)(8)(i)(I) Uplink Inactivity Pass 20.21(e)(8)(i)(C)(1) 20.21(e)(8)(i)(H) 20.21(e)(8)(i)(C)(2)(iii) mobile) Variable Gain Pass 2.1049 Occupied Bandwidth Pass 20.21(e)(8)(ii)(A) Oscillation Detection Pass 2.1053 Radiated Spurious Pass 20.21(e)(8)(i)(B) Spectrum Block Filtering N/A This only applies to devices utilizing spectrum block filtering p1470018_FCC_Part 20_Rev 4.0 Page 7 of 73 Authorized Frequency Band Engineer: Mike Graffeo Test Date: 10/7/2014 Test Procedure The EUT was connected to a spectrum analyzer through an attenuator with the losses being input into the spectrum analyzer as a combination of reference level offset and correction factor as needed to ensure accurate readings. A signal generator was utilized to produce a CW input signal tuned to the center channel of the operational band. The RF input level was increased to a point just prior to the AGC being in control of the power, then reduced 3 dB. The Signal generator was set to sweep across 2X the operational band of the EUT while the spectrum analyzer was set to MAX HOLD. Two markers were placed at the edges of the operational band and a t…

Text truncated - open the document above for the full version.

Test Setup Photos FCC ID: OWWC27G-CP RF Conducted RF Radiated (1GHz and above) RF Radiated (30MHz to 1GHz)
