OWWF108555SHiboost Signal Booster

“沿DOSTBoost Your Bars User Manual F12G-5S-IoT F08G-5S-IoT NOTE: This manual contains important safety and operating information. Please read and follow the instructions in this manual, failure to do so could be hazardous and result in damage to your cellular booster. Package Content Product Image Product Name Model Number Coverage size Indoor Cable Outdoor Cable Indoor Ant enna Outdoor Ant enna Mini Zoom FOBG-5S-IoT F12G-5S-IoT 500-2 , 000 Sq. Ft. 800-3000 Sq. Ft. 30 Ft. Low-Loss HiBoost 200 Cable 30 Ft. Low-Loss HiBoost 200 Cab le 50 Ft. Low-Loss HiBoost 200 Cable Indoor Wide-Band Directional Panel Antenna Outdoor Wide-Band Directional Antenna Warning: Un-authorized antennas, cables , and/or coupling devices are prohibited by new FCC rules. Please contact FCC for details: 1 (888)-CALL-FCC Introduction Thanks again for p urchasing a HiBoost cell phone signal booster. Our cell phone boosters are precision-engineered products that improve cellular reception inside of homes and office by amplifying incoming and outgoing cellular signal. HiBoost's exclusive cloud-based Signal Supervisor mobile application allow users to monitor the live status of HiBoost cell phone signal boosters remotely from a mobile device anywhere at any time. If there are any issues while installing a HiBoost cell phone signal booster, please contact the HiBoost technical support team through the following options: 24/7 Online Support: Create a ticket or chat via Signal Supervisor App Phone: (972) 870-5666 (M-F from 9 am - 5 pm) Email: support @ hiboostusa.com Website: www.hiboost.com 3/14 Troubleshooting Guide Eliminate ISO LED Indicator Quick Flashing Blue, Quick Flashing Red problems: 1. Adjust the outdoor antenna direction, keep it away from the indoor antenna - restart the booster 2. Increase the vertical or horizontal distance between the outdoor antenna and the indoor antenna - restart booster 3. Use metal or wall barriers to increase the isolation between the indoor and outdoor antennas - restart booster 4. Change the indoor antenna type to an antenna with a more directional antenna pattern - orient the indoor antenna and the outdoor antenna so they are not pointing at each other The ISO issues are solved when the ISO LED is "Blue" or "Slow Flashing Blue". If the signal has not been improved, please check below: • A weak downlink signal leads to the low output signal level - change the direction or position of the outdoor antenna (check downlink gain levels using the Signal Supervisor app ) • Try replacing the outdoor antenna with a higher gain antenna to increase the amount of signal being received • Check to see if it is necessary to adjust the position of the indoor antenna - barriers such as walls can block the signal indoors • Ensure that there are at least 20 feet of vertical separation between the indoor and outdoor antenna • Ensure that the indoor and outdoor antennas are facing away from each other • Check the booster to make sure the output power is maximized - the user may need to replace the booster with a more powerful one if the amount of outdoor signal available is limited Other Troubleshooting Issues You may reference the chart below to identify the current status of your booster: LED STATUS INDICATORS solid blue below full output power slow flashing blue full output powe『 Alarm (ISO) LED quick flashing blue output power is too high quick flashing red booster will automatically shut down excessive downlink signal Bluetooth LED slow flashing blue bluetooth disconnected quick flashing blue bluetooth connected Wi-Fi LED solid blue wifi disconnected slow flashing blue wifi connected 9/14 H"1oosT If you have any issues installing your HiBoost Booster, please contact our technical support team. O nline Support: Create a ticket or chat via Signal Supervisor A pp Phone: (972) 870-5666 (M-F from 9 am - 5 pm) Email: [email protected] Website: www.hiboost.com 10/14 Outdoor Antenna Frequency Range(MHz) Antenna Gain(dBi) Cable Loss(dB) Yagi antenna Panel antenna 698-7168 74.97 8 74.97 8 7 5.17 8 7 7.51 8 7 7.51 777-787（for IC) 824-849 1710-1755 1850-1915 Indoor Antenna Frequency Panel Omni Range(MHz) antenna(dBi) antenna(dBi) Cable Loss(dB) 728-746 5 3 4.97 746-757(for FCC) 5 3 4.97 869-894 5 3 5.17 1930-1955 7 3 7.51 2110-2155 7 3 7.51 746-756(for IC) 5 3 4.97 776-787(for FCC) 8 7 4.97 4.974.97 FCC and ISEDC Statements FCC RF EXPOSURE STATEMENT This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instruction for satisfying RF exposure compliance. This transmitter must not be co­ lo cated or operating in conjunction with any other antenna or transmitter. This equipment should be installed andoperated with minimum distance 20cm between the radiator& your body. ISEDC RF EXPOSURE STATEMENT The device is compliance with RF exposure limits. The minimum distance from body to use the device is 20 CM. L e p沧sent appareil est conforme aux conformite ou aux limites d'intensite de champ RF. La distance minimale du corps a utiliser le dispositif est de 20 CM. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against h armful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a installation. If this equipment does cause harmful interference to radio or television …

Text truncated - open the document above for the full version.

SHENZHEN HUAPTEC CO., LTD Address: 3rd FL,E BLDG,Sogood Science Park,SanWei community, Hangcheng Street,Bao'anDistrict,Shenzhen,China, Tel.: 86-755-29921615 Fax: 86-755-29921165 E-mail: [email protected] Date: 2020-11-23 Attestation Letter To: FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam: We, SHENZHEN HUAPTEC CO., LTD, hereby declare that the certified Hiboost Signal Booster under FCC ID: OWWF108555S, Model number: F12G-5S-IoT, F08G-5S-IoT which is manufactured and test to ensure FCC compliance: (1) Licensee consent for provider-specific booster has been obtained (consent be made available upon FCC/TCB request) (2) NPS and other compliance/safeguard features have been implemented (3) NPS and other compliance/safeguard features are defaulted to “ON” configuration (in operation) (4) NPS and other compliance/safeguard features cannot be field reconfigured, disabled or removed (5) Consumer booster is not user programmable, does not need fine tuning or adjustment, does not require professional installation (6) Future software upgrade will not cause non-compliance Sincerely Yours, Signature: Yanwei Wang Manager

QA-FR-170-B SHENZHEN HUAPTEC CO., LTD Address: 3rd FL, E BLDG, Sogood Science Park, SanWei community, Hangcheng Street, Bao'an District, Shenzhen, China Email: [email protected] Tel: 86-755-29921615 Fax: 86-755-29921165 FCC Authorization 2020-09-21 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We (SHENZHEN HUAPTEC CO., LTD), the undersigned, hereby authorize Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely, Signature: Yanwei Wang Title: Manager

SHENZHENHUAPTECCO.,LTD Address:3rdFL,EBLDG,SogoodSciencePark,SanWeicommunity,HangchengStreet, Bao'anDistrict,Shenzhen,China Email:[email protected] Tel:86-0755-29921615Fax:86-0755-29921165 FCCConfidentialAuthorization 2020-09-21 FEDERALCOMMUNICATIONSCOMMISSIONS AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 Subject:ConfidentialityRequestregardingapplicationforcertificationof FCCID:OWWF108555S InaccordancewithSections0.457and0.459oftheCommission’sRules,(SHENZHEN HUAPTECCO.,LTD)herebyrequestslong-termconfidentialtreatmentofinformation accompanyingthisapplicationasoutlinedbelow: BlockDiagram Schematics OperationDescription PartsList/Tuneupprocedure(forlicenseddevices) Theabovematerialscontainproprietaryandconfidentialinformationnotcustomarily releasedtothepublic.Thepublicdisclosureofthesematerialsprovidesunjustified benefitstoitscompetitorsinthemarket. Sincerely, Signature: YanweiWang Title:Manager

SHENZHEN HUAPTEC CO., LTD Address: 3rd FL, E BLDG, Sogood Science Park, SanWei community, Hangcheng Street, Bao'an District, Shenzhen, China Tel: 86-755-29921615 Email: [email protected] Product Similarity Declaration Date: 2020-12-25 To: FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam, We, SHENZHEN HUAPTEC CO., LTD, hereby declare that we have a product named as Hiboost Signal Booster, (model: F12G-5S-IoT, FCC ID :OWWF108555S) was tested by BACL, Meanwhile, for our marketing purpose, we would like to list a series model (F08G-5S-IoT) on reports and certificate, all the models are identical in schematics, they have different model name and different antenna gain and power . No other changes are made on them. ModelGain(UL/DL)Power(UL/DL)Implementation mode F12G-5S-IoT70dB/70dB20dBm/17dBmDifferent outputs can be achieved through software settings F08G-5S-IoT65dB/65dB20dBm/12dBm We confirm that all information above is true, and we’ll be responsible for all the consequences. Please contact me if you have any question. Sincerely, Signature: Yanwei Wang Title:Manager

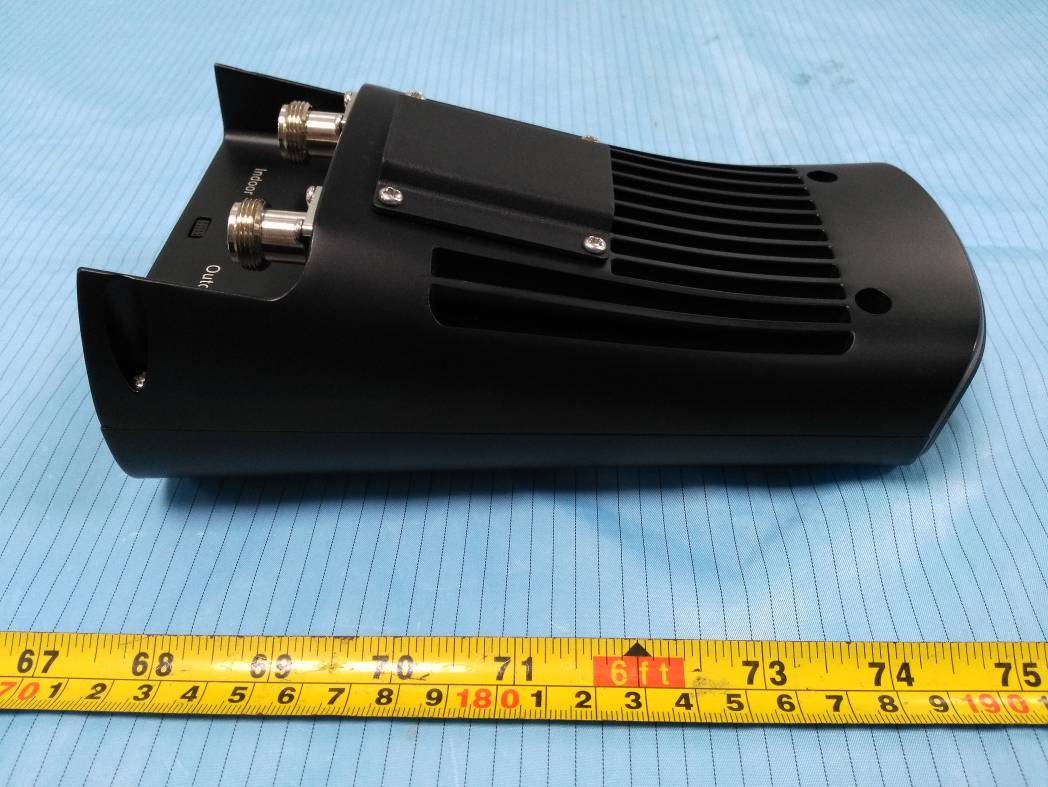

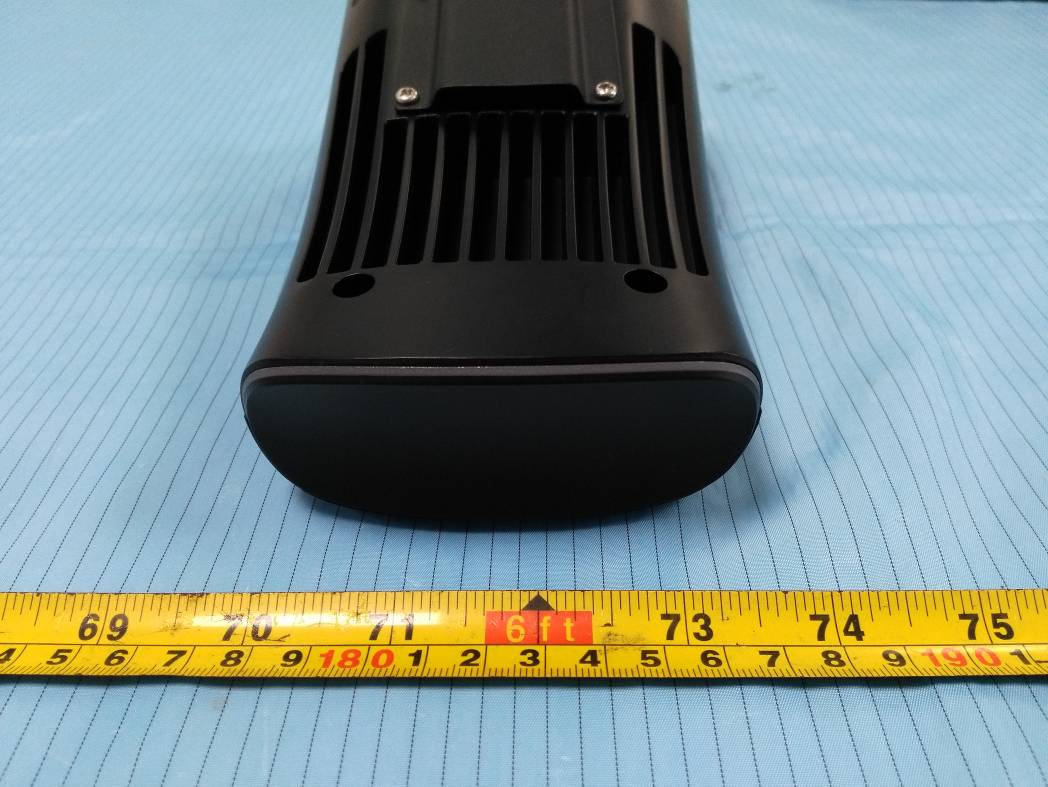

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200904018 Page 1 of 4 EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200904018 Page 2 of 4 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200904018 Page 3 of 4 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200904018 Page 4 of 4 Adapter

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200904018 EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label Label 1 Label 2 Label 3 FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label 2 Label 1 Label 3

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200904018 Page 1 of 3 EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200904018 Page 2 of 3 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200904018 Page 3 of 3 IC Wi-Fi Module

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ2009-00 FCC Part 20.21 Page 1 of 2 FCC §1.1307 (b) (1) & §2.1091 –MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 1.1307 (b)(1), 2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (Minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density MPE Calculated : Predication of MPE limit at a given distance S = 2 4R PG π S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW). G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain. R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ2009-00 FCC Part 20.21 Page 2 of 2 MPE Results Tune-Up Power Including Tolerance: Note: *The EUT contains a certified module (FCC ID: 2AC7Z-ESP32WROVERB) According to the MPE reports of FCC ID: 2AC7Z-ESP32WROVERB, Wi-Fi and Bluetooth can’t transmit simultaneously, so consider the Booster and Wi-Fi transmitting simultaneously is the worst case: The ratio= MPE/Limit Booster + MPE/Limit Wi-Fi =0.048/0.549+0.1182/1=0.2058<1.0 The maximum power density was calculated base on the maximum value of antenna gain and cable loss combination. To maintain compliance with the FCC’s RF exposure guidelines, place the equipment at least 20cm from nearby persons. Result: Pass Mode Frequency band (MHz) Antenna Gain Maximum Tune-up Power Cable Loss (dB) Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric)(dBm) Uplink 698-716 8 6.31 20 4.97 20 0.040 0.465 776-787 8 6.31 20 4.97 20 0.040 0.517 824-849 8 6.31 21 5.17 20 0.048 0.549 1710-1755 9 7.94 20 7.51 20 0.028 1.0 1850-1915 9 7.94 21 7.51 20 0.035 1.0 Downlink 728-746 5 3.16 17 4.97 20 0.010 0.485 746-757 5 3.16 17 4.97 20 0.010 0.497 869-894 5 3.16 17 5.17 20 0.010 0.579 2110-2155 7 5.01 17 7.51 20 0.009 1.0 1930-1995 7 5.01 17 7.51 20 0.009 1.0 Wi-Fi* 2412-2462 3.74 2.37 24 0 20 0.1182 1.0 BLE* 2402-2480 3.74 2.37 2 0 20 0.0007 1.0 BT* 2402-2480 3.74 2.37 5.5 0 20 0.0017 1.0
