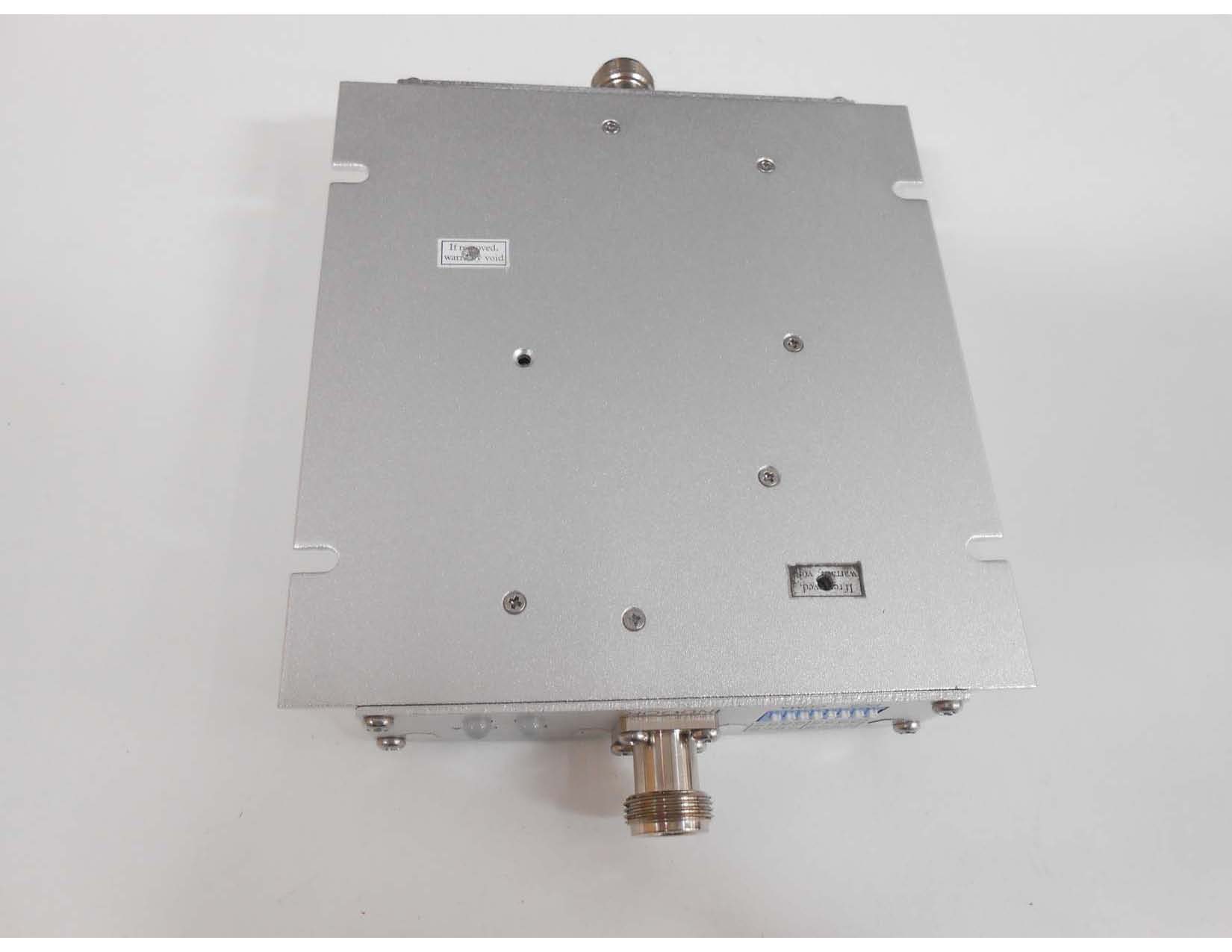

OWWF10G-CPDual Band, 60db

Consumer signal booster user manual Content 1 HOW IT WORKS ..................................................................................... 4 2 TOOL REQUIRED .................................................................................... 4 3 HOW TO INSTALL YOUR NEW CELLULAR BOOSTER .............................. 5 3.1 Overview ...................................................................................... 5 3.2 Plan the layout of your system .................................................... 7 3.3 Check for Signal Strength ............................................................. 7 3.4 Run coaxial cable.......................................................................... 8 3.5 Install the Donor (Outdoor) antenna ........................................... 9 3.6 Install the Server (Indoor) antenna ............................................. 9 3.7 Install your cellular booster ...................................................... 10 3.8 Power up your cellular booster ................................................ 10 3.9 Check the Cellular Booster Status ............................................. 11 4 UNDERSTAND THE PORTS, MGC DIP SWITCH, LED STATUS ............... 12 4.1 Repeater ports .......................................................................... 12 4.2 LED status .................................................................................. 12 5 UNDERSTAND THE ANTENNA ............................................................ 13 5.1 Donor (Outdoor) antenna ......................................................... 13 5.2 Server (Indoor) antenna ........................................................... 14 5.3 Recommending kiting option ................................................ 14 6 TROUBLESHOOTING ........................................................................... 15 7 FREQUENTLY ASKED QUESTIONS ....................................................... 17 8 FCC RF Exposure Statement ............................................................... 19 9 Warnning ............................................................................................ 19 10 Specification .................................................................................... 19 1 HOW IT WORKS The cellular booster provides reliable two‐way cellular coverage by improving signal strength in homes, buildings, offices, and other areas where cellular reception is weak or unreliable. The system amplifies the signal from the nearest cellular tower and retransmits at a higher power level within a local area. This manual provides simple installation instructions that will have your cellular booster kit running in record time. 2 TOOL REQUIRED Phillips Screwdriver Drill Cellular Phone(tocheck signal strength) 3 HOW TO INSTALL YOUR NEW CELLULAR BOOSTER 3.1 Overview This guide will help you properly install your cellular booster kit. It is important to read through all of the installation steps before installing your equipment. Thoroughly read through the instructions, visualize where all the equipment will need to be installed and do a soft installation before mounting any equipment. 1 •BOOSTER – select location •Install the booster in an area that is protected from the weather, properly ventilated and is away from excessive heat and moisture. 2 •DONOR ANTENNA (OUTDOOR)‐select location •Mount the signal (outdoor) antenna in an elevated outdoor location so that it points towards the cellular tower and away from where the inside antenna will be located. 3 •OUTDOOR COAXIAL CABLE ‐select location •The outdoor coaxial cable is used to connect the donor (outdoor) antenna to the booster. 4 •INDOOR COAXIAL CABLE‐(if used) •The indoor coaxial cable is used to connect the server (indoor) antenna to the booster. 5 •SERVER ANTENNA (indoor) •The ideal location for the distribution antenna will be the area of your property where you need to improve the signal most. •NOTE:The signal strength will be strongest closest to the antenna. •IMPORTANT: The signal antenna (outdoor)should always be separated from the distribution antenna (indoor)by at least 20 vertical feet including the separation of a thick barrier such as a roof or a wall. Depending on the strength of your outdoor signal, the weaker the signal the less separation distance is required. 7 •LIGHTNING SURGE PROTECTOR‐(SOLD SEPARATELY) •The lightning surge protector connects in between the signal antenna and the booster. •IMPORTANT: Lightning surge protector must be grounded. 8 • COMMISSIONING THE SYSTEM ！ 3.2 Plan the layout of your system Before you get started you will need to plan the layout of your system. This involves checking signal strength for signals coming from the cellular tower, as well as antenna, booster and cable placement. 3.3 Check for Signal Strength Select a location on the roof of the building to install the signal antenna, by monitoring your cellular phone’s signal strength (signal bars) to find the strongest signal from your carrier’s cellular tower. Mark that area as the installation location for the Donor (outdoor) IMPORTANT: Confirm that you have at least 20 feet of vertical distance between the marked antenna location and the location where you will place the Server (indoor)antenna. To prevent the system from oscillation (feedback) you want to ensure that there is enough separation between the distribution and signal antenna or that they are shielded from each other to ensure the distribution antenna does not send a signal back into the signal antenna. If you cannot achieve these separations, either choose an alternate location for the donor (outdoor) antenna or determine if there are natural barriers in the building construction itself that will attenuate signals between the two antennas so that oscillation can be prevented. 3.4 Run coaxial cable Loosely run the coaxial cable from your outdoor antenna to your booster. (After you have tested the system you can permanently secure the coaxi…

Text truncated - open the document above for the full version.

SHENZHEN HUAPTEC CO., LTD Add.: 5th FL, E BLDG, Sogood Science Park, Sanwei Community, Hangkong Road, Xixiang, Bao'an, Shenzhen, Guangdong, China 518102 Tel: +86-0755-29921615 29921635 Fax: +86-755-29921165 October 21, 2014 Attestation for Huaptec Signal Booster: FCC ID: OWWF10G-CP Signal Boosters certificated under FCC ID OWWF10G-CP are manufactured and tested to ensure FCC compliance: (1) Since this s not a provider-specific booster, licensee consent is not required. (2) NPS and other compliance/safeguard features have been implemented (3) NPS and other compliance/safeguard features are defaulted to “ON” configuration (in operation) (4) NPS and other compliance/safeguard features cannot be field reconfigured, disabled or removed (5) Consumer booster is not user programmable, does not need fine tuning or adjustment, does not require professional installation (6) Future software upgrade will not cause non-compliance Sincerely Pengfei Li Managing Director

The antenna kitting options for model F10G-CP signal booster were done for 31 Outside Antenna kit options and 25 Inside Antenna kit options. The order of the attached calculations is as follows: Outside Antenna kit Options Inside Antenna kit Options 1 Kit 11‐3050 1 Kit 5‐0 2 Kit 11‐50400 2 Kit 100‐1550 3 Kit 11‐5050 3 Kit 100‐30400 4 Kit 11‐75400 4 Kit 100‐5050 5 Kit 11‐100400 5 Kit 100‐7550 6 Kit 11‐7550 6 Kit 102‐7550‐50 7 Kit 11‐10050 7 Kit 103‐7550‐75 8 Kit 10‐30400 8 Kit 114‐7550‐50 9 Kit 10‐3050 9 Kit 100‐10050 10 Kit 10‐50400 10 Kit 100‐30400 11 Kit 10‐5050 11 Kit 100‐50400 12 Kit 10‐75400 12 Kit 100‐75400 13 Kit 10‐100400 13 Kit 3‐0350 14 Kit 10‐7550 14 Kit 3‐1550 15 Kit 10‐10050 15 Kit 3‐30400 16 Kit 9‐30400 16 Kit 3‐5050 17 Kit 9‐3050 17 Kit 3‐7550 18 Kit 9‐50400 18 Kit 3‐10050 19 Kit 9‐5050 19 Kit 3‐30400 20 Kit 9‐75400 20 Kit 3‐50400 21 Kit 9‐100400 21 Kit 3‐75400 22 Kit 9‐7550 22 Kit 3‐100400 23 Kit 9‐10050 23 Kit 32‐50400‐50 24 Kit 5‐30400 24 Kit 33‐50400‐75 25 Kit 5‐3050 25 Kit 34‐50400‐50 26 Kit 5‐50400 27 Kit 5‐5050 28 Kit 5‐75400 29 Kit 5‐100400 30 Kit 5‐7550 31 Kit 5‐10050 Outside Antenna kit Options Final Output Power Limited to 30 dBm EIRP in all Frequency Bands Uplink Frequency(MHz) 824‐849 1850‐1910 Uplink Output Power(dBm) 18.58 20.23 Yagi 11dbi Antenna with 30' 5D N male Kit numbers: 11‐3050 Antenna Gain (dBi) 11 11 Coax Cable Loss (dB) 1.8 2.7 Final Gain Less Loss (dB) 9.2 8.3 Final Output Power (dBm EIRP) 27.78 28.53 Yagi 11dbi Antenna with 50' 400 N male Kit numbers: 11‐50400 Antenna Gain (dBi) 11 11 Coax Cable Loss (dB) 2 3 Final Gain Less Loss (dB) 9 8 Final Output Power (dBm EIRP) 27.58 28.23 Yagi 11dbi Antenna with 50' 5D N male Kit numbers: 11‐5050 Antenna Gain (dBi) 11 11 Coax Cable Loss (dB) 2.8 3.8 Final Gain Less Loss (dB) 8.2 7.2 Final Output Power (dBm EIRP) 26.78 27.43 Yagi 11dbi Antenna with 75' 400 N male Kit numbers: 11‐75400 Antenna Gain (dBi) 11 11 Coax Cable Loss (dB) 3 5 Final Gain Less Loss (dB) 8 6 Final Output Power (dBm EIRP) 26.58 26.23 Yagi 11dbi Antenna with 100' 400 N male Kit numbers: 11‐100400 Antenna Gain (dBi) 11 11 Coax Cable Loss (dB) 3.9 6.2 Final Gain Less Loss (dB) 7.1 4.8 Final Output Power (dBm EIRP) 25.68 25.03 Yagi 11dbi Antenna with 75' 5D N male Kit numbers: 11‐7550 Antenna Gain (dBi) 11 11 Coax Cable Loss (dB) 4.2 5.7 Final Gain Less Loss (dB) 6.8 5.3 Final Output Power (dBm EIRP) 25.38 25.53 Yagi 11dbi Antenna with 100' 5D N male Kit numbers: 11‐10050 Antenna Gain (dBi) 11 11 Coax Cable Loss (dB) 5 8 Final Gain Less Loss (dB) 6 3 Final Output Power (dBm EIRP) 24.58 23.23 Panel 10dbi Antenna with 30' 400 N male Kit numbers:11‐30400 Antenna Gain (dBi) 10 10 Coax Cable Loss (dB) 1.1 1.8 Final Gain Less Loss (dB) 8.9 8.2 Final Output Power (dBm EIRP) 27.48 28.43 Panel 10dbi Antenna with 30' 5D N male Kit numbers:11‐3050 Antenna Gain (dBi) 10 10 Coax Cable Loss (dB) 1.8 2.7 Final Gain Less Loss (dB) 8.2 7.3 Final Output Power (dBm EIRP) 26.78 27.53 Panel 10dbi Antenna with 50' 400 N male Kit numbers:11‐50400 Antenna Gain (dBi) 10 10 Coax Cable Loss (dB) 2 3 Final Gain Less Loss (dB) 8 7 Final Output Power (dBm EIRP) 26.58 27.23 Panel 10dbi Antenna with 50' 5D N male Kit numbers:11‐5050 Antenna Gain (dBi) 10 10 Coax Cable Loss (dB) 2.8 3.8 Final Gain Less Loss (dB) 7.2 6.2 Final Output Power (dBm EIRP) 25.78 26.43 Panel 10dbi Antenna with 75' 400 N male Kit numbers:11‐75400 Antenna Gain (dBi) 10 10 Coax Cable Loss (dB) 3 5 Final Gain Less Loss (dB) 7 5 Final Output Power (dBm EIRP) 25.58 25.23 Panel 10dbi Antenna with 100' 400 N male Kit numbers:11‐100400 Antenna Gain (dBi) 10 10 Coax Cable Loss (dB) 3.9 6.2 Final Gain Less Loss (dB) 6.1 3.8 Final Output Power (dBm EIRP) 24.68 24.03 Panel 10dbi Antenna with 75' 5D N male Kit numbers:11‐7550 Antenna Gain (dBi) 10 10 Coax Cable Loss (dB) 4.2 5.7 Final Gain Less Loss (dB) 5.8 4.3 Final Output Power (dBm EIRP) 24.38 24.53 Panel 10dbi Antenna with 100' 5D N male Kit numbers:11‐10050 Antenna Gain (dBi) 10 10 Coax Cable Loss (dB) 5 8 Final Gain Less Loss (dB) 5 2 Final Output Power (dBm EIRP) 23.58 22.23 Yagi 9dbi Antenna with 30' 400 N male Kit numbers:9‐30400 Antenna Gain (dBi) 9 9 Coax Cable Loss (dB) 1.1 1.8 Final Gain Less Loss (dB) 7.9 7.2 Final Output Power (dBm EIRP) 26.48 27.43 Yagi 9dbi Antenna with 30' 5D N male Kit numbers:9‐3050 Antenna Gain (dBi) 9 9 Coax Cable Loss (dB) 1.8 2.7 Final Gain Less Loss (dB) 7.2 6.3 Final Output Power (dBm EIRP) 25.78 26.53 Yagi 9dbi Antenna with 50' 400 N male Kit numbers:9‐50400 Antenna Gain (dBi) 9 9 Coax Cable Loss (dB) 2 3 Final Gain Less Loss (dB) 7 6 Final Output Power (dBm EIRP) 25.58 26.23 Yagi 9dbi Antenna with 50' 5D N male Kit numbers:9‐5050 Antenna Gain (dBi) 9 9 Coax Cable Loss (dB) 2.8 3.8 Final Gain Less Loss (dB) 6.2 5.2 Final Output Power (dBm EIRP) 24.78 25.43 Yagi 9dbi Antenna with 75' 400 N male Kit numbers:9‐75400 Antenna Gain (dBi) 9 9 Coax Cable Loss (dB) 3 5 Final Gain Less Loss (dB) 6 4 Final Output Power (dBm EIRP) 24.58 24.23 Yagi 9dbi Antenna with 100' 400 N male Kit numbers:9‐100400 Antenna Gain (dBi) 9 9 Coax Cable Loss (dB) 3.9 6.2 Final Gain Less Loss (dB) 5.1 2.8 Final Output Power (dBm EIRP) 23.68 23.03 Yagi 9dbi Antenna with 75' 5D N male Kit numbers:9‐7550 Antenna Gain (dBi) 9 9 Coax Cable Loss (dB) 4.2 5.7 Final Gain Less Loss (dB) 4.8 3.3 Final Output Power (dBm EIRP) 23.38 23.53 Yagi 9dbi Antenna with 100' 5D N male Kit numbers:9‐10050 Antenna Gain (dBi) 9 9 Coax Cable Loss (dB) 5 8 Final Gain Less Loss (dB) 4 1 Final Output Power (dBm EIRP) 22.58 21.23 Omni 5dbi Antenna with 30' 400 N male Kit numbers:5‐30400 Antenna Gain (dBi) 5 5 Coax Cable Loss (dB) 1.1 1.8 Final Gain Less Loss (dB) 3.9 3.2 Final Output Power (dBm EIRP) 22.48 23.43 Omni 5dbi Antenna with 30' 5D N male Kit numbers:5‐3050 Antenna Gain (dBi) 5 5 Coax Cable Loss (dB) 1.8 2.7 Final Gain Less Loss (dB) 3.2 2.3 Final Output Power (dBm EIRP) 21.78 22.53 Omni 5dbi Antenna with 50' 400 N male Kit numbers:5‐50400 Antenna Gain (dBi) 5 5 C…

Text truncated - open the document above for the full version.

MSCL CALCULATION RESULT Model: F10G‐CP (dual band, 60db) FCC ID: OWWF10G‐CP The MSCL for all three type of our repeater is same: frequency 836.5MHz 1880MHz Path Loss (dB) 36.1 43.2 Polarity Loss (dB) 3 3 Antenna Gain with Coax Loss (dB) 1.5 2.5 MSCL (dB) 37.6 43.7

Form: CB-7.2.1 Issued by: QM Issue Date: 9/22/2011 Page 1 of 2 Revised by: QM-JS Revised Date: 6/23/2014 L:\Project\2014\p1470017-Huaptec\TCB Folder\RT's\CB-7.2.1 - Technical Review RT Form.docx CB-7.2.1 – Technical Review RT Form FCC ID: OWWF10G-CP IC ID: CT Project: P1470017 From: Shawn McMillen Date: 09/30/2014 1--There are two confidentiality documents provided with the same info contained in both. DW: One removed. 2--Please provide pictures of the internal form factor. DW: Photos provided. 3--The MPE report provided is incomplete. Uniden: Updated MPE report provided. SM 10/12/14: For the MPE they need to address the line item "distance to antenna cm" I'm not sure what that is and not sure if this is being taken into account with the calculations. 10/31/14 - Uniden: Provided revised MPE, users manual, and Antenna data sheet. 4--There is no test setup photo for emissions below 1GHz. MG 10/9/14: Updated Test Setup Photos. 5--The user’s manual is missing the required digital device information as well as the necessary RF exposure information. DW: 10/13/14: Provided. CT - Response by: Form: CB-7.2.1 Issued by: QM Issue Date: 9/22/2011 Page 2 of 2 Revised by: QM-JS Revised Date: 6/23/2014 L:\Project\2014\p1470017-Huaptec\TCB Folder\RT's\CB-7.2.1 - Technical Review RT Form.docx Submitted by: Date:

p1470017 113 d '.

To Whom It May Concern: The MPE calculations for model F10G-CP signal booster were done for each frequency band: 800 MHz and 1900 MHz. For each band two calculations were done. These included the different possibilities of antennas that may be connected to this signal booster: fixed outside and inside antennas. The order of the attached calculations is as follows:  800 MHz band： 1. Fixed Outside Antenna: Yagi 11dbi 2. Inside Antenna: Panel 10dbi  1900 MHz band： 1. Fixed Outside Antenna: Yagi 11dbi 2. Inside Antenna: Panel 10dbi A booster’s uplink power must not exceed 1 watt equivalent isotropic radiated power (EIRP) for each band of operation. Composite downlink power must not exceed 0.05 watt EIRP for each band of operation (20.21(e)(8)(i)(D)). The following formula was used to calculate equivalent isotropic radiated power: EIRP=Power Out (Watts) *Antenna Gain (non-log)*Coax loss (non-log) The power density (mW/cm 2 ) is calculated using the following formula: Calculated Power Density = 1000*EIRP (Watts)/(4*π*(Distance from Antenna (cm) 2 )) Yagi 11dbi with 30' 5D N male Input Data Frequency MHz 824 Pout Watts 0.07 Antenna gain dBi 11 Coax Loss dB 1.7 Distance from Antenna In cm 20 Results Of Calculations Antenna gain less Coax Loss dBi 9.3 Distance from Antenna In Inches 8 EIRP (Watts) 0.61 FCC Power Density Limit (mw/cm 2 ) 0.55 Calculated Power Density (mw/cm 2 ) 0.12 Reference Data Pout dBm 18.58 Antenna Gain (non-log) 12.59 Coax Loss(non-log) 0.68 General FCC Limit (mw/cm 2 ) f/1500 Panel 10dbi with 3' 5D N Male Input Data Frequency MHz 869 Pout Watts 0.00041 Antenna gain dBi 10 Coax Loss dB 0.2 Distance from Antenna In cm 20 Results Of Calculations Antenna gain less Coax Loss dBi 9.8 Distance from Antenna In Inches 8 EIRP (Watts) 0.0039 FCC Power Density Limit (mw/cm 2 ) 0.58 Calculated Power Density (mw/cm 2 ) 0.00078 Reference Data Pout dBm -3.87 Antenna Gain (non-log) 10.00 Coax Loss(non-log) 0.95 General FCC Limit (mw/cm 2 ) f/1500 Yagi 11dbi with 30' 5D N male Input Data Frequency MHz 1850 Pout Watts 0.11 Antenna gain dBi 11 Coax Loss dB 2.7 Distance from Antenna In cm 20 Results Of Calculations Antenna gain less Coax Loss dBi 8.3 Distance from Antenna In Inches 8 EIRP (Watts) 0.71 FCC Power Density Limit (mw/cm 2 ) 1.00 Calculated Power Density (mw/cm 2 ) 0.14 Reference Data Pout dBm 20.23 Antenna Gain (non-log) 12.59 Coax Loss(non-log) 0.54 General FCC Limit (mw/cm 2 ) 1 Panel 10dbi with 3' 5D N Male Input Data Frequency MHz 1930 Pout Watts 0.00078 Antenna gain dBi 10 Coax Loss dB 0.3 Distance from Antenna In cm 20 Results Of Calculations Antenna gain less Coax Loss dBi 9.7 Distance from Antenna In Inches 8 EIRP (Watts) 0.0073 FCC Power Density Limit (mw/cm 2 ) 1.00 Calculated Power Density (mw/cm 2 ) 0.00145 Reference Data Pout dBm -1.08 Antenna Gain (non-log) 10.00 Coax Loss(non-log) 0.93 General FCC Limit (mw/cm 2 ) 1

p1470017_FCC_Part 20_Rev 1.0 Page 1 of 74 Test Report Prepared for: Shenzhen Huaptec Co., Ltd Model: F10G-CP Description: Dual Band, 60db Serial Number: F10G-CP140805003 FCC ID: OWWF10G-CP To FCC Part 20 Date of Issue: September 18, 2014 On the behalf of the applicant: Shenzhen Huaptec Co., Ltd. 5 th FL, E BLDG, Sogood Science Park Hangkong Road Xixiang, Bao'an Shenzhen 518102 China To the attention of: Yanwei Wang, General Manager Ph: 86-755-61196866 Email: [email protected] Prepared By Compliance Testing, LLC 1724 S. Nevada Way Mesa, AZ 85204 (480) 926-3100 phone / (480) 926-3598 fax www.compliancetesting.com Project No: p1470017 Mike Graffeo Project Test Engineer This report may not be reproduced, except in full, without written permission from Compliance Testing. All results contained herein relate only to the sample tested. p1470017_FCC_Part 20_Rev 1.0 Page 2 of 74 Test Report Revision History Revision Date Revised By Reason for Revision 1.0 September 5, 2014 Mike Graffeo Original Document p1470017_FCC_Part 20_Rev 1.0 Page 3 of 74 Table of Contents Description Page Standard Test Conditions and Engineering Practices 5 Test Result Summary 6 Authorized Frequency Band 7 Maximum Power and Gain 10 Intermodulation 12 Out-of-Band Emissions 15 Conducted Spurious Emissions 29 Noise Limits 38 Uplink Inactivity 45 Variable Gain 47 Occupied Bandwidth 50 Oscillation Detection 63 Radiated Spurious 71 Test Equipment Utilized 74 p1470017_FCC_Part 20_Rev 1.0 Page 4 of 74 ILAC / A2LA Compliance Testing, LLC, has been accredited in accordance with the recognized International Standard ISO/IEC 17025:2005. This accreditation demonstrates technical competence for a defined scope and the operation of a laboratory quality management system (refer to the joint ISO-ILAC-IAF Communiqué dated January 2009). The tests results contained within this test report all fall within our scope of accreditation, unless noted below. Please refer to http://www.compliancetesting.com/labscope.html for current scope of accreditation. Testing Certificate Number: 2152.01 FCC Site Reg. #349717 IC Site Reg. #2044A-2 Non-accredited tests contained in this report: N/A p1470017_FCC_Part 20_Rev 1.0 Page 5 of 74 Test and Measurement Data Sub-part 2.1033(c)(14): All tests and measurement data shown were performed in accordance with FCC Rules and Regulations, Part 2, Subpart J and the following individual Parts: 20.21 in conjunction with latest version of KDB 935210. Standard Test Conditions and Engineering Practices Except as noted herein, the following conditions and procedures were observed during the testing: In accordance with ANSI/C63.4-2009, and unless otherwise indicated in the specific measurement results, the ambient temperature of the actual EUT was maintained within the range of 10° to 40°C (50° to 104°F), unless the particular equipment requirements specified testing over a different temperature range. Also, unless otherwise indicated, the humidity levels were in the range of 10% to 90% relative humidity. Environmental Conditions Temp (ºC) Humidity (%) Pressure (mbar) 24.9 – 28.7 37.9 – 51.3 963.9 – 971.3 Measurement results, unless otherwise noted, are worst-case measurements. EUT Description Model: F10G-CP Description: Dual Band,60db Serial Number: F10G-CP140805003 Additional Information: The EUT is an In-Building fixed install, bi-directional amplifier for the boosting of cellular phone signals and data communication devices. The following frequency bands and emission types are utilized. Frequency Band (MHz) Uplink 824 - 849 1850 - 1910 Downlink 869 - 894 1930 - 1990 Modulation Type GSM, CDMA, EDGE, HSPA. EVDO, LTE Emission Designators CDMA HSPA LTE EVDO EDGE GSM F9W F9W G7D F9W G7W GXW The modulation types and emission designators listed in the tables represent the modulations that the cell phone providers use for each frequency band. GSM, CDMA, and WCDMA represent all the modulation types (phase and amplitude or a combination thereof) utilized within the industry. EDGE, HSPA, LTE etc. are all protocols or multiplexing techniques using the base modulations. EUT Operation during Tests The EUT was in a normal operating condition. p1470017_FCC_Part 20_Rev 1.0 Page 6 of 74 Test Result Summary Specification Test Name Pass, Fail, N/A Comments 20.21(e)(3) Authorized Frequency Band Pass 20.21(e)(8)(i)(B) 20.21(e)(8)(i)(C) 20.21(e)(8)(i)(D) Maximum Power and Gain Pass 20.21(e)(8)(i)(F) Intermodulation Pass 20.21(e)(8)(i)(E) Out-of-Band Emissions Pass 2.1051 22.917(a) 24.238(a) Conducted Spurious Emissions Pass 20.21(e)(8)(i)(A) Noise Limits Pass 20.21(e)(8)(i)(I) Uplink Inactivity Pass 20.21(e)(8)(i)(C)(1) 20.21(e)(8)(i)(H) 20.21(e)(8)(i)(C)(2)(i) (Fixed) Variable Gain Pass 2.1049 Occupied Bandwidth Pass 20.21(e)(8)(ii)(A) Oscillation Detection Pass 2.1053 Radiated Spurious Pass 20.21(e)(8)(i)(B) Spectrum Block Filtering N/A This only applies to devices utilizing spectrum block filtering p1470017_FCC_Part 20_Rev 1.0 Page 7 of 74 Authorized Frequency Band Engineer: Mike Graffeo Test Date: 8/22/2014 Test Procedure The EUT was connected to a spectrum analyzer through an attenuator with the losses being input into the spectrum analyzer as a combination of reference level offset and correction factor as needed to ensure accurate readings. A signal generator was utilized to produce a CW input signal tuned to the center channel of the operational band. The RF input level was increased to a point just prior to the AGC being in control of the power, then reduced 3 dB. The Signal generator was set to sweep across 2X the operational band of the EUT while the spectrum analyzer was set to MAX HOLD. Two markers were placed at the edges of the operational band and a third marker was placed at the highest point within the band no closer than 2.5 MHz from the band edge. Test Setup Signal Generator EUT Attenuator Spectrum Analyzer p1470017_FCC_Part 20_Rev 1.0 Page 8 of 74 Uplink Test Results 824 - 849 MHz Band 1850 - 1910 MHz Band p1470017_FCC_Part…

Text truncated - open the document above for the full version.

Test Setup Photos FCC ID: OWWF10G-CP RF Conducted RF Radiated (Greater than 1GHz) RF Radiated (30MHz to 1GHz )
