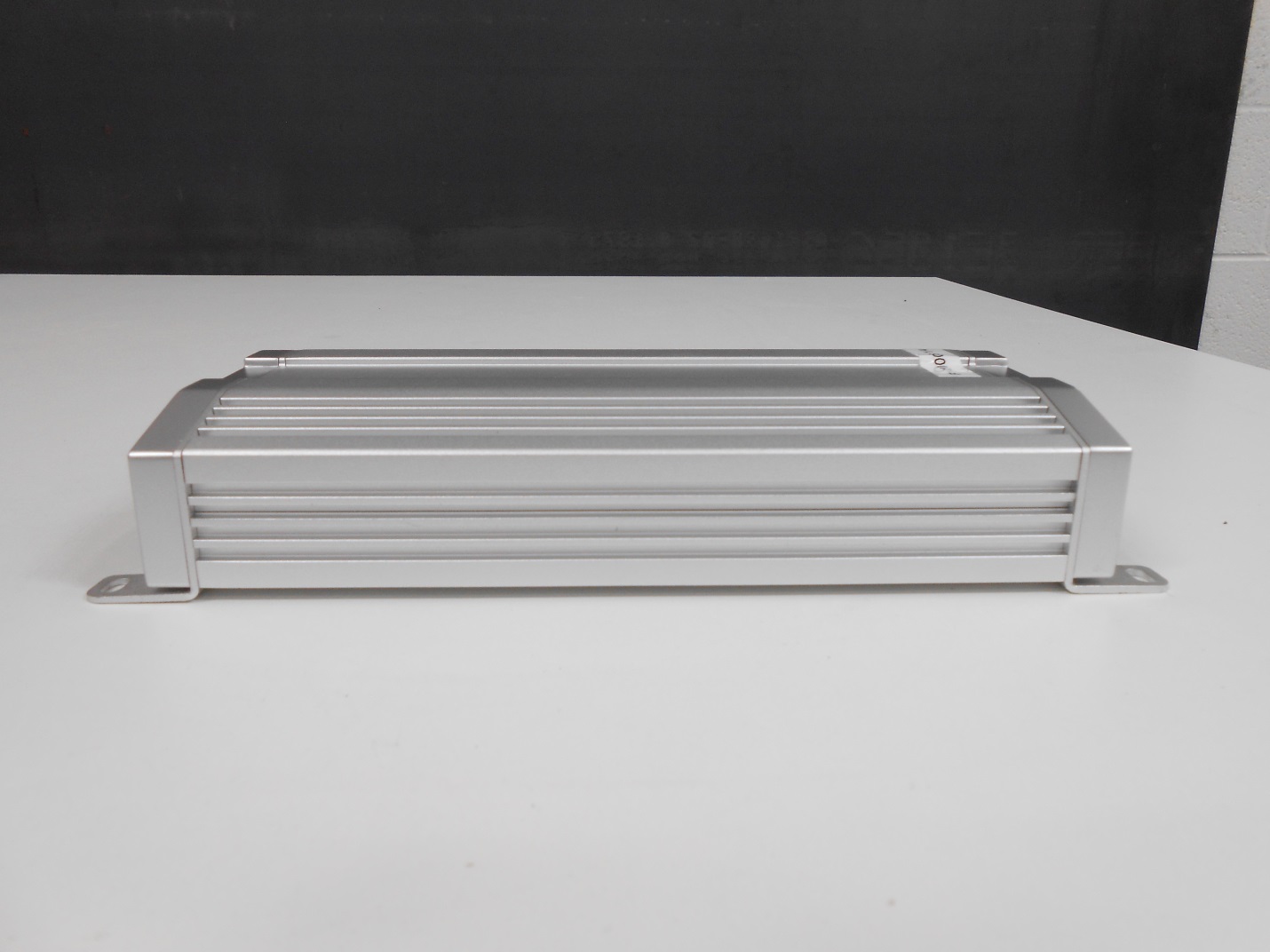

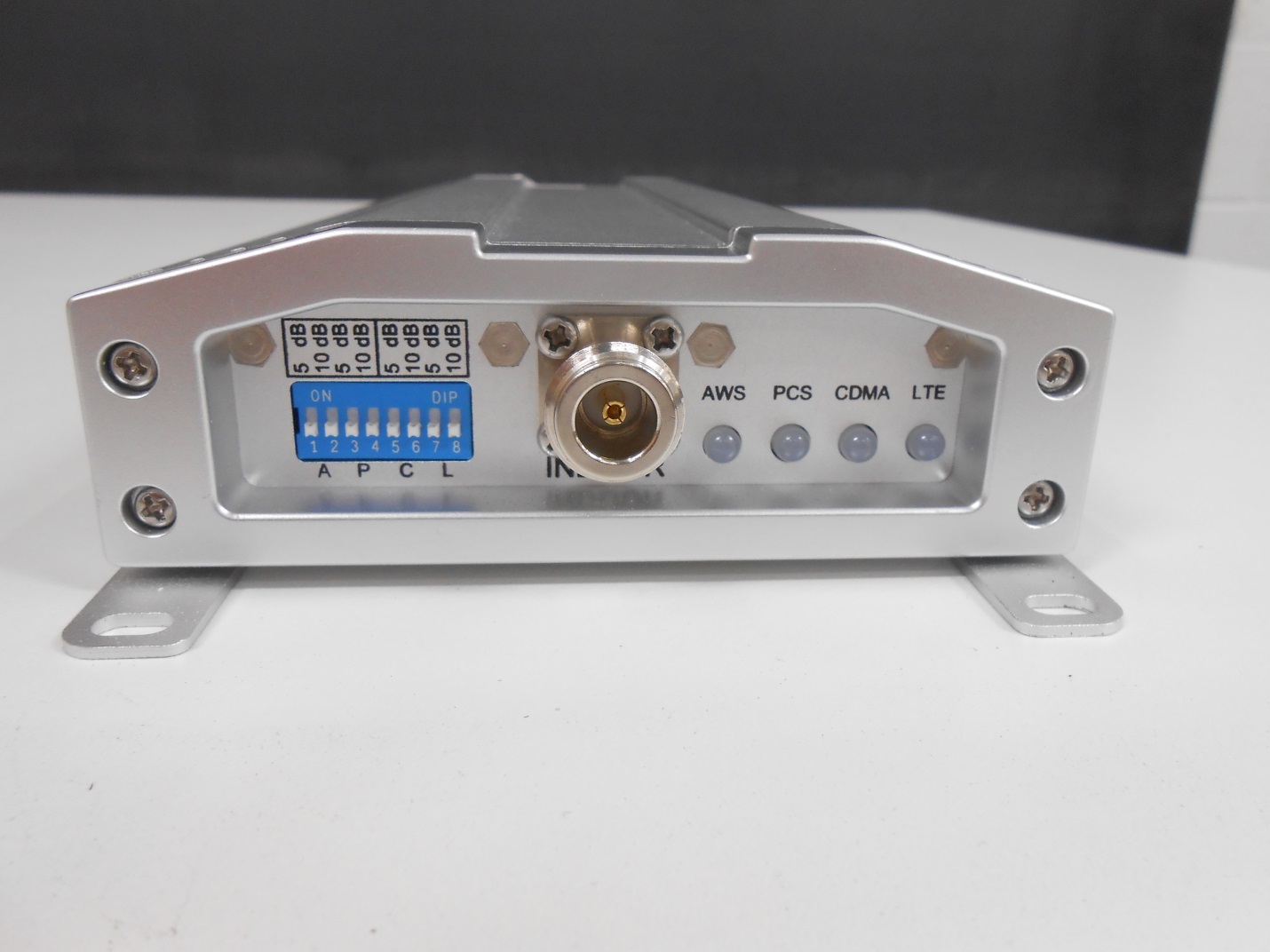

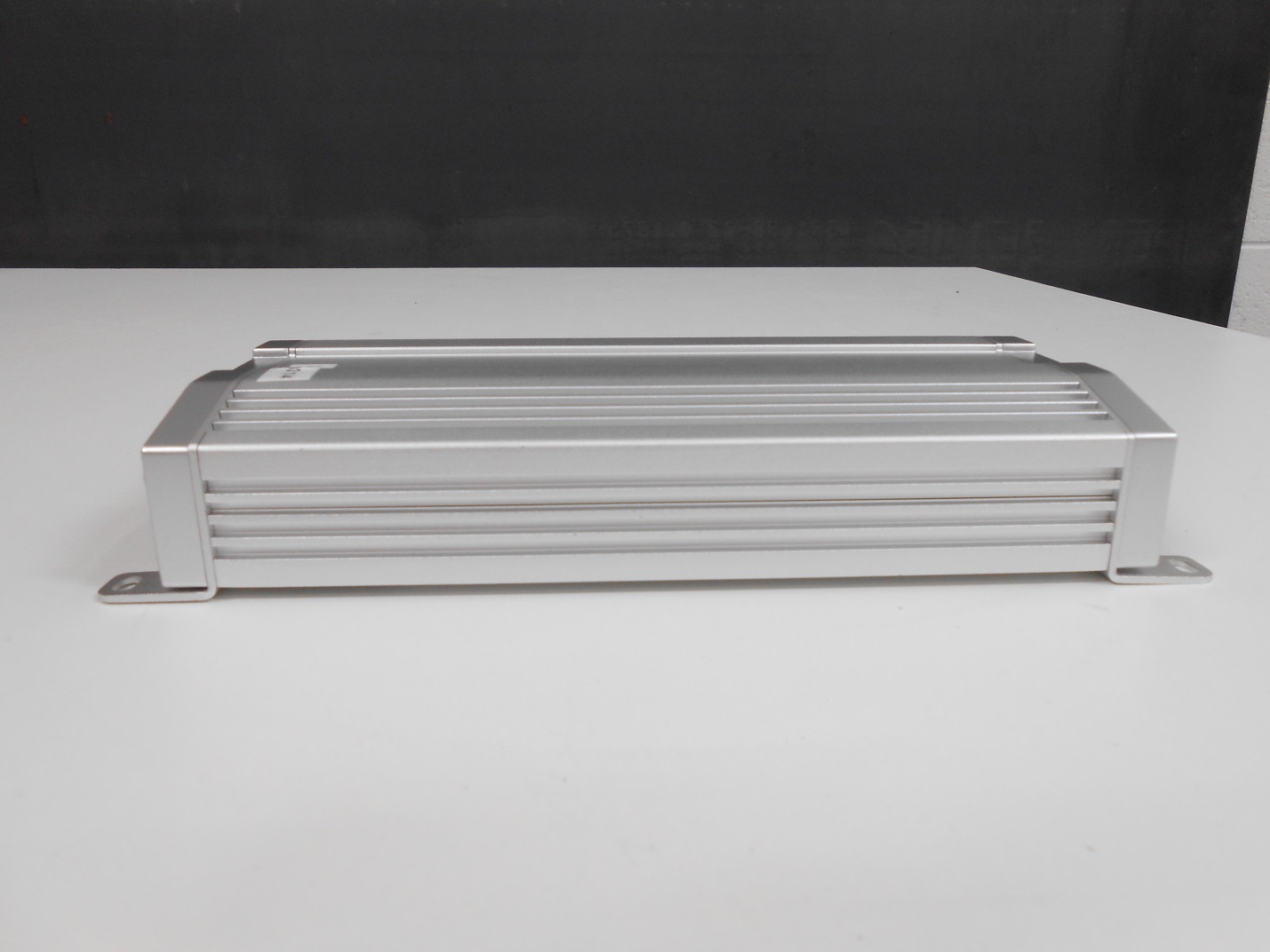

OWWF10G-CPAL-AB-C5 Bands, 60dB Booster

Consumer signal booster user manual Content What is included ............................................................................ 4 1 HOW IT WORKS ..................................................................................... 4 2 TOOL REQUIRED .................................................................................... 5 3 HOW TO INSTALL YOUR NEW CELLULAR BOOSTER .............................. 6 3.1 Overview ...................................................................................... 6 3.2 Plan the layout of your system .................................................... 8 3.3 Check for Signal Strength ............................................................. 8 3.4 Run coaxial cable.......................................................................... 9 3.5 Install the Donor (Outdoor) antenna ........................................ 10 3.6 Install the Server (Indoor) antenna .......................................... 10 3.7 Install your cellular booster ...................................................... 11 3.8 Power up your cellular booster ................................................ 11 3.9 Check the Cellular Booster Status ............................................. 12 4 UNDERSTAND THE PORTS, MGC DIP SWITCH, LED STATUS ............... 13 4.1 Repeater ports .......................................................................... 13 4.2 LED status .................................................................................. 13 5 UNDERSTAND THE ANTENNA ............................................................ 14 5.1 Donor (Outdoor) antenna ......................................................... 14 5.2 Server (Indoor) antenna ........................................................... 15 5.3 Authorized Kitting Options ....................................................... 15 Outdoor Default Antenna & Cable Kit Options ............................... 15 Indoor Default Antenna & Cable Kit Options .................................. 15 Outdoor Antenna & Cable Kit Options ............................................ 15 Indoor Antenna & Cable Kit Options ............................................... 16 6 TROUBLESHOOTING ........................................................................... 17 7 FREQUENTLY ASKED QUESTIONS ....................................................... 19 8 FCC RF Exposure Statement ............................................................... 21 9 Warning .............................................................................................. 21 10 Specification .................................................................................... 21 WHAT IS INCLUDED 1. Booster F10G‐CPAL‐AB‐C 2. Outdoor Yagi 9dbi Antenna & 50’ 5D Coaxial Cable 3. Indoor Whip 5dbi Antenna 4. AC/DC Power Adapter 1 HOW IT WORKS The cellular booster provides reliable two‐way cellular coverage by improving signal strength in homes, buildings, offices, and other areas where cellular reception is weak or unreliable. The system amplifies the signal from the nearest cellular tower and retransmits at a higher power level within a local area. This manual provides simple installation instructions that will have your cellular booster kit running in record time. 2 TOOL REQUIRED Phillips Screwdriver Drill Cellular Phone(tocheck signal strength) 3 HOW TO INSTALL YOUR NEW CELLULAR BOOSTER 3.1 Overview This guide will help you properly install your cellular booster kit. It is important to read through all of the installation steps before installing your equipment. Thoroughly read through the instructions, visualize where all the equipment will need to be installed and do a soft installation before mounting any equipment. 1 •BOOSTER – select location •Install the booster in an area that is protected from the weather, properly ventilated and is away from excessive heat and moisture. 2 •DONOR ANTENNA (OUTDOOR)‐select location •Mount the signal (outdoor) antenna in an elevated outdoor location so that it points towards the cellular tower and away from where the inside antenna will be located. 3 •OUTDOOR COAXIAL CABLE ‐select location •The outdoor coaxial cable is used to connect the donor (outdoor) antenna to the booster. 4 •INDOOR COAXIAL CABLE‐(if used) •The indoor coaxial cable is used to connect the server (indoor) antenna to the booster. 5 •SERVER ANTENNA (indoor) •The ideal location for the distribution antenna will be the area of your property where you need to improve the signal most. •NOTE:The signal strength will be strongest closest to the antenna. •IMPORTANT: The signal antenna (outdoor)should always be separated from the distribution antenna (indoor)by at least 20 vertical feet including the separation of a thick barrier such as a roof or a wall. Depending on the strength of your outdoor signal, the weaker the signal the less separation distance is required. 7 •LIGHTNING SURGE PROTECTOR‐(SOLD SEPARATELY) •The lightning surge protector connects in between the signal antenna and the booster. •IMPORTANT: Lightning surge protector must be grounded. 8 • COMMISSIONING THE SYSTEM ！ 3.2 Plan the layout of your system Before you get started you will need to plan the layout of your system. This involves checking signal strength for signals coming from the cellular tower, as well as antenna, booster and cable placement. 3.3 Check for Signal Strength Select a location on the roof of the building to install the signal antenna, by monitoring your cellular phone’s signal strength (signal bars) to find the strongest signal from your carrier’s cellular tower. Mark that area as the installation location for the Donor (outdoor) IMPORTANT: Confirm that you have at least 20 feet of vertical distance between the marked antenna location and the location where you will place the Server (indoor) antenna. To prevent the system from oscillation (feedback) you want to ensure that there is enough separation between the distribution and signal anten…

Text truncated - open the document above for the full version.

SHENZHEN HUAPTEC CO., LTD Add.: 5th FL, E BLDG, Sogood Science Park, Sanwei Community, Hangkong Road, Xixiang, Bao'an, Shenzhen, Guangdong, China 518102 Tel: +86-0755-29921615 29921635 Fax: +86-755-29921165 October 21, 2014 Attestation for Huaptec Signal Booster: FCC ID: OWWF10G-CPAL-AB-C Signal Boosters certificated under FCC ID OWWF10G-CPAL-AB-C are manufactured and tested to ensure FCC compliance: (1) Since this s not a provider-specific booster, licensee consent is not required. (2) NPS and other compliance/safeguard features have been implemented (3) NPS and other compliance/safeguard features are defaulted to “ON” configuration (in operation) (4) NPS and other compliance/safeguard features cannot be field reconfigured, disabled or removed (5) Consumer booster is not user programmable, does not need fine tuning or adjustment, does not require professional installation (6) Future software upgrade will not cause non-compliance Sincerely Pengfei Li Managing Director

SHENZHEN HUAPTEC CO., LTD Add.: 5th FL, E BLDG, Sogood Science Park, Sanwei Community, Hangkong Road, Xixiang, Bao'an, Shenzhen, Guangdong, China 518102 Tel: +86-0755-29921615 29921635 Fax: +86-755-29921165 Long Term Confidentiality Request Letter 12, Nov, 2014 Compliance Testing LLC 1724 S. Nevada Way Mesa, AZ 85204 RE: CONFIDENTIALITY REQUEST FOR (F10G-CPAL-AB-C, FCC ID: OWWF10G-CPAL-AB-C) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the following documents required to be submitted with this application be permanently withheld from public review.  Block Diagram  Schematics  Theory of Operation  Tune Up Procedure  Parts List/BOM These documents contain detailed system and equipment descriptions and related information about the product, which manufacturer/applicant considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, manufacturer/applicant feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Pengfei Li Product Mananger 5 th FL, E BLOG, Sogood Science Park, Hangkong Road, Xixiang, Bao’an, Shenzhen, China 518102 +86-15989859015 [email protected]

The antenna kitting options for model F10G-CPAL-AB-C signal booster were done for 20 Outside Antenna kit options and 25 Inside Antenna kit options. The order of the attached calculations is as follows: Outside Antenna kit Options Inside Antenna kit Options 1 Kit 11‐7550 1 Kit 5‐0 2 Kit 11‐10050 2 Kit 100‐1550 3 Kit 10‐75400 3 Kit 100‐30400 4 Kit 10‐100400 4 Kit 100‐5050 5 Kit 10‐7550 5 Kit 100‐7550 6 Kit 10‐10050 6 Kit 102‐7550‐50 7 Kit 9‐50400 7 Kit 103‐7550‐75 8 Kit 9‐5050 8 Kit 114‐7550‐50 9 Kit 9‐75400 9 Kit 100‐10050 10 Kit 9‐100400 10 Kit 100‐30400 11 Kit 9‐7550 11 Kit 100‐50400 12 Kit 9‐10050 12 Kit 100‐75400 13 Kit 5‐30400 13 Kit 3‐0350 14 Kit 5‐3050 14 Kit 3‐1550 15 Kit 5‐50400 15 Kit 3‐30400 16 Kit 5‐5050 16 Kit 3‐5050 17 Kit 5‐75400 17 Kit 3‐7550 18 Kit 5‐100400 18 Kit 3‐10050 19 Kit 5‐7550 19 Kit 3‐30400 20 Kit 5‐10050 20 Kit 3‐50400 21 Kit 3‐75400 22 Kit 3‐100400 23 Kit 32‐50400‐50 24 Kit 33‐50400‐75 25 Kit 34‐50400‐50 Outside Antenna kit Options Final Output Power Limited to 30 dBm EIRP in all Frequency Bands Uplink Frequency(MHz) 704‐716 776‐787 824‐849 1710‐1755 1850‐1910 Uplink Output Power(dBm) 22.82 22.95 20.5 19.45 20.92 1. Yagi 11dbi Antenna with 75' 5D N male Kit numbers: 11‐7550 Antenna Gain (dBi) 11 11 11 11 11 Coax Cable Loss (dB) 4.2 4.2 4.2 5.7 5.7 Final Gain Less Loss (dB) 6.8 6.8 6.8 5.3 5.3 Final Output Power (dBm EIRP) 29.62 29.75 27.3 24.75 26.22 2. Yagi 11dbi Antenna with 100' 5D N male Kit numbers: 11‐10050 Antenna Gain (dBi) 11 11 11 11 11 Coax Cable Loss (dB) 5 5 5 8 8 Final Gain Less Loss (dB) 6 6 6 3 3 Final Output Power (dBm EIRP) 28.82 28.95 26.5 22.45 23.92 3. Panel 10dbi Antenna with 75' 400 N male Kit numbers:11‐75400 Antenna Gain (dBi) 10 10 10 10 10 Coax Cable Loss (dB) 3 3 3 5 5 Final Gain Less Loss (dB) 7 7 7 5 5 Final Output Power (dBm EIRP) 29.82 29.95 27.5 24.45 25.92 4. Panel 10dbi Antenna with 100' 400 N male Kit numbers:11‐100400 Antenna Gain (dBi) 10 10 10 10 10 Coax Cable Loss (dB) 3.9 3.9 3.9 6.2 6.2 Final Gain Less Loss (dB) 6.1 6.1 6.1 3.8 3.8 Final Output Power (dBm EIRP) 28.92 29.05 26.6 23.25 24.72 5. Panel 10dbi Antenna with 75' 5D N male Kit numbers:11‐7550 Antenna Gain (dBi) 10 10 10 10 10 Coax Cable Loss (dB) 4.2 4.2 4.2 5.7 5.7 Final Gain Less Loss (dB) 5.8 5.8 5.8 4.3 4.3 Final Output Power (dBm EIRP) 28.62 28.75 26.3 23.75 25.22 6. Panel 10dbi Antenna with 100' 5D N male Kit numbers:11‐10050 Antenna Gain (dBi) 10 10 10 10 10 Coax Cable Loss (dB) 5 5 5 8 8 Final Gain Less Loss (dB) 5 5 5 2 2 Final Output Power (dBm EIRP) 27.82 27.95 25.5 21.45 22.92 7. Yagi 9dbi Antenna with 50' 400 N male Kit numbers:9‐50400 Antenna Gain (dBi) 9 9 9 9 9 Coax Cable Loss (dB) 2 2 2 3 3 Final Gain Less Loss (dB) 7 7 7 6 6 Final Output Power (dBm EIRP) 29.82 29.95 27.5 25.45 26.92 8. Yagi 9dbi Antenna with 50' 5D N male Kit numbers:9‐5050 Antenna Gain (dBi) 9 9 9 9 9 Coax Cable Loss (dB) 2.8 2.8 2.8 3.8 3.8 Final Gain Less Loss (dB) 6.2 6.2 6.2 5.2 5.2 Final Output Power (dBm EIRP) 29.02 29.15 26.7 24.65 26.12 9. Yagi 9dbi Antenna with 75' 400 N male Kit numbers:9‐75400 Antenna Gain (dBi) 9 9 9 9 9 Coax Cable Loss (dB) 3 3 3 5 5 Final Gain Less Loss (dB) 6 6 6 4 4 Final Output Power (dBm EIRP) 28.82 28.95 26.5 23.45 24.92 10. Yagi 9dbi Antenna with 100' 400 N male Kit numbers:9‐100400 Antenna Gain (dBi) 9 9 9 9 9 Coax Cable Loss (dB) 3.9 3.9 3.9 6.2 6.2 Final Gain Less Loss (dB) 5.1 5.1 5.1 2.8 2.8 Final Output Power (dBm EIRP) 27.92 28.05 25.6 22.25 23.72 11. Yagi 9dbi Antenna with 75' 5D N male Kit numbers:9‐7550 Antenna Gain (dBi) 9 9 9 9 9 Coax Cable Loss (dB) 4.2 4.2 4.2 5.7 5.7 Final Gain Less Loss (dB) 4.8 4.8 4.8 3.3 3.3 Final Output Power (dBm EIRP) 27.62 27.75 25.3 22.75 24.22 12. Yagi 9dbi Antenna with 100' 5D N male Kit numbers:9‐10050 Antenna Gain (dBi) 9 9 9 9 9 Coax Cable Loss (dB) 5 5 5 8 8 Final Gain Less Loss (dB) 4 4 4 1 1 Final Output Power (dBm EIRP) 26.82 26.95 24.5 20.45 21.92 13. Omni 5dbi Antenna with 30' 400 N male Kit numbers:5‐30400 Antenna Gain (dBi) 5 5 5 5 5 Coax Cable Loss (dB) 1.1 1.1 1.1 1.8 1.8 Final Gain Less Loss (dB) 3.9 3.9 3.9 3.2 3.2 Final Output Power (dBm EIRP) 26.72 26.85 24.4 22.65 24.12 14. Omni 5dbi Antenna with 30' 5D N male Kit numbers:5‐3050 Antenna Gain (dBi) 5 5 5 5 5 Coax Cable Loss (dB) 1.8 1.8 1.8 2.7 2.7 Final Gain Less Loss (dB) 3.2 3.2 3.2 2.3 2.3 Final Output Power (dBm EIRP) 26.02 26.15 23.7 21.75 23.22 15. Omni 5dbi Antenna with 50' 400 N male Kit numbers:5‐50400 Antenna Gain (dBi) 5 5 5 5 5 Coax Cable Loss (dB) 2 2 2 3 3 Final Gain Less Loss (dB) 3 3 3 2 2 Final Output Power (dBm EIRP) 25.82 25.95 23.5 21.45 22.92 16. Omni 5dbi Antenna with 50' 5D N male Kit numbers:5‐5050 Antenna Gain (dBi) 5 5 5 5 5 Coax Cable Loss (dB) 2.8 2.8 2.8 3.8 3.8 Final Gain Less Loss (dB) 2.2 2.2 2.2 1.2 1.2 Final Output Power (dBm EIRP) 25.02 25.15 22.7 20.65 22.12 17. Omni 5dbi Antenna with 75' 400 N male Kit numbers:5‐75400 Antenna Gain (dBi) 5 5 5 5 5 Coax Cable Loss (dB) 3 3 3 5 5 Final Gain Less Loss (dB) 2 2 2 0 0 Final Output Power (dBm EIRP) 24.82 24.95 22.5 19.45 20.92 18. Omni 5dbi Antenna with 100' 400 N male Kit numbers:5‐10400 Antenna Gain (dBi) 5 5 5 5 5 Coax Cable Loss (dB) 3.9 3.9 3.9 6.2 6.2 Final Gain Less Loss (dB) 1.1 1.1 1.1 ‐1.2 ‐1.2 Final Output Power (dBm EIRP) 23.92 24.05 21.6 18.25 19.72 19. Omni 5dbi Antenna with 75' 5D N male Kit numbers:5‐7550 Antenna Gain (dBi) 5 5 5 5 5 Coax Cable Loss (dB) 4.2 4.2 4.2 5.7 5.7 Final Gain Less Loss (dB) 0.8 0.8 0.8 ‐0.7 ‐0.7 Final Output Power (dBm EIRP) 23.62 23.75 21.3 18.75 20.22 20. Omni 5dbi Antenna with 100' 5D N male Kit numbers:5‐10050 Antenna Gain (dBi) 5 5 5 5 5 Coax Cable Loss (dB) 5 5 5 8 8 Final Gain Less Loss (dB) 0 0 0 ‐3 ‐3 Final Output Power (dBm EIRP) 22.82 22.95 20.5 16.45 17.92 Inside Antenna kit Options Uplink Frequency(MHz) 704‐716 776‐787 824‐849 1710‐1755 1850‐1910 Measured Uplink Gain(dB) 57.62 57.55 54.90 56.15 60.52 MSCL Minimum (dB) 28.0 29.0 30.0 34.0 34.0 6' Separation Distance Path Loss (dB) 34.7 35.6 36.2 4…

Text truncated - open the document above for the full version.

Form: CB-7.2.1 Issued by: QM Issue Date: 9/22/2011 Page 1 of 1 Revised by: QM-JS Revised Date: 6/23/2014 L:\Project\2014\p1480003-Huaptec\TCB Folder\RT's\CB-7.2.1 - Technical Review RT Form.docx CB-7.2.1 – Technical Review RT Form FCC ID: OWWF10G-CPAL-AB-C CT Project: P1480003 From: Shawn McMillen Date: 10/1/14 1. Several of the MPE calculations are incorrect. Huaptec – We have checked the MPE calculation. We use same formula as other product. Please help tell us which is incorrect so that we can update the documents. 2. The file named Block Diagram does not appear to be a block diagram. Huaptec – Please refer to Theory of Op exhibit. 3. No confidentiality letter was provided with this application. CT - The cover letter is saved with exhibit: F10G-CPAL-AB-C Cover Letter.pdf 4. There is no 731 form provided with this application. This is required in order to pull necessary information off of it. Huaptec – Please refer to updated Form 731 exhibit. 5. The user’s manual is missing the required FCC class B statements. Huaptec – Please refer to updated User Guide exhibit. 6. The EMC test report is missing the necessary rule parts that the device is meant to be compliant to. Such as 22, 24 and 27. CT (Mike G) –Added FCC references in rev 2 of test report. These also appear in the Test Result Summary table. 7. Please check the power levels measured for the Downlink. There appears to be a significant variation within the band of operation depending on the signal provided. CT (Mike G) - Added new plot in rev 2 of test report, page 18. 8. Please check the downlink 734-746MHz band plot for intermodulation as it appears the two carriers injected are at a signifinaly different power level. CT (Mike G) – Customer is aware of this and has already approved the data. 9. Please check the input and output plots for the WCDMA Downlink 734-746MHz band as it appears the spectrum on the output side is deformed. CT (Mike G) – This data is consistent with the frequency sweep that shows reduced power across this area of the band, (738 -742MHz). Response by: Compliance Testing & Huaptec Submitted by: CTL Date: 10/9/14

Form: CB-7.2.1 Issued by: QM Issue Date: 9/22/2011 Page 1 of 2 Revised by: QM-JS Revised Date: 6/23/2014 L:\Project\2014\p1480003-Huaptec\TCB Folder\RT's\CB-7.2.1 - Technical Review RT Form.docx CB-7.2.1 – Technical Review RT Form FCC ID: OWWF10G-CPAL-AB-C CT Project: P1480003 From: Shawn McMillen Date: 10/1/14 1. Several of the MPE calculations are incorrect. Huaptec – We have checked the MPE calculation. We use same formula as other product. Please help tell us which is incorrect so that we can update the documents. 10/27/14 Huaptec: Provided revise MPE calculations MPE is still wrong, incorrect antenna gains. 10/27/14 Hauptec - RE: We are confused with these antenna gains. Could you help to clarif which antenna gain data is incorrect in the tablet? Could you help to correct them and send us for reference? 10/31/14 – Hauptec: Revised MPE, antenna kitting, and users manual provided. 11/6/14 –CT: MPE is incorrect. 11/11/14 – Huaptec fixed MPE. 2. The file named Block Diagram does not appear to be a block diagram. Huaptec – Please refer to Theory of Op exhibit. 3. No confidentiality letter was provided with this application. CT - The cover letter is saved with exhibit: F10G-CPAL-AB-C Cover Letter.pdf 4. There is no 731 form provided with this application. This is required in order to pull necessary information off of it. Huaptec – Please refer to updated Form 731 exhibit. 5. The user’s manual is missing the required FCC class B statements. Huaptec – Please refer to updated User Guide exhibit. 6. The EMC test report is missing the necessary rule parts that the device is meant to be compliant to. Such as 22, 24 and 27. CT (Mike G) –Added FCC references in rev 2 of test report. These also appear in the Test Result Summary table. 7. Please check the power levels measured for the Downlink. There appears to be a significant variation within the band of operation depending on the signal provided. CT (Mike G) - Added new plot in rev 2 of test report, page 18. 8. Please check the downlink 734-746MHz band plot for intermodulation as it appears the two carriers injected are at a signifinaly different power level. CT (Mike G) – Customer is aware of this and has already approved the data. 11/4/14 – SM: The lab will need to go back and address the intermodulation using the correct number of points when using an average detector. Form: CB-7.2.1 Issued by: QM Issue Date: 9/22/2011 Page 2 of 2 Revised by: QM-JS Revised Date: 6/23/2014 L:\Project\2014\p1480003-Huaptec\TCB Folder\RT's\CB-7.2.1 - Technical Review RT Form.docx 9. Please check the input and output plots for the WCDMA Downlink 734-746MHz band as it appears the spectrum on the output side is deformed. CT (Mike G) – This data is consistent with the frequency sweep that shows reduced power across this area of the band, (738 -742MHz). Response by: Compliance Testing & Huaptec Submitted by: CTL Date: 10/9/14

frequency 710MHz 782MHz 836.5MHz1732.5MHz 1880MHz Path Loss (dB) 34.7 35.57 36.1 42.48 43.2 Polarity Loss (dB) 3 3 3 3 3 Antenna Gain with Coax LossdB (dB) 1.5 1.5 1.5 2.5 2.5 MSCL (dB) 36.2 37.07 37.6 42.98 43.7

To Whom It May Concern: The MPE calculations for model F10G-CPAL-AB-C signal booster were done for each frequency band: 700 MHz Band 17, 700 MHz Band 13, 800 MHz, 1700/2100 MHz , and 1900 MHz . For each band two calculations were done. These included the different possibilities of antennas that may be connected to this signal booster: fixed outside and inside antennas. The order of the attached calculations is as follows:  700 MHz band 17： 1. Fixed Outside Antenna: Yagi 11dbi 2. Inside Antenna: Panel 10dbi  700 MHz band 13： 1. Fixed Outside Antenna: Yagi 11dbi 2. Inside Antenna: Panel 10dbi  800 MHz band： 3. Fixed Outside Antenna: Yagi 11dbi 4. Inside Antenna: Panel 10dbi  1700/2100 MHz band： 3. Fixed Outside Antenna: Yagi 11dbi 4. Inside Antenna: Panel 10dbi  1900 MHz band： 5. Fixed Outside Antenna: Yagi 11dbi 6. Inside Antenna: Panel 10dbi A booster’s uplink power must not exceed 1 watt equivalent isotropic radiated power (EIRP) for each band of operation. Composite downlink power must not exceed 0.05 watt EIRP for each band of operation (20.21(e)(8)(i)(D)). The following formula was used to calculate equivalent isotropic radiated power: EIRP=Power Out (Watts) *Antenna Gain (non-log)*Coax loss (non-log) The power density (mW/cm 2 ) is calculated using the following formula: Calculated Power Density = 1000*EIRP (Watts)/(4*π*(Distance from Antenna (cm) 2 )) Yagi 11dbi with 30' 400 N male Input Data Frequency MHz 704 Pout Watts 0.19 Ant. Gain dBi 11 Coax Loss dB 0.85 Distance From Antenna In cm 20 Results Of Calculations Ant.Gain less Coax Loss dBi 10.15 Distance From Antenna In Inches 8 EIRP (Watts) 1.98 FCC Power Density Limit (mw/cm 2 ) 0.47 Calculated Power Density (mw/cm 2 ) 0.38284 Reference Data Pout dBm 22.82 Antenna Gain (non‐log) 12.59 Coax Loss(non‐log) 0.82 General FCC Limit (mw/cm 2 ) f/1500 Panel 10dbi with 3' 5D N Male Input Data Frequency MHz 734 Pout Watts 0.01 Ant. Gain dBi 10 Coax Loss dB 0.2 Distance From Antenna In cm 20 Results Of Calculations Ant.Gain less Coax Loss dBi 9.8 Distance From Antenna In Inches 8 EIRP (Watts) 0.01 FCC Power Density Limit (mw/cm 2 ) 0.49 Calculated Power Density (mw/cm 2 ) 0.0138 Reference Data Pout dBm 8.76 Antenna Gain (non‐log) 10.00 Coax Loss(non‐log) 0.95 General FCC Limit (mw/cm 2 ) f/1500 Yagi 11dbi with 30' 400 N male Input Data Frequency MHz 777 Pout Watts 0.20 Ant. Gain dBi 11 Coax Loss dB 0.9 Distance From Antenna In cm 20 Results Of Calculations Ant.Gain less Coax Loss dBi 10.1 Distance From Antenna In Inches 8 EIRP (Watts) 0.01 FCC Power Density Limit (mw/cm 2 ) 0.52 Calculated Power Density (mw/cm 2 ) 0.389958 Reference Data Pout dBm 22.95 Antenna Gain (non‐log) 12.59 Coax Loss(non‐log) 0.81 General FCC Limit (mw/cm 2 ) f/1500 Panel 10dbi with 3' 5D N Male Input Data Frequency MHz 746 Pout Watts 0.003048 Ant. Gain dBi 10 Coax Loss dB 0.2 Distance From Antenna In cm 20 Results Of Calculations Ant.Gain less Coax Loss dBi 4.84 Distance From Antenna In Inches 8 EIRP (Watts) 0.009550 FCC Power Density Limit (mw/cm 2 ) 0.50 Calculated Power Density (mw/cm 2 ) 0.005624 Reference Data Pout dBm 4.84 Antenna Gain (non‐log) 10.00 Coax Loss(non‐log) 0.95 General FCC Limit (mw/cm 2 ) f/1500 Yagi 11dbi with 30' 400 N male Input Data Frequency MHz 824 Pout Watts 0.11 Ant. Gain dBi 11 Coax Loss dB 1.1 Distance From Antenna In cm 20 Results Of Calculations Ant.Gain less Coax Loss dBi 9.9 Distance From Antenna In Inches 8 EIRP (Watts) 0.01 FCC Power Density Limit (mw/cm 2 ) 0.55 Calculated Power Density (mw/cm 2 ) 0.211845 Reference Data Pout dBm 20.5 Antenna Gain (non‐log) 12.58925412 Coax Loss(non‐log) 0.78 General FCC Limit (mw/cm 2 ) f/1500 Panel 10dbi with 3' 5D N Male Input Data Frequency MHz 869 Pout Watts 0.01 Ant. Gain dBi 10 Coax Loss dB 0.2 Distance From Antenna In cm 20 Results Of Calculations Ant.Gain less Coax Loss dBi 9.8 Distance From Antenna In Inches 8 EIRP (Watts) 0.01 FCC Power Density Limit (mw/cm 2 ) 0.58 Calculated Power Density (mw/cm 2 ) 0.010740 Reference Data Pout dBm 7.65 Antenna Gain (non‐log) 10.00 Coax Loss(non‐log) 0.95 General FCC Limit (mw/cm 2 ) f/1500 Yagi 11dbi with 30' 400 N male Input Data Frequency MHz 1710 Pout Watts 0.09 Ant. Gain dBi 11 Coax Loss dB 1.4 Distance From Antenna In cm 20 Results Of Calculations Ant.Gain less Coax Loss dBi 9.6 Distance From Antenna In Inches 8 EIRP (Watts) 0.01 FCC Power Density Limit (mw/cm 2 ) 1.00 Calculated Power Density (mw/cm 2 ) 0.155245 Reference Data Pout dBm 19.45 Antenna Gain (non‐log) 12.59 Coax Loss(non‐log) 0.72 General FCC Limit (mw/cm 2 ) 1 Panel 10dbi with 3' 5D N Male Input Data Frequency MHz 2110 Pout Watts 0.000124 Ant. Gain dBi 10 Coax Loss dB 0.5 Distance From Antenna In cm 20 Results Of Calculations Ant.Gain less Coax Loss dBi 9.5 Distance From Antenna In Inches 8 EIRP (Watts) 0.01 FCC Power Density Limit (mw/cm 2 ) 1.00 Calculated Power Density (mw/cm 2 ) 0.000213 Reference Data Pout dBm ‐9.07 Antenna Gain (non‐log) 10.00 Coax Loss(non‐log) 0.89 General FCC Limit (mw/cm 2 ) 1 Yagi 11dbi with 30' 400 N male Input Data Frequency MHz 1850 Pout Watts 0.12 Ant. Gain dBi 11 Coax Loss dB 1.6 Distance From Antenna In cm 20 Results Of Calculations Ant.Gain less Coax Loss dBi 9.4 Distance From Antenna In Inches 8 EIRP (Watts) 0.01 FCC Power Density Limit (mw/cm 2 ) 1.00 Calculated Power Density (mw/cm 2 ) 0.207978 Reference Data Pout dBm 20.92 Antenna Gain (non‐log) 12.58925412 Coax Loss(non‐log) 0.69 General FCC Limit (mw/cm 2 ) 1 Panel 10dbi with 3' 5D N Male Input Data Frequency MHz 1930 Pout Watts 0.000085 Ant. Gain dBi 10 Coax Loss dB 0.3 Distance From Antenna In cm 20 Results Of Calculations Ant.Gain less Coax Loss dBi 9.7 Distance From Antenna In Inches 8 EIRP (Watts) 0.01 FCC Power Density Limit (mw/cm 2 ) 1.00 Calculated Power Density (mw/cm 2 ) 0.000153 Reference Data Pout dBm ‐10.7 Antenna Gain (non‐log) 10.00 Coax Loss(non‐log) 0.93 General FCC Limit (mw/cm 2 ) 1

p1480003_FCC_Part 20_Rev 2.0 Page 1 of 152 Test Report Prepared for: Shenzhen Huaptec Co., Ltd Model: F10G-CPAL-AB-C Description: 5 bands, 60dB Booster FCC ID: OWWF10G-CPAL-AB-C To FCC Part 20 Date of Issue: October 8, 2014 On the behalf of the applicant: Shenzhen Huaptec Co., Ltd. 5 th FL, E BLDG, Sogood Science Park Hangkong Road Xixiang, Bao'an Shenzhen 518102 China To the attention of: Yanwei Wang, General Manager Ph: 86-755-61196866 Email: [email protected] Prepared By Compliance Testing, LLC 1724 S. Nevada Way Mesa, AZ 85204 (480) 926-3100 phone / (480) 926-3598 fax www.compliancetesting.com Project No: p1480003 Mike Graffeo Project Test Engineer This report may not be reproduced, except in full, without written permission from Compliance Testing. All results contained herein relate only to the sample tested. p1480003_FCC_Part 20_Rev 2.0 Page 1 of 152 Test Report Revision History Revision Date Revised By Reason for Revision 1.0 September 22, 2014 Mike Graffeo Original Document 2.0 October 8, 2014 Mike Graffeo Updated plot on page 18. Add references to FCC parts 22, 24 and 27. p1480003_FCC_Part 20_Rev 2.0 Page 2 of 152 Table of Contents Description Page Standard Test Conditions and Engineering Practices 4 Test Result Summary 5 Authorized Frequency Band 6 Maximum Power and Gain 13 Intermodulation 15 Out-of-Band Emissions 21 Conducted Spurious Emissions 55 Noise Limits 78 Uplink Inactivity 90 Variable Gain 94 Occupied Bandwidth 100 Oscillation Detection 131 Radiated Spurious 149 Test Equipment Utilized 152 p1480003_FCC_Part 20_Rev 2.0 Page 3 of 152 ILAC / A2LA Compliance Testing, LLC, has been accredited in accordance with the recognized International Standard ISO/IEC 17025:2005. This accreditation demonstrates technical competence for a defined scope and the operation of a laboratory quality management system (refer joint ISO-ILAC-IAF Communiqué dated January 2009). The tests results contained within this test report all fall within our scope of accreditation, unless noted below. Please refer to http://www.compliancetesting.com/labscope.html for current scope of accreditation. Testing Certificate Number: 2152.01 FCC Site Reg. #349717 IC Site Reg. #2044A-2 Non-accredited tests contained in this report: N/A p1480003_FCC_Part 20_Rev 2.0 Page 4 of 152 Test and Measurement Data Sub-part 2.1033(c)(14): All tests and measurement data shown were performed in accordance with FCC Rules and Regulations, Part 2, Subpart J and the following individual Parts: 20.21 in conjunction with latest version of KDB 935210, which shows compliance to FCC Parts 22, 24, and 27 Standard Test Conditions and Engineering Practices Except as noted herein, the following conditions and procedures were observed during the testing: In accordance with ANSI/C63.4-2009, and unless otherwise indicated in the specific measurement results, the ambient temperature of the actual EUT was maintained within the range of 10° to 40°C (50° to 104°F), unless the particular equipment requirements specify testing over a different temperature range. Also, unless otherwise indicated, the humidity levels were in the range of 10% to 90% relative humidity. Environmental Conditions Temp (ºC) Humidity (%) Pressure (mbar) 24.9 – 31.0 33.5 – 63.0 985.5 - 943.0 Measurement results, unless otherwise noted, are worst-case measurements. EUT Description Model: F10G-CPAL-AB-C Description: 5 bands, 60dB Booster Firmware: N/A Software: N/A Additional Information: The EUT is an in home, fixed install, bi-directional amplifier for the boosting of cellular phone signals and data communication devices. The following frequency bands and emission types are utilized. Frequency Band (MHz) Uplink 704 - 716 776 - 787 824 - 849 1850 – 19101710 - 1755 Downlink 734 - 746 746 - 757 869 - 894 1930 - 1990 2110 - 2155 Modulation Type LTE GSM, CDMA, EDGE, HSPA. EVDO, LTE CDMA, HSPA, LTE, EDGE, EVDO Emission Designators CDMA HSPA LTE EVDO EDGE GSM F9W F9W G7D F9W G7W GXW The modulation types and emission designators listed in the tables represent the modulations that the cell phone providers use for each frequency band. GSM, CDMA, and WCDMA represent all the modulation types (phase and amplitude or a combination thereof) utilized within the industry. EDGE, HSPA, LTE etc. are all protocols or multiplexing techniques using the base modu…
