2012-09-10 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: OWWF15 C-CP-M Produc t Name: Cellular signal booster Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • BOM • Operation Description • Tune up Procedure These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 2012-09-10 By: Yanwei Wang Signature Printed Title: Manager On behalf of : SHENZHEN HUAPTEC CO., LTD Telephone: 86)755-29921635

2013-08-06

Product Similarity Declaration To Whom It May Concern, We, Shenzhen Huaptec Co., Ltd, hereby declare that our Cellular signal booster, Model Number: F15C-CP, F15B-CP-M, F15B-CP, F10C-CP-M, F10C-CP, F10B-CP-M and F10B-CP are electrically identical with the Model Number: F15C-CP-M that was certified by GTS-CCISL. They named differently just due to different output power levels and gains achieved by adjusting the potentiometer, or different shell or different MGC function (different DIP switch), however they have the same designs, PCB board, electronic device and software. The 15dBm type has a factory pre-set maximum output power of UL 10dBm/ DL 15dBm and maximum gain of UL 63 dB/ DL 68 dB. However，some user maybe want to use lower power 10 dBm booster with the same shell as 15dBm booster in some smaller place. So we reduce the power and gain by adjust the potentiometer in factory . When it is pre-set to be output power of UL 10dBm / DL 10dBm and maximum gain of UL 60 dB/ DL 63 dB, the model number is F10C-CP-M, F10C-CP, F10B-CP-M and F10B-CP. And we summarized their difference in below file. Item Model Number Max. Power Max. Gain MGC function shell 1 F15C-CP-M UL10dBm，DL15dBm UL63dB,DL68dB 1-15dB/1dB step Metal case 176*200*43mm 2 F15C-CP UL10dBm，DL15dBm UL63dB,DL68dB 1-15dB/1dB step Big plastic case, 3 F15B-CP-M UL10dBm，DL15dBm UL63dB,DL68dB 5,10,15dB Metal case176*200*43mm 4 F15B-CP UL10dBm，DL15dBm UL63dB,DL68dB 5,10,15dB small plastic case, 5 F10C-CP-M UL10dBm，DL10dBm UL60dB,DL63dB 1-15dB/1dB step Metal case 176*200*43mm 6 F10C-CP UL10dBm，DL10dBm UL60dB,DL63dB 1-15dB/1dB step Big plastic case, 7 F10B-CP-M UL10dBm，DL10dBm UL60dB,DL63dB 5,10,15dB Metal case176*200*43mm 8 F10B-CP UL10dBm，DL10dBm UL60dB,DL63dB 5,10,15dB small plastic case, - 2 - DIP Switch can be used to adjust the repeater gain when Alarm LED is orange or even RED. The principle is that repeater alarm LED must be green color. „ MGC （1-15dB by 1dB step） : Switches 1-4 represent Downlink and 4.8 represent Uplink. When it is necessary to adjust the gain by DIP switch, firstly please adjust Downlink gain according to input signals, secondly please adjust Uplink gain according to Downlink gain. The DIP Switches have default ‘OFF’ status; please push relevant switches to “ON” position if certain attenuation value needs to be achieved. DIP switch attenuation setting: Att 1 2 3 4 Att. 1 2 3 4 Att.1 2 3 4 0 dB off off off off 6 dB off ONONoff12dB offoffON ON 1 dB ON off off off 7 dB ON ONONoff13dBONoffON ON 2 dB off ON off off 8 dB off offoffON14dB offONON ON 3 dB ON ON off off 9 dB ON offoffON15dBONONON ON 4 dB off off ON off 10dB off ONoffON 5 dB ON off ON off 11dB ON ONoffON - 3 - „ MGC (5, 10,15dB by 5dB step): Turn ON the dip switches to reduce gain as follows: 10dB 5dB 10dB 5dB 10dB 5dB 10dB 5dB - 4 - Put ON a pair of switches for a total of 15dB reduction in gain. (DL1 & UL1 – Alarm Low) – For 800MHz or 900 MHz Band (DL2 & UL2 – Alarm High) – For 1700, 1800, 1900 & 2100 MHz Band Remark: In single system, there is only one system could be set. Put ON a pair of switches for a total of 15dB reduction in gain. (DL1 & UL1 – Alarm Low) – For 800MHz or 900 MHz Band (DL2 & UL2 – Alarm High) – For 1700, 1800, 1900 & 2100 MHz Band ‹ DIP switch downlink attenuation setting: Att 1 2 0 dB off off 5 dB ON off 10 dB off ON 15dB ON ON ‹ DIP switch uplink attenuation setting: Att 3 4 0 dB off off 5 dB ON off 10 dB off ON 15dB ON ON Please contact me if you have any question. Signature: Print Name: Yanwei Wang Title: Manager Date: September 21 th 2012 10dB 5dB 10dB 5dB 10dB 5dB 10dB 5dB

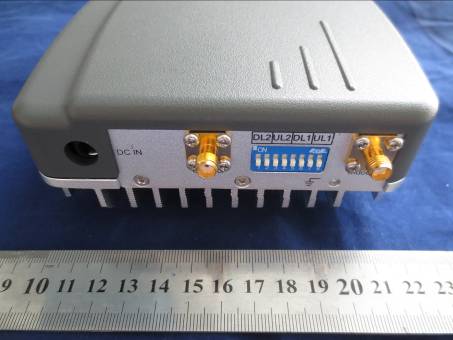

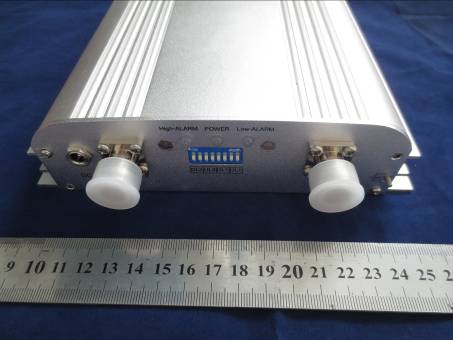

Report No: CCIS12080014901 China Certification & Inspection Services Co., Ltd. Project No.: CCIS120800149RF 1st Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 91 of 105 15 EUT Constructional Details Exterior photos F15C-CP-M, F10C-CP-M Report No: CCIS12080014901 China Certification & Inspection Services Co., Ltd. Project No.: CCIS120800149RF 1st Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 92 of 105 Report No: CCIS12080014901 China Certification & Inspection Services Co., Ltd. Project No.: CCIS120800149RF 1st Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 93 of 105 Report No: CCIS12080014901 China Certification & Inspection Services Co., Ltd. Project No.: CCIS120800149RF 1st Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 94 of 105 Report No: CCIS12080014901 China Certification & Inspection Services Co., Ltd. Project No.: CCIS120800149RF 1st Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 95 of 105 F15C-CP, F10C-CP Report No: CCIS12080014901 China Certification & Inspection Services Co., Ltd. Project No.: CCIS120800149RF 1st Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 96 of 105 Report No: CCIS12080014901 China Certification & Inspection Services Co., Ltd. Project No.: CCIS120800149RF 1st Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 97 of 105 Report No: CCIS12080014901 China Certification & Inspection Services Co., Ltd. Project No.: CCIS120800149RF 1st Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 98 of 105 F15B-CP-M, F10B-CP-M Report No: CCIS12080014901 China Certification & Inspection Services Co., Ltd. Project No.: CCIS120800149RF 1st Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 99 of 105 F15B-CP, F10B-CP Report No: CCIS12080014901 China Certification & Inspection Services Co., Ltd. Project No.: CCIS120800149RF 1st Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 100 of 105 Report No: CCIS12080014901 China Certification & Inspection Services Co., Ltd. Project No.: CCIS120800149RF 1st Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 101 of 105

Size: 45mm X 30mm F15C-CP-M/F10C-CP-M/F15B-CP-M/F10B-CP-M F15C-CP/F10C-CP/F15B-CP/F10B-CP Label location Label location

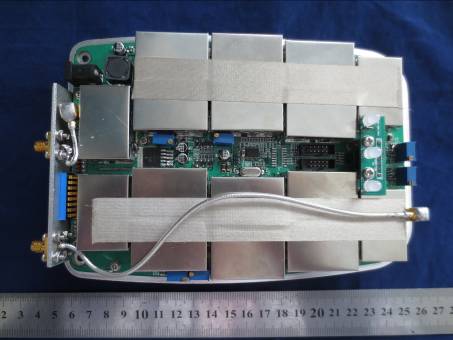

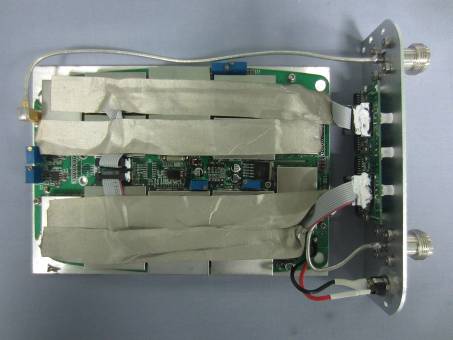

Report No: CCIS12080014901 China Certification & Inspection Services Co., Ltd. Project No.: CCIS120800149RF 1st Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 102 of 105 Interior photos Report No: CCIS12080014901 China Certification & Inspection Services Co., Ltd. Project No.: CCIS120800149RF 1st Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 103 of 105 Report No: CCIS12080014901 China Certification & Inspection Services Co., Ltd. Project No.: CCIS120800149RF 1st Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 104 of 105 Report No: CCIS12080014901 China Certification & Inspection Services Co., Ltd. Project No.: CCIS120800149RF 1st Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 105 of 105 ------End ------

Prediction of MPE at a given distance 1. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 2. Test Procedure Equation from page 18 of OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to the antenna G = numeric gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the centre of radiation of the antenna 3. Result Direction Maximum Output power (dBm) Maximum Output power (mW) Antenna Gain (dBi) Antenna Gain (numeric) Distance (cm) Result (mW/cm 2 ) Limits for General Population/ Uncontrolled Exposure (mW/cm 2 ) GSM 850 Band Uplink 10.44 11.07 7.00 5.00 20.00 0.011 0.60 Downlink 14.79 30.13 9.50 8.90 20.00 0.053 0.60 PCS 1900 Band Uplink 10.10 10.23 7.00 5.00 20.00 0.010 1.00 Downlink 15.66 36.81 9.50 8.90 20.00 0.065 1.00 CDMA 850 Band Uplink 10.54 11.32 7.00 5.00 20.00 0.011 0.60 Downlink 15.42 34.83 9.50 8.90 20.00 0.062 0.60 CDMA 1900 Band Uplink 10.07 10.16 7.00 5.00 20.00 0.010 1.00 Downlink 15.29 33.81 9.50 8.90 20.00 0.060 1.00

China Certification & Inspection Services Co., Ltd. Report No: CCIS12080014901 Authorized Signature: Bruce Zhang Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the CCIS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover Page TEST REPORT Applicant: SHENZHEN HUAPTEC CO., LTD Address of Applicant: 5th FL, E BLDG, Sogood Science Park, Sanwei Community, Hangkong Road, Xixiang, Bao'an, Shenzhen, Guangdong, China 518102 Equipment Under Test (EUT) Product Name: Celluar signal booster Model No.: F15C-CP-M, F15C-CP, F15B-CP-M, F15B-CP, F10C-CP-M, F10C-CP, F10B-CP-M, F10B-CP * FCC ID: OWWF15C-CP-M Applicable standards: FCC Part 22:2011 FCC Part 24:2011 2-11-04/EAB/RF Date of sample receipt: 27 Aug., 2012 Date of Test: 28 Aug to 19 Sep., 2012 Date of report issued: 19 Sep., 2012 Test Result : PASS ** * Please refer to product similarity declaration. ** In the configuration tested, the EUT complied with the standards specified above. Report No: CCIS12080014901 2 Version Version No. Date Description 00 19 Sep., 2012 Original Prepared By: Date: 19 Sep., 2012 Project Engineer Check By: Date: 19 Sep., 2012 Reviewer Report No: CCIS12080014901 China Certification & Inspection Services Co., Ltd. Project No.: CCIS120800149RF 1st Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 3 of 105 3 Contents Page 1 COVER PAGE .............................................................................................................................................................. 1 2 VERSION ....................................................................................................................................................................... 2 3 CONTENTS ................................................................................................................................................................... 3 4 TEST SUMMARY ......................................................................................................................................................... 5 5 GENERAL INFORMATION ........................................................................................................................................ 6 5.1 CLIENT INFORMATION ............................................................................................................................................ 6 5.2 GENERAL DESCRIPTION OF E.U.T. ......................................................................................................................... 6 5.3 RELATED SUBMITTAL(S) / GRANT (S) ..................................................................................................................... 7 5.4 TEST METHODOLOGY ............................................................................................................................................. 7 5.5 TEST FACILITY ....................................................................................................................................................... 7 5.6 TEST LOCATION ..................................................................................................................................................... 7 5.7 TEST INSTRUMENTS LIST ........................................................................................................................................ 8 6 TEST CONFIGURATION AND CONDITIONS ........................................................................................................ 9 6.1 EUT CONFIGURATION ............................................................................................................................................ 9 6.2 CONFIGURATION OF TESTED SYSTEM ................................................................................................................... 10 6.3 TEST ENVIRONMENTS ........................................................................................................................................... 11 6.4 TEST SIGNAL ......................................................................................................................................................... 12 6.5 TEST FREQUENCY SELECTION ............................................................................................................................... 12 6.6 DESCRIPTION OF TEST MODES .................................................................................................................... 13 7 RF POWER OUTPUT MEASUREMENT ............................................................................................................... 14 7.1 STANDARD APPLICABLE ....................................................................................................................................... 14 7.2 TEST SETUP .......................................................................................................................................................... 14 7.3 MEASUREMENT PROCEDUR…

Text truncated - open the document above for the full version.

Report No: CCIS12080014901 China Certification & Inspection Services Co., Ltd. Project No.: CCIS120800149RF 1st Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 89 of 105 14 Test Setup Photo RF test Conducted Emission Report No: CCIS12080014901 China Certification & Inspection Services Co., Ltd. Project No.: CCIS120800149RF 1st Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 90 of 105 Radiated Emission:
