OYE-MWT120318 MHz SINGLE CHANNEL TRANSMITTER

2-1. Open and unpack the batteries, Transmitter and Receiver units. 2-2. Loosen Top Lid Screwson the Transmitter and remove lid. Remove the Receiver Top Lidby pressing one side of the snap lock base inward while lifting lid. 2-3. Set the9 Pole, 3 Position Coding Switch on the Receiver to match the Transmitter’s9 Pole, 3 Position Coding Switch. Any switch position will work as long as the Transmitter coding switch and the Receiver coding switchare exactly matched (must be different from other nearby transmitters of the same type). 2-4. Place the two (2) AA batteriesin their holders on the Transmitter in the proper direction, paying attention to the (+) and (-) ends. Momentarily press the Test Buttonon the Transmitter. The Green Tx LED Indicatorshould light for 3 seconds. 2-5. Route the wires from the safety edge through the Transmitter’sStrain Relief Cable Fittingfor approximately four inches. 2-6. Strip the insulation from the two wires back ¼”. Pull the Terminal Block off the Transmitter’s PCB. Place the safety edge wires in the Terminal Blockand tighten with screwdriver. Re-seat the Terminal Blockon the PCB (see Fig. 2-6). 2-7. Re-seat the PCB into the Transmitter Enclosure and securely tighten theStrain Relief Cable Fitting. 2-8. Now, compress your safety edge. The Green Tx LED Indicator should light for about 3 seconds. P.O. Box 159 • West Grove, PA 19390 • 800-220-3343 • 610-869-4422 • Fax: 610-869-4423 • www.milleredge.com 6809 South Harl Ave., Suite A • Tempe, AZ 85283 • 800-887-3343 • 480-755-3565 • Fax: 480-755-3558 MWTA12_Inst_20130415 Model # MWTA12, MWT12, MWR12, MWRT12, MWRTA12 I N S T A L L A T I O N I N S T R U C T I O N S IMPORTANT: READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE BEGINNING INSTALLATION. Parts List MWR12 Single Channel Receiver MWT12 Single Channel Transmitter MWTA12 Single Channel Transmitter with low battery alarm Kits: MWRT12: includes MWR12, MWT12 MWRTA12: includes MWR12 and MWTA12 1- PART NUMBER 2-Install Transmitter and Test T h e M i l l e r E d g e M o d e l M W T A 1 2 a n d M W T 1 2 s a f e t y e d g e t r a n s m i t t e r s a r e d e s i g n e d t o p r o v i d e w i r e l e s s s i g n a l t r a n s m i s s i o n f r o m t h e s a f e t y e d g e t o t h e m o t o r c o n t r o l s . T h e M o d e l M W T A 1 2 i n c l u d e s a n A u d i b l e A l a r m f e a t u r e i n d i c a t i n g t h e b a t t e r y s h o u l d b e r e p l a c e d . B o t h t h e M i l l e r E d g e r e c e i v e r a n d t r a n s m i t t e r h a v e a c o m p a c t d e s i g n w h i c h a l l o w s f o r e a s y t r o u b l e s h o o t i n g v i a t h e s e e - t h r u c a s e . S e l e c t a b l e f e a t u r e s i n c l u d e : c o d e d d i p s w i t c h e s a n d a w i r e h a r n e s s f o r r e l a y o p t i o n s . Tools Required: 1. 1/8” Flat blade screwdriver for wire connections 2. 1/4” Flat blade screwdriver for top lid screws Recommended: DVM for test purposes (4) #6 - 20 x 3/4” self-drilling screws, as required Sensing edge (sold separately) TOP LID SCREWS AA LITHIUM BATTERIES Fig. 2-6 WIRE CONNECTION TO TERMINAL BLOCK STRAIN RELIEF CABLE FITTING TERMINAL BLOCK Safety Edge Connection 9 POLE, 3 POSITION CODING SWITCH T RANSMITTER ENCLOSURE Shown with Optional Alarm TEST BUTTON GREEN TX LED INDICATOR (-) (-) (+) (+) MWTA12_Inst_201304159D_WPE Instuctions 4/15/13 2:48 PM Page 1 P.O. Box 159 • West Grove, PA 19390 • 800-220-3343 • 610-869-4422 • Fax: 610-869-4423 • www.milleredge.com 6809 South Harl Ave., Suite A • Tempe, AZ 85283 • 800-887-3343 • 480-755-3565 • Fax: 480-755-3558 3-Install Receiver and Test 3-1. Mount Receiver inside the operator control box so that the wires from the receiver will reach the terminal strip on the operator. 3-2. Wiring: a. The red (+) and black (-) wires are your power leads. They connect to your operator panel terminals that provide the appropriate power (12-24 VAC/VDC). Black wire is common, Red wire is (+) or AC power. b. The green wire is your standard antenna wire. This must be located outside of any metal enclosure to provide for good signal reception. There is an F-Connector antenna fitting included on the receiver in the event a remote antenna placement is needed. c. Receiver Connections: The white wire will go to your operator’s low voltage common terminal. If your operator requires a normally open (N.O.) contact, connect the yellow wire to the operator’s safety edge input. If the operator requires a normally closed (N.C.) contact, connect the orange wire to the operator’s safety edge input. 3-3. Preliminary Test: Confirm that once power is applied to the Receiver, it’s green LED is lit. Now press the Transmitter's test button and notice that the red LED lights up on the Receiver and the green LED lights up on the Transmitter. 3-4. Replace the Receiver Top Lid. 4-Safety Test 4-1. While closing the door or gate, momentarily activate the safety edge and confirm that the motor stops and reverses the door or gate direction. CH 1 ANTENNA RECEIVER ENCLOSURE (4) PRE-DRILLED CORNER M OUNTING HOLES LED INDICATORS MOUNTING SCREW HOLES 2-Install Transmitter and Test C ont. 2-9. The four(4) Pre-Drilled Corner Mounting Holes are located on the far corners of the Transmitter E nclosure. Mount the Transmitter to the gate post, door end stile, or bottom angle using (4) #6 - 20 x 3/4” self-drilling screws. Mount the transmitter with the wire outlet facing down or to the side. 2-10. Replace the cover on the Transmitter and tighten the Top Lid Screws, taking care to align the lid. MWTA12_Inst_20130415 9 POLE, 3 POSITION CODING SWITCH F-CONNECTOR ANTENNA FITTING MWTA12_Inst_201304159D_WPE Instuctions 4/15/13 2:48 PM Page 2 P.O. Box 159 • West Grove, PA 19390 • 800-220-3343 • 610-869-4422 • Fax: 610-869-4423 • www.milleredge.com 6809 South Harl Ave., Suite A • Tempe, AZ 85283 • 800-887-3343 • 480-755-3565 • Fax: 480-755-3558 5-Specifications and Controls: Transmitter Unit Code Switch:Selectable 9 pole, 3 position DIP Frequency:318 MHz. Indic…

Text truncated - open the document above for the full version.

April 17, 2013 Retlif Testing Laboratories tested following device: Equipment Tested: 318 MHz Transmitter Model Number: MWTA12 Reference: R‐1952P‐1 Miller Edge management would sell the model number MWT12 in addition to MWTA12. MWT12 is the transmitter without the alarm. MWTA12 and MWT12 have the same RF section and the same digital electronics except that MWTA12 has alarm. Both models could have 1 or 2 TB installed in the production unit. Attached pictures show the difference between the two units. MWTA12 and MWT12 : Assembled Unit Transmitter board with Alarm. Transmitter board with only one terminal block. Vinay Sao Engineering Manager Miller Edge Inc.

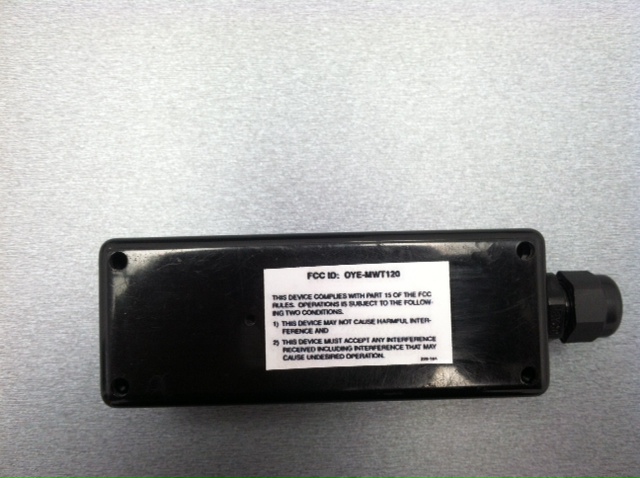

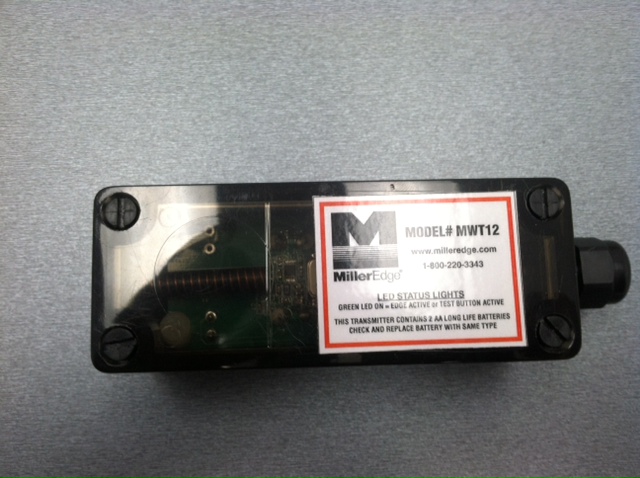

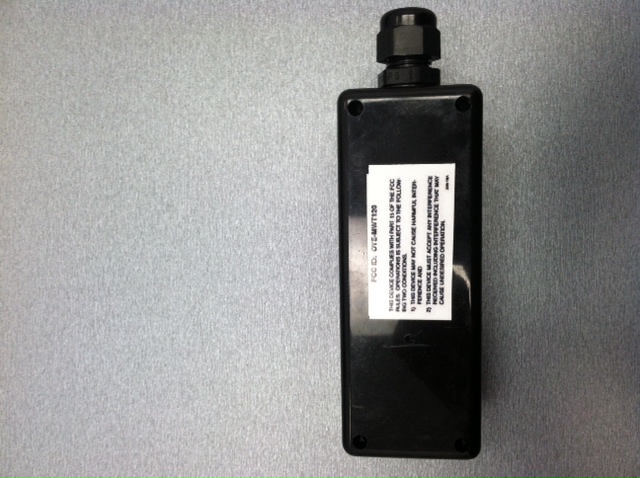

Miller Edge, Inc. FCC ID: OYE-MWT120 Label Location Model Number: MWTA12 Model Number: MWT12 Figure 1: MWTA12 Model Label Location Figure 2: MWTA12 FCC Label Location Figure 3: MWT12 Model Label Location Figure 4: MWT12 FCC Label Location

F CC ID: OYE-MWT120 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC R ULES. OPERATIONS IS SUBJECT TO THE FOLLOW- ING TWO CONDITIONS. 1) THIS DEVICE MAY NOT CAUSE HARMFUL INTER- FERENCE AND 2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. Miller Edge, Inc. FCC Label for Wireless Transmitter 4-15-13 Printed on Permanent Adhesive 1 3/4” 1” 2 28-18A

Miller Edge, Inc. FCC ID: OYE-MWT120 Label Location Model Number: MWTA12 Model Number: MWT12 Figure 1: MWTA12 Model Label Location Figure 2: MWTA12 FCC Label Location Figure 3: MWT12 Model Label Location Figure 4: MWT12 FCC Label Location

Miller Edge, Inc. FCC ID: OYE-MWT120 Internal Photographs Model Number: MWTA12 Model Number: MWT12 Figure 1: MWTA12 PCB component side Figure 2: MWTA12 PCB battery side Figure 3: MWT12 PCB component side Figure 4: MWT12 PCB battery side

Retlif Testing Laboratories R Report No. R-1957P-1 Page 2 of 20 Technical Information Report Number: R-1957P-1 Customer: Miller Edge, Inc. Address: 300 North Jennersville Road West Grove, PA 19390 Manufacturer: Miller Edge Manufacturer Address: 300 North Jennersville Road West Grove, PA 19390 Test Sample: 318 MHz Single Channel Transmitter Model Numbers: MWTA12, MWT12 FCC ID: OYE-MWT120 Type: Part 15 Security / Remote Control Transmitter Power Requirements: 3 VDC Derived from (2) 1.5 VOC AA Lithium Batteries Frequency of Operation: 318 MHz Equipment Class: DSC Equipment Use: Fixed Test Specification: FCC Rules and Regulations Part 15, Subpart C, Section 15.231 Test Procedure: ANSI C63.4:2003 Retlif Testing Laboratories R Report No. R-1957P-1 Page 3 of 20 Tests Performed The test methods performed on the 318 MHz Keyfob Transmitter are shown below: FCC Part 15, Subpart C Test Method 15.231(b)(2) Duty Cycle Determination 15.231(b)(3) Field Strength of Spurious Emissions 15.231(c) Bandwidth of Emission General Test Requirements 1. The measurement procedures of ANSI C63.4:2003 were utilized as specified in FCC Part 15, Subpart C, Section 15.31(a)(3). 2. All radiated emissions measurements were performed on an Open Area Test Site (OATS), listed with the FCC, in accordance with FCC Section 15.31(d). 3. The level of the fundamental field strength was recorded with a new battery installed in the EUT, in accordance with FCC Section 15.231(e). 4. All measurements were performed at the specified 3 meter test distance as required by FCC Section 15.31(f). 5. The EUT was rotated throughout 360 degrees for all radiated emissions measurements as specified in FCC Section 15.31(f)(5). 6. All readily accessible EUT controls were adjusted in such a manner as to maximize the level of emissions in accordance with FCC Section 15.31(g). 7. Appropriate accessories were attached to all EUT ports during the performance of radiated emissions measurements as required by FCC Section 15.31(i). 8. The EUT operated at a discrete frequency of 318 MHz. Testing was performed with the device operating at one frequency in the middle of the range of operation. 9. The frequency spectrum was investigated from the lowest frequency generated in the device up to the 10 th harmonic of the highest fundamental frequency in accordance with FCC Section 15.33(a)(1). 10. All measurements were taken with a peak detector function as specified in FCC Section 15.35(a). The duty cycle, calculated in accordance with FCC Section 15.35(c), was applied to the peak readings in order to obtain the average value of emissions. The peak value of emissions was verified to meet the 20 dB requirement of FCC Section 15.35(b). Retlif Testing Laboratories R Report No. R-1957P-1 Page 5 of 20 Requirements and Test Results Requirement: FCC Section 15.231(a) - Periodic operation in the band 40.66 - 40.7 MHz and above 70 MHz The provisions of this Section are restricted to periodic operation within the band 40.66- 40.7 MHz and above 70 MHz. Except as shown in Paragraph (e) of this Section, the intentional radiator is restricted to the transmissions of a control signal such as those used with alarm systems, door openers, remote switches, etc. Continuous transmissions, voice, video and the radio control of toys are not permitted. Data is permitted to be sent with a control signal.  Results: The device was operated at a frequency of 318 MHz and is for the transmission of a safety control signal used door openers. Requirement: FCC Sections 15.231(a)(1)-(5) Periodic operation in the band 40.66 - 40.7 MHz and above 70 MHz The following conditions were met in order to comply with the provisions for momentary operation: FCC 15.231(a)(1): A manually operated transmitter shall employ a switch that will automatically deactivate the transmitter within not more than 5 seconds of being released.  Results: The device is activated by pressure applied to the bottom edge of an overhead door. The device ceases transmission within 5 seconds of deactivation. FCC 15.231(a)(2): A transmitter activated automatically shall cease transmission within 5 seconds after activation.  Results: Transmission is not automatically activated. FCC 15.231(a)(3): Periodic transmissions at regular predetermined intervals are not permitted. However, polling or supervision transmissions, including data, to determine system integrity of transmitters used in security or safety applications are allowed if the total duration of transmissions does not exceed more than two seconds per hour for each transmitter. There is no limit on the number of individual transmissions, provided the total transmission time does not exceed two seconds per hour.  Results: The transmitter does not perform periodic transmissions. Retlif Testing Laboratories R Report No. R-1957P-1 Page 6 of 20 Requirements and Test Results (con’t) FCC 15.231(a)(4): Intentional radiators which are employed for radio control purposes during emergencies involving fire, security and safety of life, when activated to signal an alarm, may operate during the pendency of the alarm condition.  Results: This device is employed for radio control purposes during emergencies involving safety for life. FCC 15.231(a)(5): Transmission of set-up information for security systems may exceed the transmission duration limits in paragraphs (a)(1) and (a)(2) of this section, provided such transmission are under the control of a professional installer and do not exceed ten seconds after a manually operated switch is released or a transmitter is activated automatically. Such set-up information may include data.  Results: The device is not employed for security systems. Requirement: FCC Section 15.231(b) - Field Strength of Emissions In addition to the provisions of Section 15.205, the field strength of emissions from intentional radiators operated under this Section shall not exceed the limits specified in Table 1. Table 1 - Test Limits, Field Strength of Emissions Fu…

Text truncated - open the document above for the full version.

Page 1 of 5 Miller Edge, Inc. Test Setup Photographs FCC ID: OYE-MWT120 Page 2 of 5 Field Strength of Emissions (Fundamental and Spurious) Test Setup Photographs Test Setup Horizontal Antenna Polarization, 30 to 80 MHz Page 3 of 5 Field Strength of Emissions Test Setup Photographs Vertical Antenna Polarization, 30 to 80 MHz Horizontal Antenna Polarization, > 1 GHz Page 4 of 5 Field Strength of Emissions Test Setup Photographs Vertical Antenna Polarization, > 1 GHz Page 5 of 5 Duty Cycle Determination and Bandwidth of Emissions Test Setup Photographs Test Setup
