OZISPP5107XXXXSurge protected power strip with two group remote controlled outlets

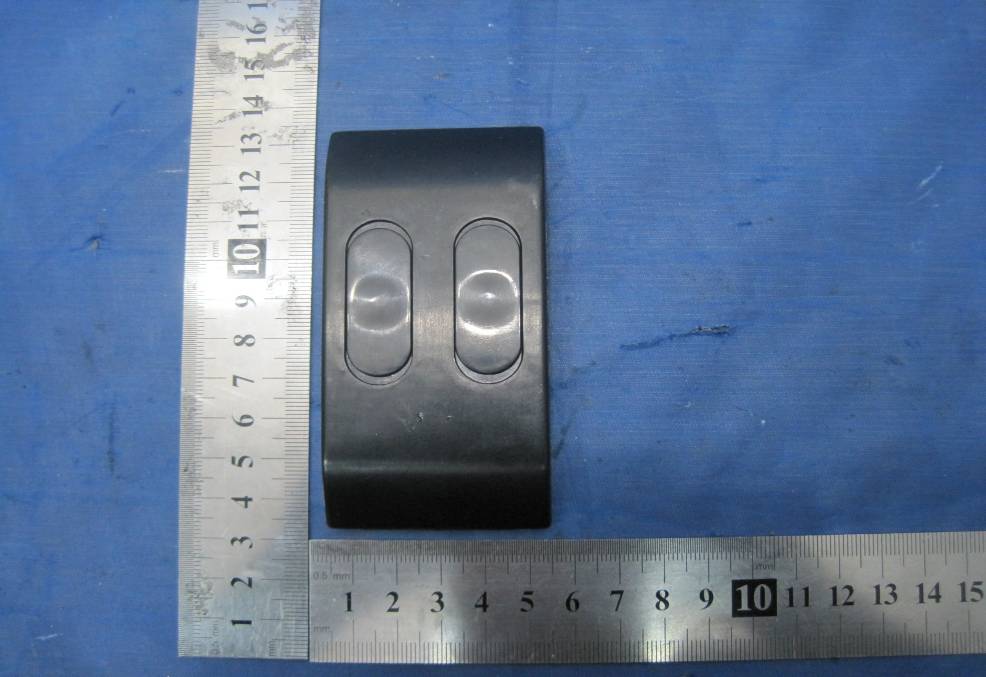

User Manual 1. Plug strip receiver into wall outlet 2. Plug appliance into two groups of outlets and each group has 4 outlets Max. plus two always ON outlet. The total power is 1800Watts. 3. Sliding up the zone 1 Button at RCU to control 4 outlets on in zone 1 group, and zone 2 buttons for group zone 2 outlets. Now, such as OFF function. 4. The Transmitter can easily remote control power strip within 30 meter distance. This device complies with part 15 of FCC rules operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference that may be received, including interference that may cause undesired operation. THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT .SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

Two Relay Power On/Off Decoder ASK OSC Amplifier ANT Block diagram of Receiver SPP51 0 7 C 433MHz 3 outlets i n Powe r St rip SAW/ 1 3.226MHz Two G roup Down Mix er Conversion for

San Shih Electrical Enterprise Co., Ltd. FCC ID: OZISPP5107XXXX POWER OF ATTORNEY Dec.23, 2010 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf shall have the same effect as acts of our own. This authorization expires on Dec.24, 2011. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, San Shih Electrical Enterprise Co., Ltd., are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, San Shih Electrical Enterprise Co., Ltd. --------- Manager

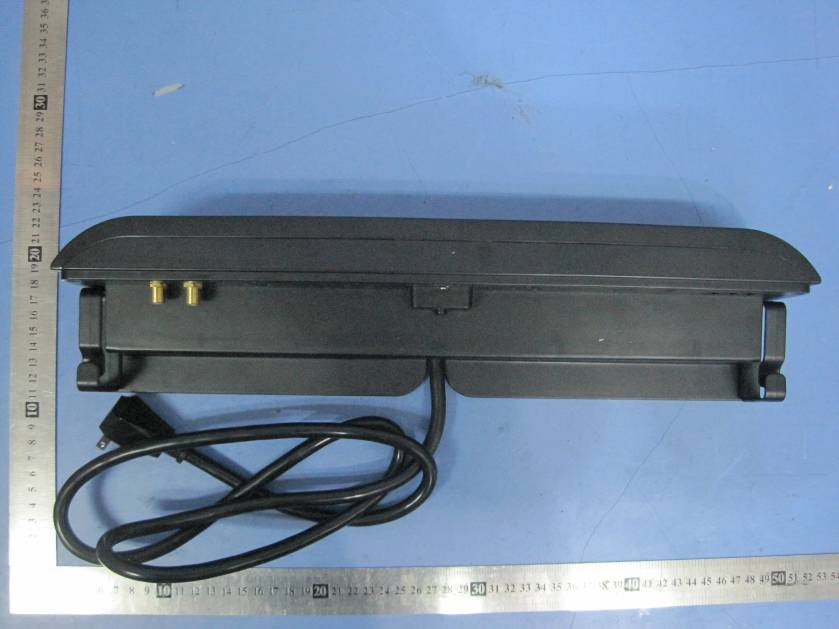

2.1 EUT-Front View 2.2 EUT-Back View

2 FCC ID Label This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Bottom View/proposed FCC Mark Location FCC ID:OZISPP5107XXXX This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation

FCC ID Label Sample for Model: SPP5107F, SPP5107H,SPP5107XXXX, RC-07 FCC ID : OZISPP5107XXXX This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

2.1 PCB1-Front View 2.2 PCB1-Back View 2.3 PCB2-Front View 2.4 PCB2-Back View

SPP5107F/H Receiver working description The receiver SPN5107 is power strip for appliance use indoor only, has two group of outlets, each group has 4 outlets plus two always ON outlet. Total power supply is 1800Watts. It is designed to operate on a single fixed frequency at 433 MHz. And be controlled by RCU range in 100 feet at line of sight. While operating, the PROTECTING red LED lighted to indicate protection is work and GROUNDED green LED lighted to indicate grounding is work. The signal 433MHz from RC07 received at ANT and proceed by U1 PT4302 for amplified and down conversion which mix with carrier signal generated by a SAW(Surface Acoustic Wave) resonator Y1 frequency is 13.226 MHZ then demodulated with ASK method, after that send signal to decoder U3 HS2272C to decode and generate data send to trigger circuit U4 4031 then control relay ON/OFF which you send from RC07. The surge circuit Z1 ~ Z6 and relative parts are designed for protect the appliance plug on outlets when peak current or voltage occurred. Power managing IC U2 LNK304PN handles the switching circuit to supply DC for all control IC and relay from AC. This power saving function is key point of next generation of power strip.

55 44 33 22 11 D D C C B B A A ZON2 RECEPTACLE*2 RECEPTACLE*3 ZON1 RECEPTACLE*3 R-PCB-510 7C-02 R-PCB-508 7B-02 R-PCB-5087 B-04 A1 日期03/29 增加零件 記 錄 說 明 改版 JACK 修版者 審核 James 2010/06/17 Jack SPN5087BG 11 <OrgAd dr1> WI-I-23 <OrgAddr3> SPN5087B/10 A2 Approved ±5% Draw No: PRODUCT NAME Rev: Sheet of Date: Part No: Designer Tolerance Material Unit Scale Check by 三 石 電 器 企 業 有 限 公 司 SAN SHIH ELECTRICAL ENTERPRISE.,LTD mm 10.5V 5.0V 10.5V 5.0V 5.0V 10.5V 5.0V GT1 80A90L Z15 GNR10D241K Q2 2SC945 Z16 GNR10D241K R72.05K/1%/1/4W + C13 3.3uF/400V D6 IN4007 F2 P2-5A 5A/115'C Z13 GNR10D241K Q1 2SC945 Z7 GNR20D471K C6 0.1UF U2 LNK304PN 432 578 1 FB BP S DSSS R1 33 ohm Y113.226MHZ 1 2 R23 56K 1/2W 12 R157.5K/5%/1/4W Z14 GNR10D241K C51 0.47K/250V Z6 GNR20D471K C8 0 ohm Z5 GNR20D471K R251M 1/4W 12 F6 750mA/250V Z8 GNR20D471K R24 75K 1/2W 12 C5 0.1UF R2 10 ohm Z9 GNR20D471K Z1 GNR20D471K + C1 10uF/10V D81N4007 12 K2 S4E-12V-1A 12 35 U1 78L05 GND IN OUT 1 2 3 1 2 3 1 2 3 D1 1N4007 1 2 Z2 GNR20D471K U4 HEF4031BP 1 2 3 4 5 6 78 9 10 11 12 13 14 1 2 3 4 5 6 78 9 10 11 12 13 14 LED53mm Z4 GNR20D471K + C18 220uF/16V OUT RJ11 2 3 Z3 GNR20D471K F4 P2-5A 5A/115'C K1 S4E-12V-1A 12 35 L3 1mH/600mA 5 8 C11 104/1KV R115.1K/5%/1/4W R3 10 ohm F1 TG 103 15A/103'C OUT RJ45 1 2 3 4 5 6 AC 123 C4 0.1UF R12 5.1K/5%/1/4W C3 100 P + C12 3.3uF/400V GT180A600L + C10 10uF/35V + C15 100uF/16V CB 16A/250V 1 2 F13 0.5A/250V U1PT4302 12345678 910111213141516 VSSLOVSSRFANTVDDRFMIXOUTVDDBBIFINVDD5 VSSBB SELBSELA EN DO CTH VDDDIG REFOSC C9 0.1UF F15 0.5A/250V IN COAX 1 3 2 IN RJ45 1 2 3 4 5 6 R5 7.5K/5%/1/4W F14 0.5A/250V L2 1mH/600mA 5 8 D2 1N4007 1 2 R5 10.5K/1%/1/4W F16 0.5A/250V F5 P2-5A 5A/115'C U2 HS2272C-M4 123456789 101112131415161718 A0A1A2A3A4A5A6A7VSS D3 D2D1D0 DIN OSC2OSC1 VT VCC R93.3K/5%/1/4W D51N4007 1 2 R13 10K/1/8W F11 0.5A/250V F12 0.5A/250V R10 820K/1%/1/4W F3 P2-5A 5A/115'C F1JT10.7M 1 2 3 R1410K/1/8W D9 1N4007 12 R9 10K/1/8W LED43mm C2 100 P C14104 R16 10K/1/8W L133NH 58 D4 FR157/1A/700V LED13mm D3 IN4007 Z11 GNR10D241K LED2 3mm C7 1.8 PF OUT COAX 1 3 2 Z12 GNR10D241K

Page: 1 of 23 FCC TEST REPORT WALTEK SERVICES FCC ID : OZISPP5107XXXX Applicant : San Shih Electrical Enterprise Co., Ltd. Address : No 209, Sec ,3 County Boulevard, Pan Chiao City, Taipei Hsien, Taiwan. Equipment Under Test (EUT) : Product description : Surge protected power strip with two group remote controlled outlets Model No. : SPP5107F, SPP5107H,SPP5107XXXX, RC-07 Standards : FCC Subpart B Part15.109 Date of Test : Nov.12,2010 Test Engineer : (Olic huang) /Engineer Reviewed By : (Philo zhong)/Manager Test Result : PASS * * The sample detailed above has been tested to the requirements of Council Directives ANSI C63.4:2003. The test results have been reviewed against the Directives above and found to meet their essential requirements. Prepared By: Waltek Services (Shenzhen) Co., Ltd. 1/F, Fukangtai Building, West Baima Rd., Songgang Street, Baoan District, Shenzhen 518105, China Tel :+86-755-27553488 Fax:+86-755-27553868 Page:2 of 23 San Shih Electrical Enterprise Co., Ltd. FCC ID:OZISPP5107XXXX WALTEK SERVICES Reference No.: WT10104269-S-E-F 1 Test Summary Test items Test RequirementTest Method Class / Severity Result Radiated Emission (30MHz to 5GHz) FCC PART 15, SUBPART B: 2008 ANSI C63.4: 2003 Class B PASS Conducted Emission (150KHz to 30MHz) FCC PART 15, SUBPART B: 2008 ANSI C63.4: 2003 Class B PASS Page:3 of 23 San Shih Electrical Enterprise Co., Ltd. FCC ID:OZISPP5107XXXX WALTEK SERVICES Reference No.: WT10104269-S-E-F 2 Contents 1 COVER PAGE ......................................................................................................................................................... 1 1 TEST SUMMARY........................................................................................................................................................ 2 2 CONTENTS............................................................................................................................................................. 3 3 GENERAL INFORMATION ................................................................................................................................ 4 3.1 CLIENT INFORMATION........................................................................................................................................... 4 3.2 GENERAL DESCRIPTION OF E.U.T. ........................................................................................................................ 4 3.3 DETAILS OF E.U.T................................................................................................................................................. 4 3.4 TEST INSTRUCTION................................................................................................................................................ 4 3.5 DESCRIPTION OF SUPPORT UNITS.......................................................................................................................... 4 3.6 STANDARDS APPLICABLE FOR TESTING................................................................................................................ 4 3.7 TEST FACILITY...................................................................................................................................................... 5 3.8 TEST LOCATION.................................................................................................................................................... 5 4 EQUIPMENT USED DURING TEST .................................................................................................................. 6 5 EMISSIONS TEST RESULTS .............................................................................................................................. 9 5.1 CONDUCTED EMISSION LIMIT...............................................................................................................................9 5.2 CONDUCTED EMISSION DATA RECORD.................................................................................................................. 9 5.3 CONDUCTED EMISSION TEST SETUP VIEW.......................................................................................................... 11 5.4 RADIATION EMISSION DATA...............................................................................................................................12 5.4.1 Measurement Uncertainty......................................................................................................................... 12 5.4.2 EUT Setup ................................................................................................................................................. 12 5.4.3 Spectrum Analyzer Setup .......................................................................................................................... 13 5.4.4 Test Procedure.......................................................................................................................................... 13 5.4.5 Corrected Amplitude & Margin Calculation ............................................................................................ 14 5.4.6 Summary of Test Results ........................................................................................................................... 14 5.4.7 Photograph – Radiation Emission Test Setup for Standby Mode............................................................. 18 6 PHOTOGRAPHS - CONSTRUCTIONAL DETAILS...................................................................................... 19 6.1 EUT-FRONT VIEW.............................................................................................................................................. 19 6.2 EUT-BACK VIEW................................................................................................................................................ 19 6.3 EUT-OPEN VIEW.....................................................................................................................…

Text truncated - open the document above for the full version.

Photograph – Radiation Emission Test Setup for Standby Mode Below 1GHz Above 1GHz Conducted Emission Test Setup View
