OZIZW-02ASURGE PROTECTED POWER STRIP WITH TWO GROUP REMOTE CONTROLLED OUTLETS

Install and Operation 1. Power on bridge ZW-01, then use you Firefox to connect correct IP of ZW-01. you can install “CyberFinder”，then use it to connect to bridge, for detail, please check the manual of bridge. 2. Click right key of mouse select MODE, Add Device then select OK to add device into Z-wave net, but the process will finish until device acknowledges the request. 3. Put ZW-02A with electromagnetic block and push micro switch to connect it into Z-wave net. 4. Then you can get trig signal when electromagnetic block out of ZW-02A from internet with FireFox or IE in your computer, FCC Note: This device complies with part 15 of FCC rules operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2)this device must accept any interference that may be received, including interference that may cause undesired operation. THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

Battery AAA*2 I/O interface MCU/Memory Triac control Timer... Electromagnetic Reed switch Button On/Off RF Transceiver OSC908.42MHz Block Diagram of ZW-02A Door/Window Sensor US

San Shih Electrical Enterprise Co., Ltd. FCC ID: OZI ZW-02A POWER OF ATTORNEY Dec.30, 2010 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf shall have the same effect as acts of our own. This authorization expires on Dec.31, 2011. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, San Shih Electrical Enterprise Co., Ltd., are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, San Shih Electrical Enterprise Co., Ltd. --------- Manager

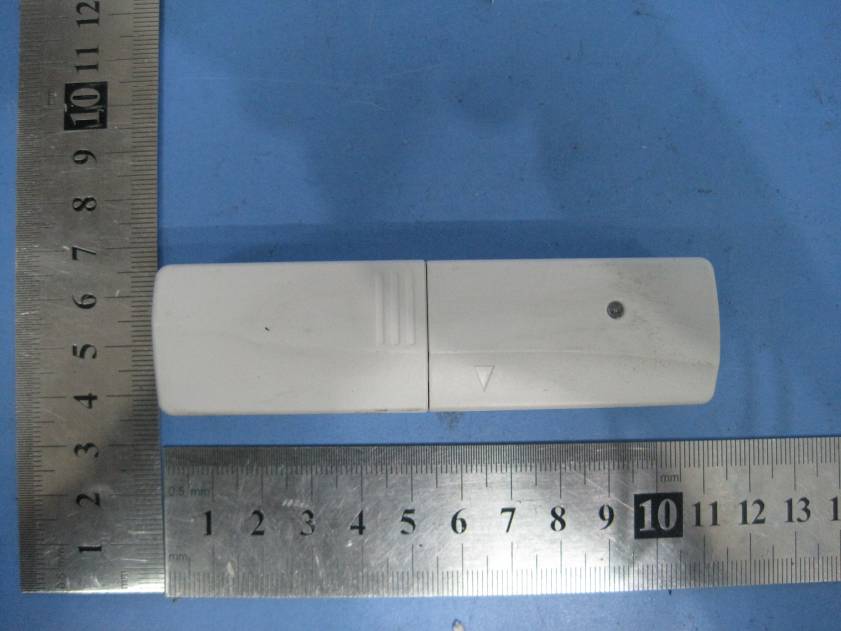

2.1 EUT-Front View 2.2 EUT-Back View

2 FCC ID Label This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference,and (2) this device must accept any interference received, including interference that may cause undesired operation The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Bottom View/proposed FCC Label Location FCC ID: OZIZW-02A This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference,and (2) this device must accept any interference received, including interference that may cause undesired operation

FCC ID Label Sample for Model ZW-02A FCC ID : OZIZW-02A This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

2.1 PCB-Front View 2.2 PCB-Front View 2.3 PCB-Back View

Circuit description of Appliance moduleZW-02A The MCU module ZM3102 U1 handle the RF operation of transmit at frequency908.42MHz, this signal frequency wasset by L1 and C8with different value for US and EU version, and reachdistance of100 feet at line of sightcondition. Power supplied by two AAA battery and due to long term work so MCU will power down after time period, SW1 reed switch is keep at ON state when electromagnetic block close, Sw2 micro switch also keep at ON state when implements for door/window sensor. J1 connector reserved for on line programming. U1 also control communication to Z-wave network and other devices due to there is routing table exist for indirect RF signal control used, and monitor status of sw1 and sw2 to generate alarm signal then transmit to bridge for forward application use.

ABCD DCBA 2010.02.04Sanshi Zwave Windows Sensor 11 Sanshi Technology Ltd. V1.0 TitleSheet NO.DateORG. Sheet TotalRevesion C60R W1 R10 10K VCC RXD/ADC3_ZWTXD/ADC2_ZWTRIAC/ADC1_ZWZEROX/ADC0_ZWSCK_ZWP1.5_ZWPWM/INT0_ZWINT1_ZWRESET_N_ZWMOSI_ZWMISO_ZW SCK_ZWMOSI_ZWMISO_ZWRESET_N_ZW C7N.M. R52MR62M VCC C83.3pF EP1 1 EP2 2 EP3 3 EP4 4 EP5 5 EP6 6 EP7 7 EP8 8 EP9 9 EP10 10 EP11 11 EP12 12 EP13 13 EP14 14 EP15 15 EP16 16 EP17 17 EP18 18 U1 ZM3102 VCC 123456 J1 For Programming VCC LED1 GRN R71K INT1_ZW L13.9nH C2 4.7uF C133nF VCC TP2 TP3 TP6 TP5 TP1 SW1Reed SwitchSW2Microswitch VCC PWM/INT0_ZW C3100nF R8100K R2 1K R3 1K R4 1K R1 1K VCC BAT1AAAX2 FB11K@100MHzFB21K@100MHz BAT+ BAT- R11N.M.R12N.M.R13N.M.R140R

FCC TEST REPORT Page 1 of 30 FCC ID : OZIZW-02A Applicant : San Shih Electrical Enterprise Co., Ltd. Adress of Applicant : No 209, Sec ,3 County Boulevard, Pan Chiao City, Taipei Hsien, Taiwan. Equipment Under Test (EUT) : Product description : Surge Protected power Strip With Two Group Remote Controlled Outlets Model No. : ZW-02A Standards : FCC 15 Paragraph 15.249 Date of Test : Dec.23,2010 Test Engineer : Olic.Huang/ Engineer Reviewed By : (Philo zhong)/Manager PERPARED BY: Waltek Services (Shenzhen) Co., Ltd. 1/F, Fukangtai Building,West Baima Rd.,Songgang Street, Baoan District, Shenzhen 518105,China Tel: +86-755-27553488 Fax: +86-755-27553868 San Shih Electrical Enterprise Co., Ltd. FCC ID: OZIZW-02A Page 2 of 30 Ref. No.:WT10104191-S-E-F 2 Contents Page 1 COVER PAGE..........................................................................................................................................................1 2 CONTENTS ..............................................................................................................................................................2 3 TEST SUMMARY....................................................................................................................................................4 4 GENERAL INFORMATION..................................................................................................................................5 4.1 CLIENT INFORMATION............................................................................................................................................5 4.2 GENERAL DESCRIPTION OF E.U.T...........................................................................................................................5 4.3 DETAILS OF E.U.T. .................................................................................................................................................5 4.4 DESCRIPTION OF SUPPORT UNITS...........................................................................................................................5 4.5 STANDARDS APPLICABLE FOR TESTING..................................................................................................................5 4.6 TEST FACILITY........................................................................................................................................................6 4.7 TEST LOCATION......................................................................................................................................................6 5 EQUIPMENT USED DURING TEST ...................................................................................................................7 6 CONDUCTED EMISSION TEST ........................................................................................................................10 6.1 TEST EQUIPMENT..................................................................................................................................................10 6.2 TEST PROCEDURE.................................................................................................................................................10 6.3 CONDUCTED TEST SETUP.....................................................................................................................................11 6.4 EUT OPERATING CONDITION...............................................................................................................................11 6.5 CONDUCTED EMISSION LIMITS.............................................................................................................................12 6.6 CONDUCTED EMISSION TEST DATA......................................................................................................................12 7 RADIATION EMISSION TEST...........................................................................................................................13 7.1 TEST EQUIPMENT..................................................................................................................................................13 7.2 MEASUREMENT UNCERTAINTY.............................................................................................................................13 7.3 TEST PROCEDURE.................................................................................................................................................13 7.4 RADIATED TEST SETUP.........................................................................................................................................14 7.5 SPECTRUM ANALYZER SETUP...............................................................................................................................14 7.6 CORRECTED AMPLITUDE & MARGIN CALCULATION............................................................................................15 7.7 SUMMARY OF TEST RESULTS................................................................................................................................15 7.8 EUT OPERATING CONDITION...............................................................................................................................16 7.9 RADIATED EMISSIONS LIMIT.................................................................................................................................16 7.10 RADIATED EMISSIONS TEST RESULT................................................................................................................17 8 PERIODIC OPERATION .....................................................................................................................................20 9 ANTENNA REQUIREMENT...............................................................................................................................23 10 20-DB BANDWIDTH..................................................................................................................................…

Text truncated - open the document above for the full version.

2.1 Radiation Emission Test View For 30MHz-1000MHz 2.2 Radiation Emission Test View For 1GHz-10GHz
