OZIZW-XXXSURGE PROTECTED POWER STRIP WITH TWO GROUP REMOTE CONTROLLED OUTLETS

Install and Operation 1. Power on bridge ZW-01, then use you Firefox to connect correct IP of ZW-01. you can install “CyberFinder”，then use it to connect to bridge, for detail, please check the manual of bridge. 2. Connect output wires of ZW-03A to electrical device and Connect input wires of ZW-03A to power line L&N 3. Click right key of mouse select MODE, Add Device then select OK to add device into Z-wave net, but the process will finish until device acknowledges the request. 4. Push button locate on ZW-03A to connect it into Z-wave net. 5. Then you can control electrical device from internet with FireFox or IE, you can push button to On/Off the electrical device certainly. FCC NOTE: This device complies with part 15 of FCC rules operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)this device must accept any interference that may be received, including interference that may cause undesired operation. THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

San Shih Electrical Enterprise Co., Ltd. FCC ID: OZIZW-XXX POWER OF ATTORNEY Dec.30, 2010 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf shall have the same effect as acts of our own. This authorization expires on Dec.31, 2011. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, San Shih Electrical Enterprise Co., Ltd., are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, San Shih Electrical Enterprise Co., Ltd. --------- Manager

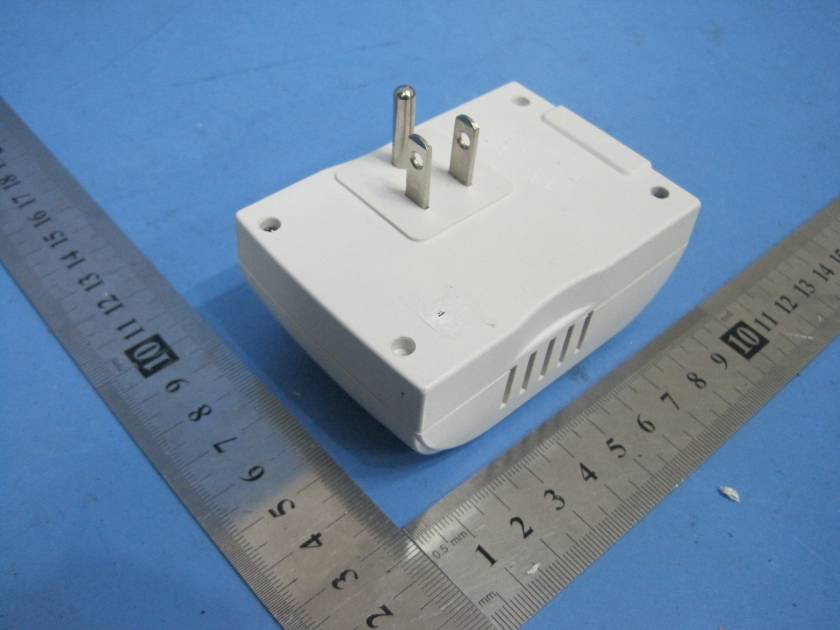

2.1 EUT-Front View 2.2 EUT-Back View

2 FCC ID Label This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Bottom View/proposed FCC Label Location FCC ID: OZIZW-XXX This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference,and (2) this device must accept any interference received, including interference that may cause undesired operation

FCC ID Label Sample for Model AB-42A, AB-42B,ZW-03A, ZW-03B FCC ID : OZIZW-XXX This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

2.1 PCB1-Front View 2.2 PCB1-Front View 2.3 PCB1-Back View 2.4 PCB2-Front View 2.5 PCB2-Back View

Circuit description of Appliance moduleZW-03A The main board is powerprovider, it uses D1 to D4 bridge to get 24 Vdc for active relay RL1 and use zener ZD2 to get stable 12 DC voltage then this voltage reduced by U1 L4931 to 3.3 Vdc for MCU use. Daughter board has MCU module ZM3102 U1 to handle the RF operation of transmit and receive atfrequency908.42MHz, this signal frequency wasset by L1 and C2with different value for US and EU version, and reachdistance of100 feet at line of sightcondition.Itconnect to main board with J1 connector to get 3.3Vdc and control signal to relay RL1 dependence on switch SW1 is pushed to On/Off then energized or release RL1A power the load or not. U1 also control communication to Z-wave network and other devices dueto there is routing table exist for indirect RF signal control used, and monitor loader condition to protect appliance when it overload. J2 connector reserved for on line programming device when there is new function added.

1 2 34 ABCD 4 3 2 1 D CBA 30-Nov-2009Sanshi Relay Switch Plug Schematic Part 1 12 V1.1 TITLESHEET NO.DATEORG. SHEET TOTALREVISION Black(Line) White(Neutral) M1Z151 C10.1uF/275V Blue(Load) R104K7 R11100K F10.5A/125V C6100nF R41K 3.3VDC 24VDC RL1A RL1B D51N4007 Q1 2SC8050 WHTBLKBLU R11M L12.2mHL22.2mH C2 1.5uF/250V R21M D11N4007 D21N4007 D31N4007 D41N4007 C3100uF/50V R3300R/1WZD1 12V/1W ZD212V/1W C4 330uF/16V C5100nF C7 100uF/10V 24VDC 12VDC Triac 3.3VDC 3V3GNDAD1LoadsenseTriacZerox 123456 J1 HEADER 6 Vin 3 GND 2 Vout 1 U1L4931 1 2 34 ABCD 4 3 2 1 D CBA 30-Nov-2009Sanshi Relay Switch Plug Schematic Part2 22 V1.0 TITLESHEET NO.DATEORG. SHEET TOTALREVESION R190R W1 FB2 1K@100MHz L13.9nH C1 10uF R30 10K VCC R34 N.M. FB1 1K@100MHz RXD/ADC3_ZWTXD/ADC2_ZWTRIAC/ADC1_ZWZEROX/ADC0_ZWSCK_ZWP1.5_ZWPWM/INT0_ZWINT1_ZWRESET_N_ZWMOSI_ZWMISO_ZW LED1N.M. RXD/ADC3_ZWTXD/ADC2_ZWTRIAC/ADC1_ZWSCK_ZWMOSI_ZWMISO_ZWRESET_N_ZW SCKMOSIMISORESET_N C3N.M. VCC R26N.M.R27N.M.R28N.M.R25N.M. VCCVCC R21N.M.R22N.M.R23N.M.R24N.M. VCCVCC R31 N.M. R32 N.M. VCC C23.3pF R1 1K R2 1K R7 1K R9 1K R3 1K R11 1K R4 1K EP1 1 EP2 2 EP3 3 EP4 4 EP5 5 EP6 6 EP7 7 EP8 8 EP9 9 EP10 10 EP11 11 EP12 12 EP13 13 EP14 14 EP15 15 EP16 16 EP17 17 EP18 18 U1 ZM3102 VCC ZEROX/ADC0_ZW 12345678 J1 Connect to Application Board 12345678 J2For Programming VCC R12 1K 3V3COMAD1Load SenseTriac R3310K CS 1 SO 2 WP 3 GND 4 SI 5 SCK 6 HOLD 7 VCC 8 U2AT25128N VCC C433nF MOSI_ZWMISO_ZWSCK_ZWP1.5_ZWTo be added for future expansion use. VCC C6100nF R8 N.M. MOSI_ZW TP1 TP2 TP3 TP4 TP5 TP6 TP8 TP7 TP9 TP10 TP11 TP12 TP13TP14TP15 ZeroxLEDSWTXDRXD R5 1K R6 1K RXD/ADC3_ZWTXD/ADC2_ZW R13 1K R14 N.M. SW1 N.M. MISO_ZW R15 1K P1.5_ZWINT1_ZW R10 N.M. PWM/INT0_ZW

FCC TEST REPORT Page 1 of 33 FCC ID : OZIZW-XXX Applicant : San Shih Electrical Enterprise Co., Ltd. Adress of Applicant : No 209, Sec ,3 County Boulevard, Pan Chiao City, Taipei Hsien, Taiwan. Equipment Under Test (EUT) : Product description : Surge Protected power Strip With Two Group Remote Controlled Outlets Model No. : AB-42A, AB-42B,ZW-03A, ZW-03B Standards : FCC 15 Paragraph 15.249 Date of Test : Dec.23,2010 Test Engineer : Olic.Huang/ Engineer Reviewed By : (Philo zhong)/Manager PERPARED BY: Waltek Services (Shenzhen) Co., Ltd. 1/F, Fukangtai Building,West Baima Rd.,Songgang Street, Baoan District, Shenzhen 518105,China Tel: +86-755-27553488 Fax: +86-755-27553868 San Shih Electrical Enterprise Co., Ltd. FCC ID: OZIZW-XXX Page 2 of 33 Ref. No.:WT10104191-S-E-F 2 Contents Page 1 COVER PAGE..........................................................................................................................................................1 2 CONTENTS ..............................................................................................................................................................2 3 TEST SUMMARY....................................................................................................................................................4 4 GENERAL INFORMATION..................................................................................................................................5 4.1 CLIENT INFORMATION............................................................................................................................................5 4.2 GENERAL DESCRIPTION OF E.U.T...........................................................................................................................5 4.3 DETAILS OF E.U.T. .................................................................................................................................................5 4.4 DESCRIPTION OF SUPPORT UNITS...........................................................................................................................5 4.5 STANDARDS APPLICABLE FOR TESTING..................................................................................................................5 4.6 TEST FACILITY........................................................................................................................................................6 4.7 TEST LOCATION......................................................................................................................................................6 5 EQUIPMENT USED DURING TEST ...................................................................................................................7 6 CONDUCTED EMISSION TEST ........................................................................................................................10 6.1 TEST EQUIPMENT..................................................................................................................................................10 6.2 TEST PROCEDURE.................................................................................................................................................10 6.3 CONDUCTED TEST SETUP.....................................................................................................................................11 6.4 EUT OPERATING CONDITION...............................................................................................................................11 6.5 CONDUCTED EMISSION LIMITS.............................................................................................................................12 6.6 CONDUCTED EMISSION TEST DATA......................................................................................................................12 6.7 CONDUCTED EMISSION TEST DATA......................................................................................................................14 7 RADIATION EMISSION TEST...........................................................................................................................15 7.1 TEST EQUIPMENT..................................................................................................................................................15 7.2 MEASUREMENT UNCERTAINTY.............................................................................................................................15 7.3 TEST PROCEDURE.................................................................................................................................................15 7.4 RADIATED TEST SETUP.........................................................................................................................................16 7.5 SPECTRUM ANALYZER SETUP...............................................................................................................................16 7.6 CORRECTED AMPLITUDE & MARGIN CALCULATION............................................................................................17 7.7 SUMMARY OF TEST RESULTS................................................................................................................................17 7.8 EUT OPERATING CONDITION...............................................................................................................................18 7.9 RADIATED EMISSIONS LIMIT.................................................................................................................................18 7.10 RADIATED EMISSIONS TEST RESULT................................................................................................................19 8 PERIODIC OPERATION .....................................................................................................................................22 9 ANTENNA REQUIREMENT......................................................................................................…

Text truncated - open the document above for the full version.

2.1 Radiation Emission Test View For 30MHz-1000MHz 2.2 Radiation Emission Test View For 1GHz-10GHz 2.3 Conducted Emission Test Data
