SA300 Signal Amplifier Installation Manual Note: Before installing the SA300 Signal Amplifier, please read the entire contents of this manual. Parts List Item Description 1 SA300 Signal Amplifier. 2 1.5 meter (59 inches) RF cable. 3 2 meter (78 inches) power cable. 4 Connector adapter FME female to TNC male. 5 Connector adapter FME male to TNC male. 6 Cellular telephone / Cradle or RF Output Device. (Optional item purchased separately) 7 Antenna Cable. (Optional item purchased separately) 8 Antenna. (Use 3 dB antenna for optimal performance) (Optional item purchased separately) Tools and Other Materials Required Item Description 1 Electric drill (as required for signal amplifier mounting holes). 2 Screw driver. 3 Qty 4 screws (length and type as required for signal amplifier mounting). 4 Wire cutters / strippers. 5 Qty 2 wire connection insulators or insulating material (as required for power cable connection to 12V system). WARNINGS! ∇ NOTICE: During transmitter operation, a minimum distance of 50 cm (20 in.) shall be maintained between the antenna and personnel, in order to meet the maximum permissible exposure (MPE) limits in section 1.1310 of FCC Rules. ∇ Mounting a signal amplifier in the engine cavity or on the underside of the vehicle will void the manufacturer’s warranty. ∇ Subjecting the amplifier to voltages greater than 30V will damage the amplifier and void the manufacturer’s warranty. ∇ Any vehicle with an electrical system of greater than 30V should use a step-down voltage regulator to bring the voltage within the operating power range of the amplifier (10-30V ). ∇ Under no circumstances should the amplifier be powered up without a properly connected 50 ohm 800/1900 MHz cellular antenna or the amplifier may be damaged, resulting in the manufacturer’s warranty being void. ∇ For optimum performance and compatibility with cellular service provider requirements, it is recommended that an external antenna with a maximum gain of 3dB be installed. ∇ Use of cellular amplifiers with antennas of higher gains than 3 dBi is in violation of FCC regulations for which the offender will be fully liable, and warranty claims will be voided. Installation Selecting a Suitable Location to Mount the Signal Amplifier Locate a suitable place to mount and conceal the signal amplifier. Suggested mounting locations include: under the dashboard, under the seat, or in the trunk. For peak performance the signal amplifier should be installed using the supplied cabling and connectors. The amplifier should be mounted away from moving parts, as well as excessive heat and/or moisture. Installation Cautions ∇ Use caution to avoid drilling through or near fuel lines or fuel tanks; brake lines; or electrical wiring. ∇ Do not mount the signal amplifier or its associated wiring in a location that may interfere with the safe operation of the vehicle. Installation Of The Signal Amplifier It is recommended that only certified automotive installation technicians install this product in a vehicle. Installation by any other person is at the risk of the vehicle owner and operator. Typical Installation For Under The Seat Mounting 1. Drill holes and mount the signal amplifier 1 in the selected location. 2. Connect the white-striped black wire of the supplied 2-meter (78 inches) power cable 3 to a positive connection on the vehicle’s electrical system. Choose a 10-30V circuit that is fuse protected and ignition switched. (Often referred to as the “Accessory Output”) 3. Attach the solid black wire of the supplied 2-meter (78 inches) power cable 3 to the vehicle’s electrical ground. 4. Connect the amplifier’s ANTENNA ( ) connector to the 3 dB antenna using its interface cable 7 and if necessary, adapter 4 or 5 . 5. Connect the amplifier’s PHONE ( ) connector to the cellular phone’s handset cradle using the provided 1.5 meter (59 inches) RF cable 2 and if necessary, adapter 4 or 5 . 1 + 3 _ 12V DC 2 6 7 8 Limited Warranty The SA300 Signal Amplifier is warranted free from any defects in material or workmanship for a period of one year. If a defect in material or workmanship is found, the product will be repaired or replaced at the discretion of the manufacturer, free of charge to the original purchaser. Please return the product along with proof of purchase to the original point of purchase. This warranty is null and void if the product has been modified, abused, tampered with, subjected to abnormal conditions, or transferred to someone other than the original purchaser. All brands and trademarks are the property of their respective owners. Rev A D00000710 Made in North America Page 1 of 1

SA300 Signal Amplifier Installation Manual Note: Before installing the SA300 Signal Amplifier, please read the entire contents of this manual. Parts List Item Description 1 SA300 Signal Amplifier. 2 1.5 meter (59 inches) RF cable. 3 2 meter (78 inches) power cable. 4 Connector adapter FME female to TNC male. 5 Connector adapter FME male to TNC male. 6 Cellular telephone / Cradle or RF Output Device. (Optional item purchased separately) 7 Antenna Cable. (Optional item purchased separately) 8 Antenna. (Use 3 dB antenna for optimal performance) (Optional item purchased separately) Tools and Other Materials Required Item Description 1 Electric drill (as required for signal amplifier mounting holes). 2 Screw driver. 3 Qty 4 screws (length and type as required for signal amplifier mounting). 4 Wire cutters / strippers. 5 Qty 2 wire connection insulators or insulating material (as required for power cable connection to 12V system). WARNINGS!
NOTICE: During transmitter operation, in order to meet RF Exposure Safety guidelines, a minimum distance of 50 cm (20 in.) should be maintained between the antenna and personnel. The maximum cellular antenna gain authorized is 3 dBi in order to meet RF exposure (MPE) limits as per FCC guidelines.
For optimum performance and compatibility with cellular service provider requirements, it is recommended that an external antenna with a maximum gain of 3dB be installed.
Mounting a signal amplifier in the engine cavity or on the underside of the vehicle will void the manufacturer’s warranty.
Subjecting the amplifier to voltages greater than 30V will damage the amplifier and void the manufacturer’s warranty.
Any vehicle with an electrical system of greater than 30V should use a step-down voltage regulator to bring the voltage within the operating power range of the amplifier (10-30V).
Under no circumstances should the amplifier be powered up without a properly connected 50 ohm 806-824 MHz cellular antenna or the amplifier may be damaged, resulting in the manufacturer’s warranty being void. Installation Selecting a Suitable Location to Mount the Signal Amplifier Locate a suitable place to mount and conceal the signal amplifier. Suggested mounting locations include: under the dashboard, under the seat, or in the trunk. For peak performance the signal amplifier should be installed using the supplied cabling and connectors. The amplifier should be mounted away from moving parts, as well as excessive heat and/or moisture. Installation Cautions
Use caution to avoid drilling through or near fuel lines or fuel tanks; brake lines; or electrical wiring.
Do not mount the signal amplifier or its associated wiring in a location that may interfere with the safe operation of the vehicle. Installation Of The Signal Amplifier It is recommended that only certified automotive installation technicians install this product in a vehicle. Installation by any other person is at the risk of the vehicle owner and operator. Typical Installation For Under The Seat Mounting 1. Drill holes and mount the signal amplifier 1 in the selected location. 2. Connect the white-striped black wire of the supplied 2-meter (78 inches) power cable 3 to a positive connection on the vehicle’s electrical system. Choose a 10-30V circuit that is fuse protected and ignition switched. (Often referred to as the “Accessory Output”) 3. Attach the solid black wire of the supplied 2-meter (78 inches) power cable 3 to the vehicle’s electrical ground. 4. Connect the amplifier’s ANTENNA ( ) connector to the 3 dB antenna using its interface cable 7 and if necessary, adapter 4 or 5 . 5. Connect the amplifier’s PHONE ( ) connector to the cellular phone’s handset cradle using the provided 1.5 meter (59 inches) RF cable 2 and if necessary, adapter 4 or 5 . 1 + 3 _ 12V DC 2 6 7 8 Limited Warranty The SA300 Signal Amplifier is warranted free from any defects in material or workmanship for a period of one year. If a defect in material or workmanship is found, the product will be repaired or replaced at the discretion of the manufacturer, free of charge to the original purchaser. Please return the product along with proof of purchase to the original point of purchase. This warranty is null and void if the product has been modified, abused, tampered with, subjected to abnormal conditions, or transferred to someone other than the original purchaser. All brands and trademarks are the property of their respective owners. Rev A D00000710 Made in North America Page 1 of 1

_______________________________________________________________ Confidential Page 1 April 7, 2003 5-55 Henlow Bay, Winnipeg, Manitoba R3Y 1G4 Phone: 204-489-3200 Fax: 204-489-8300 Document Type: Cover Letter Applicant: Arrista Technologies Incorporated 5-55 Henlow Bay Winnipeg, MB, Canada R3Y 1G4 Equipment Under Test (EUT): iDEN Cellular Amplifier Model: SA300 FCC ID: P35K7P9YE8S _______________________________________________________________ Confidential Page 2 April 7, 2003 5-55 Henlow Bay, Winnipeg, Manitoba R3Y 1G4 Phone: 204-489-3200 Fax: 204-489-8300 Exhibit of Confidentiality To Whom It May Concern: Arrista Technologies would like the following submitted exhibits treated as confidential material: 1. Amplifier Schematic 2. Block Diagram Amplifier 3. Amplifier Parts Listing The amplifier design, specifically, the gain control circuitry is of novel design and a US patent has been filed on it. As there is no other amplifier design that incorporates the gain control function the way the SA300 does, we believe that we have a competitive advantage over competing designs out in the market place. Roman Wroczynski Director of Product Development Arrista Technologies Inc Tel: (204) 489-3200 Fax: (204) 489-8300 [email protected]

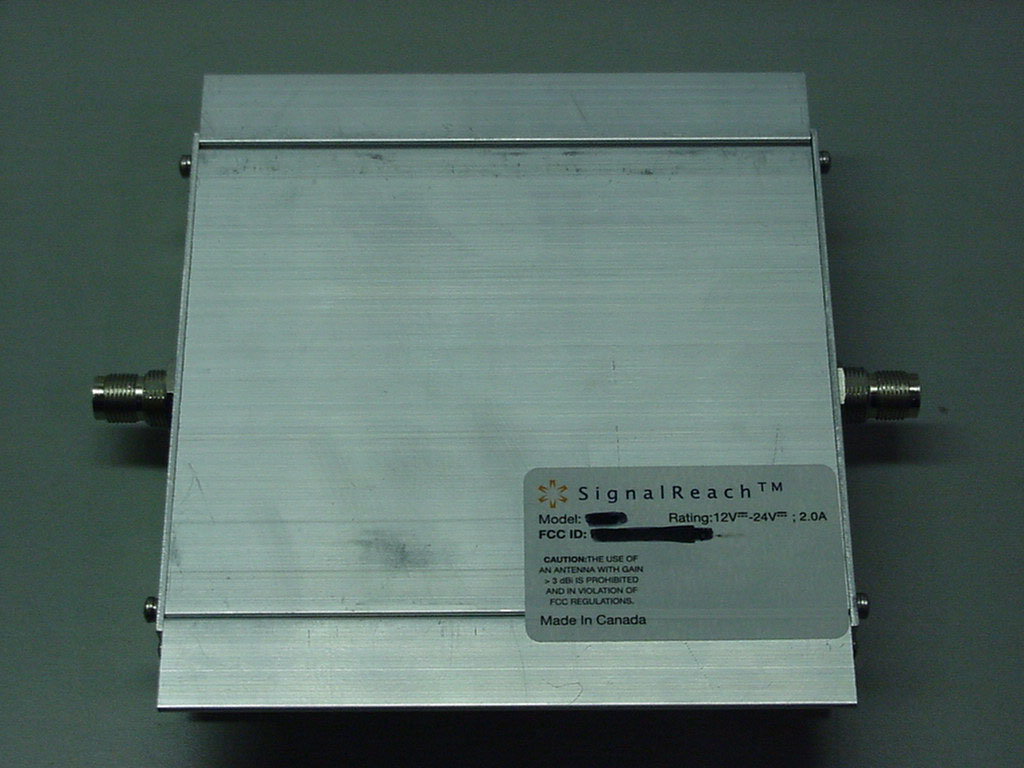

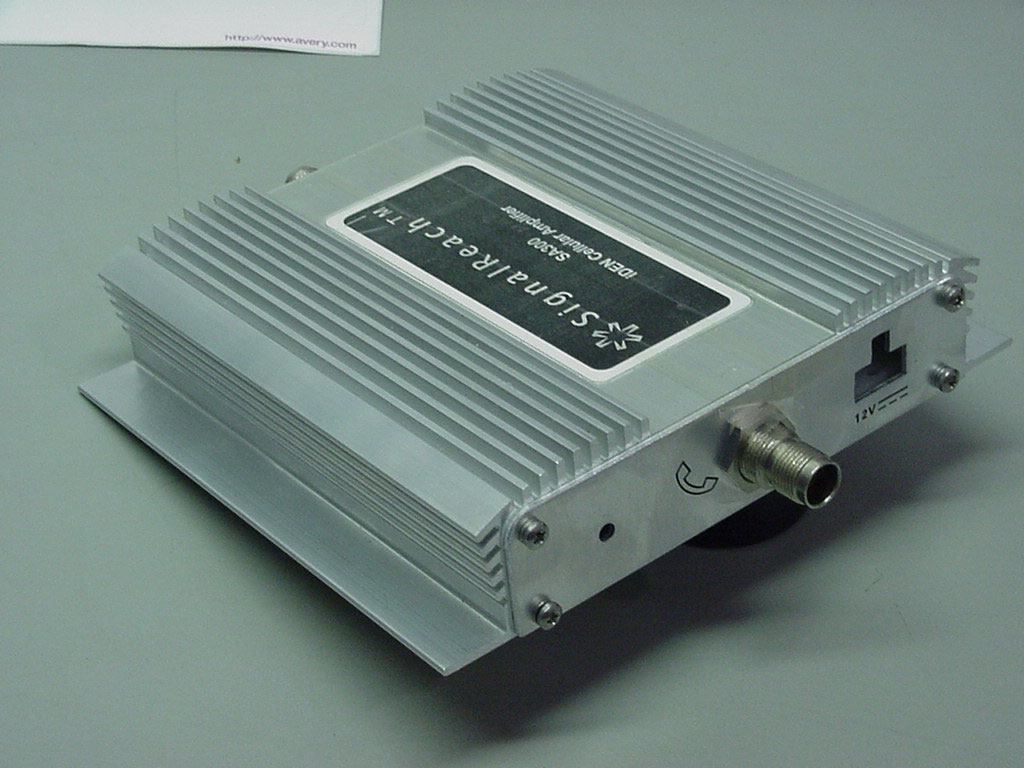

_______________________________________________________________ Document Type: External Photos Applicant: Arrista Technologies Incorporated 5-55 Henlow Bay Winnipeg, MB, Canada R3Y 1G4 Equipment Under Test (EUT): iDEN Cellular Amplifier Model: SA300 FCC ID: P35K7P9YE8S IN ACCORDANCE WITH: FCC PART 2.1033 (c) Confidential Page 1 April 7, 2003 5-55 Henlow Bay, Winnipeg, Manitoba R3Y 1G4 Phone: 204-489-3200 Fax: 204-489-8300 _______________________________________________________________ Article 01- External Photo: Top View Article 02- External Photo: Bottom View Confidential Page 2 April 7, 2003 5-55 Henlow Bay, Winnipeg, Manitoba R3Y 1G4 Phone: 204-489-3200 Fax: 204-489-8300 _______________________________________________________________ Article 03- External Photo: Input Side View Article 04- External Photo: Signal Output Side View Confidential Page 3 April 7, 2003 5-55 Henlow Bay, Winnipeg, Manitoba R3Y 1G4 Phone: 204-489-3200 Fax: 204-489-8300

_______________________________________________________________ Document Type: ID Label/Location Info Applicant: Arrista Technologies Incorporated 5-55 Henlow Bay Winnipeg, MB, Canada R3Y 1G4 Equipment Under Test (EUT): iDEN Cellular Amplifier Model: SA300 FCC ID: P35K7P9YE8S IN ACCORDANCE WITH: FCC PART 2.925, 2.926, 2.1033(c) Confidential Page 1 April 7, 2003 5-55 Henlow Bay, Winnipeg, Manitoba R3Y 1G4 Phone: 204-489-3200 Fax: 204-489-8300 _______________________________________________________________ Article 01- Photo: FCC Identifier Location Confidential Page 2 April 7, 2003 5-55 Henlow Bay, Winnipeg, Manitoba R3Y 1G4 Phone: 204-489-3200 Fax: 204-489-8300

_______________________________________________________________ Document Type: ID Label/Location Info Applicant: Arrista Technologies Incorporated 5-55 Henlow Bay Winnipeg, MB, Canada R3Y 1G4 Equipment Under Test (EUT): iDEN Cellular Amplifier Model: SA300 FCC ID: P35K7P9YE8S IN ACCORDANCE WITH: FCC PART 2.925, 2.926, 2.1033(c) Confidential Page 1 April 16, 2003 5-55 Henlow Bay, Winnipeg, Manitoba R3Y 1G4 Phone: 204-489-3200 Fax: 204-489-8300 _______________________________________________________________ Article 01- Photo: FCC ID Label Drawing Confidential Page 2 April 16, 2003 5-55 Henlow Bay, Winnipeg, Manitoba R3Y 1G4 Phone: 204-489-3200 Fax: 204-489-8300

_______________________________________________________________ Document Type: Internal Photos Applicant: Arrista Technologies Incorporated 5-55 Henlow Bay Winnipeg, MB, Canada R3Y 1G4 Equipment Under Test (EUT): iDEN Cellular Amplifier Model: SA300 FCC ID: P35K7P9YE8S IN ACCORDANCE WITH: FCC PART 2.1033 (c) Confidential Page 1 April 7, 2003 5-55 Henlow Bay, Winnipeg, Manitoba R3Y 1G4 Phone: 204-489-3200 Fax: 204-489-8300 _______________________________________________________________ Article 01- Internal Photo: Top View Article 02- Internal Photo: Bottom View Confidential Page 2 April 7, 2003 5-55 Henlow Bay, Winnipeg, Manitoba R3Y 1G4 Phone: 204-489-3200 Fax: 204-489-8300

Data Sheet SA300 iDEN Cellular Amplifier iDEN Description The SignalReach TM SA300 iDEN Cellular Amplifier provides amplification of transmit and receive signals for improved cellular communications. Designed for use with cellular iDEN standard telephones, the signal amplifier reduces problems with signal fades and dropped calls while improving voice quality, service range and access. The signal amplifier enhances the performance of cradle-mounted mobile telephones, resulting in wider coverage, less signal fading in buildings in urban environments, and increased coverage when used in rural areas. This product is designed to operate for iDEN mode signals from cellular service providers in the 806 to 870 MHz iDEN band. The amplifier is designed to work with a variety of cradles and hands-free systems in fixed or mobile applications. This cellular signal amplifier is a network-compatible device that ensures proper power levels in the transmit (uplink) path. This enhances the iDEN telephone user’s experience without compromising cellular network inter-operability requirements. The amplifier receive circuitry is appropriately optimized for network operation. Features
Power control logic to ensure maximum output power is within cellular standards.
Self-adjusting circuitry allows it to work with any cellular telephone/cradle combination.
Network-compatible operation to ensure transmit power tracks the connected cellular telephone output.
3 Watts output (iDEN band) with typical antenna. RF Specifications Transmit Receive Frequency Range 806-825 MHz 851-870 MHz Output Power 3 W @ 815.5 MHz typical (ERP) Gain 6 dB to 18 dB, @ 815.5 MHz 8 dB ± 3 dB @ 860.5 MHz Minimum Input for Maximum Output Power 32 mW (15 dBm) @ 815.5 MHz Noise Figure 7dB max Maximum Input Power 27 dBm (500 mW) -15 dBm (0.03 mW) VSWR (typical) 2:1 2:1 General Specifications Power Requirements 10-24 V, 1.6 Amps maximum Nominal Operating Temperature Range -40 to +70
C (-40 to 158
F) Dimensions 135mm L x 152mm W x 33mm H (5.31” L x 5.98” W x 1.30” H) without RF connectors Net Weight 1.36 kg (3 lbs) RF Connectors TNC Female Included Accessories DC power cable with fuse, 1.5m (4 ft) RF cable w/ TNC ends, qty two (2) FME/TNC adapters Optional Accessories Accessory kits For more Information Contact: [email protected] © 2002 SignalReach TM . All rights reserved. All trademarks listed in this document are the property of their respective owners. Specifications are subject to change without notice. www.signalreach.com SA300V1.0

Test Report RF EXPOSURE INFORMATION Applicant ARRISTA TECHNOLOGIES INCORPORATED 5-55 H ENLOW BAY W INNIPEG, MB, R3Y 1G4 Equipment Under Test (EUT): CELLULAR SIGNAL AMPLIFIER Model: SA300 FCC ID: P35K7P9YE8S In Accordance with FCC PART 1 OET B ULLETIN 65 FCC PART 1 OET Bulletin 65 Report No.: ATEMC00034 Applicant: Arrista Technologies Inc. Equipment: SA300 Signal Amplifier Page 2 Copyright  2000 Arrista Technologies Inc. This document contains confidential information. FCC PART 1 OET Bulletin 65 Report No.: ATEMC00034 TEST LAB PERSONNEL: Test Performed by: Date Signature Paul Eberling, CNA Electronic Technologist March 6, 2003 All information contained in and/or disclosed in this document is considered confidential information of Arrista Technologies. Reproduction and distribution of this document in whole or part is strictly prohibited without the written consent of Arrista Technologies. R EVISION HISTORY: Date Name Revision Description 01/31/2002 Elwood Friesen 1.0 Initial Release 04/15/2002 Paul Eberling 1.2 Reviewed A PPROVALS: Date Name Title Signature March 6, 2003 Roman Wroczynski Director; Development & Test Applicant: Arrista Technologies Inc. Equipment: SA300 Signal Amplifier Page 3 Copyright  2000 Arrista Technologies Inc. This document contains confidential information. FCC PART 1 OET Bulletin 65 Report No.: ATEMC00034 Table of Contents 1. Our Company..........................................................................Error! Bookmark not defined. 1.1. General...........................................................................................................................5 1.2. Equipment Under Test Description................................................................................5 2. Description..............................................................................................................................6 2.1. Application and Exceptions............................................................................................6 2.2. Deviations.......................................................................................................................6 2.3. Test Requirements and Results.....................................................................................6 2.4. Test Facilities Description..............................................................................................7 2.4.1. Internal Facilities....................................................................................................7 3. Test Results............................................................................................................................8 3.1. RF Exposure Levels.......................................................................................................8 3.2. EUT Orientations............................................................................................................ 8 3.2.1. Cellular Band (824-849MHz) .................................................................................8 3.2.2. Measurement Data ................................................................................................9 3.2.3. Calculations...........................................................................................................9 3.2.4. Test Results...........................................................Error! Bookmark not defined. 3.2.5. PCS Band (1850-1910MHz)..................................Error! Bookmark not defined. 3.2.6. Measurement Data ................................................Error! Bookmark not defined. 3.2.7. Calculations...........................................................Error! Bookmark not defined. 3.2.8. Test Results...........................................................Error! Bookmark not defined. 4. Appendix A............................................................................................................................10 4.1. Equipment Setup for MPE Measurements...................................................................10 Table of Figures Article 01- Figure: Diagram of EUT .................................................................................................5 Article 02- Table 2.3: Test Requirements ........................................................................................6 Article 03- Table: Test Equipment...................................................................................................7 Article 04- Table: Cellular Band MPE Calculations.........................................................................8 Article 05- Table: PCS Band MPE Calculations..............................Error! Bookmark not defined. Article 06- Figure: Meter Positioning............................................................................................. 10 Article 07- Figure: MPE Setup.......................................................................................................10 Applicant: Arrista Technologies Inc. Equipment: SA300 Signal Amplifier Page 4 Copyright  2000 Arrista Technologies Inc. This document contains confidential information. FCC PART 1 OET Bulletin 65 Report No.: ATEMC00034 1. TEST LAB Arrista Technologies Inc. 5-55 Henlow Bay Winnipeg, MB, R3Y 1G4 Ph: 1-204-489-3200 Fax:1-204-489-8300 Email: [email protected] Web: http://www.arrista.com Arrista Technologies Incorporated (Arrista) performs tests to regulatory standards, and provides consultation to mitigate problems that arise during testing. Your product is tested to verify operation within its expected temperature, humidity and electromagnetic environmental conditions. 1.1. GENERAL This document details the evaluation of compliance with FCC Specified Guidelines for human exposure to Radio frequency electromagnetic fields. Maximum Permissible Exposure (MPE) tests performed by Arrista Technologies on March 4 through March 6, 2003 , on the: Arrista SA300 Cellular Signal Amplifier showed the product was in compliance. …

Text truncated - open the document above for the full version.

Test Report: ATEMC000030 Applicant: Arrista Technologies Inc. 5-55 Henlow Bay Winnipeg, MB, CA R3Y 1G4 Equipment Under Test (EUT): iDEN Cellular Amplifier MODEL: SA300 FCC ID: P35K7P9YE8S IN ACCORDANCE WITH: FCC PART 90 PRIVATE LAND RADIO MOBILE SERVICE REPORT NO.: ATEMC000030 PRIVATE LAND RADIO MOBILE SERVICE FCC PART (s) 90 TEST LAB PERSONNEL: Test Performed by: Date Signature Paul Eberling, CNA Electronic Engineering Technologist March, 2003 Brent Griffiths, Engineer March, 2003 All information contained in and/or disclosed in this document is considered confidential information of Arrista Technologies Incorporated. Reproduction and distribution of this document in whole or part is strictly prohibited without the written consent of Arrista Technologies Incorporated. A PPROVALS: Date Name Title Signature March 2003 Roman Wroczynski Director Development & Test Applicant: Arrista Technologies Inc. Equipment: SA300 iDEN Signal Amplifier Copyright  2000 Arrista Technologies Inc. This document contains confidential information. Page i REPORT NO.: ATEMC000030 PRIVATE LAND RADIO MOBILE SERVICE FCC PART (s) 90 Applicant: Arrista Technologies Inc. Equipment: SA300 iDEN Signal Amplifier Copyright  2000 Arrista Technologies Inc. This document contains confidential information. Page ii REPORT NO.: ATEMC000030 PRIVATE LAND RADIO MOBILE SERVICE FCC PART (s) 90 Table of Contents 1. General Information..............................................................................................................................5 1.1. Purpose........................................................................................................................................5 1.2. Test Methodology........................................................................................................................5 1.3. Test Equipment list......................................................................................................................5 1.4. Equipment Under Test Description..............................................................................................6 1.5. General Equipment Specification.................................................................................................6 1.5.1. Power Supply Specifications...............................................................................................6 1.5.2. Transmitter (800 MHz Band)...............................................................................................6 1.5.3. Receiver (800 MHz Band)...................................................................................................6 1.5.4. Equipment Under Test (EUT) Functional Block Diagram...................................................7 1.6. Test Result Summary..................................................................................................................8 1.7. Deviations....................................................................................................................................8 1.8. Test Schedule Description...........................................................................................................8 1.8.1. RF Power Output.................................................................................................................8 1.8.2. Emissions limitation & Occupied Bandwidth.......................................................................8 1.8.3. Conducted Spurious Emissions at Antenna Terminals.......................................................8 1.8.4. Radiated Field Strength of Spurious Emissions..................................................................9 1.9. Test Facilities Description............................................................................................................9 1.9.1. Internal Facilities.................................................................................................................9 1.9.2. Radiated Emissions Test Site.............................................................................................9 2. Test Results........................................................................................................................................10 2.1. RF Power Output.......................................................................................................................10 2.1.1. SPECIFICATION REQUIREMENT:..................................................................................10 2.1.2. MEASUREMENT PROCEDURE:.....................................................................................10 2.1.3. TEST RESULTS:...............................................................................................................10 2.1.4. MEASUREMENT DATA:...................................................................................................10 2.1.5. Plot Data............................................................................................................................11 2.2. Emissions Limitations................................................................................................................13 2.2.1. SPECIFICATION REQUIREMENT:..................................................................................13 2.2.2. MEASUREMENT PROCEDURE:.....................................................................................13 2.2.3. TEST RESULTS:...............................................................................................................14 2.2.4. MEASUREMENT DATA:...................................................................................................14 2.3. Conducted Spurious Emissions at Antenna Terminals..............................................................16 2.3.1. SPECIFICATION REQUIREMENT:..................................................................................16 2.3.2. MEASUREMENT PROCEDURE....................................................................................…

Text truncated - open the document above for the full version.

May 30, 2000 Cover Page TEST REPORT OF PERFORMANCE OF THE ARRISTA TECHNOLOGIES, INC. 3M SEMI-ANECHOIC CHAMBER AS TESTED ON MAY 29-30, 2000 Prepared for Roman Wroczynski Arrista Technologies, Inc. 5-55 Henlow Bay Winnipeg, Manitoba Canada R3Y 1G4 Prepared by Arthur Cook Engineering Technologist EMC Test Systems, L. P. A. TABLE OF CONTENTS List of Tables List of Figures 1.0INTRODUCTION 1.1Introduction to the Arrista Technologies, Inc. 3m Chamber 1.2Location of the Arrista Technologies, Inc. 3m Chamber 2.0PHYSICAL LAYOUT AND SITE DESCRIPTION 2.1Shielded Enclosures 2.2Turntable and Ground Plane 2.3Antenna Mast 2.4Power Facilities 2.5Control Area 2.6Anechoic Absorbers 2.7Quiet Zone and Test Range Position 3.0NORMALIZED SITE ATTENUATION TEST METHOD PER ANSI C63.4-1992 3.1Test Method 3.2 Test Results 4.0TEST EQUIPMENT LIST APPENDIX A.1TABLES A.2FIGURES LIST OF TABLES Table 1. Test equipment used for measuring Normalized Site Attenuation LIST OF FIGURES Fig. 1. Measured NSA at Primary 3m test range (Horiz. Pol. Tx=1.0m, QzD=2m) (30-1000 MHz). Fig. 2. Measured Delta NSA at Primary 3m test range (Horiz. Pol. Tx=1.0m, QzD=2m) (30-1000 MHz). Fig. 3. Measured NSA at Primary 3m test range (Vert. Pol. Tx=1.0m, QzD=2m) (30-1000 MHz). Fig. 4. Measured Delta NSA at Primary 3m test range (Vert. Pol. Tx=1.0m, QzD=2m) (30-1000 MHz). Fig. 5. Measured NSA at Primary 3m test range (Vert. Pol. Tx=1.5m, QzD=2m) (30-1000 MHz). Fig. 6. Measured Delta NSA at Primary 3m test range (Vert. Pol. Tx=1.5m, QzD=2m) (30-1000 MHz). Fig. 7. Measured NSA at Primary 3m test range (Horiz. Pol. Tx=2.0m,QzD=2m) (30-1000 MHz). Fig. 8. Measured Delta NSA at Primary 3m test range (Horiz. Pol. Tx=2.0m, QzD=2m) (30-1000 MHz). Fig. 9. Measured NSA at Primary 3m test range (Horiz. Pol. Tx=1.0m, QzD=2m) (1-18 GHz). Fig. 10. Measured Delta NSA at Primary 3m test range (Horiz. Pol. Tx=1.0m, QzD=2m) (1-18 GHz). Fig. 11. Measured NSA at Primary 3m test range (Vert. Pol. Tx=1.0m, QzD=2m) (1-18 GHz). Fig. 12. Measured Delta NSA at Primary 3m test range (Vert. Pol. Tx=1.0m, QzD=2m) (1-18 GHz). Fig. 13. Measu…
