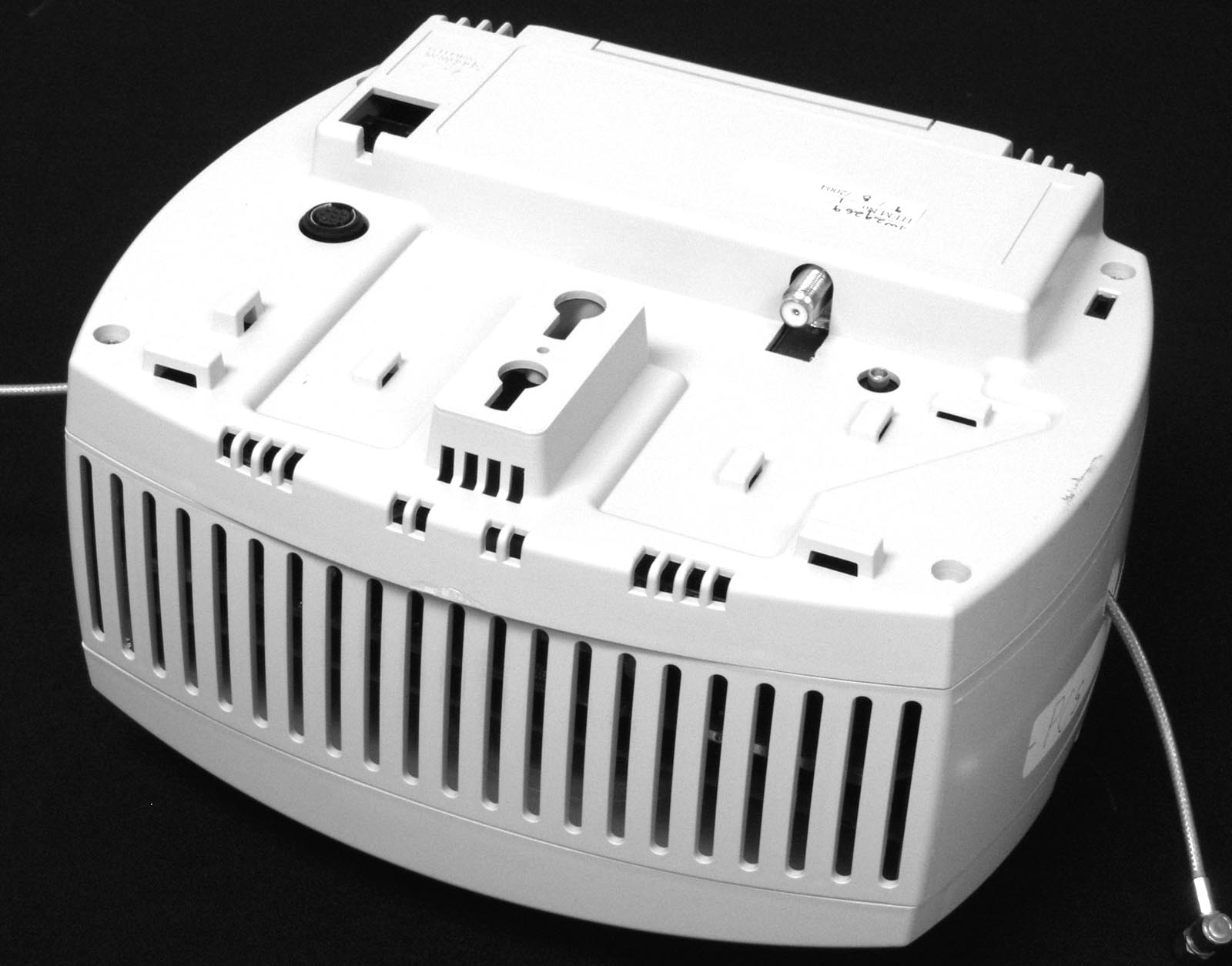

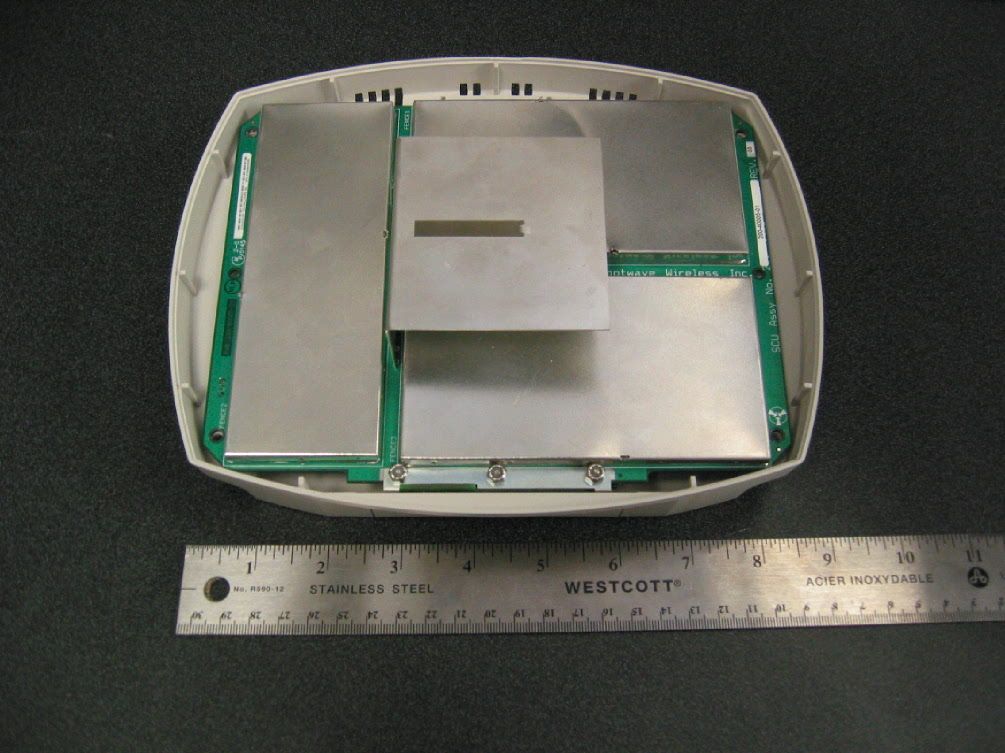

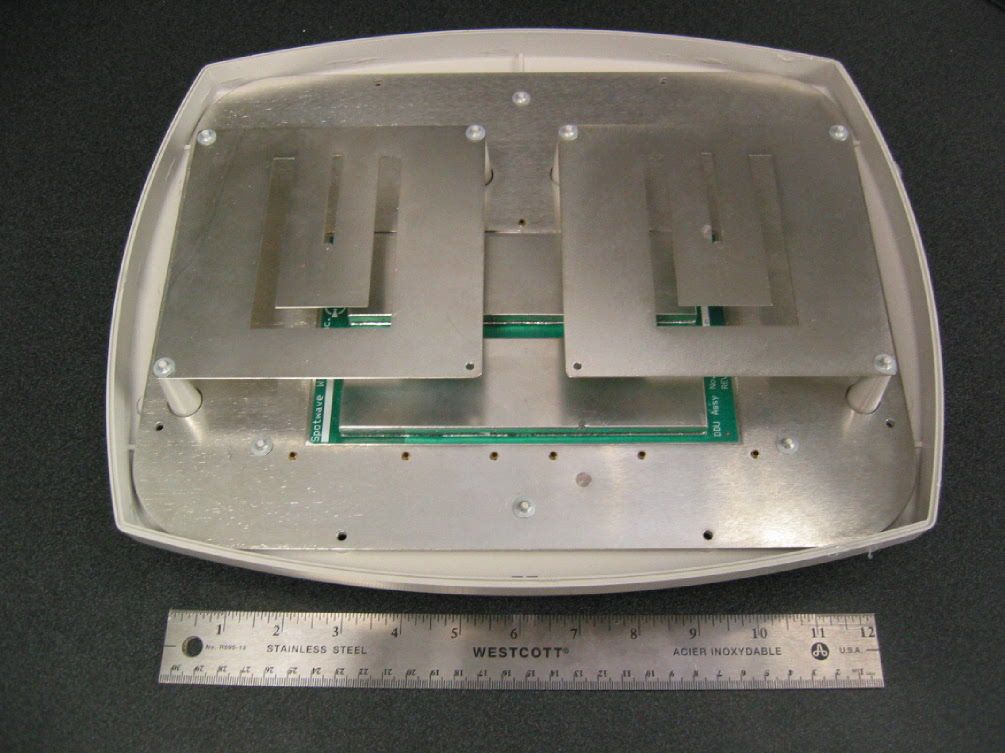

P3YSPOTCELL0001Indoor unit (SCU unit)

S potCell ™ 100 Quick Installation Guide www.spotwave.com Spotwave Wireless Inc. 3701 Carling Avenue, Ottawa ON K2H 8S2 Canada Tel: (613) 820-0023 Fax: (613) 828-1956 E-mail: [email protected] © 2001 Spotwave Wireless Inc. All rights reserved. Printed in Canada 4. Installation Set the switch on the bottom of the SCU to “1” (install). Connect the power supply to the SCU, then plug the adapter into the AC outlet. If required, more detailed information on installing SpotCell 100 can be found in the enclosed Installation Manual. 5. Installation: DDU In the location where the DDU is to be mounted, rotate the unit in a complete circle. The LED on the back will turn red or green during the rotation. 6. Installation: DDU Again rotate the DDU. When the LED turns green, stop the rotation. This is the direction the DDU must face when mounted. 9. Installation: SCU Mount the SCU from a wall or ceiling, close to the centre of the area requiring coverage. 2. Location The DDU can be mounted anywhere your cell phone works. This may be on a rooftop (typical rural set-up), on the side of a building, or inside a building (typical downtown set-up). The SCU will be mounted inside the building where your cell phone does not work. (The illustrations at the right depict typical installations.) To start the installation, place the DDU and SCU in the general areas where they are to be located. Do not physically mount them at this time. 3. Installation Connect the DDU and SCU with the cable provided. For quick installation of SpotCell 100: For your safety, beware of power lines and ensure that appropriate safety measures are maintained at all times during the installation of the SpotCell 100 equipment. Contact with high-voltage power lines could result in death or serious injury. 10. Final Checklist 1. Properly ground the DDU via the grounding bolt. 2. Ensure that there is a drip loop on the cable connecting to the DDU. 3. Firmly affix the cable to the building where it runs between the DDU and SCU. 8. Installation: SCU Move the switch on the bottom of the SCU to “2” (active). Hold the SCU in the location to be mounted. The LCD on the bottom of the SCU indicates coverage by the number of bars; more bars indicate better coverage. Back of SCU Back of DDU Cable connector Cable connector Grounding bolt Power supply connection: insert wires here while depressing blue tabs here Switch: install mode position LED DDU (outward-facing unit) SCU (indoor unit) Rotate 360°Rotate 360° 7. Installation: DDU Now mount the DDU. Typical installations are pictured below. Wall MountPipe Mount with Hose Clamp 1. Parts List • DDU• Cable (80'/25 m)• Mounting kit • SCU• Power supply Mounting bracket Optional bracket

Technical Support The SpotCell 100 serial number must be available to authorize technical support and/or to establish a return authorization for defective units. The serial number is located on the back of the SCU and DDU as well as the box in which they were delivered. Additional support information may be obtained by accessing the SpotwaveWireless Inc. website at www.spotwave.com. To contact support by telephone, call your local Cellular provider, or 1-877-610-9586. Important Safety Information Wa r n i n g ! For your safety, beware of power lines and ensure appropriate safety measures are maintained at all times during the installation of the SpotCell equipment. If equipment not shipped with the SpotCell system is to be used during installation or mounting, follow all equipment manufacture’s instructions in proper use to ensure injury is avoided. This manual outlines installation instructions and the appendix offers practical safety tips (see page # entitled ‘safety’. If you are not sure about a safe installation, do not attempt to install it yourself. Call a professional installer for help. ii SpotCell 100, Release 1.0 LIMITED WARRANTY AND LIMITATION OF LIABILITY: 1. What is Covered and for How Long? Spotwave Wireless Inc. ("Spotwave") warrants to the original Purchaser that the Spotwave SpotCell System (the "System") is free from defects in material and workmanship under normal use and service for a period of 12 months from the date of shipment from Spotwave (the "Limited Warranty Period"). 2. What is not covered? This Limited Warranty is conditioned upon proper use of the System by the Purchaser. This Limited Warranty does not cover (and will become null and void in the event of ): (a) defects or damage resulting from accident, misuse, abuse, neglect, unusual physical, electrical or electromechanical stress, modification of the System or any part thereof, or cosmetic damage; (b) removal, alteration or defacing of the serial number or other identifying marks on the System; (c) all plastic surfaces and other externally exposed components that are scratched or damaged due to normal use; (d) malfunctions resulting from the use of the System in conjunction with accessories, products or (ancillary) or peripheral equipment not provided by Spotwave; or (e) defects or damage from unauthorized or improper testing, operation, maintenance, installation, servicing or adjustment of the System. Any repairs or replacements provided by Spotwave outside of the Limited Warranty Period (including repairs to or replacement after the end of the Warranty Period), or in excess of the services provided during the Limited Warranty Period, will subject to Spotwave's then prevailing rates. 3. What are Spotwave's Obligations and how do you make a claim? During the Limited Warranty Period, Spotwave will repair or replace, at Spotwave's sole option, without charge to Purchaser, any defective component of the System, provided that the System is returned promptly upon discovery of the defect and during the Limited Warranty Period. To obtain service, Systems must be returned to an authorized service facility in the original packaging or packaging adequate for shipping, accompanied by Purchaser's sales receipt or comparable substitute proof of sale showing the date of purchase and the serial number of the System. A valid RMA is required prior to any return. To locate your nearest authorized service facility, call Spotwave Customer Service at 1-877-610-9586. Spotwave may, at Spotwave's sole option, use rebuilt, reconditioned, or new parts or components when repairing any System or replace a System with a rebuilt, reconditioned or new System. Repaired Systems will be warranted for a period equal to the remainder of the original Limited Warranty Period for the original System or for 90 days, whichever is longer. All replaced parts, components, boards or equipment shall become the property of Spotwave. If Spotwave determines that any System is not covered by this Limited Warranty, Purchaser must pay the costs for all parts, shipping, and labor charges for the repair or return of such System. 4. What are the Limits on Spotwave's Liability? EXCEPT FOR THE WARRANTY IN PARAGRAPH 1, THE SYSTEMS AND ANY ASSOCIATED SERVICES ARE PROVIDED BY SPOTWAVE ON AS 'AS IS' BASIS AND THERE ARE NO OTHER REPRESENTATIONS, WARRANTIES OR CONDITIONS, ,EXPRESS OR IMPLIED, WRITTEN OR ORAL, ARISING BY STATUTE, OPERATION OF LAW, COURSE OF DEALING, USAGE OF TRADE OR OTHERWISE, REGARDING THEM OR ANY OTHER PRODUCT OR SERVICE PROVIDED HEREUNDER OR IN CONNECTION HEREWITH BY SPOTWAVE. SPOTWAVE DISCLAIMS ANY IMPLIED WARRANTIES OR CONDITIONS OF DURABILITY, MERCHANT ABILITY, MERCHANTABLE QUALITY, SATISFACTORY QUALITY, NON- INFRINGEMENT OR FITNESS FOR A PARTICULAR PURPOSE. SPOTWAVE DOES NOT REPRESENT OR WARRANT THAT THE SYSTEMS WILL MEET ANY OR ALL OF PURCHASERS' PARTICULAR REQUIREMENTS, THAT THE SYSTEMS WILL OPERATE ERROR-FREE OR UNINTERRUPTED OR THAT ALL ERRORS OR DEFECTS IN THE SYSTEMS CAN BE FOUND TO BE CORRECTED. System performance is dependant upon the performance and availability of services or technology provided by third parties and Spotwave is not responsible for service continuity and reliability, reception, or other performance related limitations associated with use of the Systems. NO AGREEMENTS VARYING OR EXTENDING THE TERMS OF THIS LIMITED WARRANTY WILL BE BINDING ON SPOTWAVE UNLESS IN WRITING AND SIGNED BY AN AUTHORIZED SIGNING OFFICER OF SPOTWAVE THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THE SYSTEM. SPOTWAVE'S MAXIMUM AGGREGATE LIABILITY TO PURCHASER SHALL NOT EXCEED THE AMOUNTS PAID BY PURCHASER FOR THE SYSTEM GIVING RISE TO THE CLAIM. SPOTWAVE SHALL NOT BE LIABLE FOR ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL, INDIRECT OR SIMILAR DAMAGES, LOSS OF USE, DATA OR PROFITS, DAMAGES TO PURCHASER'S PROPERTY, OR INJURY TO PURCHASER OR OTHERS ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE ANY SYSTEM, WHETH…

Text truncated - open the document above for the full version.

Technical Support The SpotCell 100 serial number must be available to authorize technical support and/or to establish a return authorization for defective units. The serial number is located on the back of the SCU and DDU as well as the box in which they were delivered. Additional support information may be obtained by accessing the SpotwaveWireless Inc. website at www.spotwave.com. To contact support by telephone, call your local Cellular provider, or if you are unable to contact your provider, contact Spotwave Wireless at 1-877-610-9586. Important Safety Information Wa r n i n g ! For your safety, beware of power lines and ensure appropriate safety measures are maintained at all times during the installation of the SpotCell equipment. If equipment not shipped with the SpotCell system is to be used during installation or mounting, follow all equipment manufacture’s instructions in proper use to ensure injury is avoided. The DDU unit of the SpotCell 100 emits approximately the same power as a cell phone. As with a cell phone antenna, avoid unneccessary contact with the front of the unit after installed. Mount in a location where people will not approach within one meter of the front of the unit. This manual outlines installation instructions and the appendix offers practical safety tips (see page 43 entitled ‘Safety Hints’). If you are not sure about a safe installation, do not attempt to install it yourself. Call a professional installer for help. ii SpotCell 100, Release 1.0 LIMITED WARRANTY AND LIMITATION OF LIABILITY: 1. What is Covered and for How Long? Spotwave Wireless Inc. ("Spotwave") warrants to the original Purchaser that the Spotwave SpotCell System (the "System") is free from defects in material and workmanship under normal use and service for a period of 12 months from the date of shipment from Spotwave (the "Limited Warranty Period"). 2. What is not covered? This Limited Warranty is conditioned upon proper use of the System by the Purchaser. This Limited Warranty does not cover (and will become null and void in the event of ): (a) defects or damage resulting from accident, misuse, abuse, neglect, unusual physical, electrical or electromechanical stress, modification of the System or any part thereof, or cosmetic damage; (b) removal, alteration or defacing of the serial number or other identifying marks on the System; (c) all plastic surfaces and other externally exposed components that are scratched or damaged due to normal use; (d) malfunctions resulting from the use of the System in conjunction with accessories, products or (ancillary) or peripheral equipment not provided by Spotwave; or (e) defects or damage from unauthorized or improper testing, operation, maintenance, installation, servicing or adjustment of the System. Any repairs or replacements provided by Spotwave outside of the Limited Warranty Period (including repairs to or replacement after the end of the Warranty Period), or in excess of the services provided during the Limited Warranty Period, will subject to Spotwave's then prevailing rates. 3. What are Spotwave's Obligations and how do you make a claim? During the Limited Warranty Period, Spotwave will repair or replace, at Spotwave's sole option, without charge to Purchaser, any defective component of the System, provided that the System is returned promptly upon discovery of the defect and during the Limited Warranty Period. To obtain service, Systems must be returned to an authorized service facility in the original packaging or packaging adequate for shipping, accompanied by Purchaser's sales receipt or comparable substitute proof of sale showing the date of purchase and the serial number of the System. A valid RMA is required prior to any return. To locate your nearest authorized service facility, call Spotwave Customer Service at 1-877-610-9586. Spotwave may, at Spotwave's sole option, use rebuilt, reconditioned, or new parts or components when repairing any System or replace a System with a rebuilt, reconditioned or new System. Repaired Systems will be warranted for a period equal to the remainder of the original Limited Warranty Period for the original System or for 90 days, whichever is longer. All replaced parts, components, boards or equipment shall become the property of Spotwave. If Spotwave determines that any System is not covered by this Limited Warranty, Purchaser must pay the costs for all parts, shipping, and labor charges for the repair or return of such System. 4. What are the Limits on Spotwave's Liability? EXCEPT FOR THE WARRANTY IN PARAGRAPH 1, THE SYSTEMS AND ANY ASSOCIATED SERVICES ARE PROVIDED BY SPOTWAVE ON AS 'AS IS' BASIS AND THERE ARE NO OTHER REPRESENTATIONS, WARRANTIES OR CONDITIONS, ,EXPRESS OR IMPLIED, WRITTEN OR ORAL, ARISING BY STATUTE, OPERATION OF LAW, COURSE OF DEALING, USAGE OF TRADE OR OTHERWISE, REGARDING THEM OR ANY OTHER PRODUCT OR SERVICE PROVIDED HEREUNDER OR IN CONNECTION HEREWITH BY SPOTWAVE. SPOTWAVE DISCLAIMS ANY IMPLIED WARRANTIES OR CONDITIONS OF DURABILITY, MERCHANT ABILITY, MERCHANTABLE QUALITY, SATISFACTORY QUALITY, NON- INFRINGEMENT OR FITNESS FOR A PARTICULAR PURPOSE. SPOTWAVE DOES NOT REPRESENT OR WARRANT THAT THE SYSTEMS WILL MEET ANY OR ALL OF PURCHASERS' PARTICULAR REQUIREMENTS, THAT THE SYSTEMS WILL OPERATE ERROR-FREE OR UNINTERRUPTED OR THAT ALL ERRORS OR DEFECTS IN THE SYSTEMS CAN BE FOUND TO BE CORRECTED. System performance is dependant upon the performance and availability of services or technology provided by third parties and Spotwave is not responsible for service continuity and reliability, reception, or other performance related limitations associated with use of the Systems. NO AGREEMENTS VARYING OR EXTENDING THE TERMS OF THIS LIMITED WARRANTY WILL BE BINDING ON SPOTWAVE UNLESS IN WRITING AND SIGNED BY AN AUTHORIZED SIGNING OFFICER OF SPOTWAVE THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THE SYSTEM. SPOTWAVE'S MAXIMUM AGGREGATE LIABILITY TO PUR…

Text truncated - open the document above for the full version.

Technical Support The SpotCell 100 serial number must be available to authorize technical support and/or to establish a return authorization for defective units. The serial number is located on the back of the SCU and DDU as well as the box in which they were delivered. Additional support information may be obtained by accessing the SpotwaveWireless Inc. website at www.spotwave.com. To contact support by telephone, call your local Cellular provider, or if you are unable to contact your provider, contact Spotwave Wireless at 1-877-610-9586. Important Safety Information Wa r n i n g ! For your safety, beware of power lines and ensure appropriate safety measures are maintained at all times during the installation of the SpotCell equipment. If equipment not shipped with the SpotCell system is to be used during installation or mounting, follow all equipment manufacture’s instructions in proper use to ensure injury is avoided. The DDU unit of the SpotCell 100 emits approximately the same power as a cell phone. As with a cell phone antenna, avoid unneccessary contact with the front of the unit after installed. Mount in a location where people will not approach within one meter of the front of the unit. This manual outlines installation instructions and the appendix offers practical safety tips (see page 43 entitled ‘Safety Hints’). If you are not sure about a safe installation, do not attempt to install it yourself. Call a professional installer for help. ii SpotCell 100, Release 1.0 LIMITED WARRANTY AND LIMITATION OF LIABILITY: 1. What is Covered and for How Long? Spotwave Wireless Inc. ("Spotwave") warrants to the original Purchaser that the Spotwave SpotCell System (the "System") is free from defects in material and workmanship under normal use and service for a period of 12 months from the date of shipment from Spotwave (the "Limited Warranty Period"). 2. What is not covered? This Limited Warranty is conditioned upon proper use of the System by the Purchaser. This Limited Warranty does not cover (and will become null and void in the event of ): (a) defects or damage resulting from accident, misuse, abuse, neglect, unusual physical, electrical or electromechanical stress, modification of the System or any part thereof, or cosmetic damage; (b) removal, alteration or defacing of the serial number or other identifying marks on the System; (c) all plastic surfaces and other externally exposed components that are scratched or damaged due to normal use; (d) malfunctions resulting from the use of the System in conjunction with accessories, products or (ancillary) or peripheral equipment not provided by Spotwave; or (e) defects or damage from unauthorized or improper testing, operation, maintenance, installation, servicing or adjustment of the System. Any repairs or replacements provided by Spotwave outside of the Limited Warranty Period (including repairs to or replacement after the end of the Warranty Period), or in excess of the services provided during the Limited Warranty Period, will subject to Spotwave's then prevailing rates. 3. What are Spotwave's Obligations and how do you make a claim? During the Limited Warranty Period, Spotwave will repair or replace, at Spotwave's sole option, without charge to Purchaser, any defective component of the System, provided that the System is returned promptly upon discovery of the defect and during the Limited Warranty Period. To obtain service, Systems must be returned to an authorized service facility in the original packaging or packaging adequate for shipping, accompanied by Purchaser's sales receipt or comparable substitute proof of sale showing the date of purchase and the serial number of the System. A valid RMA is required prior to any return. To locate your nearest authorized service facility, call Spotwave Customer Service at 1-877-610-9586. Spotwave may, at Spotwave's sole option, use rebuilt, reconditioned, or new parts or components when repairing any System or replace a System with a rebuilt, reconditioned or new System. Repaired Systems will be warranted for a period equal to the remainder of the original Limited Warranty Period for the original System or for 90 days, whichever is longer. All replaced parts, components, boards or equipment shall become the property of Spotwave. If Spotwave determines that any System is not covered by this Limited Warranty, Purchaser must pay the costs for all parts, shipping, and labor charges for the repair or return of such System. 4. What are the Limits on Spotwave's Liability? EXCEPT FOR THE WARRANTY IN PARAGRAPH 1, THE SYSTEMS AND ANY ASSOCIATED SERVICES ARE PROVIDED BY SPOTWAVE ON AS 'AS IS' BASIS AND THERE ARE NO OTHER REPRESENTATIONS, WARRANTIES OR CONDITIONS, ,EXPRESS OR IMPLIED, WRITTEN OR ORAL, ARISING BY STATUTE, OPERATION OF LAW, COURSE OF DEALING, USAGE OF TRADE OR OTHERWISE, REGARDING THEM OR ANY OTHER PRODUCT OR SERVICE PROVIDED HEREUNDER OR IN CONNECTION HEREWITH BY SPOTWAVE. SPOTWAVE DISCLAIMS ANY IMPLIED WARRANTIES OR CONDITIONS OF DURABILITY, MERCHANT ABILITY, MERCHANTABLE QUALITY, SATISFACTORY QUALITY, NON- INFRINGEMENT OR FITNESS FOR A PARTICULAR PURPOSE. SPOTWAVE DOES NOT REPRESENT OR WARRANT THAT THE SYSTEMS WILL MEET ANY OR ALL OF PURCHASERS' PARTICULAR REQUIREMENTS, THAT THE SYSTEMS WILL OPERATE ERROR-FREE OR UNINTERRUPTED OR THAT ALL ERRORS OR DEFECTS IN THE SYSTEMS CAN BE FOUND TO BE CORRECTED. System performance is dependant upon the performance and availability of services or technology provided by third parties and Spotwave is not responsible for service continuity and reliability, reception, or other performance related limitations associated with use of the Systems. NO AGREEMENTS VARYING OR EXTENDING THE TERMS OF THIS LIMITED WARRANTY WILL BE BINDING ON SPOTWAVE UNLESS IN WRITING AND SIGNED BY AN AUTHORIZED SIGNING OFFICER OF SPOTWAVE THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THE SYSTEM. SPOTWAVE'S MAXIMUM AGGREGATE LIABILITY TO PUR…

Text truncated - open the document above for the full version.

Spotwave Wireless Inc. 3701 Carling Avenue Ottawa ON K2H 8S2 Canada Tel: (613) 820-0023 Fax: (613) 828-1956 www.spotwave.com For the attention of: Federal Communications Commission SUBJECT: Confidentiality of SpotCell 100 (800 MHz) design information. 1. The FCC ID number for this product is P3YSPOTCELL0001 2. SpotWave Wireless requests that the following information submitted as part of a request to the F.C.C. for approval to operate the equipment. SCU schematics 230-40005-XX sheet 1 to 8 SCU Bill of Materials (BOM)PL230-40005-XX page 1 to 7 DDU schematic230-40000-01 sheet 1,2 DDU Bill of Materials (BOM) PL230-40000-02 page 1 to 3 Block Diagram700-00080-02 sheet 1 3. The above documents are classified by Spotwave Wireless as company confidential data and are not in the public domain, nor are they made available to customers. They are for internal use only. 4. The above documents are stored in a secure development laboratory with restricted access. Only employees, sub-contractors and consultants who have signed a formal non-disclosure agreement with Spotwave Wireless are allowed access to these documents, and then only on a need-to-know basis. 5. Spotwave Wireless maintains these documents at a company confidential classification because they contain the detailed information on the implementation of the company’s Intellectual Property. Specifically design information relating to custom components that is otherwise unavailable could be obtained using this data. The dissemination of this data would therefore severely damage the company’s competitive advantage in the Wireless market. 6. This market is a competitive one, with many other companies offering coverage enhancement products that do not currently embody characteristics or features that are enabled by the Spotwave Wireless IP. 7. Spotwave Wireless requests that this data is maintained as confidential for a period of 5 years, as this is compatible with the anticipated commercial life-time of the product, and will therefore be sufficient to prevent competitive harm to the company. 8. A copy of the SpotWave Wireless standard non-disclosure agreement is provided for reference. Mike Roper Vice President, Product Development Spotwave Wireless Inc. 613 820 0023 ext 231 [email protected]

B THIS DOCUMENT IS THE PROPERTY OF “Spotwave Wireless Inc.” AND MAY BE NEITHER USED, COPIED, REPRODUCED OR OTHERWISE DEALT WITH NOR ITS CONTENTS COMMUNICATED TO OTHERS EXCEPT IN ACCORDANCE WITH WRITTEN INSTRUCTIONS RECEIVED FROM “Spotwave Wireless Inc.”. SCALE SHEET OF OTTAWA, CANADA SPOTWAVE WIRELESS INC. DWG. NO. REV. ALL DIMENSIO NS INCHES 3rd ANGLE PROJECTION DRAWN BY ENG. APPROVALPROJ. APPROVAL DATEDATE DATE MATERIAL: FINISH: TOLERANCES .XX .XXX ANG ±. ±. ± ° NEXT ASSY REVISIONS DESCRIPTION REV. DATE BY LABEL, SCU 160-40165-01 NTS 1 1 03 BB 01-10-18 .13 RAD4 CORNERS 1.94 5.19 N OT E S: 1 - MATERIAL: .010 THK CLEAR LEXAN FILM, UV STABLE. SELF ADHESIVE BACK. ADHESIVE TO BE SUITABLE FOR LONG TERM OUTDOOR USE.2 - GRAPHICS COLOR: BLACK. SERIAL NUMBER SHALL BE SEQUENTIAL NUMBERS STARTING AT B10001 01 RELEASED 01-10-26 BB USE ONLY WITH CSA CERTIFIED /UL LISTED CLASS 2 POWER SUPPLY XXXXXX R E V I S I O N I N P R O G R E S S CANADA: XXX XXXX XFCC ID: P3YSPOTCELL0001 ACTIVE INSTALL A pproved to UL 1950 1 2 SEE NOTES SEE NOTES SPOTWAVE WIRELESS INC. PRODUCT ID: Spotcell 100A SCU. SERIAL NO.: B10002 FREQUENCY BAND: UPLINK: 824 - 849 MHz DOWNLINK: 869 - 894 MHz INPUT: 10.5 +/-0.5 VDC @ 2 A MIN. CUSTOMER SUPPORT INFO. WWW.SPOTWAVE.COM MADE IN CANADA 1-877-610-9586

FCC Form 731 Equipment Specifications (a) Frequency range in MHz (b) Rated RF power output in watts (c) Frequency tolerance (d) Emission designator (e) Microprocessor model number 824 – 8350.1N/ADXWN/A 824 – 8350.1N/AF9WN/A 824 – 8350.1N/AF8WN/A 845 – 846.50.1N/ADXWN/A 845 – 846.50.1N/AF9WN/A 845 – 846.50.1N/AF8WN/A 869 – 8800.001N/ADXWN/A 869 – 8800.001N/AF9WN/A 869 – 8800.001N/AF8WN/A 890 – 891.50.001N/ADXWN/A 890 – 891.50.001N/AF9WN/A 890 – 891.50.001N/AF8WN/A

SpotCell 100, Release 1.0 31 Appendix B – System Specifications B.1 DDU LED signal indications: RED: BS signal too low (< -100 dBmi) YELLOW: BS signal present and within range (between -100 dBmi and -30 dBmi) GREEN: BS signal is at maximum (within range peak to peak-5dB) B.2 Horizontal antenna beam width: B.2.1 SCU Antenna Summary Gain 2.5 dBi Azimuth Beamwidth ±75° F/B 15 dB B.2.2 DDU Antenna Summary Gain 10 dBi Elevation Beamwidth ±32° offset -12° F/B 20 dB B.3 Architecture Ta b l e s g o h e r e

Spotwave Wireless Inc. 3701 Carling Avenue Ottawa ON K2H 8S2 Canada Tel: (613) 820-0023 Fax: (613) 828-1956 www.spotwave.com Maximum Permissible Exposure (MPE) Compliance Statement for the SpotCell 100 (800 MHz) Adaptive Repeater The SpotCell 100 (800 MHz) A/B equipment has been tested and the performance characterized in accordance with the MPE requirements of 47 CFR. The system is a low power adaptive repeater, having integral antennas built into the SCU and DDU modules. At the maximum operating frequency of 894 MHz the MPE limit for the General Population/Uncontrolled Exposure is 0.6mW/cm 2 . The SpotCell 100 (800MHz) complies with this limit at the following line of sight distances from the antenna element: DDU : 12 cm SCU: 0.4 cm A warning statement for the DDU is provided in the Installation Manual. The integral radome on the SCU provides > 0.5cm physical separation from the antenna so that no warning statement is required for this module. Mike Roper Vice President, Product Development Spotwave Wireless Inc. Tel 613-820-0023 ext 231 Email [email protected]

Spotwave Wireless Inc. 3701 Carling Avenue Ottawa ON K2H 8S2 Canada Tel: (613) 820-0023 Fax: (613) 828-1956 www.spotwave.com Maximum Permissible Exposure (MPE) Compliance Statement for the SpotCell 100 (800 MHz) Adaptive Repeater The SpotCell 100 (800 MHz) A/B equipment has been tested and the performance characterized in accordance with the MPE requirements of 47 CFR. The system is a low power adaptive repeater, having integral antennas built into the SCU and DDU modules. At the maximum operating frequency of 894 MHz the MPE limit for the General Population/Uncontrolled Exposure is 0.6mW/cm 2 . The SpotCell 100 (800MHz) complies with this limit at the following line of sight distances from the antenna element: DDU : 12 cm SCU: 0.4 cm The analysis is provided below. For the general uncontrolled population the Maximum Permissible Exposure (MPE) limit is given by F/1500 mW/cm 2 , where F is the operating frequency of the product, giving a limit of 0.6 mW/cm 2 The prediction methods provided are based on worst-case far-field calculations; S = EIRP/(4πR 2 ) Using this calculation, for the DDU S= 0.6 mW EIRP = 1000 mW R= 11.5 cm The User Manual, which also incorporates the Installation instructions includes a warning on page (i) of the document under the heading “Important Safety Information” . The warning instructs the installer to ensure the DDU is mounted in a location where people will not approach within 1m of the front of the unit. This distance provides additional safety margin for the product. For the SCU S=0.6 mW EIRP = 1mW R= 0.36 cm The integral radome on the SCU provides > 0.5cm physical separation from the antenna so that no warning statement is required for this module. Mike Roper Vice President, Product Development Spotwave Wireless Inc. Tel 613-820-0023 ext 231 Email [email protected]

Spotwave Wireless Inc. 3701 Carling Avenue Ottawa ON K2H 8S2 Canada Tel: (613) 820-0023 Fax: (613) 828-1956 www.spotwave.com Maximum Permissible Exposure (MPE) Compliance Statement for the SpotCell 100 (800 MHz) Adaptive Repeater The SpotCell 100 (800 MHz) A/B equipment has been tested and the performance characterized in accordance with the MPE requirements of 47 CFR. The system is a low power adaptive repeater, having integral antennas built into the SCU and DDU modules. At the maximum operating frequency of 894 MHz the MPE limit for the General Population/Uncontrolled Exposure is 0.6mW/cm 2 . The SpotCell 100 (800MHz) complies with this limit at the following line of sight distances from the antenna element: DDU : 12 cm SCU: 0.4 cm The analysis is provided below. For the general uncontrolled population the Maximum Permissible Exposure (MPE) limit is given by F/1500 mW/cm 2 , where F is the operating frequency of the product, giving a limit of 0.6 mW/cm 2 The prediction methods provided are based on worst-case far-field calculations; S = EIRP/(4πR 2 ) Using this calculation, for the DDU S= 0.6 mW EIRP = 1000 mW R= 11.5 cm The User Manual, which also incorporates the Installation instructions includes a warning on page (i) of the document under the heading “Important Safety Information” . The warning instructs the installer to ensure the DDU is mounted in a location where people will not approach within 1m of the front of the unit. This distance provides additional safety margin for the product. For the SCU S=0.6 mW EIRP = 1mW R= 0.36 cm The integral radome on the SCU provides > 0.5cm physical separation from the antenna so that no warning statement is required for this module. Mike Roper Vice President, Product Development Spotwave Wireless Inc. Tel 613-820-0023 ext 231 Email [email protected]

Master: Generi…
