P3YSPOTCELL0006Spotcell 111/112 CU repeater

Technical Support The SpotCell serial number must be available to authorize technical support and/or to establish a return authorization for defective units. The serial number is located on the back of the CU and DU as well as the box in which they were delivered. Additional support information may be obtained by accessing the SpotwaveWireless Inc. website at www.spotwave.com. To contact support by telephone, call your local Spotwave vendor, or if you are unable to reach your vendor, contact Spotwave Wireless at 1-877-610-9586. Important Safety Information Wa r n i n g ! For your safety, beware of power lines and ensure appropriate safety measures are maintained at all times during the installation of the SpotCell equipment. If equipment not shipped with the SpotCell system is to be used during installation or mounting, follow all equipment manufacture’s instructions in proper use to ensure injury is avoided. The DU and CU of the SpotCell are low power transmitters. As with a cell phone antenna, avoid unneccessary contact with the front of the units after installed. Mount in a location where people will not approach within 1 meter in front of the DU and 20 centimeters in front of the CU. This manual outlines installation instructions and the appendix offers practical safety tips (see page 39 entitled ‘Safety Hints’). If you are not sure about a safe installation, do not attempt to install it yourself. Call a professional installer for help. ii SpotCell 100, Release 1.0 LIMITED WARRANTY AND LIMITATION OF LIABILITY: 1. What is Covered and for How Long? Spotwave Wireless Inc. ("Spotwave") warrants to the original Purchaser that the Spotwave SpotCell System (the "System") is free from defects in material and workmanship under normal use and service for a period of 12 months from the date of shipment from Spotwave (the "Limited Warranty Period"). 2. What is not covered? This Limited Warranty is conditioned upon proper use of the System by the Purchaser. This Limited Warranty does not cover (and will become null and void in the event of ): (a) defects or damage resulting from accident, misuse, abuse, neglect, unusual physical, electrical or electromechanical stress, modification of the System or any part thereof, or cosmetic damage; (b) removal, alteration or defacing of the serial number or other identifying marks on the System; (c) all plastic surfaces and other externally exposed components that are scratched or damaged due to normal use; (d) malfunctions resulting from the use of the System in conjunction with accessories, products or (ancillary) or peripheral equipment not provided by Spotwave; or (e) defects or damage from unauthorized or improper testing, operation, maintenance, installation, servicing or adjustment of the System. Any repairs or replacements provided by Spotwave outside of the Limited Warranty Period (including repairs to or replacement after the end of the Warranty Period), or in excess of the services provided during the Limited Warranty Period, will subject to Spotwave's then prevailing rates. 3. What are Spotwave's Obligations and how do you make a claim? During the Limited Warranty Period, Spotwave will repair or replace, at Spotwave's sole option, without charge to Purchaser, any defective component of the System, provided that the System is returned promptly upon discovery of the defect and during the Limited Warranty Period. To obtain service, Systems must be returned to an authorized service facility in the original packaging or packaging adequate for shipping, accompanied by Purchaser's sales receipt or comparable substitute proof of sale showing the date of purchase and the serial number of the System. A valid RMA is required prior to any return. To locate your nearest authorized service facility, call Spotwave Customer Service at 1-877-610-9586. Spotwave may, at Spotwave's sole option, use rebuilt, reconditioned, or new parts or components when repairing any System or replace a System with a rebuilt, reconditioned or new System. Repaired Systems will be warranted for a period equal to the remainder of the original Limited Warranty Period for the original System or for 90 days, whichever is longer. All replaced parts, components, boards or equipment shall become the property of Spotwave. If Spotwave determines that any System is not covered by this Limited Warranty, Purchaser must pay the costs for all parts, shipping, and labor charges for the repair or return of such System. 4. What are the Limits on Spotwave's Liability? EXCEPT FOR THE WARRANTY IN PARAGRAPH 1, THE SYSTEMS AND ANY ASSOCIATED SERVICES ARE PROVIDED BY SPOTWAVE ON AS 'AS IS' BASIS AND THERE ARE NO OTHER REPRESENTATIONS, WARRANTIES OR CONDITIONS, ,EXPRESS OR IMPLIED, WRITTEN OR ORAL, ARISING BY STATUTE, OPERATION OF LAW, COURSE OF DEALING, USAGE OF TRADE OR OTHERWISE, REGARDING THEM OR ANY OTHER PRODUCT OR SERVICE PROVIDED HEREUNDER OR IN CONNECTION HEREWITH BY SPOTWAVE. SPOTWAVE DISCLAIMS ANY IMPLIED WARRANTIES OR CONDITIONS OF DURABILITY, MERCHANT ABILITY, MERCHANTABLE QUALITY, SATISFACTORY QUALITY, NON- INFRINGEMENT OR FITNESS FOR A PARTICULAR PURPOSE. SPOTWAVE DOES NOT REPRESENT OR WARRANT THAT THE SYSTEMS WILL MEET ANY OR ALL OF PURCHASERS' PARTICULAR REQUIREMENTS, THAT THE SYSTEMS WILL OPERATE ERROR-FREE OR UNINTERRUPTED OR THAT ALL ERRORS OR DEFECTS IN THE SYSTEMS CAN BE FOUND TO BE CORRECTED. System performance is dependant upon the performance and availability of services or technology provided by third parties and Spotwave is not responsible for service continuity and reliability, reception, or other performance related limitations associated with use of the Systems. NO AGREEMENTS VARYING OR EXTENDING THE TERMS OF THIS LIMITED WARRANTY WILL BE BINDING ON SPOTWAVE UNLESS IN WRITING AND SIGNED BY AN AUTHORIZED SIGNING OFFICER OF SPOTWAVE THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THE SYSTEM. SPOTWAVE'S MAXIMUM AGGREGATE LIABILITY TO PURCHASER S…

Text truncated - open the document above for the full version.

Barry Quinlan From: "Ruby Dulmage" <[email protected]> To: "Barry Quinlan - Curtis-Straus" <[email protected]> Sent: Tuesday, October 01, 2002 2:48 PM Attach: ah1.pdf; vt208c2e.pdf; SpotCell Y.pdf; 700-00163-01.doc Sub ject: Reply - Re - Spotwave FCC ID: P3YSPOTCELL0006 Page 1 of 2 10/8/2002 Hi Barry: See answers below and also attachments. Thanks, Ruby From: Curtis -Straus TCB To: Ruby Dulmage Sent: Friday, September 27, 2002 6:03 PM Subject: Spotwave FCC ID: P3YSPOTCELL0006 Hi Ruby, We have identified these issues following our review of the application: 1. Please supply the DC voltage and current supplied to the final RF stage. [Bisrat, Yohannes] The Uplink final RF stage is supplied by a DC supply of 5v @ 150mA and the Downlink RF stage is supplied by a DC supply of 5v@150mA . In the schematics, these are shown at V24 and V17 of the voltage regulator outputs. 2. Please supply a technical description of the circuitry. [Bisrat, Yohannes] The final amplifier stage in the uplink is a linear RF amplifier part number AH1 (see attached PDF data sheet). This device is operated at a supply voltage of 5V, and current of 150 mA.The same holds true for the DL final stage RF amplifier. The SpotCell 111/112 uses an IF frequency to perform gain control and filtering functions in both the downlink and uplink directions. The same LO signal is used to provide both down-conversion and up-conversion of the RF signal. In this configuration the output RF frequency is independent of the actual LO frequency, or any LO frequency error. The LO signal is generated by a frequency sythesizer that phase locked to a TCXO reference source, which has a maximum frequency error of +/- 2.5 ppm (see attached vt208C data sheet). However as noted above, because the same LO is used to convert to and from the IF frequency, this error is not transferred to the output frequency. The only sources of spurious radiation within the SpotCell are the Local Oscialltors used in the uplink and downlink, and the clock frequency used by the on-board micro-controller. The LO frequencies have been selected to prevent in-band spurious signals from being generated. Out of band spurious signals are filtered by SAW RF filters which are located between the uplink and downlink gain stages. The uplink and downlink oscillators and associated components are located in separate shielded compartments to control stray radiation. The microprocessor and associated digital circuits that use the 20MHz clock are housed in their own, separate shielded compartment to ensure that the clock and harmonics do not create spurious signals at the antennas. In addition, each RF stage in the uplink and downlink chain has its own decoupling components to prevent clock and LO signals from entering the signal path through the power supply. The PCB uses 3 separate ground planes to provide shielding and provide a low impedance ground for the RF stages and decoupling components. SpotCell 111/112 uses an AGC circuit in both the uplink and downlink to control the RF power fed to the output stages. These stages are calibrated during manufacture to ensure that output amplifiers are limited to operating at 10dB or more below the maximum output power of the device. This ensures linear operation, and prevents any distortion of the signal that may affect the occupied bandwidth of the signal (modulation). The AGC circuit use logarithmic detectors to measure the AGC output power, together with an integrator and linear voltage controlled amplifier. This AGC configuration allows the system to operate linearly over a wide dynamic range. In addition, a supervisory system is used to monitors the input power level and to shut down the downlink or uplink if the input power exceeds the maximum specified. 3. Please explain why the block diagram states the EIRP to be -8dBm while the rated EIRP appears to be 10dBm. The block diagram has been corrected, see attached word doc. 4. The manual does not include a RF exposure warning statement for the CU device. If the applicant wishes to claim a less than 20 cm distance then will need to see a SAR evaluation as per 2.1093. [Bisrat, Yohannes] The second manual sent to Nemko includes RF exposure warning statement for both the DU and CU. Here is the same document attached. Best regards Barry C. Quinlan Certification Manager Curtis-Straus TCB Best regards Barry C. Quinlan Certification Manager Curtis-Straus TCB Page 2 of 2 10/8/2002

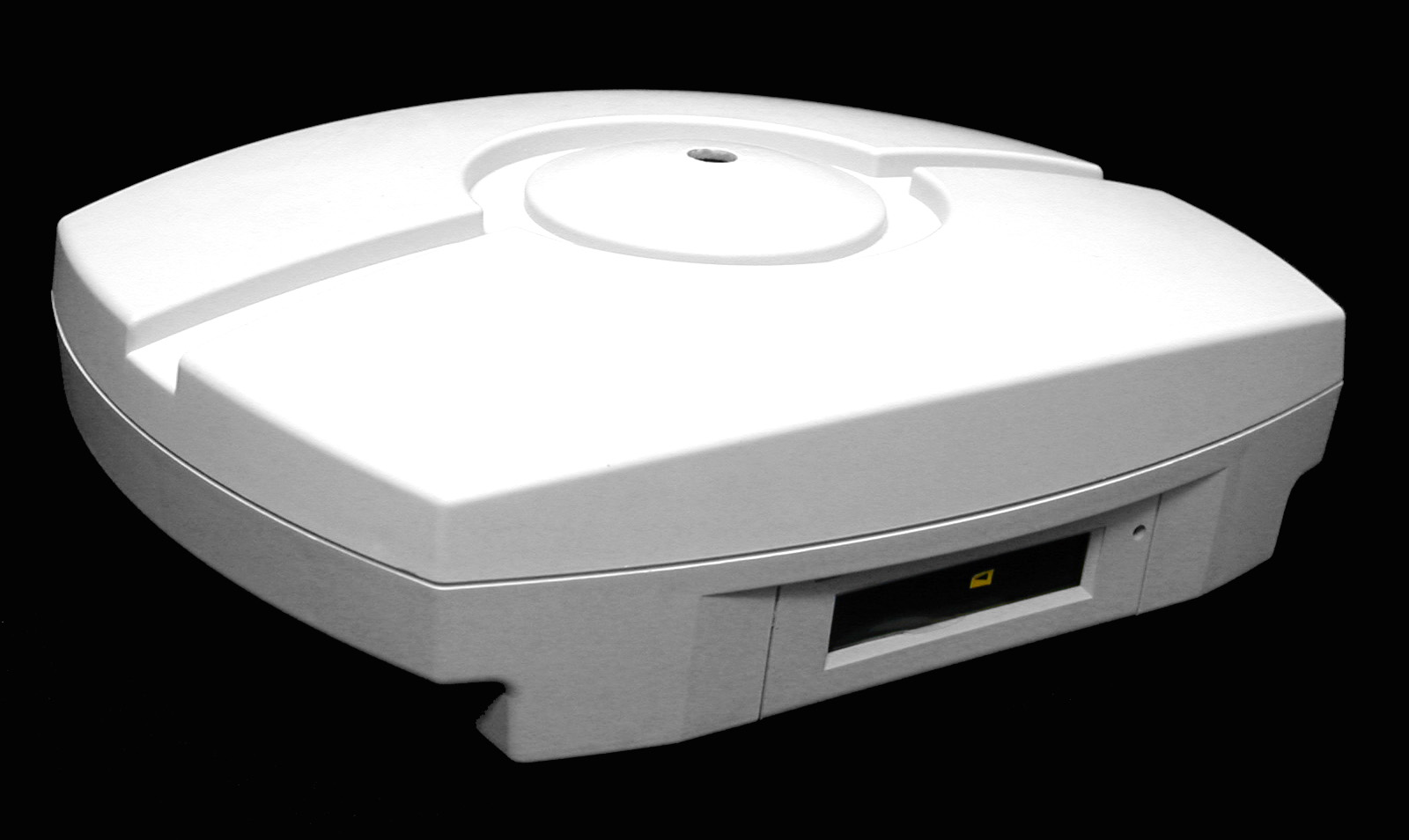

SpotCell 111/112 Coverage Unit (CU), Rear View

Spotwave Wireless Inc. 1 Hines Road Ottawa ON K2K 3C7 Canada Tel: (613) 591-1662 Fax: (613) 591-8107 www.spotwave.com Maximum Permissible Exposure (MPE) Compliance Statement for the SpotCell 111/112 (1900MHz PCS) Adaptive Repeater The SpotCell 111/112 (1900MHz) equipment has been tested and the performance characterized in accordance with the MPE requirement of CFR 47, Part 1.1310. The system is a low power adaptive repeater, having integral antennas built into the CU and DU modules. At maximum operating frequency of 1985MHz the MPE limit is 1mW/cm 2 . The SpotCell 111/112 complies with this limit at the following line of sight distances from the antenna element: DU: 8.9cm CU: 0.9cm A warning statement for the DU is provided in the Installation Manual. The integral radome on CU provides > 1.5cm physical separation from the antenna so that no warning statement is required for this module. Michael J. Roper Vice President, Product Development Spotwave Wireless Inc Tel : (613) – 591 – 1662 Ext 231 E-mail [email protected]

Master: Generic FCC Date: October 16, 2001 Test Report:2W06371 Applicant:Spotwave Wireless Inc. 1 Hines Rd. Ottawa, Ontario K2K 3C7 Equipment Under Test:SpotCell 111/112 CU (EUT)PCS Low Power Repeater In Accordance With:FCC Part 24, Subpart E FCC ID. :P3YSPOTCELL0006 Tested By:Nemko Canada Inc. 303 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: Kevin Carr, EMC Specialist Date:20 September 2002 Total Number of Pages:28 Nemko Canada Inc. FCC PART 24, SUBPART E PROJECT NO.: 2W06371 EQUIPMENT: SpotCell 111/112, PCS Low Power Repeater Page 2 of 28 Table of Contents Section 1. Summary of Test Results......................................................................................3 Section 2. General Equipment Specification........................................................................5 Section 3. RF Power Output..................................................................................................6 Section 4. Occupied Bandwidth..........................................................................................10 Section 5. Spurious Emissions At Antenna Terminals.......................................................15 Section 6. Field Strength of Spurious Emissions................................................................23 Section 7. Frequency Stability.............................................................................................25 Section 8. Block Diagrams................................................................................................... 26 Section 9. Test Equipment List...........................................................................................28 Nemko Canada Inc. FCC PART 24, SUBPART E PROJECT NO.: 2W06371 EQUIPMENT: SpotCell 111/112, PCS Low Power Repeater Page 3 of 28 Section 1.Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 24, Subpart E. New SubmissionProduction Unit Class II Permissive ChangePre-Production Unit AMP Equipment Code THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. TESTED BY: ______________________________DATE: 20 September 2002 Glen Westwell, Wireless Technologist Nemko Canada Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Canada Inc. FCC PART 24, SUBPART E PROJECT NO.: 2W06371 EQUIPMENT: SpotCell 111/112, PCS Low Power Repeater Page 4 of 28 Summary Of Test Data Name Of TestPara. No.Result RF Power Output2.1046Complies Occupied Bandwidth2.1049Complies Spurious Emissions at Antenna Terminals2.1051Complies Field Strength of Spurious Emissions2.1053Complies Frequency Stability2.1055Complies Notes: This RF device, the Sptocell 111/112 CU is part of a PCS Band amplifier. It is used to enhance signals in the Downlink direction. IndoorTemperature:22 °C Humidity:45 % OutdoorTemperature:23 °C Humidity:48 % . Nemko Canada Inc.FCC PART 24, SUBPART E PROJECT NO.: 2W06371 EQUIPMENT: SpotCell 111/112 CU, PCS Low Power Repeater Page 5 of 28 Section 2.General Equipment Specification Manufacturer: Spotwave Wireless Inc. Model No.: SpotCell 111/112 CU Serial No.: CU S/N 0020002830005 Date Received In Laboratory: 3 Sept., 2002 Nemko Identification No.: #3 Supply Input Voltage: 120 VAC Frequency Range: Downlink: BLK A: 1930-1945MHz BLK D: 1945-1950MHz BLK B: 1950-1965MHz BLK E: 1965-1970MHz BLK F: 1970-1975MHz BLK C: 1975-1990MHz RF Output (Rated): CU (Downlink):+7dBm Antenna Gain (Integral): CU (Downlink): 3dBi Emission Designator(modulation): CDMA - G7W GSM - F7W Nemko Canada Inc.FCC PART 24, SUBPART E PROJECT NO.: 2W06371 EQUIPMENT: SpotCell 111/112 CU, PCS Low Power Repeater Page 6 of 28 Section 3.RF Power Output Para. No.: 2.1046 Test Performed By: Glen WestwellDate of Test: 5 Sept., 2002 Minimum Standard:24.232 Test Results:Complies. The maximum RF output power is within ± 1dB of the manufacturer’s rating. The RF output power is de-rated according to the number of channels via AGE and is equal to Pmax –10LogN. Pmax = Maximum RF Output Power N = Number Of Channels Nemko Canada Inc.FCC PART 24, SUBPART E PROJECT NO.: 2W06371 EQUIPMENT: SpotCell 111/112 CU, PCS Low Power Repeater Page 7 of 28 Nemko Canada Inc.FCC PART 24, SUBPART E PROJECT NO.: 2W06371 EQUIPMENT: SpotCell 111/112 CU, PCS Low Power Repeater Page 8 of 28 Nemko Canada Inc.FCC PART 24, SUBPART E PROJECT NO.: 2W06371 EQUIPMENT: SpotCell 111/112 CU, PCS Low Power Repeater Page 9 of 28 Nemko Canada Inc.FCC PART 24, SUBPART E PROJECT NO.: 2W06371 EQUIPMENT: SpotCell 111/112 CU, PCS Low Power Repeater Page 10 of 28 Section 4.Occupied Bandwidth Para. No.: 2.1049 Test Performed By: Glen WestwellDate of Test: 5 Sept., 2002 Minimum Standard:24.238 Test Results:Complies. Measurement Data:See attached graphs. The occupied bandwidth was measured by comparison of input to the output signal. This was done in order to determine if there was any degradation to the output signal due to the amplification through the repeater. Nemko Canada Inc.FCC PART 24, SUBPART E PROJECT NO.: 2W06371 EQUIPMENT: SpotCell 111/112 CU, PCS Low Power Repeater Page 11 of 28 Nemko Canada Inc.FCC PART 24, SUBPART E PROJECT NO.: 2W06371 EQUIPMENT: SpotCell 111/112 CU, PCS Low Power Repeater Page 12 of 28 Nemko Canada Inc.FCC PART 24, SUBPART E PROJECT NO.: 2W06371 EQUIPMENT: SpotCell 111/112 CU, PCS Low Power Repeater Page 13 of 28 Ne…

Text truncated - open the document above for the full version.

Nemko Canada Inc.FCC PART 24, SUBPART E PROJECT NO.: 2W06371 EQUIPMENT: SpotCell 111/112 CU, PCS Low Power Repeater Page 24 of 28 Field Strength of Spurious Emissions - Photograph SpotCell 111/112 CU
