P3YSPOTCELL0007Spotcell 111/112 CU Rev 1.1

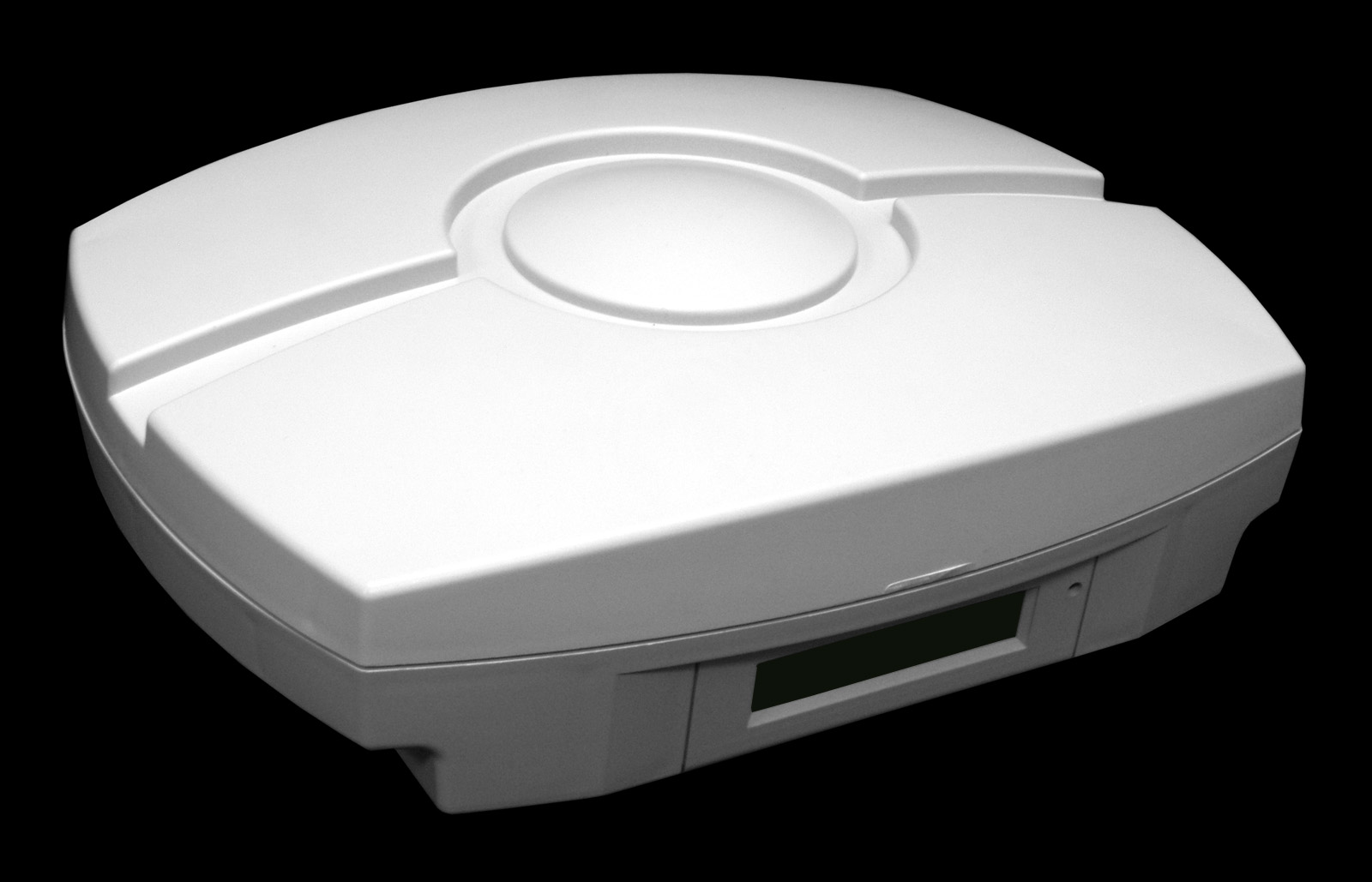

SpotCell™ 100 SERIES USER MANUAL Affordable, reliable In-building wireless coverage solutions. Technical Support The SpotCell TM serial number must be available to authorize technical support and/or to establish a return authorization for defective units. The serial number is located on the back of the Coverage Unit (CU) and Donor Unit (DU) as well as the box in which they were delivered. Additional support information may be obtained by accessing the SpotwaveWireless Inc. website at www.spotwave.com. To contact support by telephone, call your local Spotwave vendor, or if you are unable to reach your vendor, contact Spotwave Wireless at 1-877-610- 9586. Important Safety Information Wa r n i n g ! For your safety, beware of power lines and ensure appropriate safety measures are maintained at all times during the installation of the SpotCell equipment. If equipment not shipped with the SpotCell system is to be used during installation or mounting, follow all equipment manufacture’s instructions in proper use to ensure injury is avoided. The DU and CU of the SpotCell are low power transmitters. As with a cell phone antenna, avoid unneccessary contact with the front of the units after installed. Mount the units in a location where people will not approach within 1 meter of the front of the DU and 20 centimeters in front of the CU. The Spotcell 111/112 CU is provisioned with an MCX connector at the back for extended coverage area. This allows customers to extend the coverage area by connecting the RF output to an external antenna through an RG-6 cable. SpotWave Wireless Inc recommends that the maximum antenna gain of the external antenna not exceed 3dBi and that the two antenna be separated by at least 2 meters. The minimum distance for Maximum Permissible Exposure (MPE) to RF signals from the external antenna is less than 1 cm for both the general public and occupational personnels when using an antenna with ii SpotCell a maximum gain of 3dBi. Spotwave Wireless Inc recommends that the external antenna should always have a radome with a separation greater than 1 cm from the radiating element." This manual outlines installation instructions and the appendix offers practical safety tips (see page 43 entitled ‘Safety Hints’). If you are not sure about a safe installation, do not attempt to install it yourself. Call a professional installer for help. Spotwave Wireless Inc. iii LIMITED WARRANTY AND LIMITATION OF LIABILITY: 1. What is Covered and for How Long? Spotwave Wireless Inc. ("Spotwave") warrants to the original Purchaser that the Spotwave SpotCell System (the "System") is free from defects in material and workmanship under normal use and service for a period of 12 months from the date of shipment from Spotwave (the "Limited Warranty Period"). 2. What is not covered? This Limited Warranty is conditioned upon proper use of the System by the Purchaser. This Limited Warranty does not cover (and will become null and void in the event of ): (a) defects or damage resulting from accident, misuse, abuse, neglect, unusual physical, electrical or electromechanical stress, modification of the System or any part thereof, or cosmetic damage; (b) removal, alteration or defacing of the serial number or other identifying marks on the System; (c) all plastic surfaces and other externally exposed components that are scratched or damaged due to normal use; (d) malfunctions resulting from the use of the System in conjunction with accessories, products or (ancillary) or peripheral equipment not provided by Spotwave; or (e) defects or damage from unauthorized or improper testing, operation, maintenance, installation, servicing or adjustment of the System. Any repairs or replacements provided by Spotwave outside of the Limited Warranty Period (including repairs to or replacement after the end of the Warranty Period), or in excess of the services provided during the Limited Warranty Period, will subject to Spotwave's then prevailing rates. 3. What are Spotwave's Obligations and how do you make a claim? During the Limited Warranty Period, Spotwave will repair or replace, at Spotwave's sole option, without charge to Purchaser, any defective component of the System, provided that the System is returned promptly upon discovery of the defect and during the Limited Warranty Period. To obtain service, Systems must be returned to an authorized service facility in the original packaging or packaging adequate for shipping, accompanied by Purchaser's sales receipt or comparable substitute proof of sale showing the date of purchase and the serial number of the System. A valid RMA is required prior to any return. To locate your nearest authorized service facility, call Spotwave Customer Service at 1-877-610-9586. Spotwave may, at Spotwave's sole option, use rebuilt, reconditioned, or new parts or components when repairing any System or replace a System with a rebuilt, reconditioned or new System. Repaired Systems will be warranted for a period equal to the remainder of the original Limited Warranty Period for the original System or for 90 days, whichever is longer. All replaced parts, components, boards or equipment shall become the property of Spotwave. If Spotwave determines that any System is not covered by this Limited Warranty, Purchaser must pay the costs for all parts, shipping, and labor charges for the repair or return of such System. 4. What are the Limits on Spotwave's Liability? EXCEPT FOR THE WARRANTY IN PARAGRAPH 1, THE SYSTEMS AND ANY ASSOCIATED SERVICES ARE PROVIDED BY SPOTWAVE ON AS 'AS IS' BASIS AND THERE ARE NO OTHER REPRESENTATIONS, WARRANTIES OR CONDITIONS, ,EXPRESS OR IMPLIED, WRITTEN OR ORAL, ARISING BY STATUTE, OPERATION OF LAW, COURSE OF DEALING, USAGE OF TRADE OR OTHERWISE, REGARDING THEM OR ANY OTHER PRODUCT OR SERVICE PROVIDED HEREUNDER OR IN CONNECTION HEREWITH BY SPOTWAVE. SPOTWAVE DISCLAIMS ANY IMPLIED WARRANTIES OR CONDITIONS OF DURABILITY, MERCHANT ABILITY, MERCHANTABLE QUALITY, SATISFACTORY QU…

Text truncated - open the document above for the full version.

THIS DOCUMENT IS THE PROPERTY OF “Spotwave Wi reless Inc.” AND MAY BE NEITHER USED, COPIED, REPRODUCED OR OTHERWISE DEALT WITH NOR ITS CONTENTS COMMUNICATED TO OTHERS EXCEPT IN ACCORDANCE WITH WRITTEN INSTRU CTIONS RECEIVED FROM “Spotwave Wireless Inc.”.

UNIT LABEL LOCATION

Operational Description The SpotCell 111/112 uses an IF frequency to perform gain control and filtering functions in both the downlink and uplink directions. The same LO signal is used to provide both down- conversion and up-conversion of the RF signal. In this configuration the output RF frequency is independent of the actual LO frequency, or any LO frequency error. The LO signal is generated by a frequency sythesizer that is phase locked to a TCXO reference source, which has a maximum frequency error of ± 2.5 ppm (see attached VC-TCXO-208C data sheet). However as noted above, because the same LO is used to convert to and from the IF frequency, this error is not transferred to the output frequency. The only sources of spurious radiation within the SpotCell are the Local Oscialltors used in the uplink and downlink, and the clock frequency used by the on-board micro-controller. The LO frequencies have been selected to prevent in-band spurious signals from being generated. Out of band spurious signals are filtered by SAW RF filters which are located between the uplink and downlink gain stages. The uplink and downlink oscillators and associated components are located in separate shielded compartments to control stray radiation. The microprocessor and associated digital circuits that use the 15MHz clock are housed in their own, separate shielded compartment to ensure that the clock and harmonics do not create spurious signals at the antennas. In addition, each RF stage in the uplink and downlink chain has its own decoupling components to prevent clock and LO signals from entering the signal path through the power supply. The PCB uses 3 separate ground planes to provide shielding and provide a low impedance ground for the RF stages and decoupling components. SpotCell 111/112 uses an AGC circuit in both the uplink and downlink to control the RF power fed to the output stages. These stages are calibrated during manufacture to ensure that output amplifiers are limited to operating at 10dB or more below the maximum output power of the device. This ensures linear operation, and prevents any distortion of the signal that may affect the occupied bandwidth of the signal (modulation). The AGC circuit use logarithmic detectors to measure the AGC output power, together with an integrator and linear voltage controlled amplifier. This AGC configuration allows the system to operate linearly over a wide dynamic range. In addition, a supervisory system is used to monitors the input power level and to shut down the downlink or uplink if the input power exceeds the maximum specified.

Prediction of MPE limit at a given distance Spotwave Wireless P3YSPOTCELL0007 Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:7.00(dBm) Maximum peak output power at antenna input terminal:5.011872336(mW) Antenna gain(typical):3(dBi) Maximum antenna gain:1.995262315(numeric) Prediction distance:20(cm) Prediction frequency:1900(MHz) MPE limit for uncontrolled exposure at prediction frequency:1(mW/cm^2) Power density at prediction frequency:0.001989(mW/cm^2) Maximum allowable antenna gain:30.01269855(dBi) Margin of Compliance at 20cm = 27dB 2 4R PG S π =

Master: Generic FCC Date: October 16, 2001 Test Report: 3W06968 Applicant: Spotwave Wireless Inc. 1 Hines Rd. Ottawa, Ontario K2K 3C7 Equipment Under Test: SpotCell 111/112 CU (EUT) PCS Low Power Repeater In Accordance With: FCC Part 24, Subpart E FCC ID. : P3YSPOTCELL0007 Tested By: Nemko Canada Inc. 303 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: Russell Grant, Senior Approvals Eng. Date: 25 March 2003 Total Number of Pages: 29 Nemko Canada Inc. FCC PART 22, SUBPART E PROJECT NO.: 3W06968 EQUIPMENT: SpotCell 111/112, PCS Low Power Repeater Page 2 of 29 Table of Contents Section 1. Summary of Test Results ...................................................................................3 Section 2. General Equipment Specification......................................................................5 Section 3. RF Power Output ................................................................................................7 Section 4. Occupied Bandwidth ........................................................................................11 Section 5. Spurious Emissions at Antenna Terminals ....................................................16 Section 6. Field Strength of Spurious Emissions .............................................................24 Section 7. Frequency Stability...........................................................................................26 Section 8. Block Diagrams .................................................................................................27 Section 9. Test Equipment List .........................................................................................29 Nemko Canada Inc. FCC PART 22, SUBPART E PROJECT NO.: 3W06968 EQUIPMENT: SpotCell 111/112, PCS Low Power Repeater Page 3 of 29 Section 1. Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 24, Subpart E. New Submission Production Unit Class II Permissive Change Pre-Production Unit A M P Equipment Code THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. TESTED BY: ______________________________ DATE: 25 March 2003 Glen Westwell, Wireless Technologist Nemko Canada Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Canada Inc. FCC PART 22, SUBPART E PROJECT NO.: 3W06968 EQUIPMENT: SpotCell 111/112, PCS Low Power Repeater Page 4 of 29 Summary Of Test Data Name Of Test Para. No. Result RF Power Output 2.1046 Complies Occupied Bandwidth 2.1049 Complies Spurious Emissions at Antenna Terminals 2.1051 Complies Field Strength of Spurious Emissions 2.1053 Complies Frequency Stability 2.1055 N/A Notes: This RF device, the Sptocell 111/112 CU is part of a PCS Band amplifier. It is used to enhance signals in the Downlink direction. The EUT is an f1-f1 amplifier, as such frequency stability was not performed. Indoor Temperature: 22 °C Humidity: 45 % Outdoor Temperature: 23 °C Humidity: 48 % . Nemko Canada Inc. FCC PART 24, SUBPART E PROJECT NO.: 3W06968 EQUIPMENT: SpotCell 111/112 CU, PCS Low Power Repeater Page 5 of 29 Section 2. General Equipment Specification Manufacturer: Spotwave Wireless Inc. Model No.: SpotCell 111/112 CU Serial No.: CU S/N SPO-030001570001 Date Received In Laboratory: 17 Mar. 2003 Nemko Identification No.: #3 Supply Input Voltage: 120 VAC Frequency Range: Downlink: BLK A&D: 1930-1950MHz BLK B&E: 1950-1970MHz BLK F&C: 1970-1990MHz RF Output (Rated/Antenna Port): CU (Downlink): +7dBm (Max. Composite) Antenna Gain (Integral): CU (Downlink): 3dBi Emission Designator(modulation): CDMA - G7W GSM - F7W Nemko Canada Inc. FCC PART 24, SUBPART E PROJECT NO.: 3W06968 EQUIPMENT: SpotCell 111/112 CU, PCS Low Power Repeater Page 6 of 29 Test Set Up Configuration Main Integral Ant. (EUT) Analyser Uplink Spectrum Analyser AC/DC Power Converter Spotcell PCS System Under Test DU CU Ant Port Ant Port Downlink Spectrum Downlink Signal Generator Uplink Signal Generator RF coax cable Auxiliary Antenna Dummy Load Nemko Canada Inc. FCC PART 24, SUBPART E PROJECT NO.: 3W06968 EQUIPMENT: SpotCell 111/112 CU, PCS Low Power Repeater Page 7 of 29 Section 3. RF Power Output Para. No.: 2.1046 Test Performed By: Glen Westwell Date of Test: 24 Mar. 2003 Minimum Standard: 24.232 Test Results: Complies. The maximum RF output power is within ± 1dB of the manufacturer’s rating. The RF output power is de-rated according to the number of channels via AGC and is equal to Pmax –10LogN. Pmax = Maximum RF Output Power N = Number Of Channels Nemko Canada Inc. FCC PART 24, SUBPART E PROJECT NO.: 3W06968 EQUIPMENT: SpotCell 111/112 CU, PCS Low Power Repeater Page 8 of 29 Nemko Canada Inc. FCC PART 24, SUBPART E PROJECT NO.: 3W06968 EQUIPMENT: SpotCell 111/112 CU, PCS Low Power Repeater Page 9 of 29 Nemko Canada Inc. FCC PART 24, SUBPART E PROJECT NO.: 3W06968 EQUIPMENT: SpotCell 111/112 CU, PCS Low Power Repeater Page 10 of 29 Nemko Canada Inc. FCC PART 24, SUBPART E PROJECT NO.: 3W06968 EQUIPMENT: SpotCell 111/112 CU, PCS Low Power Repeater Page 11 of 29 Section 4. Occupied Bandwidth Para. No.: 2.1049 Test Performed By: Glen Westwell Date of Test: 24 Mar. 2003 Minimum Standard: 24.238 Test Results: Complies. Measurement Data: See attached graphs. The occupied bandwidth was measured by comparison of input to the output signal. This was done in order to determine…

Text truncated - open the document above for the full version.

Nemko Canada Inc. FCC PART 24, SUBPART E PROJECT NO.: 3W06968 EQUIPMENT: SpotCell 111/112 CU, PCS Low Power Repeater Page 25 of 29 Field Strength of Spurious Emissions – Pre-Scan Photograph SpotCell 111/112 CU Oats Photograph
